Product Type	Surveillance Camera
Brand	KT&C
Model	KPC-N501NUW
Image Sensor	1/3" 960H SONY EXview HAD CCD II
Horizontal Resolution	750 TV Lines
Min. Illumination	Color: 0.05 Lux / F1.2, B/W: 0.02 Lux / F1.2, IR On: 0 Lux
IR LEDs	20 pcs, 940nm, Range up to 25 m
Lens Type	Varifocal (external zoom and focus adjustment)
Day & Night	ICR (Auto switching)
Video Output	1.0 Vp-p Composite (75 Ω), BNC connector
Signal System	NTSC / PAL (selectable)
Electronic Shutter	1/60 sec (NTSC) / 1/50 sec (PAL)
S/N Ratio	More than 50 dB (AGC OFF)
OSD Menu	Built-in (Joystick control), multi-language (8 languages)
Special Functions	ATR (Digital WDR), 2DNR, BLC/HLC, Privacy Zone (4 zones), Motion Detection (4 zones)
White Balance	ATW / PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH-LOCK
Power Supply	DC12V ±10% (max 270 mA) or AC24V ±10% (max 4.9 W) / Dual voltage
Power Recommendation	Regulated DC12V 1A supply for best performance
Ingress Protection	IP66 (Weatherproof)
Operating Temperature	14°F ~ 122°F (-10°C ~ +50°C)
Storage Temperature	-4°F ~ 140°F (-20°C ~ +60°C)
Dimensions (W x H x D)	82.0 x 79.3 x 145 mm
Weight	Approx. 900 g
Mounting	Bracket included, ceiling/wall mount
Safety & Compliance	FCC Class A, CE, Class 2 power supply only (USA/Canada)
Maintenance	Clean with dry cloth; no user-serviceable parts inside

Frequently Asked Questions - KPC-N501NUW KT&C

What power supply should I use for the KPC-N501NUW camera?

It is recommended to use a regulated DC12V 1A power supply for best picture quality and stable operation. An unregulated supply may damage the camera and void the warranty.

Can I use both DC12V and AC24V simultaneously?

No, the camera supports dual voltage but you must connect only one power source at a time: either DC12V or AC24V. Simultaneous connection is not allowed.

What is the maximum IR distance?

The camera is equipped with 20 IR LEDs (940nm) and can illuminate up to 25 meters in complete darkness.

How do I access the OSD menu?

Use the joystick on the camera to access the built-in OSD menu. Navigate through options to adjust settings like white balance, shutter, ATR, privacy zones, etc.

Is the camera suitable for outdoor use?

Yes, it has an IP66 weatherproof rating, making it resistant to dust and water jets, suitable for outdoor installation.

How do I change the lens focus and zoom?

The camera features external varifocal lens. You can adjust the zoom and focus using the external adjustment rings on the camera body without opening the housing.

What video output does the camera provide?

It provides 1.0 Vp-p composite video on a BNC connector with a 75 Ω impedance. Ensure your monitor is set to 75 Ω for proper operation.

Can I adjust the camera settings without a monitor?

Yes, you can use the OSD joystick to navigate menus and change settings, but a monitor is recommended to see the menu display for precise adjustments.

What is the ATR function?

ATR stands for Adaptive Tone-curve Reproduction, also known as Digital WDR. It improves contrast in scenes with both very bright and dark areas, producing a more balanced image.

How do I clean the camera?

Use a dry cloth to clean the housing. Do not use water or cleaning agents. Never attempt to open the camera; refer servicing to qualified personnel.

USER MANUAL KPC-N501NUW KT&C

Thank you for choosing our high quality camera. Before attempting to connect operate this unit, please read and follow these instructions.

CAUTION

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

In USA and Canada, Use Class 2 Power Supply Only

1. CAUTIONS
2. FEATURES
3. COMPONENTS
4. NAME AND FUNCTION
5. INSTALLATION
6. DIMENSIONS
7. SPECIFICATION

8. OSD MENU STRUCTURE

9. IMPORTANT SAFETY INSTRUCTIONS

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions;

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

Note

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense."

WARNING

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Caution

Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

CAUTION

1. A regulated DC12V 1A power supply is recommended for use with this camera for the best picture and the most stable operation.

An unregulated power supply can cause damage to the camera.

When unregulated power supply is applied, product warranty will be out of subject.

1. It is recommended that the camera is used with a monitor that has a CCTV quality 75 video impedance level.

If your monitor is switched to high impedance then please adjust accordingly.

1. Do not attempt to disassemble the camera to gain access to the internal components. Refer servicing to your dealer.

2. Never face the camera towards the sun or any bright or reflective light, which may cause smear on the picture and possible damage to the CCD.

3. Do not remove the serial sticker for the warranty service.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicate that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

This product should not be mixed with other commercial wastes purchased this product, or their local government office, for details of where and how they can take item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

Household users should contact either the retailer where they for disposal.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER.SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the appliance

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

3. FEATURES

• 1/3"960H SONY EXview HAD CCD II
• High Resolution of 700TV Lines
- OSD Function
- Multi Language

(ENGLISH / JAPANESE / GERMAN / FRENCH / RUSSIAN / PORTUGUESE / SPANISH / CHINESE)

• 2DNR
• Privacy Zone / Motion Detect
- Invisible IR
• DC12V / AC24V Dual Voltage
- ATR(Adaptive Tone-curve Reproduction / Digital WDR)

The function provides gradation compensation to improve the contrast of subjects both low-luminance areas and high luminance areas exist in the same picture

4. COMPONENTS

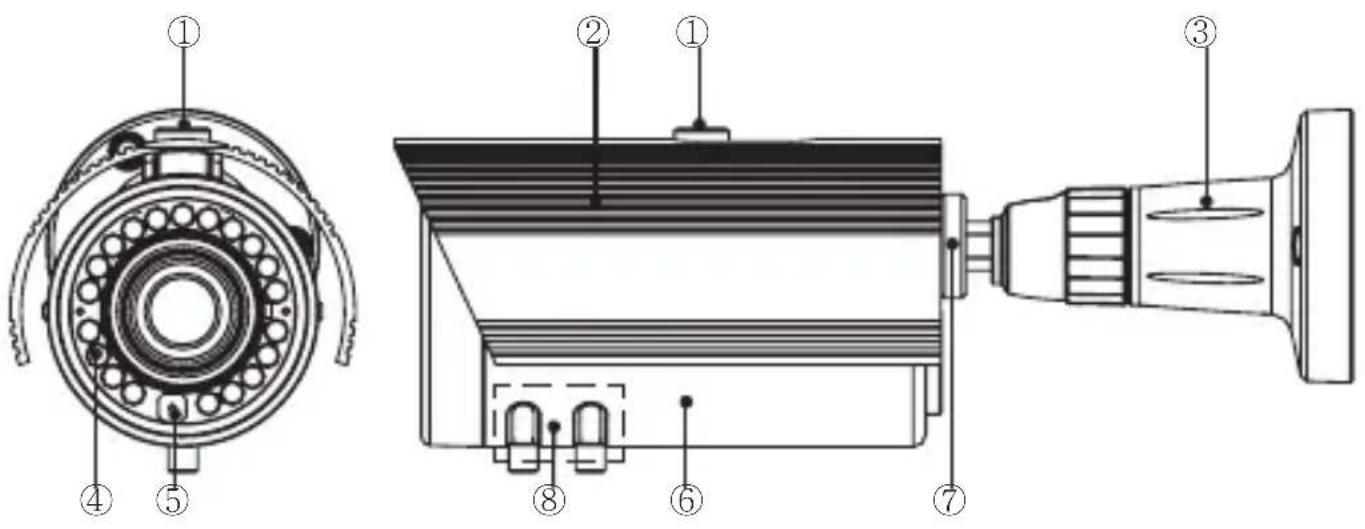

5. NAME AND FUNCTION

① Sunshield Fixing Bolt
② Sunshield
③ Mounting Bracket
④ LED : 20ea
⑤ Photo cell
⑥ Body
⑦ Body Fixing Ring
⑧ External Zoom and Focus adjustment

6. INSTALLATION

- MOUNTING POSITION

• MONITOR CONNECTION

(1) DC12V

(2) DUAL(DC12V/AC24V)

When you install the camera, please glue up the end of cable to keep it stable in order to protect the camera from the humidity problems.

1. SPECIFICATION

Signal Format NTSC PAL
Image Device 1/3~960H SONY EXview HAD CCD II
Scanning System 2 : 1 Interlace
Scanning Frequency 15.734KHz(H), 59.94Hz(V) 15.625KHz(H), 50Hz(V)
Total Pixels 1020(H) X 508(V)	1020(H) X 596(V)
Effective Pixels 976(H) X 494(V)	976(H) X 582(V)
Electronic Shutter Speed 1/60 sec 1/50 sec
H.Resolution 750TV Lines
S/N Ratio More than 50dB(AGC OFF)
Min.Illumination	LED Off : COLOR (0.05Lux / F1.2), BW (0.02 Lux / F1.2)LED On : 0 Lux
Sync System Internal
Gamma	r= 0.45
Video Output Level	1.0 Vp-p Composite(75Ω)
OSD	Built in (Inner Key / Joystick)
BLC	OFF/BLC/HLC
2DNR OFF/ON(Level adjustable)
ATR	OFF/ON(Level adjustable)
Function	ATW / PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH-LOCK
White Balance	ATW / PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH-LOCK
Privacy Masking	4 Zones
Motion Detection	4 Zones
Day & Night(ICR)	AUTO
Language	ENGLISH / JAPANESE / GERMAN / FRENCH / RUSSIAN /PORTUGUESE / SPANISH / CHINESE
IP Rating	IP66 (Weatherproof)
IR LED	940nm, 20ea
IR LED Distance	Up to 25M
Operating Temperature	14°F~122°F(-10°C~+50°C)
Storage Temperature	-4°F~140°F(-20°C~+60°C)
Humidity	Less than 80%
Power Consumption	DC12V Only : DC12V (±10%), Max.270mADual : DC12V (±10%) Max.360mA , AC24V (±10%) Max.4.9W
Lens	Varifocal Lens
Dimension	82.0(W) x 79.3(H) x 145(D)
Weight	Approx. 900g

Specifications and designs are subject to change for improving the functionality of this product without notice.

1. OSD MENU STRUCTURE

MAIN MENU	1st Sub MENU	2nd Sub MENU	3rd Sub MENU	4th Sub MENU
LENS	MANUAL
	AUTO	TYPE DC
		MODE AUTO,OPEN,CLOSE
		SPEED (000 ~ 255)
		RETURN
SHUTTER / AGC	AUTO	HIGH LUMINANCE	MODE SHUT,AUTO IRIS, SHUT+AUTO	IRIS
			BRIGHTNESS (000 ~ 255)
		LOW LUMINANCE	MODE AGC,OFF
			BRIGHTNESS x0.25,x0.50,x0.75,x1.00
		RETURN
	MANUAL	MODE SHUT+AGC
		SHUTTER	1/50(PAL),1/100(NTSC)1/60(NTSC),1/120(PAL)1/250,1/500,1/10001/2000,1/4000,1/10000
		AGC 6,12,18,24,30,36,42,44.8
		RETURN
WHITE BAL	ATW	SPEED (000 ~ 255)
		DELAY CNT (000 ~ 255)
		ATW FRAME x0.50,x1.00,x1.50,x2.00
		ENVIRONMENT INDOOR,OUTDOOR
		RETURN
	PUSH
	USER1	B-GAIN	(000 ~ 255)
		R-GAIN	(000 ~ 255)
		RETURN
	USER2	B-GAIN	(000 ~ 255)
		R-GAIN	(000 ~ 255)
		RETURN
	ANTI CR
	MANUAL	LEVEL 24 ~ 103
		RETURN
	PUSH LOCK
BACK LIGHT	OFF,BLC,HLC
PIC ADJUST	MIRROR	OFF,ON
	BRIGHTNESS	(000 ~ 255)
	CONTRAST	(000 ~ 255)
	SHARPNESS	(000 ~ 255)
	HUE	(000 ~ 255)
	GAIN	(000 ~ 255)
	RETURN
ATR	ON	LUMINANCE LOW,MID,HIGH
		CONTRAST LOW,MID,LOW,MID,MIDHIGH,HIGH
		RETURN
	OFF

*SHUT+IRIS: Both the Shutter and the Mechanical Iris are automatically adjusted according to brightness.

* Auto Iris(Default): The Shutter stays at the manually selected value and only the Mechanical Iris adjusts to brightness.

1. OSD MENU STRUCTURE

MAIN MENU	1st Sub MENU	2nd Sub MENU	3rd Sub MENU	4th Sub MENU
MOTION DET	ON	DETECT SENSE	(000 ~ 255)
		BLOCK DISP	OFF,ON,ENABLE (CONTROLLER)
		MONITOR AREA	ON,OFF
		AREA SEL	1/4, 2/4, 3/4, 4/4
			TOP NTSC:(000 ~ 244) / PAL: (000 ~ 288)
			BOTTOM NTSC:(000 ~ 244) / PAL: (000 ~ 288)
			LEFT NTSC:(000 ~ 474) / PAL: (000 ~ 468)
			RIGHT NTSC:(000 ~ 474) / PAL: (000 ~ 468)
		RETURN
	OFF
NEXT
EXIT
SAVE ALL
PRIVACY	ON	AREA SEL	1/4, 2/4, 3/4, 4/4
			TOP NTSC:(000 ~ 244) / PAL: (000 ~ 288)
			BOTTOM NTSC:(000 ~ 244) / PAL: (000 ~ 288)
			LEFT NTSC:(000 ~ 474) / PAL: (000 ~ 468)
			RIGHT NTSC:(000 ~ 474) / PAL: (000 ~ 468)
		COLOR	(1 ~ 8)
		TRANSP	0.00, 0.50, 0.75, 1.00
		MOSAIC	OFF,ON
		RETURN
	OFF
NR	NR MODE OFF,Y,C,Y/C
	C LEVEL (000 ~ 015)
	Y LEVEL (000 ~ 015)
	RETURN
CAMERA ID	ON EDIT MODE
		RETURN
	OFF
LANGUAGE	ENGLISH,日本語, DEUTSCH, FRANCAIS, Русский, PORTUGUÊS, ESPAÑOL, 中文
CAMERA RESET
BACK
EXIT
SAVE ALL

*Important Note :
- Any changes made to the camera settings must be saved prior to exiting the OSD menu. Else all changes will be discarded.
- By changing the lens option in the OSD from MANUAL to AUTO will automatically change the SHUTTER/AGC setting from AUTO IRIS to SHUT+AUTO IRIS. (Default:AUTO IRIS)
