Product Type	LED PAR Effect Light
Model	FlatPAR 151.285
Brand	BeamZ
Light Source	151 x 10mm LEDs (RGB)
DMX Channels	3 / 7 / 9 channels (selectable)
DMX Connector	3-pin XLR
Control Modes	DMX, Master/Slave, Sound Active, Auto
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	30W
Dimensions (L x W x H)	285 x 285 x 110 mm
Weight	1.5 kg
Housing Material	Metal and flame-retardant plastic
Cooling	Passive convection
Mounting	Floor standing or hanging bracket
IP Rating	IP20 indoor use
Beam Angle	25°
Dimming	0-100% smooth linear dimming
Strobe	0-20 Hz
Included Accessories	Power cord, user manual
Maintenance	Clean with a soft dry cloth; avoid liquids
Repairability	LED panel replaceable; contact service center

Frequently Asked Questions - FlatPAR 151.285 BeamZ

How do I set the DMX address?

Press the MENU button to enter settings, use UP/DOWN to select DMX Address, then set the desired address using the same buttons. Confirm with MENU.

What is the maximum number of units in master/slave mode?

You can connect up to 32 units in master/slave mode using standard DMX cables. The first unit acts as master, others follow.

How do I activate sound active mode?

Press MENU, navigate to Sound Active mode, select ON. The fixture will react to music via built-in microphone.

Can I use this fixture outdoors?

No, the FlatPAR 151.285 is rated IP20 for indoor use only. Keep it away from rain and moisture.

How do I clean the LEDs?

Disconnect power, use a soft dry cloth to gently wipe the surface. Do not use cleaning agents or water.

What power cable is needed?

Use the included AC power cord with IEC C7 connector. Ensure voltage matches your local supply (100-240V).

How many DMX channels does it use?

It supports 3, 7, or 9 channels. Select the mode via MENU > DMX Channels. 7 channels offer more control.

Can I replace the LEDs?

LEDs are not user-serviceable. Contact a qualified technician or BeamZ service center for replacement.

Does it support RDM?

This model does not support RDM (Remote Device Management). It only supports standard DMX512.

What is the warranty period?

BeamZ typically offers a 2-year warranty. Check the manual or contact your dealer for specific terms.

USER MANUAL FlatPAR 151.285 BeamZ

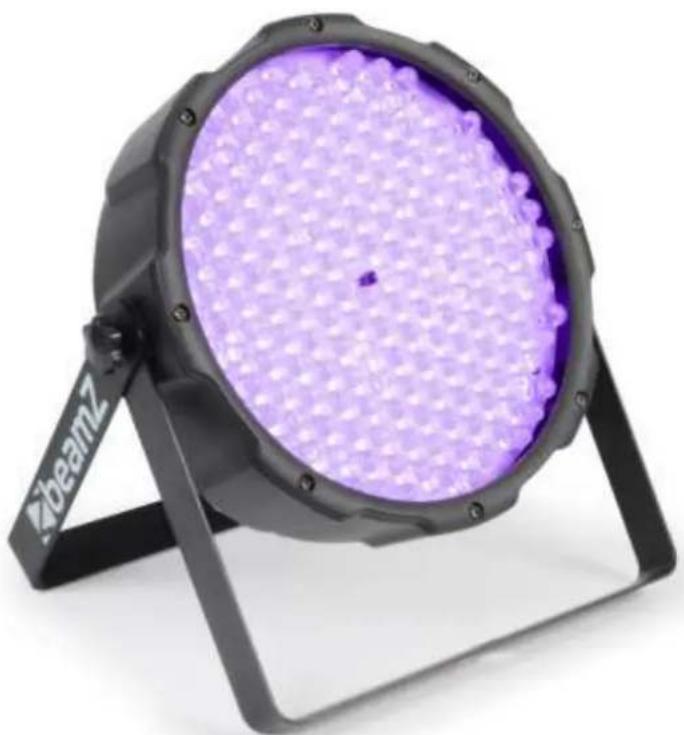

LED FlatPAR-186x10mm UV, DMX

Ref. nr.: 151.285

Close-up of a purple laser diffuser with laser array, mounted on a stand (no text or symbols visible)

INSTRUCTION MANUAL

GEBRUIKSAANWIJZING

GEBRAUCHSANLEITUNG

Congratulations to the purchase of this Beamz light effect. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• During operation, the housing becomes very hot. Do not touch it during operation and immediately after.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Secure the unit with an extra safety chain if the unit is ceiling mount. Use a truss system with clamps. Make sure nobody stands in the mounting area. Mount the effect at least 50cm away from inflammable material and leave at least 1 meter space on every side to ensure sufficient cooling.
• This unit contains high intensity LEDs. Do not look into the LED light to prevent damage to your eyes.
• Do not repeatedly switch the fixture on and off. This shortens the life time.
• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Only operate the unit with clean hands.
• Do not force the controls.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

DO NOT LOOK DIRECTLY INTO THE LENS. This can damage your eyes. Persons who are subject to epileptic attacks should be aware of the effects that this light effect may have on them.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed.

NEDERLANDS

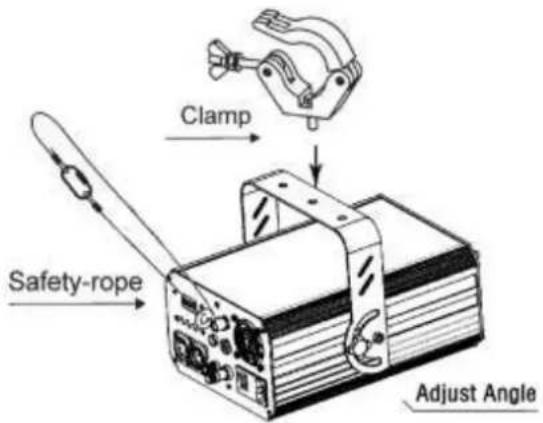

CAUTION: Please consider the respective national norms during the installation! The installation must only be carried out by an authorized employee or dealers!

Attention:

• The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.
• The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
• The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the first time and after changes before taking into operation another time.
• The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year.
• The fixture should be installed in the position where persons cannot reach and where persons may walk by or be seated.

CAUTION: When installing the device, make sure there is no highly in inflammable material (decoration articles, etc.) in between a distance of min 0.5 meter.

POWERSUPPLY

On the label on the backside of the light effect is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The light effect must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

HOW TO CONTROL THE UNIT

The LED FlatPAR-186x10mm UV DMX has four operating modes:

A. Slave Mode - Set the "Master" unit to your desired mode of operation. Set the "Slave" unit in DMX mode address
D001 unit will now follow the "Master"
B. DMX control mode - (D001 - D512)
This function will allow you to control each individual fixtures traits with a standard DMX 512 controller.
C. Manual colour UV Mode - Adjust one of the four UV led groups to mix your effect view.
D. Auto/Sound Mode - There are 3 Auto Modes to choose and sound modes which will react to sound.

After you have selected your desired mode or setting you have to confirm it by pressing the ENTER button.

MODE	MENU	UP - DOWN
DMX Adress(ch. 1-512)
AUTO 1(instant)
AUTO 2(fade smooth)
AUTO 3(fade in/out)
SOUND Mode
MANUAL (colour UV)
MANUAL (colour UV)
MANUAL (colour UV)
MANUAL (colour UV)
FLASH

A. MASTER/SLAVE MODE

Daisy chain your units via the XLR connector on the rear of the unit. Use standard XLR data cables to link your units together. The first unit in the chain (master) will use the female XLR connector only. The last unit in the chain will use the male XLR connector only. Connect the first "Slave" unit to the "Master. Set the "Master" unit to your desired mode of operation. Set all the "Slave" unit(s) to the DMX mode D001.

B. DMX MODE

If control by DMX controller, then you need to set the address code to control the light, the address code value is 1-512, the light could receive the signal accordingly.

DMX CHANNELS

7 Channels

Channel	Function	Value	Function
CH1	Master Dimming	000-255	Dimming 0-100%
CH2	LED UV	000-255
CH3		000-255
CH4		000-255
CH5		000-255
CH6	Auto / Sound Mode	000-050	No function
		051-100	Auto 1 Instant
		101-150	Auto 2 Fade smooth
		151-200	Auto 3 Fade in/out
		201-255	Sound mode
CH7		000-003	No function
		004-255	Strobe / Speed

C. MANUAL UV MODE

Switch the unit on and press the MENU button until "rXXX" is displayed you are in first dimming mode. Press the UP and DOWN buttons to adjust intensity of the LEDs and confirm setting by pressing the ENTER button. When "gXXX" is displayed you are in second dimming mode, "bXXX" is third mode, "uXXX" is fourth mode.

D. AUTO/SOUND MODE

Auto Mode: There are 3 types of Auto Modes to choose from;

• Instant (PXXX)
• Smooth (LXXX)
• Fade (EXXX)

The running speed is adjustable in all 3 modes (000-255).

FIXTURE CLEANING

The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit's optics.

• Make sure the area below the installation place is free from unwanted persons during servicing
- Housings, fixations and installations spots( ceiling, truss, suspensions) should be totally free from any deformation
- The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected
- In order to protect the fixture from overheat the cooling fans (if any) and ventilation openings should be cleaned monthly.
- The interior of the fixture should be cleaned annually using a vacuum cleaner or air-jet.
- Clean with soft cloth using normal glass cleaning fluid.
• Always dry the parts carefully.
- Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.

ATTENTION: We strongly recommend internal cleaning to be carried out by qualified

TECHNICAL SPECIFICATION

Rated voltage : AC100\~240V 50/60Hz

Rated power : 30W

LED : 186x10mm UV LED

Fuse : F2A

Control Signal : DMX signal

Channel : 7Channels

Function : DMX, Auto, Sound active and Master-Slave.

Dimensions per unit : 218 x 218 x 72mm

Weight (per unit) : 1kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Blue glossy circular icon with a stylized white 't' or letter 'b' (no text or symbols)

tronios

Sound & Light

CE Declaration of Conformity

Importer: TRONIOS BV

Regulatory Requirement: EN 60598-1/-2-17

EN 55015

EN 61547

EN 61000-3-2/-3-3

The product meets the requirements stated in Directives 2006/95 and 2004/108/EC and conforms to the above mentioned Declarations.

Almelo, 28-06-2014

Signature:

P. Feldman

www.tronios.com

Copyright © 2014 by TRONIOS the Netherlands
