Product Type	LED FlatPAR Effect Light
Model	FlatPAR 151.281
Brand	BeamZ
LED Configuration	186x10mm RGBW (42 Red, 42 Green, 42 Blue, 60 White)
Rated Voltage	AC100~240V 50/60Hz
Rated Power	40W
Fuse	F2A
Control Signal	DMX512
DMX Channels	7 Channels
Operating Modes	DMX, Auto, Sound Active, Master-Slave, Manual RGBW
Dimensions (per unit)	218 x 218 x 72 mm
Weight (per unit)	1 kg
Mounting	Clamp and safety rope required for ceiling mount
Minimum Distance from Flammable Material	0.5 m
Minimum Space for Cooling	1 m on each side
Ambient Temperature Range	5°C to 35°C (41°F to 95°F)
Protection Rating	Not specified for outdoor use; avoid rain and moisture
Cleaning	Dry cloth for housing; glass cleaning fluid for optics; internal cleaning annually
Safety Features	CE certified, earthed mains connection, secondary safety attachment required
Spare Parts and Repairability	Use only original spares; repairs by qualified technician
Warranty	Invalidated if instructions not followed

Frequently Asked Questions - FlatPAR 151.281 BeamZ

How do I set the DMX address on the FlatPAR 151.281?

Press the MENU button until 'A001' is displayed. Use UP/DOWN to set the address from 1 to 512, then press ENTER to confirm.

What are the different operating modes available?

The unit has four modes: DMX control, Master/Slave, Manual RGBW, and Auto/Sound. Use the MENU button to cycle through options.

How do I use the unit in Master/Slave mode?

Set the Master unit to desired mode. Set Slave units to DMX address D001. Connect via XLR cables; Master uses female XLR, last slave uses male.

What is the maximum number of DMX channels?

The fixture uses 7 DMX channels: CH1 master dimming, CH2 Red, CH3 Green, CH4 Blue, CH5 White, CH6 Auto/Sound mode, CH7 strobe/speed.

How do I adjust colors manually?

Press MENU until 'rXXX', 'gXXX', 'bXXX', or 'uXXX' appears. Use UP/DOWN to adjust intensity (0-255) and press ENTER to save.

Can I use this light outdoors?

No, the unit is not rated for outdoor use. Avoid exposure to rain, moisture, and humid environments to prevent electrical shock.

How should I clean the fixture?

Use a dry cloth for housing. For optics, use a soft cloth with normal glass cleaning fluid. Clean external optics every 20 days, internal every 30-60 days.

What is the recommended mounting distance from walls?

Maintain at least 1 meter of space on each side for adequate cooling. Keep at least 0.5 meters from flammable materials.

Does the unit have a strobe function?

Yes, on DMX channel 7 you can control strobe/speed. Values 004-255 enable strobe, while 000-003 have no function.

What is the power consumption of the FlatPAR 151.281?

The rated power is 40W with an input voltage of AC100~240V 50/60Hz. Always connect directly to a mains outlet, not a dimmer.

USER MANUAL FlatPAR 151.281 BeamZ

LED FlatPAR-186x10mm RGBW, DMX

Ref. nr.: 151.281

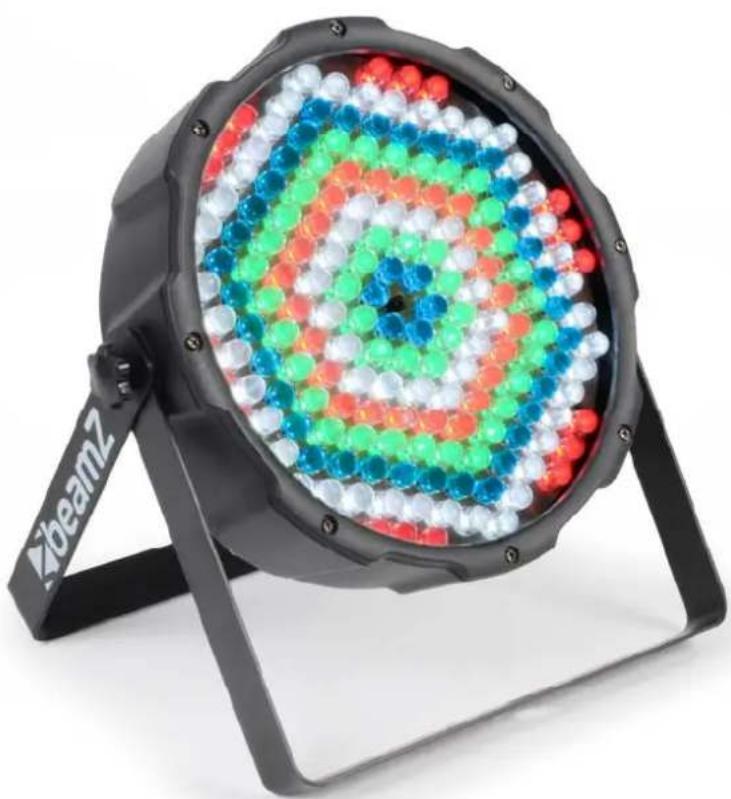

Circular LED array with multicolored beads arranged in a spiral pattern on a stand (no text or symbols visible)

INSTRUCTION MANUAL

GEBRUIKSAANWIJZING

GEBRAUCHSANLEITUNG

Congratulations to the purchase of this Beamz light effect. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• During operation, the housing becomes very hot. Do not touch it during operation and immediately after.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Secure the unit with an extra safety chain if the unit is ceiling mount. Use a truss system with clamps. Make sure nobody stands in the mounting area. Mount the effect at least 50cm away from inflammable material and leave at least 1 meter space on every side to ensure sufficient cooling.
• This unit contains high intensity LEDs. Do not look into the LED light to prevent damage to your eyes.
• Do not repeatedly switch the fixture on and off. This shortens the life time.
• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Only operate the unit with clean hands.
• Do not force the controls.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

DO NOT LOOK DIRECTLY INTO THE LENS. This can damage your eyes. Persons who are subject to epileptic attacks should be aware of the effects that this light effect may have on them.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed.

NEDERLANDS

CAUTION: Please consider the respective national norms during the installation! The installation must only be carried out by an authorized employee or dealers!

Attention:

• The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.

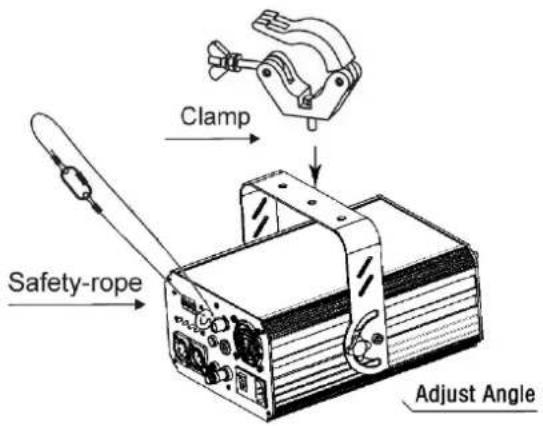

• The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
• The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the first time and after changes before taking into operation another time.
• The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year.
• The fixture should be installed in the position where persons cannot reach and where persons may walk by or be seated.

CAUTION: When installing the device, make sure there is no highly in inflammable material (decoration articles, etc.) in between a distance of min o.5 meter.

POWERSUPPLY

On the label on the backside of the light effect is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The light effect must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

HOW TO CONTROL THE UNIT

The LED FlatPAR-186x10mm RGBW DMX has four operating modes:

A. Slave Mode: Set the "Master" unit to your desired mode of operation. Set the "Slave" unit in DMX mode address D001 unit will now follow the "Master".
B. DMX control mode: This function will allow you to control each individual fixtures traits with a standard DMX 512 controller.
C. Manual RGBW Mode: Adjust one of the four colours to mix your desired colour.
D. Auto/Sound Mode: There are 3 Auto Modes to choose and sound modes which will react to sound.

After you have selected your desired mode or setting you have to confirm it by pressing the ENTER button.

MODE MENU	UP - DOWN
DMX Adress(ch. 1-512)
	MENU UP DOWN ENTER	MENU UP DOWN ENTER		MENU UP DOWN ENTER
AUTO 1(instant)
AUTO 2(fade smooth)
AUTO 3(fade in/out)
SOUND Mode
MANUAL(colour Red)
MANUAL(colour Green)
MANUAL(colour Blue)
MANUAL(colour White)
FLASH	MENU UP DOWN ENTER	MENU UP DOWN ENTER		MENU UP DOWN ENTER

A. MASTER/SLAVE MODE

Daisy chain your units via the XLR connector on the rear of the unit. Use standard XLR data cables to link your units together. The first unit in the chain (master) will use the female XLR connector only. The last unit in the chain will use the male XLR connector only. Connect the first "Slave" unit to the "Master. Set the "Master" unit to your desired mode of operation. Set all the "Slave" unit(s) to the DMX mode D001.

B. DMX MODE

If control by DMX controller, then you need to set the address code to control the light, the address code value is 1-512, the light could receive the signal accordingly.

DMX CHANNELS

7 Channels

Channel Function Value Function
CH1	Master Dimming		000-255
CH2	LED	Red	000-255 Dimming 0-100%
CH3	LED Green
CH4	LED	Blue	000-255
CH5	LED	White	000-255
CH6	Auto / Sound Mode	000-050	No function
		051-100 Auto 1 Instant
		101-150 Auto 2 Fade smooth
		151-200 Auto 3 Fade in/out
		201-255	Sound mode
CH7		000-003	No function
		004-255	Strobe / Speed

C. MANUAL RGBW MODE

Switch the unit on and press the MENU button until "rXXX" is displayed you are in Red dimming mode. Press the UP and DOWN buttons to adjust intensity of the RED LEDs and confirm setting by pressing the ENTER button. When "gXXX" is displayed you are in Green dimming mode, "bXXX" is Blue mode, "uXXX" is White mode.

D. AUTO/SOUND MODE

Auto Mode: There are 3 types of Auto Modes to choose from;

- Instant (PXXX)

- Smooth (LXXX)

- Fade (EXXX)

The running speed is adjustable in all 3 modes (000-255).

FIXTURE CLEANING

The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit's optics.

• Make sure the area below the installation place is free from unwanted persons during servicing
- Housings, fixations and installations spots( ceiling, truss, suspensions) should be totally free from any deformation
- The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected
- In order to protect the fixture from overheat the cooling fans (if any) and ventilation openings should be cleaned monthly.
• The interior of the fixture should be cleaned annually using a vacuum cleaner or air-jet.
- Clean with soft cloth using normal glass cleaning fluid.
• Always dry the parts carefully.
- Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.

ATTENTION: We strongly recommend internal cleaning to be carried out by qualified

TECHNICAL SPECIFICATION

Rated voltage : AC100\~240V 50/60Hz

Rated power : 40W

LED : 186x10mm (42x Red, 42x Green, 42x Blue, 60x White)

Fuse : F2A

Control Signal : DMX signal

[Non-Text]

Channel : 7Channels

Function : DMX, Auto, Sound active and Master-Slave.

Dimensions per unit : 218 x 218 x 72mm

Weight (per unit) : 1kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Blue glossy circular icon with a stylized white 't' shape (no text or symbols)

tronios

Sound & Light

CE Declaration of Conformity

Importer:

TRONIOS BV

Product Description: LED FlatPAR-186x10mm RGBW, DMX

Regulatory Requirement: EN 60598-1/-2-17

EN 55015

EN 61547

EN 61000-3-2/-3-3

The product meets the requirements stated in Directives 2006/95 and 2004/108/EC and conforms to the above mentioned Declarations.

Almelo, 28-06-2014

Signature:

P. Feldman

www.tronios.com

Copyright © 2014 by TRONIOS the Netherlands
