Jonio Design - Air purifier ARGO - Free user manual and instructions

Product Type	Air Purifier with HEPA, activated carbon, cold catalyst, pre-filter, and ionizer
Model	ARGO Jonio Design
Power Supply	AC 220-240 V, 50 Hz
Power Consumption	30 W
Noise Level	30 dB
Negative Ion Output	3 million ions/cm³ (at 10 cm from air emission)
Remote Control Range	6 m
Fan Speeds	3 speeds (low, medium, high)
Timer	1 to 12 hours (in 1-hour increments)
Filter System	4-stage: pre-filter, HEPA, cold catalyst, activated carbon (integrated in one piece)
Filter Replacement	At least once a year
Display	LCD with ionization, speed, and timer indicators
Control Methods	Manual control panel and remote control
Memory Function	Yes, retains previous settings after power off/on
Recommended Placement	Stable flat surface, at least 60 cm from obstacles and 90 cm from floor
Operating Conditions	Temperature -10°C to 55°C, humidity ≤ 95%
Motor Speed	≤ 1300 rpm
Safety Features	Protection against humidity; do not use with wet hands or near flammable gases
Maintenance	Clean with dry cloth; do not use solvents; replace filter when dark

Frequently Asked Questions - Jonio Design ARGO

How do I install the filter in the ARGO Jonio Design air purifier?

Pull the upper part of the front cover to open it, remove the front cover, install the upper part of the filter first, then push the bottom. Fix the bottom first, then push the upper part of the front cover.

How often should I replace the filter?

It is recommended to replace the filter at least once a year, or sooner if it appears dark (indicating reduced efficiency).

Can I use the remote control from a distance?

Yes, the remote control works up to a maximum distance of 6 meters from the air purifier.

What should I do if the air purifier makes high noise?

High noise may be due to high humidity or a dirty filter. Dehumidify the room with an air conditioner or dehumidifier, or replace the filter with a new one.

How do I set the timer?

Press the TIMER button repeatedly to increase the timer in 1-hour increments, up to 12 hours. The display will count down minute by minute, and the appliance will switch off automatically when the timer reaches the last minute.

What is the memory function?

The memory function automatically saves your previous settings (speed, timer, ionization) so that when you turn the purifier off and on again, it restarts with those same settings.

Can I use the air purifier in a bathroom?

No, do not use the air purifier in bathrooms or other rooms with high humidity, as it could cause damage or electric shock.

What does the ionizer do?

The ionizer emits negative ions that mimic natural environments like mountains or waterfalls, which can improve human metabolism and equilibrium, providing a sense of well-being.

How do I clean the air purifier?

Always switch off and unplug the appliance before cleaning. Use only a dry cloth to clean the exterior. Do not use solvents, gasoline, or any liquids, and never immerse the appliance in water.

What should I do if the power cable is damaged?

If the power cable is damaged, do not use the machine. Replace the cable or contact an ARGO service center for repair.

USER MANUAL Jonio Design ARGO

Exterior view of a modern stainless steel air purifier with control panel and display (no visible text or symbols)

Jonio Design

Air purifier

HEPA filter

activated carbon filter

ionizer

Ionizer: The ionizer emits into the air a big quantity of negative ions that abound in natural ambients such as the mountains and near waterfalls or seasides: these negative ions influence positively the equilibrium of the human body, giving a sense of well being.

HEPA filter: it retains hairs from animals, pollens, spore and all the particles with a diameter above 0,3 micron.

GENERAL SAFETY INFORMATION

Read carefully these instructions before using this appliance.

Before using the appliance check that the technical data declared on the nameplate conform to the voltage of the electrical supply network.

Place the appliance on a stable and flat surface. Keep at least 60 cm distance from curtains, furniture, walls and other surfaces which may be an obstacle to the air flow.

For a better air circulation it is advisable to set the air purifier at least at 90 cm from the floor.

Do not employ the air purifier if the cord is damaged or if the electrical socket is loose, in order to prevent electric shock, short circuits or fire hazards.

Do not damage the cable pulling the appliance by the cable, do not run it around sharp edges, do not wind it, do not set heavy objects above the cable, do not set it near hot surfaces.

In order to remove the plug, pull by the plug and not by the cable.

Before extracting the plug, switch off the appliance.

In order to move the appliance use the side handles. Do not use extensions cords.

Do not modify the appliance. If the appliance needs to be serviced or the cable needs to be substituted, please contact an argo service center.

Before cleaning the appliance or substituting the filters, switch off it and remove the plug from the socket.

Never touch the plug or the air purifier with wet hands. Do not operate the appliance while using antimosquito spray.

The appliance is equipped with a protection against the humidity, therefore it should be used only inside houses and far away from rocks, washing basins or similar places where there could be presence of humidity.

Do not immerse the appliance into water or other liquids. Do not operate the appliance near a heater. Do not use the appliance near flammable gases, such as natural gas or propane.

Keep the appliance away from children and invalids in order to avoid accidents.

Do clean the appliance with solvents or petroline. Use ony dry clothes.

Do not insert your fingers and/or any objects into air inlet openings.

During long periods of inactivity, please remove the plug from the socket.

The batteries must be removed from the remote control before scrapping the appliance and must be thrown away in the proper bins for batteries.

DESCRIPTION OF THE AIR PURIFIER

lonizer

This air purifier can produce negative ions. Negative ions abound in natural ambients such as forests, waterfalls, the mountains or the seaside.

Negative ions are useful in order to increase the metabolism and and the equilibrium of the human body.

This air purifier is quipped with a generator of negative ions that process a high quantity of negative ions.

Advanced filter system

One of the special features of this machine lies in the advanced four stages filtration system which comprises the pre-filter, the HEPA filter, the cold catalyst filter and the activated carbon filter, all included in a single piece, easy to substitute.

LCD display

Ionization function, ventilation and time of functioning can be shown on the screen in a very immediate way.

CONTROL PANEL

1. ANION DISPLAY

2. SPEED DISPLAY

3. TIMER DISPLAY

4. POWER

5. ANION

6. SPEED

7. TIMER

1. SETTING THE SPEED

When the appliance starts to run, the velocity of the fan is low and the signal of the low speed fan switches on the display.

If you need to purify the air urgently, press the button SPEED once or twice, then the velocity of the fan will turn to the medium velocity and then to the maximum and the signal of air speed will appear on top of the display.

2. TIMER SETTING

The minimum running of the timer is 1 hour. Press the TIMER once, the timer will increase one hour. The longest period that you can set automatically is 12 hours. After setting the timer it will reduce continually the time of running minute per minute. The appliance will switch off automatically when the timer displays the last minute.

3. IONIZATION FUNCTION

When you need that both the ionizer and the HEPA filter work, press the button ANION, the signal of negative ions will appear on the display.

4. REMOTE CONTROL

This appliance is equipped with a remote control besides the manual controls on the display.

5. MEMORY FUNCTION

The previous settings settings are registered automatically so that the way of running that has been settled previously will be repeated when the air purifier is restarted after switching it off with the button ON/OFF.

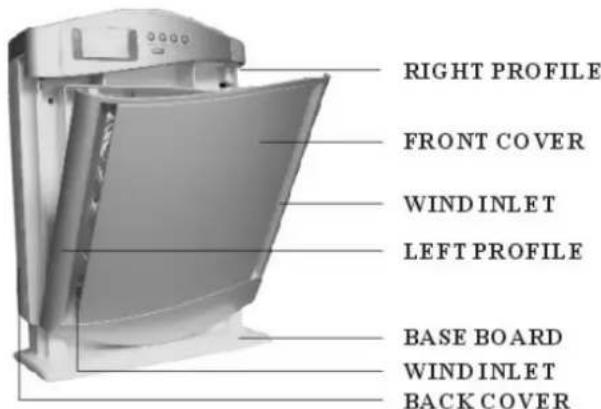

STRUCTURE

REMOTE CONTROL

Technical details

1. Input voltage: AC 220 V - 240 V
2. Frequency: 50 Hz
3. Consumption power: 30 watt
4. Noise level: 30 dB
5. Negative ions: 3 million ions/cm ^3 (at 10 cm distance from air emission)
6. Maximum distance for the use of the remote control from the air purifier: 6 m
7. Operation limits: Temperature -10°C-55°C Humidity ≤ 95 %
8. Power of motor: ≤ 1300 rpm

INSIDE STRUCTURE OF THE FILTER

Prefilter: it can effectively remove the dust particles and bacteria with a diameter above 20 m in the air, thus extending the life time of HEPA filter.

HEPA filter can effectively filter dust particles, pollens and bacteria with a diameter above 0.3 m, thus reaching the effect of air purification and maintain air fresh.

Cold catalyst filer: it can decompose the harmful gases in the air such as forlmaldehyde, carbon monoxide, ammonia, ethyl mercaptan and hydrogen sulfide and have the function of high efficiency antibiosis. It is effective under ambient temperature and requires no illumination.

Activated carbon filter can effectively eliminate the harmful substances in the air.

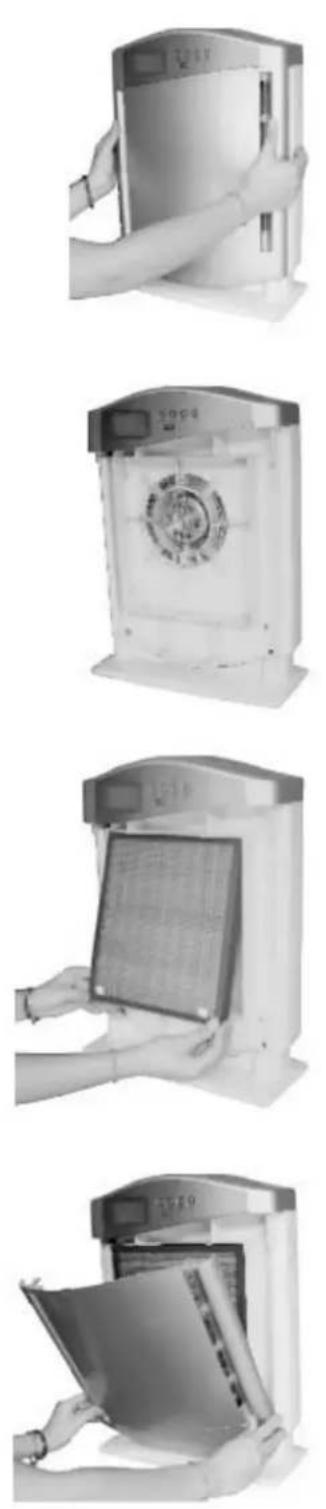

INSTALLATION OF THE FILTER

Pull the upper part of the front cover, then the front cover opens.

Remove the front cover.

Install the upper part of the filter first, then push the bottom.

Fix the bottom first, then push the upper part of the front cover.

WARNING

Do not plug in or plug out the power cable with wet hands.

Illustration of a hand inserting a plug into an electrical outlet, with a warning symbol (no text or labels)

Put plug into the socket properly and tightly to avoid any danger.

Replace if found the power cable damaged. Do not use the machine with damaged cable.

Illustration of hands using a power tool to switch a device, with a no-smoking symbol nearby (no text or labels)

Switch off the appliance before you change the filter. Only professional workers can open the back cover and upper cover.

Illustration of a child standing next to a trash bin with a no-smoking symbol (no text or labels)

It is forbidden to put fingers and metals into the wind exit.

Exterior view of a modern office building (no signage)

Do not use the machine in the bathroom and other rooms with high humidity.

ATTENTION

Illustration of a child sitting on a bench with a no-smoking symbol above, next to a trash can (no text or symbols present)

Do not sit on the air purifier.

Illustration of a kitchen scene with a refrigerator, a window, and a steam rising from a sink (no text or symbols)

Please open the window when use this machine in the kitchen.

Illustration of a toilet on a table with no visible text or symbols

Do not put combustible things (such as tabacco, fire) near the machine to avoid fire.

Do not spray any liquid on this machine.

MAINTENANCE

Check the HEPA filter and substitute it before it becomes dark (the dark filter has low efficiency of filtration).

We suggest you to substitute the filter at least once a year.

For the substitution of the filter follow the instruction described in the chapter “installation of the filter”.

TROUBLE SHOOTING

Problem	Possible	causes
	There is not power supply. Check the electrical socket. Air purifier
	The manual controls do not work in a correct way.	Call a technician in order to repair it.
High noise	High level of humidity in the air.	Before using the air purifier, dehumidify by means of an air conditioner or a dehumidifier.
	The filter is dirty.	Substitute the filter with a new filter.

Solution does not v
