AT-HD530 - Audio/video converter Atlona - Free user manual and instructions

Product Type	Audio/Video Converter
Brand	Atlona
Model	AT-HD530
Input Video Ports	1 x HDMI (supports DVI with adapter)
Input Audio Ports	1 x Digital Coaxial (for DVI with audio)
Output Video Ports	1 x Composite Video (with audio), 1 x S-Video (with audio)
Output Audio Ports	1 x Analog L/R (via Composite/S-Video)
HDMI Loop-Out	1 x HDMI Bypass
Maximum Input Resolution	1080p (HDTV) / UXGA (1600x1200@60Hz)
Output Video Format	NTSC or PAL (selectable)
HDCP Compatible	No
Power Supply	5V DC, 2.6A (universal)
Dimensions (W x D x H)	5.5 x 4.9 x 1.4 inches
Net Weight	1.2 lb
Gross Weight	4 lb
Package Contents	AT-HD530, 5V power supply, instruction manual
Warranty (New Products after June 1, 2013)	10 years

Frequently Asked Questions - AT-HD530 Atlona

What is the Atlona AT-HD530 used for?

The AT-HD530 converts HDMI or DVI digital signals to analog composite or S-Video with audio, allowing connection of HD sources to standard definition displays like CRT TVs.

Does the AT-HD530 support HDCP?

No, the AT-HD530 is not HDCP compatible. It will not work with HDCP-protected sources such as cable/satellite boxes or DVD players.

What output resolutions are supported?

The converter outputs NTSC or PAL formats, selectable via a switch. It accepts input up to 1080p or UXGA (1600x1200@60Hz).

Can I use the HDMI loop-out while converting?

Yes, the AT-HD530 has an HDMI bypass output that passes the original HDMI signal through to a display, allowing simultaneous use of the analog outputs.

What audio inputs does it have?

It has a digital coaxial input for audio, designed for use with DVI sources that carry audio via the DVI-to-HDMI connection.

How do I select between composite and S-Video output?

The output is available on both composite and S-Video jacks simultaneously. Use the appropriate cable for your display; both outputs carry the same video signal.

What power supply is required?

The included 5V DC, 2.6A power supply is required. Using other power supplies may damage the unit.

How do I clean the AT-HD530?

Unplug the device before cleaning. Use a damp cloth; do not use cleaning fluids or aerosols which could cause damage or electric shock.

What is the warranty period?

For new hardware/electronics purchased after June 1, 2013, the warranty is 10 years. For purchases before that date, it is 3 years. Cables have a lifetime warranty.

What should I do if the device stops working due to static discharge?

If an electrostatic discharge causes the unit to turn off, unplug it and plug it back in to restore normal operation.

USER MANUAL AT-HD530 Atlona

1. Introduction 1
2. Features 1
3. Package Contents 1
4. Panel Descriptions 2
   4.1 Front Panel 2
   4.2 Rear Panel 2
5. Connection and Installation 3
6. Specifications 3
7. Safety Information 4
8. Warranty 5
9. Atlona Product Registration 6

INTRODUCTION

Atlona Technologies AT-HD530 is designed to down-convert HDMI or DVI digital signal from PC, Mac, GPS System, Apple TV, Camcorder or Video Game to Analog S-Video or Composite Video with Audio. Along with a featured HDMI/DVI loop-out, this converter has the ability to support resolutions up to 1080p. In addition, this unit is able to detect and down convert those resolutions of to PAL or NTSC formats. Atlona's AT-HD530 is perfect for users using CRT or Standard definition displays and HD sources.

FEATURES:

• Automatically detects and down converts the incoming PC or HDTV resolution to NTSC or PAL formats
• Supports high resolution HDTV input up to 1080p and PC input up to UXGA (1600x1200@60Hz).
- Output video format is selectable between Composite Video and S-Video
- When the signal from HDMI or DVI source is HDCP, the Composite and S-Video outputs would be disabled

Note: AT-HD530 is NOT-HDCP compatible. Will not work with HDCP Devices such as Cable/Sat Boxes and DVD players

PACKAGE CONTENTS:

• 1 x AT-HD530
• 1 x 5V Power Supply
  • 1 x Instruction Manual

PANEL DESCRIPTIONS

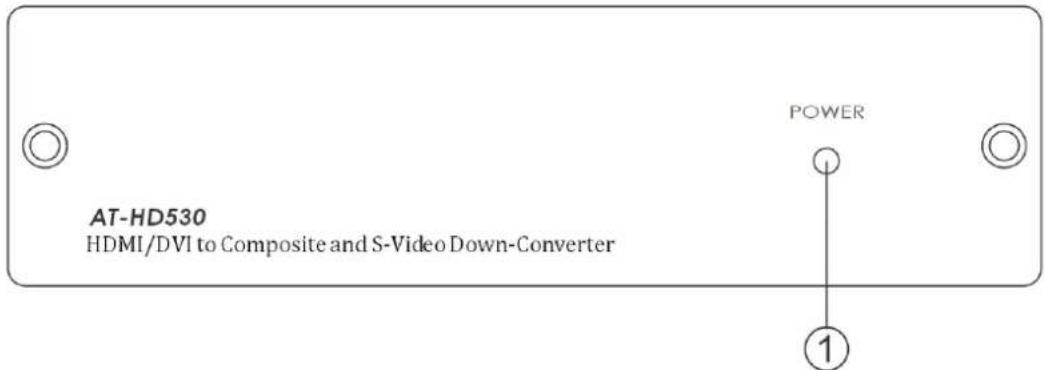

1. Front Panel

1. Power LED: The LED indicator will light up when the unit is powered on.

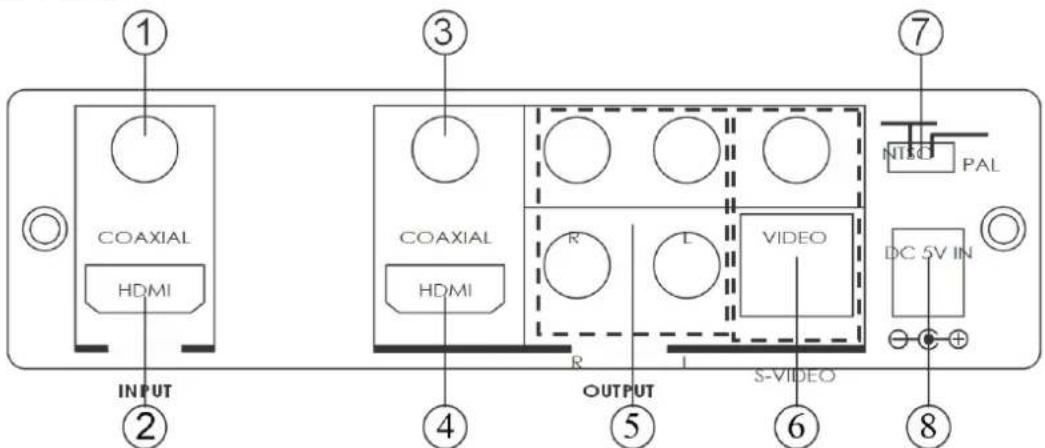

2. Rear Panel

1. Coaxial Input: Connect the digital audio input to the Coaxial output of the source (ie. DVD player, BluRay, Set-Top-Box)
2. HDMI Input: Connect HDMI input to the HDMI output of source
3. Coaxial Output: Connect the digital audio output to the input of your digital audio equipment (ie. Amplifier)
4. HDMI Bypass Output: Connect the HDMI output to the HDMI input of display.
5. L/R Output: Connect the analog audio output to assigned speakers.
6. Composite Video/S-Video: Connect the Composite or S-Video to the input of display.
7. Select between NTSC and PAL system for output.
8. Power: Plug the 5VDC power supply into the unit and connect to assigned AC wall outlet.

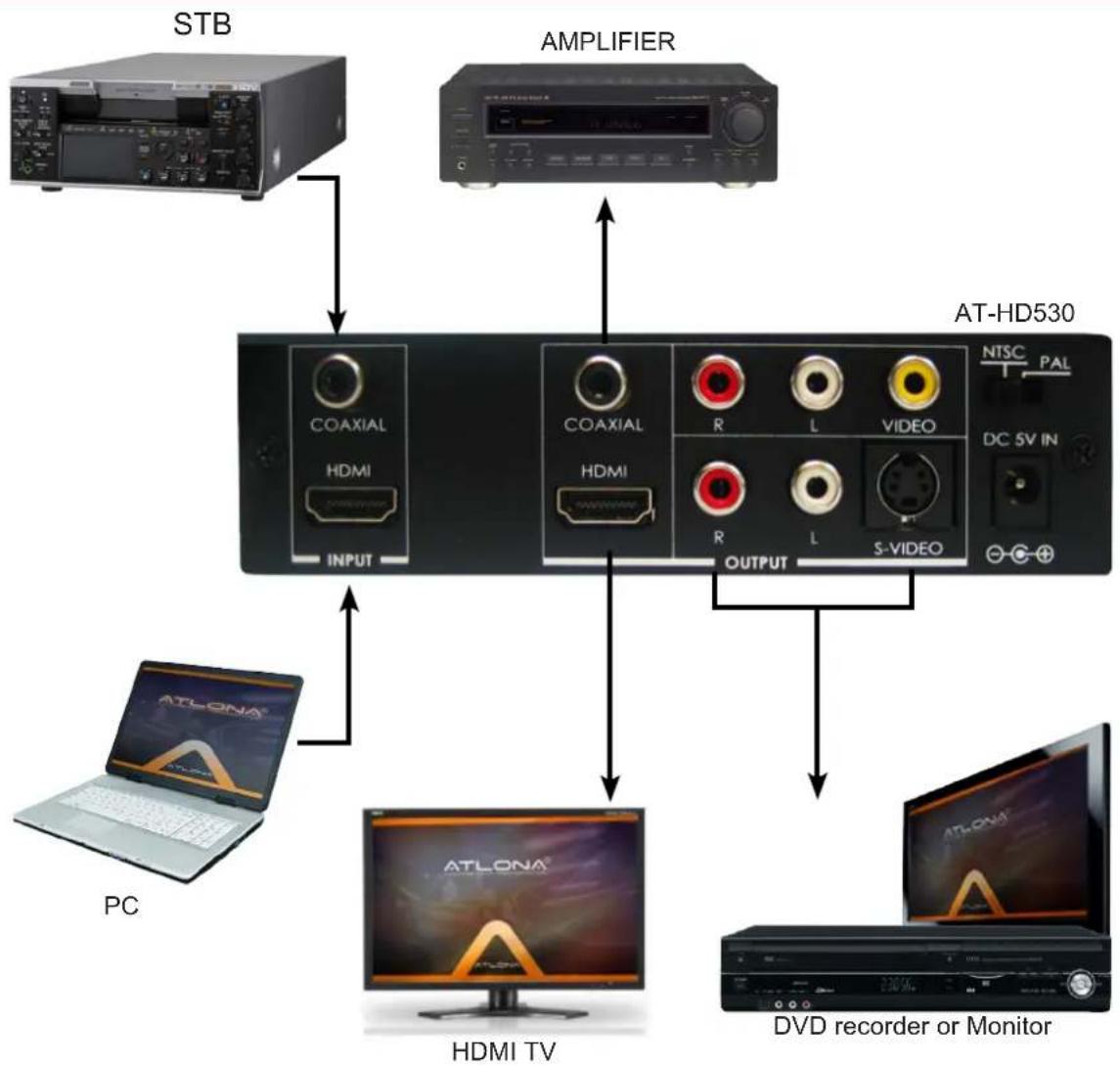

CONNECTION AND INSTALLATION

SPECIFICATIONS

Video Input ports HDM
Audio Input ports Digital	Coaxial (designed for DVI with Audio Applications)
Output ports 1 x Composite	site-Video with Audio,1 x S-Video with Audio
Power Supply 5V/2.6A	(universal)
Dimensions 5.5" x 4.9"	x 1.4"
Net Weight 1.2LB
Gross Weight 4LB

Safeguards

To reduce the risk of electric shock, do not expose this product to rain or moisture.

If the wall plug does not fit into your local power socket, hire an electrician to replace your obsolete socket.

Do not modify the wall plug. Doing so will void the warranty and safety features.

This equipment should be installed near the socket outlet and the device should be easily accessible in case it requires disconnection.

Precautions

FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment.

Operate this product using only the included external power supply. Use of other power supplies could impair performance, damage the product or cause fires.

In the event of an electrostatic discharge, this device may automatically turn off. If this occurs, unplug the device, and plug it back in.

Protect and route power cords so they will not be stepped on or pinched by anything placed on or against them. Be especially careful of plug-ins, or cord exit points from this product.

Avoid excessive humidity, sudden temperature changes or temperature extremes.

Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements and swimming pools.

Use only accessories recommended by ATLONA to avoid fire, shock or other hazards.

Unplug the product before cleaning. Use a damp cloth for cleaning. Do not use cleaning fluid or aerosols, which could enter the unit and cause damage, fire or electrical shock. Some substances may also mar the finish of the product.

Never open or remove unit panels or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-HD530. Opening the product will void the warranty.

Do not attempt to service the unit. Instead disconnect it and contact your Authorized ATLONA reseller or contact ATLONA directly.

Atlona, Inc. ("Atlona") Limited Product Warranty Policy

Coverage

Atlona warrants its products will substantially perform to their published specifications and will be free from defects in materials and workmanship under normal use, conditions and service.

Under its Limited Product Warranty, Atlona, at its sole discretion, will either:

A) repair or facilitate the repair of defective products within a reasonable period of time, restore products to their proper operating condition and return defective products free of any charge for necessary parts, labor and shipping OR

B) replace and return, free of charge, any defective products with direct replacement or with similar products deemed by Atlona to perform substantially the same function as the original products

OR

C) refund the pro-rated value based on the remaining term of the warranty period, not to exceed MSRP, in cases where products are beyond repair and/or no direct or substantially similar replacement products exist.

Repair, replacement or refund of Atlona's products is the purchaser's exclusive remedy and Atlona's liability does not extend to any other damages, incidental, consequential or otherwise.

This Limited Product Warranty extends to the original end-user purchaser of Atlona's products and is non-transferrable to any subsequent purchaser(s) or owner(s) of these products.

Coverage Periods

Atlona's Limited Product Warranty Period begins on the date of purchase by the end-purchaser. The date contained on the end-purchaser 's sales or delivery receipt is the proof purchase date.

Limited Product Warranty Terms – New Products

• 10 years from proof of purchase date for hardware/electronics products purchased on or after June 1, 2013

• 3 years from proof of purchase date for hardware/electronics products purchased before June 1, 2013

• Lifetime Limited Product Warranty for all cable products

Limited Product Warranty Terms – Refurbished (B-Stock) Products

- 3 years from proof of purchase date for all Refurbished (B-Stock) hardware and electronic products purchased on or after June 1, 2013

Remedy

Atlona recommends that end-purchasers contact their authorized Atlona dealer or reseller from whom they purchased their products. Atlona can also be contacted directly. Visit www.atlona.com for Atlona's contact information and hours of operation. Atlona requires that a dated sales or delivery receipt from an authorized dealer, reseller or end-purchaser is provided before Atlona extends its warranty services. Additionally, a return merchandise authorization (RMA) and/or case number, is required to be obtained from Atlona in advance of returns.

Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408-962-0515 (US/international) or via Atlona's website at www.atlona.com.

Exclusions

This Limited Product Warranty excludes:

- Damage, deterioration or malfunction caused by any alteration, modification, improper use, neglect, improper packing or shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature.

- Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.

- Equipment enclosures, cables, power supplies, batteries, LCD displays, and any accessories used in conjunction with the product(s).

- Products purchased from unauthorized distributors, dealers, resellers, auction websites and similar unauthorized channels of distribution.

Disclaimers

This Limited Product Warranty does not imply that the electronic components contained within Atlona's products will not become obsolete nor does it imply Atlona products or their electronic components will remain compatible with any other current product, technology or any future products or technologies in which Atlona's products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.

Limitation on Liability

The maximum liability of Atlona under this limited product warranty shall not exceed the original Atlona MSRP for its products. To the maximum extent permitted by law, Atlona is not responsible for the direct, special, incidental or consequential damages resulting from any breach of warranty or condition, or under any other legal theory. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

To the maximum extent permitted by law, this limited product warranty and the remedies set forth above are exclusive and in lieu of all other warranties, remedies and conditions, whether oral or written, express or implied. To the maximum extent permitted by law, Atlona specifically disclaims all implied warranties, including, without limitation, warranties of merchantability and fitness for a particular purpose. If Atlona cannot lawfully disclaim or exclude implied warranties under applicable law, then all implied warranties covering its products including warranties of merchantability and fitness for a particular purpose, shall provide to its products under applicable law. If any product to which this limited warranty applies is a “Consumer Product” under the Magnuson-Moss Warranty Act (15 U.S.C.A. §2301, ET SEQ.) or other applicable law, the foregoing disclaimer of implied warranties shall not apply, and all implied warranties on its products, including warranties of merchantability and fitness for the particular purpose, shall apply as provided under applicable law.

Other Conditions

Atlona's Limited Product Warranty offering gives legal rights, and other rights may apply and vary from country to country or state to state. This limited warranty is void if (i) the label bearing the serial number of products have been removed or defaced, (ii) products are not purchased from an authorized Atlona dealer or reseller. A comprehensive list of Atlona's authorized distributors, dealers and resellers can be found at www.atlona.com.

Atlona, Inc Product Registration

Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase.

Registration creates an ownership record if your product is lost or stolen and helps ensure you'll receive notification of performance issues and firmware updates.

At Atlona we respect and protect your privacy, assuring you that your registration information is completely secure. Atlona product registration is completely voluntary and failure to register will not diminish your limited warranty rights.

To register go to: http://www.atlona.com/registration
