Product Type	Air Purifier
Brand	OBH Nordica
Model	Pro Mini 6355
Power Consumption	8 – 30 W (depending on speed level)
Speed Levels	5 (Level 1 lowest, Level 5 highest)
Timer Function	2, 4, or 8 hours automatic shut-off
Dimmer	Adjustable LED light intensity
Night Mode	Super silent operation
Filtration System	Prefilter, Washable HPP™ filter, Activated carbon filter
Filter Maintenance (HPP™)	Wash every 2 months with soapy water; dry 12 hours
Filter Replacement (Activated Carbon)	Replace every 6 months
Prefilter Cleaning	Vacuum clean regularly
Scent Tray	Yes, add 1–2 drops of fragrance oil
Power Supply	230 V AC via adapter (included)
Safety Features	Auto shut-off when cover removed? Not specified; general electrical safety
Warranty	According to current law, with proof of purchase
Disposal	Separate collection of WEEE; do not dispose with household waste

Frequently Asked Questions - Pro Mini 6355 OBH NORDICA

How often should I wash the HPP™ filter?

Wash the HPP™ filter at least every 2 months. Soak in soapy water for 1 hour, rinse, and let it dry completely for at least 12 hours before reinstalling.

How often should I replace the activated carbon filter?

Replace the activated carbon filter every 6 months. Note the installation date on the filter edge.

Can I use the air purifier without the activated carbon filter?

It is not recommended, as the activated carbon filter removes odors from cooking and smoke. Without it, odor removal is reduced.

How do I set the timer?

Press the TIMER button repeatedly to select 2, 4, or 8 hours. The corresponding LED will light up. For continuous operation, ensure no timer LED is lit.

What does the DIMMER button do?

The DIMMER button reduces the brightness of the LED speed indicators, ideal for nighttime use. Press again to restore full brightness.

Is night mode available?

Yes, the air purifier features super silent operation at low speed levels, suitable for bedrooms. Additionally, the dimmer ensures no light disturbance.

Can I use essential oils in the scent tray?

Yes, add 1–2 drops of fragrance oil to the scent tray filter. Avoid excessive use to prevent damage to plastic parts.

How do I clean the prefilter?

Use a vacuum cleaner to remove dust and hair from the prefilter. Do not wash it.

What should I do if the filter is not completely dry after washing?

Ensure the HPP™ filter is completely dry (no water on the slats) before reinstalling. After reinsertion, run the purifier at highest speed for 3 hours to dry it fully.

What is the power consumption at different speed levels?

Power consumption ranges from 8 W (level 1) to 30 W (level 5). Actual consumption depends on the selected speed.

USER MANUAL Pro Mini 6355 OBH NORDICA

Cleaning

efficiency: Up to 99.97% //

Washable HPP® filter //

5 speed levels //

Super silent //

Night mode //

Type 6150

Bruksanvisning – svenska ......sida 3 – 7

Beskrivning

Generel beskrivelse

Vaskbart High Potential Particle filter (HPP™ filter)

OBH Nordica Denmark A/S

Ole Lippmanns Vej 1

2630 Taastrup

Tlf.: 43 350 350

www.obhnordica.dk

Tekniske data

OBH Nordica 6150

8-30 watt (hastighed 1-5)

Timerfunktion

Lysdæmper

Forfilter

Vaskbart High Potential Particle filter (HPP™)

Aktivt kulfilter

Duftbakke

CE

Vaskbart High Potential Particle filter (HPP™ filter)

OBH Nordica Norway AS

Postboks 5334, Majorstuen

0304 Oslo

Tlf: 22 96 39 30

Faks: 22 96 39 40

www.obhnordica.no

Tekniske data

OBH Nordica 6150

8-30 watt (hastighet 1-5)

Timerfunksjon

Lysdemper

Grovfilter

Vaskbart High Potential Particle filter (HPP™)

Aktivt kullfilter

Duftbakke

Yleiskuvaus

8–30 W (nopeudet 1–5)

Ajastin

Valonhimmennin

Esisuodatin

1. Read the instruction manual carefully before use and save it for future use.
2. Plug the appliance to a household outlet of 230V only, and use the appliance only for the intended use.
3. The appliance must only be used with the delivered adaptor.
4. Always unplug the appliance from the mains supply before cleaning and maintenance.
5. The appliance must not be immersed in water or other liquids.
6. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way by a person responsible for their safety and they understand the hazards involved.
7. Children should be supervised to ensure that they do not play with the appliance. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.
8. Cleaning and user maintenance shall not be made by children, unless they are over the age of 8 and supervised.
9. Only use original OBH Nordica filters.
10. Check that the cord is not hanging over the edge of the table.
11. Do not place the appliance on or near hotplates, open fire or the like.
12. Always examine appliance, cord and plug for damage before use. If the supply cord is damaged, it must be replaced by the manufacturer or his service agent or a similarly qualified person in order to avoid a hazard.
13. The electrical installation must comply with the current legislation concerning additional protection in the form of a residual current device (RCD with a rated residual operating current not exceeding 30 mA). Check with your installer.

14. The appliance is for domestic use only.

15. If the appliance is used for other purposes than intended or if it is not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

Before use

Before you use the air purifier for the first time, please read the instruction manual carefully and keep it for future use.

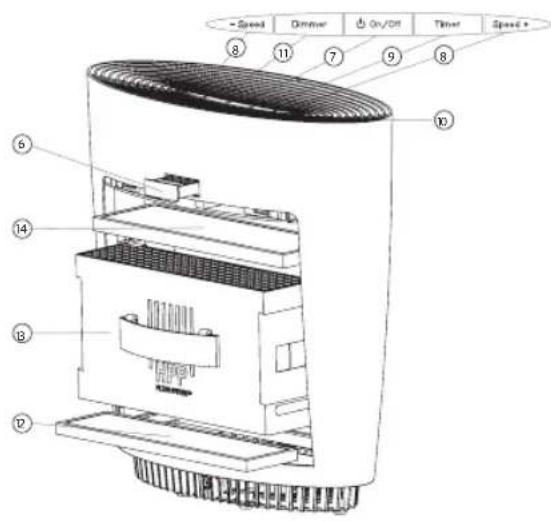

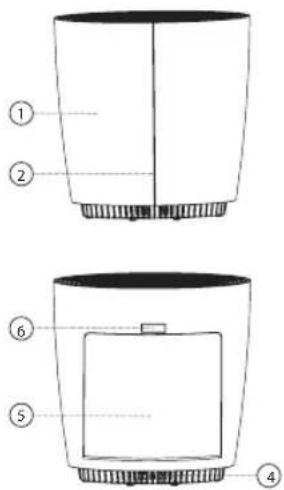

General description

The air purifier comprises the following:

1. Casing
2. LED lamps indicating speed levels 1-5
3. Adapter
4. Adapter plug
5. Cover
6. Scent tray
7. ON/OFF button
8. • / - buttons (for setting the wanted speed)
9. TIMER button (for setting the timer function)
10. LED lamps indicating timer function; 2, 4 or 8 hours
11. DIMMER button
12. Prefilter
13. Washable HPP™ filter (High Potential Particle filter)
14. Activated carbon filter

How to use the air purifier

Before you switch on the air purifier, remove the packaging material from the activated carbon filter. To get access to the filter, remove the cover on the back of the air purifier by simultaneously pressing the two buttons on the cover. Remove the activated carbon filter from the air purifier and remove the packaging material. Reinsert the carbon filter and put the cover back on again. Make sure that the dowel at the bottom of the cover is inserted first. Now slightly press the cover to make it engage.

Position the air purifier on a dry and even surface. Insert the small plug of the adapter in the air purifier and the big plug in a socket. Switch on the air purifier by pressing the ON/OFF button.

Speed levels

The air purifier has 5 speed levels that also adjust the efficiency with which the air in the room is cleaned. Set the speed by pressing the + or the - button; at the same time the blue LED lamps (2) of the appliance are set in such a way that 1 lamp is on for setting 1 (lowest level), 2 lamps for setting 2 etc.

Level 1: The lowest, most quiet level for use .e.g. in bedrooms at night

Level 2: Quiet for use in bedrooms and small rooms

Level 3: For continuous use during the day in small rooms (25 m²)

Level 4: For continuous use during the day in big rooms (up to 50 m ² ), e.g. open kitchens or living rooms.

Level 5: Highest speed for fast purification of the air or cleansing of highly polluted air.

Timer function

The air purifier has a timer function that ensures that the appliance is switched off automatically after 2, 4 or 8 hours. Press the TIMER button and choose the wanted interval, which is indicated by LED lamps on top of the air purifier. The air purifier can also run continuously if that is what you want. Continuous running is indicated by the LED lamps of the timer function NOT being on.

Dimmer

You can reduce the light intensity of the LED lamps if you want to have the air purifier on e.g. in the night without being disturbed by the light of the lamps. To do this, press the DIMMER button. The intensity of the LED lamps will be increased again by pressing the DIMMER button.

The air purifier consists of three different filters for optimum filtering of the air:

Prefilter

The prefilter removes big particles such as hair and dry dust particles, from the air and protects the washable HPP ^™ filter.

Washable High Potential Particle filter (HPP™ filter)

The washable HPP ^™ filter cleanses the air in the room of viruses, bacteria, fine dust, pollen, excretions from house dust mites and mould fungus. When the air purifier is on, the slats in the filter magnetize and suck up the particles.

Activated carbon filter

The activated carbon filter removes obnoxious smell generated by e.g. cooking odour or tobacco smoke.

Scent tray

The air purifier comprises a scent tray that can be used if you want to add aroma in the room. We recommend that you add just 1 or 2 drops of aromatic, such as fragrance oil, to the filter in the scent tray (6), as excessive use may damage the plastic parts of the appliance. So do not add more drops until the first added aroma has been used. If you are in doubt, clean the filter and let it dry before adding more drops.

Cleaning and maintenance

To ensure the optimum functioning of the air purifier, follow the instruction manual carefully.

Before you clean the air purifier, disconnect the power and unplug.

The casing of the air purifier can be wiped with a damp cloth and dried with a dry, soft cloth.

The prefilter shall be thoroughly cleaned with a vacuum cleaner, whereas the filter should be replaced every 6 months. You can buy new filters at the dealer where you bought the appliance.

Since fine particles, viruses and bacteria accumulate in the HPP ^™ filter over time, wash the filter at least every 2 months.

Open the cover at the back of the air purifier by clicking the two buttons on the cover and remove the cover. Remove the HPP ^™ filter and let it soak in soapy water for at least one hour. Rinse the filter in cold, running water. Shake possible excess water out of the filter and let it dry outside the air purifier for at least 12 hours. Be sure that the filter is completely dry before putting it back in the air purifier. No drops must be found on the slats of the filter.

Remount the cover and turn on the air purifier at the highest speed level. Let the air purifier be on for at least 3 hours to make sure that the filter is completely dry.

The activated carbon filter is not washable, as washing will destroy its filtering capability. The filter shall be replaced every 6 months. At the edge of the filter there is room for inserting the date of use of the filter. Change the filter 6 months after the date. You can buy new filters with the dealer where you bought the appliance.

The filter in the scent tray is washable. Make sure that it is completely dry before remounting it in the scent tray after cleaning.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment shall be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Warranty

Warranty according to current law. Any claim shall be accompanied by the cash receipt with purchase date. When raising a claim the appliance must be returned to the store of purchase.

OBH Nordica AB

Löfströms Allé 5

SE-172 55 Sundbyberg

Tel: [phone]

www.obhnordica.se

Technical data

OBH Nordica 6150

8-30 watt (speeds 1-5)

Timer function

Dimmer

Prefilter

Washable High Potential Particle filter (HPP ^TM )

Activated carbon filter

Scent tray

These instructions are subject to alterations or improvements.
