USER MANUAL Easy Fry Max AG245BS0 OBH NORDICA

Easy Fry Max

Air Fryer

Bruksanvisning - svenska ....sida 04 - 10

SÄKERHETSANVISNINGAR

- bed and breakfast-steder.

BESKRIVELSE

A. Beholder

B. Håndtag

C. Aftagelig rist

• This appliance is intended to be used in household only. It is not intended to be used in the following applications, and the guarantee will not apply for:
• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.
• This appliance is not intended to be operated by means of an external timer or a separate remotecontrol system.
• If the power supply cord is damaged, it must be replaced by the manufacturer, an authorised service centre or a similarly qualified person in order to avoid any danger.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.
• The temperature of accessible surfaces may be high when the appliance is operating. Do not touch the hot surfaces of the appliance (depending on model).
• Clean removable parts with a non abrasive sponge and dishwashing liquid or in a dishwasher (depending on model).
• Clean the inside and the outside of the appliance with a damp sponge or cloth. Please refer to the «Cleaning» section of the instructions for use.
• The appliance can be used up to an altitude of 4000 m.

• Caution: the surface of heating element is subject to residual heat after use.

• Caution: risk of injury due to improper use of the appliance.

• Caution: do not spill liquid on the connector (depending on model).

Do

• Read and follow the instructions for use. Keep them safe.
• Remove all packaging materials and any promotional labels or stickers from your appliance before use. Be sure to also remove any materials from underneath the removable bowl (depending on model).
• Check that the voltage of your mains network corresponds to the voltage given on the rating plate on the appliance (alternative current).
• Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an approved Service Centre.
• For models with detachable power cords, only use the original power cord.
  • Always plug the appliance into an earthed socket.
• Use the appliance on a flat, stable, heat-resistant work surface away from water splashes.
• Always unplug your appliance: after use, to move it, or to clean it.
• In the event of fire, unplug the appliance and smother the flames using a damp tea towel.
• To avoid damaging your appliance, please ensure that you follow recipes in the instructions and recipe book; make sure that you use the right amount of ingredients.

Do not

• Do not use the appliance if it or the power cord is damaged or if it has fallen and has visible damage or appears to be working abnormally. If this occurs, the appliance must be sent to an Approved Service Centre.
• Do not use an extension lead. If you nevertheless decide to do so, under your own responsibility, use an extension lead that is in good condition and compliant with the power of the appliance.
• Do not let the power cord dangle.
• Do not unplug the appliance by pulling on the power cord.
• Never move the appliance when it still contains hot food.
• Never operate your appliance when empty.
• Do not switch on the appliance near to flammable materials (blinds,

curtains...). or close to an external heat source (gas stove, hot plate etc.).

• Do not store any inflamamable products close to or underneath the furniture unit where the appliance is located.
• Never take the appliance apart yourself
• Do not immerse the product in water.
• Do not use any powerful cleaning products (notably soda based strippers), nor brillo pads, nor scourers.
• Do not store your appliance outside. Store it in a dry and well ventilated area

ADVICE/INFORMATION

• When using the product for the first time, it may release a non-toxic odour. This will not affect use and will disappear rapidly.
• For your safety, this appliance conforms with applicable standards and regulations (Directives on Low Voltage, Electromagnetic Compatibility, Materials in contact with food, Environment, etc.).
• This appliance is designed for domestic use only and not outdoor. In case of professional use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee does not apply.
• For your safety, only use the accessories and spare parts designed for your appliance.
• CAUTION: sensitive people like pregnant women, young children, elderly and immuno-compromised people should take into account that temperatures below 80°C don't cook enough to eradicate all sanitary risk with bacteria for all kinds of food except for yogurt.

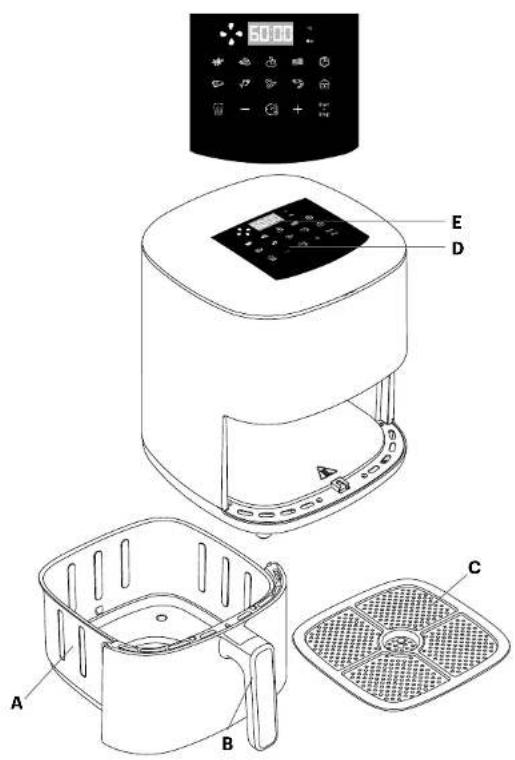

DESCRIPTION

A. Bowl

D. Digital touchscreen panel

B. Bowl handle

E. Time/temperature display

C. Removable grid

AUTOMATIC COOKING MODES

1. French Fries

2. Steak

3. Nuggets

4. Fish

5. Roasted chicken

6. Vegetables

7. Bacon / Beef bacon

8. Shrimps

9. Pizza

10. Desserts

BEFORE FIRST USE

1. Remove all packaging material and any stickers from the appliance.

2. Thoroughly clean the bowl and the removable grid with hot water, some washing-up liquid and a non-abrasive sponge.

Note: the bowl and the grid are dishwasher safe.

1. Wipe the inside and outside of the appliance with a damp cloth. The appliance works by producing hot air. Do not fill the bowl (A) with oil or frying fat.

PREPARING FOR USE

1. Place the appliance on a flat, stable, heat-resistant work surface away from water splashes.

2. Insert the grid at the bottom of the bowl, up to the stop.

3. Do not fill the bowl with oil or any other liquid.

Do not put anything on top of the appliance. This disrupts the airflow and affects the hot air frying result.

IMPORTANT: To prevent the appliance from overheating, do not place it in a corner or below a wall cupboard. A gap of at least 15cm should be left around the appliance to allow air to circulate.

USING THE APPLIANCE

The appliance can cook a large range of recipes. Cooking times for the main foods are given in the section 'Cooking Guide'. Enjoy healthy and crispy dishes thanks to our wide variety of recipes by flashing the QR code in the product sticker.

1. Connect the power supply cord to an electrical socket.

2. Place the food in the bowl.

Note: Never exceed the maximum amount indicated in the table (see section 'Cooking Guide'), as this could affect the quality of the end result.

1. Slide the bowl back into the appliance.

2. To begin cooking, you must select one of the automatic cooking mode:

3. Press 📄 button to display the cooking mode.

4. Then press button on the screen to select the desired cooking mode (these modes are described in detail in the "Cooking guide" section).

5. If needed, adjust the cooking time by pressing the button and adjusting the time with the and buttons. The timer can be set for between 0 and 60 minutes.
6. You can aslo adjust the temperature with the and buttons on the digital screen. The thermostat varies from 70-200°C.
7. Press to begin cooking with the selected temperature and time settings.
8. Cooking starts. The selected temperature and remaining cooking time will alternate on the screen display.

Note : During cooking, you can adjust the cooking time and the temperature by pressing ⚪

1. Excess oil from the food is collected in the bottom of the bowl.
2. Some foods require shaking halfway through the cooking time (see section 'Cooking Guide'). To shake the food, pull the bowl out of the appliance by the handle and shake it. Then slide the bowl back into the appliance, the cooking restarts automatically.
3. When you hear the timer sound, the cooking time set has finished. Pull the bowl out of the appliance and place it on a heat-resistant surface.
4. Check if the food is ready.

If the food is not ready yet, simply slide the bowl back into the appliance and set the timer for a few extra minutes.

1. When the food is cooked, take out the bowl. To remove food, use a pair of tongs to lift the food out of the bowl.

Caution: The bowl should never be turn up side down with the grid. After hot air frying, the bowl, the grid and the food are very hot.

Caution: Do not touch the bowl during use and for some time after use, as it gets very hot. Only hold the bowl by the handle.

1. When a batch of food is ready, the appliance is instantly ready for preparing another batch of food.

COOKING GUIDE

The table below helps you to select the basic settings for the food you want to prepare.

Note: The cooking times below are only a guide and may vary according to the variety and batch of potatoes used. For other food the size, shape and brand may affect results. Therefore, you may need to adjust the cooking time slightly.

	Quantity	Approx Time (min)	Temperature (°C)	Cooking mode	Shake*	Extra information
Potatoes & fries
Frozen chips (10 mm x 10 mm standard thickness)	300 - 800 g	20 - 30 min	180°C		Yes
Homemade French Fries (8 x 8 mm)	300 - 800 g	25 - 35 min	180°C		Yes	Add 1 tbsp of oil
Frozen potato wedges	300 - 800 g	22 - 30 min	180°C		Yes	Add 1 tbsp of oil
Meat & Poultry
Steak	100 - 500 g	6 - 10 min	180°C
Chicken breast fillets (boneless)	100 - 500 g	12 - 19 min	180°C
Chicken (whole)	1000 g 60 min		200°C
Bacon / Beef bacon	150 g (10 slices)	8 min	180°C		YesFlip at mid-cooking
Fish
Salmon fillet	350 g	15 - 17 min	140°C
Prawns	12 pieces	4 min	170°C
Snacks
Frozen chicken nuggets	100 - 600 g	7 - 15 min	200°C		Yes
Frozen chicken wings	300 g 16 - 20 min		200°C		Yes
Frozen cheese sticks	125 g (5 pieces)	7 - 9 min	180°C
Frozen onion rings	200 g (10 pieces)	8 - 10 min	200°C		Yes
Pizza	400g	7 min	190°C
Vegetables
Zucchini	400 - 700 g	15 min	180°C
Baking
Muffins	7 pieces	15 -18 min	180°C			Use a baking tin/oven dish**
Cake	300 g	30 min	160°C

* Shake at least half way through cooking.

Tips: in order to improve the cooking result, do not hesitate to shake 2-3 times when cooking.

IMPORTANT: To avoid damaging your appliance, never exceed the maximum quantities of ingredients and liquids indicated in the instruction manual and in the recipes.

**place the cake tin/oven dish in the bowl.

When you use mixtures that rise (such as with cake, quiche or muffins) the oven dish should not be filled more than halfway.

TIPS

• Smaller food will require a slightly shorter cooking time than larger size food. If you are unsure, you can open the bowl at any point of cooking to check progress.
• Shaking food halfway through the cooking time improves the end result and can help prevent uneven cooking.
• To make your potatoes extra crispy, try adding a small amount of oil before cooking and shake to evenly cover. We recommend 14 ml of oil.
• Snacks that can be cooked in an oven can also be cooked in the appliance.
• The optimal recommended quantity for cooking fries is 700 grams.
• Use ready made puff and shortcrust pastry to make filled snacks quickly and easily.
• Place an oven dish in the appliance's bowl if you want to bake a cake or quiche or if you want to fry delicate ingredients or filled ingredients. You can use an oven dish in silicon, stainless steel, aluminium, terracotta.
• You can also use the appliance to reheat food. To reheat food, set the temperature to 160°C for up to 10 minutes. Cooking time could be adjusted depending on food quantity in order to fully reheat the food.

MAKING HOME-MADE CHIPS

If you want to make home-made chips, follow the steps below.

1. Choose a variety of potato recommended for making chips. Peel the potatoes and cut them into equal thickness chips.

2. Soak the potato chips in cold water for at least 30 minutes, drain them and dry them with a clean, highly absorbent tea towel. Then pat with paper kitchen towel. The chips must be thoroughly dry before cooking.

3. Pour 1 tablespoon of oil (vegetable, sunflower or olive) in a dry bowl, put the chips on top and mix until they are coated with oil.

4. Remove the chips from the bowl with your fingers or a kitchen utensil so that any excess oil stays behind in the bowl. Place the chips in the bowl. Note: Do not tip the container of oil coated chips directly into the bowl in one go, otherwise excess oil will end up at the bottom of the bowl.

5. Fry the chips according to the instructions in the section Cooking guide.

CLEANING

Clean the appliance after every use.

The bowl and the grid have a non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the nonstick coating.

1. Remove the mains plug from the wall socket and let the appliance cool down. Note: Remove the bowl to let the appliance cool down more quickly.
2. Wipe the outside of the appliance with a damp cloth.
3. Clean the bowl and grid with hot water, some washing-up liquid and a non-abrasive sponge.
   You can use a degreasing liquid to remove any remaining dirt.
   Note: the bowl and the grid are dishwasher safe.
   Tip: If food debris/residue is stuck at the bottom of the bowl and the grid, fill them with hot water and some washing-up liquid. Let the bowl and the grid soak for approximately 10 minutes. Then rinse clean and dry.
4. Wipe inside of the appliance with hot water and a damp cloth.
5. Clean the heating element with a dry, cleaning brush to remove any food residues.
6. Do not immerse the appliance in water or any other liquid.

STORAGE

1. Unplug the appliance and let it cool down.
2. Make sure all parts are clean and dry.

Environment protection first!

①Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

Information about your warranty is available at www.obhnordica.com

TEFAL - OBH Nordica Group AB

Löfströms Allé 5

172 66 Sundbyberg

Phone [phone]

www.obhnordica.com

Technical data

OBH Nordica TYPE AG245BSO, AG2458S0

220-240V\~, 50 Hz

1550 watt

CE

These instructions are subject to alterations or improvements.

Scan the QR code to receive our latest offers.
