T7 HD - Television TV Star - Free user manual and instructions

Product Type	LED TV
Screen Size	32 inches (81 cm)
Resolution	1366 x 768 (HD Ready)
Dimensions (without stand)	73.0 x 43.0 x 8.0 cm
Weight (without stand)	4.5 kg
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	50W (typical)
Standby Power Consumption	<0.5W
Connectivity	2x HDMI, 1x USB, 1x AV, 1x VGA, 1x RF
Speakers	2 x 8W
Supported Video Formats	MP4, AVI, MKV, MOV
Supported Audio Formats	MP3, AAC, WMA
Supported Image Formats	JPEG, PNG, BMP
Remote Control	Included (batteries not included)
Wall Mount Compatibility	VESA 200 x 200 mm
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use chemicals.
Safety Warnings	Do not expose to water or heat. Keep away from children.
Spare Parts Available	Remote control, power cord, stand
Warranty	1 year

Frequently Asked Questions - T7 HD TV Star

How do I set up the TV for the first time?

Connect the power cable and antenna or HDMI source. Press the power button on the remote or TV. Follow the on-screen setup wizard to select language and scan for channels.

How can I connect external devices like a laptop or game console?

Use an HDMI cable to connect from the device to one of the HDMI ports on the TV. Select the corresponding HDMI input using the Source button on the remote.

Why is there no sound from the TV speakers?

Check that the volume is not muted (Mute button) and that the volume level is above 0. Also ensure that external speakers or headphones are not connected.

Can I play media files from a USB drive?

Yes, insert a USB drive into the USB port. Press Source and select Media or USB. Use the remote to navigate and play supported video, audio, and image files.

How do I mount the TV on a wall?

Use a VESA 200x200 mm wall mount bracket (not included). Securely attach the bracket to the wall and to the back of the TV. Follow the instructions provided with the mount.

What should I do if the remote control is not working?

First, replace the batteries with fresh ones. Check that nothing is blocking the IR sensor on the TV. If still not working, try resetting the TV by unplugging it for 30 seconds.

How do I clean the TV screen?

Turn off the TV and let it cool. Use a soft, dry microfiber cloth to gently wipe the screen. Do not use any liquids, sprays, or abrasive materials.

Can I record TV programs?

This TV does not have a built-in PVR function. Recording is not supported via USB.

What is the energy efficiency class of this TV?

The energy efficiency class is A+ (EU standard). Actual consumption may vary depending on usage.

How can I reset the TV to factory settings?

Go to Menu > Settings > System > Reset or Factory Reset. Enter the PIN (default is 0000) and confirm. This will erase all custom settings and channels.

USER MANUAL T7 HD TV Star

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

8) Operate this product only from the type of power source indicated on the label. If you are not sure of the type of power connected to your home, consult your local power company. Disconnect the unit from the mains before any maintenance or installation procedure.

9) Protect the mains cord from damage and stress.

10) Only use attachments/accessories specified by the manufacturer.

11) Unplug this apparatus during lightning storms or when unused for long periods of time.

12) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, including damage to the mains cord or plug, if the unit has been exposed to liquid or moisture, has been dropped or is not operating correctly.

13) Do not impede the air flow into the unit by blocking the ventilation slots.

14) Attention should be drawn to the environmental aspects of battery disposal.

15) Use the apparatus in moderate climate.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

WARNING: The batteries shall not be exposed to excessive heat such as direct sun light, fire, etc.

This symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of life separately from your household waste. There are separate collection systems for recycling. For more information, please contact the local authority or your retailer where you purchased the product.

Table of Contents

Operation interface....1

First Time Installation.... 3

Troubleshooting....14

Technical Specifications....15

Operation interface

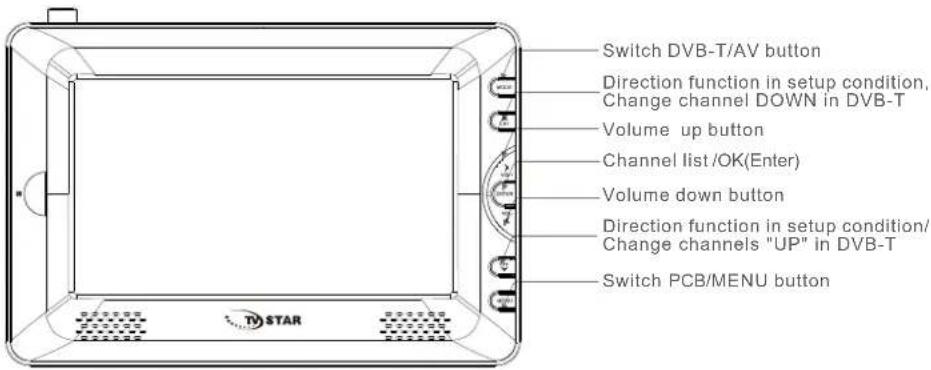

Mainbody operation interface

Connection interface

Operation interface

Remote interface

1. Mode 15. REC/Zoom/Red
2. Number keys 16. Green
3. Setup 17. Mute
4. Channel up 18. Recall
5. Volume DOWN 19. Exit
6. OK 20. Volume UP
7. Page UP (DVB-T mode) 21. Page DOWN (DVB-T mode)
8. Channel down 22. FAV
9. TV/RATIO 23. EPG
10. Info 24. TTX
11. AUDIO
12. Subtitle
13. LCD Setup / Play/ Pause
14. Stop

AV input/output and earphone connection
VCD, DVD play/VCR

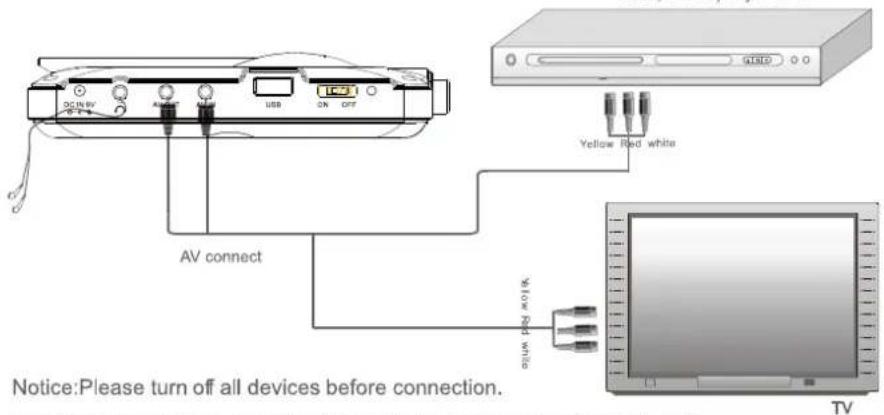

As per the picture, use the A/V cable to connect the portable TV player to a TV or other devices.
Turn on the portable TV player and the other unit to which connection has been made. Press the mode button on the portable TV player or on the remote control to enter in A/V mode.
Note: The audio output only supports Analogue output. Use the AV cable in the accessory bag, connect the audio/video output on this unit to the corresponding Input on TV or stereo amplifier

First Time Installation

After all connections have been made properly, switch on TV and make sure the is connected to the Main Power. Press Power button to switch on. ibu eht If you are using the ufrit the first time or or have restored the unit to Factory Default, thetallation Guide Menu will appear on your TV screen.

(1) [OSD Language] press RIGHT/LEFT key to select a language.
(2) [Country] press RIGHT/LEFT key to select your country of residence.
(3) [Channel Search] press RIGHT or OK key to begin Automatic channel search.
(4) Once channel tuning is complete, you can start watching TV programs.

Basic Operation

(1). Program Manage Settings

To access the Menu, press the MENU button and select [Program]. using the RIGHT/LEFT keys to navigate through the menu. The Menu provides options to adjust the Program Manage Settings. Select an option and press OK or RIGHT to adjust that setting. Press the EXIT button to exit the Menu.

3

(a) Program Edit

To edit your program preferences (lock, skip, favourite, move or delete), you will need to enter the Program Edit Menu. This Menu requires a password to access. Enter the default password '0000'. The master unlock password is .8888'

Set FavouriteChannels

You can create a shortlist of favourite programs that you can easily access. Set Favourite TV or Radio program:

1. Select your desired channel then press the FAVOURITE button.
   A heart-shaped symbol will appear and the channel is marked as a favourite.
2. Repeat the previous step to select more Favouritehannels
3. To confirm and exit the Menu, press the EXIT key.

Disable Favourite TV or RadioChannel :

Select the Favorite channel and press Favorite button on the remote control to cancel.

View Favourite Channel

1. While in normal viewing mode, press Favourite button and the Favo etu Menu will appear.
2. Press UP/DOWN to browse through your Favourite Channels.
3. Press OK to select your favourite channel.

Delete a TV or Radio Program

1. Select the Program and then press the BLUE button.
   A warning message will appear. Press OK to delete the channel.
2. Repeat the previous step to select more channels to delete.

Skip TV or RadioChannel

1. Select the channel you would like to skip and press the GREEN button. Askip symbol is displayed. The channel is marked as a skip.
2. Repeat the previous step to skip more channels
3. To save your settings and exit the menu, press EXIT key.

Disable the Skip Channel function:

Select the Skip channel and press the GREEN button on the remote control to cancel.

4

Move a TV or Radio Program

1. Select the preferred whenless the RED button. A move symbol will appear.

2. Press UP/DOWN to move the channel.

3. Press OK to confirm.

4. Repeat the above steps to move more channels.

Lock Program

You can lock selected programs for restricted viewing

Lock a TV or Radiochannel

1. Select the phone parts that YELLOW button. A lock-shaped symbol is displayed. The disanne marked as locked.

2. Repeat the previous step to select morechannels.

3. To confirm your settings and exit the menu, press the EXIT button.

4. Press the YELLOW button to disable the lockedchannels function.

5. To view the locked channels, you will be required to enter either the default password '0000' or your last set password. The master unlock password is '8888'.

b) EPG (Electronic Programming Guide)

This feature shows the TV program listings for each channel for the following 7 days. By default, when the EPG is opened, the current channel's listings are shown. To view listings for other channels, press the LEFT and RIGHT arrow keys. The display shows the buttons to press to go forward or backward in the programs listing.

Note: Please see section (d) "Scheduling" to learn how to schedule program recordings and channel preview.

Preview Channel:

To set the receiver to change to a channel at a specific time (e.g. at the start of your favourite program) while you are watching another channel, please follow these steps:

- Press EPG to open the full listings.

- Select the TV channel using the LEFT / RIGHT arrow keys.

- Select the TV program you want to watch later.

- Press OK. On the window that pops up, you are able to modify the channel, date and time, as well as optionally selecting to repeat this action on a regular basis.

- Select "View" or "Record" in the "Mode" option.

- Press EXIT.

5

- Select "View" in the "Mode" option.

- Press EXIT.

A few seconds before changing channels, a warning message with a count -down is displayed on screen, which will change to the programmed channel when the count-down ends.

(c) Sort

Sort your channels from the following options:

[By L'CN] - Sort the channels in ascending order.

[By Service Name] - Sort the channels in alphabetical order.

[By Service ID] - Sort the channels according to the station.

[By ONID] - Sort the channels according to ONID.

To access the Menu, press MENU then select [Picture] using the RIGHT/LEFT key. The Menu provides options to adjust the video settings. Press UP/DOWN to select an option and press RIGHT/LEFT to adjust that setting. Press EXIT to exit the menu.

(a) Resolution

You can change this setting if the picture resolution does not appear to be correct. This setting is to match the most common setting for HDMI.

[480P]: for NTSCT.V system

[576P]: for PALT.V system

[720P]: for NTSC or PALT.V system

[1080I]: for NTSC or PALTV system

(b) TV Format

If the picture does not appear to be correct you can change this setting.

This should match the most common setting for TVs in your country.

[NTSC]: for NTSC system TV.

[PAL]: for PAL system TV.

(3). Channel Search

To access the menu, press MENU select [Search Channel] using the RIGHT/LEFT keys.

This Mu provides options to adjust the eArch hannel settings.

Press UP/DOWN to select an option and press RIGHT/LEFT to adjust the setting.

Press EXIT theorem

(a) Auto Search

This option will automatically search for channels and save them once the scanning is complete. All previously saved channels and settings will be deleted.

1. Select [Auto Search] and press OK or RIGHT to start channel search.
2. To cancel channel search, press EXIT.Any channels that have been found will be saved.

(b) Manual Search

This option allows you to scan for new channels without deleting previously saved channels and settings.

1. Select [Manual Search] then press OK or RIGHT. The channel search screen will appear.

7

[NO TEXT]

1. Press the RIGHT/LEFT key to select the channel frequency.

2. Press OK to start searching channels.

If a channel is found, it is saved and added to the channels list. If channels can not be found during searching, the unit will exit automatically.

(c) Country

Select your country of residence.

(4).Time Setting

To access the menu press MENU select [Time] using the RIGHT/LEFT keys. The menu provides option to adjust the time settings. Press UP/DOWN to select an option and press RIGHT/LEFT to adjust the settings. Press EXIT to exit the menu

(a) Time offset

Select auto ormanual for GMToffset adjustments.

(b) Country Region

Select the Country Region when [Time Offset] is set to Auto.

(c) Time Zone

Select the Time Zone Offset when [Time Offset] is set to Manual.

(5). Option

To access the Impress MENU select [Option] using the RIGHT/LEFT keys. The menu provides options to adjust the Subtitle Language and Audio Language. Select an option and press RoAdjustFile setting. Press EXIT to exitenu M

8

⊕

(a) OSD (On Screen Display) Language

Select an OSD language.

(b) Subtitle Language

Select the preferred subtitle language.

(c) Audio Language

Select the preferred audio language for watching TV channels.

If the language is not available, the default program language will be used.

(6). System Setting

To access the menu, press MENU select [System] using the RIGHT/LEFT keys. The menu provides options to adjust the system settings.

Press the UP/DOWN key to select an option and press RIGHT/LEFT to adjust the setting. Press EXIT to exit the menu.

(a) Set Password

Set or change the password for locked programs. Enter your old password or the default password '0000'. You will then be asked to enter your new

Press OK button to confirm .drowssap .drowssapenruoy

Once it is confirmed, press EXIT to exit the Menu. The master unlock password is '8888'

(b) Restore Factory Default

Reset your Set Top Box to the Default Factory Settings.

In Main Menu select [Restore Factory Default] using the RIGHT/LEFT keys and press OK or RIGHT to select. Enter your password or the default password '0000' and press OK to confirm. This option will delete all preset channels and settings. The master unlock password is '8888'.

(c) Software Update

To update the software through the USB.

(c) Information

View model, hardware and software information.

(7). USB

To access the Menu, press the MENU button and select [USB] using the RIGHT/LEFT keys. The menu provides options to playback Music, Photo and Multimedia files. It can support AVI, MP3, WMA, JPEG and BMP formats. The unit will only support USB device with FAT32 / NTFS file system.

(a) Multimedia: When a USB device is attached you can select from the Music, Photo or Movieoptions in thismenu using the RIGHT/LEFT keys and OK to select. If a USB device is not connected, the warning message "No USB device is Found" will appear.

(b) Photo configure:

-Slide Time: adjust slide show interval to 1\~8 seconds.
-Slide Mode: adjust slide show effect as mode 0\~59 or random.

-Aspect Ratio:

[Keep]: Play picture in its original aspect.

[Discard]: Play picture in full screen mode.

(c) Movie Configure:

- Aspect Ratio:

[Keep]: Play movie in its original aspect.

[Discard]: Play movie in full screen mode.

- Subtitle Specific:

[Small]: Displays the subtitle as small mode.

[Normal]: Displays the subtitle as normal mode.

[Big]: Displays the subtitle as big mode.

- Subtitle BG:

[White]: Displays the subtitle in white background.

[Transparent]: Displays the subtitle in transparent background.

[Grey]: Displays the subtitle in grey background.

[Yellowgreen]: Displays the subtitle in yellowgreen background.

- Subtitle Font Color:

[Red]: Displays Subtitle in red font.
[Blue]: Displays Subtitle in blue font.
[Green]: Displays Subtitle in green font.

d) USB RECORDING.

This function is available only when a USB storage device is connected to the receiver.

Instant recording:

If you want to start recording a live show, which is currently being broadcast, go to the desired channel and press the REC button. Press again to stop recording.

Schedule a Recording:

To schedule a recording before broadcast (e.g. record your favourite show while you're out), follow these steps:

• Press EPG to open the full listings.
• Select the TV channel using the LEFT / RIGHT arrow keys.
• Select the TV show you want to record.
• Press OK. On the window that pops up, you are able to modify the channel, date, recording start-time and recording end-time, as well as optionally selecting to repeat this action on a regular basis.

11

- Select "OTHER RECORDING" in the "Mode" option.

- Press EXIT.

A few seconds before starting to record, a warning message with a count-down is displayed on screen, which will change to the programmed channel when the count-down ends. Once the recording has finished, a confirmation message appears on screen.

To view the scheduled events, press the blue button.

To delete a scheduled event, select the event and press the blue button.

The recording files can be deleted on this unit, you can go to the PVR, and press yellow bottun to delete it. The TV program is recorded to file at .PVR format, which can be played back on this unit and PC using a suitable player, but can not be played back on DVD or PDVD

For recording the high definition TV programs, the version of usb device should be 2.0 or above, otherwise the unit may can not record the hd programs correctly.

When recording to usb stick or external hard disc on this model, you have to wait a few seconds before pushing rec. after inserting the media. Otherwise the unit can freeze in the signal. If that happens, then please take off power and connect again to fix this.

Note:

Scheduled recording only works when the unit power is on, it can not work when the unit is standby.

Note:

- We cannot guarantee compatibility (operation and/or bus power) with all USB mass storage devices and assume no responsibility for any loss of data that may occur when connected to this unit.

- With large amounts of data, it may take longer for the system to read the contents of a USB device.

USB devices may not be properly .desingoceremoS- - E v e r when they are in a supported format, some files may not play or display depending on the content.

12

(e) Timeshift

Close-up of a skin lesion with visible inflammation and minor redness, no text or symbols present.

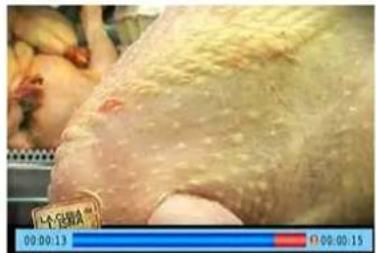

When you are playing the program, you can insert the USB, and at any time you can press the [Time shift] button, the frame will be paused, and you may press the [PLAY] button after a second,

it will start to timeshift now. You may press the PLAY button to return the normal program playing, and the timeshift is continuing, you may see from the below picture's bottom which is showing the time shift status. In this case, you may make the unit to play the recorded program from the start.

Press [Info] key to see time shift information as below:

INFO
PVR Mode	RECORD
Total Space	3.73 GB
Free Space	677.99 MB
File System	FAT32
Cluster Size	4 KB
File Name	S2TVM01-11162010-03
Max File Size	679.87 MB
Max Record Time	00:42:20
Record Bitrate	274 KB/S
Cur Play Size	0 KB
Cur Record Size	1.87 MB

You can press [fast forward]/[fast back] to move the slide to left or right of the current recording. Note: Time Shifting will only be available when USB HDD is connected to the system and read/write speed is high enough to do that.

Press [Stop] button to end the timeshift, and it will back to the normal playing of the program.

13

[NO TEXT]

Troubleshooting

Problem Potential Reasons What to do
No picture	Power isn't connected	Connect the power
	The power switch is not on	Switch on the power
Screen shows “No Signal”	DVB-T cable not connected	Plug in the DVB-T cable
	Aerial cable is faulty	Check aerial cable and connections
No sound from speaker	No or incorrect connection with audio cable	Connect the audio cable correctly
	Sound on mute	Turn off mute function
Only sound, no image on the screen	No or incorrect connection with AV cable	Make sure cables are connected correctly
	The program is a radio program	Presskey to shift into TV mode
Remote Control is not responding	The battery is exhausted	Change battery
	Remote Control is not facing or close enough to the Set Top Box	Adjust the position of the Remote Control and move closer to the unit
Picture is breaking up	The signal is too weak	Check aerial cable and connections

Technical Specifications

Item	Sub Item	Parameter
Tuner	Input Frequency	170~230MHz470~860MHz
	RF Input level	7 0 mBd28 - ~-
	IF Bandwidth	6MHz/7MHz/8MHz
	Modulation	QPSK,16QAM,64QAM,256QAM
Video	Decoder Format	MPEG4 AVC/H.264 HP@L4MPEG2 [e-mail]
	Output Format	576P , 720P, 1080i, 4:3 and 16:9
	Output Port	CVBS
Audio	Decoder Format	MPEG-1 (layer1&2&3 ), WMA, AC3
	Audio output	AV out
USB 2.0	Supported Capacity	500GB
	Supported Media MP	3, WMA, JPEG, BMP, AVI
Power	Supply Voltage	~220-240V 50/60Hz
	Maximum Power Consumption	8 W
	Standby Power Consumption	< 0.5W
Weight	0.8 kgs
Size	190x 150x 40mm

Notice about recycling

Your product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic products.

Please help us to conserve the environment we live in!
