Product Type	Freestanding Washing Machine
Brand	UPO
Model	WF 3504
Dimensions (W x H x D)	59.5 cm x 85.0 cm x 33.0 cm
Maximum Load Capacity	3.5 kg
Maximum Spin Speed	1000 rpm
Water Pressure Range	0.05 MPa - 1 MPa
Power Supply	See rating plate
Digital Display	No (LED indicators)
Number of Programs	10+ (Cotton, Synthetics, Delicates, Wool, Hand Wash, Quick, Daily, Rinse, Spin, etc.)
Temperature Settings	Cold / 30°C / 40°C / 60°C / 90°C
Special Technologies	Easy Logic (auto load sensing)
Optional Functions	Pre-wash, Extra Rinses, Spin Exclusion
Spin Imbalance Control	Yes
Door Lock	Automatic door lock during cycle
Water Consumption	Variable (Easy Logic adjusts)
Energy Efficiency Class	Reference program per EN 60456

Frequently Asked Questions - WF 3504 UPO

How do I start a wash cycle?

Open the door, load the laundry, pour detergent and fabric conditioner into the respective compartments, select the program and temperature using the knob (P), choose optional functions with buttons (C), then press the Start button (L). The LED will light after 2-3 seconds to indicate the door is locked and the program has started.

Can I open the door during a cycle?

Only after turning the program knob to STOP and waiting 2 minutes for the door to unlock. This is recommended only if strictly necessary and if the program started less than 3 minutes ago.

What is the Easy Logic technology?

The Easy Logic system automatically detects the amount of laundry loaded and adjusts the water quantity and wash time accordingly. It saves water, time, and energy. This function is active only for cotton programs.

How do I use the pre-wash function?

Select a compatible program (Cotton, Synthetics, or Daily), press the Pre-wash button, and add detergent to the pre-wash compartment. The machine will perform a short pre-wash of about 10 minutes at a maximum temperature of 40°C.

What does the extra rinse function do?

Pressing the Extra Rinses button adds three additional rinses at the end of the cycle. This is useful in areas with very soft water or if detergent residues are noticed after washing.

How can I skip the spin cycle?

Press the Spin Exclusion button. The machine will complete the wash cycle and stop before spinning. The button lights up to indicate the function is active, and the clothes will be wet.

Why does the machine spin at lower speed sometimes?

The spin load imbalance control system checks if the laundry is evenly distributed in the drum. If unbalanced, the final spin speed is reduced; if very unbalanced, the spin is not performed to prevent damage.

What is the maximum load for different fabric types?

Maximum recommended loads: Cotton 3.5 kg, Synthetics 2.0 kg, Delicate 1.7 kg, Wool 0.75 kg. Do not overload the machine.

How do I clean the detergent drawer?

The drawer can be removed for cleaning. Rinse it under running water to remove any detergent residue. Ensure it is dry before reinserting.

What should I do if the machine does not start?

Check that the power cord is plugged in, the water supply is open, the door is properly closed, and the program knob is not set to STOP. Press the Start button again after selecting a program.

USER MANUAL WF 3504 UPO

PESUKONEEN TÄRKEIMMÄT TOIMINNOT

"EASY LOGIC" TEKNOLOGI

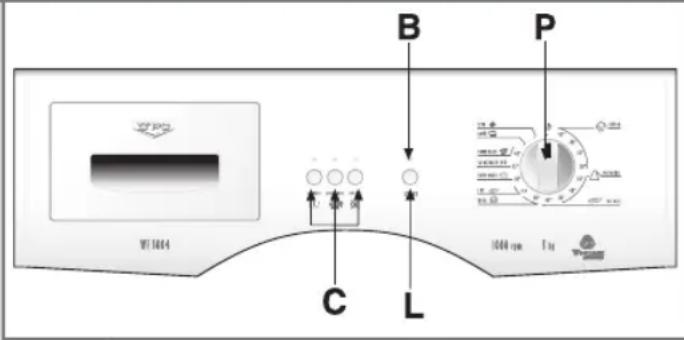

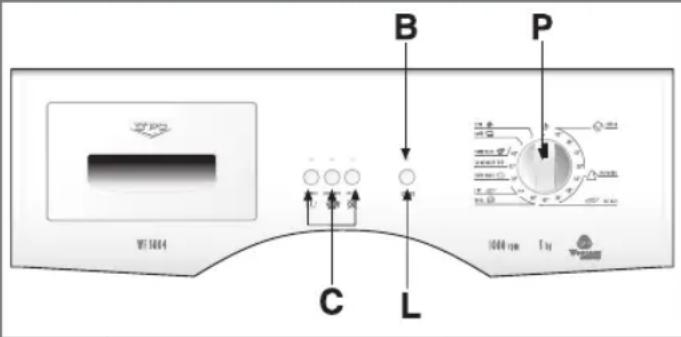

MAIN FUNCTIONS OF THE WASHING MACHINE

B Led Stard
C Optional function button
L Start button
P Programme and temperature knob

USING THE WASHING MACHINE

WASH CYCLE:

(follow these instructions and the washing machine will run the selected wash cycle)

1. Open the door.
2. Load the washing in the drum and close the door.

Warning: Do not overload the machine. It is not advisable to wash items that absorb large quantities of water such as carpets.

1. Pour the low-suds washing powder and the fabric conditioner for automatic washing machines into their respective compartments (see the "USE OF DETERGENTS" chapter)
2. close the detergent drawer. do not open the drawer while the machine is working as this may cause water to spill out.
3. Rotate the programmer knob (P) to select the required programme and temperature according to the type of fabric to wash (see: "PROGRAMME TABLES").
4. Select the (C) buttons with the functions required (see "OPTIONAL FUNCTIONS").
5. Press button (L) to start the wash cycle (see "START BUTTON")
6. At the end of the wash cycle, turn the program selector knob (P) on "STOP" and the light (B) will switch off.
7. Open the door and remove the washing.
8. With dry hands, unplug the washing machine from the mains supply.
9. Close the water feed valve.

SPIN LOAD IMBALANCE CONTROL:

This washing machine is equipped with a special electronic control system for correctly balancing the wash load.

Prior to each spin, the system ensures that the washing is evenly distributed in the drum. If the washing is not evenly distributed, the final spin speed is reduced, and if the load is very unbalanced, the spin is not effected.

START BUTTON:

After having carried out all the operations described in points 1 to 6 in the paragraph "WASHING CYCLE" press this button and the washing machine will begin its washing cycle. The relative LED will light up after 2-3 seconds, to indicate that the door is locked and the program has started.

PROGRAMME KNOB "STOP":

The function of stop is to reset the washing machine. If for any reason during the washing cycle you decide to vary it, or decide later to add more laundry, all you have to do is turn the knob of the program selector to the "STOP" position, then reset the knob to the new program chosen and press the "START" button.

Warning!! It is recommended to use this function only if strictly necessary and solely if the program to be reset has started not more than 3 minutes previously. Before being able to open the door after a reset, you must wait 2 minutes for it to be unlocked.

OPTIONAL FUNCTIONS

If one of the following buttons is selected, the corresponding LED will switch on. But if it has been selected by mistake or you have changed your mind, simply press it again to cancel the selection.

PRE-WASH:

When this button is pressed, a short pre-wash with a maximum temperature of 40^ C lasting for about 10 minutes is provided. This function can only be used on the “COTTON, SYNTHETICS and DAILY” programs.

N.B. If you use this option, the detergent must also be poured into the appropriate compartment for the pre-wash.

EXTRA RINSE:

The washing machine has been built so that water consumption is reduced to a minimum. For areas with very soft water or in the case possible residues of detergent are noticed at the end of the cycle, pressing this button the machine will add three extra rinses.

PREWASH

EXTRA RINSES

SPIN EXCLUSION:

When this button is pressed, the machine carries out a wash cycle and stops before spinning. The button lights up.

N.B. Use of the optional functions is restricted by the type of program chosen; so, if the program does not allow the function, it will not be possible to enable the button (see PROGRAM TABLE).

NO SPIN

PROGRAMMER KNOB		WASH TEMPERATURE	SYMBOL	FABRIC TYPE	DISPENSER COMPARTMENTS	SPINN SPEED	BUTTONS ENABLED			AUTOMATIC
							PREWASH	EXTRA RINSES	NO SPIN
	COTTON	90°		Heavily soiled white cotton fabrics with organic stains.		Max (or lower)		3 (+3)
	COTTON *	60°		For shirts, tablecloths, towels that are resistant and normally soiled		Max (or lower)		3 (+3)
	COTTON	40°		White and coloured fabrics that are resistant and heavily soiled		Max (or lower)		3 (+3)
	COTTON	30°		Delicate coloured fabrics that are lightly soiled		Max (or lower)		3 (+3)
	THETICS	60°		Colourfast synthetic fabrics that are heavily soiled		800 (or lower)		3 (+3)
	THETICS	40°		Delicate coloured synthetic fabrics that are lightly soiled	[WZGA]	800 (or lower)		3 (+3)
	THETICS	30°		Delicate coloured synthetic fabrics that are lightly soiled		800 (or lower)		3 (+3)
	LICATES	40°		Delicate cotton, viscous and mixed delicate fabrics		500 (or lower)		3
	WOOL ***	40°		Machine washable wool		800 (or lower)		3
	ELICATES	COLD		Machine washable wool, silk and delicate mixed fabrics		800 (or lower)		3
	WOOL
	ID WASH	30°		Hand washable fabrics		800 (or lower)		3
	K H	35°		Quick wash of approximate duration 35-40 minutes for lightly soiled fabrics.		Max (or lower)		2
		40°		Short wash for cotton and resistant fabrics requiring frequent washing		Max (or lower)		4 (+3)
	INSES			To rinse and refresh the washing		Max (or lower)		3 (+3)
	N AND SPIN			Drain and final spin		Max (or lower)		○

FUNCTION ENABLED ○ FUNCTION DISABLED

OPTIONAL WITH PRE-WASH BUTTON PRESSED

* Reference programme for energy classification purposes according to standard EN 60456.
** Press start to continue the program.
*** The wool wash cycle of this machine has been approved by Woolmark for the washing of machine washable Woolmark products provided that the garments are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. M0402-M0403-M0404-M0405.

MODEL →		WF3504	WF5004
Dimensions:	Width cm.:	59.5	59.5
	Height cm.:	85.0	85.0
	Depth cm.:	33.0	55.0
Maximum recommended load:		3.5 Kg	5.0 Kg
		2.0 Kg	3.5 Kg
		1.7 Kg	2.5 Kg
		0.75 Kg	1.5 Kg
Max. spin: (rpm)		1000	1000
Water pressure:		min. 0.05 MPa - max. 1 MPa
Max. absorbed power/Electrical connection		see rating plate

"EASY LOGIC" TECHNOLOGY

The electronic washing machine is fitted with an “EASY LOGIC” system that automatically recognises the quantity of washing loaded. The machine can thus regulate the amount of water to use for the wash and proportion the wash time accordingly, thus saving water, time and energy. In the case where the amount of washing is less than the maximum recommended load (see technical characteristics table), the quantity of water used for the wash will be reduced by 2 litres for each kg less of washing.

In the case of a half-load or less, the machine will automatically carry out one rinse less than programmed.

N.B. The "EASY LOGIC" function is only active for cotton programmes.
