Product Type	Microwave Oven with Grill
Brand	Scandomestic
Model	MIG 24 SS
Rated Voltage	230V ~ 50Hz
Rated Input Power (Microwave)	1250 W
Rated Output Power (Microwave)	800 W
Rated Input Power (Grill)	1000 W
Oven Capacity	23 L
Turntable Diameter	270 mm
External Dimensions (WxDxH)	486 x 410 x 288 mm
Net Weight	Approx 13.9 kg
Control Type	Digital and Multi-function Switches
Microwave Power Levels	200W, 300W, 400W, 500W, 600W, 700W, 800W
Grill Function	Yes, with microwave combination options (C-1, C-2)
Defrost Methods	By Weight (100-2000g) and By Time
Auto Menus	8 (Pizza, Chicken, Meat, Potato, Fish, Pasta, Soup, Porridge)
Speedy Cooking	Yes, via Start/+30Sec button
Child Lock	Yes, press STOP for 3 seconds
Clock Setting	24-hour display
Interior Light	Yes (may dim at low power)
Installation Clearance	3 inches (7.5 cm) sides, 12 inches (30 cm) above
Accessories Included	Glass tray, turntable ring assembly, grill rack, instruction manual
Cleaning Instructions	Clean interior with damp cloth; accessories in soapy water
Grounding	3-prong grounding plug required
Safety Certifications	WEEE compliant

Frequently Asked Questions - MIG 24 SS Scandomestic

What should I do if my microwave does not start?

Check that the power cord is plugged in tightly. If it is, unplug and wait 10 seconds before plugging again. Also verify that the door is closed properly. If the problem persists, the outlet may be faulty or a fuse may have blown; consult a qualified electrician.

Can I use metal containers in the microwave?

No, metal containers, aluminum foil (except small shielding pieces at least 2.5 cm from walls), and metal-trimmed utensils can cause arcing and damage the oven. Use only microwave-safe materials like glass, ceramic, or plastic labeled 'microwave safe'.

How do I set the clock on the MIG 24 SS?

Turn the multi-function switch to 'Clock'. The hour digits will flash. Turn the digital switch to set the hour (0-23). Press 'Start/+30Sec.' to confirm. Then set the minutes (0-59) and press 'Start/+30Sec.' again. The clock will display with a flashing colon.

Why is steam accumulating on the door during cooking?

This is normal. Steam escapes through vents, but some may condense on cooler surfaces like the door. It is not a sign of malfunction. Wipe dry after use.

How do I use the child lock feature?

In waiting state, press and hold the 'STOP' button for 3 seconds until you hear a long beep. The display will show a lock indicator. To unlock, press and hold 'STOP' again for 3 seconds.

What does the combination cooking mode do?

Combination mode (C-1 or C-2) uses both the microwave and grill element together for faster cooking with browning. It is ideal for foods like gratin dishes or chicken pieces.

How do I defrost food by weight?

Turn the multi-function switch to 'Weight Defrost' (displays 'DEF1'). Turn the digital switch to select the food weight (100-2000g). Press 'Start/+30Sec.' to begin defrosting. The oven automatically sets the appropriate time and power.

Can I use the microwave without any food inside?

No, operating the microwave empty is dangerous and can damage the magnetron. Always ensure there is food or a microwave-safe container with liquid inside when running.

Why does the oven light become dim at low power?

At lower microwave power levels, the magnetron cycles on and off, which can cause the interior light to dim. This is normal and not a defect.

How should I clean the microwave?

Unplug the oven. Clean the interior with a slightly damp cloth. Wash accessories (glass tray, turntable ring, grill rack) in warm soapy water. Clean the door seals and frame with a damp cloth when dirty. Avoid harsh chemicals.

USER MANUAL MIG 24 SS Scandomestic

English ...... Page 10

still and to make her

Stik med to runde ben Der medfølger en kort el-ledning for at reduere risikopen for at snuble over en

UDSTYR

Risiko for personskade

A) Betjeningspanel

B) Drejeaksel

C) Drejetallerkenring

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

• Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
• Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Rated Voltage: 230V-50Hz

Rated Input Power(Microwave): 1250 W

Rated Output Power(Microwave): 800 W

Rated Input Power(Grill): 1000 W

Oven Capacity: 23 L

Turntable Diameter: 270 mm

External Dimensions: 486x410x288 mm

Net Weight: Approx 13.9 kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1 Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2 Warning: It is hazardous for anyone other than a competent person to remove a cover which gives protection against exposure to microwave energy.
3 Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.
4 Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. (only for grill series)
5 Only use utensils suitable for use in microwave ovens.
6 The oven should be cleaned regularly and any food deposits should be removed.

7 Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8 When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9 If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10 Do not overcook food.
11 Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
13 Install or locate this oven only in accordance with the installation instructions provided.
14 Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
15 Use this appliance only for its intended uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.
16 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
17 Do not store or use this appliance outdoors.
18 Do not use this oven near water, in a wet basement or near a swimming pool.
19 The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.
20 Do not let cord hang over edge of table or counter.
21 Failure to maintain the oven in a clean condition could lead to deterioration if the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
22 The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
23 Microwave heating of beverages can result in delayed eruptive boiling, therefore take care when handling the container.
24 The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
25 Children should be supervised to ensure that they do not play with the appliance.
26 The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.
27 Appliances are not intended to be operated by means of an external timer or separate remote-control system.
28 The door or the outer surface may get hot when the appliance is operating.
29 The rear surface of appliance shall be placed against a wall.

To Reduce the Risk of Injury to Persons

Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

CLEANING

Be sure to unplug the appliance from the power supply.

1 Clean the inside of the oven after using with a slightly damp cloth.
2 Clean the accessories in the usual way in soapy water.
3 The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

Two round pin plug

A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

If a long cord set or extension cord is used:

1 The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
2 The extension cord must be a groundingtype 3-wire cord.

3 The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CAUTION

Personal Injury Hazard

It is hazardous for anyone ther than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

Utensils

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1 Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2 Cook on maximum power for 1 minute.
3 Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4 Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.

Browning dish

Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.

Dinnerware

Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.

Glass jars

Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.

Glassware

Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.

Oven cooking bags

Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.

Paper plates and cups

Use for short-term cooking/warming only. Do not leave oven unattended while cooking.

Paper towels

Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.

Parchment paper

Use as a cover to prevent splattering or a wrap for steaming.

Plastic

Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and lightly closed plastic bags should be slit, pierced or vented as directed by package.

Plastic wrap

Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.

Thermometers

Microwave-safe only (meat and candy thermometers).

Wax paper

Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils

Remarks

Aluminum tray

May cause arcing. Transfer food into microwave-safe dish.

Food carton with metal handle

May cause arcing. Transfer food into microwave-safe dish.

Metal or metaltrimmed utensils

Metal shields the food from microwave energy. Metal trim may cause arcing.

Metal twist ties

May cause arcing and could cause a fire in the oven.

Paper bags

May cause a fire in the oven.

Plastic foam

Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.

Wood

Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

A) Control panel

B) Turntable shaft

C) Turntable ring assembly

D) Glass tray

E) Observation window

F) Door assembly

G) Safety interlock system

Your oven comes with the following accessories:

1 Glass tray

1 Turntable ring assembly

1 Instruction Manual

Grill Rack (Only for Grill series)

Turntable Installation

1 Never place the glass tray upside down. The glass tray should never be restricted.

2 Both glass tray and turntable ring assembly must always be used during cooking.

3 All food and containers of food are always placed on the glass tray for cooking.

4 If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories.

Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet:

Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installation

Select a level surface that provide enough open space for the intake and/or outlet vents. A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls. One side must be open.

1 Leave a minimum clearance of 12 inches (30cm) above the oven.

2 Do not remove the legs from the bottom of the oven.

3 Blocking the intake and/or outlet openings can damage the oven.

4 Place the oven as far away from radios and TV as possible.

Operation of microwave oven may cause interference to your radio or TV reception.

Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

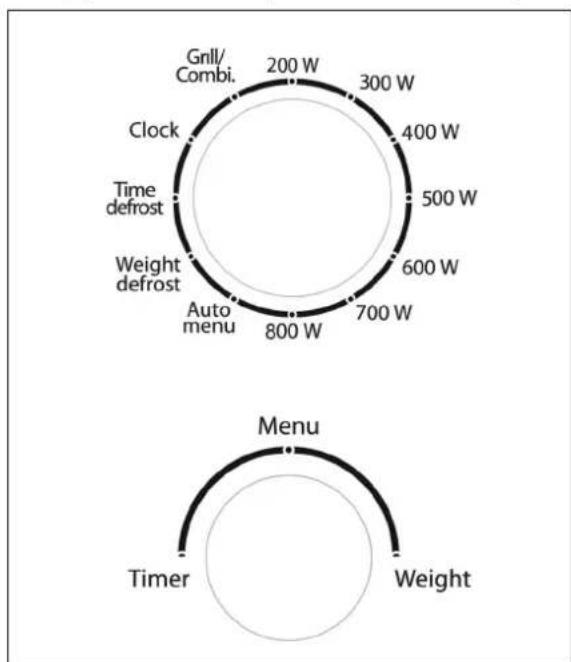

Switch Instructions

There are two switches on the panel. For better operations, the manual call the left switch for digital switch. Call the right switch for multi-function switch.

Waiting States Instructions

In waiting states, the screen displays the current time or "0:00".

1 When electrifying for the first time, the unit enters into the waiting states;
2 When cooking finish, the unit enters into waiting states;
3 When setting the clock, press "Start/+30Sec." to confirm, then the unit enters into waiting states, LED displays the current clock.

Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once. Then the unit enters waiting states.

1 Turn multi-function switch to "Clock", the hour figure flash;
2 Turn digital switch to adjust the hour figures, the input time should be within 0-23.
3 Press "Start/+30Sec." to confirm, the minute figures will flash.
4 Turn digital switch to adjust the minute figures, the input time should be within 0-59.
5 Press "Start/+30Sec." to finish clock setting. ":" will flash.

Note: If the clock is not set, it would not function when powered.

During the process of clock setting, if you do not press "Start/+30Sec." to confirm in 1 minutes, the oven will go back to the previous status automatically.

Microwave Cooking

1 Turn the multi-function switch to "200W", "300W"..... "800W". It refers to microwave power. And "P200", "P300"..... "P800" displays.
2 Turn digital switch to adjust the cooking time. The time input should be 0:05-95:00.
3 Press "Start/+30Sec." to start cooking. Buzzer sounds once.
4 When cooking finish, LED displays the current time. If the time has not been set, "0:00" displays.

Microwave Power Chart

NOTE: the step quantities for the adjustment time of the coding switch are as follow:

0 - 1 min: 5 seconds
1 - 5 min: .... 10 seconds
5 - 10 min: 30 seconds
10 - 30 min: .... 1 minute
30 - 95 min: 5 minutes

Microwave Power

200W	P200
300W	P300
400W	P400
500W	P500
600W	P600
700W	P700
800W	P800

Grill Cooking

1 Turn the multi-function switch to "Grill/Combi." to choose grill cooking. "G" displays.
2 Press "Start/+30Sec." to confirm the grill function.
3 Turn digital switch to adjust the cooking time. The time input should be 0:05-95:00.
4 Press "Start/+30Sec." to start cooking. Buzzer sounds once.
5 When cooking finish, LED displays the current time. If the time has not been set, "0:00" displays.

Note: If half the grill time passes, the oven should pause and sound twice, and this is normal. You can just press "Start/+30Sec." to continue cooking. But in order to have a better effect of grilling food, you should turn the food over, close the door, and then press "Start/+30Sec." to continue cooking. If there is no operation within 1 minute, the oven will continue working.

Combination Cooking (Microwave+grill)

1 Turn the multi-function switch to "Grill/Combi." . "G" displays.
2 Turn digital switch to choose combi. function. "C-1" or "C-2" displays.
3 Press "Start/+30Sec." to confirm the combi. function.
4 Turn digital switch to adjust the cooking time. The time input should be 0:05-95:00.
5 Press "Start/+30Sec." to start cooking. Buzzer sounds once.
6 When cooking finish, LED displays the current time. If the time has not been set, "0:00" displays.

Defrost By Weight

1 When multi-function switch poiting at "Weight Defrost", "DEF1" displays;
2 Turn digital switch to select the food weight. The range of weight is 100-2000g.
3 Press "Start/+30Sec." to start defrosting.

Defrost By Time

1 When multi-function switch poiting at "Time Defrost", "dEF2" displays;
2 Turn digital switch to select defrost time. The range of time is 0:05-95:00.
3 Press "Start/+30Sec." to start defrosting. The defrost power is P200. It cannot changed.

Microwave Power Adjustable Function

1 During microwave cooking, microwave power can be adjusted from 200W to 800W.
2 During speedy cooking, microwave power can be adjusted by turning multi-function switch;

3 During weight defrost, time defrost, grill cooking, combi. cooking and auto menu cooking process, power cannot be adjusted by turning multi-function switch.

Speedy Cooking

1 When multi-function switch pointing at 200W, 300W, 400W...800W, turn digital switch directly to choose the cooking time, press "Start/+30Sec." to start cooking. Time can be increased by pressing "Start/+30Sec.".
2 When multi-function switch pointing at "Auto Menu", "Weight Defrost", "Grill/Combi." or "Clock", cooking cannot started by pressing "Start/+30Sec.". Time cannot be increased by pressing "Start/+30Sec.".
3 Time can be increased under the states of defrost by time.
4 Time cannot be increased during auto menu can defrost by weight cooking.

Auto Menu

1 Turn multi-function switch to "Auto Menu" to choose auto cooking."A-1" flash;
2 Turn digital switch to choose the menu you need. "A-1", "A-2" to "A-8" will display. "Pizza", "Potato", "Meat", "Vegetable", "Fish", "Pasta", "Soup" and "Porridge" will be selected in order;
3 Press "Start/+30Sec." to confirm the menu you choose;
4 Turn digital switch to choose the food weight;
5 Press "Start/+30Sec." to start cooking;
6 Buzzer sounds five times after cooking finishing.

Menu Weight	Displ. Effect
A1-pizza 200	200 100%
	300 400
A2-chicken 1 (about 230 g) 1 100%
A3-meat	250 250 100%
	350 350
	450 450
A4-potato	200 200 100%
	300 300
	400 400
A5-fish	250 250 80%
	350 350
	450 450
A6-pasta	50 (m/vand 450 g)	50	80%
	100 (m/vand 800 g)	200
A7-soup	200 ml	200 100%
	400 ml	400
A8-porridge	550 550 100%		50%
	1100	1100

Lock-out Function for Children

Lock: In waiting state, press "STOP" for 3 seconds, there will be a long "beep" denoting entering the children-lock state and screen will display the locked indicator.

Lock quitting: In locked state, press "STOP" for 3 seconds, there will be a long "beep" denoting that the lock is released.

Specification

1 The buzzer will sound once when turning the multi-function;
2 "Start/+30Sec." must be pressed to continue cooking if the door is opened during cooking;
3 Once the cooking programme has been set, "Start/+30Sec." is not pressed in 1 minute. The current time will be displayed. The setting will be cancelled.
4 Buzzer sounds five times to remind you the cooking is finished.

Trouble shooting

Microwave oven interfering TV reception

Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vaccum cleaner and electric fan. It is normal.

Dim oven light

In low power microwave cooking, oven light may become dim. It is normal

Steam accumulating on door, hot air out of vents

In cooking, steam may come out of door. Most wil get out from vents. But some may accumulate on cool place like oven door. It is normal.

Oven started accidentally with no food in

It is forbidden to run the unit without any food inside. It is very dangerous.

Oven can not be started

Power cord not plugged in thightly.

• Unplug. Then plug again after 10 seconds.
  Fuse blowing or circuit breaker works
• Replace fuse or reset circuit breaker (repaired by professional personnel)
  Trouble with outlet
• Test outlet with other electrical appliances.

Oven does not heat

Door not closed well

- Close the door well

Glass turntable makes noise when microwave oven operates

Dirty roller rest at oven bottom

- Refer to "maintenance of Microwave" to clean dirty parts.

Disposal

According to Waste of Electrical and Electronic Equipment

(WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.
