| Product Type | Steam Iron |
| Brand | Singer |
| Model | Expert Finish |
| Power Supply | 120V, 60Hz, 1500W (estimated) |
| Display | LCD display with temperature bars and fabric type |
| Temperature Control | 9 levels with UP/DOWN buttons, audible beep on reaching temperature |
| Steam Function | Variable steam control dial |
| Burst of Steam | Horizontal burst for stubborn wrinkles |
| Vertical Steam | Vertical burst for hanging garments |
| Cool Mist Spray | Sprinkles water to dampen fabric |
| Auto-Off | 3-way smart auto-off: 8 min vertical, 30 sec soleplate/tip-over |
| Anti-Drip | Reduces dripping when temperature is low |
| Anti-Scale | Built-in anti-scale cartridge |
| Self-Cleaning | Descaling function to remove mineral buildup |
| Soleplate Material | Stainless steel (assumed) |
| Water Tank | Refillable, fill to MAX line |
| Safety Features | Auto-off, anti-drip, cool-down before storage |
| Warranty | 2 years electronic parts, 90 days other parts |
| Included Accessories | Filling cup |
| Cleaning & Maintenance | Self-cleaning monthly; soleplate cleaner for buildup |
| Intended Use | Household non-commercial use |
Frequently Asked Questions - Expert Finish SINGER
User questions about Expert Finish SINGER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Iron in PDF format for free! Find your manual Expert Finish - SINGER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Expert Finish by SINGER.

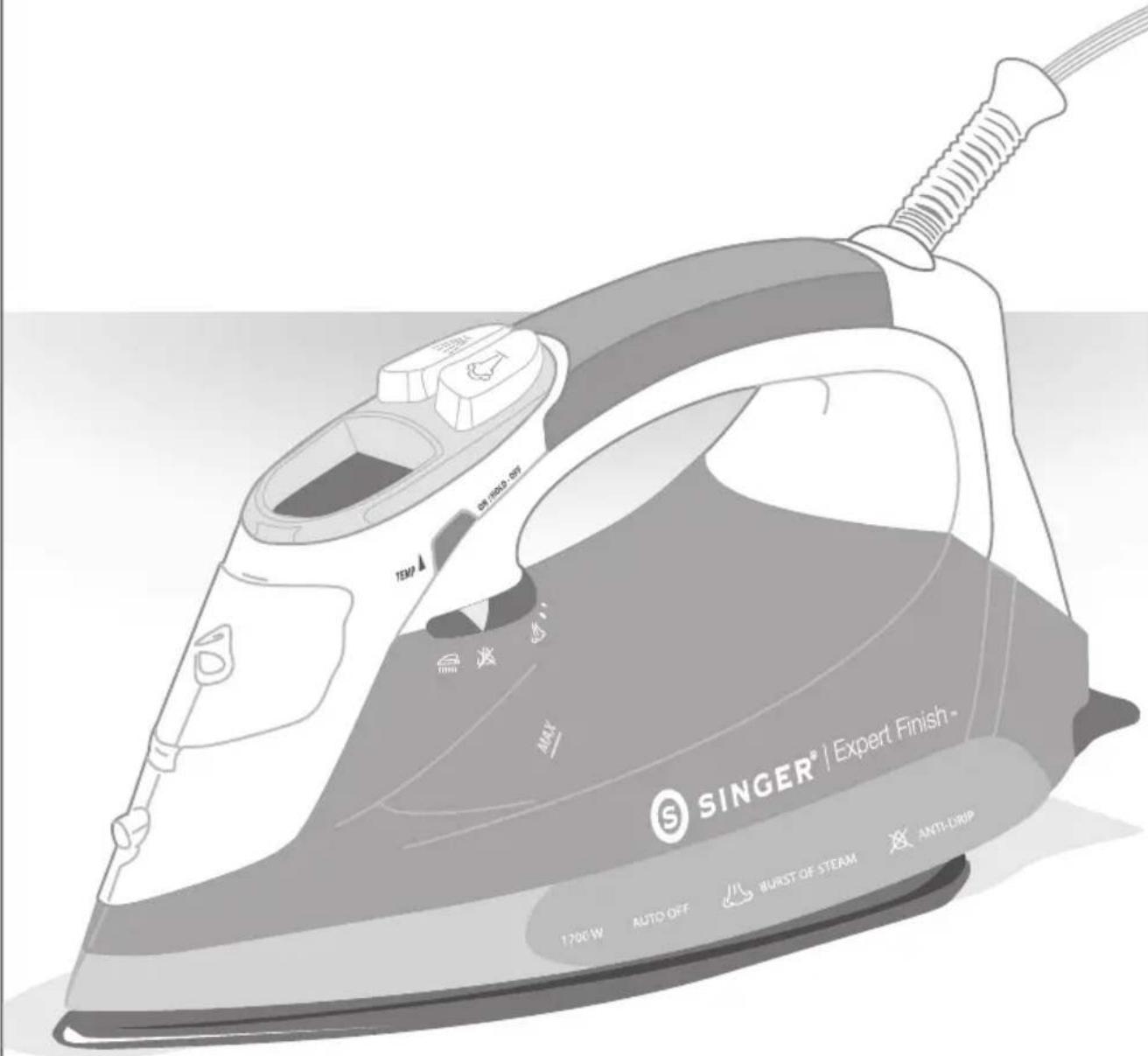

USER MANUAL Expert Finish SINGER
Household Steam Iron
IMPORTANT SAFETY INSTRUCTIONS
When using your flatiron, basic safety precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING.
Save these instructions in a safe place for future reference.
Use appliance only for its intended use.1.
To protect against risk of electrical shock, do not immerse the iron in water 2. or other liquids.
This appliance should always be turned to "OFF" before plugging or unplug-3. ging from an outlet. Never yank the cord to disconnect from outlet, always grasp plug and pull to disconnect.
Always disconnect the appliance from the electrical outlet when filling with 4. water or emptying or when not in use.
Do not allow cord to touch hot surfaces. Let the iron cool completely before 5. putting away. Loop cord loosely around iron when storing.
Do NOT operate appliance with a damaged cord, or if the appliance has 6. been dropped or damaged. If electrical cord is damaged it must be replaced by the manufacturer or authorized service agent to avoid a safety hazard.
To avoid the risk of electrical shock, do NOT disassemble the iron. Ship to 7, the nearest authorized SINGER ^™ approved service center for examination and repair. Incorrect reassembly or repair can cause a risk of fire, electrical shock, or injury when the appliance is used.
Not intended for use by children. Close supervision is necessary for any 8, appliance being used near children. Unsupervised use can result in fire or personal injury. Do not leave appliance unattended while plugged in, on an ironing board, or while it is still hot.
Burns can occur from touching hot metal parts, hot water or steam. Use 9. caution when you turn a steam iron upside down as there may be hot water in the reservoir.
Never use or rest the iron on an unstable surface.10.
When iron is hot, never set on an unprotected surface.11.
SPECIAL INSTRUCTIONS:
To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit. If an extension cord is absolutely necessary, a 15-amp cord should be used. Cords rated with less amperage may overheat. Use care to arrange the cord so that it cannot be pulled or tripped over.
SAVE THESE INSTRUCTIONS
WARNING: THE POWER CORD ON THIS PRODUCT CONTAINS LEAD, A CHEMICAL KNOWN TO THE STATE OF CALIFORNIA TO CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. WASH HANDS AFTER HANDLING.
Remove any protective films or stickers from the soleplate and the iron.
Read all safety and operating instructions.
Fill the water tank as described in "How to Fill Water".
Plug the iron into a grounded electrical outlet.
The LCD Display will show all symbols and then turn off with an audible beep • sound.
Press the Temperature UP/ON-OFF button. The LCD Display will indicate the setting number, fabric type and temperature bars.
Select the maximum temperature by pressing the Temperature UP button • until the display indicates level 9.
When the selected temperature is reached, the LCD Display will stop flashing • and an audible beep will sound. The iron is ready to use.
Move the Variable Steam Control Dial to the maximum position
On an ironing board or protected surface, iron an old towel or other heavy material until the water tank is empty and no more steam is produced.
It is normal for a small amount of smoke and a light odor to be produced the first time the iron is used. This will disappear quickly.
Particles may emit from the iron the first time it is used. They are not harmful • and should disappear after the iron has been used as described above.
Consult the garment's label for temperature instructions or use the chart on • page 6 of this manual for recommendations.
Filling the Water Tank
- Ensure iron is unplugged.
- Move the Variable Steam Control Dial to ✗ position.
- Open the Water Inlet Cover and tilt the iron slightly forward, resting on its heel.
• Using the filling cup provided, fill the water chamber to the MAX mark. - Close the Water Inlet Cover.
- To refill the water tank during ironing, always unplug the iron. When you return to ironing, make sure the iron reheats to the desired level and the LCD Display stops flashing before continuing.
- Singer Home Essentials irons are designed to be used with regular tap water.
- If your water is especially hard or if you use a water softener, try using inexpensive bottled spring water.
- Never use water with additives, including scents, starches, or fabric conditioners, as they can cause deposits to form in the iron that can stain clothing.
WARNING: ALWAYS MAKE SURE THE IRON IS UNPLUGGED BEFORE FILLING WITH WATER OR COMING INTO CONTACT WITH LIQUID OF ANY KIND.
Selecting the Temperature
CONSULT THE GARMENT'S LABEL FOR TEMPERATURE INSTRUCTIONS. WE RECOMMEND USING THE CHART BELOW AS A GUIDE.
| Temperature Control Settings | ||
| LCD DISPLAY GARMENT TEMPERATURE BARS | ||
 | Acrylic | [3647] |
 | Nylon | [OKBT] |
 | Silk |  |
 | Polyester | [04D4] |
 | Poly-Cotton Blend | [0642] |
 | Wool | [TKYY] |
 | Cotton |  |
 | Jeans/Denim |  |
 | Linen |  |
Plug the iron into a grounded electrical outlet.
The LCD Display will show all symbols and then turn off with an audible beep • sound.
Press the Temperature UP/ON-OFF button. The LCD Display will indicate the setting number, fabric type and temperature bars.
Select the desired temperature by pressing the Temperature UP and • Temperature DOWN buttons on either side of the LCD Display. An audible beep will sound each time the temperature is changed.
The steam icon will display when the temperature setting from 5 to 9 has been selected.
When temperature is reached, the LCD Display will stop flashing and an audible beep will sound.
Turning the Iron Off
To turn the iron off, press and hold the Temperature UP/ON-OFF for 3 • seconds. The LCD Display will turn off and an audible beep will sound.
Temperature UP/ON-OFF Button
IRONING YOUR GARMENTS
Dry Ironing
- To iron without steam, turn the Variable Steam Control Dial to the "no steam" position ✗.
Plug the iron into a grounded electrical outlet.
The LCD Display will show all symbols and then turn off with an audible beep • sound.
Select the desired temperature using the Temperature UP and DOWN • buttons.
- When temperature is reached, the LCD Display will stop flashing and an audible beep will sound.
- To iron garments with a dry iron, SINGER recommends using this iron with an empty water tank.
Steam Ironing
WARNING: NEVER IRON OR STEAM CLOTHES WHILE THEY ARE BEING WORN. NEVER DIRECT THE STEAM JET AT PEOPLE OR ANIMALS.
Fill the water tank as described in "Filling the Water Tank" section.
Plug the iron into a grounded electrical outlet.
The LCD Display will show all symbols and then turn off with an audible beep • sound.
Select the desired temperature using the Temperature UP and DOWN • buttons. The recommended steam temperature setting is from 5 to 9.
When the selected temperature is reached, the LCD Display will stop flashing • and an audible beep will sound.
Move the Variable Steam Control Dial to the ⬇ position. Steam will vary with the temperature setting. The iron is ready to use.
TIP: The tougher the wrinkle, the more steam you will need.
Burst of Steam
This function is ideal for removing stubborn wrinkles or pressing extra-sharp creases.
WARNING: NEVER IRON OR STEAM CLOTHES WHILE THEY ARE BEING WORN. NEVER DIRECT THE STEAM JET AT PEOPLE OR ANIMALS.
Follow the instructions as described in the "Steam Ironing" section.
While steam ironing, press the Burst of Steam button every 4 to 5 seconds. Most wrinkles can be removed within three bursts.
NOTE: It may be necessary to press the Burst of Steam button a few times to start this function. For optimum steam quality, do not operate the Burst of Steam more than three times in succession.
Vertical Burst of Steam
This feature enables you to remove wrinkles from hanging garments (jackets, coats, shirts), hanging curtains, or other hanging fabric.
WARNING: NEVER IRON OR STEAM CLOTHES WHILE THEY ARE BEING WORN. NEVER DIRECT THE STEAM JET AT PEOPLE OR ANIMALS.
Follow the instructions as described in the "Steam Ironing" section.
Hold the iron upright, 6-12 inches away from the garment.
Press the Burst of Steam button to direct steam at the area.
Steam will penetrate into the garment, removing the wrinkles.
For stubborn wrinkles, wait 4 to 5 seconds before pressing the Burst of •
Steam button again. Most wrinkles can be removed within three bursts.
NOTE: Maintain a distance of 6-12 inches from delicate fabric (synthetics, silk, velvet, etc.), otherwise the fabric could be damaged.
It may be necessary to press the Burst of Steam button a few times to start this function. For optimum steam quality, do not operate the Burst of Steam more than three times in succession.
Burst of Steam Button
Cool Mist Spray
The Cool Mist Spray function can be used on any temperature setting. Use the spray to dampen fabrics in order to remove tough wrinkles.
Aim the nozzle at the garment.
Press the Cool Mist Spray Button. You may need to press the button a few times before the water sprays at full pressure.
Iron as usual.
Do not spray silk. •
Cool Mist Spray Button
3-Way Smart Auto-Off
The SINGER Expert Finish Iron is equipped with an automatic shut-off. The Smart Auto-Off switches the iron off if it has been left unattended.
NOTE: Auto-Off is not an on/off switch. Always unplug the iron when it is not in use.
If the iron is left on and is not moved for 8 minutes in a vertical position, it will • automatically shut off and an audible beep will sound.
If the iron is left on its soleplate or tipped over, it will shut off after 30 seconds • and an audible beep will sound.
When the iron is preparing to shut off, the Auto-Off symbol will start flashing • on the LCD Display Panel with an audible beep sound. The LCD back light will turn off after 5 seconds.
To de-activate the Auto-Off, move the iron or shake gently. The iron will take about 60 seconds to reach the previous soleplate temperature.
To turn the iron off, press and hold the Temperature UP/ON-OFF for 3 seconds. The LCD Display will turn off and an audible beep will sound.
Anti-Drip
This iron is designed to reduce dripping and spitting while in use. Steam is automatically disabled when the soleplate temperature is too low to create steam, preventing spitting or dripping.
The Anti-Drip system may make a loud clicking sound during use. This is normal and indicates that the system is functioning correctly.
Anti-Scale System
The built-in Anti-Scale cartridge is designed to reduce the buildup of mineral substances in the water which occurs during steam ironing, thereby extending the life of your SINGER Expert Finish Iron. However, please note that the anti-scale cartridge will not completely stop the natural process of lime scale buildup.
CLEANING AND STORAGE
Self-Cleaning
This feature removes loose minerals and other impurities that have been built up in the steam chamber. It is recommended that this function be performed at least once a month or more regularly depending on the hardness of the water used.
WARNING: THE SELF-CLEAN FUNCTION WILL CAUSE HOT STEAM AND WATER TO BE EJECTED FROM THE SOLEPLATE. TAKE ALL PROPER PRECAUTIONS AND HOLD IRON AWAY FROM BODY. STEAM AND WATER ARE VERY HOT AND CAN CAUSE BURNS.
Fill the water tank half full, as described in the "Filling the Water Tank" section.
Place the iron on its heel on a flat surface.
Plug the iron into a grounded outlet.
The LCD Display will show all symbols and then turn off with an audible beep sound.
- Select temperature 9 using the Temperature UP and DOWN buttons.
When the selected temperature is reached, the LCD Display will stop flashing • and an audible beep will sound.
Turn the iron off by pressing and holding the Temperature UP/ON-OFF for 3 seconds. The LCD Display will turn off and an audible beep will sound.
Unplug the iron.
Hold the iron horizontally over a sink with the soleplate pointing away from the body.
Turn and hold the Variable Steam Control/Self-Cleaning Dial to Descaling • Position
Steam and hot water will drain from from the soleplate holes, washing away • the scales and minerals that have built up inside the steam chamber.
Gently move the iron back and forth until the water tank is empty.
When self-cleaning is complete, turn the Variable Steam Control/Self-Cleaning Dial to the ✕ position.
NOTE: Before using the iron after self-cleaning, test the steam and burst of steam on an old towel or cloth that can be discarded.
Descaling Position
Emptying and Storing
Turn the Variable Steam Control/Self-Cleaning Dial to the ✗ position.
Unplug the iron.
Place the iron on its heel and allow to cool completely.
Empty water from the iron before storing.
To protect the soleplate, store the iron on its heel.
Cleaning the Soleplate
In normal use, a coating may build up on the soleplate from starch, detergent or burnt synthetic fibers. This can be easily removed by using a quality iron soleplate cleaner.
When the iron is cold and unplugged, the iron can be cleaned with a damp cloth and wiped dry.
NOTE: Never use abrasive household cleaners or other chemical agents to clean the iron.
Never use sharp or rough objects to remove deposits on the soleplate.
TROUBLESHOOTING
| PROBLEM REASON & SOLUTION | |
| Iron does not heat | The iron is not properly plugged in•The temperature setting is too low – set the temperature to a higher settingAuto-Off has been engaged – move or shake the iron gently to de-activate Auto-Off |
| No steam or not enough steam | The water tank may be low or empty – add waterThe iron is not set to steam setting – for maximum steam, temperature should be on MAXVariable Steam is set too low – turn the Variable Steam Control Dial to the position |
| Iron is emitting small particles or odor | This is normal – follow instructions for first time useWater may need to be changedBuildup of mineral deposits inside steam chamber – see Self-Cleaning section |
| Iron is dripping water from steam vents | Overfilled – do not fill past the MAX line on water tankThe iron may not be hot enough – set the temperature to MAXOver use of Burst of Steam – allow more time between bursts |
If troubleshooting does not solve the problem, please call SINGER at 1-800-4-SINGER or 1-800-474-6437.
SINGER® SEWING COMPANY LIMITED WARRANTY EXPERT FINISH™ STEAM IRON
IMPORTANT: SAVE THIS DOCUMENT AND KEEP IT IN A SAFE PLACE
What Does This Limited Warranty Cover?
The SINGER Expert Finish™ Steam Iron is warranted to be free from defects in material and workmanship.
How Long Is This Limited Warranty?
The warranty for the IRON's wiring and electronic parts is for a period of two (2) years from the date of purchase.
The warranty for all other parts of the IRON is for a period of ninety (90) days from the date of purchase.
What Will SINGER Do?
If the electronic parts and/or the other parts in the IRON, after inspection by SINGER, prove to be defective during the applicable warranty period(s), the electronic parts and/or the other parts will be repaired or replaced at SINGER's option, without charge, except for any expense associated with sending the IRON to SINGER.
If SINGER sends a replacement IRON, it will carry the remaining warranty of the original IRON.
Who Is Covered By This Limited Warranty?
This warranty may only be used by the original consumer owner of the IRON and may not be transferred or assigned.
What Are The Other Exclusions or Limitations?
Service under this warranty may only be obtained within the 48 contiguous states, Alaska, Hawaii and Canada.
The IRON is warranted only for normal household (non-commercial) use. This • warranty does not cover defect(s) caused by abuse, lack of maintenance or other neglect, failure to follow the care, cleaning or other instructions for the IRON, misuse, or events beyond our control.
ANY IMPLIED WARRANTY APPLICABLE TO THE IRON, INCLUDING WITHOUT • LIMITATION THE WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED IN DURATION TO THE DURATION OF THIS WRITTEN WARRANTY. SINGER SHALL NOT BE LIABLE FOR CONSEQUENTIAL ECONOMIC DAMAGES RESULTING FROM BREACH OF THIS WARRANTY OR ANY IMPLIED WARRANTY.
SINGER does not authorize any person to create for it any obligation or liability in connection with the IRON and any of its parts beyond those set forth in this warranty.
SINGER disclaims liability under this warranty for any damage or defect resulting • from the use of other than SINGER parts and SINGER approved service in the repair and maintenance of the IRON.
Does State Law Affect My Rights?
This warranty gives you specific legal rights, and you may also have other rights ■ which vary from state to state.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
How Do I Get Service Under The Warranty?
Service under the warranty may be obtained by returning the IRON with:
This original warranty document; and 1.
Proof of purchase (such as the purchase receipt) to:2.
SINGER Sewing Company
ATTN: Service Department
1224 Heil Quaker Boulevard
LaVergne, TN 37068
What If I Have Questions About The Warranty?
If you have any questions regarding these warranties, please contact us:
SINGER Sewing Company
1-800-4-SINGER
E-mail: talktoUS@singerco.com
ATTN: Consumer Affairs (1-800-474-6437)
1224 Heil Quaker Boulevard
LaVergne, TN 37068
or through the Customer Service Area of our web site: www.singerco.com
SINGER®
SINGER ^® IS A REGISTERED TRADEMARK OF THE SINGER COMPANY LIMITED.
SINGER
Expert Finish™
EF
1224 Heil Quaker Boulevard
LaVergne, TN 37068
- IMPORTANT SAFETY INSTRUCTIONS
- READ ALL INSTRUCTIONS BEFORE USING.
- SPECIAL INSTRUCTIONS:
- SAVE THESE INSTRUCTIONS
- Filling the Water Tank
- Water Recommendations
- Selecting the Temperature
- Turning the Iron Off
- IRONING YOUR GARMENTS
- Dry Ironing
- Steam Ironing
- Burst of Steam
- Vertical Burst of Steam
- Cool Mist Spray
- 3-Way Smart Auto-Off
- Anti-Drip
- Anti-Scale System
- CLEANING AND STORAGE
- Self-Cleaning
- Emptying and Storing
- Cleaning the Soleplate
- SINGER® SEWING COMPANY LIMITED WARRANTY EXPERT FINISH™ STEAM IRON
- SINGER
Brand : SINGER
Model : Expert Finish
Category : Iron
