Classic Finish - Iron SINGER - Free user manual and instructions

Product Type	Steam Iron
Brand	Singer
Model	Classic Finish
Power	1700 Watts
Voltage	120V, 60Hz
Steam Control	Variable dial
Burst of Steam	Yes (horizontal and vertical)
Cool Mist Spray	Yes
Self-Cleaning	Yes (button)
Anti-Drip	Yes
Anti-Scale	Yes (cartridge)
Auto-Off	3-way: 8 min vertical, 30 sec horizontal/tipped
Temperature Control	Adjustable dial with indicator light
Water Tank Capacity	Approx. 300 ml (fill to MAX mark)
Soleplate	Stainless steel or non-stick (not specified)
Cord	360° swivel, length approx. 2 m
Safety Features	Auto-off, anti-drip, anti-scale
Warranty	2 years electronic parts, 90 days other parts

Frequently Asked Questions - Classic Finish SINGER

How do I fill the water tank?

Unplug the iron, move the Variable Steam Control Dial to the ✗ position, open the Water Inlet Cover, tilt the iron slightly forward, and fill to the MAX mark using the provided cup. Close the cover before use.

How does the auto-off feature work?

The iron automatically shuts off if left unattended: after 8 minutes in vertical position, or after 30 seconds on its soleplate or tipped over. A beep sounds and the Auto-Off light flashes. Move or shake the iron to reactivate.

Can I use the burst of steam vertically?

Yes, hold the iron upright 6-12 inches from the garment and press the Burst of Steam button. For delicate fabrics, maintain distance to avoid damage.

What type of water should I use?

Regular tap water is recommended. If water is very hard, use bottled spring water. Never use water with additives like scents or starches.

How do I clean the iron?

Use the Self-Cleaning button monthly: fill tank, set to MAX, heat, unplug, hold horizontally over sink and press Self-Clean until tank empty. Wipe soleplate when cool with damp cloth. Do not use abrasives.

Why is my iron not producing steam?

Ensure water tank is filled, temperature is set to MAX, and Variable Steam Control is not at ✗. The iron may need to heat up. If still no steam, check if Auto-Off engaged.

What is the anti-drip system?

The anti-drip system automatically disables steam when soleplate temperature is too low to prevent dripping. A clicking sound is normal.

Can I iron without steam?

Yes, set Variable Steam Control to ✗ (no steam) and select desired temperature. For dry ironing, it is recommended to keep the water tank empty.

How long does it take to heat up?

The iron heats up in about 60 seconds to reach desired temperature. The Temperature Indicator light turns off when ready.

What should I do if the iron emits particles or odor?

This is normal during first use. Follow initial cleaning instructions: steam an old towel until tank empty. Particles and odor will disappear.

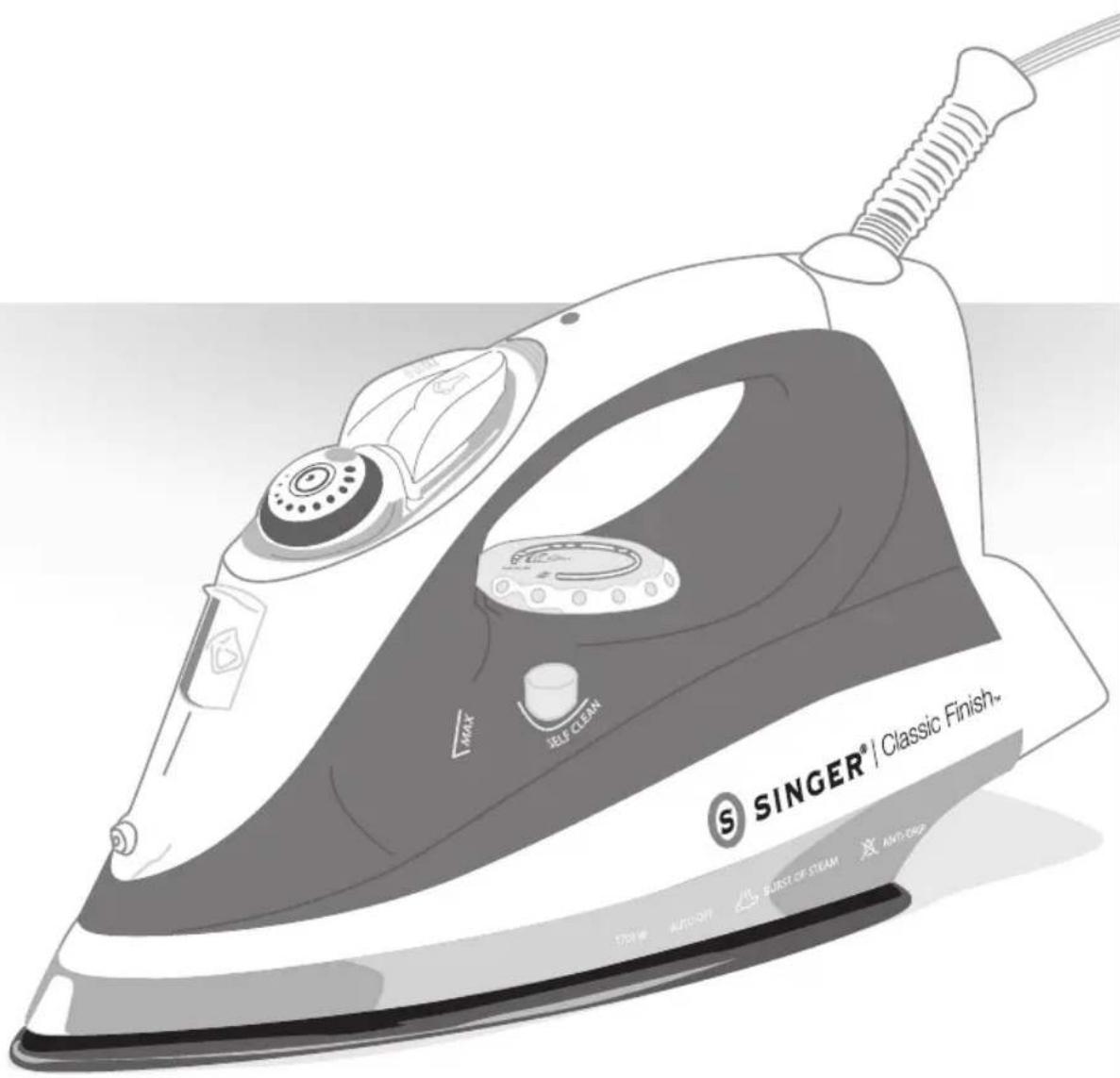

USER MANUAL Classic Finish SINGER

Household Steam Iron

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING.

Save these instructions in a safe place for future reference.

Use appliance only for its intended use.1.

To protect against risk of electrical shock, do not immerse the iron in water 2, or other liquids.

This appliance should always be turned to "OFF" before plugging or unplug-3. ging from an outlet. Never yank the cord to disconnect from outlet, always grasp plug and pull to disconnect.

Always disconnect the appliance from the electrical outlet when filling with 4. water or emptying or when not in use.

Do not allow cord to touch hot surfaces. Let the iron cool completely before 5. putting away.

Do NOT operate appliance with a damaged cord, or if the appliance has 6, been dropped or damaged. If electrical cord is damaged it must be replaced by the manufacturer or authorized service agent to avoid a safety hazard.

To avoid the risk of electrical shock, do NOT disassemble the iron. Ship to 7, the nearest authorized SINGER ^® approved service center for examination and repair. Incorrect reassembly or repair can cause a risk of fire, electrical shock, or injury when the appliance is used.

Not intended for use by children. Close supervision is necessary for any 8, appliance being used near children. Unsupervised use can result in fire or personal injury. Do not leave appliance unattended while plugged in, on an ironing board, or while it is still hot.

Burns can occur from touching hot metal parts, hot water or steam. Use 9. caution when you turn a steam iron upside down as there may be hot water in the reservoir.

Never use or rest the iron on an unstable surface.10.

When iron is hot, never set on an unprotected surface.11.

SPECIAL INSTRUCTIONS:

To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit. If an extension cord is absolutely necessary, a 15-amp cord should be used. Cords rated with less amperage may overheat. Use care to arrange the cord so that it cannot be pulled or tripped over.

WARNING: THE POWER CORD ON THIS PRODUCT CONTAINS LEAD, A CHEMICAL KNOWN TO THE STATE OF CALIFORNIA TO CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. WASH HANDS AFTER HANDLING.

1. Burst of Steam Button
2. Cool Mist Spray Button
3. Steam Level Indicator
4. Variable Steam Control Dial
5. Water Inlet Cover

6. Spray Nozzle

7. Temperature Indicator

8. Self-Cleaning Button
9. Temperature Control Dial
10. Auto-Off Light
11. 360° Swivel Cord
12. Soleplate

TECHNICAL SPECIFICATIONS: Voltage: 120V, 60 Hz Power: 1700 Watts

WARNING: TO AVOID FIRE, NEVER LEAVE IRON UNATTENDED WHILE PLUGGED IN.

OPERATING INSTRUCTIONS

Before First Use

Remove any protective films or stickers from the soleplate and the iron.

Read all safety and operating instructions.

Fill the water tank as described in "How to Fill Water".

Plug the iron into a grounded electrical outlet. The iron will begin to heat.

Consult the garment's label for temperature instructions or use the chart on page 6 of this manual for recommendations.

Select the appropriate temperature by turning the Temperature Control Dial • clockwise. The Thermostat Light will glow.

When the selected temperature is reached, the Thermostat Light will turn off.

Move the Variable Steam Control Dial to the maximum position 🌐.

On an ironing board or protected surface, iron an old towel or other heavy material until the water tank is empty and no more steam is produced.

It is normal for a small amount of smoke and a light odor to be produced the • first time the iron is used. This will disappear quickly.

Particles may emit from the iron the first time it is used. They are not harmful and should disappear after the iron has been used as described above.

Filling the Water Tank

Ensure iron is unplugged.

• Move the Variable Steam Control Dial to ✗ position.
• Open the Water Inlet Cover and tilt the iron slightly forward, resting on its heel.
  • Using the filling cup provided, fill the water chamber to the MAX mark.
• Close the Water Inlet Cover.
• To refill the water tank during ironing, always unplug the iron. When you return to ironing, make sure the iron reheats to the desired level and the Temperature Indicator light stops flashing before continuing.

Illustration of a hand using a power iron to press down a button (no text or symbols visible)

Cross-sectional illustration of a biological structure, possibly a larva or fungal hyphae, with no visible text or symbols.

Water Recommendations

• Singer Home Essentials irons are designed to be used with regular tap water.
• If your water is especially hard or if you use a water softener, try using inexpensive bottled spring water.
• Never use water with additives, including scents, starches, or fabric conditioners, as they can cause deposits to form in the iron that can stain clothing.

WARNING: ALWAYS MAKE SURE THE IRON IS UNPLUGGED BEFORE FILLING WITH WATER OR COMING INTO CONTACT WITH LIQUID OF ANY KIND.

Selecting the Temperature

CONSULT THE GARMENT'S LABEL FOR TEMPERATURE INSTRUCTIONS. WE RECOMMEND USING THE CHART BELOW AS A GUIDE.

Temperature Control Settings
acetate elastane polyamide polypropylene	polyester silk triacetate viscose wool	cotton linen
●	●●	●●●

Plug the iron into a grounded electrical outlet. The iron will begin to heat.

To adjust the temperature settings, turn the Temperature Control • Dial clockwise and select the temperature setting according to the recommendation on the garment label. The Temperature Indicator light will glow.

When the selected temperature is reached, the Temperature Indicator light will turn off. The iron is ready to use.

Turning the Iron Off

To turn the iron off, unplug the iron.

NOTE: Never yank the cord to disconnect from outlet. Always grasp plug and pull to disconnect.

IRONING YOUR GARMENTS

Dry Ironing

To iron without steam, turn the Variable Steam Control Dial to the "no steam" position ✗.

Select the desired temperature (●, ●●, or ●●●).

To iron garments with a dry iron, SINGER recommends using this iron with an empty water tank.

Steam Ironing

WARNING: NEVER IRON OR STEAM CLOTHES WHILE THEY ARE BEING WORN. NEVER DIRECT THE STEAM JET AT PEOPLE OR ANIMALS.

• Fill the water tank as described in "Filling the Water Tank" section. Plug the iron into a grounded electrical outlet. The iron will begin to heat.
• Select the ●●● or MAX temperature setting by turning the Temperature Control Dial clockwise.

When the selected temperature is reached, the Temperature Indicator light will turn off. The iron is ready to use.

- Select the desired steam pressure on the Variable Steam Control Dial.

When the selected temperature is reached, the Temperature Indicator light will turn off. The iron is ready to use.

TIP: The tougher the wrinkle, the more steam you will need.

dry iron setting steam iron setting

Burst of Steam

This function is ideal for removing stubborn wrinkles or pressing extra-sharp creases.

WARNING: NEVER IRON OR STEAM CLOTHES WHILE THEY ARE BEING WORN. NEVER DIRECT THE STEAM JET AT PEOPLE OR ANIMALS.

Follow the instructions as described in the "Steam Ironing" section.

While steam ironing, press the Burst of Steam button every 4 to 5 seconds. Most wrinkles can be removed within three bursts.

NOTE: It may be necessary to press the Burst of Steam button a few times to start this function. For optimum steam quality, do not operate the Burst of Steam more than three times in succession.

Vertical Burst of Steam

This feature enables you to remove wrinkles from hanging garments (jackets, coats, shirts), hanging curtains, or other hanging fabric.

WARNING: NEVER IRON OR STEAM CLOTHES WHILE THEY ARE BEING WORN. NEVER DIRECT THE STEAM JET AT PEOPLE OR ANIMALS.

Follow the instructions as described in the "Steam Ironing" section.

Hold the iron upright, 6-12 inches away from the garment.

Press the Burst of Steam button to direct steam at the area.

Steam will penetrate into the garment, removing the wrinkles.

For stubborn wrinkles, wait 4 to 5 seconds before pressing the Burst of • Steam button again. Most wrinkles can be removed within three bursts.

NOTE: Maintain a distance of 6-12 inches from delicate fabric (synthetics, silk, velvet, etc.), otherwise the fabric could be damaged.

It may be necessary to press the Burst of Steam button a few times to start this function. For optimum steam quality, do not operate the Burst of Steam more than three times in succession.

Cross-sectional diagram of a mechanical or architectural component with symmetrical cutouts and base elements (no text or labels)

burst of steamBurst of Steam Button vertical burst of steam

Cool Mist Spray

The Cool Mist Spray function can be used on any temperature setting. Use the spray to dampen fabrics in order to remove tough wrinkles.

Aim the nozzle at the garment.

Press the Cool Mist Spray Button. You may need to press the button a few times before the water sprays at full pressure.

Iron as usual.

Do not spray silk.

Diagram of a showerhead with smokestacks and decorative elements inside, enclosed in a circular frame (no text or symbols)

Illustration of a high-speed train with steam rising (no text or symbols)

Cool Mist Spray Button cool mist spray

3-Way Smart Auto-Off

The SINGER Classic Finish Iron is equipped with an automatic shut-off. The Smart Auto-Off switches the iron off if it has been left unattended.

• If the iron is left on and is not moved for 8 minutes in a vertical position, it will automatically shut off and a beep will sound.
• If the iron is left on its soleplate or tipped over, it will shut off after 30 seconds and an audible beep will sound.
• The Smart Auto-Off Indicator light will flash, indicating the Auto-Off has been activated.
• To de-activate the Auto-Off, move the iron or shake gently. The iron will take about 60 seconds to reach the previous soleplate temperature.
  • To turn the iron off, unplug the iron.

Anti-Drip

This iron is designed to reduce dripping and spitting while in use. Steam is automatically disabled when the soleplate temperature is too low to create steam, preventing spitting or dripping.

The Anti-Drip system may make a loud clicking sound during use. This is normal and indicates that the system is functioning correctly.

Anti-Scale System

The built-in Anti-Scale cartridge is designed to reduce the buildup of mineral substances in the water which occurs during steam ironing, thereby extending the life of your SINGER Classic Finish Iron. However, please note that the anti-scale cartridge will not completely stop the natural process of lime scale buildup.

CLEANING AND STORAGE

Self-Cleaning

This feature removes loose minerals and other impurities that have been built up in the steam chamber. It is recommended that this function be performed at least once a month or more regularly depending on the hardness of the water used.

WARNING: THE SELF-CLEAN FUNCTION WILL CAUSE HOT STEAM AND WATER TO BE EJECTED FROM THE SOLEPLATE. TAKE ALL PROPER PRECAUTIONS AND HOLD IRON AWAY FROM BODY. STEAM AND WATER ARE VERY HOT AND CAN CAUSE BURNS.

Fill the water tank as described in "Filling the Water Tank" section.

Plug the iron into a grounded electrical outlet. The iron will begin to heat.

- Select the MAX temperature setting by turning the Temperature Control Dial clockwise.

When the selected temperature is reached, the Temperature Indicator light will turn off. The iron is ready to use.

Unplug the iron.

Hold the iron horizontally over a sink with the soleplate pointing away from the body and press and hold the Self-Clean Button. Steam and hot water will drain from the soleplate holes, washing away the scales and minerals that have built up inside the steam chamber.

Gently move the iron back and forth until the water tank is empty.

When self-cleaning is complete, release the Self-Clean Button.

Place iron on its heel and let it cool completely.

Carefully wipe all water from the soleplate with an old towel, as the water and minerals may leave stains.

NOTE: Before using the iron after self-cleaning, test the steam and burst of steam on an old towel or cloth that can be discarded.

Self-Clean Button

Emptying and Storing

Move the Variable Steam Control Dial to ✗ position.

Unplug the iron.

Place the iron on its heel and allow to cool completely.

Empty water from the iron before storing.

• To protect the soleplate, store the iron on its heel.

Cleaning the Soleplate

In normal use, a coating may build up on the soleplate from starch, detergent or burnt synthetic fibers. This can be easily removed by using a quality iron soleplate cleaner.

When the iron is cold and unplugged, the iron can be cleaned with a damp cloth and wiped dry.

NOTE: Never use abrasive household cleaners or other chemical agents to clean the iron.

Never use sharp or rough objects to remove deposits on the soleplate.

TROUBLESHOOTING

PROBLEM REASON & SOLUTION
Iron does not heat	The iron is not properly plugged in•The temperature setting is too low – set the temperature • to a higher settlingAuto-Off has been engaged – move or shake the iron • gently to de-activate Auto-Off
No steam or not enough steam	The water tank may be low or empty – add water•The iron is not set to steam setting – for maximum steam, • temperature should be on MAXVariable Steam is set too low – turn the Variable Steam • Control Dial to the MAX position
Iron is emitting small particles or odor	This is normal – follow instructions for first time use•Water may need to be changed•Buildup of mineral deposits inside steam chamber – see • Self-Cleaning section
Iron is dripping water from steam vents	Overfilled – do not fill past the MAX line on water tank•The iron may not be hot enough – set the temperature • to MAXOveruse of Burst of Steam – allow more time between • bursts

If troubleshooting does not solve the problem, please call SINGER at 1-800-4-SINGER or 1-800-474-6437.

SINGER® SEWING COMPANY LIMITED WARRANTY CLASSIC FINISH™ STEAM IRON

IMPORTANT: SAVE THIS DOCUMENT AND KEEP IT IN A SAFE PLACE

What Does This Limited Warranty Cover?

The SINGER Classic Finish™ Steam Iron is warranted to be free from defects in material and workmanship.

How Long Is This Limited Warranty?

The warranty for the IRON's wiring and electronic parts is for a period of two (2) years from the date of purchase.

The warranty for all other parts of the IRON is for a period of ninety (90) days from the date of purchase.

What Will SINGER Do?

If the electronic parts and/or the other parts in the IRON, after inspection by SINGER, prove to be defective during the applicable warranty period(s), the electronic parts and/or the other parts will be repaired or replaced at SINGER's option, without charge, except for any expense associated with sending the IRON to SINGER.

If SINGER sends a replacement IRON, it will carry the remaining warranty of the original IRON.

Who Is Covered By This Limited Warranty?

This warranty may only be used by the original consumer owner of the IRON and may not be transferred or assigned.

What Are The Other Exclusions or Limitations?

Service under this warranty may only be obtained within the 48 contiguous states, • Alaska, Hawaii and Canada.

• The IRON is warranted only for normal household (non-commercial) use. This warranty does not cover defect(s) caused by abuse, lack of maintenance or other neglect, failure to follow the care, cleaning or other instructions for the IRON, misuse, or events beyond our control.
• ANY IMPLIED WARRANTY APPLICABLE TO THE IRON, INCLUDING WITHOUT LIMITATION THE WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED IN DURATION TO THE DURATION OF THIS WRITTEN WARRANTY. SINGER SHALL NOT BE LIABLE FOR CONSEQUENTIAL ECONOMIC DAMAGES RESULTING FROM BREACH OF THIS WARRANTY OR ANY IMPLIED WARRANTY.

- SINGER does not authorize any person to create for it any obligation or liability in connection with the IRON and any of its parts beyond those set forth in this warranty.

- SINGER disclaims liability under this warranty for any damage or defect resulting from the use of other than SINGER parts and SINGER approved service in the repair and maintenance of the IRON.

Does State Law Affect My Rights?

This warranty gives you specific legal rights, and you may also have other rights • which vary from state to state.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

How Do I Get Service Under The Warranty?

Service under the warranty may be obtained by returning the IRON with:

This original warranty document; and 1.

Proof of purchase (such as the purchase receipt) to:2.

SINGER Sewing Company

ATTN: Service Department

1224 Heil Quaker Boulevard

LaVergne, TN 37068

What If I Have Questions About The Warranty?

If you have any questions regarding these warranties, please contact us:

SINGER Sewing Company

1-800-4-SINGER

E-mail: [e-mail]

ATTN: Consumer Affairs (1-800-474-6437)

1224 Heil Quaker Boulevard

LaVergne, TN 37068

or through the Customer Service Area of our web site: www.singerco.com

SINGER®

SINGER ^® IS A REGISTERED TRADEMARK OF THE SINGER COMPANY LIMITED.

SINGER® | Classic Finish™ CF

Illustration of a SINGER Classic Finish iron iron with visible branding and control buttons (no text or symbols on the device itself)

SINGER

HOME ESSENTIALS.

Illustration of a hand using a power iron to press down a button (no text or symbols visible)

Cross-sectional illustration of a biological structure within a circular frame (no text or symbols)

Diagram of a showerhead with smokestacks and decorative elements inside, enclosed in a circular frame (no text or symbols)

Illustration of a high-speed train in motion, showing front wheel and side blades (no text or symbols)

ATTN: Service Department

1224 Heil Quaker Boulevard

LaVergne, TN 37068
