Product Type	Rechargeable Sonic Toothbrush
Model	Philips Sonicare Essence HX5752
Dimensions (H x W x D)	Approx. 25 x 2.5 x 2.5 cm
Weight	Approx. 130 g (handle only)
Power Source	Rechargeable lithium-ion battery, 100-240 V AC adapter
Battery Life	Up to 2 weeks (two 2-minute cleanings daily)
Charging Time	Approx. 24 hours
Brushing Technology	Sonic technology (up to 31,000 brush strokes per minute)
Cleaning Modes	1 standard mode
Timer	Built-in 2-minute timer with 30-second interval pacer
Speed Settings	Single speed
Brush Head Compatibility	Philips Sonicare ProResults or similar (click-on)
Water Resistance	IPX7 (waterproof up to 1 meter for 30 minutes)
Warranty	2 years limited warranty (check local terms)
Included Items	Handle, one brush head, charger, user manual
Color Options	Usually white/blue (varies by region)
Brush Head Replacement	Every 3 months for optimal performance
Easy Start Feature	Yes (gradual power increase for first 12 uses)

Frequently Asked Questions - Sonicare Essence HX5752 PHILIPS

How often should I replace the brush head?

Replace the brush head every 3 months for optimal cleaning. You may also replace it sooner if the bristles become frayed.

How long does the battery last on a full charge?

A full charge provides up to 2 weeks of brushing (two 2-minute brushing sessions per day). The battery life may vary with usage.

How do I know when the battery is low?

The toothbrush handle will emit a flashing light or a beeping sound when the battery is low. Refer to the manual for exact indications.

Can I use this toothbrush in the shower?

Yes, the handle is IPX7 water-resistant, meaning it can be used in the shower and is safe to rinse under running water.

How long does it take to charge the toothbrush?

The charging time is approximately 24 hours for a full charge from empty.

How does the 2-minute timer work?

The toothbrush includes a 2-minute timer that automatically stops after 2 minutes. Additionally, a 30-second interval pacer prompts you to move to the next quadrant of your mouth.

What is the Easy Start feature?

The Easy Start feature gradually increases the power over the first 12 brushings to help you adjust to the sonic brushing experience.

Can I use any Philips Sonicare brush head?

This model is compatible with most Philips Sonicare brush heads that use a click-on design, such as the ProResults or Compact heads.

How do I clean the toothbrush handle?

Rinse the handle under running water after each use. For deeper cleaning, wipe with a damp cloth. Do not use abrasive cleaners or submerge the charger.

Does the toothbrush have any warranty?

Yes, the Philips Sonicare Essence HX5752 comes with a 2-year limited warranty against defects. Check your local documentation for details.

USER MANUAL Sonicare Essence HX5752 PHILIPS

the sonic toothbrush

elite e5000 series PHILIPS PHILIPS SOMECERAFO PHILIPS

PHILIPS

1

ENGLISH 4

DANSK 14

ESPAÑOL 24

SUOMI 34

NORSK 44

PORTUGUÊS 54

РУССКИЙ 64

SVENSKA 74

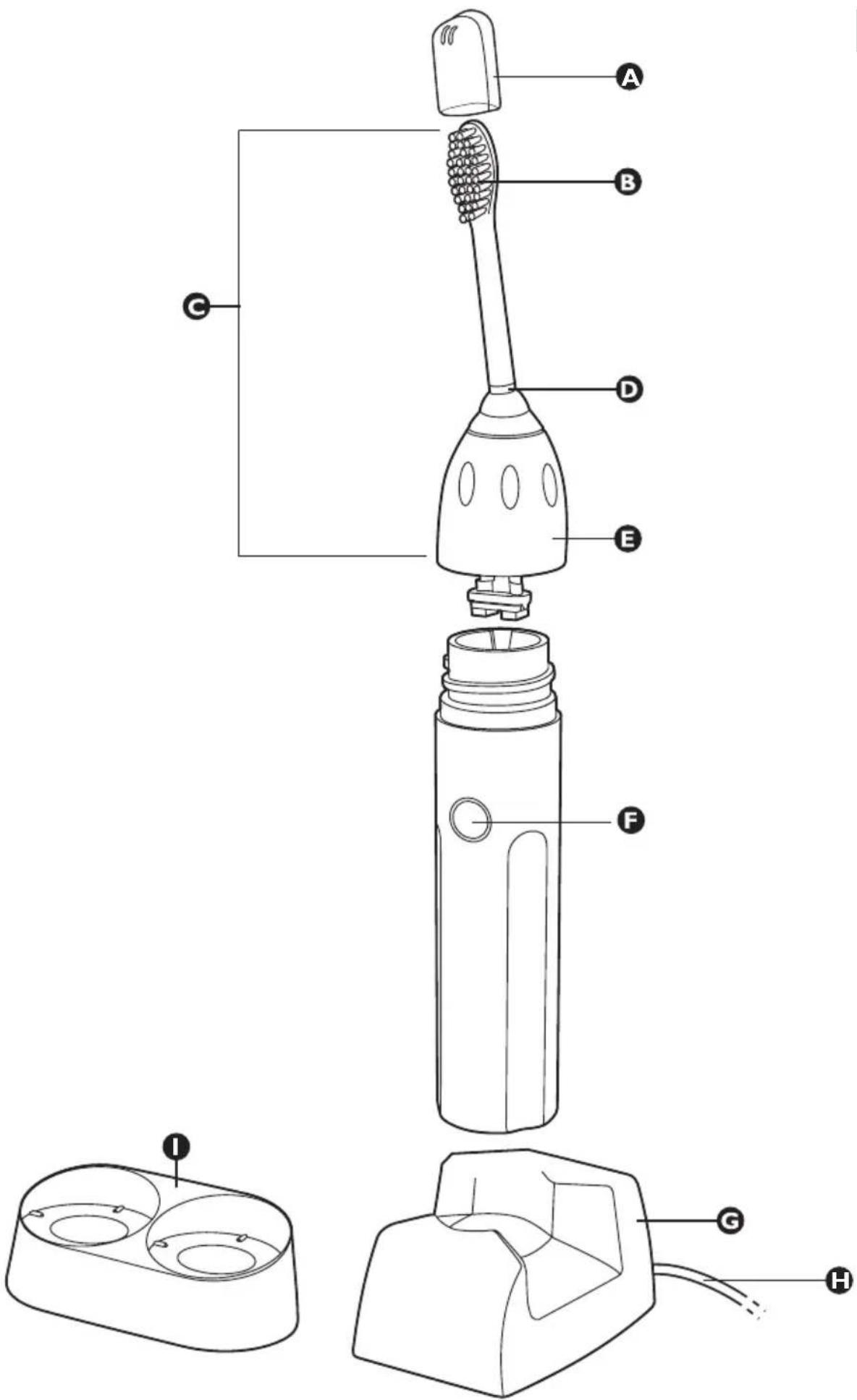

General description (Fig. 1)

A Travel cap
B Extra-soft bristles
© Brush head
D Colour code ring
Removable nut
F On/off button & charging light
G Charger with cord storage
H Mains cord
Brush head holder

Important

Read these instructions for use carefully before you use the appliance and save them for future reference.

Check if the voltage that is indicated on the bottom or back of the charger corresponds to the local mains voltage before you connect the charger.
Voltage converters and plug adapters DO NOT guarantee voltage compatibility. Always check for voltage compatibility.
Keep the charger away from water. Do not place or store it over or near water that is contained in a bathtub, washbasin, sink etc. Do not immerse the charger in water or any other liquid.
Never use the charger if it is damaged or if the cord or plug is damaged. If the charger, the cord or the plug is damaged, always have the charger replaced by one of the original type in order to avoid a hazard.
Unplug the charger before you clean it and make sure that it is dry before you put the plug in the wall socket.
Only use the charger supplied.
Do not use the charger outdoors.
Do not use the toothbrush in the bath or shower.
- Close supervision is necessary when this appliance is used by or on children under the age of 10 or the disabled.
Stop using the appliance if you are unable to handle it properly.
If your toothpaste includes peroxide, baking soda or other bicarbonate (common in whitening toothpaste), thoroughly clean the brush head with soap and water after each use.
If you have had oral or gum surgery in the previous 2 months, consult your dentist before you use the toothbrush.
Consult your dentist if excessive bleeding occurs after using this toothbrush or if bleeding continues to occur after 1 week of use.
The Sonicare toothbrush complies with the safety standards for electromagnetic devices. If you have a pacemaker or other implanted device, consult your doctor or the manufacturer of the implanted device if you have any questions about using the Sonicare.
Do not use other brush heads than the ones the manufacturer recommends.
Replace the brush head every 6 months or sooner if signs of wear appear, such as crushed or bent bristles.
This appliance has only been designed for cleaning teeth, gums and tongue. Do not use it for any other purpose.

Supervise children when they are brushing until they have established good brushing habits.
The Sonicare toothbrush is a personal care device and it is not intended for use on multiple patients in a dental practice or institution.
The mains cord of the charger cannot be replaced. If the mains cord is damaged, you must discard the charger.

Preparing for use

Technical diagram of a mechanical component with three blades and a wire (no text or symbols)

1 Store excess cord by winding it round the cord storage hooks in the bottom of the charger.

Attaching the brush head

Diagram of a mechanical device with a lever and arrow indicating direction (no text or symbols)

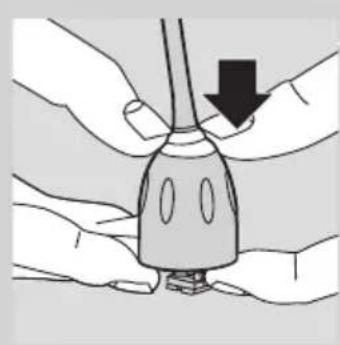

1 Place the brush head onto the handle by sliding the ribs on the inside of the nut into the grooves in the top of the handle.

Illustration of an electric toothbrush with a black-and-white tip, showing the brush tip and tooth structure (no text or symbols)

2 Screw the brush head nut clockwise until it is firmly tightened. If the brush head rattles during use, tighten the nut further.

3 Remove the travel cap from the brush head before you start to brush.

Charging

Charge the Sonicare for at least 24 hours during the first few days of use. We advise you to keep the Sonicare in the plugged-in charger when not in use to maintain a full battery charge. When the battery is empty, it takes at least 24 hours to fully charge the Sonicare.

ENGLISH6

Simple line drawing of a lamp with a sun icon and base, no text or symbols present

1 To charge the Sonicare, place the handle properly in the charger with the on/off button facing towards the front of the charger.

Make sure the bottom of the handle sits back securely in the charger so that it makes complete contact.

Simple line drawing of a lamp with a sun and a black cross on a base (no text or symbols)

When the handle is placed incorrectly in the charger, the charging light may still go on, but charging does not take place.

The handles of other Sonicare models do not fit in this charger and therefore will not charge effectively. Do not attempt to force a handle into this charger, as this will cause damage.

Using the appliance

Useful tips

The brush head comes with a convenient travel cap. Remove the travel cap from the brush head before you switch on the Sonicare.
Place the brush head in your mouth before you switch on the appliance and keep your mouth closed during brushing to prevent splattering of toothpaste.
A fully charged Sonicare allows you to brush your teeth for 2 minutes twice a day for approximately 2 weeks without charging. This makes it easy to travel without the charger.
Voltage converters and plug adapters DO NOT guarantee voltage compatibility. Always check for voltage compatibility.

Brushing technique

45°

Follow these simple steps to maximise your brushing experience.

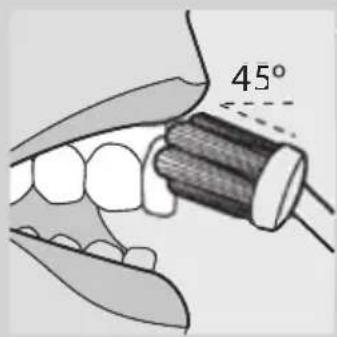

1 Before you switch on the Sonicare, place the bristles of the brush head on your gumline at a 45-degree angle.
2 Hold the handle with a light grip and switch on the Sonicare. Gently move the bristles in a small circular motion so that the longer bristles reach between your teeth. After a few seconds, pass the bristles to the next section. Continue this routine throughout the 2-minute brushing cycle.
3 To maximise the effectiveness of the Sonicare toothbrush, use light pressure and let the Sonicare do the brushing for you. Do not scrub.

Diagram illustrating dental tooth manipulation with numbered steps and directional arrows indicating movement

4 To make sure you brush evenly throughout the mouth, divide your mouth into 4 sections: outside upper teeth, inside upper teeth, outside lower teeth and inside lower teeth. Begin brushing the first section (outside upper teeth) and brush for 30 seconds before moving to the next section (inside upper teeth). Continue brushing the other two sections for 30 seconds each until you have completed the 2-minute brushing cycle.
5 After the 2-minute brushing cycle, you can briefly switch on the Sonicare again to brush the chewing surfaces of your teeth.

Press the on/off button to switch the Sonicare on or off as needed. To clean your mouth more completely, you can also brush your tongue with the toothbrush switched on or off, as you prefer.

Tips for specific oral care needs

Stain removal

For even better stain removal, dedicate a few seconds of extra brushing time to areas where excess staining occurs.

Braces

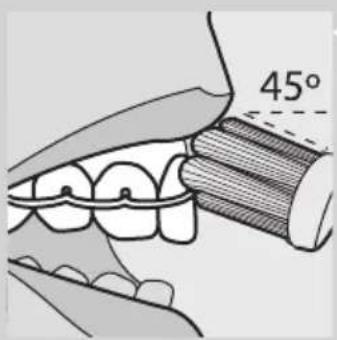

Place the brush head at a 45-degree angle between the brackets and the gumline. Using light pressure, gently move the bristles in a small circular motion so the longer bristles reach between your teeth for 2 seconds. Then gently roll the brush handle so the bristles clean the bracket and the rest of the tooth. Subsequently pass the bristles to the next tooth. Continue this procedure until you have brushed all your teeth. Please note that brush heads wear out sooner when used on braces.

Dental restorations

Use the Sonicare on dental restorations (such as implants, caps, crowns, bridges and fillings) as you do on your natural tooth surfaces. Work the bristles round all the areas of the restoration for thorough cleaning.

Periodontal pockets

Your dentist or dental hygienist may have indicated that you have periodontal pockets, deep pockets where plaque bacteria collect. If this is the case, spend extra time brushing these areas after you have completed the 2-minute brushing cycle to improve your gum health.

Features

Easy-start

All Sonicare models come with the Easy-start feature activated, which helps you get used to brushing with the Sonicare.
The brushing power gently increases to full power over the first 12 brushings.
The Easy-start feature is active if you hear 2 beeps immediately after you switch on the Sonicare. Once the Sonicare has reached optimal brushing power (after the 12th brushing), you no longer hear the 2 beeps at the beginning of each brushing cycle.

Note: Each of the first 12 brushings must be at least 1 minute long to move properly through the Easy-start ramp-up cycle.

To deactivate or activate the Easy-start feature:

1 Attach the brush head to the handle.

45°

2 Place the handle in the plugged-in charger.
3 To deactivate the Easy-start feature, press and hold the on/off button for 5 seconds. You hear 1 beep to indicate that the Easy-start feature has been deactivated.
4 To activate the Easy-start feature, press and hold the on/off button for 5 seconds. You hear 2 beeps to indicate that the Easy-start feature has been activated.

Use of the Easy-start feature beyond the initial ramp-up period is not recommended and reduces the effectiveness of the Sonicare toothbrush in removing plaque.

Make sure the Easy-start feature is deactivated and the handle fully charged when the Sonicare is used in clinical trials.

Smartimer

The Smartimer automatically sets the brushing time to the 2 minutes that dentists and dental hygienists recommend.
After 2 minutes, the Smartimer automatically switches off the toothbrush.
If you want to stop brushing briefly during a 2-minute brushing cycle, press the on/off button. When you press the on/off button again, the Smartimer resumes the brushing cycle at the point where you stopped.
The Smartimer automatically resets to the beginning of a 2-minute cycle if:
- you stop brushing for 30 seconds or longer;
- you put the handle in the charger.

Quadpacer ® (specific models only)

Diagram illustrating four stages of a tooth tooth manipulation process, labeled 1 to 4 with directional arrows and a tool interacting.

The Quadpacer 30-second interval timer ensures that you brush all sections of your mouth evenly and thoroughly. At 30, 60 and 90 seconds, you hear a short beep and notice a pause in brushing action. These signals tell you to continue with the next section of your mouth.

Battery charge indication (specific models only)

When the battery is running low, you hear 5 beeps after the 2-minute brushing cycle and the charging light blinks rapidly.

When you hear the low charge indication, there are 3 or fewer 2-minute brushings left.

Simple line drawing of a lamp with a sun icon and base, no text or symbols present

1 Place the handle in the charger (with the on/off button facing towards the front of the charger) to recharge the appliance.

The charging light blinks slowly when the handle is in the charger to indicate that charging is in progress.
When the Sonicare is fully charged, the charging light burns continuously to indicate that the Sonicare is ready for use.

Keep the Sonicare in the charger when you are not using it to maintain a full battery charge.

Cleaning

Illustration of a toothbrush cleaning a tooth with a magnified view of its tip (no text or symbols)

Regular cleaning guarantees the best performance and a long life for the appliance.

1 Rinse the brush head and bristles after each brushing.

Illustration of hands holding a tool with a connector (no text or symbols visible)

2 Clean the brush head at least once a week, including under the removable nut.

To remove the nut:

Illustration of hands assembling a mechanical component with a downward arrow indicating assembly (no text or symbols present)

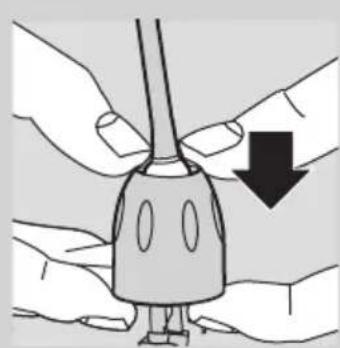

Gently press on the rubber seal with your thumbs.

Do not use sharp objects to press on the seal, as this may cause damage.

Illustration of hands assembling a mechanical component with a downward arrow indicating assembly (no text or symbols)

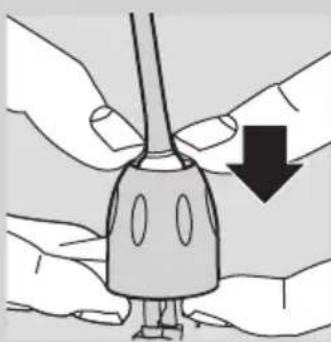

▶ Pull the nut up over the top of the brush head.

To reattach the nut, slip the nut over the brush head shaft and pull it down until it snaps home.

Illustration of hands using a tool to cut or hold a piece of paper (no text or symbols visible)

3 Clean and dry the handle weekly.
4 Clean the charger periodically.

Unplug the charger before you clean it. After you have cleaned the charger, dry it completely before you put the plug back into the wall socket.

We advise you to use a mild cleaning agent, water and a moist cloth to clean the Sonicare.

Storage

If you do not intend to use the appliance for a long time, unplug it, clean it and store it in a cool and dry place away from direct sunlight. You can store the cord by winding it round the cord storage hooks in the bottom of the charger.

Replacement

Brush head

Replace the brush head every 6 months to achieve optimal results.
Only use Sonicare replacement brush heads that are suitable for this Sonicare model.

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.
The built-in rechargeable batteries contain substances that may pollute the environment. Always remove the batteries before you discard and hand in the appliance at an official collection point. Dispose of the batteries at an official collection point for batteries. If you have trouble removing the batteries, you can also take the appliance to a Philips service centre. The staff of this centre will remove the batteries for you and will dispose of them in an environmentally safe way.

Removing the batteries

This process is not reversible.

To remove the batteries yourself, you need a flat-head (standard) screwdriver.

1 Remove the toothbrush from the charger, switch it on and let it run until it stops. Continue to switch on the Sonicare until the battery is completely empty.

Illustration of a hand using a tool to adjust a mechanical component with an arrow indicating rotation (no text or symbols)

2 Insert a screwdriver into one of the slots that are located near the top part of the handle. Push the screwdriver blade into the handle as far as it goes and twist the blade. The housing begins to split.

Illustration of a hand using a screwdriver to lift a cylindrical component, with an arrow indicating rotation (no text or symbols)

3 Remove the screwdriver and apply the above instruction to the other slot, which is located on the opposite side of the handle. Twist the blade to split the rest of the housing.

Illustration of a hand using a tool to lift a mechanical component (no text or symbols visible)

4 Now insert the screwdriver into the middle slot, which is located on the top front part of the handle, as shown. Push the blade in as far as it goes.

Illustration of hands using a tool to adjust a component with an arrow indicating rotation (no text or symbols)

5 Now use the screwdriver as a lever to pry the 2 handle sections apart.

Line drawing of a hand holding a mechanical tool or device (no text or symbols visible)

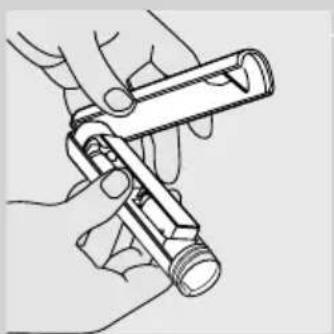

6 Pull the 2 handle sections completely apart.

ENGLISH ^12

Illustration of hands using a tool to adjust or install a device (no text or symbols visible)

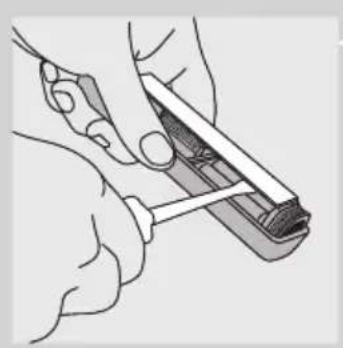

7 Insert the screwdriver underneath the electronic circuit board in multiple places.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

8 Twist and pry the electronic circuit board loose until it is completely separated from the handle.

Illustration of a hand holding a battery with a partially open lid (no text or symbols visible)

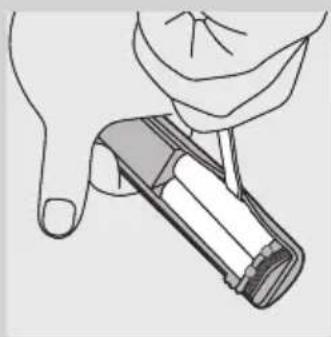

9 Pry the batteries loose by inserting the screwdriver on the sides of the two batteries in the locations that are shown in the figure.

Illustration of a hand using a tool to adjust internal components of a device (no text or symbols visible)

10 Twist the screwdriver to break the glue bond round the batteries. The 2 batteries are joined together with glue and will be lifted out together.

Guarantee & service

If you need information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, turn to your local Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal Care BV.

Guarantee restrictions

The terms of the international guarantee do not cover the following:

- Brush heads

- Damage caused by misuse, abuse, neglect or alterations

- Normal wear and tear, including chips, scratches, abrasions, discolouration or fading

Troubleshooting

This chapter summarises the most common problems you could encounter with the Sonicare. If you are unable to solve the problem, contact the Philips Customer Care Centre in your country (see chapter 'Guarantee & service') or visit www.philips.com.

Problem Solution

The Sonicare toothbrush does not work.	You may need to recharge the Sonicare. Charge the Sonicare for at least 24 hours.
	Make sure the socket is live when you recharge the appliance. The electricity supply to sockets in mirror cabinets over washbasins or shaver sockets in bathrooms may be cut off when the light is switched off.
The motor runs but the brush head does not operate.	You may need to reattach or replace the brush head.
I feel a tickling sensation when I use the Sonicare.	You may experience a slight tickling/tingling sensation when you use the Sonicare for the first time. As you become accustomed to brushing with the Sonicare, this sensation diminishes.
The brush head rattles when I use the Sonicare.	The Sonicare should produce a gentle hum during operation. Tighten the brush head nut to eliminate excessive rattling. If the rattling does not stop, you may need to replace the brush head.
	Make sure you remove the travel cap before you switch on the appliance.
The brush head chatters against my teeth.	You can avoid this by keeping the brush head properly oriented, with the brush head placed on the gumline at an angle of 45 degrees.
Brushing seems less powerful. You may need to recharge the Sonicare.
	The Easy-start feature may be active and needs to be deactivated (see chapter 'Features').
	You may need to clean the brush head.
	You may need to replace the brush head.
The Sonicare gives off an unpleasant smell.	You may need to clean the appliance. Clean the handle, brush head and charger thoroughly (see chapter 'Cleaning').
	You may need to replace the brush head.

Technical line drawing of a mechanical component with three blades and a central hub (no text or symbols)

Illustration of a mechanical component with a lever and arrow indicating direction (no text or symbols)

Illustration of an electric toothbrush with a black arrow indicating the tip area (no text or symbols present)

Simple line drawing of a lamp with a sun icon and base, no text or symbols present

Simple line drawing of a lamp with a sun and a black cross on a base (no text or symbols)

Diagram illustrating dental tooth manipulation with numbered steps and directional arrows indicating movement

Diagram illustrating four stages of a tooth manipulation or healing process, labeled 1 to 4 with directional arrows and a tool interacting.

Simple line drawing of a lamp with a sun symbol and base, no text or symbols present

Illustration of a toothbrush cleaning a tooth with a magnified view of its tip (no text or symbols)

Illustration of hands holding a tool with a connector (no text or symbols visible)

Illustration of hands assembling a mechanical component with a downward arrow indicating assembly (no text or symbols present)

Illustration of hands assembling a mechanical component with a downward arrow indicating assembly (no text or symbols)

Illustration of hands holding a knife with a handle, no text or symbols present

Symbol of a trash bin with crossed lines indicating no waste or restriction, accompanied by a blank rectangular bar below (no text or symbols present)

Illustration of a hand holding a screwdriver with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand using a screwdriver to lift a cylindrical object with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand holding a tool with a black arrow indicating direction (no text or symbols)

Illustration of hands using a tool to adjust or install a component, with no visible text or symbols

Line drawing of a hand holding a mechanical tool or device (no text or symbols visible)

Illustration of a hand holding a tool with a pen inserted, no text or symbols present

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a battery with a finger pointing downward (no text or symbols)

Illustration of a hand using a tool to adjust internal components (no text or symbols visible)

Technical line drawing of a mechanical component with three blades and a central hub (no text or symbols)

Illustration of a mechanical component with a lever and arrow indicating direction (no text or symbols)

Illustration of an electric toothbrush with a black screw and a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a lamp with a sun icon and base, no text or symbols present

Simple line drawing of a lamp with a sun and a black cross on a base (no text or symbols)

Diagram illustrating dental tooth manipulation with numbered steps and directional arrows indicating movement

Diagram illustrating dental archway tooth movement with numbered steps and magnified view

Simple line drawing of a test tube with a sun symbol inside, mounted on a base with wires (no text or labels)

Illustration of a toothbrush cleaning a tooth with a magnified view of its tip (no text or symbols)

Illustration of hands holding a tool with a connector (no text or symbols visible)

Illustration of hands assembling a mechanical component with a downward arrow indicating assembly (no text or symbols present)

Illustration showing two-step procedure: top shows a tool being inserted into a plug, bottom shows a tool being inserted into a clip (no text or symbols present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a hand holding a screwdriver with a rotating knob and a downward arrow indicating motion (no text or symbols)

Illustration of a hand turning a screw with an arrow indicating rotational motion (no text or symbols)

Illustration of a hand using a tool to lift a small object, with an arrow indicating the process (no text or symbols present)

Illustration of hands using a tool to adjust a component with an arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a mechanical tool or device (no text or symbols visible)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a battery with a partially open lid (no text or symbols visible)

Illustration of a hand using a tool to adjust internal components of a device (no text or symbols visible)

Technical line drawing of a mechanical component with three blades and a wire (no text or symbols)

Diagram of a mechanical device with a lever and arrow indicating direction (no text or symbols)

Illustration of an electric toothbrush with a black arrow indicating the tip area (no text or symbols present)

Simple line drawing of a lamp with a sun icon and base, no text or symbols present

Simple line drawing of a lamp with a sun and a black cross on a base (no text or symbols)

Diagram illustrating four stages of dental tooth manipulation, labeled 1 to 4 with directional arrows and a tool.

Simple line drawing of a lamp with a sun symbol and base, no text or symbols present

Illustration of a toothbrush cleaning a tooth with a magnified view of its tip (no text or symbols)

Line drawing of hands holding a tool with a connector (no text or symbols)

Illustration of hands assembling a mechanical component with a downward arrow indicating assembly (no text or symbols present)

Illustration of hands assembling a mechanical component with a downward arrow indicating assembly (no text or symbols present)

Illustration of hands holding a knife with a handle, no text or symbols present

Symbol of a trash bin with no text or numbers, crossed by two diagonal lines and a solid black rectangle below (no text or symbols present)

Illustration of a hand turning a screwdriver with an arrow indicating rotation (no text or symbols)

Illustration of a hand using a screwdriver to lift a cylindrical object with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand using a tool to lift a device (no text or symbols visible)

Illustration of hands using a tool to adjust a component with an arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a mechanical tool or device (no text or symbols visible)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a battery with a partially open lid (no text or symbols visible)

Illustration of a hand using a tool to adjust internal components of a device (no text or symbols visible)

Technical line drawing of a mechanical component with three blades and a wire (no text or symbols)

Diagram of a mechanical device with a lever and arrow indicating direction (no text or symbols)

Illustration of an electric toothbrush with a black-and-white tip, showing tooth structure and an arrow indicating rotation (no text or symbols)

Simple line drawing of a lamp with a sun icon and base, no text or symbols present

1 Når du skal lade Sonicare-tannbørsten, setter du håndtaket i laderen med av/på-knappen vendt mot forsiden av laderen.

Simple line drawing of a lamp with a sun and a black cross on a base (no text or symbols)

Diagram illustrating four stages of dental tooth manipulation, labeled 1 to 4 with directional arrows and a tool.

Simple line drawing of a lamp with a sun symbol and base, no text or symbols present

Illustration of a toothbrush cleaning a tooth with a magnified view of its tip (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of hands assembling a mechanical component with a downward arrow indicating assembly (no text or symbols)

Illustration of hands assembling a mechanical component with a downward arrow indicating assembly (no text or symbols)

Illustration of hands using a tool to cut or hold a piece of paper (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a hand turning a screwdriver with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand using a screwdriver to lift a cylindrical object with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand using a tool to lift a plug, showing a black arrow indicating the process (no text or symbols present)

Illustration of hands using a tool to adjust or install a component, with no visible text or symbols

Line drawing of a hand holding a mechanical tool or device (no text or symbols visible)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a battery with a finger pointing downward (no text or symbols)

Illustration of a hand using a tool to adjust internal components (no text or symbols visible)

Technical line drawing of a mechanical component with three blades and a central hub (no text or symbols)

Illustration of a mechanical component with a lever and arrow indicating direction (no text or symbols)

Illustration of an electric toothbrush with a black-and-white tip, showing tooth structure and a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a lamp with a sun icon and a base, no text or symbols present

Simple line drawing of a lamp with a sun and a black cross on a base (no text or symbols)

Diagram illustrating dental tooth manipulation with numbered steps and directional arrows indicating movement

Diagram illustrating dental tooth manipulation with numbered steps and directional arrows indicating movement

Simple line drawing of a lamp with a sun symbol inside and connected to a base (no text or symbols)

Illustration of a toothbrush cleaning a tooth with a magnified view of its tip (no text or symbols)

Line drawing of two hands holding a tool with a connector (no text or symbols)

Illustration of hands assembling a mechanical component with a downward arrow indicating assembly (no text or symbols present)

Illustration showing two-step procedure: top shows a tool being inserted into a plug, bottom shows a tool being inserted into a clip (no text or symbols present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a hand holding a screwdriver with a rotating knob and a downward arrow indicating motion (no text or symbols)

Illustration of a hand turning a screwdriver with an arrow indicating rotational motion (no text or symbols)

Illustration of a hand using a tool to lift a mechanical component (no text or symbols visible)

Illustration of hands using a tool to adjust a component with an arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a mechanical tool or device (no text or symbols visible)

PORTUGUÊS62

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a battery with a finger inserted (no text or symbols)

Illustration of a hand using a tool to adjust internal components of a device (no text or symbols visible)

Pure electrical circuit lines without any symbols

Illustration of a dental tool with a circular component and an arrow indicating rotation (no text or symbols)

Illustration of an electric toothbrush with a curved arrow indicating motion (no text or symbols)

Simple line drawing of a lamp with a sun icon and base, no text or symbols present

Simple line drawing of a lamp with a sun and a cross over a base (no text or symbols)

Diagram illustrating dental tooth manipulation with numbered steps and directional arrows indicating movement

Simple line drawing of a lamp with a sun symbol and base, no text or symbols present

Illustration of a toothbrush cleaning a tooth with a magnified view of its tip (no text or symbols)

Line drawing of hands holding a tool with a connector (no text or symbols)

Illustration of hands assembling a mechanical component with a downward arrow indicating a detail (no text or symbols present)

Illustration showing two-step procedure: top shows a tool being inserted into a component, bottom shows a tool holding a clip (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a hand turning a screwdriver with an arrow indicating rotational motion (no text or symbols)

Illustration of a hand using a tool to lift a cylindrical object with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand holding a tool with a black arrow indicating direction (no text or symbols)

Illustration of hands using a pliers to tighten a cable with a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a mechanical tool or device (no text or symbols visible)

Illustration of hands using a tool to adjust or install a device (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a battery with a partially open lid (no text or symbols visible)

Illustration of a hand using a tool to adjust internal components of a battery (no text or symbols visible)

Technical line drawing of a mechanical component with three blades and a central hub (no text or symbols)

Illustration of a mechanical component with a lever and arrow indicating direction (no text or symbols)

Illustration of an electric toothbrush with a black-and-white tip, showing the brush tip and base (no text or symbols)

Simple line drawing of a lamp with a sun icon and base, no text or symbols present

Simple line drawing of a lamp with a sun and a black cross on a base (no text or symbols)

Diagram illustrating dental tooth manipulation with numbered steps and directional arrows indicating movement

Simple line drawing of a lamp with a sun icon and base, no text or symbols present

Illustration of a toothbrush cleaning a tooth with a magnified view of its tip (no text or symbols)

Line drawing of hands holding a tool with a clip (no text or symbols)

Illustration of hands using a tool to adjust or install a component, with a black arrow indicating the process (no text or symbols present)

Illustration of hands holding a small mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of hands using a tool to cut or adjust a piece of paper (no text or symbols visible)

Symbol of a trash bin with no text or numbers present

Illustration of a hand holding a screwdriver with a rotating knob and a downward arrow indicating motion (no text or symbols)

Illustration of a hand turning a screwdriver with an arrow indicating rotational motion (no text or symbols)

Illustration of a hand using a tool to lift a mechanical component (no text or symbols)

Illustration of hands using a tool to adjust a component with an arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a mechanical tool or device (no text or symbols visible)

6 Dra isär handtagets båda delar fullständigt.

SVENSKA82

Illustration of hands using a tool to adjust or install a device (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a battery with a magnified view (no text or symbols)

Illustration of a hand using a tool to adjust internal components (no text or symbols visible)

Philips Oral Healthcare, Inc.

35301 SE Center Street

Snoqualmie WA 98065

U.S.A.

Outside North America:

[phone]

www.philips.com

Printed in U.S.A.

Printed on 100% recycled paper

Protected by U.S. and international patents. Other patents pending.
