| Product Type | Microwave Oven with Grill and Convection |
| Brand | Denver |
| Model | OC-11 |
| Outside Dimensions (W x D x H) | 510 mm x 455 mm x 303 mm |
| Oven Cavity Dimensions (W x D x H) | 330 mm x 330 mm x 230 mm |
| Oven Capacity | 25 L |
| Net Weight | Approx. 19 kg |
| Power Consumption | 1400 W (230 V ~ 50 Hz) |
| Microwave Output Power | 900 W |
| Grill Heater Power | 1200 W |
| Convection Heater Power | 1350 W |
| Operating Frequency | 2450 MHz |
| Functions | Microwave, Grill, Convection, Combination, Auto Defrost, Child Lock |
| Control Type | Electronic with Digital Display and Rotary Dial |
| Door Type | Drop-down with Safety Interlock System |
| Interior Material | Stainless Steel (Cavity) |
| Turntable | Glass Tray with Roller Ring (D: 330 mm) |
| Safety Features | Child Lock, Door Interlocks, Overheat Protection |
| Cleaning and Maintenance | Clean inside with damp cloth; do not use abrasives; remove odors with lemon water |
| Accessories Included | Glass Turntable, Roller Ring, Grill Rack |
| Repairability | Consult authorized service agent for repairs; do not remove covers |
| Environmental Disposal | Recycle at designated collection point (WEEE directive) |
Frequently Asked Questions - OC-11 DENVER
User questions about OC-11 DENVER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Microwaves in PDF format for free! Find your manual OC-11 - DENVER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. OC-11 by DENVER.
USER MANUAL OC-11 DENVER
Owner's Instruction Manual
DENVER OC-11
Read the Instructions carefully and Keep for Future Reference


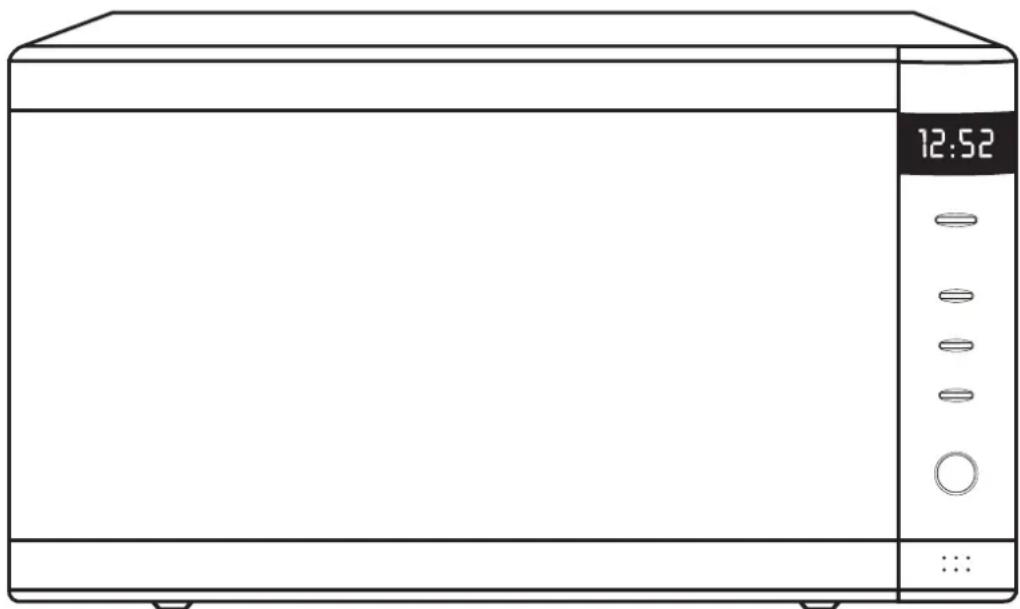

Line drawing of a microwave oven with digital display showing 12:52 (no text or symbols on the device itself)CE
IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
- WARNING: when the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated;
- WARNING: if the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;
- WARNING: it is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;
- WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode
- WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use;
- only use utensils that are suitable for use in microwave ovens
- when heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;
- if smoke is observed, switch of or unplug the appliance and keep the door closed in order to stifle any flames;
- microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;
- the contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;
- eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;
- the oven should be cleaned regularly and any food deposits removed;
- failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;
- if the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- The temperature of accessible surfaces may be high when the appliance is operating.
SPECIFICATIONS
Power consumption: 230V\~50Hz,1400W
Output: 900W
Grill Heater: 1200W
Convection: 1350W
Operating Frequency: 2,450MHz
Outside Dimensions: 510mm(W) X 455mm(D) X 303mm(H)
Oven Cavity Dimensions: 330mm(W) X 330mm(D) X 230mm(H)
Oven Capacity: 25litres
Uncrated Weight: Approx. 19kg
BEFORE YOU CALL FOR SERVICE
- If the oven will not perform at all, the display does not appear or the display disappears:
a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly,
test the outlet with another appliance.
- If the microwave power does not function:
a) Check to see whether the timer is set.
b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven.
IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT THE AUTHORIZED SERVICE AGENT.
Note:
The appliance is for household use for heating food and beverages using electromagnetic energy and for indoor use only.
RADIO INTERFERENCE
Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures.
a. Clean the door and sealing surface of the oven.
b. Place the radio, TV, etc. as far away from your microwave oven as possible.
c. Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.
INSTALLATION
- Make sure all the packing materials are removed from the inside of the door.
- Inspect the oven after unpacking for any visual damage such as:
Misaligned Door
Damaged Door
Dents or Holes in Door Window and Screen
Dents in Cavity
If any of the above are visible, DO NOT use the oven.
- This Microwave Oven weighs 19 kg and must be placed on a horizontal surface strong enough to
support this weight.
- The oven must be placed away from high temperature and steam.
- DO NOT place anything on top of the oven.
- Keep the oven at least 8 cm away from both sidewalls and 10 cm away from rear wall to ensure the correct ventilation.
- DO NOT remove the turn -table drive shaft.
- As with any appliance, close supervision is necessary when used by children.
WARNING-THIS APPLIANCE MUST BE EARTHED.
- The plug socket should be within easy reach of the power cord
- This oven requires 1.5 KVA for its input.
consultation with service engineer is suggested when installing the oven.
CAUTION: This oven is protected internally by a 250V,10 Amp Fuse.
IMPORTANT
The wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow : Earth
Blue : Neutral
Brown : Live
As the colours of the wires in the mains leads of the appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol coloured green of green-and-yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
IMPORTANT SAFETY INSTRUCTIONS
-WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function)
-WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;
-WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;
-WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.
-WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use;
- The oven must have sufficient air flow. Keep 10 cm space at back; 15 cm at both sides and 30cm from top of the oven. Don't remove oven's feet, do not block air events of the oven.
- Only use utensils that are suitable for use in microwave ovens.
- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;
- If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;
- Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;
- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;
- Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;
- When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.
- The oven should be cleaned regularly and any food deposits removed;
- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
SAFETY INSTRUCTIONS FOR GENERAL USE
Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:
- Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
- Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.
- Do not operate the oven when empty. This could damage the oven.
- Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.
-
Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc without first being pierced several times with a fork.
-
Do not insert any object into the openings on the outer case.
- Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.
- Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.
- IMPORTANT-COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN
Do not use metal pans or dishes with metal handles.
Do not use anything with metal trim.
Do not use paper covered wire twist-ties on plastic bags.
Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed.
Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used.
Do not cook in a container with a restricted opening, such as a pop bottle or salad oil bottle, as they may explode if heated in a microwave oven.
Do not use conventional meat or candy thermometers.
There are the thermometers available specifically for microwave cooking. These may be used.
- Microwave utensils should be used only in accordance with manufacturer's instructions.
- Do not attempt to deep-fry foods in this oven.
- Please remember that a microwave oven only heats the liquid in a container rather than the container itself. Therefore, even though the lid of a container is not hot to the touch when

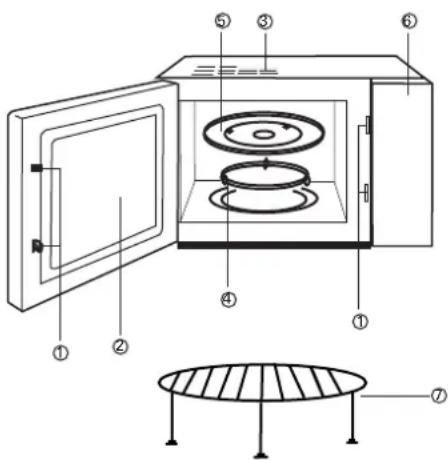

FEATURE DIAGRAM
removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.
- Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.
- Food containing a mixture of fat and water, e.g. stock, should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.
- When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.
- Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.
- To reduce the risk of fire in the oven cavity:
(a) Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
(b) Remove wire twist-ties from bags before placing bag in oven.
(c) If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.
(1) Door Safety Lock System
(2) Oven Window
(3) Oven Air Vent
(4) Roller Ring
(5) Glass Tray
(6) Control Panel
(7) Grill rack

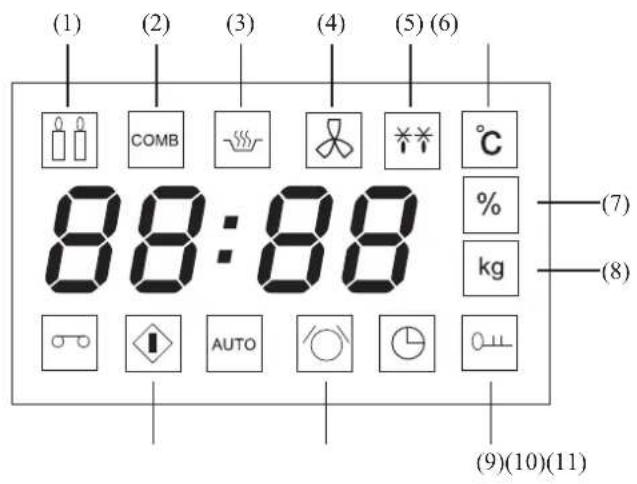

DISPLAY WINDOW AND OPERATION INSTRUCTION
(1) Grill
(2) Combination
(3) Microwave
(4) Convection
(5) Defrost
(6) Temperature
(7) Percentage
(8) Weight (kg)
(9) Child-lock
(10) Time
(11) Start

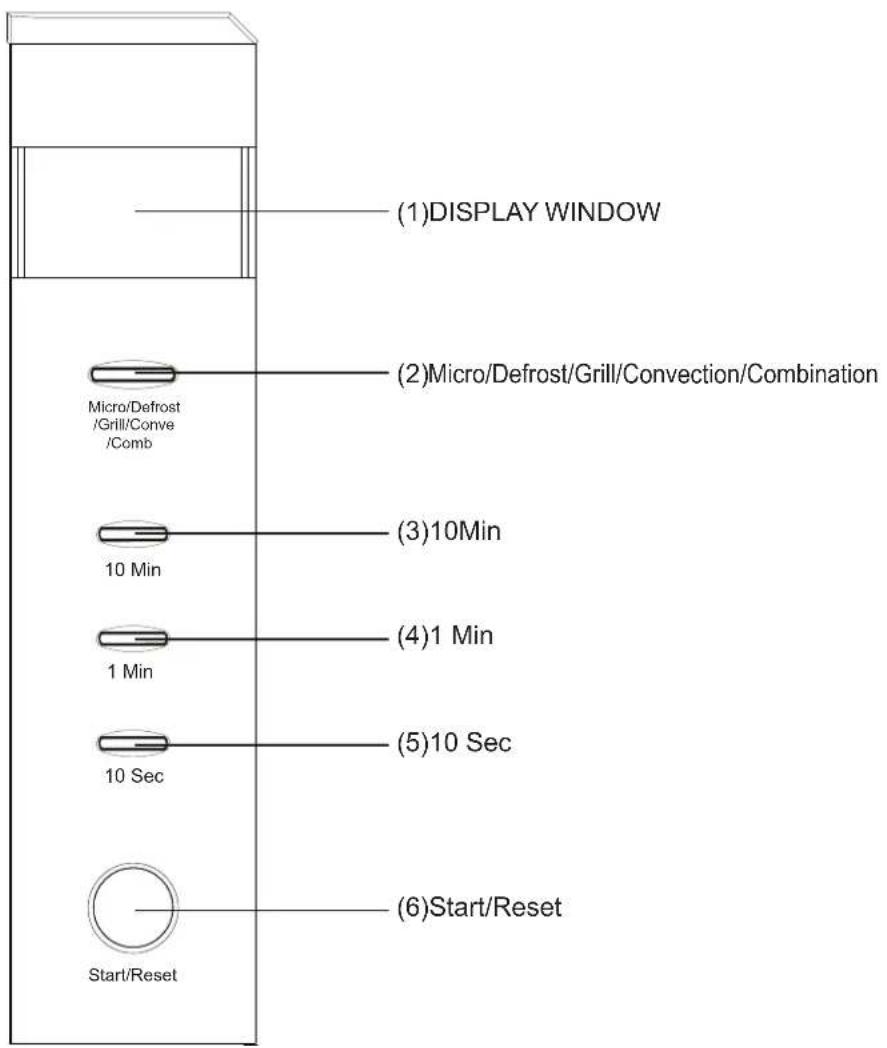

CONTROL PANEL
Only with a single press of a button, you can start simple cooking, it is very convenient and quick to heat a glass of water etc.
Example: To heat a glass of milk
a) Put a glass of milk onto the glass turntable, and close the door.
b) Press the button "Start/Reset", the microwave oven will work on 100% power for 1 minutes.
c) You will hear 5 beeps when cooking is completed.
(A) Fast cooking method
(For example: Select 100% power to cook foods for 5 minutes.)
a) Set the time "5:00"
b) Press "Start/Reset" button
(B) Control by hand
(For example: Select 70% power to cook foods for 10 minutes)
a) Press "Micro/Grill" button to select 70% power.
b) Press time button to set cooking time "10:00"
c) Press "Start/Reset" button.
You can press "MICRO/GRILL" button to select power.
| Step | Display Micro power | |
| 1 | P100 | 100% |
| 2 | P70 | 70% |
| 3 | P50 | 50% |
| 4 | P30 | 30% |
| 5 | P10 | 10% |
3. AUTO DEFROST FUNCTION
You need to press "1Min" (1.0kg) and "10Sec" (0.1kg) according to the weight of the food. The oven can select defrosting program and auto start defrosting.
For example: defrost 0.4kg frozen foods
1) Press "Micro/Grill" to choose defrost function, display "DEF".
2) Set weight "0.4kg" by pressing "1Min" and "10Sec" buttons.
3).Press "Start/Reset" button.
Remark: the maximum weight is 2kgs.
- Grill
You may press "Grill" button to select such functions: (the longest cooking time is 59'50" minutes).
Pattern 1: 85% grill power, display G-1
Example: cooking food with grill for 20 minutes
A) Press "Micro/Grill" until the LED displayed "G-1".
B) Set cooking time "20:00"
C) Press "Start/Reset"
When grilling, the food isn't heated by microwave, heat is radiated from the metal heater at the top of the oven.
When grill is working, the cooking time has 2 stages. After the 1st half of the cooking, the program will automatically pause and sound 2 beeps, indicating you to open the oven and turn food over, after turning over, close the door, press "Start/Reset" button, the cooking will continue for the 2nd half. If you do not want to turn the food over, the oven will re-start after 1 min pause.
5. Combination Cooking
This appliance offers you a choice of three methods of combination cooking.
Option 1: Convection + Microwave (200°C convection + 50% microwave), display "C-1"
This is ideal for roasting and baking etc.
Option 2 : Grill and Convection (50% grill + 210°C convection, display "C-2")
For fast crisping etc.
Option 3: Grill and Microwave (50% grill + 50% microwave), display "C-3"
For fast grilling etc.
Example : Cooking food using option 3 for 30 minutes.
a) Press "Comb" button to select "C-3"
b) Set cooking time for 30 minutes
c) Press "Start/Reset"
6. Convection Cooking
This oven can be used as a convection oven and can be programmed to reach a desired temperature for pre-heating. you may press "Micro/Conve" button to set the different temperature.
Example: To set the oven to pre-heat to 200^ C.
a) Press the "Micro/Conve" button to set 200 °C temperature.
b) Press "Start/Reset".
You can press "Micro/Conve" button to select temperature: 230°C, 220°C, 200°C, 180°C, 160°C.
When the pre-heating is completed, the appliance will stop work and emit 2 bleeps to remind you to place the food in the oven. Set the convection cooking temperature and time and start cooking. The longest pre-heating time will be 30 minutes.)
Example: Convection cooking, To set the pre-heated oven to cook for 20 minutes at 200^ C
a) Press "Micro/Conve" button to choose 200° C temperature.
b) Set cooking time for 20 minutes
c) Press "Start/Reset"
7. Child-safely lock
To activate the child safely lock, press "1Min" and "10Sec" button at the same time for 2 seconds. Press "1Min" and "10Sec" button, at the same time for 2 seconds again, it will unlock this function.
8. Start/Reset
a) In the course of operation, pressing "Start/Reset" button will stop operation.
b) If any program was set before pressing start, pressing this button will cancel all the set program.
- Turn the oven off and remove the power plug from the wall socket before cleaning.
- Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. The use of harsh detergent or abrasives is not recommended.
- The outside oven surface should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
- Do not allow the Control Panel to become wet. Clean with a soft, damp cloth, Do not use detergents, abrasives or spray-on cleaners on the control Panel.
- If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.
- It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
- The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring may be washed in mild sudsy water or dish washer. Cooking vapour collect during repeated use but in no way affect the bottom surface or roller ring wheels.
When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position. - Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly and dry with a soft cloth.
- When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
Instructions on environment protection
DENVER ELECTRONICS
Do not dispose of this product in the usual household garbage at the end of its lifecycle; hand it over at a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about the methods for disposal.
The materials are recyclable as mentioned in this marking. By recycling, material recycling or other forms of re-utilization of old appliances, you are making an important contribution to protect our environment.
Please inquire at the community administration for the authorized disposal location.
DENVER®
VIGTIGE SIKKERHEDSOPLYSNINGER
LÆS DISSE RETNINGSLINJER OMHYGGELIGT OG GEM DEM, SÅ DU KAN SLÅ OP I DEM SENERE
VIKTIGA SÄKERHETSINSTRUKTIONER, LÄS NOGA OCH BEHÅLL FÖR FRAMTIDA BRUK
INNAN DU RINGER EFTER SERVICE
- Owner's Instruction Manual
- DENVER OC-11
- IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
- SPECIFICATIONS
- BEFORE YOU CALL FOR SERVICE
- Note:
- RADIO INTERFERENCE
- INSTALLATION
- IMPORTANT
- IMPORTANT SAFETY INSTRUCTIONS
- SAFETY INSTRUCTIONS FOR GENERAL USE
- DISPLAY WINDOW AND OPERATION INSTRUCTION
- CONTROL PANEL
- AUTO DEFROST FUNCTION
- Combination Cooking
- Convection Cooking
- Child-safely lock
- Start/Reset
- Instructions on environment protection
- DENVER®
- VIGTIGE SIKKERHEDSOPLYSNINGER
- LÆS DISSE RETNINGSLINJER OMHYGGELIGT OG GEM DEM, SÅ DU KAN SLÅ OP I DEM SENERE
- VIKTIGA SÄKERHETSINSTRUKTIONER, LÄS NOGA OCH BEHÅLL FÖR FRAMTIDA BRUK
- INNAN DU RINGER EFTER SERVICE
Brand : DENVER
Model : OC-11
Category : Microwaves
