Product type	Microwave with grill
Brand	Denver
Model	OG-2030
Timer capacity	0 to 30 minutes
Microwave power levels	5 levels: High (100%), Medium High (81%), Medium (58%), Defrost (36%), Low (18%)
Functions	Microwave, Grill, Combined (3 modes: Combi1, Combi2, Combi3)
Turntable	Yes, glass
Viewing window	Yes
Interior light	Yes, automatically turns off at end of cooking
Ventilation	Requires rear space ≥10 cm, sides ≥5 cm, top ≥20 cm, floor ≥85 cm
Installation	On feet, accessible plug, mandatory grounding
Usage	Household use only
Maintenance and cleaning	Clean with a soft damp cloth, do not immerse, use lemon for odors
Safety	Do not put metal, wear gloves to remove food, do not repair yourself
Spare parts	Turntable, rotating ring, rotating shaft
Power supply	Grounded electrical outlet

Frequently Asked Questions - OG-2030 DENVER

How to clean the inside of the microwave?

Use a soft damp cloth to wipe the inside. For odors, place a cup of water with lemon slices and heat at maximum power for 1 minute.

Can I use metal containers in the microwave?

No, never put metal in the microwave oven, as it may cause sparks and damage the appliance.

What is the maximum power of the microwave?

The microwave has 5 power levels: High (100%), Medium High (81%), Medium (58%), Defrost (36%), and Low (18%). The exact wattage is not specified in the manual.

How to use the grill function?

Turn the power knob to the Grill position. Only the heating element works, ideal for grilling sausages, chicken wings, etc. Be careful with thick foods.

Why does my microwave emit a strange odor?

A smell during first use is normal and disappears after a few uses. To remove it, heat a cup of water with lemon for 1 minute.

What to do if the timer does not stop?

Make sure the timer is set to 0 after use. If the problem persists, open the door to interrupt the cycle and contact customer service.

Can I cook food in plastic containers?

Only use microwave-safe containers. Avoid ordinary plastic that could melt or release harmful substances.

How to activate the combination mode?

Turn the power knob to one of the Combi1, Combi2, or Combi3 positions depending on the food type. The microwave and grill work alternately.

What are the safety distances to maintain around the microwave?

The back must be at least 10 cm from the wall, sides 5 cm, top 20 cm, and floor 85 cm for adequate ventilation.

How to replace the turntable?

The glass turntable sits on the rotating ring and rotating shaft. Wash them with soapy water, rinse, and dry before replacing.

USER MANUAL OG-2030 DENVER

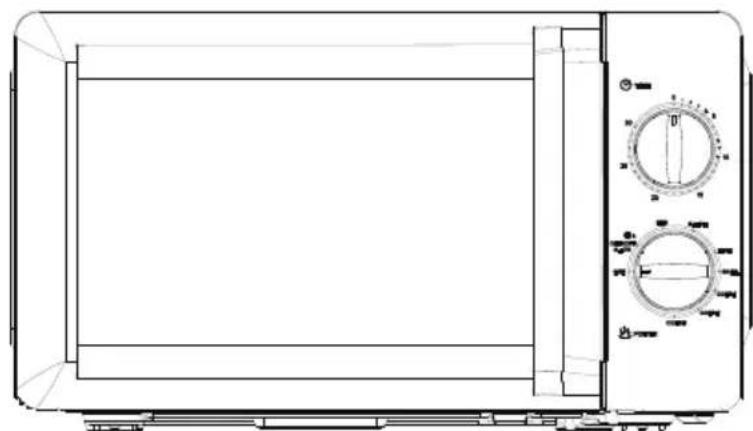

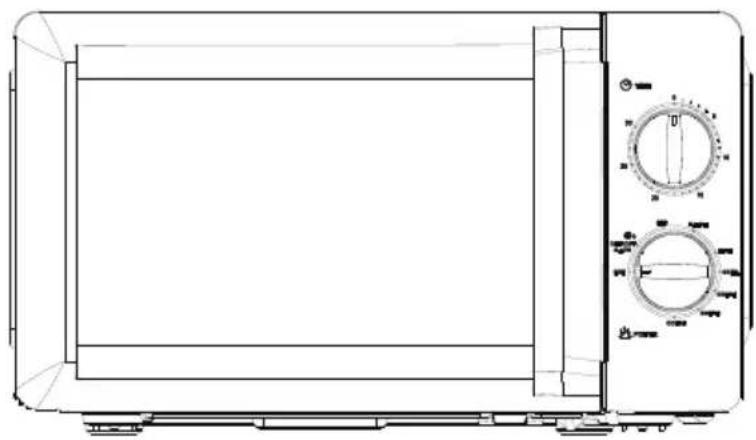

Line drawing of a microwave oven with control knobs and front panel (no text or symbols)

OG-2030

www.denver-electronics.com

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

English

IMPORTANT SAFEGUARDS

The following basic precautions should always be followed when using electrical appliance:

1. Read all instructions before using.
2. Make sure the voltage in your living area corresponding to the one shown on the rating label of the appliance. And the wall socket is properly grounded.
3. To reduce the risk of fire in the oven cavity:
   a. Do not overcook the food.
   b. Remove wire twist -ties from paper or plastic bags before placing bags in the oven.
   c. Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled.
   d. After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built -up grease may overheat and begin to cause smoke or catch fire.
   e. If materials inside the oven should smoke or ignite, keep oven door closed, turn oven off and disconnect the power supply.
   f. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
4. To reduce the risk of explosion and sudden boiling:
   a. WARNING: Liquids and other foods must not be heated in sealed container since they are liable to explode; Baby bottles fitted with a screw cap or teat are considered to be sealed containers.
   b. Use the wide -mouthed container to cook liquid, and the cooked liquid should not be removed out immediately.

Several moments should be waited before removing. In order to avoid possible hazards caused by delayed eruptive boiling of liquids.

c. Potatoes, sausage and chestnut should be peeled or pierced before cooking. Eggs in their shell, whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

d. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.

1. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a qualified technician in order to avoid a shock hazard.

2. After cooking, the container is very hot. Using gloves to take out the food and avoid steam burns by directing steam away from the face and hands.

3. Slowly lift the furthest edge of dishes cover and microwave plastic wrap and carefully open popcorn and oven cooking bags away from the face.

4. To prevent the turntable from breaking:

a. Let the turntable cool down before cleaning.

b. Do not place hot foods or utensils on the cold turntable.

c. Do not place frozen foods or utensils on the hot turntable.

1. Make sure the utensils do not touch the interior walls during cooking.

2. •nly use utensils that are suitable for use in microwave ovens.

3. Do not store food or any other things inside the oven.

4. Do not operate the oven without any liquid or food inside the oven. This would do damage the oven.

5. When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

6. Any accessories not recommended by the manufacturer may cause injuries to persons.
7. Do not use outdoors.
8. Save these instructions.
9. WARNING: If the door or door seals are damaged or the oven is malfunctioned, the oven must not be operated until it has been repaired by a competent person;
10. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;
11. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames;
12. Microwave heating of beverages can result in delayed eruptive boiling; therefore care must be taken when handling the container;
13. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
14. The lamp of microwave oven is not intended for other purposes.
15. The appliances are not intended to be operated by means of an external timer or separate remote -control system.
16. This appliance is intended to be used in household and similar applications, such as:

17. Staff kitchen areas in shops, offices and other working environments;

18. Farm houses;

19. By clients in hotels, motels and other residential environments;

20. Bed and breakfast type environments.

21. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

22. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.

23. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

24. Children should be supervised to ensure that they do not play with the appliance.

25. A steam cleaner is not to be used.

26. The door or the outer surface may get hot when the appliance is operating.

27. WARNING: Accessible parts may become hot during use. Young children should be kept away.

28. During use the appliance becomes hot. Care should be

taken to avoid touching heating elements inside the oven.

1. The surfaces are liable to get hot during use.

: CAUTION:HOT SURFACE

Household use only

INSTALLATION

1. Take out all the packing. If there is a safe film over the oven, tear it off before Use. Check carefully for damage. If any, immediately notify dealer or send to the manufacturer's service center.

2. Microwave ovens must be placed under dry and non-corrosiveness environments, kept away from heat and humidity, such as gas burner or water tank.

3. To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10 cm, the side to the wall should be at least 5 cm, the free distance above the top surface at least 20 cm. the distance of the microwave to the ground should be at least 85 cm.

4. The position of the oven shall be such that it is far from the TV, Radio or antenna as picture disturbance. ●r noise may occur.

5. The appliance must be positioned so that the plug is accessible, and must ensure a good grounding in case leakage, ground loop can be formed to avoid electric shock.

6. The microwave oven must be operated with the door closed.

7. The microwave oven must not be placed in a cabinet. The microwave oven is intended to be used freestanding.

8. As there is manufacturing residue or oil remained on the oven cavity or heat element, it usually would smell the odor, even a slight smoke, It is normal case and would not occur after several times use, keep the door or window open to ensure good ventilation. So it is strongly recommended to set the oven to grill mode and operate dry several times.

CLEANING

MICROWAVE OVEN CARE

CAUTION

The oven should be cleaned regularly and any food deposits removed.

WARNING

1. Remove the power cord from the wall outlet before cleaning. Don't immerse the appliance in water or other fluids when cleaning.
2. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation
3. Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance
4. Do not remove the waveguide cover
5. When the microwave oven has been used for a long time, there may be some strange odors exist in oven, Following 3 methods can get rid of them:
   a. Place several lemon slices in a cup, then heat with high Micro Power for 2-3 min.
   b. Place a cup of red tea in oven, then heat with high micro power.

c. Put some orange peel into oven, and then heat them with high Micro Power for 1 minute.

1. WARNING: •nly allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use;

TIPS FOR CLEANING

Details for cleaning door seals, cavity and adjacent parts:

Exterior:

Wipe the enclosure with a dampened soft cloth

Door:

Using a dampened soft cloth, wipe clean the door and window

Wipe the door seals and adjacent parts to remove any spill or spatter

Wipe the control panel with a slightly dampened soft cloth

Interior walls:

Wipe clean the cavity with a dampened soft cloth

Wipe clean the waveguide cover to remove any food splashed

Turntable/ Rotation ring/ Rotation axis:

Wash with mild soap water

Rinse with clean water and allow drying thoroughly

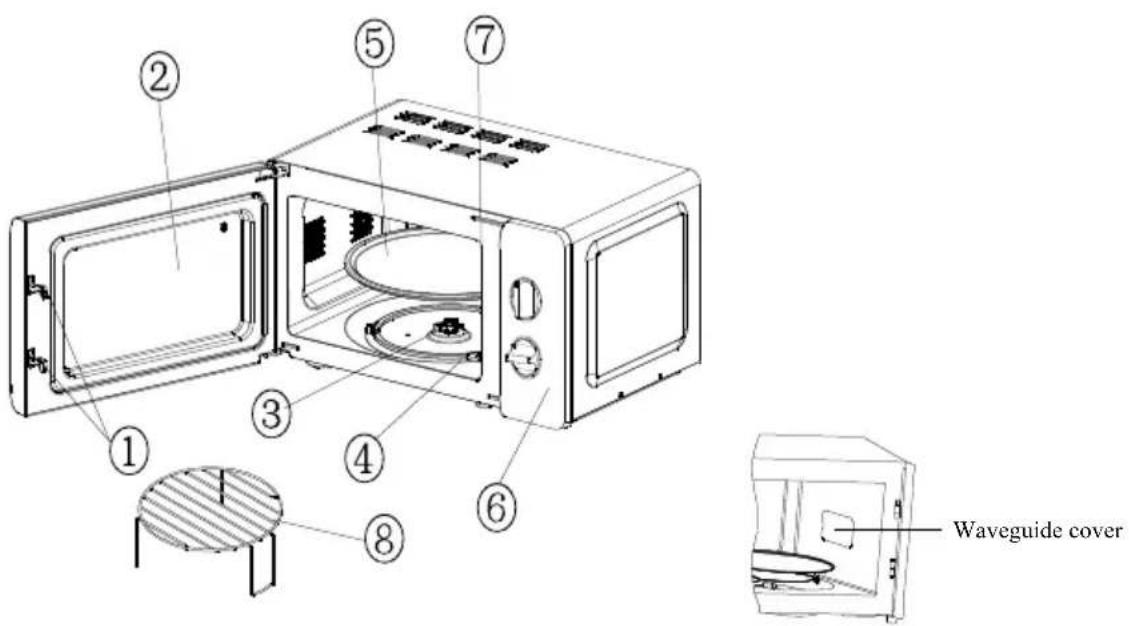

PRODUCT INSTRUCTION

1) Door lock

Microwave oven door must be properly closed in order for it to operate

2) Viewing window

Allow user to see the cooking status

3) Rotating axis

The glass turntable sits on the axis; the motor underneath it drives the turntable to rotate

4) Rotating ring

The glass turntable sits on its wheels; it supports the turntable and helps it to balance when rotating

5) Turntable

The food sits on the turntable, its rotation during operation helps to cook food evenly

CAUTION

- Place the rotating ring first

- Fit the turntable onto the rotating axis and make sure that it is geared in properly

6) Control panel

See below in details (the control panel is subject to change without prior notice)

7) Waveguide cover

It is inside the microwave oven, next to the wall of control panel.

WARNING

Never remove the waveguide cover

8) Grill rack

Use to place the roasting food.

-The max cooking time length that can be set is 30 minutes.

- Each setting is 1 minute

- A bell ring will be heard when the timer times out and returns to Zero position.

2) Function / Power knob

There are 5 microwave power levels:

High 100% power output (Quick cooking)
M.High 81% power output (Normal cooking)
Med 58% power output (Slow cooking)
Defrost 36% power output (Defrost)
Low	18% power output (Keep warm)

The following table provides a reference defrost time length for various foods:

WEIGHT RANGE DEFR•ST LENGTH
Meat 0.1~1.0kg 1:30~26:00
Poultry 0.2~1.0kg 2:30~22:00
Seafood 0.1~0.9kg 1:30~14:00

Grill-- only heat element is energized. Good brown color will be obtained, even the color makes you mouth water, but if the food is thickly, it may result in the surface of food have been burned, but the center of the food is unbaked. It is suitable for broiling sausage, chicken wings, chops, meat slice, sandwich and etc.

Combination-- magnetron and heat element work in an alternate way. According to the properties of food, utilizing the excellence of grill and microwave, to obtain the best result.

Combi 1: 30% operation time the magnetron is energized and 70% time heat element is energized. It is suitable for roasting chops, sandwich and etc.

Combi 2: 49% operation time the magnetron is energized and 51% time heat element is energized. It is suitable for broiling small chicken and meat.

Combi 3: 67% operation time the magnetron is energized and 33% time heat element is energized. It is suitable for broiling large chicken, duck and etc.

OPERATION

1) Connect the cord

• Before connecting the cord, make sure the timer is set to "0" position
• Do not block the ventilation

2) Place the food on the glass turntable and close the door; food must be contained in a utensil.
3) Select the desired power level
4) Set the timer

If desired time is less than 10 minutes, turn the timer knob to over 10 minutes position and then turn back to the desired time setting

5) ●nce the desired time is set, the cooking begins. If pausing in between is needed, just open the door at any time, and close it to resume operation
6) When it times out and cooking ends, the microwave oven produces a bell ring, the inside lamp will also be automatically turned off

• If food is removed before time out, make sure to set back the timer to “0” position, this avoids the microwave oven from operating in empty load
• It is recommended to wear gloves when removing the cooked food from oven and be careful do not touch the heat element on the top of cavity.
• In the mode of Combination/Grill, all of the oven parts, as well as the oven door and top of the oven, may become very hot, do not touch hot surface, use handles or knobs only.

UTENSILS GUIDELINE

It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table.

Material of container	Microwave	grill	Combi	Notes
Heat-resistant ceramic	Yes Yes		Yes	Never use the ceramics which are decorated with metal rim or glazed
Heat-resistant plastic	Yes No No			Can not be used for long time microwave cooking
Heat-resistant glass	Yes Yes		Yes
Plastic film	Yes No No			It should not be used when cooking meat or chops as the over-temperature may do damage to the film
Grill rack	No	Yes	Yes
Metal container	No	No	No	It should not be used in microwave oven. Microwave can not penetrate through metal.
lacquer	No	No	No	Poor heat-resistant. Can not be used for High-temperature cooking
Bamboo wood and paper	No	No	No	Poor heat-resistant. Can not be used for High-temperature cooking

COOKING TIPS

The following factors may affect the cooking result:

Food arrangement

Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible.

Cooking time length

Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. ●ver cooking may result in smoke and burns.

Cooking food evenly

Food such as chicken, hamburger or steak should be turned once during cooking.

Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking

Allow standing time

After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner

Whether the food is done

Color and hardness of food help to determine if it is done, these include:

• Steam coming out from all parts of food, not just the edge
• Joints of poultry can be moved easily
• Pork or poultry shows no signs of blood
• Fish is opaque and can be sliced easily with a fork

Browning dish

When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring.

Microwave safe plastic wrap

When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt

Microwave safe plastic cookware

Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded

MAINTENANCE

SERVICING

Please check the following before calling for services.

1. Place one cup of water (approx. 150ml) in a glass measure in the oven and close the door securely. ●ven lamp should go off if the door is closed properly. Let the oven work for 1 min.
2. Does the oven lamp light?
3. Does the cooling fan work?

(Put your hand over the rear ventilation openings.)

1. Does the turntable rotate?

(The turntable can rotate clockwise or counter clockwise. This is quite normal.)

1. Is the water inside the oven hot?

If “N●” is the answer to any of the above questions, please check your wall socket and the fuse in your meter box.

If both the wall socket and the fuse are functioning properly, CONTACT Y•UR NEAREST SERVICE CENTER APPR•VED.

SERVICING SAFEGUARDS

Caution: MICR•WAVE RADIATION

1. The high voltage capacitor remains charge after disconnection; short the negative terminal of H. V capacitor to the oven chassis (use a screwdriver) to discharge before touching.

2. During servicing below listed parts are liable to be removed and give access to potentials above 250V to earth.

3. Magnetron
   • High voltage transformer
   • High voltage capacitor
   • High voltage diode
   • High voltage fuse

4. The following conditions may cause undue microwave exposure during servicing.

Improper fitting of magnetron;

Improper matching of door interlock, door hinge and door;

Improper fitting of switch support;

Door, door seal or enclosure has been damaged.

ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S

DENVER®

www.denver-electronics.com

Electric and electronic equipment contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment) is not handled correctly.

Electric and electronic equipment is marked with the crossed out trash can symbol, seen below. This symbol signifies that electric and electronic equipment should not be disposed of with other household waste, but should be disposed of separately.

All cities have established collection points, where electric and electronic equipment can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.

Imported by:

DENVER ELECTRONICS A/S

Omega 5A, Soeften

DK-8382 Hinnerup

Denmark

facebook.com/denverelectronics

DENVER®

HORNO MICROONDAS MANUAL DE INSTRUCCIONES

Line drawing of a microwave oven with dual rotary gauges (no text or symbols)

OG-2030

www.denver-electronics.com

Line drawing of a microwave oven with control knobs and doorways (no text or symbols)

OŚs2030

www.denverśelectronics.com

WAŻNE ZALECENIA DOTYCZĄCE BEZPIECZEŃSTWA PROSZĘ UWAŻNIE PRZECZYTAĆ I ZACHOWAĆ NA PRZYSZŁOŚĆ

Polski

English	Polski
Waveguide cover	Uszczelka mikrofal

Line drawing of a microwave oven with control knobs and a door (no text or symbols)

OG-2030

www.denver-electronics.com

VIKTIGA SÄKERHETSANVISNINGAR LÄS NOGGRANT OCH SPARA DEM FÖR FRAMTIDA REFERENS

Swedish

English	Swedish
Waveguide cover	Vågledarskydd

1) Luckans lås

Line drawing of a microwave oven with control knobs and front panel (no text or symbols)

OG-2030

www.denver-electronics.com

INSTRUÇÕES IMPORTANTES DE SEGURANÇA LER CUIDADOSAMENTE E GUARDAR PARA CONSULTA FUTURA

Português

Guide for hurtigstart

Line drawing of a microwave oven with control knobs and doorways (no text or symbols)

OG-2030

www.denver-electronics.com

VIKTIGE SIKKERHETSINSTRUKSER: LES N∅YE OG OPPBEVAR FOR SENERE BRUK

Norsk

Kun for husholdningsbruk

VEDLIKEHOLD AV MIKROB∅LGEOVNEN

ADVARSEL

English	Norsk
Waveguide cover	Waveguide deksel

1) Dørlås

Line drawing of a microwave oven with dual rotary gauges (no text or symbols)

OG-2030

www.denver-electronics.com

English	Italiano
Waveguide cover	Coperchio guida d'onda

1) Blocco sportello

Line drawing of a microwave oven with dual rotary gauges (no text or symbols)

OG-2030

www.denver-electronics.com

English	Deutsch
Waveguide cover	Wellenleiterabdeckung

1) Türschloss

Line drawing of a microwave oven with control knobs and doorways (no text or symbols)

OG-2030

www.denver-electronics.com

INSTRUCTIONS DE SÉCURITÉ IMPORTANTES LIRE SOIGNEUSEMENT ET GARDER POUR S'Y REFERER PLUS TARD

Français

English	Français
Waveguide cover	Couvercle de direction des ondes

1) Verrou de porte

Line drawing of a microwave oven with control knobs and a door (no text or symbols)

OG-2030

www.denver-electronics.com

TÄRKEITÄ TURVALLISUUSOHJEITA LUE HUOLELLISESTI JA SÄILYTÄ MYÖHEMPÄÄ TARVETTA VARTEN

Suomi

English	Suomi
Waveguide cover	Suoja

1) Oven lukko

Line drawing of a microwave oven with control knobs and a door (no text or symbols)

OG-2030

www.denver-electronics.com

BELANGRIJKE VEILIGHEIDSINSTRUCTIES ZORGVULDIG LEZEN EN BEWAREN ALS NASLAGWERK

Nederlands

Line drawing of a microwave oven with dual rotary gauges (no text or symbols)

OG-2030

www.denver-electronics.com

VIGTIGE SIKKERHEDSANVISNINGER LÆS OMHYGGELIGT, OG GEM TIL SENERE BRUG

Dansk

Kun til husholdningsbrug

1) Dørlås

facebook.com/denverelectronics
