Brand	Romo
Model	RCF2190W
Product Type	Fridge-Freezer
Dimensions (W x D x H)	550 mm x 570 mm x 1235 mm
Space Requirements (min. clearance)	50 mm on sides, back, and top
Climate Class	SN, N, ST, T
Refrigerant	Isobutane (R-600a)
Power Supply	220-240 V, 50 Hz
Energy Efficiency	Not specified
Net Capacity	Not specified
Freezer Star Rating	3-star (freezing)
Temperature Control	Mechanical knob or digital? (Manual shows buttons B1/B2)
Modes	Smart, Super, User Setting
Adjustable Shelves	Yes
Door Balconies	Yes, removable
Crisper Drawer	Yes
Ice Cube Trays	Yes (if equipped)
Interior Light	LED
Reversible Door	Yes
Noise Level	Not specified
Defrost Type	Manual (freezer)
Weight	Not specified

Frequently Asked Questions - RCF2190W Romo

How do I set the temperature on the Romo RCF2190W?

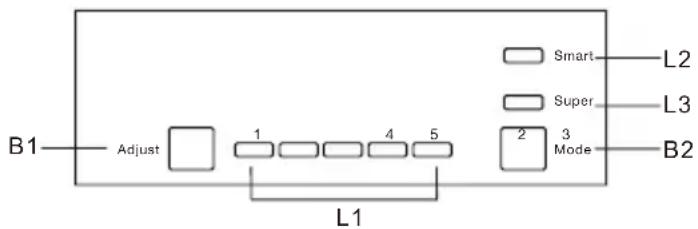

Press the Mode button (B2) to select User Setting, then press Adjust button (B1) to cycle through settings 1 (warmest) to 5 (coldest) for the fridge. The freezer is automatically controlled to around -18 °C.

What does Smart mode do?

Smart mode automatically adjusts the temperature based on ambient conditions for optimal performance and energy saving. Press Mode button (B2) to select it.

How do I activate Super mode?

Press Mode button (B2) to select Super mode. The compressor runs continuously to make the freezer compartment coldest. After 54 hours, the original temperature setting is automatically restored.

How can I turn off the appliance completely?

Press and hold the Adjust button (B1) for 5 seconds to switch off the appliance. To turn it back on, press and hold the same button for another 5 seconds.

What should I do if the door alarm sounds?

The alarm activates when the door is left open for 90 seconds. Close the door firmly to stop the alarm. If the alarm persists, check that the door is properly closed and the seal is intact.

How do I reverse the door opening direction?

You need a Philips screwdriver, flat bladed screwdriver, and hexagonal spanner. Follow the step-by-step instructions in the manual: remove top cover, unscrew hinges, move holders and covers, rotate and reassemble. Ensure the unit is unplugged and empty before starting.

How often should I clean the refrigerator?

Clean the interior and accessories regularly with lukewarm water and neutral soap. Avoid abrasive cleaners. Also clean the drain hole at the back of the fridge compartment periodically to prevent water overflow.

How do I defrost the freezer?

When frost builds up thicker than a few mm, unplug the appliance, remove all food, and keep the door open. Place a basin under the freezer to collect defrost water. Never use sharp tools to remove ice. After defrosting, dry thoroughly and plug back in.

What is the recommended temperature setting for summer?

For summer (hot ambient temperatures), set the fridge temperature to setting 1–3. For normal conditions, use setting 3–4. In winter (cold ambient), use 4–5. These recommendations optimize food preservation.

What does the warning symbol on the rear of the appliance mean?

The symbol (yellow/orange) indicates flammable materials in the refrigerant pipes and compressor. Avoid open flames and heat sources during use, service, and disposal. Do not damage the refrigerant circuit.

USER MANUAL RCF2190W Romo

Simple line drawing of a door with a vertical handle (no text or symbols)

RCF2190W

Symbol of a trash bin with crossed x- and no text or labels

Line drawing of a simple kitchen appliance with a lid and handle (no text or symbols)

Line drawing of a battery with a sensor and a circular label (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Instalace

Technical line drawing showing a mechanical assembly before and after modification (no text or symbols)

Diagram of a door with multiple lanes and a knob, showing alignment and adjustment (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Instalace

Technical line drawing of a mechanical assembly with an inset showing a circular component (no text or symbols)

Line drawing of a mechanical device with a mounted sensor and a circular component (no text or symbols)

Simple line drawing of a rectangular device with a tool and a downward arrow, no text or symbols present.

Abstract diagram with overlapping geometric shapes and arrows, no readable text or symbols

Instalace

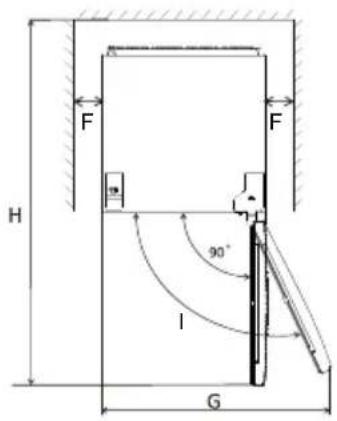

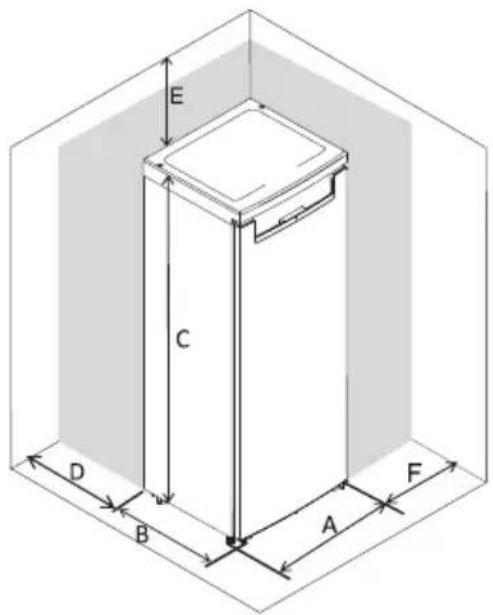

A	550
B	570
C	1235
D	min=50
E	min=50
F	min=50
G	940
H	1160

Instalace

Hand placing a rectangular object onto a shelf (no text or symbols visible)

Simple diagram of a container with two upward arrows inside, no text or symbols present

Diagram showing a hand holding scissors inside a circular device with directional arrows indicating motion (no text or symbols)

Výměna světla

Symbol of a trash bin with crossed x- and circular ends, no text or labels present

Line drawing of a simple kitchen appliance with a lid and handle (no text or symbols)

Line drawing of a refrigerator with a hanging object and a circular label (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Inštalácia

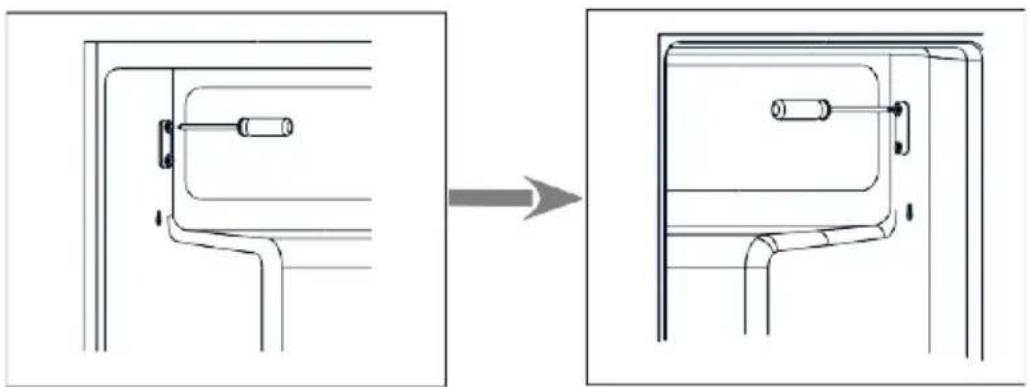

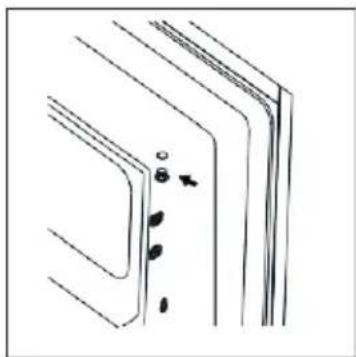

Zmena smeru otvárania dverí

1. Presuňte držiak dverí mrazničky z l'avé na pravú stranu.

Diagram showing a mechanical assembly before and after modification, with no visible text or symbols

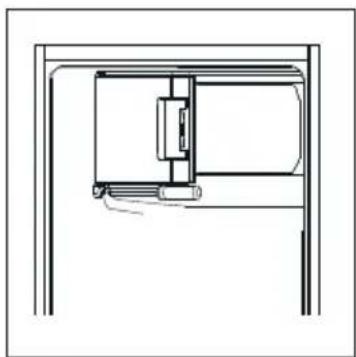

1. Presuňte kryt otvoru pántu mrazničky z l'avej na pravú stranu.

Diagram of a door with multiple lanes and a close-up of the door, showing no text or symbols.

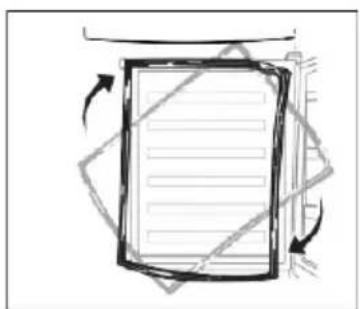

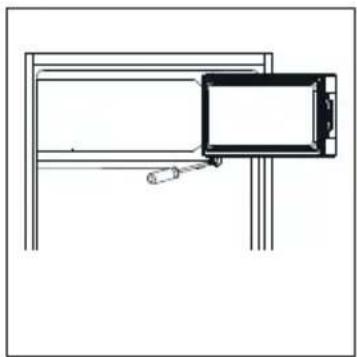

1. Otočte dvere mrazničky a umiestnite pánt na l'avú stranu. Pomocou držiaka upevnite dvere mrazničky.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Inštalácia

Zmena smeru otvárania dverí

Technical line drawing of a vehicle frame with an inset circular detail showing internal components (no text or symbols)

Line drawing of a mechanical device with a circular component and a cylindrical element (no text or symbols)

Line drawing of a mechanical device with a handle and base plate, no text or symbols present

Abstract diagram with overlapping geometric shapes and arrows, no readable text or symbols

Inštalácia

A	550
B	570
C	1235
D	min=50
E	min=50
F	min=50
G	940
H	1160

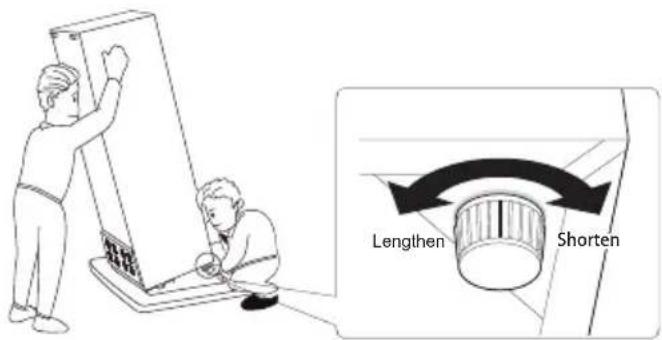

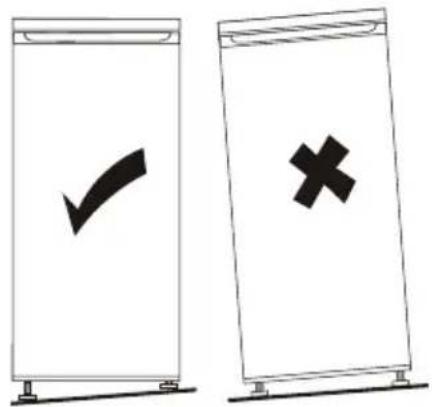

Vyrovnanie spotrebiča

Vyrovnanie spotrebiča nastavíte pomocou skrutkovacích nožičiek v spodnej časti spotrebiča.

Inštalácia

Illustration of a hand installing or adjusting a shelf panel on a multi-tiered shelf (no text or symbols visible)

Simple diagram of a container with two upward-pointing arrows inside (no text or symbols)

Diagram showing a hand holding scissors inside a heart-shaped container with directional arrows indicating motion (no text or symbols)

Výmena svetlá

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children aged from 3 to 8 years are allowed to load and unload this appliance.

- Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

- Keep all packaging well away from children. There is risk of suffocation.

• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

⚠ WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
⚠ WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
⚠ WARNING! Do not damage the refrigerant circuit.
WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.
⚠ WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot. 1)

WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING! Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

- avoid open flames and sources of ignition

- thoroughly ventilate the room in which the appliance is situated

- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.

- This appliance is intended to be used in household and similar applications such as

- staff kitchen areas in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

⚠ WARNING! Any electrical components (plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.
⚠ WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting. ^1)

• Power cord must not be lengthened.
- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
- Make sure that you can come to the mains plug of the appliance.
- Do not pull the mains cable.
- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
- You must not operate the appliance without the lamp.
- This appliance is heavy. Care should be taken when moving it.
- Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
- Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

• Do not put hot on the plastic parts in the appliance.

• Do not place food products directly against the rear wall.

• Frozen food must not be re-frozen once it has been thawed out. ^1)

• Store pre-packed frozen food in accordance with the frozen food manufacture's instructions.
• Appliance's manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. ^1)
• Ice lollies can cause frost burns if consumed straight from the appliance. ^1)
  • To avoid contamination of food, please respect the following instructions
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

• One-, two- and three -star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food.

• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^1)
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance. ^2)

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

- Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, con-denser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energy saving

• Don't put hot food in the appliance;
• Don’t pack food close together as this prevents air circulating;

• Make sure food don't touch the back of the compartment(s);

• If electricity goes off, don't open the door(s);

• Don't open the door(s) frequently;
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures;

- All accessories, such as drawers, shelves balconies, should be kept there for lower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger.

The materials used on this appliance marked by the symbol 🤘 a re recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

WARNING! During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

Note: Above picture is for reference only. Real appliance probably is different.

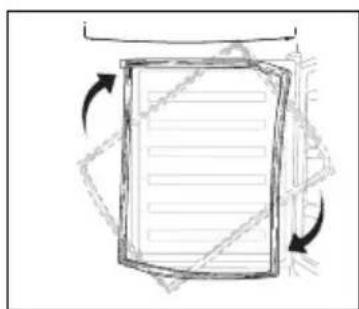

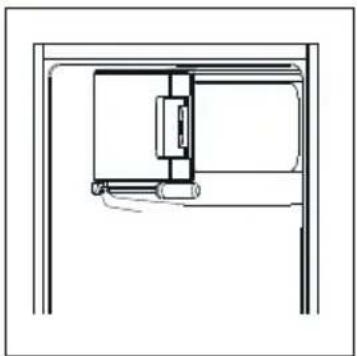

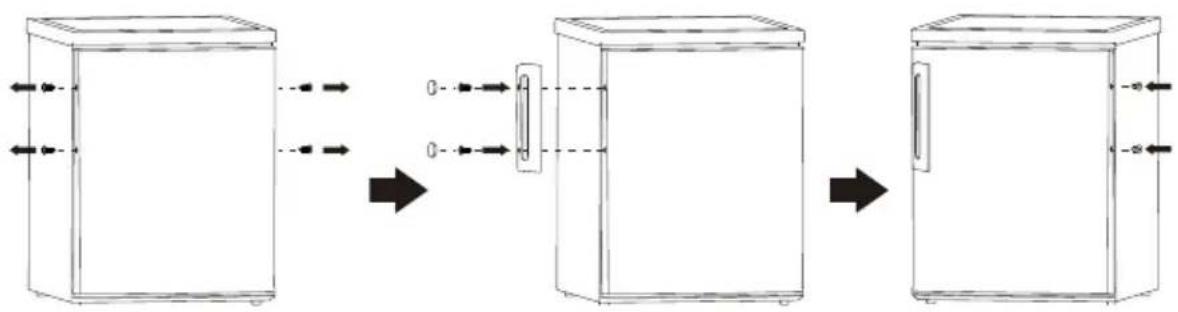

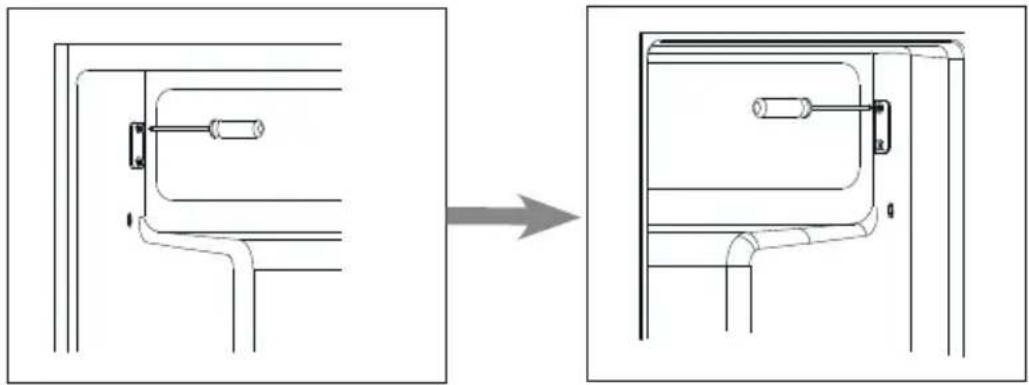

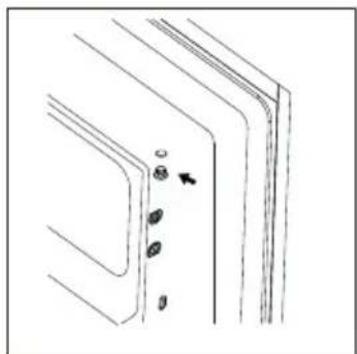

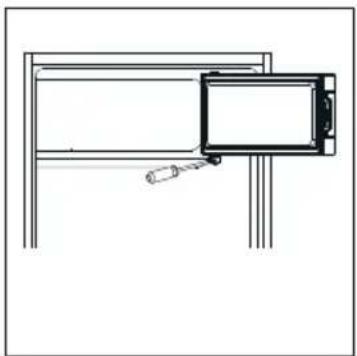

Reverse Door

Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.

• Ensure the unit is unplugged and empty.
• To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.

• It's better that 2 people handle the unit during assembly.

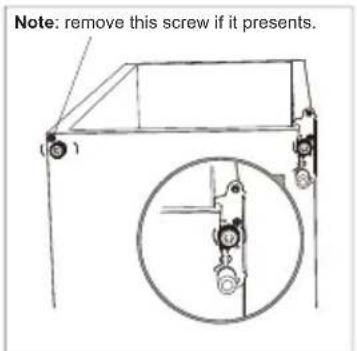

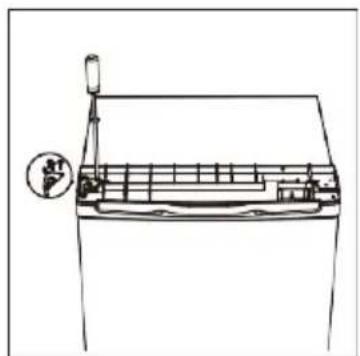

• Remove two screws at rear side of top cover.

• Remove top cover and place it aside.

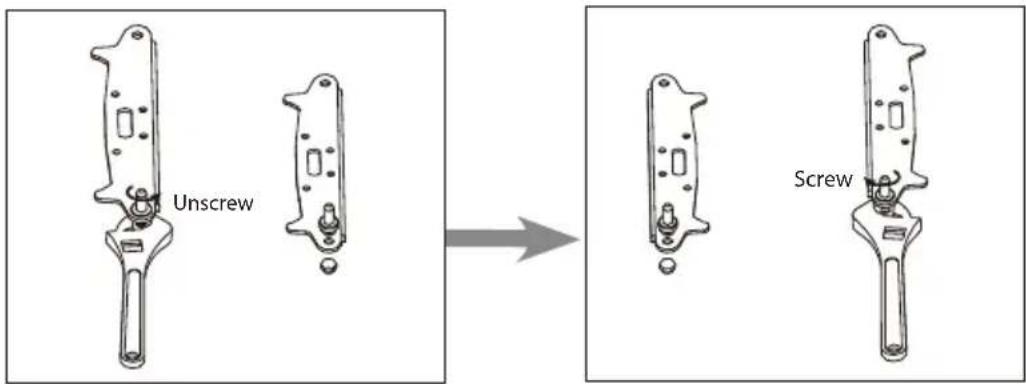

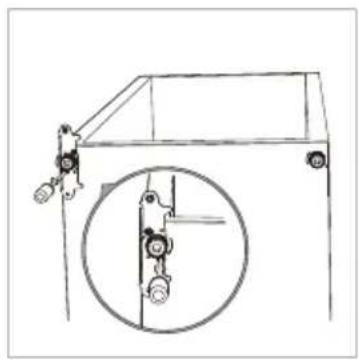

• Unscrew top hinge and then remove door and place it on a soft pad to avoid scratch.

• Unscrew bottom hinge of freezer door. Then remove the door and place it on a soft pad to avoid scratch.

Line drawing of a simple kitchen appliance with a lid and side table (no text or symbols)

Line drawing of a front panel with a mounted sensor and a circular gauge (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Reverse Door

1. Move door holder from left side to right side.

Technical line drawing showing a mechanical assembly before and after modification (no text or symbols)

1. Move hinge hole cover from left side to right side.

Line drawing of a door panel with buttons and an arrow pointing to the door (no text or symbols)

1. Rotate freezer door and place hinge side at left side. And then fix the door by holder.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

1. Unscrew bottom hinge. Then remove the adjustable feet from both side.

Reverse Door

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

1. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet.

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

1. Place the door back on. Ensure the door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the top hinge.

Line drawing of a mechanical device with a base and top component, no text or symbols present

1. Put the top cover and fix it with 2 screws on the back.

Line drawing of a mechanical device with a lever and base, showing no text or symbols

1. Detach the Fridge and the Freezer door gaskets and then attach them after rotating.

Simple line drawing of a door with arrows indicating rotation or movement (no text or symbols)

Installation

Install door external handle (if external handle is present)

Space Requirement

- Keep enough space of door open.

A	550
B	570
C	1235
D	min=50
E	min=50
F	min=50
G	940
H	1160

Note: this refrigerating appliance is not intended to be used as a built-in appliance.

Levelling the unit

80 do this adjust the two levelling feet at front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

for refrigerating appliances with climate class:

• extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C; (SN)
• temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C; (N)
• subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C; (ST)
• tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C;(T)

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabi-net and the wall unit must be at least 50 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

This refrigerating appliance is not intended to be used as a built-in appliance;

Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Control Panel

Buttons

B1- Press to adjust setting of fridge compartment in cycle of 1,2,3,4,to 5.
B2- Press to select mode from Smart, Super and user's setting.

Lights

L1 – show the setting of fridge compartment.
L2 – light on once Smart mode is selected.
L3 – light on once Super mode is selected.

Operation

Temperature Setting

1. Press Mode button (B2) to select user's setting.
2. Press Adjust button (B1) to adjust the setting of fridge. Higher setting means lower temperature. The temperature of freezer is automatically controlled at around -18°C.

Smart Mode

Press Mode button (B2) to select Smart mode.

The appliance will runs automatically according to ambient temperature around the appliance.

Super Mode

Press Mode button (B2) to select Super mode.

The appliance will runs to make freezer compartment coldest. After 54 hours, the original temperature set will be automatically restored.

Turn off the appliance

Press and hold Adjust button (B1) for 5 seconds, the appliance will turn off. Press 5 seconds again to turn on the appliance.

Door open alarm

The alarm will sound when door is left open for 90 seconds and it will not stop until the door is closed.

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Daily use

Position different food in different compartments according to be below table

Refrigerator compartments	Type of food
Door and balconies	·Food with natural preservatives, such as jams, juices, drinks, condiments.·Don't store perishable foods.
Crisper	·Fruit, herbs and vegetables should be placed separately in the crisper bin.·Don't store bananas, onions, potatoes, garlic in the refrigerator.
Fridge shelf	·Daily products eggs;·Foods that do not need cooling, such as ready to eat foods deli meat, leftovers.
Freezer compartment	·foods foe long-term storage.

This refrigerating appliance is not suitable for freezing foodstuffs.

Freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

• Place the fresh food to be frozen in the freezer compartment.
• Cause! this freezer compartment is a 3-star compartment(Freezer with -18^ ), it's not suitable for freezing plenty of foodstuffs within 24 hours.

Storing frozen food

When first starting-up or after a period out of use, before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Ice-cube

This appliance may be equipped with one or more ice-cube to produce ice.

Temperature setting recommendation

Temperature Setting Recommendation
Environment Temperature	Temperature Setting
Summer		Set on 1~3
Normal		Set on 3~4
Winter		Set on 4~5

• Information above give users recommendation of temperature setting.

Impact on Food Storage

• Under Recommended setting, the best storage time of fridge is no more than 3 days.
• Under Recommended setting, the best storage time of freezer is no more than 1 month.
- The best storage time may reduce under other settings.

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Ice-cube

This appliance may be equipped with one or more ice-cube to produce ice.

Accessories

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Illustration of a hand cleaning or installing a shelf with a cloth (no text or symbols visible)

Positioning the door balconies

To permit storage of food packages of various sizes, the door balconies can be removed. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free.

Simple diagram of a container with two upward arrows inside, no text or symbols present

Helpful hints and tips

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
  • the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;

- wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;

- do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;

- lean foods store better and longer than fatty ones; salt reduces the storage life of food;

- water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

- it is advisable to show the freezing in date on each individual pack to enable you removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

- it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
- be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;
• not open the door frequently or leave it open longer than absolutely necessary.
- once defrosted, food deteriorates rapidly and cannot be re-frozen;
• do not exceed the storage period indicated by the food manufacture.

Hints for fresh food refrigeration

To obtain the best performance:

• Do not store warm food or evaporating liquids in the refrigerator
• Do cover or wrap the food, particularly if it has a strong flavour
  • Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.
• For safety, store in this way only one or two days at the most.
  • Cooked foods, cold dishes, etc...: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
• butter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or

Daily Use

polythene bags to exclude as much air as possible.

• Milk bottle: these should have a cap and should be stored in the balconies on the door.
• Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
  • After everything is dry place appliance back into service.

Clean drain hole

To avoid defrost water overflowing into the fridge, periodically clean the drain hole at back of fridge compartment. Use a cleaner to clean the hole as showed in right picture.

Diagram showing a sewing machine cutting through a circular shape with directional arrows indicating motion (no text or symbols)

Replace the lamp

The internal light is a LED type. To replace the lamp, please contact qualified technician.

Defrosting of the freezer

The freezer compartment, however, will become progressively covered with frost. This should be removed. Never use sharp metal tools to scrape off frost from the evaporator as you could damage it.

However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as fellows:

• pull out the plug from the socket;
• remove all stored food, wrap it in several layers of newspaper and put it in a cool place;
• keep the door open, and placing a basin underneath of the appliance to collect the defrost water;
• when defrosting is completed, dry the interior thoroughly
• replace the plug in the power socket to run the appliance again.

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
Appliance does not work	Appliance is turned off.	Press “Adjust” button for 5 seconds to turn on the appliance.
	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
The food is too warm.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Appliance cools too much	Temperature is set too cold.	Turn the temperature regulation knob to a warmer setting temporarily.
Unusual noises	Appliance is not level.	Adjust the wood cabinet if it's not level.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Water on the floor	Water drain hole is blocked.	See the Cleaning section.

If the malfunction shows again, contact the Service Center.
