TSA3230 - Food processor Teesa - Free user manual and instructions

Product Type	Food processor (chopper)
Brand / Model	Teesa TSA3230
Dimensions (with bowl)	115 x 240 mm
Weight	846 g
Power Supply	220-240 V, 50/60 Hz
Max Power	260 W
Bowl Capacity	500 ml
Speed Modes	2 (Mode I: 3300 rpm ±10%, Mode II: 4200 rpm ±10%)
Blades	2 stainless steel blades (sharp, handle by plastic part)
Turbo Function	Yes (Turbo button for extra power)
Non-Slip Base	Yes (anti slippery mat)
Dishwasher Safe Parts	Lid, bowl, blades, anti-slip mat
Max Food Temperature	65°C
Cycle Duration	30 seconds max per cycle; wait 2 minutes between cycles; after 3 cycles, wait 15 minutes
Suitable for Hard Foods	No (not for soybeans, rice, frozen meat, ice, nutmeg, coffee beans, hard grains)
Motor Unit Waterproof	No (do not immerse; clean with damp cloth only)
Safety Features	Auto shut-off when lid not properly secured; blades stop quickly; overload protection via cycle limits
Included Accessories	Motor unit, bowl, lid, blade assembly, anti-slip mat, plastic cover for blades
Country of Origin	Made in China for LECHPOL ELECTRONICS Sp. z o.o. Sp.k.
Warranty / Service	Refer to authorized service point for repairs; fixed power cable replaceable only by service

Frequently Asked Questions - TSA3230 Teesa

How do I assemble the TSA3230 food processor?

Place the bowl on the anti-slip mat. Insert the blades (hold the plastic part) into the bowl. Add ingredients, then put the lid on, aligning the notches with bowl indentations. Twist the lid to lock. Place the motor unit on the lid until it clicks. Finally, plug into power.

How do I operate the chopper?

To turn on, push the motor unit down onto the lid. For extra power, press the Turbo button while pushing. Use in 30-second cycles; wait 2 minutes between cycles and 15 minutes after 3 cycles to avoid overheating.

What foods can I process with this device?

It is suitable for soft to medium-hard foods like fruits, vegetables, meat cut in cubes, and almonds (max 270g for 15s). Do not process very hard items (soybeans, rice, frozen meat, ice, nutmeg, coffee beans, hard grains) or very succulent/low-water foods.

How do I clean the food processor?

Unplug first. The lid, bowl, blades, and anti-slip mat are dishwasher safe. For the motor unit, wipe with a damp cloth only; never immerse in water. After processing salty food, rinse blades immediately to prevent corrosion.

Why does the device stop during use?

It may overheat due to prolonged use. Always follow the cycle limits: max 30 seconds on, then 2 minutes rest, and after 3 cycles a 15-minute cooldown. Also, ensure the bowl is not overloaded or empty.

Can I chop frozen meat or ice?

No. The device is not designed for frozen meat, ice cubes, or other extremely hard items. Doing so may damage the blades or motor.

Is the motor unit waterproof?

No. The motor unit must not be immersed in water or cleaned under running water. Only use a damp cloth to clean it.

What is the maximum bowl capacity?

The bowl capacity is 500 ml. Do not exceed this volume, and ensure ingredients are not packed too tightly.

Are spare blades available?

The manual does not mention spare parts availability. For replacement, contact the retailer or an authorized service point. Use only original accessories.

What safety precautions should I follow?

Always unplug before assembling/disassembling or cleaning. Keep hands and utensils away from moving blades. Never operate without the lid locked. Do not let children use without supervision. If the cord is damaged, stop using and contact service.

USER MANUAL TSA3230 Teesa

Black and white photo of wrapped berries in a glass container (no text or symbols visible)

Návod k obsluze

CS

Bedienungsanleitung

DE

Owner's manual

EN

Εγχειρίδιο χρήσης

GR

Használati utasítás

HU

Instrukcja obsługi

PL

Manual de utilizare

RO

Návod na použitie

SK

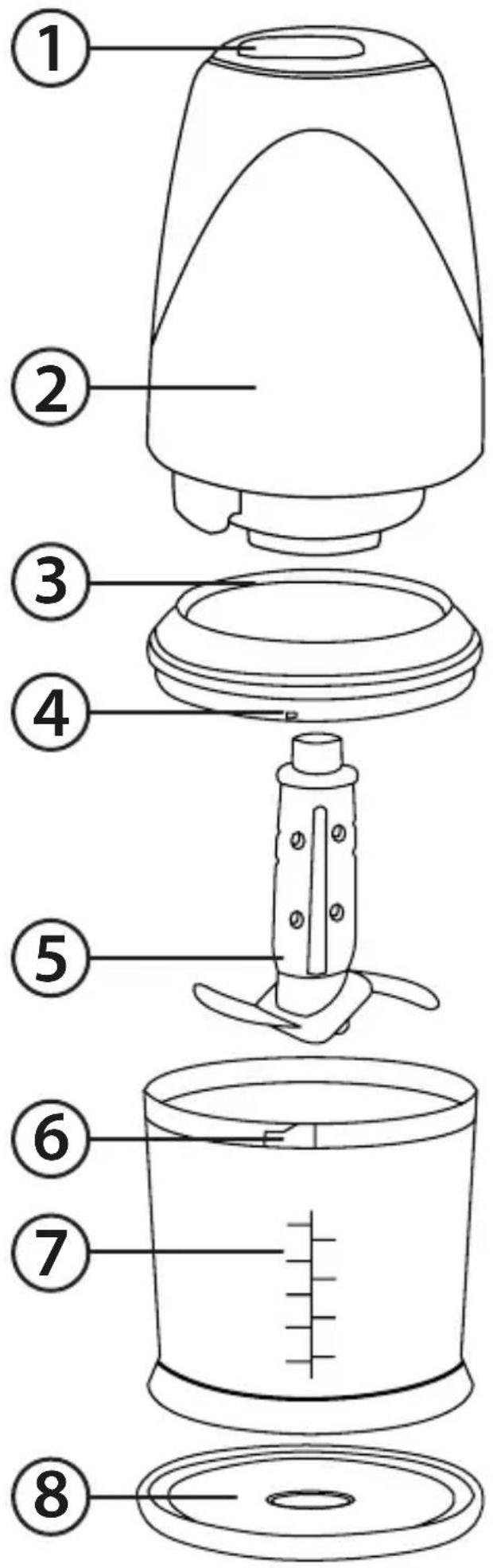

CS DE EN	GR
TlačítkoTurbo TasteTurbo	Turbo button KouvπíTurbo
Motorová část Motoreinheit Motor unit Mováda kivnητήρα
Víko Deckel Lid Kapáki
Výčnělky víka	Deckelkerbe	Lid's notch	Η εγκοπή του καπακιού
Nože	Klingen	Blades Λεπίδες
Zářezy misky	Schüsselvertiefung	Bowl's indentation	Η εγκοπή του μπολ
Miska	Schüssel	Bowl	Μπολ
Protiskluzová podložka	Anti-Rutsch-Matte	Anti slippery mat	Αντιολιοθητικό στρώμα

HU PL RO	SK
Turbo gomb	Przycisk Turbo	Buton Turbo	Tlačidlo Turbo
Motorrész	Część silnikowa	Unitate motor	Motorová jednotka
Fedél	Pokrywka	Capac	Veko
Fedél hornyok	Wypustki pokrywki	Crestătură capac	Výstupky vo veku
Aprítókések	Ostrza	Lame	Čepel'
Aprítótál bevágások	Wcięcie misy	Indentări pentru poziție bol	Zárezy v mise
Aprítótál	Misa	Bol	Misa
Csúszásmentes talp	Podkładka antypoślizgowa	Suport anti-derapant	Protišmyková podložka

Thank you for purchasing TEESA appliance. Please read this operation instruction carefully before use, and keep it for future use. Producer does not take responsibility damages caused by inappropriate handling and use of the product.

SAFETY INSTRUCTIONS

In order to reduce the injuries or damages, follow basic safety precautions app when using any electrical device, including the following:

- Read this instruction manual carefully, even if you are familiar with the appliance. Keep the manual for future reference.

- Do not use this device for purposes others than indicated in this manual.

- Before connecting the device to power supply socket, make sure the voltage indicated on the appliance corresponds to the voltage in the power supply socke

- Place the device on flat, stable surface.

- ALWAYS turn off the device and disconnect it from the mains supply:

• if it's not operating correctly
• if there's an uncommon voice when using
  • before disassembling the device
• before cleaning
• when not in use

- Don't plug the appliance into the power supply until it is fully assembled and alv unplug before disassembling the appliance or handling the blade.

- Switch off the device and remove the plug from the socket when it is not in use before cleaning or whenever any disturbance occurs. When disconnecting the power cord of the device, grasp and pull the plug, not the cord/cable.

- Fixed power cable may only be replaced in an authorized service point.

- Keep the device out of the reach of children. Do not leave children unsupervised with the device.

- This appliance may be used by children who are above 8 years old and by person with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they are supervised and guided by a person who is responsible for their safety in a cautious manner, and all the safety precautions are understood as followed. Children should not play with this device. Children should not perform cleaning and servicing of the device unsupervised.

- Test the device and the cord/cable regularly for damage. Before use, make sure the device operates properly. In case of any damage, or if the device does not operate properly, stop using it and unplug immediately.

- Keep the device and cord/cable away from heat, direct sunlight, water, moisture, sharp edges and the like.

- Use only original accessories, do not connect incompatible products.

• The device is for indoor use only.

- Don't let the motor unit, cord, or plug get wet. Do not immerse the motor unit water! Do not handle the device with wet hands.

• Never use the device if the device itself or its cord have been damaged. Do not attempt to repair/disassemble this device yourself. In case of damage, contact with an authorized service point for check-up/repair.
• Don't let excess cord hang over the edge of the table or worktop or touch hot :
• The appliance is constructed to process normal household quantities. Not for comme use.
• Improper use of this device may lead to injuries and damages.
• Be careful while handling the blades, they are extremely sharp.
• Keep your fingers and kitchen utensils away from the moving blades.
• Do not put the appliance into microwave!

ASSEMBLY

1. Before first use, wash the parts of the device that will come in contact with foo Blades are very sharp, please exercise special caution while handling them.
2. Place the bowl on the anti slippery mat.
3. Remove the plastic cover from the blades. Carefully insert the blades into the bc Attention: the blades must be handled by plastic part.
4. Place the ingredients in the bowl.
5. Place the lid on the bowl, in a way, that the notches slide into bowls indentatio Twist the lid, to secure it.
6. Place the motor unit on to the lid, in a way that it matches the lid.
7. Connect the device to power outlet.

OPERATION

1. To turn on the chopper, push the motor unit to the lid.
2. To increase the power, while pushing the motor unit, press the Turbo button.

Notes:

• Before turning on, make sure that the device was assembled correctly.
• Do not use the device without or with too much ingredients in the bowl.
• If the chopper doesn't work with full power, take out some of the ingredients from the bowl.
• Do not chop very hard products, such as soybeans, rice, frozen meat, ice cubes, nutmeg, coffee beans or hard grains. The device is not intended for very succule products. Do not use the device to process food with low water content.
• The device must work in 30 seconds cycles. After every cycle, wait 2 minutes. Aft 3 cycles, wait 15 minutes for the motor unit to cool off. Otherwise the motor un overheat or break down.
• Before disassembling the device, make sure that the blades stopped working.
• Do not place in the bowl products above 65^ .

PROCESSING GUIDE

Product Max. amount in the bowl Operation time
Almonds 270 g 15 seconds
Fruits and vegetables cut in cubes	200 g 15 seconds
Meat cut in cubes 200 g 30 seconds

CLEANING

• The chopper must be cleaned after every use.
- Disconnect the device from power before cleaning.
• Note: After processing very salty food, it is suggested to rise the blades right awa
- The lid, the bowl, the blades and the anti slippery mat can be washed in water dishwasher.
- Some products (ex. carrot) can cause discoloration of the device. In that case, be placed the parts in the dishwasher, wipe the parts with vegetable oil.
- The motor unit can be cleaned with damp cloth. The motor unit can't be cleaned under running water- it can damage the motor.
- Before assembling, wait, until all the parts are dry.

EN

SPECIFICATION

• 2 speed modes
• 2 blades
• Bowl capacity: 500 ml
• Rotation speed:
  • Mode I: 3300 rpm ± 10%
  • Mode II: 4200 rpm ± 10%
  • Used materials:
• Bowl: plastic
  • Motor housing: plastic
  • Non-slip bottom pad
  • Dishwasher safe parts
• Weight: 846 g
  • Dimensions: 115 x 240 mm
  • Max. power: 260 W
  • Power supply: 220-240 V, 50/60 Hz

English

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that should not be disposed with other household wastes at the end of its working life. prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government officials for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Made in China for LECHPOL ELECTRONICS Sp. z o.o. Sp.k., ul. Garwolińska 1, 08-400 Miętne.
