Type de produit	Stick vacuum cleaner
Marque	Izzy
Modèle	Flex Tech BLDC IZ-4104
Moteur	Brushless DC motor (BLDC)
Alimentation	Rechargeable lithium-ion battery, 22.2V
Autonomie	Up to 40 minutes (standard mode)
Temps de charge	Approximately 4-5 hours
Contenance du réservoir	0.6 L dust cup
Filtration	HEPA washable filter
Niveau sonore	Approx. 78 dB(A)
Poids	2.7 kg (with floor nozzle)
Dimensions (L x l x H)	260 x 200 x 1150 mm
Fonctions principales	Carpet and hard floor cleaning, crevice tool, brush tool
Mode d'emploi	Flexible neck for easy maneuvering
Entretien	Washable dust cup and filter; replaceable brush roll
Sécurité	Overheat protection, battery management system
Pièces détachées	Filter, brush roll, battery pack available separately
Réparabilité	User-replaceable battery and filter
Garantie	2 years (EU) / 1 year (other regions)

Frequently Asked Questions - Flex Tech BLDC IZ-4104 Izzy

How long does the battery last on a full charge?

The battery lasts up to 40 minutes in standard mode. Actual runtime may vary depending on floor type and power setting.

Can I use the vacuum while it's charging?

No, the vacuum cannot be operated while charging. It must be fully disconnected from the charger before use.

How do I clean the filter?

Remove the dust cup, take out the HEPA filter, rinse under running water, and let it dry completely for 24 hours before reinstalling. Do not use detergent.

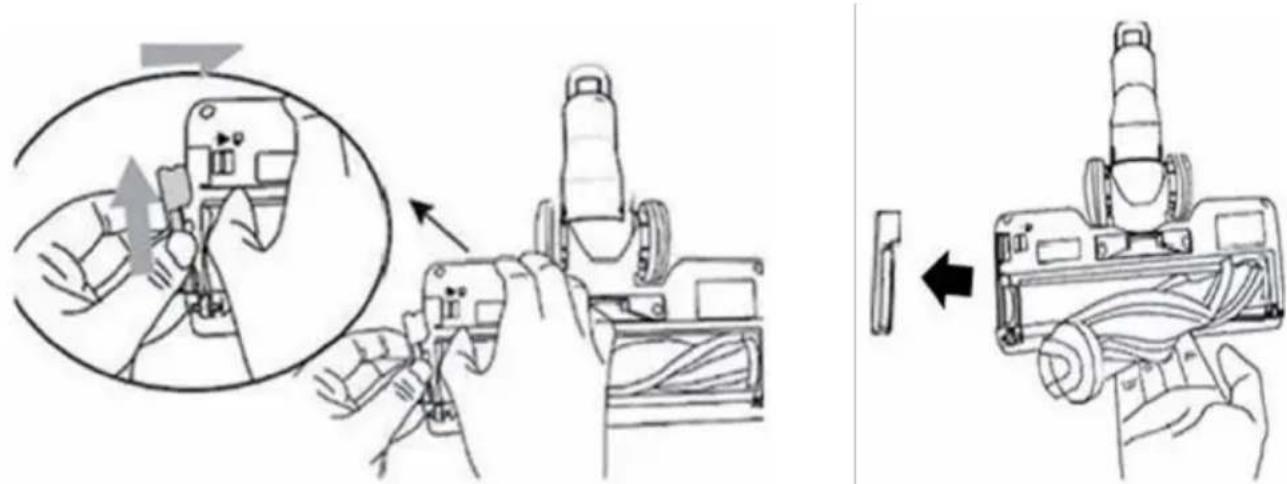

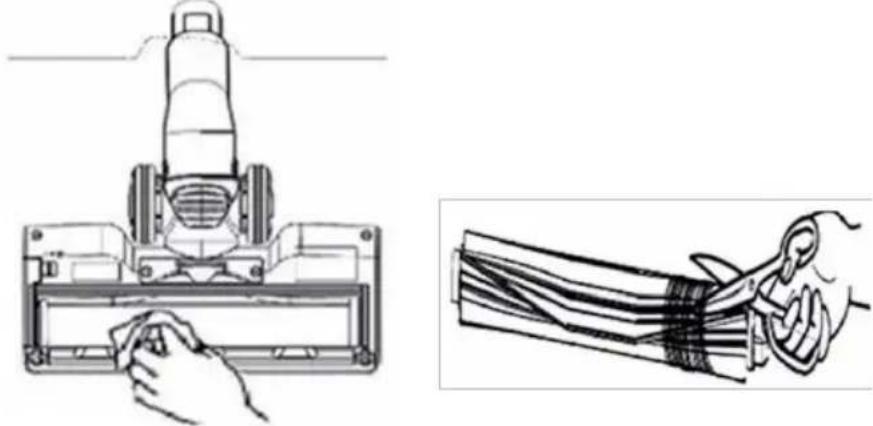

What is the best way to clean the brush roll?

Remove the floor nozzle, then gently pull out the brush roll. Use a coin or tool to cut and remove any hair or threads wrapped around it. Rinse if necessary and dry before reinserting.

Does the vacuum work on both carpet and hard floors?

Yes, it comes with a combined floor nozzle that automatically adjusts for carpets and hard floors. Additional crevice and brush tools are included for furniture and corners.

How do I know when the battery is fully charged?

The LED indicator on the charger or on the vacuum will turn solid green when fully charged. Charging time is approximately 4-5 hours.

What should I do if the vacuum loses suction?

First, check if the dust cup is full and empty it. Then inspect the filter for clogs and clean it. Also check the brush roll and air path for obstructions.

Is the vacuum safe to use on delicate surfaces like hardwood?

Yes, the floor nozzle is designed with soft bristles to prevent scratches. However, avoid using the brush tool on hardwood as it may mar the surface.

Can I purchase spare parts for this vacuum?

Yes, spare parts such as filters, brush rolls, and batteries are available from authorized Izzy retailers or online. Check the user manual for part numbers.

What is the warranty period for the Izzy Flex Tech BLDC IZ-4104?

The vacuum comes with a 2-year warranty in the EU and a 1-year warranty in other regions. The warranty covers manufacturing defects but not wear and tear or misuse.

USER MANUAL Flex Tech BLDC IZ-4104 Izzy

Exterior view of a black and silver vacuum cleaner with coiled cable (no text or symbols visible)

ΜΠΕΝΡΟΥΜΩΗ

Rechargeable Stick Vacuum Cleaner 29.6V IZ-4104

Technical line drawing of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with multiple tool tips and a central shaft (no text or symbols)

Technical line drawing of a mechanical device with multiple ports and mounting base (no text or symbols)

Σημειώσεις:

Technical line drawing of a vacuum cleaner component (no text or symbols)

Line drawing of a twisted rope or cable with no text or symbols

Technical line drawing of a mechanical component with a cylindrical top and flange base (no text or symbols)

Simple line drawing of a rolled-up cylindrical object with no text or symbols

Technical line drawing of a cylindrical device with a labeled component (KOU), no readable text or symbols present.

Technical line drawings of a mechanical component with multiple views (front, side, top, and perspective) showing internal structure without any text or symbols.

Technical line drawing showing a hand using a tool to clean or fabric the next piece of a device (no text or symbols present)

Thank you for having chosen an appliance from the IZZY range.

Safety interlocks

Please read these instructions carefully before using the appliance and save them for future reference. Please keep the sales receipt for guarantee purposes (pls see below “Guarantee and Customer Service”) Any us which does not conform to the instructions will absolve IZZY from an liability.

- Before connecting the appliance, check if the voltage indicated on the appliance, corresponds with the mains voltage in your home.

- Never leave the appliance unattended when in operation.

- Close supervision is necessary when your appliance is being used near children. Ensure that they do not play with the appliance.

- This appliance is not intended for use by people with reduced physical, sensory or mental capabilities, children or those with lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• The device is not suitable for:

• Use in humans or animals
- Absorption of:

• small living organisms.
• harmful to health, sharp objects, hot or incandescent materials
• water, liquid, liquid chemicals (eg solvents, corrosive liquids, detergents, etc.)
• flammable or explosive materials and gases

• ash, smoke from chimneys and central heating

• Never use the appliance for any other use than indicated.

• The device is intended for indoor use. Do not use the device outdoors or on wet surfaces.
• Do not store the appliance outdoors.
• The device is intended only for domestic use. Any other use will cancel

the warranty.

- Do not operate or place the device, the charger or parts of the appliance in places of high humidity or where it may get wet. Do not immerse the appliance, the charger or parts of the appliance in water or any other liquid - Never leave the appliance, the cable, the charger or plug get wet. If the device gets wet, immediately remove the power cord from the power outlet and do not put your hands in the water. Never operate the wet appliance and contact one of the authorized BENRUBE repair centers.

- Do not use the appliance without the filter. Before using the appliance, make sure it is correctly positioned in its place.

- Do not place the appliance near moving parts, fabrics (eg curtains, etc.) during operation.

- Keep all the parts of the body, the fingers, hair and the loose clothing, away from the openings and moving parts of the appliance.

- Pay extra attention when using the vacuum cleaner for cleaning stairs.

- For best results, always keep the device and filter clean. Be sure replace the filter in case of damage.

- Do not place any object in the openings of the appliance. Never use the appliance if any of its openings are blocked.

- Keep the appliance clean, free of dust, hair or anything else that could reduce airflow.

- Do not use or charge the device outdoors.

- Ensure that the power cord does not come into contact with the hot parts of the appliance.

- Do not place the appliance near heat sources.

- Do not use strong or abrasive products for the cleaning of the appliance.

- The suction port and air vents should always be free and without any obstruction. Do not use the appliance if the suction port or exhaust vents are covered. Remove dust, fluff, hairs or other materials that can prevent proper air circulation. If any of the parts of the appliance clogs, turn it off immediately and clean it thoroughly before you put it into operation.

- Before your start using the vacuum cleaner, remove large or sharp objec from the floor, in order to prevent the filter from being damaged.

- Do not put any sharp objects into the openings.

- In case you are not using the device for a long time, always disconnect the charger from the wall outlet.

- Do not touch the device or charger with wet hands.

- Do not use an extension power cord.

• Check the power cord periodically for possible damages. If the power cord or the plug of the device has been damaged, do not use the device and contact an authorized BENRUBI Service Center.
• In case of a possible damage, do not attempt to repair the appliance by yourself. Please contact one of the authorized BENRUBI service centers.

Any repair made by an unauthorized BENRUBI Service Center CANCELS THE GUARANTEE.

• Any misuse of the device cancels the warranty.
• Only use original spare parts.
• The device conforms to EU directive 2014/30/EU on Electromagnet Compatibility, the 2014/35/EU Low Voltage Directive, the 2011/65/EU RoHS Directive, and the directive 2009/125/EC for eco-design.

SAVE THESE INSTRUCTIONS

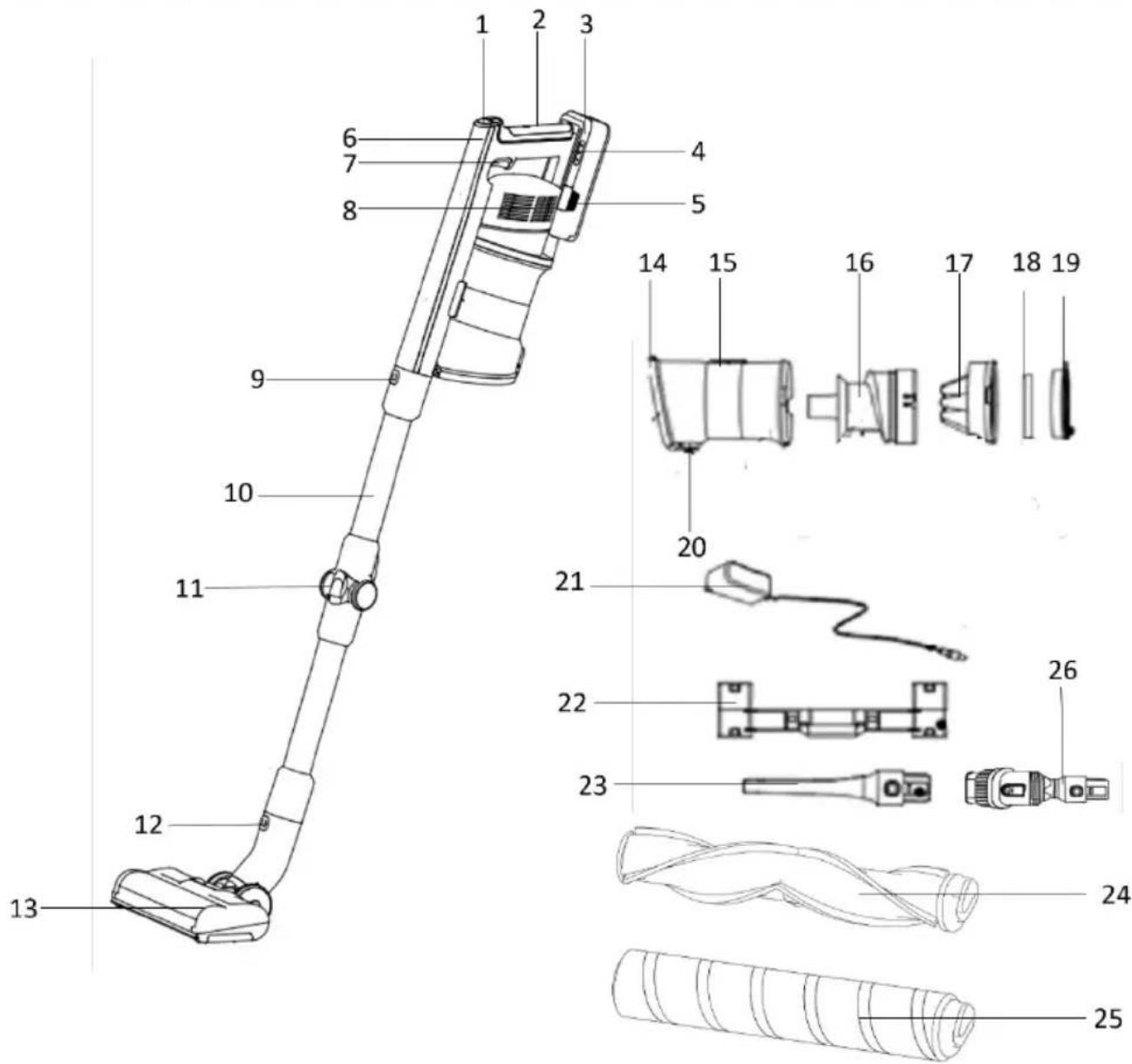

Parts of the Appliance

1. AUTO/ +/- power setting buttons
2. Handle
3. Detachable battery
4. Battery charging indication lights
5. Battery release button
6. Display
7. Power button
8. Air outlet
9. Foldable tube release button
10. Metallic foldable tube
11. Tube folding button
12. Motorized brush release button
13. Motorized brush with LED indication light
14. Container release button
15. Detachable container

16. Metallic filter

17. Filter case

18. Filter sponge
19. HEPA filter
20. Container release button
21. Charger
22. Wall-mounted base
23. Long crevice nozzle
24. "Bristle" roller for carpets and rugs
25. "Soft" roller for floors, sensitive surfaces and wooden floors
26. 2in1 crevice tool

Display Indications

1. Dust sensor indicator
2. Dust sensor indicator
3. Power indicator
4. AUTO mode indicator
5. Block indicator
6. Clogged power brush indicator
7. Power indicator

Appliance Assembly

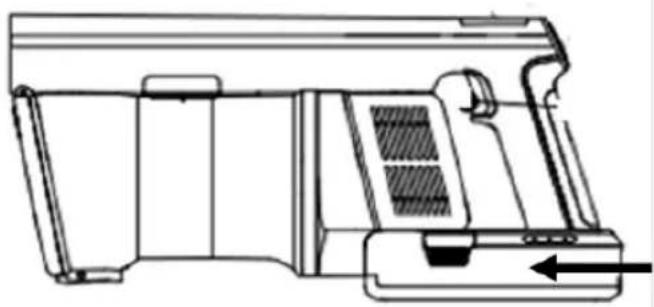

1. Install the battery (4).

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

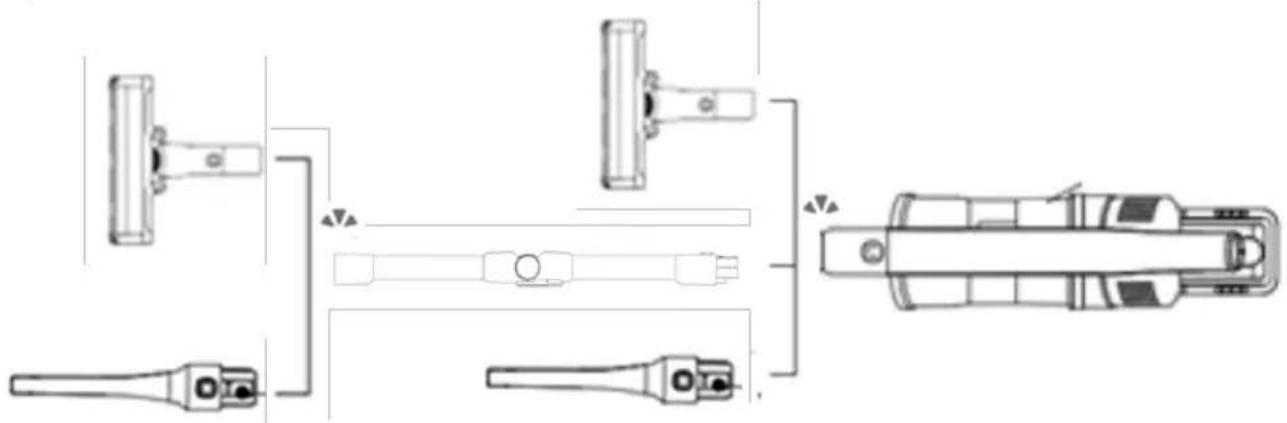

1. Place the accessory of your choice either directly on the motor or on the metal tube. (10).

Technical line drawing of a mechanical component assembly (no text or symbols)

Charging the Appliance

Before use, check the charger cable for damage. Do not charge the device if the charger cable has any damage.

• Never modify the charger in any way.
• The charger is designed for a specific voltage. Always check that the mains voltage is the same as that indicated on the rating plate.
• Unplug the charger when not in use for extended periods.

• Always unplug the charger from the socket:

- When the device is fully charged Before any cleaning or maintenance procedure

- When you do not use the device for a long time

- Never disconnect the charger by pulling on the cable. Unplug it by always pulling it out of the socket.

- Do not wrap the cable around the charger when storing.

- Fully recharge the battery when using the device for the first time or using it after a long period of storage.

- If smoke or fire occurs during charging, immediately unplug the charger and use a fire extinguishes to extinguish the fire. Do not use water to extinguish the fire, it will increase the risk of electric shock.

- To ensure maximum battery life, we recommend the following:

- When the device is not in use, store at room temperature, 18°C to 28°C.

- Do not charge or operate the device at temperatures greater than 35^ C and less than 8^ C.

- The appliance does not work when it is in the charging process.

- The time required for the first battery charge is 4.5 hours.

- The appliance autonomy with a fully charged battery provided that the filters are clean is:

- AUTO mode 15 to 25 minutes depending on the amount of dust and debris.

- Low speed >>: 35-40 min

- Middle speed >>>>:20-23 min

- High speed >>>>>: 12-15 min

- Do not leave the appliance on a continuous charge condition. If the appliance is not used for a long time, it is recommended to charge it once a month.

Note: Do not leave the device without charging for a long time, as the battery may be damaged.

- The charger is likely to become warm during charging. This is normal.

• Always charge the appliance indoors.

Charging methods

i. Remove the battery (3) by pushing and holding down the battery release buttons (5) and slide upwards. Insert the charger plug into the battery socket and plug into the socket.

ii. Insert the charger plug into the battery slot without removing it from the appliance and charge.

Battery indications:

When only one light flashes, this means it needs to be charged.

Indication		Battery power
	One light is lit	25%
	Two lights are lit	75%
	Three lights are lit	The battery is fully charged

Indication during battery charging:

Indication		Battery power
	One light is lit and 2 lights successively flash.	25%
	2 lights are lit and 1 light flashes.	75%
	3 lights are lit. Indication lights will remain lit for a minute and will then turn off.	100%

Advice: When not in use, please make sure that the battery and the device are stored in a cool and dry place and that the battery is 50% charged, so that it is kept in good condition.

Battery Safety Notes

• Do not dispose the battery with household waste. Dispose used batteries in accordance with European Union guidelines (see relevant section below).
• Do not use the battery if it has been damaged or modified in any way. Damaged or mod batteries may behave erratically resulting in fire, explosion or risk of injury.
• Do not burn batteries or expose them to high temperatures, as they may explode.

• The battery is a sealed unit and under normal conditions poses no safety concerns. In the unlikely event that battery fluid leaks, do not touch the fluid as it may cause irritation or burns and observe the following precautions:

• Skin contact – may cause irritation. Wash with soap and water.

• Inhalation – may cause respiratory irritation. Get fresh air and contact your doctor.
• Eye contact – may cause irritation. Immediately flush eyes with water for at least 15 minutes

Contact your doctor.

• Wear gloves to dispose the battery.
• When the battery is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another.

Fixing the Wall-Mount Base

To store the appliance, fix the wall mount (22) onto the wall with the screws provided.

You may also store the long crevice nozzle (23) and the 2in1 crevice tool (26) on the wall-mount base.

Notes:

• Make sure there are no gas, water or electricity cables behind the installation area.
- Install the expansion bolts first before installing the screws, to avoid immediate installation of the screws in an unstable position.
• To prevent the appliance from falling, make sure that the base is fixed on a stable and flat surface.

Technical line drawing of a mechanical device with multiple ports and mounting base (no text or symbols)

Using the Appliance

Before use, make sure:

- that the battery is fully charged.

- that the dust bin and filters are clean, dry and in place.

1. Place the accessory of your choice (see section "Appliance assembly").

2. Press the power button (7). The appliance will start working in medium power setting and the respective indications will light (32) on the display (6).

Note: If you want to vacuum under furniture, press the tube folding button (11).

Pure mechanical linkage diagram without any text, numbers, or symbols

1. Successively press the power setting button (1) to select the speed of your preference. The corresponding indications will turn on.

2. When you finish wiping, press the power button (7).

After each use it is recommended to empty the dust container and clean the filters.

Notes:

- When the rotating brush rollers are blocked, the clogged brush indicator (31) will light.

- When the container and vents are blocked, blocked indicator will light on the display (6). Clean the container, the filters and the vents (see section "Maintenance and Cleaning")

Using the Accessories

Long crevice nozzle

Suitable for absorbing dust/dirt in corners, crevices or hard-to-reach places.

2in1 crevice tool

The 2-in-1 crevice tool is designed with a soft bristle brush to remove any dust or debris froma variety of delicate fabrics. This attachment is suitable for cleaning fluff or animal hair aroundthe couch, curtains, carpets and fabric car chairs. This brush attachment is extendable.

Motorized brush with "Bristle" roller

Technical line drawing of a mechanical component with a cylindrical top and base (no text or symbols)

Line drawing of a twisted cylindrical object with no text or symbols

Removes dust, debris and hair from rugs, carpets and velvet.

Motorized brush with "Soft" roller

Technical line drawing of a mechanical component with a cylindrical top and base (no text or symbols)

Simple line drawing of a rolled-up cylindrical object with horizontal grooves (no text or symbols)

Removes dust, debris and hair from floors, sensitive surfaces & wooden floors.

Maintenance and Cleaning

Empty & clean the filters and dust container after each use.

• Make sure the appliance is switched off before any cleaning process.
• Do not put any of the appliance parts and accessories in the dishwasher.

Body (motor):

• Clean the surface with a wet and soft cloth.
• Never use hard or abrasive detergents or solvent liquids to clean the appliance.
• Avoid exposure to the sun and store in a cool and dry place.

Dust container:

How to empty the dust container:

• Press the container release button (20) and empty the container.
• During use, if the trash in the dust container exceeds the "MAX" indication, empty the container immediately.

Technical line drawing of a cylindrical mechanical component with labeled part 'Du' (no other text or symbols)

Dustbin empty button

How to clean the container & the filters:

1. Remove the dust container (15) by keeping the container release button pressed (14) and pulling outwards.
2. Remove the filters from the container.
3. Wash with lukewarm water (no detergent).
4. Let it dry thoroughly.

Technical line drawing of a mechanical component with multiple views (front, side, top, and side) showing different assembly or assembly states without any text or symbols.

Brush, bristle roller & soft roller:

After a long period of use, the rotating roller may be blocked by hair or accumulated dust. It is recommended to periodically clean the rotating roller to ensure the efficient operation of the appliance.

1. Remove the rotating roller by pressing the red tab located on the bottom of the foot to the position.
2. Lift the brush latch on the side and remove the brush frame from the brush window.

1. Remove the hair and debris wrapped around the roller brush with scissors and gently clean the transparent brush window with a dry cloth.

Technical line drawing showing a hand using a tool to clean or inspect the component of a mechanical device (no text or symbols present)

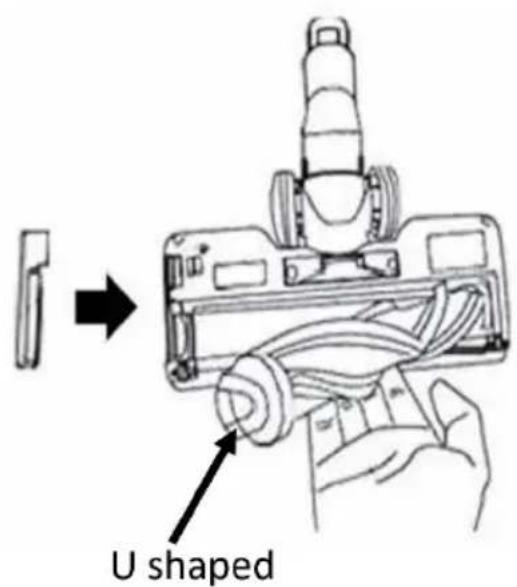

1. After cleaning, reinsert the roller. Insert the right side of the roller, which has a star-shaped slot, into the tread first. Then insert the left side which has a "U" slot.

2. Insert the side edge until a "click" is heard and it snaps securely into place.

Technical Characteristics

Model: Rechargeable vacuum cleaner stick 29.6V IZ-4104 IZZY

Rated Voltage/Frequency: AC 220 - 240 \~ 50/60 Hz

Battery power: 29.6V, 2200mAh

Battery: Li-ion battery

Motor power: 350W

Important Information for Correct Disposal of the Product in Accordance with EC Directive 2002/96/EC

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Guarantee & Customer Service

• BENRUBI Company guarantees its products for any manufacturing defect or defective materials for a period of two (2) years from the date of purchase or delivery by presenting purchase receipt. If your product malfunctions or you find any defects, please revert to the retail location you have purchased it from or contact an authorized BENRUBI Service Centre. To find the nearest authorized BENRUBI Service Centre, visit our website www.benrubi.gr. It is in the discretion of BENRU Company to replace or repair the defective product.
• The warranty does not cover damages resulting from normal wear, breakage, scaling, improper installation or maintenance of the product, mishandling, abnormal working conditions, failure implement the instructions, conversion or repair of the product by an unauthorized technician who does not belong to the BENRUBI Service Centers.

Also, the warranty does not cover the following indicative factors:

• Stains, discoloration or scratches.
- Burns due to exposure to heat or flame.
- Damage from thermal shock (sudden temperature change or change of voltage).

FOR MORE INFORMATION PLEASE CONTACT:

(NEW) H. BENRUBI & FILS SA

27 Aghiou Thoma str, GR15124, Maroussi – Athens,

Tel./Customer Support: [phone]

e-mail: [e-mail]
