Product Type	Portable Bluetooth Speaker
Brand	Squeak
Model	Harmony SQ1004
Dimensions	4.5 x 4.5 x 2.5 inches (114 x 114 x 64 mm)
Weight	0.8 lbs (363 g)
Power Source	Rechargeable lithium-ion battery, USB-C charging
Battery Life	Up to 12 hours at moderate volume
Charging Time	Approximately 3 hours
Bluetooth Version	Bluetooth 5.0 with range up to 33 ft (10 m)
Audio Output	10W RMS
Controls	Power, volume, play/pause, next/previous track, built-in microphone for calls
Water Resistance	Not rated; keep away from liquids
Compatible Devices	Smartphones, tablets, laptops with Bluetooth
Color Options	Black, White, Blue
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners.
Safety Precautions	Do not expose to water or extreme temperatures. Use only the provided charging cable. Do not attempt to disassemble or modify the battery.
Spare Parts & Service	Battery replacement and repairs should be performed by Squeak authorized service centers. Contact customer support for assistance.
Warranty	1-year limited warranty against manufacturing defects

Frequently Asked Questions - Harmony SQ1004 Squeak

How do I pair the Squeak Harmony SQ1004 with my smartphone?

Turn on the speaker. On your phone, go to Bluetooth settings and select 'Squeak Harmony SQ1004' from the available devices. If prompted, enter '0000' as the PIN. Once connected, you'll hear a confirmation tone.

What is the battery life of the Harmony SQ1004?

The battery lasts up to 12 hours at moderate volume. Actual battery life may vary depending on volume level and audio content.

Can I use the speaker while it is charging?

Yes, the Harmony SQ1004 can be used while charging via the USB-C port. However, charging may take longer when the speaker is in use.

Is the Harmony SQ1004 waterproof?

No, the speaker is not rated as waterproof. It should be kept away from water, rain, and high humidity to avoid damage.

How do I reset my Squeak Harmony SQ1004?

To reset, press and hold the power button and the volume up button simultaneously for about 5 seconds until the indicator light flashes. This clears the pairing list and restores default settings.

What should I do if there is no sound from the speaker?

First, check the volume on both your device and the speaker. Ensure the speaker is charged and paired. Also, confirm that the audio source is playing. If using AUX, check the cable connection. Try restarting both devices.

How do I clean the Harmony SQ1004?

Use a soft, dry cloth to wipe the exterior. Avoid using water, solvents, or abrasive cleaners. Make sure the speaker is turned off and unplugged before cleaning.

Can I connect multiple devices at the same time?

The Harmony SQ1004 supports multi-point connection with up to two devices. To connect a second device, put the speaker in pairing mode again and select it from the new device. You can switch playback between the paired devices.

What is the warranty period for the Squeak Harmony SQ1004?

The speaker comes with a 1-year limited warranty covering manufacturing defects. For warranty claims, contact Squeak customer support with proof of purchase.

Where can I download the user manual for the Harmony SQ1004?

The user manual is available for free download on notice-facile.com. Search for 'Squeak Harmony SQ1004' to find the PDF manual.

USER MANUAL Harmony SQ1004 Squeak

Black electronic device with dual vented ports and a digital display, next to a microphone (no visible text or symbols)

DEAR CUSTOMER,

We would like to thank you for purchasing a portable Bluetooth speaker. This is a device that will certainly make your time spent with family and friends, providing many hours of great fun. Please read this manual before using the device.

SAFETY INFORMATION

Store the speaker away from humid places, high temperature, oil and other liquids. Do not expose the product to direct sunlight and rain.

Set the appropriate volume to avoid hearing damage.

If you do not use the product for a long time, charge it at least once every one month to avoid damaging the lithium battery.

It is prohibited to disassemble, repair or open the product.

Keep away from children while charging to avoid electrocution or suffocation

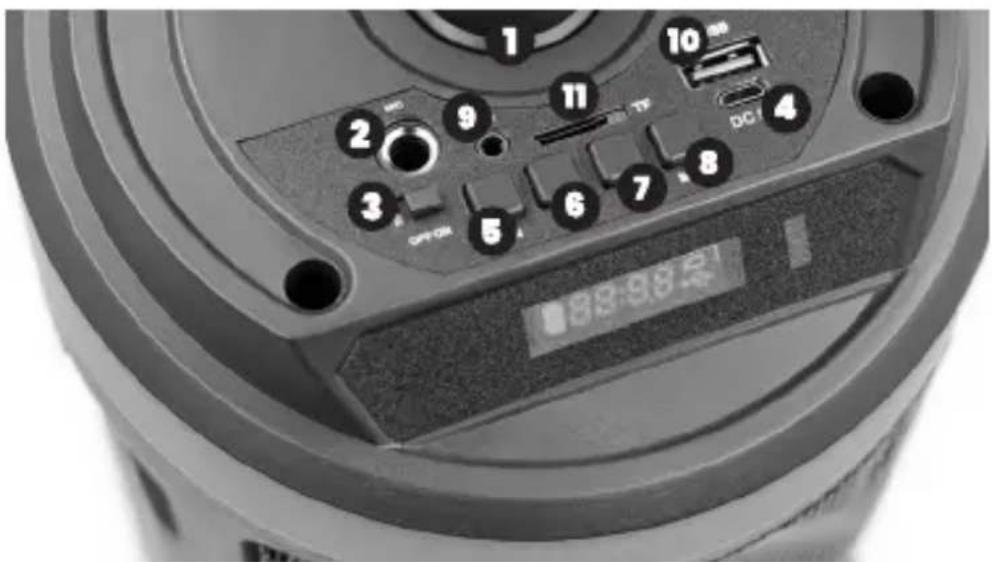

TOP PANEL

DESCRIPTION

1. Volume knob
2. Microphone jack
3. Power switch
4. Micro USB charging socket and LED light
5. Previous song / backward FM station selection
6. Play/pause, auto search for all FM radio stations
7. Next song / forward FM station selection
8. M - select operating modes / turn speaker illumination on or off (long press)

9. AUX socket

10. USB A socket for flash drive (MP3 player)

II. MicroSD memory card slot (MP3 player)

BLUETOOTH MODE

Make sure to switch to Bluetooth mode, use your smartphone and search for Bluetooth devices. Select "SQ1004" in the list to pair the device. The device does not require any password. After successful pairing, you can play music. You can use the buttons on the device to play / pause to select the previous / next song.

FM RADIO MODE

When you switch to radio mode, press the „6“ button to automatically search and save radio stations. Once the search is complete, you will be able to switch them with the „5“ and „7“ buttons.

AUX MODE

Switching to this mode allows you to play audio from an external device connected to the AUX jack

MP3 PLAYBACK

Connecting a flash drive to USB port A „10“ or inserting a microSD card containing MP3 files will switch the speaker to MP3 player mode. Control of playback is done with the „5-7“ buttons.

CHARGING THE BATTERY

The speaker is equipped with a rechargeable lithium-ion battery. It should be charged at least every 30 days and should not be allowed to discharge deeply. When the device is charging, the red LED is ON. The LED will turn off when the speaker is fully charged.

Black and white photo of a smart device with two fans and a digital display, next to a microphone (no visible text or symbols)

EN - Environmental guidance

The device is marked with the symbol of a crossed-out waste container, in accordance with the European Directive 2012/19/EC on waste electronic and electrical equipment. Products marked with this symbol should not be discarded with other household waste after use. The user is obliged to dispose of used electrical and electronic equipment by delivering it to a designated point where it will be recycled.

The collection of such waste at designated locations and its proper processing contribute to the conservation of natural resources. Proper recycling of waste electrical and electronic equipment has beneficial effects on human health and the environment. To find out where and how to safely dispose of waste electrical and electronic equipment, the user should contact the relevant local government authority, waste collection point or the point of sale where the equipment was purchased.

*The battery-powered speaker work duration test was conducted under home conditions. The speaker was connected to a Apple iPad mini 4 via Bluetooth. The distance between the tablet and the speaker was 1 meter. The volume was set halfway through the range.

MBM Group s.c. declares that this device complies with the essential requirements and relevant provisions of Directive RED 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the harmonization of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC. The full text of the Declaration of Conformity is available at www.squeak.pi

Thank you for purchasing our device! We would like to inform you that we are constantly developing our products - both their specifications and design. For this reason, there may be slight changes in subsequent versions of the product.

If you need technical support or want more information about our products, please visit our website www.squeak.pl, where you will find answers to many of your questions.
