HAF212600D - Deep fryer Hanseatic - Free user manual and instructions

Product Type	Deep Fryer
Brand	Hanseatic
Model	HAF212600D
Dimensions (W x D x H)	25 cm x 30 cm x 35 cm
Weight	3.2 kg
Power Consumption	1800 W
Oil Capacity	2.5 L
Temperature Range	150 °C – 190 °C
Material	Stainless steel & plastic
Control Type	Rotary thermostat
Auto Shut-off	Yes
Overheat Protection	Yes
Cool-Touch Handle	Yes
Non-Slip Feet	Yes
Viewing Window	Yes
Dishwasher-Safe Parts	Removable basket & oil container
Oil Drain	Built-in drain valve
Safety Switch	Prevents operation without oil
Included Accessories	Frying basket, lid, instruction manual
Warranty	2 years

Frequently Asked Questions - HAF212600D Hanseatic

What type of oil should I use in the Hanseatic HAF212600D deep fryer?

We recommend using high-quality frying oil such as vegetable, canola, or peanut oil. Avoid using olive oil or butter as they have low smoke points.

How do I clean the deep fryer after use?

Allow the oil to cool completely. Remove the basket and oil container, which are both dishwasher-safe. Wipe the exterior with a damp cloth. Do not immerse the main unit in water.

What is the maximum oil capacity of the HAF212600D?

The maximum oil capacity is 2.5 liters. Do not exceed the MAX fill line to prevent overflow during frying.

How do I set the temperature correctly?

Use the rotary thermostat to select a temperature between 150°C and 190°C. Refer to the frying guide in the manual for recommended temperatures for different foods.

Does the deep fryer have an automatic shut-off feature?

Yes, the HAF212600D is equipped with auto shut-off and overheat protection for safety. It will turn off automatically if it gets too hot.

Can I fry frozen foods directly without thawing?

It is recommended to thaw frozen foods before frying to ensure even cooking and avoid excessive splattering. However, small items like French fries can be fried frozen if you reduce the oil temperature slightly.

How often should I change the frying oil?

Change the oil after 8-12 uses or when it becomes dark and has a strong odor. Strain the oil after each use to remove food particles and extend its life.

What should I do if the deep fryer does not turn on?

Check that the safety switch is properly engaged (the basket must be lowered). Also ensure the thermostat is set above the minimum temperature. If it still doesn't work, check your power outlet or contact customer service.

Is the exterior of the fryer cool to the touch during operation?

The housing is designed with cool-touch walls, but the handle and lid are the only parts that remain cool. Always use the handle and avoid touching the metal parts.

Where can I find replacement parts like the basket or oil container?

Replacement parts can be ordered from Hanseatic customer service or authorized dealers. Check the manual for part numbers and contact information.

USER MANUAL HAF212600D Hanseatic

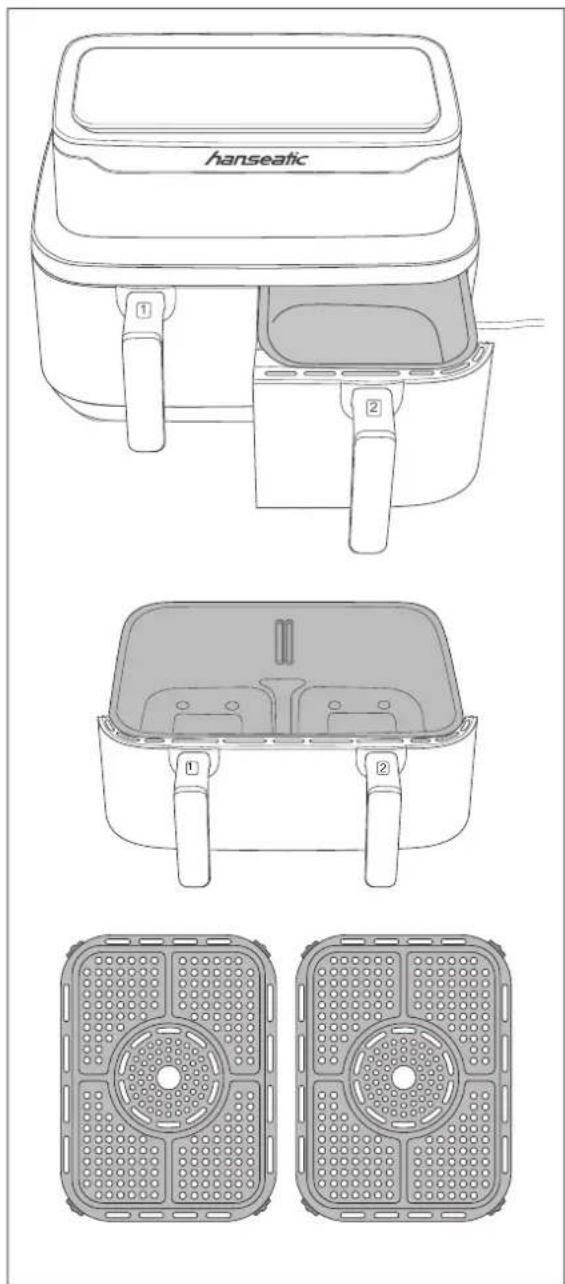

Line drawing of a Hanseatic air fryer with labeled parts (1 and 2), no text or symbols beyond branding

Gebrauchsanleitung

Heißluftfritteuse

Inhaltsverzeichnis

Lieferumfang

Line drawing of a Hanseatic air fryer with labeled parts (1 and 2), no text or symbols beyond branding

User manual

Hot air fryer

Table of contents

Read the important safety instructions carefully and keep these for future use. Please read through the safety instructions and user manual carefully before using the appliance. This is the only way you can use all the functions safely and reliably.

Be sure to also observe the national regulations in your country, which are valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.

Care and maintenance ..... EN-15

Troubleshooting table ..... EN-16

Service EN-17

General customer service ..... EN-17

Spare parts ...... EN-17

Waste prevention, free return and disposal.... EN-18

Waste prevention EN-18

Free return of old electrical appliances. . . EN-18

Disposal...... EN-18

Packaging EN-19

Technical specifications ..... EN-20

Explanation of terms and symbols,

definitions ...... EN-3

Explanation of terms ..... EN-3

Explanation of symbols ..... EN-3

Safety EN-4

Intended use ...... EN-4

Safety notices ...... EN-4

Delivery....EN-9

Package contents ...... EN-9

Checking the delivery .....EN-9

Appliance parts and control elements ... EN-10

Start-up....EN-11

Moving and unpacking.....EN-11

Connection requirements.....EN-11

Cleaning before use.....EN-11

Heating up the appliance for the first time ....EN-11

General operating instructions ..... EN-12

Before getting started ..... EN-12

Starting, pausing and ending the cooking process. EN-12

Modes EN-13

Selectable cooking modes.....EN-13

Smart Finish function...... EN-13

Match Cook Function..... EN-14

Cooking tips.... EN-14

Explanation of terms and symbols, definitions

Explanation of terms

The following symbols can be found in this user manual.

WARNING

This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This symbol indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This symbol warns against possible damage to property.

Explanation of symbols

The following symbols can be found in this user manual or on the appliance.

This symbol warns of a hot surface.

This symbol refers to useful additional information.

Safety

Intended use

The appliance is intended for cooking food.

The appliance is designed for use in private households and is not designed for commercial use or multiple use (e.g.: use by several parties in a block of flats).

It is not suitable for use outdoors or on non-stationary sites (e.g. ships).

Make sure the appliance is properly positioned. Never use adhesives or glue to fix the appliance in place.

The appliance is not suitable

– for heating a room.
– for drying or storing food, clothes, or other items.
– for heating up warming pads, slippers, sponges, damp cloths and similar.

Persons who are unable to operate the appliance safely because of their physical, sensory, or mental abilities or lack of knowledge must be supervised during use.

Do not make any technical changes to the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Use the appliance exclusively as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

Safety notices

In this chapter you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters on operation, setup etc.

Risks to children and certain groups of individuals

! WARNING

Risk of suffocation for children!

Children can become entangled in the packaging film or swallow small parts and suffocate.

■ Do not allow children to play with the packaging film.
■ Prevent children from pulling small parts from the device or taking them out of the accessory bag and putting them in their mouths.

! WARNING

Risk of injury!

■ The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
■ Children less than 8 years of age shall be kept away unless continuously supervised.

WARNING

Risk of injury!

Children and certain groups of people have a higher risk of being injured when handling the appliance.

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

■ Children shall not play with the appliance.

■ Cleaning and user maintenance shall not be made by children without supervision.

Risks in handling household electrical appliances

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ aDo not operate or continue to operate the appliance if

• it shows visible signs of damage – for example, the mains cable is defective.
  – it starts smoking or there is a smell of burning.
  – it makes unfamiliar noises.

In these cases, you should pull the mains plug out of the socket or switch off/unscrew the fuse and have the appliance repaired (see „Service“ on page EN-18).

■ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
■ Check the appliance regularly for damage.
■ Do not use the appliance in wet rooms or outdoors.
■ The appliance corresponds to protection class I and may only be connected to a plug with a protective conductor that has been properly installed. Ensure that the voltage is correct

when connecting it. More detailed information about this can be found on the type plate.

■ Since all poles of the appliance cannot be disconnected from the mains via an accessible disconnecting device, an all-pole disconnecting device in accordance with overvoltage category III must be connected within the house installation with at least 3 mm contact clearance; consult a qualified professional if necessary (see „Service“ on page EN-18).

■ We recommend using a pulse-sensitive fault current switch (residual current operated circuit-breaker).
■ The appliance may be connected to the mains only after completion of all installation and assembly work.
- Keep the appliance, the mains plug and the mains cord away from open flames and hot surfaces. The insulation of the mains cord could melt.
■ Do not kink or pinch the mains cord or lay it over sharp edges.
■ Never pull the mains plug out of the socket by the mains cord; always hold the mains plug itself.
■ Never touch the mains plug with wet hands.
■ Never immerse the mains cord or plug in water or any other liquids.

■ In the event of a fault, as well as before cleaning or maintenance, pull out the mains plug/switch off or unscrew the fuse.

■ Do not put any objects in or through the housing openings and also make sure that children cannot insert any objects through them.

■ A steam cleaner is not to be used for cleaning.
■ Only parts corresponding to the original appliance specifications may be used for repairs.
■ Investigations and repairs to the appliance may only be carried out by authorised specialists, such as our Service department.
■ Unauthorised repairs to the appliance can cause property damage and personal injury, and invalidate liability and warranty claims. Never try to repair the appliance yourself.

CAUTION

Fire hazard!

Improper handling of the appliance can lead to fire.

■ Connect the appliance only to a properly installed and earthed electric socket. Do not connect to a multi-socket extension cable or a multi-socket plug.

■ Note that the appliance is not intended to be operated by means of an external timer or a separate remote control system.

NOTICE

Risk of damage to property!

Improper handling of the appliance may result in damage or explosions.

■ If a trolley is used to move the appliance, the appliance must be lifted as shown on the packaging.
■ Do not lift the appliance by the handles! They are not intended to carry the heavy weight of the appliance.

■ Do not use sharp objects to unpack the appliance.
■ Do not place the appliance on heat-generating surfaces or near heat-generating appliances.
■ Use the supplied accessories only with this appliance.
■ Do not use the appliance for frying with oil.
■ Do not overfill the cooking baskets. The food to be cooked can lead to damage to the appliance or reduced safety when it comes into contact with the heating elements.

■ When cleaning, please note:

• Under no circumstances should sharp, coarse, sodium carbonate-based, acidic, solvent-based or abrasive cleaning agents be used. All-purpose cleaners with a neutral pH are recommended.
  – The door seals can be damaged by unsuitable cleaning agents. Use care products only on the outer surfaces.
• Use only soft cloths.
• Ensure that water does not enter the ventilation slits or enter into the electrical components.

Risks when handling heat-generating appliances

CAUTION

Risk of burns!

The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

■ Do not touch the parts of the housing!

■ Do not touch hot parts. Always protect hands with oven gloves or pot holders when working on the hot appliance. Only use dry oven gloves or potholders. Wet textiles are better heat conductors and can cause steam burns.
■ Allow the appliance to cool completely before cleaning.
■ The cooking baskets and accessories get hot during operation. Do not touch the cooking baskets and accessories without protection. Only place on heat-resistant surfaces.

CAUTION

Fire hazard!

Improper handling of the appliance may result in fire and damage to property.

■ Do not operate the appliance unattended.
■ To ensure sufficient air circulation, it is imperative that the instructions in the ‘Start-up’ chapter are followed.
■ Do not cover the appliance with blankets, cloths or similar because these objects may become hot and catch fire.
■ The appliance is intended for cooking food. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to injury, ignition, or fire.
■ Do not store any items in the cooking chamber. Accidentally switching on the appliance can cause damage or even ignition. Do not use the cooking chamber for storage purposes.

■ Do not leave any objects on the appliance while it is in use.

■ Never heat flammable objects or dishes containing alcohol.

■ If smoke is emitted, the appliance should be shut off or the power plug pulled and the appliance kept closed to avoid possible flames.

■ In the event of a fire, keep the appliance closed, immediately disconnect the power plug from the socket, or turn off the automatic circuit breaker or remove the fuses.

■ Never extinguish burning oil or fat with water. To extinguish the fire, use a suitable fire extinguisher with the designation ‘F’ or a fire blanket.

■ Once the fire has been extinguished, have the appliance checked by our Service department (see „Service“ on page EN-18).

General risks when cooking food

CAUTION

Health hazard!

Improper use of this appliance can lead to damage to health.

■ Clean the appliance regularly and remove any traces of food leftovers immediately.
■ Particularly with poultry and dishes containing fresh egg, and when warming up meals, ensure that the food is fully cooked through to kill off all pathogens (e.g. salmonella).
■ Use a thermometer to check the recommended cooking temperature.

CAUTION

Acrylamide may be carcinogenic. Acrylamide is produced when starch is exposed to excessive heat, e.g. in potatoes (fries, chips), biscuits, toast, bread etc.

• Keep cooking times as short as possible.
  ■ Only brown the food slightly, do not allow it to brown too much.
  ■ Cut French fries rather large and prepare at a maximum of 180 °C.

NOTICE

Risk of damage to property!

Improper handling of the appliance can lead to property damage.

■ The oven should be cleaned regularly and any food deposits removed.
■ Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

Delivery

Package contents

• hot air fryer
  – cooking baskets (8,4 l)
  – cooking basket (9 l)
• mesh inserts

Checking the delivery

1. Move the appliance to a suitable place and unpack it (see „Start-up“ on page EN-11).
2. Check that the delivery is complete.
3. Check whether the appliance was damaged during transit.
4. If the delivery is incomplete or the appliance has been damaged during transit, please contact our service department (see „Service“ on page EN-18).

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Never use a damaged appliance.

You can find information on installation and start-up from page EN-11.

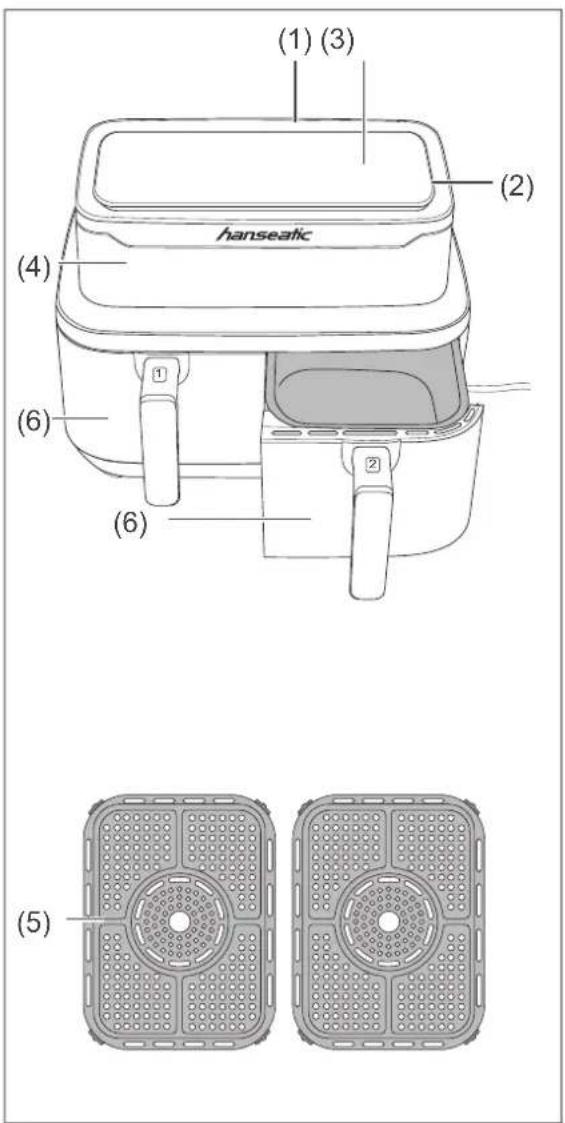

Appliance parts and control elements

(1) Ventilation outlet (on the back)
(2) Ventilation inlet
(3) Control panel
(4) Main unit
(5) Mesh inserts
(6) Cooking baskets

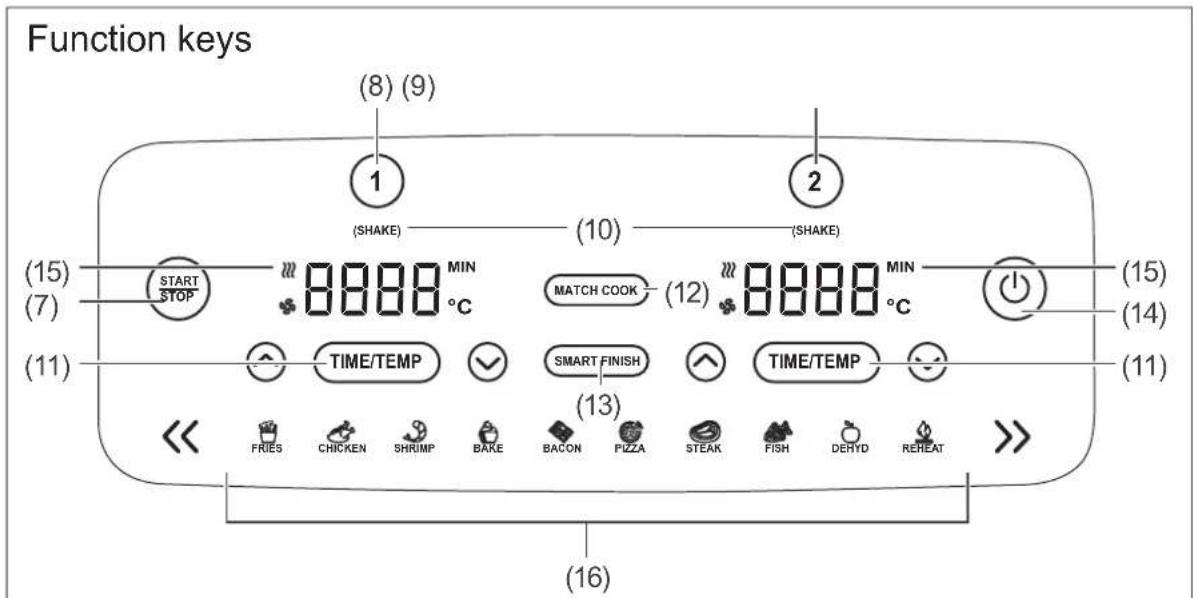

(7) START/STOP button
(8) Control button cooking zone 1 (left cooking basket)
(9) Control button cooking zone 2 (right cooking basket)
(10) SHAKE indicator
(11) TIME/TEMP button
(12) MATCH COOK button
(13) SMART FINISH button
(14) On/Off button
(15) Display
(16) Function keys

Start-up

CAUTION

Fire hazard!

Improper handling of the appliance may result in damage or cause a fire. Heat trapped inside the appliance may shorten its service life.

■ Ensure sufficient ventilation. Do not cover the vents, for example with oven mitts or cookery books!

NOTICE

Risk of damage to property! Improper handling of the appliance may result in damage.

■ Do not use sharp objects to unpack the appliance.

Moving and unpacking

- Carefully unpack the appliance and remove all packaging items, plastic profiles, adhesive strips and foam padding from inside, outside and from the back plate of the appliance.

Connection

WARNING

Risk of electric shock / fire hazard! Touching live parts may result in severe injury or death.

■ Since all poles of the appliance cannot be disconnected from the mains via an accessible disconnecting device, an all-pole disconnecting device in accordance with overvoltage category III must be connected within the house installation with at least 3 mm contact clearance; consult a qualified

professional if necessary (see „Service“ on page EN-18).

- Only connect the appliance to a properly installed protective contact socket with its own adequate protection (220–240 V\~ / 50–60 Hz).

Connection requirements

• To connect your new appliance to the electricity supply, you will need a professionally installed earthed socket with adequate fuse protection (see „Technical specifications“ on page EN-21).
• The connection voltage of the appliance must correspond to the mains voltage in your home (see rating plate on the back of the appliance).
• Do not use multiplugs or extension cables!

Cleaning before use

The appliance should be cleaned before first use, for example to ensure that packaging remnants will not negatively affect the taste of food (see page EN-16).

Heating up the appliance for the first time

A slight odour may be produced during first use. This is non-toxic and disappears after a short moment.

General operating instructions

Before getting started

• Read the ‘Safety’ chapter from page EN-4, in particular the safety notices.
• Install the appliance as described and connect it as described in chapter „Startup“ on page EN-11.

Starting, pausing and ending the cooking process

NOTICE

Risk of damage to property! Improper handling of the appliance can lead to property damage.

■ Use only the supplied baskets for cooking.
- Check the cooking baskets for damage or dirt before use. Clean with a soft cloth if necessary.
■ Before operation, make sure that the cooking baskets are fully inserted. Never operate the appliance without the cooking baskets.
■ Do not move the appliance while in use, and make sure it is not located directly on an edge.

cooking zone and adjust the cooking time and/or temperature with the TIME/TEMP button and the arrow buttons.

- stop a cooking process, select the relevant cooking zone with the corresponding control button. In the case of cooking in both zones, the cooking process is continued in the second zone. The cooking process ends automatically after the set cooking time has expired. The appliance beeps 5 times and the display (15) flashes "0000".

The cooking process automatically pauses when a cooking basket is removed. Reinsert the cooking basket to continue cooking. If the cooking basket is removed for more than 5 minutes, the appliance automatically switches off. In order to continue the cooking process, the cooking zones must be reprogrammed.

In order to

- start a cooking process, select the desired cooking mode with the function keys (16). Alternatively, press the TIME/TEMP button (11) of the active cooking zone (cooking zone 1 by default) to set the cooking time with the arrow keys. To use the second cooking basket additionally, press the control button cooking zone 2 (9) and repeat the setting steps. Press the START/STOP button (7). You can adjust the cooking time and temperature at any time during the cooking process. To do this, select the relevant

Modes

CAUTION

Fire hazard!

Improper handling of the appliance may result in damage or cause a fire.

■ Do not open the cooking chamber if smoke develops! Switch off the appliance, unplug at the mains or switch off at the fuse box.

NOTICE

Risk of damage to property!

Improper handling of the appliance may cause it to become damaged.

■ Do not operate the appliance with an external timer or a separate remote control system.
■ Do not place the cooking baskets on the appliance after cooking. Place the hot cooking baskets only on a heat-resistant surface.

Selectable cooking modes

Use the function keys (16) to select between 10 different cooking modes, in which the cooking time and temperature are preset as required.

Cooking time
Mode		Standard setting	Setting range	Recommendation
[05H5]	Fries 20 Min. 1–60	Min. 15–20 Min.
	Chicken 28 Min. 1	60 Min. 20–40 Min.
[6BYY]	Shrimp 10 Min. 1	60 Min. 10–15 Min.
[YGZY]	Bake	20 Min. 1–60 Min. 20–40 Min.
	Bacon	7 Min. 1–60 Min.	7 Min.
	Pizza	11 Min. 1–60 Min.	11 Min.
	Steak	13 Min. 1–60 Min.	13 Min.
	Fish	20 Min. 1–60 Min.	20 Min.
	Dehydrate	240 Min.	1–600Min.	240 Min.
	Reheat	5 Min. 1–60 Min.	5 Min.

Cooking temperature
Mode		Standard setting	Setting range
[DS34]	Fries	200 °C	80–200 °C
[OH60]	Chicken	200 °C	80–200 °C
	Shrimp	200 °C	80–200 °C
[GBX6]	Bake	200 °C	80–200 °C
	Bacon	200 °C	80–200 °C
	Pizza	200 °C	80–200 °C
[5ZX6]	Steak	200 °C	80–200 °C
[HTZD]	Fish	200 °C	80–200 °C
[1XCA2]	Dehydrate	60 °C	50–80 °C
[6ZY0]	Reheat	180 °C	80–200 °C

Smart Finish function

With the Smart Finish function, the cooking process is terminated at the same time even with different settings in both cooking baskets.

1. Place the food in the cooking baskets (6) and insert them into the appliance.
2. Cooking zone 1 is selected automatically. Use the function keys (16) to select the desired function. If necessary, use the TIME/TEMP button (11) and the arrow buttons to set the cooking time and temperature.
3. Press the control button cooking zone 2 (9) to select the cooking zone 2 and repeat steps 1 and 2.
4. Press the SMART FINISH button (13).
5. Press the START/STOP button (7) to start the cooking process in the cooking zone with the longer cooking time. The other zone will hold.
6. If the remaining cooking time is the same for both cooking zones, the appliance beeps and begins the cooking process in the second cooking zone.
7. To stop the cooking process in a cooking zone prematurely, stop the cooking process as described in the section "Starting, pausing and ending the cooking process" on page EN-12.
8. When 2/3 of the cooking time has passed, the SHAKE indicator (10) flashes. You can shake or turn the food if necessary.
9. When cooking is complete, the appliance beeps 5 times and the display flashes "0000".

Match Cook Function

With the Match Cook function, you can cook larger quantities of food in both cooking baskets with the same settings.

1. Place the food in the cooking baskets (6) and insert them into the appliance.

2. Cooking zone 1 is selected automatically. Use the function keys (16) to select the

desired function. If necessary, use the TIME/TEMP button (11) and the arrow buttons to set the cooking time and temperature.

1. Press the MATCH COOK button (12) to apply the settings to cooking zone 2.
2. Press the START/STOP button (7) to start the cooking process in both cooking zones.
3. When 2/3 of the cooking time has passed, the SHAKE indicator flashes (10). You can shake or turn the food if necessary.
4. When cooking is complete, the appliance beeps 5 times and the display flashes "0000".

The cooking process automatically pauses in the Smart Finish or Match

Cook function for both cooking baskets when a cooking basket is removed. Re-insert the cooking basket to continue cooking. If the cooking basket is removed for more than 5 minutes, the appliance automatically switches off. In order to continue the cooking process, the cooking zones must be reprogrammed.

Cooking tips

• For a uniform browning, make sure that the food is evenly distributed in the cooking basket. If necessary, twist or shake the food after half the cooking time.
• To adjust recipes intended for a traditional oven, reduce the specified temperature by 10^ . Check the food regularly.
• To prevent light foods from being swirled around by the ventilation, secure them, for example with a toothpick.
• For fresh vegetables and potatoes, use a tablespoon of oil. Increase the amount as needed.
• Check the food and use a suitable thermometer if necessary. Remove the food immediately after completion of cooking or after reaching the desired degree of browning.

Care and maintenance

WARNING

Health hazard!

Improper use of this appliance can lead to damage to health.

■ The oven should be cleaned regularly and any food deposits removed.
■ Cleaning and user maintenance shall not be made by children without supervision.

CAUTION

Risk of burns!

The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

■ Children less than 8 years of age shall be kept away unless continuously supervised.

CAUTION

Risk of electric shock!

Improper cleaning may lead to electric shocks and short circuits.

■ Isolate the fuse and pull out the mains plug from the socket before cleaning. Always take hold of the plug itself, do not pull on the mains cord.
■ Ensure that no cleaning water or other liquids can penetrate the ventilation slits or the electrical components.
■ A steam cleaner is not to be used for cleaning. Steam can get into live components through cracks.

CAUTION

Risk of burns!

The housing becomes hot during operation, especially in the area of the vents. The containers can also get very hot due to the foods.

■ Please allow the appliance to cool completely before cleaning.

NOTICE

Risk of damage to property!

The door seals can get damaged by improper handling.

■ Never use harsh, soda, acid, solvent or abrasive cleaners. All-purpose cleaners with a neutral pH are recommended.
■ Use care products only on the outer surfaces.
■ Only use soft cloths.
■ Never immerse the appliance in water.

• If possible, clean the appliance after each use before any contaminants can dry.
• Clean the appliance with a damp, soft cloth. Use warm water and a standard all-purpose detergent or washing-up liquid and a soft sponge or cloth.
• Dissolve stubborn dirt with an undiluted all-purpose cleaner.
• Cooking baskets and mesh inserts can be cleaned in the dishwasher.
• Wipe down all surfaces after cleaning with a dry, soft cloth.

• For your own safety, please check regularly whether the appliance is intact:

• Are the mains cable and plug undamaged?
  – Is the housing undamaged?
  – Are the cooking baskets undamaged?

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the tables to see if you can correct the malfunction.

WARNING

Risk of electric shock in case of improper repair!

Never attempt to repair the appliance yourself. You can put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.

Problem Possible cause Solutions, tips
Could not start appliance, display off.	No electricity to socket.	Check the socket by connecting another appliance.
	Mains plug is loose.	Check the tightness of the mains plug.
Display is black. The appliance is in standby mode. Press the On/Off button.
The appliance emits odours.	This can happen the first time you use it.	See „Heating up the appliance for the first time“ on page EN-11.
Display shows "Shut".	The cooking baskets are not completely inserted.	Check the seat of the cooking baskets.
The food is not completely cooked.	Food is not sufficiently distributed in the cooking basket, or the temperature or cooking time is set too low.	Distribute the food in the cooking basket as described in the section "Tips for cooking", or increase the cooking time or temperature if necessary.

Service

Please note!

You are responsible for the condition of the appliance and its proper use in the household.

Damage resulting from non-compliance with this manual cannot be recognised.

In order for us to help you quickly, please tell us:

Name of appliance Model Order number
hanseatic Hot air fryer HAF212600D	39156050

General customer service

Please contact your mail order company's product advice centre if you have questions, complaints or accessory orders.

Spare parts

Customers in Germany

Please contact the company Hermes Fulfilment GmbH:

Phone: [phone]

Monday–Thursday 8 a.m.–3 p.m., Friday 8 a.m.–2 p.m.

Customers in Austria

Please contact your mail order company's customer service centre or product advice centre.

Waste prevention, free return and disposal

Waste prevention

According to the provisions of Directive 2008/98/EC, waste prevention measures always take priority over waste management.

For electrical and electronic devices, waste prevention measures include extending the lifespan of defective devices through repair and reselling used working appliances instead of disposing of them.

Please help us reduce waste and contact our customer service if your product is faulty.

More information can be found in the brochure ‘Waste Prevention Programme of the German Government with the Involvement of the Federal Länder’.

Free return of old electrical appliances

Upon purchasing a new electrical appliance of the same type with essentially the same function, consumers may return an old electrical appliance to a distributor obliged to take back old appliances, at no extra cost for the consumers. This option also exists for deliveries made to a private household. For distance selling, the option of having old electrical equipment collected for free applies only in the case of purchase of new electrical equipment with heat exchangers (e.g. refrigerators, dehumidifiers), screens and display devices with a screen surface >100 cm^2 , and large devices with at least one of its external dimensions measuring more than 50 cm.

In addition, consumers may return up to three old electrical appliances of the same type to a distributor's collection point for free, without having to purchase a new electrical appliance. In this case, however, the old appliances' external dimensions may not exceed 25 cm.

Disposal

Disposing of old electrical appliances in an environmentally-friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old elec-

trical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

Don't forget to erase data!

If necessary, each consumer is responsible for erasing personal data from electrical and electronic equipment.

Batteries and rechargeable batteries, lamps and bulbs

If necessary, old single-use and rechargeable batteries that are not encased by an old electrical appliance, as well as lamps/bulbs that can be removed from an old electrical appliance without being destroyed, must be removed and disposed of separately before you return the appliance.

This symbol means that single-use and rechargeable batteries may not be disposed of with other household waste.

Consumers are required by law to bring all single-use and rechargeable batteries, regardless of whether they contain harmful substances or not, to a collection point operated by their communal authority

or borough or to a retailer so that they can be disposed of in an environmentally friendly manner and so that valuable resources (e.g. cobalt, nickel or copper) can be recovered.

Batteries and rechargeable batteries can be returned free of charge.

Some of the possible contents (e.g. mercury, cadmium and lead) are toxic and, if improperly disposed of, can have adverse effects on the environment. Heavy metals, for instance, can have detrimental health effects on humans, animals and plants and accumulate in the environment and food chain, and then enter the body indirectly through the consumption of food.

There is a high risk of fire with old lithium batteries. Special care must therefore be taken to properly dispose of old lithium batteries and rechargeable batteries. Improper disposal can also lead to internal and external short circuits due to thermal effects (heat) or mechanical damage. A short circuit can lead to a fire or an explosion and have serious consequences for people and the environment. It is therefore important to tape off the poles of lithium batteries and rechargeable batteries before disposing of them to prevent an external short circuit.

Before disposing of the appliance, batteries and rechargeable batteries which are not permanently built into the appliance must be removed and disposed of separately.

Please only dispose of batteries and rechargeable batteries in a discharged state!

If possible, use rechargeable batteries in place of disposable batteries.

*) labelled with:

Cd = Cadmium

Hg = Mercury

Pb = Lead

Packaging

Our packaging is made of environmentally friendly, recyclable materials:

– Outer packaging made of cardboard
- Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of polyethylene (PE)
– Tension bands made of polypropylene (PP)
- Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.

If you have sufficient space, we recommend retaining the packaging, at least during the warranty

period. If the appliance needs to be sent out for repairs, only the original packaging will provide sufficient protection.

If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Technical specifications

Manufacturer hanseatic
Name of appliance Hot air fryer
Model HAF212600D
Supply voltage in V~/50 Hz 220–240 V~, 50–60 Hz
Cooking chamber volume in litres
with mesh inserts 3.5 l + 3.5 l
without mesh inserts 4.2 l + 4.2 l
Appliance dimensions in cm 30.8 × 33.6 × 40.1 cm
Empty weight in kg 7.2 kg
Order no. 39156050
