Type of Product	Dishwasher
Brand	Kernau
Model	KDI 4443 I
Capacity	10 place settings
Dimensions (Height x Width x Depth)	820-870 mm x 450 mm x 550 mm
Net Weight	30.9 kg
Operating Voltage / Frequency	220–240 V / 50 Hz
Total Current	10 A
Total Power	1900 W
Water Supply Pressure	Min 0.03 MPa, Max 1 MPa
Programs	Eco, Intensive 65°C, Auto Super, 50' (quick), Prewash
Special Features	Half Load, Delay (3/6/9h), Water Softener, Rinse Aid Dispenser, Salt Indicator, Rinse Aid Indicator, End of Programme Indicator, Buzzer Sound Control, Save Power Mode, Infoled, Mini Active Drying Unit
Control Panel	Electronic with LED indicators
Basket Configuration	Upper basket with racks (height adjustable), lower basket, cutlery basket
Filter System	Micro filter, coarse filter, metal filter
Spray Arms	Upper and lower rotating spray arms
Water Connection	Cold water preferred; hot water max 60°C (or max 25°C for models marked 25°)
Drain Hose Length	Max 4 m; connection height 50-110 cm from floor
Safety Features	Child lock (supervision required), automatic stop when door opened, overload protection, Aquastop (some models)
Spare Parts Availability	Function-relevant genuine spare parts available for at least 10 years from market placement
Energy Efficiency Class	Eco programme is most efficient; refer to energy label

Frequently Asked Questions - KDI 4443 I Kernau

What type of detergent should I use?

Use only detergents specifically designed for domestic dishwashers. For short programmes, use powder detergent. Avoid combined detergents in short cycles.
Refer to the manufacturer's instructions for combined detergents.

How do I adjust the water softener setting?

Open the door, turn on the machine, then press and hold the Programme button until all LEDs blink once. The last setting is displayed. Press the Programme button to change the level (1-6). Switch off to save. Refer to the water hardness table for appropriate level.

How do I fill rinse aid and adjust its dosage?

Open the rinse aid compartment cap, fill to MAX level, and close. To adjust dosage: open door, turn on machine, press and hold Programme button until all LEDs blink twice. The machine shows the last setting. Press Programme button to change level (1-5). Switch off to save. Factory setting is 4.

What does the Infoled indicator mean?

The Infoled (LED) indicates machine status: Red continuous – programme running; Red flashing – programme cancelled; Red flashing rapidly – fault; Green continuous – programme finished.

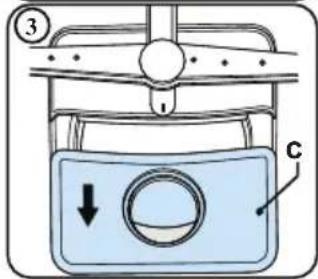

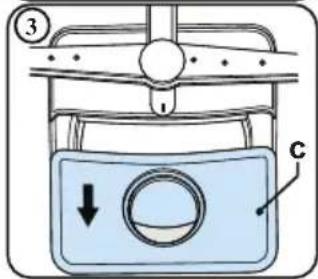

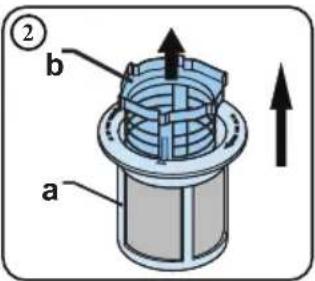

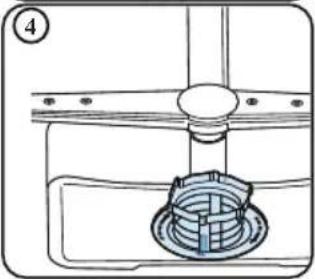

How do I clean the filters?

Remove the filter combination by turning counter clockwise and lifting. Separate the coarse filter from the micro filter, then remove the metal filter. Rinse all filters under running water until clean. Reassemble and refit by turning clockwise. Clean filters at least once a week.

Why does the dishwasher not start?

Check that the dishwasher is plugged in and switched on. Ensure the door is closed, the water tap is open, and the fuse is not blown. Also check that the water inlet hose and filters are not clogged.

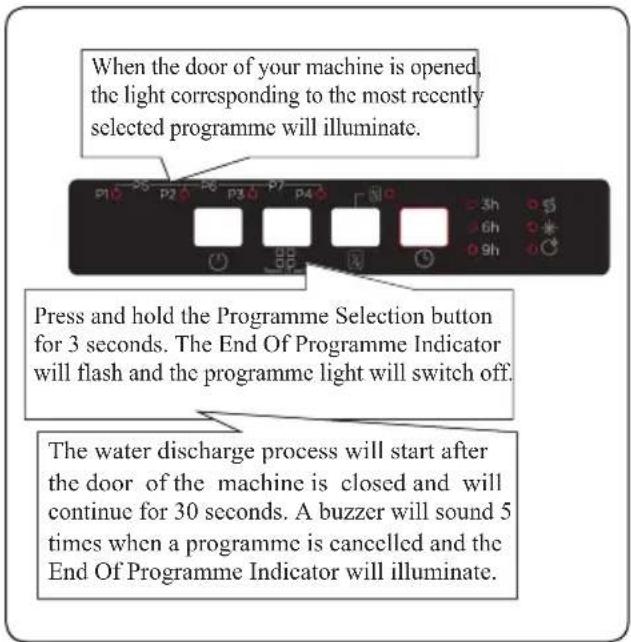

How do I cancel a running programme?

Open the door slightly to stop water spillage. Press and hold the Programme Selection button for 3 seconds. The End of Programme indicator flashes and programme light turns off. Close the door. Water discharge starts and a buzzer sounds 5 times when cancelled. The End of Programme indicator then illuminates.

What should I do if the drain pump is blocked?

First, disconnect the appliance from power. Remove baskets and filters. Scoop out water (use a sponge if needed). Check the area and remove any foreign objects. Reinstall filters and baskets. Warning: risk of cuts from broken glass or sharp objects.

How can I reduce energy consumption?

Use the Eco programme for normally soiled dishes; it is the most efficient. Activate Save Power Mode by pressing Half Load and Delay buttons simultaneously for 3 seconds. This turns off interior lights after 4 minutes and shuts down after 15 minutes of inactivity.

Are there any child safety precautions?

Yes. Keep children away from detergents and rinse aids. Do not allow children to play with the appliance. When the door is open, there may be residues inside. Children aged 8+ may use the appliance under supervision if they understand hazards.

USER MANUAL KDI 4443 I Kernau

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating rotation (no text or symbols)

OSTRZEŻENIE

Diagram of a pipe valve with a valve and base, showing internal components (no text or labels)

RYZYKO PORAŻENIA PRĄDEM

Close-up of a mechanical component with a numbered arrow pointing to a circular component (no text or symbols visible)

OGÓLNY WYGLĄD PRODUKTU

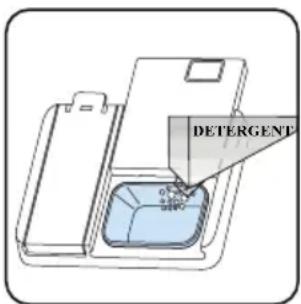

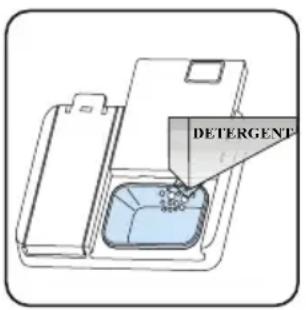

WYKORZYSTANIE DETERGENTU

Illustration of a hand placing a small object into a blue container with a downward arrow (no text or symbols)

Illustration of a hand inserting a card into a notebook (no text or symbols)

Line drawing of a hand inserting a lock into a device (no text or symbols)

Illustration of a hand holding a black object over a wire cage structure (no text or symbols)

Diagram of an aircraft wing with two wheels and a central airship component, showing directional arrows (no text or symbols)

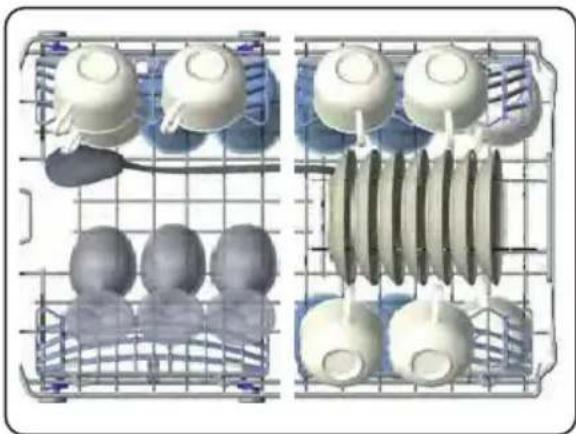

Kratka na naczynia

Two-panel image showing a kitchen appliance with lid and fan, and a close-up of a metallic cooling fan with internal components (no visible text or symbols)

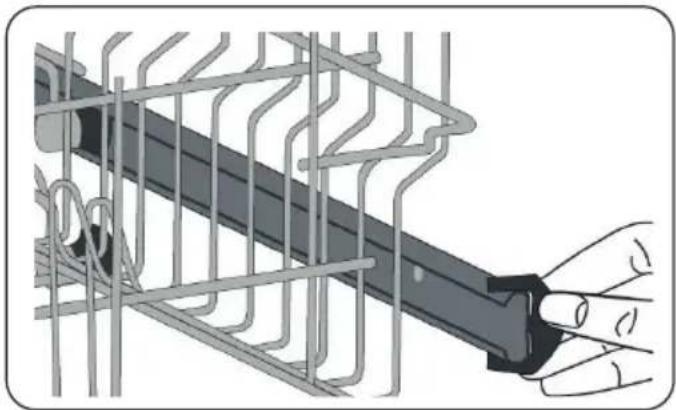

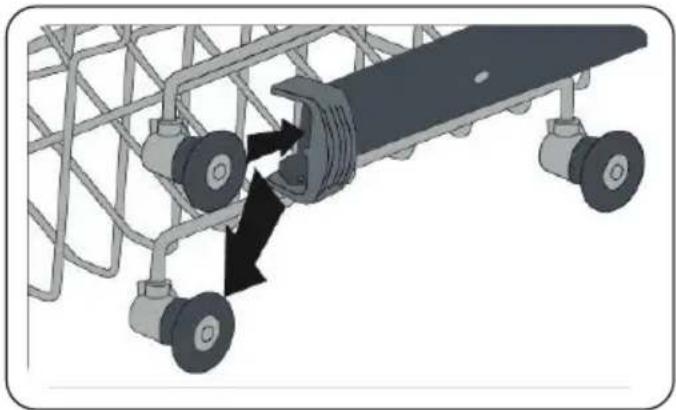

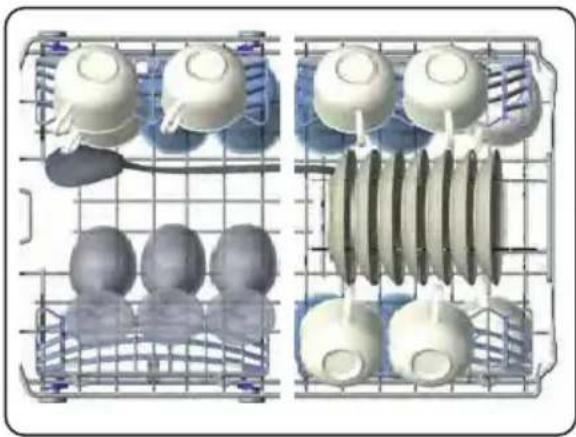

Kosz górny

3D rendering of two dark round objects with lids placed on a grid background, no text or symbols visible

Two-panel illustration of a washing machine grid with plastic washers and washers (no text or symbols)

Technical illustration of a mechanical assembly with cross-sectional views and labeled components (no readable text or symbols)

WAŻNA UWAGA DOTYCZĄCA PLACÓWEK

Diagram of a mechanical component with a central hub and internal structure, no visible text or symbols

Technical line drawing of a mechanical component with a central hub and base plate (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

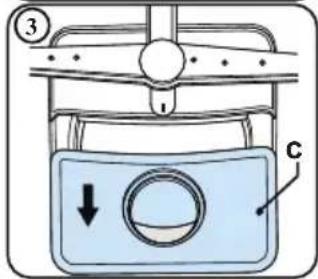

POMPA ODPLYWOWA

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Caption Description
	Warning Serious injury or death risk
	Risk of electric shock Dangerous voltage risk
	Fire	Warning; Risk of fire / flammable materials
	Caution Injury or property damage risk
	Important/Note Operating the system correctly

CONTENTS

CHAPTER 1. Safety instructions ....35

General safety warnings....35

During usage....36

CHAPTER 2. Installation ....38

Machine positioning....38

Water connection....38

Water inlet hose 38

Drain hose (model depending)....39

Electrical connection 40

CHAPTER 3. Technical specifications....41

General appearance....41

Technical specifications....41

Recycling....42

Packing and the environment 42

CHAPTER 4. Before using the appliance....43

Preparing your dishwasher for first use....43

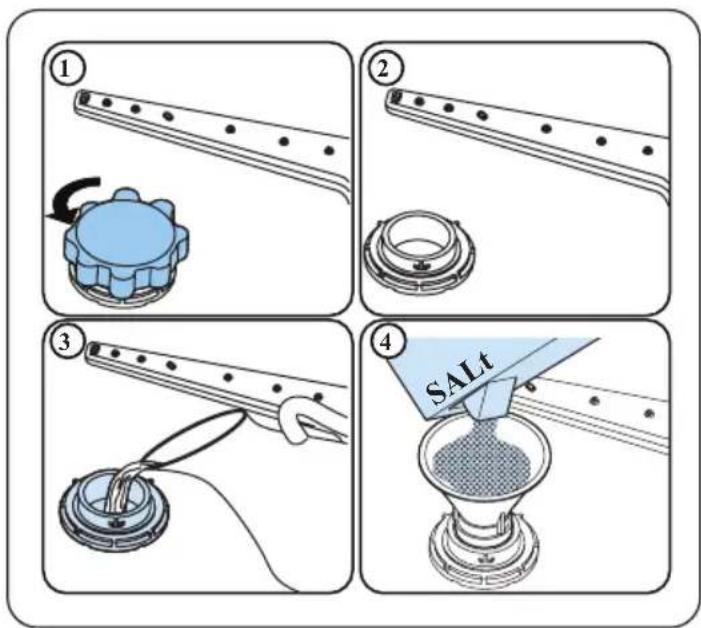

Salt usage (if available) 43

Fill the salt (if available)....43

Water hardness table....44

Test strip 44

Water softener system....45

Setting....45

Detergent usage....45

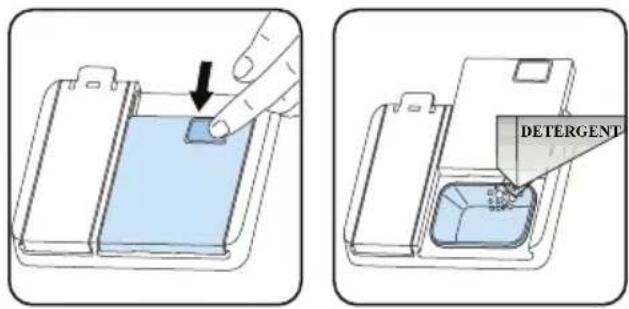

Filling the detergent....45

Using combined detergents 46

Rinse-aid usage....46

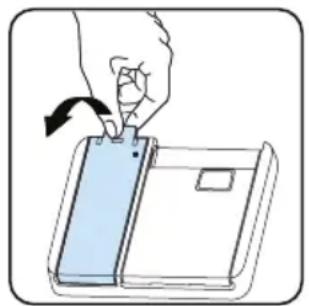

Filling the rinse-aid and setting 46

CHAPTER 5. Loading your dishwasher....47

Recommendations 47

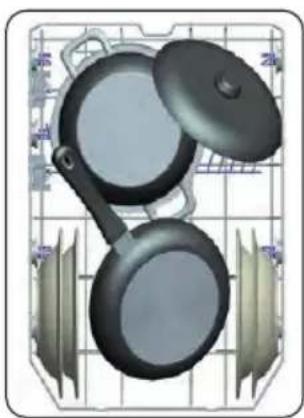

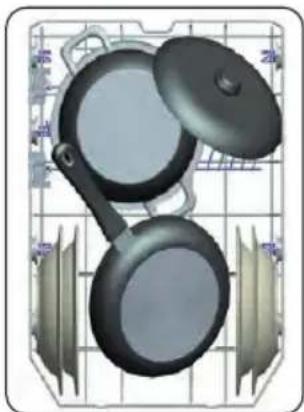

Alternative basket loads 49

CHAPTER 6. Programme table....50

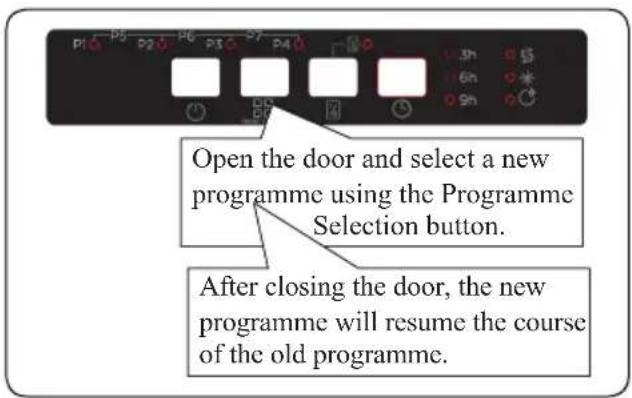

CHAPTER 7. The control panel....51

CHAPTER 8. Cleaning and maintenance ....55

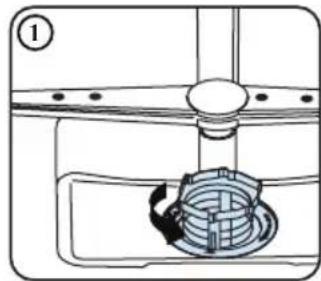

Filters....55

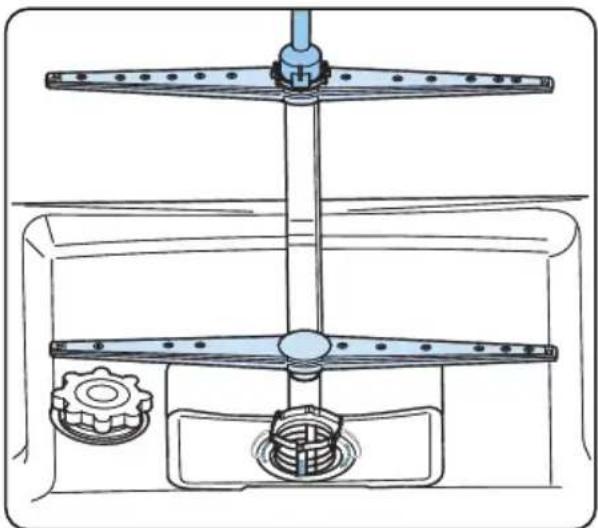

Spray arms....56

Drain pump....56

CHAPTER 9. Troubleshooting....57

Automatic fault warnings and what to do....59

CHAPTER 10. Disposal of used equipment....61

CHAPTER 1. SAFETY INSTRUCTIONS

GENERAL SAFETY WARNINGS

- Read these instructions carefully before using your appliance and keep this manual for future reference.

CAUTION

Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

- Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable. Use of recycled material reduces raw material consumption and decreases waste production.

CAUTION

This appliance can be used by children aged from 8 years and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand hazards involved. Children should not be allowed to play with the appliance.

WARNING

Remove packaging and keep it out of reach of children.

CAUTION

Keep children away from detergents and rinse aids.

CAUTION

There may be some residue left in the machine after washing. Keep children away from the machine when it is open.

INSTALLATION WARNINGS

• Choose a suitable and safe place to install your machine.
• Only original spare parts should be used with the machine.

RISK OD ELECTRIC SHOCK / CAUTION

Unplug the machine before installation.

CAUTION

Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.

CAUTION

Check that the indoor electrical fuse system is connected in line with safety regulations.

CAUTION

All electrical connections must match the values on the plate.

RISK OD ELECTRIC SHOCK / CAUTION

Ensure the machine does not stand on the electrical supply cable.

FIRE

Never use an extension cord or a multiple socket connection.

CAUTION

The plug should be accessible after the machine is installed.

• After installation, run your machine unloaded for the first time.

RISK OD ELECTRIC SHOCK / CAUTION

The machine must not be plugged in during positioning.

CAUTION

Always use the coated plug supplied with your machine.

RISK OD ELECTRIC SHOCK / CAUTION

If the electrical cable is damaged, it should only be replaced by a qualified electrician.

- Connect the hose directly to the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa. If the pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection

DURING USAGE

• This machine is for domestic use only; do not use it for other purposes. Commercial use will void the guarantee.

CAUTION

Do not stand, sit or place loads on the open door the dishwasher.

CAUTION

Only use detergents and rinse aids produced specifically for dishwashers. Our company is not responsible for any damage that may occur due to misuse.

CAUTION

Do not drink water from the machine.

WARNING

Due to the danger of explosion, do not place any chemical dissolving agents into the machine's washing section.

- Check the heat-resistance of plastic items before washing them in the machine.

CAUTION

Only put items in the machine which are suitable for dishwashing, and take care not to overfill the baskets.

CAUTION

Do not open the door while the machine is in operation, hot water may spill out. Safety devices ensure the machine stops if the door is opened.

CAUTION

The machine door should not be left open. It may cause accidents.

CAUTION

Place knives and other sharp objects in the cutlery basket in a blade-down position.

RISK OD ELECTRIC SHOCK / CAUTION

For models with the automatic door-opening system, when the EnergySave option is active, the door will open at the end of a program. To prevent damage to your dishwasher, do not attempt to close the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds.

CAUTION

In the case of a malfunction, repair should only be performed by an authorised service company, otherwise the warranty will be void.

RISK OD ELECTRIC SHOCK / CAUTION

Before repair work, the machine should be disconnected from the mains. Do not pull the cable to unplug the machine. Switch off the water tap.

IMPORTANT

Operation at a low voltage will cause a decline in performance levels.

CAUTION

For safety, disconnect the plug once a program has finished.

RISK OD ELECTRIC SHOCK

To avoid an electric shock, do not unplug the machine with wet hands.

FIRE / CAUTION

Pull the plug to disconnect the machine from the mains, never pull on the cord.

CHAPTER 2. INSTALLATION

MACHINE POSITIONING

When positioning the machine, place it in an area where dishes can be easily loaded and unloaded. Do not put the machine in an area where the ambient temperature falls below 0^ C. Read all warnings located on the packaging before removing the packaging and positioning the machine. Place the machine close to a water tap and drain. Take into consideration that the connections will not be altered once the machine is in position. Do not hold the machine by its door or panel. Leave an adequate distance around the machine to allow ease of movement when cleaning.

RISK OD ELECTRIC SHOCK

Ensure the water inlet and outlet hoses are not squeezed or trapped and that the machine does not stand on the electrical cable while positioning. Adjust the feet so the machine is level and balanced. The machine should be placed on flat ground otherwise it will be unstable and the door of the machine will not close properly.

CAUTION

Please install the decorative panel as indicated on the assembly sheet. Otherwise, the door may not open properly and steam leakage problem may occur.

WATER CONNECTION

We recommend fitting a filter to your water inlet supply in order to prevent damage to your machine due to contamination (sand, rust, etc.) from indoor plumbing. This will also help prevent yellowing and deposit formation after washing. Note printing on the water inlet hose! If models are marked with 25^ , the water temperature may be max. 25^ C (cold water).

For all other models: Cold water preferred; hot water max. temperature 60 °C.

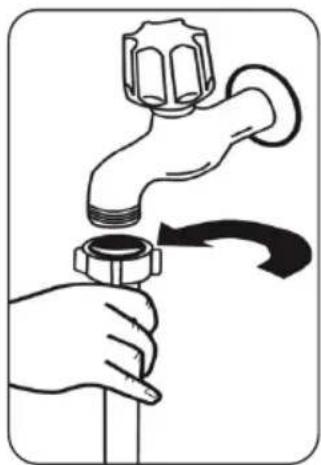

WATER INLET HOSE

Illustration of a hand holding a faucet with a valve, showing a right-hand rule for valve adjustment (no text or symbols)

WARNING

Use the new water inlet hose supplied with your machine, do not use an old machine's hose.

WARNING

Run water through the new hose before connecting.

WARNING

Connect the hose directly to the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa. If the pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection.

WARNING

After the connections are made, turn the tap on fully and check for water leaks. Always turn off the water inlet tap after a wash program has finished.

Diagram of a pipe valve with a valve and base, showing fluid flow (no text or labels)

RISK OD ELECTRIC SHOCK

An Aquastop water spout is available with some models. Do not damage it or allow it to become kinked or twisted.

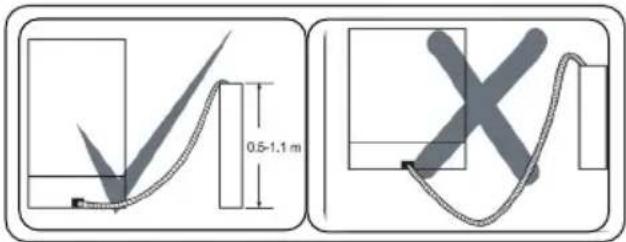

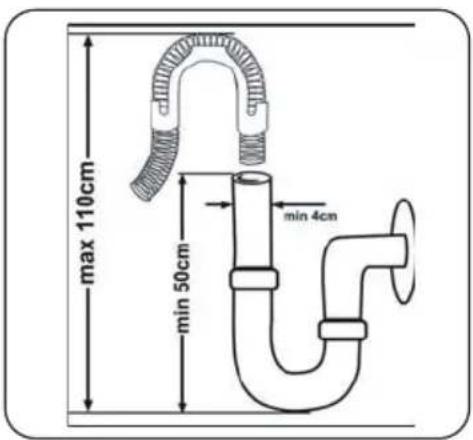

DRAIN HOSE (MODEL DEPENDING)

Connect the water drain hose directly to water drain hole or to the sink outlet spigot. This connection should be minimum 50 cm and maximum 110 cm from floor that dishwasher is placed.

IMPORTANT

Items will not wash properly if a drain hose longer than 4 m is used.

ELECTRICAL CONNECTION

WARNING

Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection.

RISK OD ELECTRIC SHOCK / CAUTION

Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical Specifications" table".

RISK OD ELECTRIC SHOCK / CAUTION

The earthed plug of the machine must be connected to an earthed outlet supplied by suitable voltage and current.

RISK OD ELECTRIC SHOCK / CAUTION

In the absence of earthing installation, an authorised electrician should carry out an earthing installation. In the case of use without earthing installed, we will not be responsible for any loss of use that may occur.

RISK OD ELECTRIC SHOCK / CAUTION

The plug on this appliance may incorporate 13A fuse depending on the target country. (For Example UK, Saudi Arabia).

CHAPTER 3. TECHNICAL SPECIFICATIONS

Close-up of a mechanical component with a numbered arrow pointing to a circular component (no text or symbols visible)

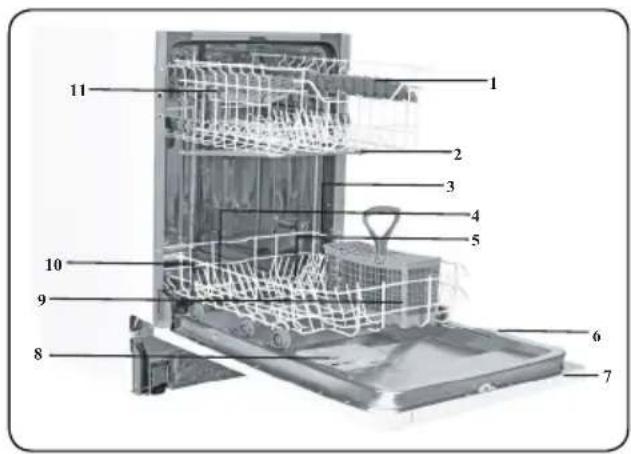

GENERAL SPPEARANCE

1. Upper basket with racks
2. Upper spray arm
3. Lower basket
4. Lower spray arm
5. Filters
6. Rating plate
7. Control panel
8. Detergent and rinse-aid dispenser
9. Cutlery basket
10. Salt dispenser

11. Upper basket track latch

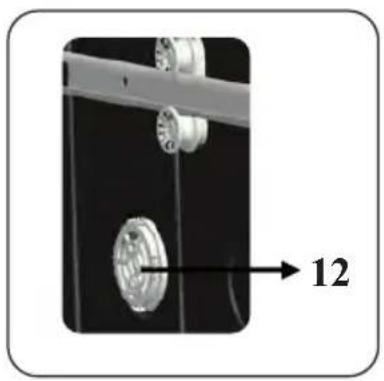

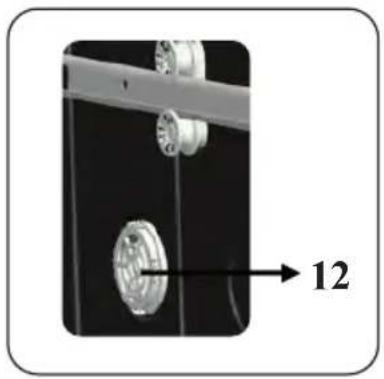

12. Mini Active Drying Unit: This system provides better drying performance your dishes.

TECHNICAL SPECIFICATIONS

Capacity 10 place settings
DimensionsHeightWidthDepth	820-870 (mm)450 (mm)550 (mm)
Net weight 30,9 kg
Operating voltage / frequency 220–240 V / 50 Hz
Total current 10 (A)
Total power 1900 (W)
Water supply pressure	Maximum:1 (Mpa)Minimum:0.03 (Mpa)

RECYCLING

• Some machine components and packaging consist of recyclable materials.
• Plastics are marked with the international abbreviations: (>PE<, >PP<, etc.)
• The cardboard parts consist of recycled paper. They can be put into waste paper containers for recycling.
• Material unsuitable for domestic waste must be disposed of at recycling centres.
• Contact a relevant recycling centre to obtain information about disposal of different materials.

PACKING AND THE ENVIRONMENT

- Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

CE Declaration of Conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of Your Old Machine

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it shall be taken to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service or the shop where the product was purchased.

CHAPTER 4. BEFORE USING THE APPLIANCE

PREPARING YOUR DISHWASHER FOR FIRST USE

• Make sure the electricity and supply water specifications match the values indicated in the installation instructions for the machine.
- Remove all packaging material inside the machine.
- Set the water softener level.
• Fill the rinse aid compartment

SALT USAGE (IIF AVAILABLE)

For a good washing function, the dishwasher needs soft, i.e. less calcareous water. Otherwise, White lime residues will remain on the dishes and the interior equipment. This will negatively affect your machine's washing, drying and shining performance. When water flows through the softener system, the ions forming the hardness are removed from the water and the water reaches the softness required to obtain the best washing result. Depending on the level of hardness of the inflowing water, these ions that harden the water accumulate rapidly inside the softener system. Therefore, the softener system has to be refreshed so that it operates with the same performance also during the next wash. For this purpose, dishwasher salt is used. Machine can only be used by special dishwasher salt to soften the water. Do not use any small grained or powdered type of salts which can easily soluble. Using any other type of salt can damage your machine.

FILL THE SALT (IF AVAILABLE)

To add softener salt, open the salt compartment cap by turning it counter clockwise. (1) (2) At first use, fill the compartment with 1 kg salt and water (3) until it is almost overflowing. If available, using a funnel (4) will make filling easier. Replace the cap and close it. After every 20-30 Cycles add salt into your machine until it fills up (approx. 1 kg).

Only add water to the salt compartment on first use.

Use softener salt specifically produced for use in dishwashers. When you start your dishwasher, the salt compartment is filled with water, therefore put the softener salt in prior to starting your machine. If the softener salt has overflowed and you do not start the machine immediately, run a short washing program to protect your machine against corrosion.

TEST STRIP

	Run water through the tap (1min.)	Keep the strip in the water (1sec)	Shake the strip	Wait (1min.)	Set the hardness level of your machine

NOTE

The factory hardness level setting is “3”. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

WATER HARDNESS TABLE

Level G	German dH French dF British dE Indicator
1 0–5	0–9 0–6 P1-9h LEDs	are on
2 6–11	10–20 7–14 P2-9h LEDs	are on
3 12–17	21–30 15–21	1/2-9h LEDs are on
4 18–22	31–40 22–28	3h-9h LEDs are on
5 23–31	41–55 29–39	6h-9h LEDs are on
6 32–50	56–90 40–63	P1-6h-9h LEDs are on

WATER SOFTENER SYSTEM

The dishwasher is equipped with a water softener which reduces the hardness in the mains water supply. To find out the hardness level of your tap water, contact your water company or use a test strip (if available).

SETTING

In order to change the salt level, follow the below steps:

• Open the door of the machine.
• Turn on the machine, and press the Programme button as soon as the machine is turned on.
• Hold down the Programme button until all leds blink once.
  • The machine will display the last setting.
• Set the level by pressing the Programme button.
• Switch off the machine to save the setting

DETERGENT USAGE

Only use detergents specifically designed for domestic dishwashers. Keep your detergents in cool, dry places out of reach of children. Add the proper detergent for the selected program to ensure the best performance. The amount of detergent needed depends on the cycle, load size, and soil level of dishes.

Do not fill detergent into the detergent compartment more than required; otherwise you can see whitish streaks or bluish layers on glass and dishes and may cause glass corrosion. Continued use of too much detergent may cause machine damage. Using little detergent can result in poor cleaning and you can see whitish streaksin hard water. See the detergent manufacturer's instructions for a further information.

FILLING THE DETERGENT

Push the latch to open the dispenser and pour in the detergent. Close the lid and press it until it locks in place. The dispenser should be refilled just before the start of each programme. If the dishes are heavily soiled, place additional detergent in the prewash detergent chamber.

USING COMBINED DETERGENTS

These products should be used according to the manufacturer's instructions. Never put combined detergents into the interior section or the cutlery basket. Combined detergents contain not only the detergent but also rinse-aid, salt replacement substances and additional components depending on the combination. We recommend you do not use combined detergents in short programmes. Please use powder detergents in such programmes. If you encounter problems when using combined detergents, please contact the detergent manufacturer. When you stop using combined detergents, make sure that water hardness and rinse aid settings are set to the correct level.

RINSE-AID USAGE

The rinse aid helps to dry the dishes without streaks and stains. Rinse-aid is required for stain-free utensils and clear glasses. The rinse aid is automatically released during the hot rinse phase. If rinse aid dosage setting set too low, whitish stains remains on dishes and dishes do not dry and washed clean. If rinse aid dosage setting set too height, you can see bluish layers on glass and dishes.

FILLING THE RINSE-AID AND SETTING

To fill the rinse aid compartment, open the rinse-aid compartment cap. Fill the compartment with rinse aid to the MAX level and then close the cap. Be careful not to overfill the rinse aid compartment and wipe up any spills.

In order to change the rinse aid level, follow the below steps:

• Open the door of the machine.
• Turn on the machine, and press the Programme button as soon as the machine is turned on.
• Hold down the Programme button until all leds blink twice. Rinse aid setting follows water hardness setting.
• The machine will display the last setting.
• Change the level by pressing the programme button.
• Switch off the machine to save the setting.

The factory rinse aid level setting is “4”. If the dishes are not drying properly or are spotted, increase the level. If blue stains form on your dishes, decrease the level.

Illustration of a hand using a tool to press or install a device (no text or symbols visible)

Line drawing of a hand inserting a key into a device (no text or symbols)

Level Brightener Dose Indicator
1 Rinse-aid not dispensed P1-9h LEDs are on
2 1 dose is dispensed P2-9h LEDs are on
3 2 doses are dispensed 1/2-9h LEDs are on
4 3 doses dispensed 3h-9h LEDs are on
5 4 doses dispensed 6h-9h LEDs are on

CHAPTER 5. LOADING YOUR DISHWASHER

For best results, follow these loading guidelines. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings. Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended You can place cups, glasses, stemware, small plates, bowls, etc. in upper basket. Do not lean long glasses against one another or they cannot remain steady and may receive damage. When placing long stem glasses and goblets, lean them against the basket edge or rack and not against other items. Place all containers such as cups, glasses and pots into the dishwasher with the opening facing downwards otherwise water can collect on items.

If there is cutlery basket in machine, you are recommended to use the cutlery grid in order to obtain the best result. Place all large (pots, pans, lids, plates, bowls etc.) and very dirty items in the lower rack. Dishes and cutlery should not be placed above each other.

WARNING

Take care not to obstruct the rotation of spray arms.

WARNING

Make sure after loading the dishes do not prevent opening the detergent dispenser.

RECOMMENDATIONS

Remove any coarse residue on dishes before placing the dishes in the machine. Start the machine with full load.

IMPORTANT

Do not overload the drawers or place dishes in the wrong basket.

WARNING

To avoid any possible injuries, place long-handle and sharppointed knives with their sharp points facing down or horizontally on the baskets.

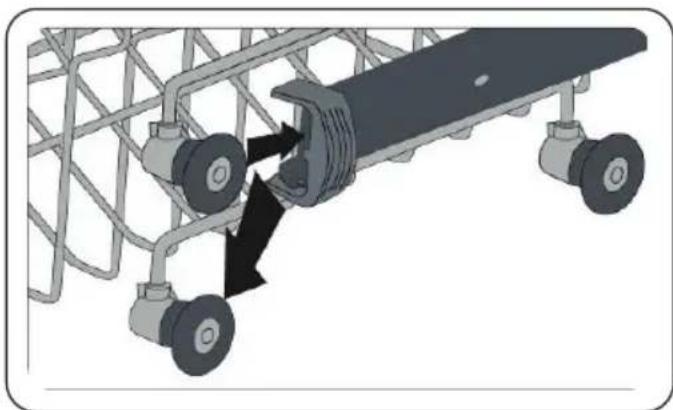

Upper Basket Height adjustment

Turn the Rail Stop Clips, at the ends of the rails, to the sides to open them (as shown in the image below), then pull out and remove the basket. Change the position of the wheels, then reinstall the basket to the rail, making sure to close the Rail Stop Clips. When the upper basket is in the higher position, large items such as pans can be placed on the lower basket.

Illustration of a hand holding a tool interacting with a mechanical component (no text or symbols visible)

Diagram of a jet engine with two wheels and a central rotating component, showing directional arrows (no text or symbols)

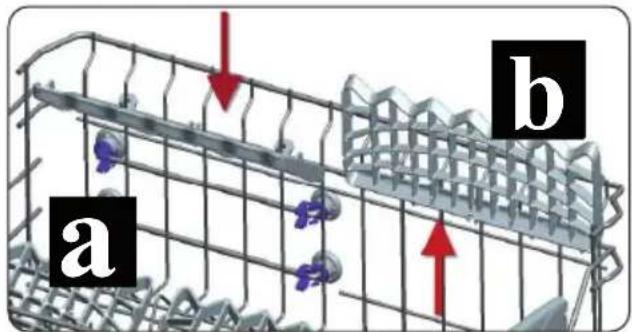

Dish rack

The upper basket racks can either be open, a, or closed, b. Place cups and large utensils (horizontally) on the racks to be washed.

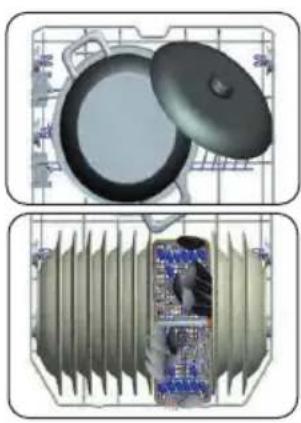

ALTERNATIVE BASKET LOADS

Lower Basket Top Basket

Two technical diagrams showing a kitchen appliance with a lid and fan, and a close-up of its internal components (no text or symbols visible)

3D rendering of two black cooking pots on a grid background, no text or symbols visible

Two identical 3D wireframe models of kitchen utensils arranged in a grid, with no visible text or symbols.

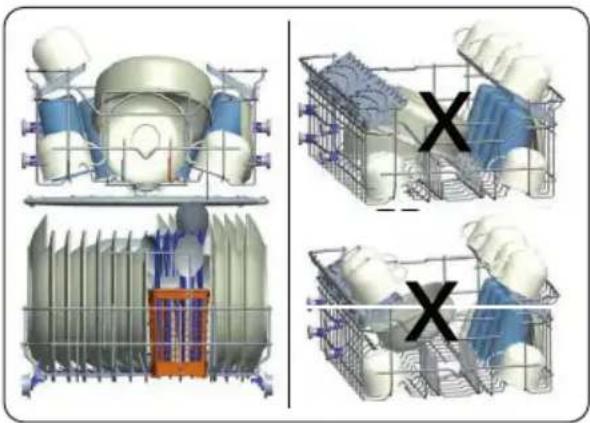

Incorrect Loads

Incorrect loading can cause poor washing and drying performance. Please follow the manufacturer's recommendations for a good performans result.

Technical illustration of a mechanical assembly with cross-sectional views and no visible text or symbols

IMPORTANT NOTE FOR TEST LABORATORIES

For detailed information required for tests according to EN normatives and a softcopy of the manual, please send the model name and serial number to the following address: [e-mail]

CHAPTER 6. PROGRAMME TABLE

	P1 P2 P3	P4
Program Name:	Eco	Intensive 65°C	Auto Super	50' Prewash
Type of Soil:	Standard program for normally soiled daily using dishes with reduced energy and water consumptions	Suitable for heavily soiled dishes	Auto program for heavily soiled dishes	Suitable for normally soiled daily dishes with faster program	Suitable to rinse dishes that you plan to wash later
Level of Soil:	Medium Heavy Heavy Medium Light
Amount of Detergent: A: 25 cm3 B: 15 cm3"	A A A A	-
Program Duration (h:min)	03:42	02:15	01:50 - 02:15	00:50	00:15
Electricity consumption (kWh/cycle)	0.755	1.550	1.150 - 1.550 0	950	0.020
Water consumption (l/cycle)	11.0	17.6	11.2 - 17.6	11.2	3.5

• The program duration may change according to the amount of dishes, the water temperature, the ambient temperature and selected additional functions.
  • Values given for programmes other than the eco programme are indicative only
  • If your model has turbidity sensor, it has Auto program instead of Intensive program.
• Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation.
• Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the manufacturer's instructions.
  • Only use powder detergent for short programs.
  • Short programs do not include drying.
  • To assist drying, we recommend slightly opening the door after a cycle is complete.
• You can access the product database where the model information is stored by reading the QR code on the energy label.

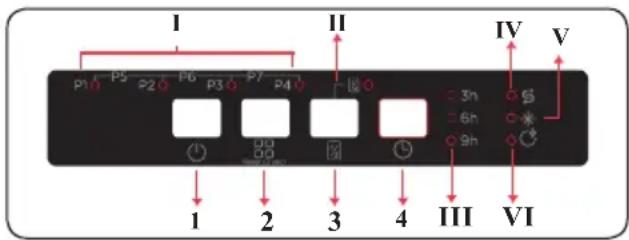

CHAPTER 7. THE CONTROL PANEL

1. On/Off button
2. Programme Selection Button

i. Programme Leds

1. Half Load Button
   ii. Half Load Led

2. On/Off Button

3. Delay Button

iii. Delay Leds
iv. Salt Indicator
v. Rinse Aid Indicator
vi. End of Programme Indicator

Switch the machine on by pressing On/Off button. When machine is on, the End Of Programme Indicator (VI) will illuminate.

1. Programme Selection Button

Select a suitable programme for your dishes by pressing Programme Selection button. The Programme Led (i) corresponding to the selected programme will illuminate and the End Of Programme Indicator (VI) will switch off. The programme will start automatically when the door is closed.

1. Half Load Button

Press the Half Load button to reduce the duration of the selected programme, and therefore decrease your energy and water consumption. When Half Load option is selected, Half Load led (II) will illuminate.

1. Delay Button

Press the Delay button to delay the start time of a programme for 3, 6 or 9 hours. Pressing once will delay the start time for 3 hours, pressing twice for 6 hours, and three times for 9 hours. Press the Delay Timer button to change or cancel the delayed start time. The Delay led (III) corresponding to the remaining delay duration (3h, 6h, 9h) will be on. If you switch off the machine after activating the delay time, the delayed time is cancelled.

CAUTION

If you decide not to start the selected programme please see the ,"Changing a programme" and "Cancelling a programme" sections.

CAUTION

When there is insufficient softening salt, the Salt Lock Warning Indicator (IV) will illuminate to indicate the salt chamber needs filling.

CAUTION

When there is insufficient rinse aid, the Rinse Aid Lack Warning Indicator (V) will illuminate to indicate the rinse aid chamber needs filling.

Changing a programme

Follow the steps below to change a programme while in operation.

NOTE

Open the door slightly at first to stop a programme before it is complete in order to avoid water spillage.

Cancelling a Programme

Follow the steps below to cancel a programme while in operation.

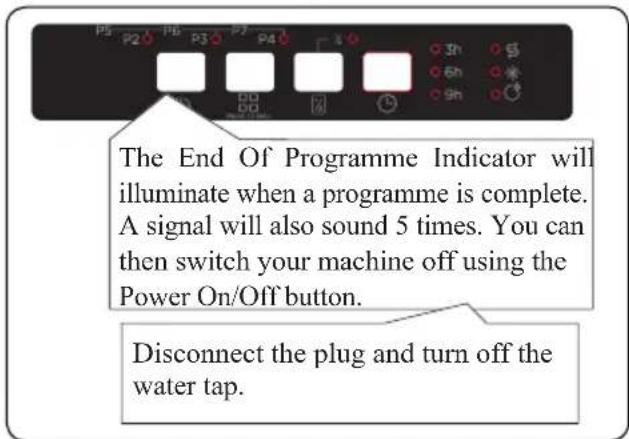

Switching the Machine Off

CAUTION

Do not open the door before the programme is complete.

CAUTION

If the door of the machine is opened or the power is cut off while a programme is in operation, the programme will continue when the door is closed or the power returns.

CAUTION

If the power is cut or the machine door is opened during the drying process, the programme will terminate. Your machine will now be ready for a new programme selection.

Buzzer Sound Control

To change the buzzer sound level, follow the below steps:

1. Open the door and press Programme (2) and Half Load (3) buttons simultaneously for 3 seconds.
2. When sound setting is recognized, buzzer gives a long sound and machine will display last set level, from "S0" to "S3".
3. To decrease sound level press Programme (2) button. To increase sound level, press Half Load (3) button.
4. When voice level is changed, corresponding leds shown below table illuminate.

Voice Levels	Leds
	1/2 3h 6h 9h
S0 X
S1 XX
S2		XXX
S3 XXXX

1. To save the selected sound level, turn off the machine.

“S0” level means all voices are off. Factory setting is “S3.”

Save Power Mode

To activate or deactivate save power mode, follow the below steps:

1. Open the door and press Half Load (3) and Delay (4) buttons simultaneously for 3 seconds.
2. After 3 seconds, the machine will display last setting.
3. When Save Power Mode is activated, P1, P2, 1/2 leds illuminate. On this mode, interior lights will turn off 4 minutes after the door is opened, and the machine will turn off after 15 minutes of no activity in order to save energy.
4. When Save Power Mode is deactivated P1, P2 leds illuminate. If Save Power Mode is deactive, interior lights will be on as long as the door is open, and the machine will always be on unless it is turned off by user.
5. To save the selected setting, turn off the machine.

In factory setting, Save Power Mode is active.

Infoled 2.1 (Model Dependent)

LED Indicator State of the Machine
Red, continuous The machine is running a program
Red, flashing A program is cancelled
Red, flashing rapidly	The machine has a fault. Refer to section „Automatic fault warnings and what to do”.
Green, continuous A program is finished.

CHAPTER 8. CLEANING AND MAINTENANCE

Cleaning your dishwasher is important to maintain the machine's service life. Make sure that the water softening setting (If available) is done correctly and correct amount of detergent is used to prevent limescale accumulation. Refill the salt compartment when the salt sensor light comes on. Oil and limescale may build up in your Dishwasher over time. If this occurs:

• Fill the detergent compartment but do not load any dishes. Select a programme which runs at high temperature and run the Dishwasher empty. If this does not clean your Dishwasher sufficiently, use a cleaning agent designed for use with dishwashers.
  • To extend the life of your dishwasher, clean the appliance regularly on each month
• Wipe the door seals regularly with a damp cloth to remove any accumulated residue or foreign objects.

FILTERS

Clean the filters and spray arms at least once a week. If any food waste remains or foreign objects on the coarse and fine filters, remove them and clean them thoroughly with water.

a) Micro Filter
b) Coarse Filter
c) Metal Filter

Diagram of a mechanical assembly with a central component and a circular base, no visible text or symbols

Technical line drawing of a mechanical component with a central hub and base plate (no text or symbols)

To remove and clean the filter combination, turn it counter clockwise and remove it by lifting it upwards (1). Pull the coarse filter out of the micro filter (2). Then pull and remove the metal filter (3). Rinse the filter with lots of water until it is free of residue. Reassemble the filters. Replace the filter insert, and rotate it clockwise (4).

• Never use your dishwasher without a filter.
• Incorrect fitting of the filter will reduce the washing effectiveness.
• Clean filters are necessary for proper running of the machine.

SPRAY ARMS

Make sure that the spray holes are not clogged and that no food waste or foreign object is stuck to the spray arms. If there is any clogging, remove the spray arms and clean them under water. To remove the upper spray arm undo the nut holding it in position by turning it clockwise and pulling it downwards. Make sure that the nut is properly tightened when refitting the upper spray arm.

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

DRAIN PUMP

Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter.

WARNING

Warning Risk of cuts! When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements.

In this case:

1. First always disconnect the appliance from the power supply.
2. Take out baskets.
3. Remove the filters.
4. Scoop out water, use a sponge if required.
5. Check the area and remove any foreign objects.
6. Install filters.
7. Re-insert baskets.

CHAPTER 9. TROUBLESHOOTING

FAULT POSSIBLE	CAUSE TROUBLESHOOTING
The programme does not start	Your Dishwasher is not plugged in	Plug your Dishwasher in
	Your Dishwasher is not switched on	Switch your Dishwasher on by pressing the On/Off button
	Fuse blown Check your indoor fuses
	Water inlet tap is closed Turn	on the water inlet tap
	Your Dishwasher door is open Close the Dishwasher door
	Water inlet hose and machine filters are clogged	Check the water inlet hose and machine filters and make sure they are not clogged
Water remains inside the machine	Water drain hose is clogged or twisted	Check the drain hose, then either clean or untwist it
	The filters are clogged Clean the filters
	The programme is not finished yet	Wait until the programme is finished
Machine stops during washing	Power failure Check mains power
	Water inlet failure Check water tap
Shaking and hitting noises are heard during a wash operation	The spray arm is hitting the dishes in the lower basket	Move or remove items blocking the spray arm
Partial food wastes remain on the dishes	Dishes placed incorrectly, sprayed water not reaching affected dishes	Do not overload baskets
	Dishes leaning each another	Place dishes as instructed in the section on loading your dishwasher
	Not enough detergent used	Use the correct amount of detergent, as instructed in the programme table
	Wrong wash programme selected	Use the information in the programme table to select the most appropriate programme
	Spray arms clogged with food waste	Clean the holes in the spray arms with thin objects
	Filters or water drain pump clogged or filter misplaced	Check the drain hose and filters are correctly fitted
Whitish stains remains on dishes	Not enough detergent used	Use the correct amount of detergent, as instructed in the programme table
	Rinse aid dosage and/or water softener setting set too low	Increase rinse aid and/or water softener level
	High water hardness level	Increase water softerner level and add salt
	Salt compartment cap not closed properly	Check that the salt compartment cap is closed properly
Dishes do not dry	Drying option is not selected	Select a programme with a drying option
	Rinse aid dosage set too low Increase rinse aid dosage setting
Rust stains form on the dishes	Stainless-steel quality of the dishes is insufficient	Use only dishwasher-proof sets
	High level of salt in wash water	Adjust the water hardness level using water hardness table
	Salt compartment cap not closed properly	Check that the salt compartment cap is closed properly
	Too much salt spilled in the Dishwasher while filling it with salt	Use funnel while filling salt to the compartment to avoid spillage
	A poor mains grounding	Consult a qualified electrician immediately
Detergent remains in the detergent compartment	Detergent was added when the detergent compartment was wet	Make sure detergent compartment is dry before use

AUTOMATIC FAULT WARNINGS AND WHAT TO DO

TROUBLE CODE					POSSIBLE FAULT	WHAT TO DO
P1 P2	1/2 3h 6h
					Water inlet system failure	Make sure the water inlet tap is open and water is flowing
						Separate the inlet hose from the tap and clean the filter of the hose
						Contact for service if the error continues
					Pressure system failure	Contact for service
					Continuous water input	Close the tap and contact for service
					Inability to discharge water	Water discharge hose and filters may be clogged
						Cancel the programme
						If the error continues, contact for service
						Contact for service
					Faulty heater	Contact for service
					Overflow	Unplug the machine and close the tap
						Contact for service
					Faulty electronic card	Contact for service
					Overheating	Contact for service
					Faulty heater sensor	Contact for service
					Hihg voltage failure	Contact for service
					Low voltage failure	Contact for service

The installation and repairing procedures should always carried out by the Authorised Service Agent in order to avoid possible risks. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons. Repairs may be carried out by technicians only. If a component has to be replaced, ensure that only original spare parts are used. Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk. Contact information for your customer service can be found on the back of this document. Function-relevant genuine spare parts according to the corresponding Ecodesign order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.

CHAPTER 10. DISPOSAL OF USED EQUIPMENT

This device has been designed and manufactured of high-quality reusable materials and components.

The symbol of the crossed waste container placed on the product (Fig. A) means that the product is subject to selective collection in accordance with the provisions of Directive 2012/19/EU of the European Parliament and of the Council. a crossed-out wheelie bin symbol (Fig. B) placed on the product means that the product contains batteries that are subject to separate collection in accordance with the provisions of Directive 2006/66/EC of the European Parliament and of the Council. Such marking informs that electrical and electronic equipment and batteries (if any) must not be disposed of with other household waste after the period of use.

The user is obliged to return waste equipment and batteries (if any) to collection points for waste electrical and electronic equipment and batteries (if any). Collectors of such waste, including waste equipment collectors, treatment plants, distributors (shops), municipal waste separate collection points (municipal units), and other entities specified by law form an appropriate system to return this kind of equipment.

Correct disposal of waste equipment and batteries (if any) allows avoiding consequences that may be harmful to health and the environment, caused by the possible presence of hazardous components in the equipment and batteries, and inappropriate storage and processing of such equipment and batteries. Households play an important role in contributing to the reuse and recovery, including recycling, of waste equipment. At this stage, attitudes are formed, affecting the common good, which is a clean natural environment.

Moreover, households are one of the largest users of small equipment and the rational management thereof at this stage affects the recovery of secondary raw materials. Penalties may be imposed in accordance with national legislation for improper disposal of this product. If the device has a lock, please remove it for the safety of all persons who may later come into contact with the device. Some refrigerators and freezers contain insulation material and CFC refrigerant. Therefore, be careful not to pollute the environment when you dispose of your old refrigerator.

Fig. A

Fig. B

KERNAU

NÁVOD K POUŽITÍ

MYČKA

KDI 4443 I

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating rotation (no text or symbols)

VAROVÁNÍ

Diagram of a faucet with a valve and base component, no text or symbols present

NEBEZPEČÍ ZASAŽENÍ ELEKTRICKÝM PROUDEM

Close-up of a mechanical component with two circular components and a numbered arrow pointing to the number 12 (no text or symbols on the main subject)

OBECNÝ VZHLED

POUŽITÍ KOMBINOVANÝCH MYCÍCH PROSTŘEDKŮ

Illustration of a hand using a tool to press or install a device into a rectangular panel (no text or symbols visible)

Line drawing of a hand inserting a key into a device (no text or symbols)

Technical illustration of a mechanical assembly with a hand holding a fastener (no text or symbols present)

Diagram of an aircraft wing with two wheels and a central mechanical component, showing directional arrows (no text or symbols)

Rošt na nádobí

Two technical diagrams showing a lid and internal fan structure, no text or symbols present.

3D rendering of two black cooking pots with lid, placed on a grid background (no text or symbols visible)

Two 3D-rendered product boxes with circular components and grid grids, no visible text or symbols

Nesprávné plnění

Technical illustration of a 3D printing machine with internal components and crosshair indicators (no text or symbols)

DŮLEŽITÁ POZNÁMKA PRO ZKUŠEBNÍ LABORATOŘE

Diagram of a mechanical component with a central hub and internal structure, no visible text or symbols

Technical line drawing of a mechanical component with a central hub and base plate (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

VYPOUŠTĚCÍ ČERPADLO

Illustration of a hand holding a faucet with a valve, showing a right-hand rule for valve adjustment (no text or symbols present)

УВАГА

Diagram of a pipe valve with a valve and base, showing internal components (no text or labels)

Close-up of a mechanical component with a labeled part '12' pointing to a circular component (no text or symbols beyond the number)

ЗАГАЛЬНИЙ ВИГЛЯД

Illustration of a hand pressing down on a blue surface with a black arrow indicating the step (no text or symbols present)

Illustration of a hand using a tool to press or install a device into a rectangular box (no text or symbols visible)

Line drawing of a hand inserting a lock into a device (no text or symbols)

Illustration of a hand holding a tool interacting with a wire fence structure (no text or symbols visible)

Diagram of an aircraft wing structure with two wheels and a central propeller, showing directional arrows (no text or symbols)

Стелаж для посуду

Two-panel illustration showing a kitchen appliance with lid and fan, and a close-up of internal components (no text or symbols)

Верхній кошик

3D rendering of two dark round objects with lids placed on a grid background, no text or symbols visible

Two 3D-rendered product grid setups with white and gray spherical objects, no visible text or symbols

Technical illustration of a mechanical assembly with cross-sectional views and no visible text or symbols

Diagram of a mechanical component with a central hub and internal structure, no visible text or symbols

Technical line drawing of a mechanical component with a central hub and base plate (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)
