POB 759 B - Oven Philco - Free user manual and instructions

Product Type	Built-in Electric Oven
Brand	Philco
Model	POB 759 B
Dimensions (H x W x D)	595 x 595 x 575 mm (approx.)
Weight	31.9 kg
Energy Efficiency Class	A
Energy Consumption (Conventional)	0.93 kWh/cycle
Energy Consumption (Fan Forced)	0.83 kWh/cycle
Oven Volume	78 L
Power Supply	220-240 V, 50/60 Hz
Control Type	Digital Touch Timer + Knobs
Oven Functions	Oven Lamp, Defrost, Turbo, Static Cooking, Fan, Pizza, Grilling, Faster Grilling, Double Grill & Fan, VapClean
Temperature Range	Up to 250°C (approx.)
Safety Features	Child Lock, Soft-Close Door, Cool-Touch Handle
Cleaning Features	VapClean, Removable Inner Glass, Removable Wire Shelves
Accessories Included	EasyFix Wire Rack, Deep Tray (8 cm), Wire Grid, Telescopic Rails (Half & Full)
Oven Lamp	E14, 230 V, 15-25 W, 300°C resistant
Repairability	Authorized service only; original spare parts available for 7-10 years

Frequently Asked Questions - POB 759 B Philco

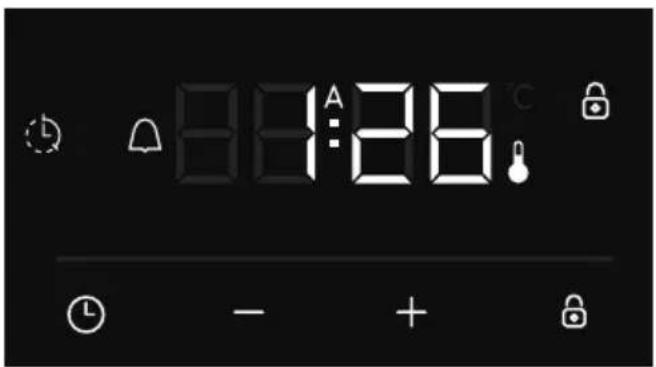

How do I set the correct time on the oven?

After connecting to power, the symbol 'A' and '0:00' will flash. Press the '+' and '-' keys simultaneously until the dot in the middle flashes. Then use '+' and '-' to adjust the time. The dot will stop flashing after a few seconds.

What is the VapClean function and how do I use it?

VapClean helps loosen dirt for easier cleaning. Set the oven function to one that includes the VapClean symbol (e.g., Bottom, Bottom+Fan, Turbo) at 90°C. Pour 200-250 ml of water into the tray or cavity at the oven base, then start. The cycle takes 30-60 minutes.

How do I activate the child lock?

Press and hold the key lock button (key icon) for 2 seconds. The child lock symbol will appear and remain illuminated. To unlock, press and hold the same button again for 2 seconds.

Why is my oven not heating up?

Check that the power is on and the thermostat knob is set correctly. Ensure the oven door is fully closed. If the problem persists, the heating element may need replacement; contact an authorized technician.

Can I use aluminium foil in the oven?

No. Aluminium foil should never be placed on the oven base or lining the oven, as it can cause overheating and damage. Use only recommended baking trays and racks.

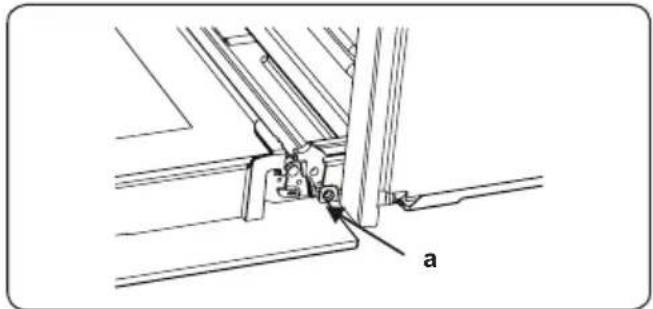

How do I remove the oven door for cleaning?

Open the door fully. Use a screwdriver to open the locking catch on each hinge to the end position. Then close the door almost fully and lift it off the hinges. Follow the reverse steps to reattach.

How do I replace the oven lamp?

Switch off the appliance and let it cool. Remove the glass lens covering the bulb. Unscrew the old bulb (E14, 230V, 15-25W, 300°C resistant) and replace with a new one. Reattach the lens. Note: The end user cannot replace it; after-sales service is recommended.

What does the Turbo function do?

The Turbo function activates the ring heating element and fan to circulate hot air evenly. It is ideal for cooking multiple dishes at once. Preheat for about 10 minutes for best results.

How do I use the semi-automatic timer?

Select the cooking function and temperature. Press the 'Mode' button until 'dur' appears on the display. Use '+' and '-' to set the desired cooking time (0-10 hours). The oven will turn off automatically when the time ends.

Why is there condensation on the oven door glass?

Condensation is normal during cooking. Open the oven door to the grilling position for 20 seconds to allow water to drip into the water collector. Wipe the inside of the door with a dry cloth regularly.

USER MANUAL POB 759 B Philco

Famous for Quality the World Over

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Warning; Risk of fire / flammable materials
	CAUTION Injury or property damage risk
	IMPORTANT / NOTE Operating the system correctly

Dear customer,

Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user's manual.

CONTENTS

1. SAFETY INSTRUCTIONS......2

1.1 General Safety Warnings....2
1.2 Installation Warnings....4
1.3 During Use 5
1.4 During Cleaning and Maintenance 6

2. INSTALLATION AND PREPARATION FOR USE 8

2.1 Instructions for the Installer 8
2.2 Installation of the Oven 8
2.3 Electrical Connection and Safety....10

3. PRODUCT FEATURES ....11

4. USE OF PRODUCT....12

4.1 Oven Functions....12
4.2 Cooking Table....14
4.3 Use of the Digital Touch Timer....15
4.4 Accessories 17

5. CLEANING AND MAINTENANCE....24

5.1 Cleaning....24
5.2 Maintenance....27

6. TROUBLESHOOTING & TRANSPORT ......28

6.1 Troubleshooting 28
6.2 Transport 28

7: PRODUCT INFORMATION SHEET ......29

1. SAFETY INSTRUCTIONS

• Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary.
• This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. For this reason, it is important to pay particular attention to any figures whilst reading the operating manual.

1.1 General Safety Warnings

• This appliance is intended for use by children 8 years of age and older and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, provided they have been given supervision or instruction concerning use of the appliance in a safe manner and understand the potential hazards.
  • Children must not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are 8 years old and under supervision.
• If the supply cord is damaged, have it replaced by a qualified service center in order to avoid a hazard. It is forbidden to use the appliance with a damaged power cord.
  • Children under the age of 8 must be kept out of the reach and sight of the appliance.
• Do not operate the appliance with an external timer or separate remote-control system.

• During use the appliance will get hot. Care should be taken to avoid touching heating elements inside the oven.

• Do not use harsh abrasive cleaners or scourers to clean the oven door glass and other surface. They can scratch the surfaces which may result in shattering of the door glass or damage to surfaces.

• Do not use steam cleaners for cleaning the appliance.

⚠ WARNING: To avoid the possibility of electric shock, make sure that the appliance is switched off before replacing the lamp.

• Your appliance is produced in accordance with all applicable local and international standards and regulations.
• Maintenance and repair work should only be carried out by authorised service technicians. Installation and repair work that is carried out by unauthorised technicians may be dangerous. Do not alter or modify the specifications of the appliance in any way. Inappropriate hob guards can cause accidents.
• Before connecting your appliance, make sure that the local distribution conditions (nature of the gas and gas pressure or electricity voltage and frequency) and the specifications of the appliance are compatible. The specifications for this appliance are stated on the label.

⚠️ CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic household use only. It should not be used for any other purpose or in any other application, such as for non-domestic use, in a commercial environment or for heating a room.

• Do not use the oven door handles to lift or move the appliance.
• All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories.
• Make sure that the supply cord is not trapped or damaged during installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.
• Do not let children climb on the oven door or sit on it while it is open.

1.2 Installation Warnings

• Do not operate the appliance before it is fully installed.
• The appliance must be installed by an authorised technician. The manufacturer is not responsible for any damage that might be caused by defective placement and installation by unauthorised people.
• When the appliance is unpacked, make sure that it is has not been damaged during transportation. In case of any defect do not use the appliance and contact a qualified service agent immediately.
• Protect your appliance from the atmosphere. Do not expose it to effects such as sun, rain, snow, dust or excessive humidity.
• Any materials (i.e. cabinets) around the appliance must be able to withstand a minimum temperature of 100°C.
• The appliance must not be installed behind a decorative door, in order to avoid overheating.

1.3 During Use

• When you first use your oven you may notice a slight smell. This is perfectly normal and is caused by the insulation materials on the heater elements. We suggest that, before using your oven for the first time, you leave it empty and set it at maximum temperature for 45 minutes. Make sure that the environment in which the product is installed is well ventilated.
  • Take care when opening the oven door during or after cooking. The hot steam from the oven may cause burns.
• Do not put flammable or combustible materials in or near the appliance when it is operating.
  • Always use oven gloves to remove and replace food in the oven.
  • Under no circumstances should the oven be lined with aluminium foil as overheating may occur.
• Do not place dishes or baking trays directly onto the base of the oven whilst cooking. The base becomes very hot and damage may be caused to the product.

Do not leave the oven unattended while cooking with solid or liquid oils. They may catch fire under extreme heating conditions. Never pour water on to flames that are caused by oil, instead switch the oven off and cover the pan with its lid or a fire blanket.

• If the product will not be used for a long period of time, turn the main control switch off.
• Make sure the appliance control knobs are always in the "0" (stop) position when it is not in use.
• Do not place anything on the oven door when it is open. This could damage the oven door.
• Do not hang towels, dishcloths or clothes from the appliance or its handles.

1.4 During Cleaning and Maintenance

• Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance operations.
- Do not remove the control knobs to clean the control panel.
- To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call our authorised service agents in case of need.

CE Declaration of conformity

CE We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

This appliance has been designed to be used only for home cooking. Any other use (such as heating a room) is improper and dangerous.

The operating instructions apply to several models. You may notice differences between these instructions and your model.

Disposal of your old machine

This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the retailer who you purchased this product from.

2. INSTALLATION AND PREPARATION FOR USE

WARNING: This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this guide and in compliance with the current local regulations.

• Incorrect installation may cause harm and damage, for which the manufacturer accepts no responsibility and the warranty will not be valid.
• Prior to installation, ensure that the local distribution conditions (electricity voltage and frequency) and the adjustments of the appliance are compatible. The adjustment conditions for this appliance are stated on the label.
• The laws, ordinances, directives and standards in force in the country of use are to be followed (sa regulations, proper recycling in accordance with the regulations, etc.).
• If the product contains removable shelf guides (wire racks) and the user manual inc yoghurt, the wire racks shall be removed and the oven operated in the defined cooking mode. Removal of the Wire Shelf information is included in the CLEANING AND MAINTENANCE section.

2.1 Instructions for the Installer

General instructions

• After removing the packaging material from the appliance and its accessories, ensure that the appliance is not damaged. If you suspect any damage, do not use it and contact an authorised service person or qualified technician immediately.
• Make sure that there are no flammable or combustible materials in the close vicinity, such as curtains, oil, cloth etc. which may catch fire.
• The worktop and furniture surrounding the appliance must be made of materials resistant to temperatures above 100°C.
• The appliance should not be installed directly above a dishwasher, fridge, freezer, washing machine clothes dryer.

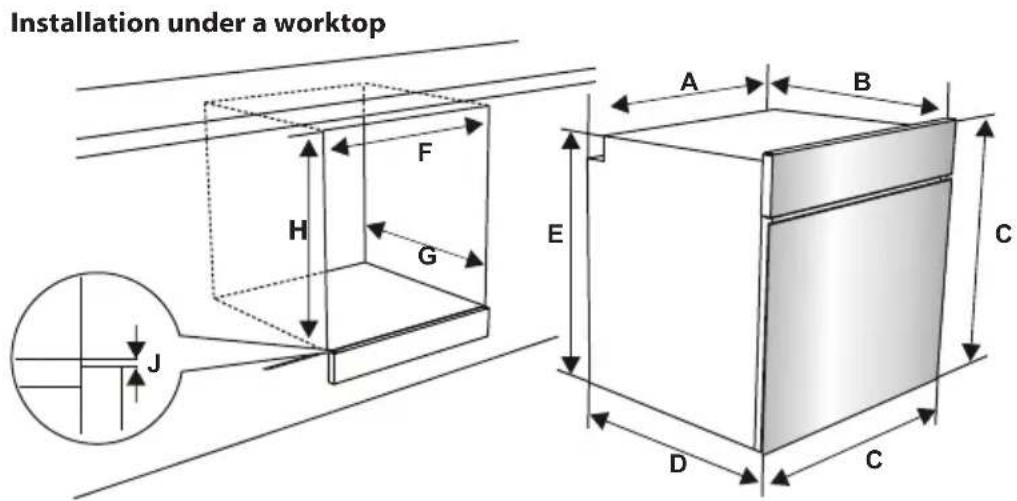

2.2 Installation of the Oven

The appliances are supplied with installation kits and can be installed in a worktop with the appropriate dimensions. The dimensions for hob and oven installation are given below.

A (mm) 557 min./max. F (mm) 560/580
B (mm) 550 min. G (mm) 555
C (mm) 595 min. H/I (mm) 600/590
D (mm) 575 min. J/K (mm) 5/10
E (mm) 576

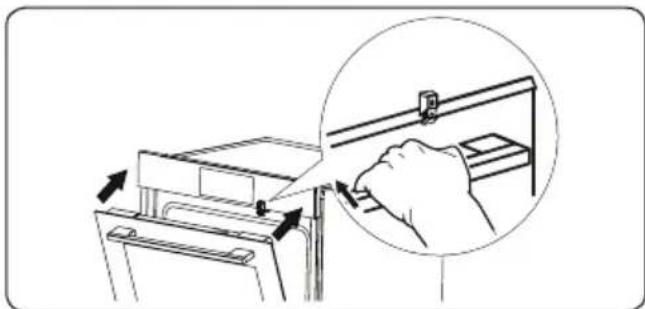

After making the electrical connections, insert the oven into the cabinet by pushing it forward. Open the oven door and insert 2 screws in the holes located on the oven frame. While the product frame touches the wooden surface of the cabinet, tighten the screws.

Technical line drawing of a mechanical device with no visible text or symbols

2.3 Electrical Connection and Safety

WARNING: The electrical connection of this appliance should be carried out by an authorised service person or qualified electrician, according to the instructions in this guide and in compliance with the current local regulations.

WARNING: THE APPLIANCE MUST BE EARTHED.

• Before connecting the appliance to the power supply, the voltage rating of the appliance (stamped on the appliance identification plate) must be checked for correspondence to the available mains supply voltage, and the mains electric wiring should be capable of handling the appliance's power rating (also indicated on the identification plate).
• During installation, please ensure that isolated cables are used. An incorrect connection could damage your appliance. If the mains cable is damaged and needs to be replaced this should be done by a qualified personnel.
• Do not use adaptors, multiple sockets and/or extension leads.
• The supply cord should be kept away from hot parts of the appliance and must not be bent or compressed. Otherwise the cord may be damaged, causing a short circuit.
• If the appliance is not connected to the mains with a plug, a all-pole disconnector (with at least 3 mm contact spacing) must be used in order to meet the safety regulations.
• The appliance is designed for a power supply of 220 - 240 V If your supply is different, contact the authorised service person or a qualified electrician.
• The power cable (H05VV-F) must be long enough to be connected to the appliance, even if the appliance stands on the front of its cabinet.
• Ensure all connections are adequately tightened.
  • Fix the supply cable in the cable clamp and then close the cover.
  • The terminal box connection is placed on the terminal box.

3. PRODUCT FEATURES

Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below.

List of Components

1. Control Panel
2. Oven Door Handle
3. Oven Door

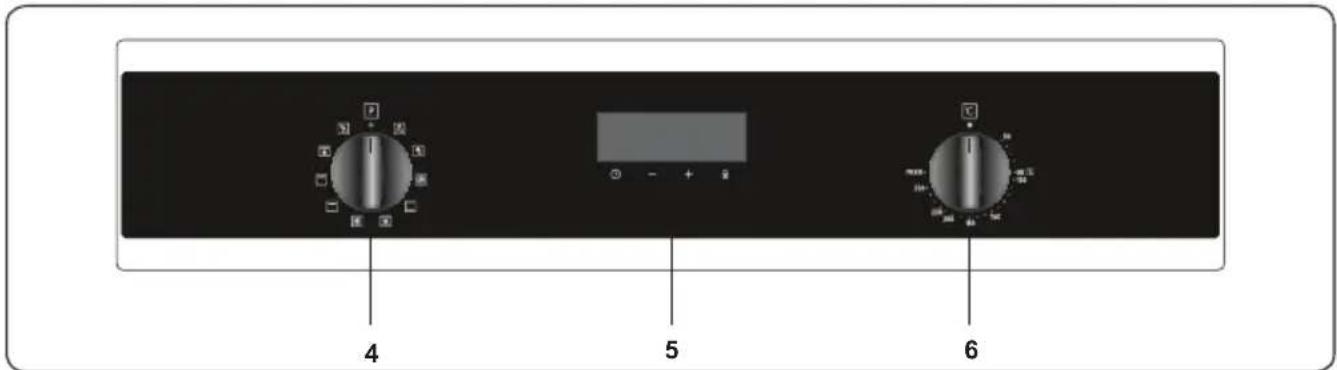

Control Panel

1. Oven Function Control Knob
2. Timer
3. Oven Thermostat Knob

4. USE OF PRODUCT

4.1 Oven Functions

* The functions of your oven may differ depending on the product model.

Simple dark gray square with a small sun icon in the top-right corner (no text or symbols)

Oven Lamp:

Only the oven light will switch on. It will remain on for the duration of the cooking function.

Simple white line drawing of a propeller inside a dark square frame (no text or symbols)

Defrost Function:

The oven's warning lights will switch on and the fan will start to operate. To use the defrost function, place your frozen food in the oven on a shelf in the third slot from the bottom. It is recommended that you place an oven tray under the defrosting food to catch the water accumulated due to melting ice. This function will not cook or bake your food, it will only help to defrost it.

Abstract geometric symbol with a three-blade fan inside a circle, set against a dark square background (no text or symbols)

Turbo Function:

The oven's thermostat and warning lights will switch on, and the ring heating element and fan will start operating. The turbo function evenly disperses the heat in the oven so all food on all racks will cook evenly. It is recommended that you preheat the oven for about 10 minutes.

Simple dark square with two horizontal white lines on top and bottom (no text or symbols)

Static Cooking Function:

The oven's thermostat and warning lights will switch on, and the lower and upper heating elements will start operating. The static cooking function emits heat, ensuring even cooking of food. This is ideal for making pastries, cakes, baked pasta, lasagne and pizza. Preheating the oven for 10 minutes is recommended and it is best to use only one shelf at a time in this function.

Abstract geometric symbol with a four-blade propeller inside a dark square frame (no text or symbols)

Fan Function:

The oven's thermostat and warning lights will switch on, and the upper and lower heating elements and fan will start operating. This function is good for baking pastry. Cooking is carried out by the lower and upper heating elements within the oven and by the fan, which provides air circulation, giving a slightly grilled effect to the food. It is recommended that you preheat the oven for about 10 minutes.

Pure electrical circuit symbol for a three-blade propeller (no text or labels)

Pizza Function:

The oven's thermostat and warning lights will switch on, and the ring, lower heating elements and fan will start operating. This function is ideal for baking food, such as pizza, evenly in a short time. While the fan evenly disperses the heat of the oven, the lower heating element ensures baking of the food.

Simple 3D wireframe cube with a wavy top line inside, no text or symbols present.

Grilling Function:

The oven's thermostat and warning lights will switch on, and the grill heating element will start operating. This function is used for grilling and toasting foods on the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

WARNING: When grilling, the oven door must be closed and the oven temperature should be adjusted to 190^ C.

Simple 3D-rendered cube with a wavy white line above it, no text or symbols present.

Faster Grilling Function:

The oven's thermostat and warning lights will switch on, and the grill and upper heating elements will start operating. This function is used for faster grilling and for grilling food with a larger surface area, such as meat. Use the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

WARNING: When grilling, the oven door must be closed and the oven temperature should be adjusted to 190^ C.

Simple icon of a propeller inside a container with wavy lines above (no text or symbols)

Double Grill and Fan Function:

The oven's thermostat and warning lights will switch on, and the grill, upper heating elements and fan will start operating. This function is used for faster grilling of thicker food and for grilling of food with a larger surface area. Both elements and grill will be energised along with the fan to ensure even cooking. Use the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch

any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

WARNING: When grilling, the oven door must be closed and the oven temperature should be adjusted to 190^ C.

VapClean:

Set your oven function to the function that includes the vap clean symbol (Bottom, Bottom+Fan,Turbo Top+Bottom Function. It may differentiate among models.) at 90 °C to operate Vap Clean function. Pour 200-250 ml of water into the tray. In some models there is a cavity which is stated on the oven base. In this models pour 200 - 250 ml of water into this cavity. Start the oven and Vapclean will take approximately 30-60 minutes to prepare your oven for easy cleaning.

4.2 Cooking Table

Function	Dishes
Static	Puff Pastry 2 - 3 - 4 170-190 35-45
	Cake 2 - 3 - 4 170-190 30-40
	Cookie 2 - 3 - 4 170-190 30-40
	Stew 2 175-200 40-50
	Chicken 2 - 3 - 4 200 45-60
Fan	Puff Pastry 2 - 3 - 4 170-190 25-35
	Cake 2 - 3 - 4 150-170 25-35
	Cookie 2 - 3 - 4 150-170 25-35
	Stew 2 175-200 40-50
	Chicken 2 - 3 - 4 200 45-60
Turbo	Puff Pastry 2 - 3 - 4 170-190 35-45
	Cake 2 - 3 - 4 150-170 30-40
	Cookie 2 - 3 - 4 150-170 25-35
	Stew 2 175-200 40-50
Grilling	Grilled meatballs 7 200 10-15
	Chicken * 190 50-60
	Chop 6 - 7 200 15-25
	Beefsteak	6 - 7 200 15-25

* If available cook with roast chicken skewer.

4.3 Use of the Digital Touch Timer

Function Description
A	Auto Cooking
	Thermostat Symbol
	Cooking Time
	Key Lock
	Minute Minder
	Mode Function
—	Decrease Timer
+	Increase Timer
2359	Timer Display

Time adjustment

The time must be set before you start using the oven. Following the power connection, the symbol "A" and "0:00" will flash on the display.

1. Press the „+“ and „-“. keys simultaneously. The dot in the middle of the screen will start to flash.

2. Adjust the time while the dot is flashing using the „+“ and „-“ keys.

1. After a few seconds, the dot will stop flashing and will remain illuminated.

Key Lock To activate the key lock, press the „key for 2 seconds.“ symbol will appear and remain illuminated. To unlock the timer buttons, press and hold the „key for 2 seconds. The desired operation can then be carried out.

Audible warning time adjustment

The audible warning time can be set to any time between „0:00“ and „23:59“ hours. The audible warning time is for warning purposes only. The oven will not be activated with this function.

1. Press„ ^4 ”. The symbol ^5 will begin to flash and „0:00“ will be displayed.

1. Select the desired time period using the „+“ and „-“ keys while 🔒 is flashing.

1. The symbol ⏱ will remain illuminated, the time will be saved and the warning will be set.

When the timer reaches zero, an audible warning will sound and the symbol „☐”. will flash on the display. Press any key to stop the audible warning and the Symbol will disappear.

Semi-automatic time adjustment (cooking period)

This function helps you to cook for a fixed period of time. A time range between 0 and 10 hours can be set. Prepare the food for cooking and put it in the oven.

1. Select the desired cooking function and the temperature using the control knobs.

1. Press, "until you see dur" and symbol on the display screen. The time and the symbols, and will flash.

1. Select the desired cooking time period using the „+“ and „-“ keys.

1. The current time will reappear on the screen, and the symbols „A“ and Ⓓ will remain illuminated.

When the timer reaches zero, the oven will switch off and an audible warning will sound. The symbols "A" and "D". will flash. Turn both control knobs to the "0" position and press any key on the timer to stop the warning sound. The symbol will disappear and press "D" button the timer will switch back to manual function.

Sound Adjustment

To adjust the volume of the audible warning sound, while the current time of day is displayed, press and hold the "button for 3 seconds until an audible signal sounds."ton1" will appear on the display screen.

After this, each time the „-” button is pressed, a different signal will sound. There are four different types of signal sounds. If “OFF” is selected, all sounds will be turned off except alarm and error sounds. Select the desired sound and do not press any other buttons. After a short time, the selected sound will be saved.

Brightness adjustment

To adjust the display screen brightness, press and hold the "+" button for 3 seconds. "br1" will appear on the display screen. After this, each time the "+" button is pressed, a different brightness will appear.

The Thermostat symbol

The thermostat symbol (Automatically activates during oven thermostat is running.

4.4 Accessories

The EasyFix Wire Rack

Clean the accessories thoroughly with warm water, detergent and a soft clean cloth on first use.

• Insert the accessory to the correct position inside the oven.
• Allow at least a 1 cm space between the fan cover and accessories.
  • Take care removing cookware and/or accessories out of the oven. Hot meals or accessories can cause burns.
  • The accessories may deform with heat.
  Once they have cooled down, they will recover their original appearance and performance.
• Trays and wire grids can be positioned on any level from of 1 to 7.
  • Telescopic rail can be positioned on levels T1, T2, 3, 4, 5, 6, 7.
  • Level 3 is recommended for single level cooking.
  • Level T2 is recommended for single level cooking with the telescopic rails.
  • Level 2 and Level 4 are recommended for double level cooking.
  • The turnspit wire grid must be positioned on Level 3.
  • Level T2 is used for turnspit wire grid positioning with the telescopic rails.

****Accessories may vary depending on the model purchased.

The 8 cm-deep Tray

The 8 centimetre-deep tray is best used for cooking stews.

Put the tray into any rack and push it to the end to make sure it is correctly placed. For the most efficient use, place the tray on the third shelf.

WARNING: The 8 cm-deep tray should not be used on the first (lowest) shelf. It is not recommended to simultaneously cook food using two 8 cm-deep trays.

Line drawing of a square container with side supports (no text or symbols)

The Wire Rack with Easyfix Half Telescopic Rail

The half telescopic rail extends half-way out, to allow easy access to your food.

Technical line drawing of a mechanical support structure with no visible text or symbols

Telescopic rails

Clean the accessories thoroughly with warm water, detergent and a soft clean cloth on first use.

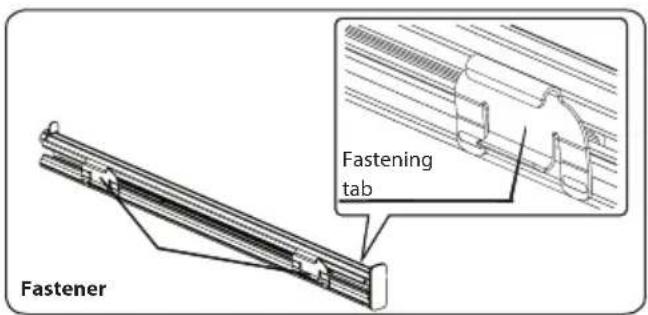

• On each telescopic rail there are fasteners that allow you to remove them for cleaning and repositioning.
- Remove the side runner. See section "Removal of the wire shelf".

Technical line drawing of a mechanical assembly with a side view showing a rotating component (no text or symbols present)

• Hang the telescopic rail top fasteners on the side rack level reference wire and simultaneously press the bottom fasteners until you clearly hear the fasteners clip into the side rack level fixing wire.
  • In order to remove, hold the front surface of the rail and repeat the previous instructions in reverse.

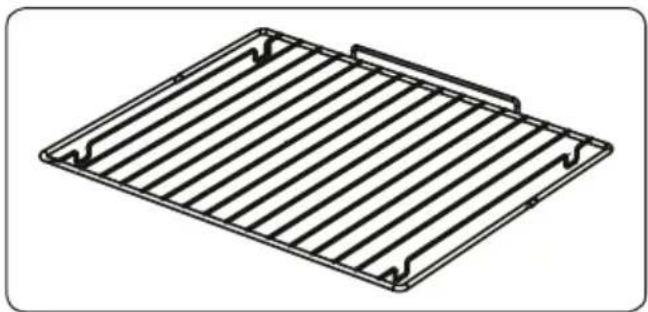

The Wire Grid

The wire grid is best used for grilling or for processing food in oven-friendly containers.

Technical line drawing of a metal grate plate with slats and mounting brackets (no text or symbols)

WARNING: Place the grid to any corresponding rack in the oven cavity correctly and push it to the end.

Technical line drawing of a metal grate with a curved panel and directional arrow (no text or symbols)

Soft-Close Oven Door

The oven door closes slowly by itself when it is released just before the closed position.

Line drawing of a refrigerator interior with a door and drawer, showing a handle and scroll (no text or symbols)

The Water Collector

In some cases of cooking, condensation may appear on the inner glass of the oven door. This is not a product malfunction.

Open the oven door into the grilling position and leave it in this position for 20 seconds.

Water will drip to the collector.

Cool the oven and wipe the inside of the door with a dry towel. This procedure must be applied regularly.

Technical line drawing of a mechanical component with internal channels and a downward arrow indicating direction (no text or symbols)

5. CLEANING AND MAINTENANCE

5.1 Cleaning

WARNING: Switch off the appliance and allow it to cool before cleaning is to be carried out.

General Instructions

• Check whether the cleaning materials are appropriate and recommended by the manufacturer before use on your appliance.
• Use cream cleaners or liquid cleaners which do not contain particles. Do not use caustic (corrosive) creams, abrasive cleaning powders, rough wire wool or hard tools as they may damage the cooker surfaces.

Do not use cleaners that contain particles as they may scratch the glass, enamelled and/or painted parts of your appliance.

- Should any liquids overflow, clean them immediately to avoid parts becoming damaged.

Do not use steam cleaners for cleaning any part of the appliance.

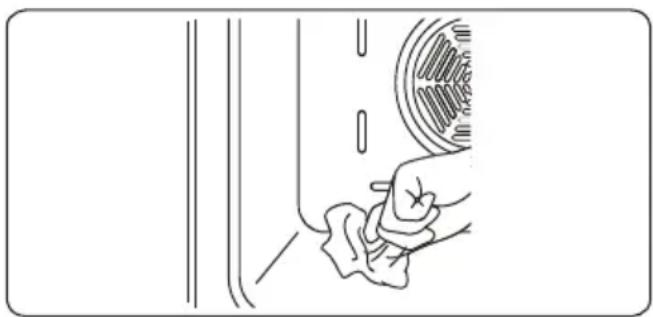

Cleaning the Inside of the Oven

• The inside of enamelled ovens are best cleaned while the oven is warm.
- Wipe the oven with a soft cloth soaked in soapy water after each use. Then, wipe the oven over again with a wet cloth and dry it.
• You may need to use a liquid cleaning material occasionally to completely clean the oven.

Line drawing of a hand cleaning a car window with a circular object on the wall (no text or symbols)

Cleaning the Glass Parts

• Clean the glass parts of your appliance on a regular basis.
• Use a glass cleaner to clean the inside and outside of the glass parts. Then, rinse and dry them thoroughly with a dry cloth.

Cleaning the Stainless Steel Parts (if available)

• Clean the stainless steel parts of your appliance on a regular basis.
• Wipe the stainless steel parts with a soft cloth soaked in only water. Then, dry them thoroughly with a dry cloth.

Do not clean the stainless steel parts while they are still hot from cooking.

Do not leave vinegar, coffee, milk, salt, water, lemon or tomato juice on the stainless steel for a long time.

Cleaning Painted Surfaces (if available)

- Spots of tomato, tomato paste, ketchup, lemon, oil derivatives, milk, sugary foods, sugary drinks and coffee should be cleaned with a cloth dipped in warm water immediately. If these stains are not cleaned and allowed to dry on the surfaces they are on, they should NOT be rubbed with hard objects (pointed objects, steel and plastic scouring wires, surface-damaging dish sponge) or cleaning agents containing high levels of alcohol, stain removers, degreasers, surface abrasive chemicals. Otherwise, corrosion may occur on the powder painted surfaces, and stains may occur. The manufacturer will not be held responsible for any damage caused by the use of inappropriate cleaning products or methods.

Removal of the Inner Glass

You must remove the oven door glass before cleaning, as shown below.

1. Push the glass in the direction of B and release from the location bracket (x). Pull the glass out in the direction of A.

To replace the inner glass:

1. Push the glass towards and under the location bracket (y), in the direction of B.

1. Place the glass under the location bracket (x) in the direction of C.

If the oven door is a triple glass oven door, the third glass layer can be removed the same way as the second glass layer.

Removal of the Oven Door

Before cleaning the oven door glass, you must remove the oven door, as shown below.

1. Open the oven door.

Technical line drawing of a mechanical assembly with an arrow indicating rotation (no text or symbols)

1. Open the locking catch (a) (with the aid of a screwdriver) up to the end position.

Technical line drawing of a mechanical assembly with labeled component 'a' (no text or symbols beyond label)

1. Close the door until it is almost in the fully closed position, and remove the door by pulling it towards you.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

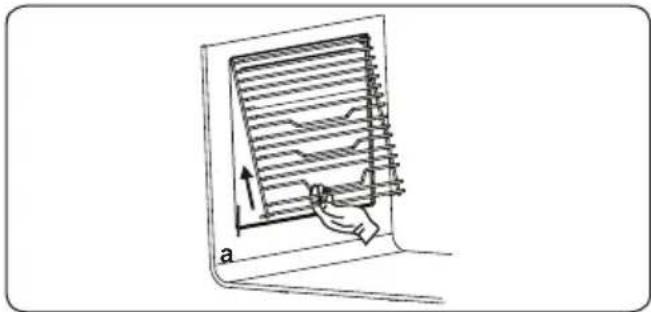

Removal of the Wire Shelf

To remove the wire rack, pull the wire rack as shown in the figure. After releasing it from the clips (a), lift it up.

Illustration of a hand pressing down on a grid-like structure with an arrow indicating direction (no text or symbols)

5.2 Maintenance

WARNING: The maintenance of this appliance should be carried out by an authorised service person or qualified technician only.

Changing the Oven Lamp

WARNING: Switch off the appliance and allow it to cool before cleaning your appliance.

• Remove the glass lens, then remove the bulb.
• Replace the glass lens, and your oven is ready for use.
  • The product contains a light source of energy efficiency class G.
  • Light source can not be replaced by end user. After sales service is needed.
  • The included light source is not intended for use in other applications.

- Insert the new bulb (resistant to 300 °C) to replace the bulb that you removed (230 V, 15-25 Watt, Type E14).

Replaceable light source by a professional

The lamp is designed specifically for use in household cooking appliances. It is not suitable for household room illumination.

6. TROUBLESHOOTING & TRANSPORT

6.1 Troubleshooting

If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician.

Problem Possible Cause Solution
Oven does not switch on.	Power is switched off.	Check whether there is power supplied.Also check that other kitchen appliances are working.
No heat or oven does not warm up.	Oven temperature control is incorrectly set.Oven door has been left open.	Check that the oven temperature control knob is set correctly.
Cooking is uneven within the oven.	Oven shelves are incorrectly positioned.	Check that the recommended temperatures and shelf positions are being used.Do not frequently open the door unless you are cooking things that need to be turned. If you open the door often, the interior temperature will be lower and this may affect the results of your cooking.
Oven light (if available) does not operate.	Lamp has failed.Electrical supply is disconnected or switched off.	Replace lamp according to the instructions.Make sure the electrical supply is turned on at the wall socket outlet.
The oven fan (if available) is noisy.	Oven shelves are vibrating.	Check that the oven is level.Check that the shelves and any bake ware are not vibrating or in contact with the oven back panel.

6.2 Transport

If you need to transport the product, use the original product packaging and carry it using its original case. Follow the transport signs on the packaging. Tape all independent parts to the product to prevent damaging the product during transport.

If you do not have the original packaging, prepare a carriage box so that the appliance, especially the external surfaces of the product, is protected against external threats.

7. PRODUCT INFORMATION SHEET

Product Information Sheet PHILCO
Delegated Regulation (EU) 65/2014
Supplier's name or trademark: PHILCO
Supplier's address: U Sanitasu 1621 Ríčany 251 01, Czech Republic
Model identifier: POB 756 B
General product parameters: Built-in Oven
Brand PHILCO
Model POB 756 B
Type of Oven ELECTRIC
Mass kg 31.9
Energy Efficiency Index - conventional 105.7
Energy Efficiency Index - fan forced 94.3
Energy Class A
Energy consumption (electricity) - conventional kWh/cycle 0.93
Energy consumption (electricity) - fan forced kWh/cycle 0.83
Number of cavities 1
Heat Source		ELECTRIC
Volume	I	78
This oven complies with EN 60350-1
Minimum duration of the guarantee offered by the supplier: 24 months
Additional information:
Weblink to the supplier's website, where the information in point 6 of Annex II to Commission Regulation (EU) 2019/2022 is found: www.philco.cz
https://eprel.ec.europa.eu/qr/2018883
Energy Saving TipsOven- Cook the meals together, if possible.- Keep the pre-heating time short.- Do not elongate cooking time.- Do not forget to turn-off the oven at the end of cooking.- Do not open oven door during cooking period.

TECHNICAL INFORMATION

Technical information can be found on the type plate on the inside of the appliance and on the energy label. The QR code, on the supplied energy label, contains a link to register the appliance in the EU Eprel database. Keep the energy label, the instructions for use, together with other documents supplied with the device.

TESTING INFORMATION

The delivered device is in accordance with Ecodesign a NO 65/2014 NO 66/2014 IEC 60350-1:2023. Air access requirements for proper operation of the device, the minimum distance from the wall and the dimensions of the device are part of this manual. If you have any further questions, please contact the manufacturer.

CUSTOMER CARE AND SERVICE

Always use original spare parts.

Model name and serial number can be found on the rating plate. Position of rating plate can be changed without notice.

The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model.

When contacting our authorized service, have the model designation, serial number and defect description available.

To download documents, visit www.philco.cz.

To report a defect and obtain additional service information, visit https://philco.cz/podpora-a-servis.

Subject to change without notice.

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection centre for further details. The improper disposal of this type of waste may fall subject to national regulations for fines.

help

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

Vestavěná trouba

NÁVOD K OBSLUZE

PHILCO

Famous for Quality the World Over

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple dark gray square with a small white sun icon in the center (no text or symbols)

Světlo v troubě:

Simple white abstract shape resembling a stylized flower or droplet on a dark background, enclosed in a black square frame (no text or symbols)

Pure electrical circuit symbol for a three-blade propeller (no text or labels)

Funkce Turbo:

Solid black square with two horizontal white lines on top and bottom (no text or symbols)

Abstract geometric symbol with a four-blade propeller inside a dark square frame (no text or symbols)

Funkce ventilátoru:

Pure electrical circuit symbol for a three-blade propeller (no text or labels)

Funkce Pizza:

Simple 3D wireframe cube with a wavy top line inside, no text or symbols present.

Funkce grilu:

Simple geometric diagram with a rectangle and two horizontal lines above it, no text or symbols present.

Simple icon of a propeller inside a container with wavy lines above (no text or symbols)

Line drawing of a square container with side supports (no text or symbols)

Technical line drawing of a mechanical component with parallel grooves and a central rod (no text or symbols)

Technical illustration of a mechanical assembly with a side view showing a rotating component (no text or symbols present)

Technical line drawing of a rectangular metal grate or rack structure with evenly spaced slots (no text or symbols)

Diagram of a metal rack with a curved cover and an arrow indicating force or movement (no text or symbols)

Dětský zámek

Line drawing of a hand using a tool to lift a shelf, showing the process with an inset magnified view (no text or symbols)

Line drawing of a hand holding a tool near a window, with an inset showing the same hand (no text or symbols present)

Illustration of a hand inserting a small object into a device panel, with an inset showing the process (no text or symbols)

Diagram showing a hand inserting a spring into a device component, with an inset close-up of the insertion (no text or symbols present)

Technical diagram showing a mechanical assembly with an inset close-up of a component (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset close-up showing a bracket detail (no text or symbols)

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

Two identical diagrams showing a screw and nut assembly, labeled 1 and 2, with no text or symbols.

Technical diagram showing two views (3 and 4) of mechanical components with hatched patterns and no visible text or symbols.

Two technical diagrams showing mechanical assembly or mounting process, labeled 5 and 6 (no text or symbols present)

Two identical mechanical assembly diagrams labeled 7 and 8, showing internal components without any text or symbols.

Line drawing of a refrigerator interior with a door and drawer, showing a scroll inside (no text or symbols)

Kolektor na vodu

Technical line drawing of a mechanical component with internal channels and a downward arrow indicating direction (no text or symbols)

5. ČIŠTĚNÍ A ÚDRŽBA

5.1 Čištění

Line drawing of a hand cleaning a car window with a circular component (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with labeled component 'a' (no text or symbols beyond label)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing down on a grid-like structure with an arrow indicating direction (no text or symbols)

5.2 Údržba

Famous for Quality the World Over

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple dark gray square with a small sun icon in the top-right corner (no text or symbols)

Svetlo v rúre:

Zapne sa iba svetlo v rúre. Zostane zapnuté po celú dobu varenia.

Simple white line drawing of a propeller inside a dark square frame (no text or symbols)

Abstract geometric symbol with a three-blade propeller inside a circle, set against a dark square background (no text or symbols)

Funkcia Turbo:

Simple dark square with two horizontal white lines on top and bottom (no text or symbols)

Abstract geometric symbol with a four-blade propeller inside a dark square frame (no text or symbols)

Pure electrical circuit symbol for a three-blade propeller (no text or labels)

Funkcia Pizza:

Simple 3D wireframe cube with a wavy top line inside, no text or symbols present.

Funkcia grilovania:

Simple 3D-rendered black square with a white wavy line above it, no text or symbols present.

Simple icon of a propeller inside a container with wavy lines above (no text or symbols)

Line drawing of a square container with side supports (no text or symbols)

Drôtený rošt s polovičnou teleskopickou kol'ajničkou Easyfix

Technical line drawing of a metal rack structure with a support bracket (no text or symbols)

Technical illustration of a mechanical assembly with a side view showing a rotating component (no text or symbols present)

Technical line drawing of a metal grate plate with slats and rivets (no text or symbols)

Diagram of a metal grate with a curved arrow indicating rotation or force direction (no text or symbols)

Detský zámok

Line drawing of a hand using a tool to lift or adjust a component, with no text or symbols present.

1. Palcom zatlačte detskú poistku nahor.

Line drawing of a hand inserting a component into a device (no text or symbols)

1. Vol'nou rukou potiahnite dvierka rúry k sebe pomocou rukoväte.

Diagram showing a hand holding a tool on a device, with arrows indicating movement (no text or symbols present)

1. Uvolnite detskú poistku. Dvere mierne zatlačte, aby sa zatvorili.

Diagram showing a hand inserting a spring into a rack, with arrows indicating movement (no text or symbols present)

Technical diagram showing a mechanical assembly with an inset close-up of a component (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset close-up showing a bracket detail (no text or symbols)

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

Two identical diagrams of screw fasteners, one with a cap and one with a threaded screw, shown side by side (no text or symbols)

Two technical diagrams showing mechanical assembly or assembly steps, labeled 3 and 4, with no readable text or symbols.

Two technical diagrams showing mechanical assembly or assembly steps, labeled 5 and 6, with no readable text or symbols.

Two technical diagrams showing mechanical assembly or assembly steps, labeled 7 and 8, with no visible text or symbols.

Line drawing of a door with a handle and internal panel, showing a curved arrow indicating rotation (no text or symbols)

Zberač vody

Technical line drawing of a door frame with internal channels and a downward arrow indicating direction (no text or symbols)

5. ČISTENIE A ÚDRŽBA

5.1 Čistenie

Line drawing of a hand cleaning a car window with a circular object on the wall (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with labeled component 'a' (no text or symbols beyond label)

1. Zatvorte dvere, až kým nebudú takmer úplne zatvorené, a vytiahnite ich smerom k sebe.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a hand pressing down on a grid-like structure with arrows indicating motion (no text or symbols)

5.2 Údržba
