DRZAKTILTXL - Uncategorized GoGen - Free user manual and instructions

Product Type	TV Wall Mount (Tilting)
Brand	GoGen
Model	DRZAKTILTXL
Compatible VESA Patterns	200x200, 300x300, 400x200, 400x400, 600x400 mm
Maximum Load Capacity	50 kg (110 lbs)
Tilt Adjustment	Yes
Material	Steel
Color	Black
Mounting Type	Wall mount (stud or concrete)
Stud Compatibility	406 mm (16"), 450 mm (17.7"), 600 mm (23.6"), 610 mm (24")
Included Hardware	Screws (M5x14, M6x14, M8x20, M6x30, M8x30), washers, spacers, adapter brackets, wall plate
Number of Adapter Brackets	2 (left and right)
TV Compatibility	Flat back or recessed back screens
Installation Tools Required	Drill, screwdriver, level, pencil, drill bits for wall type
Safety Warning	Do not exceed maximum load capacity
Manual Languages	English, Czech, Slovak, Hungarian, Polish
Page Count	28 pages
Product Category	TV Accessories / Mounts

Frequently Asked Questions - DRZAKTILTXL GoGen

What VESA patterns are compatible with the GoGen DRZAKTILTXL?

The mount is compatible with VESA patterns: 200x200, 300x300, 400x200, 400x400, and 600x400 mm.

What is the maximum weight capacity of this mount?

The maximum load capacity is typically 50 kg (110 lbs). Always refer to the manual for exact specifications.

Can this mount be used on brick walls?

Yes, the mount includes instructions for mounting on brick walls using appropriate anchors and drilling.

Does the mount tilt?

Yes, the model name indicates tilting capability. The manual provides instructions for adjusting the tilt angle.

What tools are required for installation?

You will need a drill, screwdriver, level, pencil, and appropriate drill bits for the wall type.

Are the screws included?

Yes, the package includes a variety of screws (M5, M6, M8), washers, and spacers to accommodate different TV brands.

What types of walls can this mount be attached to?

The mount can be attached to wood studs or solid concrete/brick walls. Do not install on drywall alone.

How do I access A/V inputs after mounting?

The mount allows tilting to provide access to the back of the TV for cables and A/V inputs.

Is the mount suitable for a 65-inch TV?

If the TV has a VESA pattern up to 600x400 and weighs within 50 kg (110 lbs), it should be compatible.

Does the mount come with a warranty?

Warranty details are not provided in the manual; contact GoGen or your retailer for warranty information.

USER MANUAL DRZAKTILTXL GoGen

Abstract logo design with a stylized white 'S' inside a circle on a black background (no text or symbols)

DRZAKTILTL DRZAKTILTXL

GoGEN

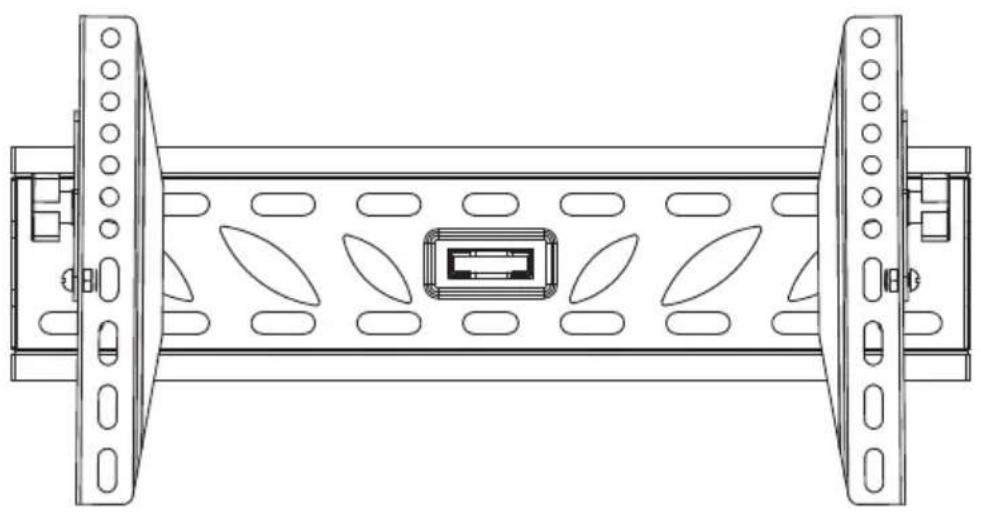

Technical line drawing of a mechanical assembly with symmetrical components and mounting brackets (no text or symbols)

UPOZORNĚNÍ: NEPŘEKRAČUJTE POVOLENOU NOSNOST, JINAK MŮŽE DOJÍT K VÁŽNÉMU ZRANĚNÍ NEBO ŠKODĚ NA MAJETKU!

UPOZORNENIE: NEPREKRAČUJTE POVOLENÚ NOSNOST, INAK MÔŽE DÔJSŤ KVÁŽNEMU ZRANENIUALEBO ŠKODE NAMAJETKU!

DRZAKTILTL		200x200/300x300400x200/400x400
DRZAKTILTXL		200x200/300x300400x200/400x400600x400

Technical line drawing of a mechanical assembly with a rectangular component and mounting brackets (no text or symbols)

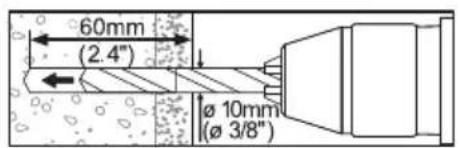

Three-step diagram showing brick wall, pencil, and power tool (no text or symbols)

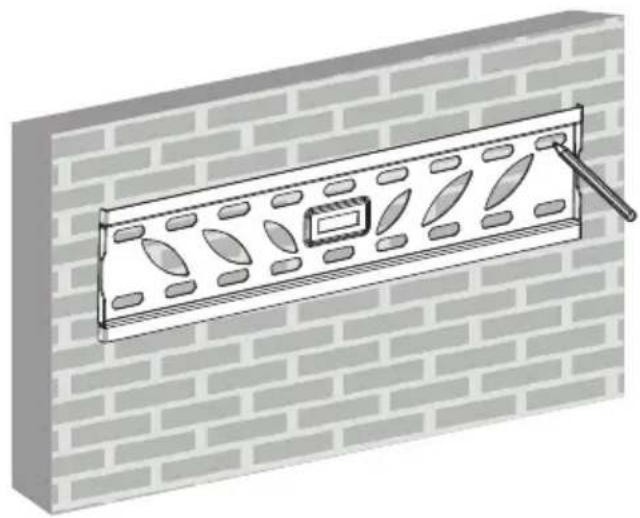

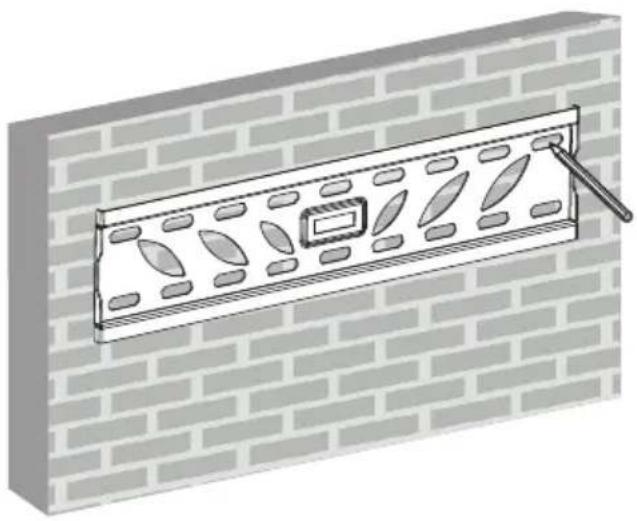

Illustration of a wall-mounted panel mounted on a brick wall, showing structural details and mounting brackets (no text or symbols)

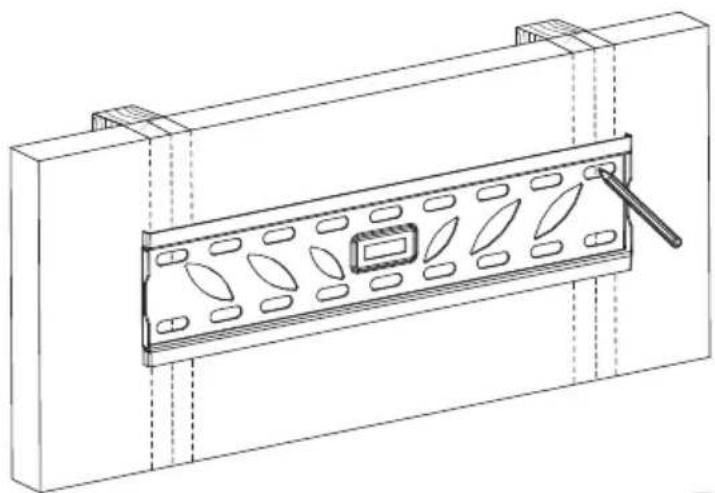

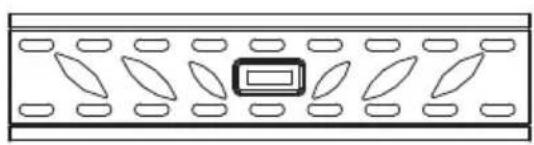

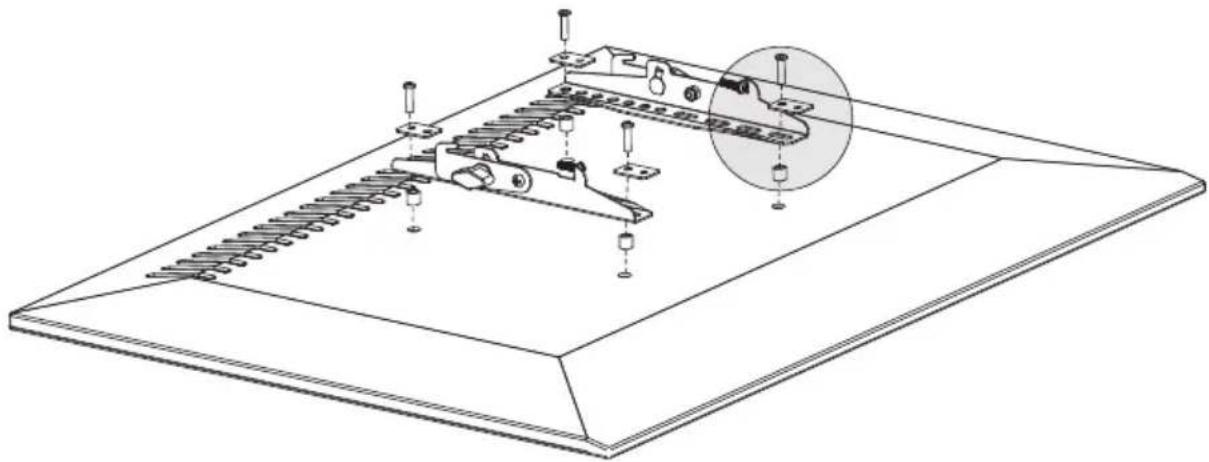

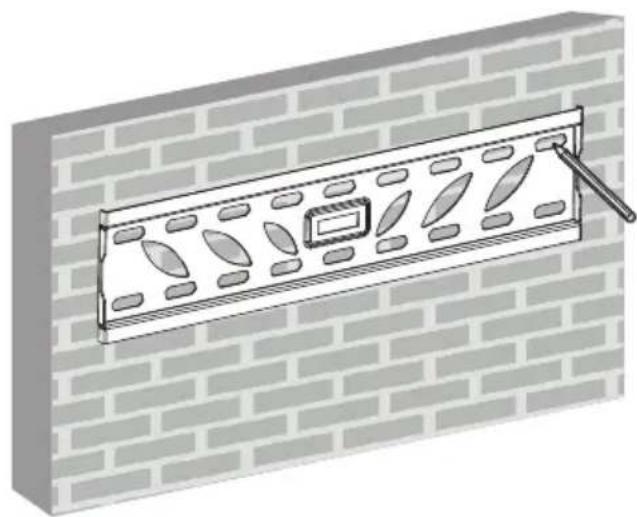

2-2. PRO OBRAZOVKY SE ZAPUŠTĚNOU ZADNÍ STRANOU NEBO PRO PŘÍSTUP KA/V VSTUPŮM / PRE OBRAZOVKY SA ZAPUSTENOU ZADNOU STRANOU ALEBO O PRÍSTUP KA/V VSTUPOM

Technical line drawing of a mechanical assembly with mounting base and internal components (no text or symbols)

NOTE: Read the entire instruction manual before you start installation and assembly.

IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, telephone your local distributor for a replacement.

Pure diagram of a rectangular container with internal oval shapes and a central rectangular element (no text or symbols)

Technical line drawing of a mechanical component with multiple holes and a handle (no text or symbols)

Line drawing of a mechanical component with multiple circular holes and a central handle (no text or symbols)

Technical line drawing of a mechanical assembly with a rectangular component and internal oval cutouts (no text or symbols)

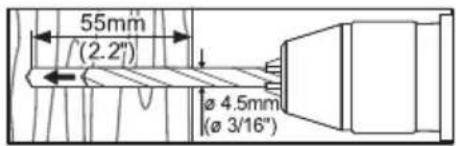

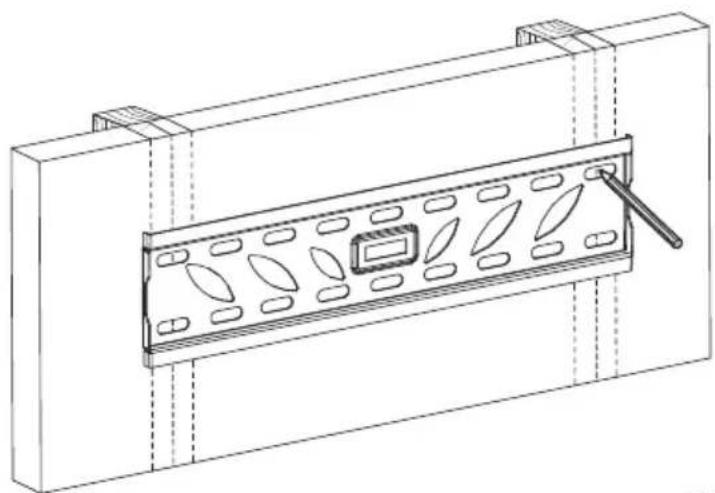

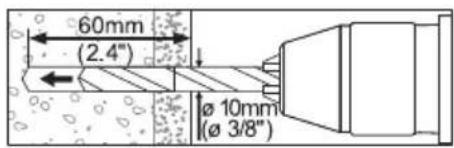

Screw the wall plate onto the wall

Model	Belka Stud	406 mm (16")	450 mm (17.7")	600 mm (23.6")	610 mm (24")
DRZAKTILTL		√	×	×	×
DRZAKTILTXL		√	√	√	√

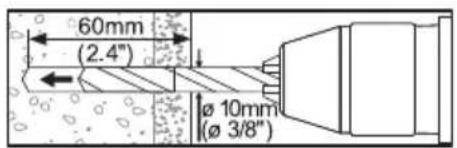

Three technical illustrations: brick wall, pencil, and electric drill (no text or symbols)

Illustration of a wall-mounted panel mounted on a brick wall, showing internal compartments and a small component (no text or symbols)

PL/EN - 14

2-2. MONTAŻ DO EKRANÓW Z WYPUKŁYM TYŁEM LUB Z DOJŚCIEM DO WEJŚĆ A/V FOR RECESSED BACK SCREENS OR TO ACCESS A/V INPUTS

Technical line drawing of a mechanical assembly with mounting holes and a highlighted section (no text or symbols)

lub or

lub or

lub or

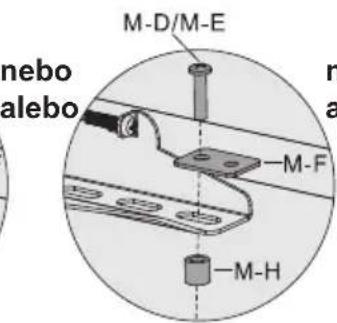

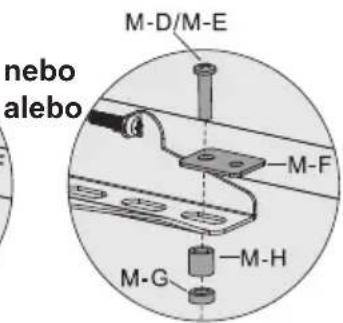

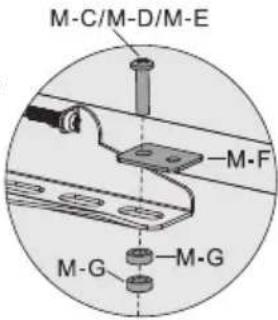

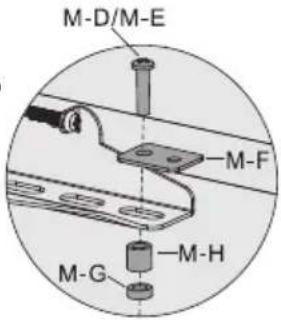

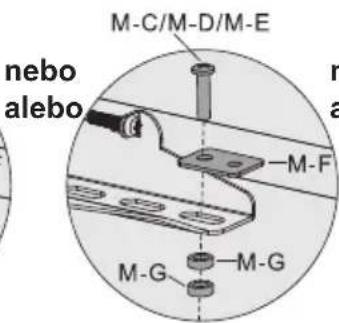

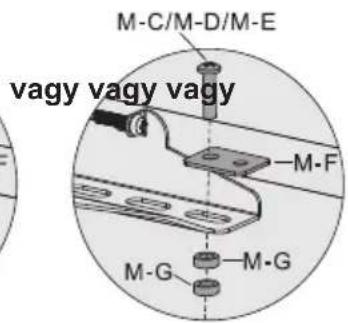

Note: Choose the appropriate screws, washers and spacers (if necessary) according to the type of screen.

• Position the adapter brackets as close as possible to the center of the display.
• Screw the adapter brackets onto the display.

Tighten all screws but do not over tighten.

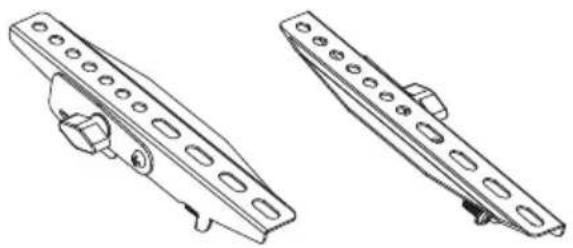

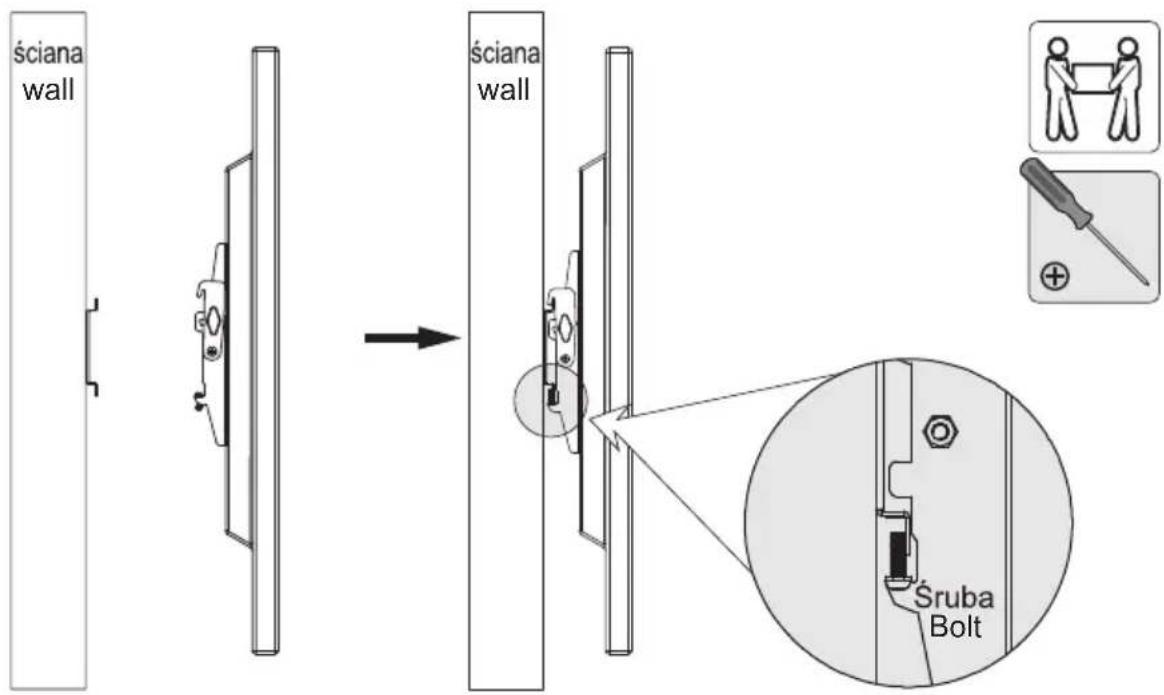

3. WIESZANIE TELEWIZORA NA LISTWIE ŚCIENNEJ HANGING THE TV ONTO THE WALL PLATE

Pure diagram of a rectangular structure with internal oval shapes and a central square (no text or symbols)

fali lemez (x1) A

Technical line drawings of two mechanical components with mounting holes and a handle (no text or symbols)

bal adapter lista (x1) B
jobb adapter lista (x1) C

Csomagolás M

M5x14 (x4) M-A

M6x14 (x4) M-B

M8x20 (x4) M-C

M6x30 (x4) M-D

M8x30 (x4) M-E

alátét (x4) M-F

Four grayscale illustrations of common office objects: a cabinet, a remote control unit, a screwdriver, and a power tool (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and a central panel (no text or symbols)

Three grayscale illustrations: brick wall, pencil, and power tool (no text or symbols)

Illustration of a wall-mounted panel mounted on a brick wall, showing internal leaf patterns and a central component (no text or symbols)

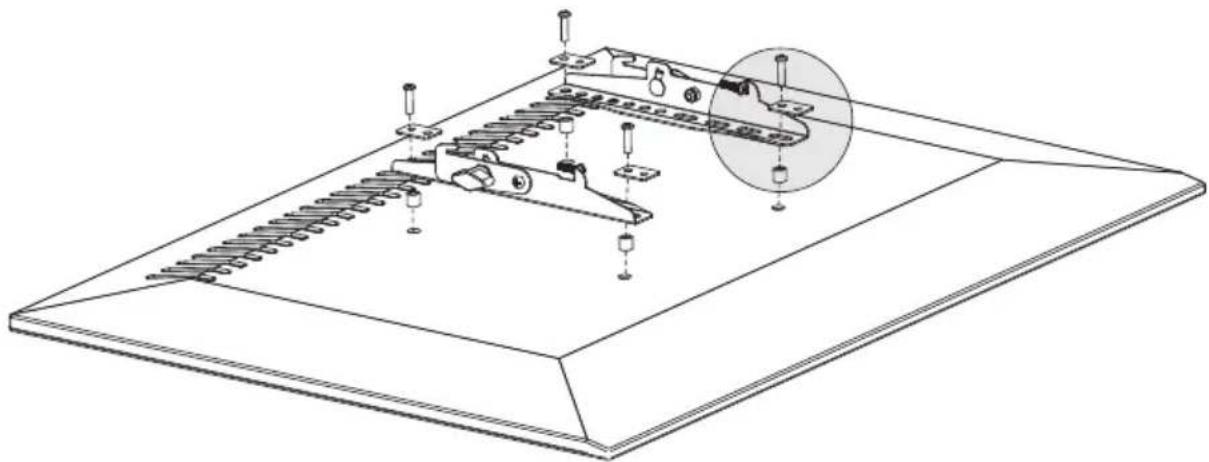

2-2. TV NEM LAPOS HÁTSÓ OLDAL ESETÉN, VAGY A/V BEMENET ELÉRHETŐSÉGE ÉRDEKÉBEN

Technical line drawing of a mechanical assembly with mounting base and internal components (no text or symbols)

Abstract logo design with white stylized 'S' inside a black circle (no text or symbols)

GoGEN
