Cook BBQ200 Wireless Meat Thermometer

User manual EN

Version 1.0

Simple line drawing of a shield with a checkmark inside (no text or symbols)

Dear customer, Thank you for purchasing a proven TESLA brand product.

thank you for purchasing a proven TESLA brand product. Please read this manual csrefully before using for the first time. He will be a good guide for you when getting to know your new device. We wish Box TESLA to be a pleasant companion for you. The data and tips used in this manual may be subject to future changes and improvements and are valid for the release of its first version, as of May 2024.

Thank you for your understanding.

Please read this manual carefully before use.

Technical specifications and operating procedures listed in this manual are subject to change without notice. Please contact the manufacturer for any questions regarding shelf life.

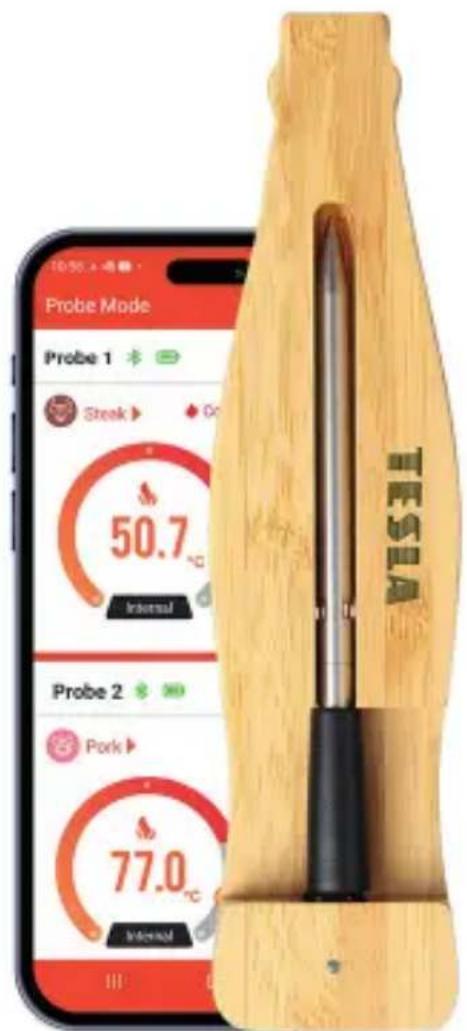

FEATURES AND NOTICES

Wooden object with a black pen and black handle, labeled 'TESLA' on the side (no other text or symbols visible)

• Bluetooth version: 5.2
  • Waterproof of probe: IP67
• Range up to: 50 meters
• Charging time: 20 minutes
  • Working time: 36 hours
  • Standby up to: 2 weeks
  • The application can support up to 6 probes working simultaneously
  • USB-C charging port (cable included)
• Operating temperature: do not exceed 300 °C

NOTICE

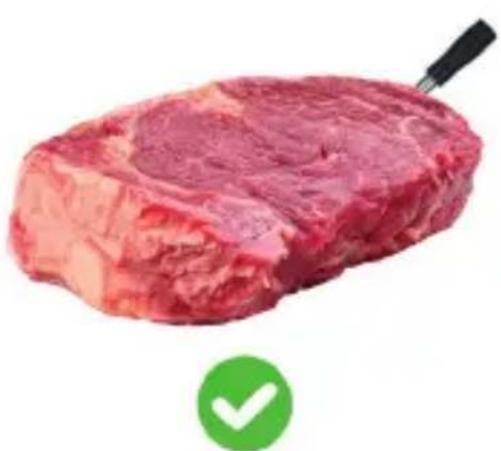

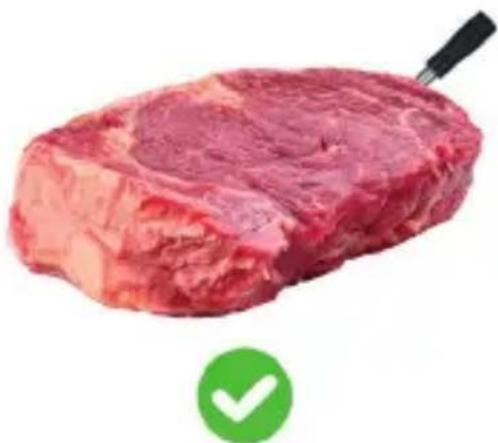

Insert the probe into the meat at least as far as the depth line. Do not put the probe in the oven by itself, otherwise it will be damaged by the high temperature.

Raw meat cut with a knife, marked by a green checkmark (no text or symbols on the cut itself)

FEATURES AND NOTICES

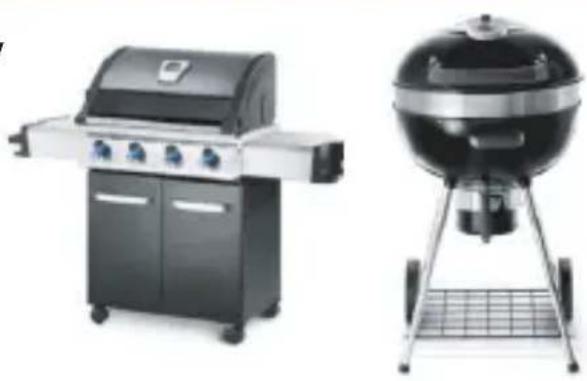

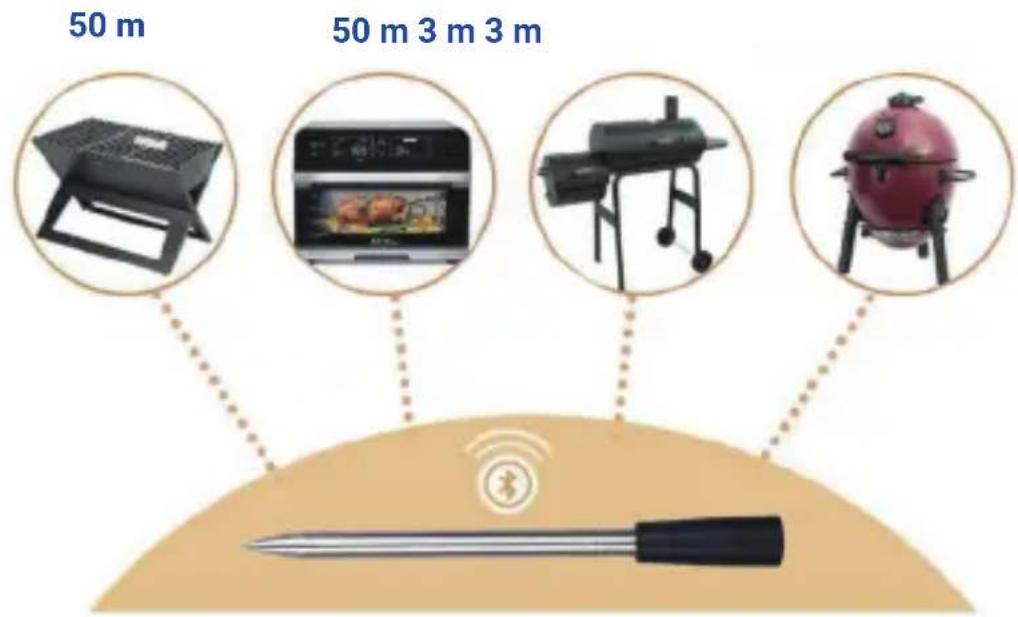

The Bluetooth signal is affected by the cover, in a closed environment (closed cover) the range is up to 3-10 m.

With the cover open, the range is about 50 m.

Two outdoor cookware items: a standard gray electric grill and a black spherical kegg on a stand (no visible text or symbols)

Do not microwave.

Modern microwave oven with control panel and red X symbol (no text or labels)

Do not wrap the probe in aluminum foil.

Roasted chicken with a red 'X' symbol below, no text or symbols present

The probe will be very hot during or just after cooking.

DO NOT touch with bare hands.

Do not expose the probe to a temperature higher than 300 °C.

The probe range may vary depending on the type of grill used.

DOWNLOAD THE APP

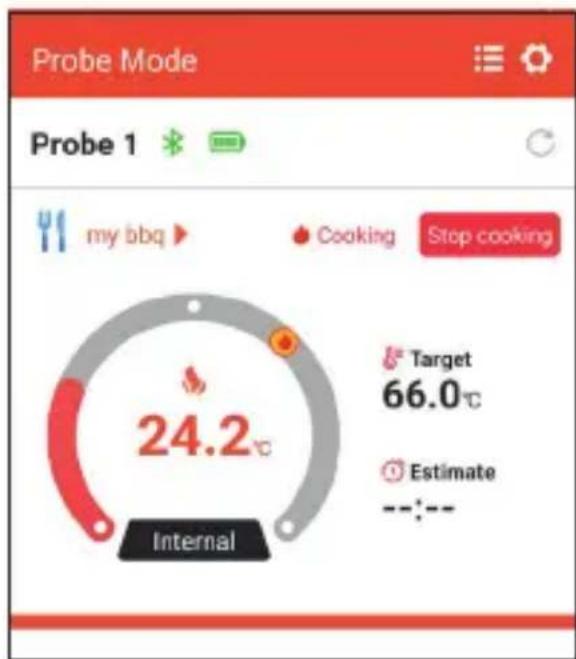

Thanks to the mobile application, you are completely in control. Preset modes help you achieve the perfect result. You can see all important data such as temperature, baking time, history, etc.

HOW TO USE

IT'S EASY

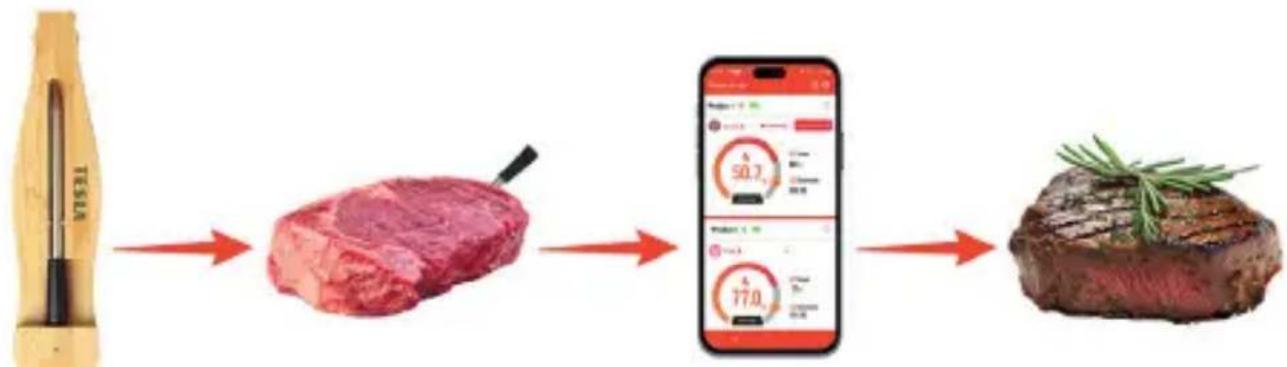

Allow the probe to charge for 6 minutes before each use. This guarantees up to 36 hours of use. Insert the probe into the meat up to the depth line. Set the usage type in the application. Once the set values are reached, the application will notify you.

Charge (6 min.)
Insert into the food APP set Done

NOTICE

If the red light is on, the probe is charging. The green color indicates that the probe is charged and you can start using it. You can check the battery status in the mobile application.

If the probe is charging, the Bluetooth connection is interrupted. Once you disconnect the probe from the charging case, it will automatically connect itself (you must have an active Bluetooth connection on your phone).

HOW TO USE

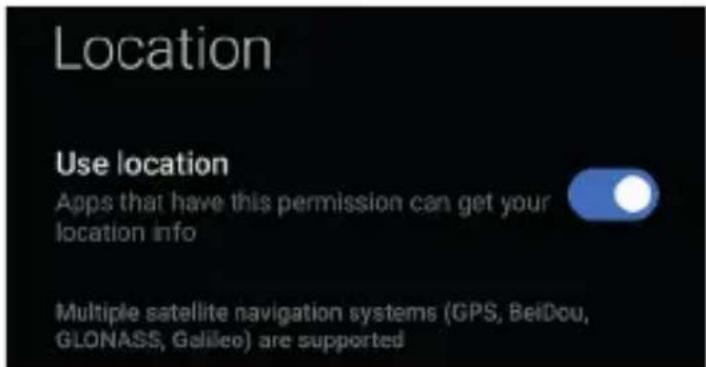

Turn on the Bluetooth of your mobile phone (iOS system). For Android, Bluetooth and location services must be turned on at the same time.

Remove the probe from the charging case, launch the mobile app and the probe will connect automatically.

Stylized icon of a steak cooking in a bowl with a thermometer, set against a solid red background (no text or symbols)

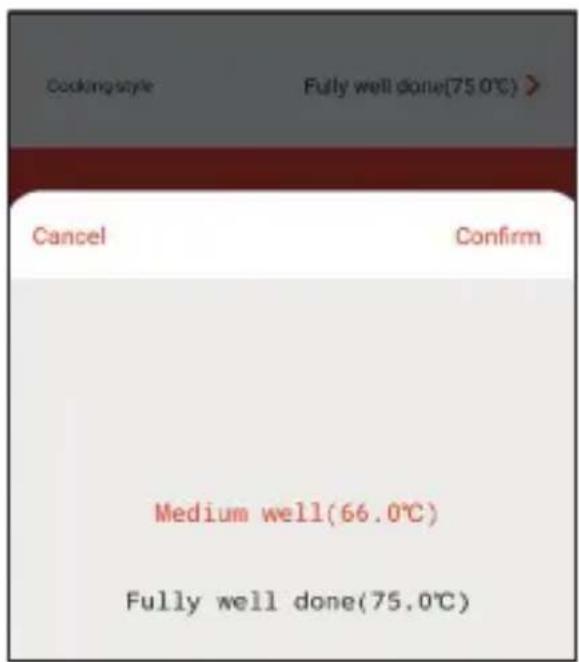

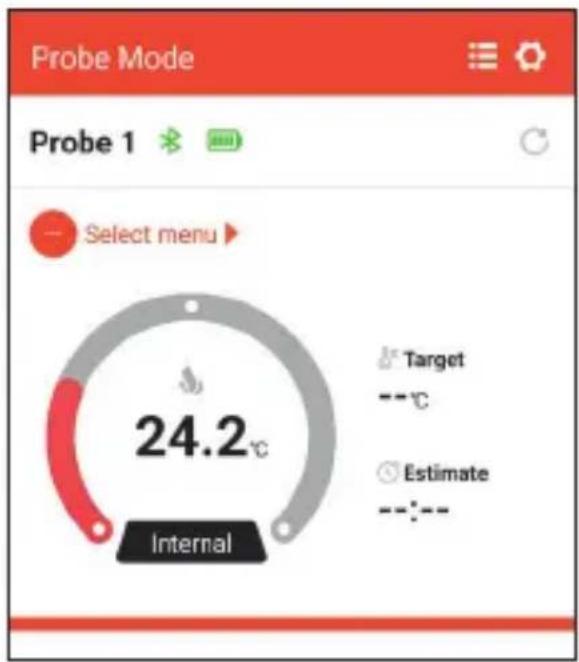

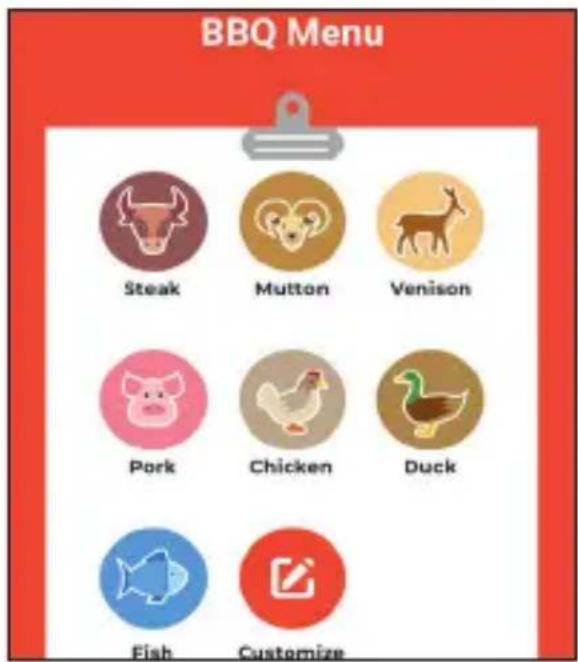

GUIDED COOK SYSTEM

1. Select „Select menu“.


1. Select the type of meat.


1. Select the desired doneness/temperature.

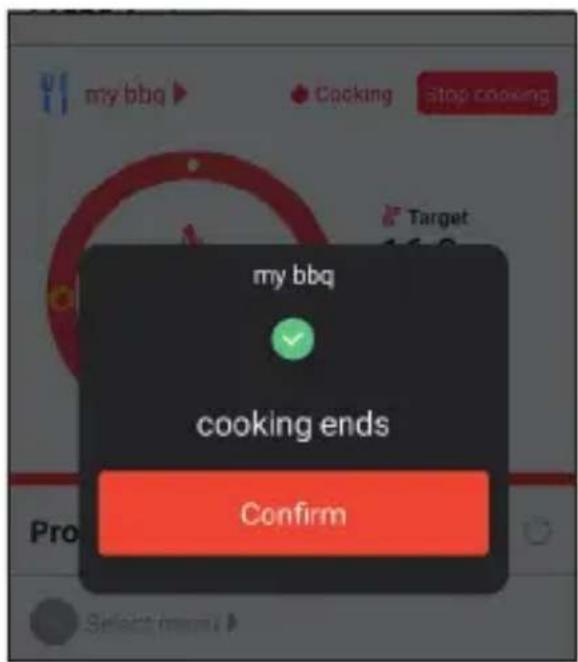

1. Done. The application will notify you as soon as the required values are reached.

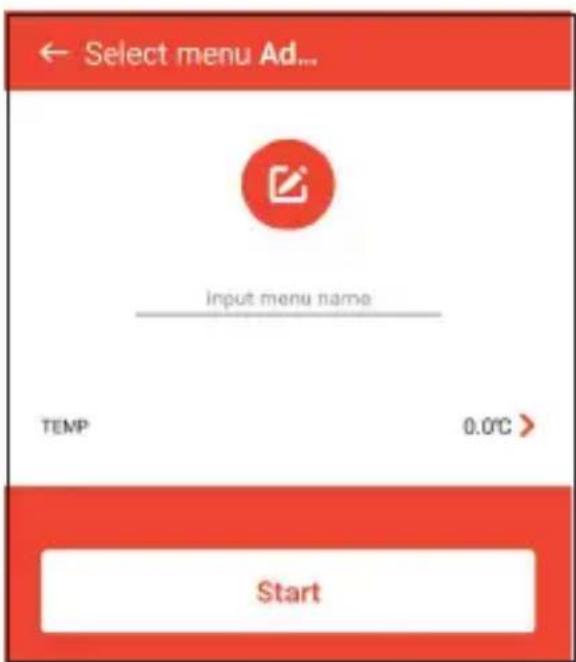

CUSTOM SETTINGS

1. Select „Add new menu“.

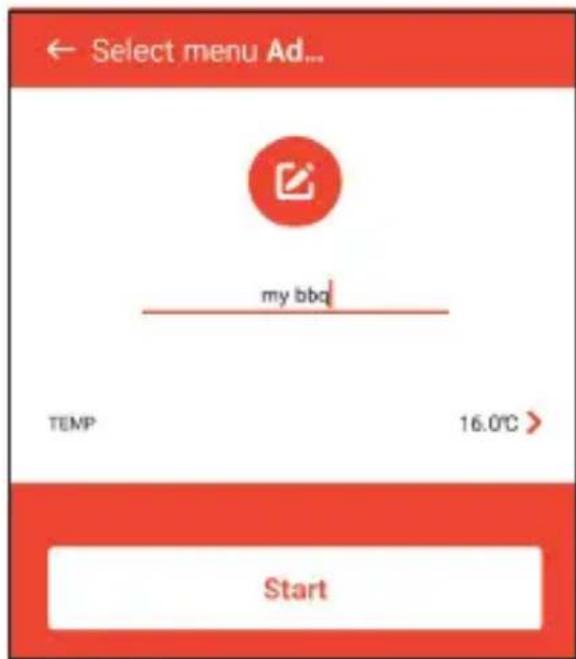

2. Choose a new name for your menu.

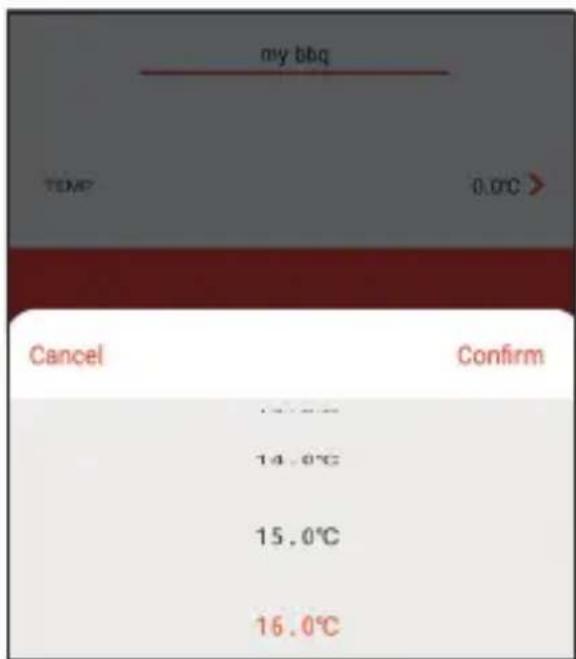

3. Select the desired temperature.

4. Done.

1. Warranty period

The manufacturer provides a warranty for this product for a period of 24 months from the date of purchase by the consumer. The warranty period is extended by the time during which the product was under warranty repair, or could not be used during the warranty period, or if the nature of the defect prevented its use.

The warranty only applies to defects caused by a manufacturing error or material defect.

2. Warranty card

Free warranty service is only provided if proof of purchase of the product (receipt) and a correctly completed warranty card is presented - it must contain the production number, date of sale and stamp of the store (assembly company). Copies and incorrectly completed warranty forms will not be considered.

3. Repairs during the warranty period

Warranty service must be claimed at the organization where the product was purchased or at the assembly company that performed the installation.

4. Scope of warranty

The warranty is void if the defect is caused by mechanical damage (except damage during transport), improper use, carelessness, unavoidable event (natural disaster), and also in the case of modifications or repairs performed outside the distributor's service. The guarantee cannot also be applied in the event that the consumer requires modification or adaptation to extend the functions of the product (or a system assembled from several components) compared to the standard design.

DECLARATION OF CONFORMITY AND OTHER INFORMATION

This device and all its accessories fall into the category of electronic waste. This device must be properly handed over to collection yards for the reception of electronic waste.

The device cannot be disposed of together with municipal waste. Correct disposal of the old product helps prevent potential negative consequences for the environment and human health.

The user is not authorized to disassemble the device, in case of interference with the device, it is not possible to apply the statutory warranty period.

In case of any problems or questions, please contact our service department or technical support. For complaints, contact your dealer.

TESLA Electronics LTD, as the manufacturer of this device, declares that the TESLA Cook BBQ200 Wireless Temperature Probe is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available on the website:

https://eshop.tesla-electronics.eu/

RoHS: this device meets the requirements for the restriction of the use of certain hazardous substances in electrical and electronic equipment (NV No. 481/2012 Coll., NV No. 391/2016 Coll.) and thus also the requirements of the Directive of the European Parliament and the EC Council 2011/65/ EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

The RoHS statement is part of the declaration of conformity published on https://eshop.tesla-electronics.eu/

Manufacturer:

TESLA Electronics LTD., Blucina 704, 664 56, Czech Republic
