PartyKing1 Plus - Loudspeaker Lamax - Free user manual and instructions

Product Type	Portable PA Speaker
Brand	Lamax
Model	PartyKing1 Plus
Maximum Power Output	100 W
Bluetooth Version	5.3
Wireless Range	Up to 15 m
Supported Audio Formats	MP3, WAV, FLAC, AAC
Battery Capacity	6000 mAh
Playback Time (at 80% volume)	Up to 14 hours
Charging Time	6 hours
Sensitivity	≥80 dB
Frequency Range	60 Hz – 16 kHz
Weight	5.85 kg
Inputs	USB, Micro SD, AUX (3.5 mm), Guitar (6.35 mm), Microphone (6.35 mm)
Wireless Microphone	Included (one)
Functions	Bluetooth, TWS, FM Radio, Recording, Equalizer (Classic/BeatBass), LED Lighting
Box Contents	Speaker, Wireless Microphone, Power Adapter, AUX Cable, User Manual, Safety Instructions

Frequently Asked Questions - PartyKing1 Plus Lamax

How do I pair the speaker with my phone via Bluetooth?

Turn on the speaker. It will automatically enter pairing mode. On your phone, enable Bluetooth and search for LAMAX PartyKing1 Plus. Select it and if prompted for a password, enter 0000. An audio notification will confirm successful pairing.

How long does it take to fully charge the speaker?

Charging the 6000 mAh battery takes approximately 6 hours using the included power adapter. The LED indicator is red while charging and turns green when fully charged.

Can I pair two PartyKing1 Plus speakers together?

Yes, using the TWS (True Wireless Stereo) function. Turn on both speakers and ensure they are not connected to any other device. Press and hold the M button on either speaker; after a few seconds, you will hear an audible notification confirming the pairing.

How do I record audio with this speaker?

Insert a USB drive or Micro SD card into the speaker. Connect a wired or wireless microphone (the included mic works automatically). Play music via Bluetooth, then press the REC button to start recording. Press REC again to stop; the recording is saved to the storage media. To playback, select the USB/SD input via the M button.

How do I use the wireless microphone?

To turn on the microphone, press and hold the power button (1) on the microphone. It will automatically pair with the speaker. The display on the microphone will light steadily when connected. Adjust the microphone volume using the microphone volume level control (10) on the speaker.

Can I connect a guitar to the speaker?

Yes, the speaker has a dedicated guitar input (21) on the back panel. Use a standard 6.35 mm instrument cable. Adjust the guitar volume using the guitar input volume level control (11) on the speaker.

How do I change the equalizer settings?

Press the EQ button (3) on the speaker to cycle through equalizer presets. The options are: Classic (normal bass) and BeatBass (higher bass level).

How do I control the LED lighting?

Press the LED lighting settings button (2) to cycle through different lighting modes. To turn off the LEDs, press and hold the same button.

What audio sources can I play from?

You can play music from Bluetooth, Micro SD card, USB drive, AUX input (3.5 mm), and FM radio. Press the M button to switch between sources.

How do I clean and maintain the speaker?

To clean the speaker, wipe the exterior with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners. Keep the speaker away from extreme heat, moisture, and dust.

USER MANUAL PartyKing1 Plus Lamax

LAMAX PartyKing1 Plus

BOX CONTENT

1× LAMAX PartyKing1 Plus

1× Wireless microphone

1× Power adapter

1×3.5 mm AUX cable

1× User manual

1× Safety instructions

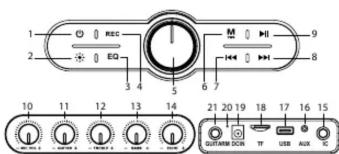

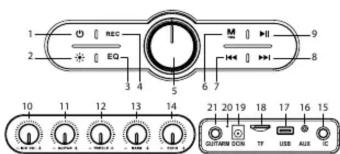

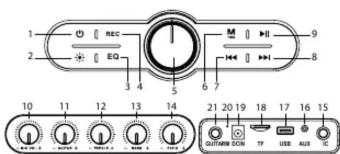

DESCRIPTION

1	Power button	12	Speaker treble level
2	LED lighting settings	13	Speaker bass level
3	Equaliser settings	14	Microphone echo level
4	Recording settings	15	Microphone input
5	Volume level	16	Input for 3.5 mm AUX cable
6	TWS function Switch inputs	17	USB input
7	Previous track	18	Micro SD card input
8	Next track	19	Power adapter input
9	Playback/Pause	20	LED indicator
10	Microphone volume level	21	Guitar input
11	Guitar input volume level

SPEAKER CONTROLS

Charging

Fully charge the speaker battery before first use.

Charge the speaker with the original power adapter that comes included.

LED indicator

LED is red – speaker battery is charging.

LED is green – speaker battery is fully charged.

Powering on/off

To turn the speaker on/off, press and hold the ⏻ button.

Bluetooth pairing

1. Switch on the speaker - turning on the speaker automatically puts it into pairing mode.

2. Activate the Bluetooth function on your device and search for "LAMAX PartyKing1 Plus" in the list of available Bluetooth devices. After successful pairing, an audio notification will sound.

3. If there is a password pairing prompt, enter, '0000' and confirm.

4. Playback can be controlled either via the paired device or directly on the speaker.

LED lighting

Press 📍 to choose the LED lighting variant.

Press and hold 🔍 to turn off the LED lighting.

Switching inputs

Press M to set the input for playback.

a) Bluetooth

b) Micro SD

c) AUX

d) USB

e) FM Radio

FUNCTIONS

TWS

1. To pair two speakers, turn on both speakers at the same time and make sure they are not paired with another device.

2. Press and hold M on either speaker

3. After successful pairing, you will bear an audible notification.

4. Playback can be controlled either via the paired device or directly on the speaker.

2.1.2.2

Equaliser

Press EQ to select the equaliser type.

a) Classic - normal bass level.

b) BeatBass – higher bass level.

Microphone

1. To switch on the microphone, press and hold (1)

2. The microphone automatically pairs with the speaker.

3. To turn off the microphone, press and hold (1).

Display is lit – microphone is connected to the speaker.

Display flickers slowly – microphone is not connected to the spea-

ker

Display flickers quickly – low microphone battery.

Recording

1. Insert a USB drive / Micro SD card into the speaker.

2. Pair your devices using Bluetooth.

3. Connect a wired or wireless microphone.

4. Play music on your Bluetooth device.

5. Press t REC to start recording.

6. To stop recording, press REC.

7. When finished the recording is automatically saved to a USB drive

8. When finished, the recording is automatically saved to a USB drive / Micro SD card

9. To listen, press M to select the USB drive / Micro SD card and play

the recording.

1. To delete a recording, press and hold the REC while listening

SPECIFICATIONS

Wireless technology	Bluetooth 5.3
Bands	2
Maximum pairing distance	Up to 15 m
Supported formats	MP3, WAV, FLAC, AAC
Battery capacity	6000 mAh
Playback time (80% volume)	Up to 14 h
Charging time	6 hours
Sensitivity	≥ 80 dB
Maximum performance	100 W
Frequency range	60 Hz - 16 kHz
Weight	5.85 kg

Printing errors reserved.

Download the latest version of the User Manual here:

https://lamax-electronics.com/partyking1plus/manual

CE RoHS
