USER MANUAL KWDR 8632 B INV Koenic

Front view of a white washing machine with black lid and control panel (no visible text or symbols)

Deutsch 5 22

Long:1-3

-

-

Sicherheitshinweise

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge if they are being supervised or have been instructed concerning use of the product in a safe way and understand the hazards involved.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be carried out by children unless they are older than 8 and supervised.
• Keep the product and its cord out of reach of children aged less than 8 years.
• Children of less than 3 years should be kept away unless continuously supervised.
• The washer-dryer is not to be used if industrial chemicals have been used for cleaning.
• The lint trap has to be cleaned frequently.
• Lint must not to be allowed to accumulate around the washer-dryer.
• Adequate ventilation has to be provided to avoid the back flow of gases into the room from products burning other fuels, including open fires.
• Do not dry unwashed items in the washer dryer.

English

Safety instructions

• Items that have been soiled with substance such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the washer-dryer.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
• Remove all objects from pockets such as lighters and matches.
• Warning: never stop a washer-dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

Safety instructions

• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the washer-dryer door is restricted.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
• The maximum mass of dry clothes to be used in the product is 8 kg for washing and 6 kg for drying.
• For products with ventilation openings in the base, the openings must not be obstructed, e.g. by a carpet.
• This product is connected to the water mains. Consider the minimum and maximum permitted inlet water pressure, see chapter Technical Data. Consider all instructions about the installation of detachable hose-sets, use new hose-sets for installation. Do not reuse old hose-sets. Hose-sets are generally available.

English

Safety instructions

• The product is designed for the preparation of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.

• Follow the instructions in the chapter Cleaning and care.

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

• Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
• Never leave the product unsupervised while it is switched on.
• Never immerse electrical parts of the product in water or any other fluids during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent (e.g. damaged power cord, product has been dropped during installation, etc.).
• The mains voltage must match the information on the rating label of the product.

• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

• Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.

• Only unplug from the power socket by the plug itself. Do not pull on the cord.

• Unplug the product ...

• when the product is not being used,

• in case of malfunctions,
• before attaching / detaching accessories and

• before cleaning the product.

• Use this product in dry indoor areas only and never outdoors.

• Never use, expose or put the product near to:

• direct sunlight and dust;

• fire (fireplace, grill, candles), water (water splashes, vases, bath tub) or heavy moisture.

- This product is not intended for commercial use. It is designed for household use only.

- Important! Check to ensure that the product is in a serviceable condition before use. The product shall not be used if it shows any signs of damage or it's suspected to be defect.

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is designed for washing and drying clothes and textiles. Any other use may result in damage to the product or injuries. This product is designed for household use only and not intended for commercial use.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions.

Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Warranty and spare parts

The warranty period of the product, as well as the applicable conditions of the warranty can be found in the warranty card provided with the product. The spare parts, which are listed in the corresponding ecodesign directive, can be obtained by contacting the customer service center, for a period of at least 7 years, respectively 10 years.

Disposal

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE.

By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Delivery contents

1 x Washer-dryer

1 x User manual

1 x Warranty card

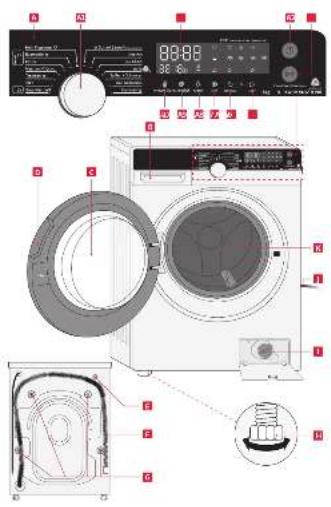

Controls and components

A Control panel

A1 Program dial

A2 Display

A3 On / off switch

A4 Start / pause button

A5 Steam function button DAMPF

A10 Temperature selection button

TEMPERATUR |♥

B Detergent drawer
c Door with window
D Door handle
E Water connection
F Drain hose
G Transport restraints
H Adjustable feet
Lint filter
J Power cord with plug
K Washing drum

Caution

Transport restraints must be removed before the first use as described in chapter Installation.

English

Installation

Note:

The washer-dryer is equipped with power cord and plug and needs sewage and tap water connections. Make sure before installation that a suitable wall outlet, sewage and tap water connection are available at the desired place of installation. Consider the dimensions (chapter Technical data) of the product for placing and installation.

Caution

• Before initial operation the transport restraints must be removed from the backside of the unit. Operating the washer-dryer with mounted transport restraints leads to serious damages.
• Keep the transport restraints for later use. Never transport the device without correctly mounted transport restraints!

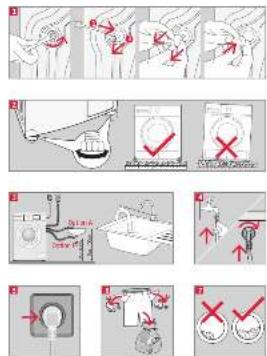

Fig. 1 Loosen the four transport restraints with a wrench (13 mm) and unscrew them completely. Then insert the 4 supplied blind plugs in the holes.
Fig. 2 Place the appliance on an even, horizontal and steady surface. For levelling the feet are adjustable and can be screwed in or out.

- Unscrew the lock nuts with an open-end wrench (17 mm).

- Turn the feet to the right to screw them in and to the left to unscrew them.

- Use a spirit level to check whether the appliance is leveled. If the appliance is not standing horizontally or is tilting the feet must be adjusted again.

- If the unit is leveled and does not tilt, tighten the lock nuts with the open-end wrench.

Note:

Note the following, when placing the appliance on a platform:

The appliance might move during spinning and could fall of a platform. To prevent this, the feet must be secured with retaining tabs (available in specialized stores).

Fig. 3 The washer-dryer must be connected to a drain.

• The drain hose is already fixed to the sewage connection. Pull the hose out of the clamps and unwind it.
• Connect the other end to the drainpipe (Option B, hose end at least 60cm high) or place the end of the hose in a sink or washbasin (Option A, end of hose at a maximum height of 100cm).

Note:

Suitable hose holders are available as optional accessories.

Fig. 4 Connect the water inlet to the water system (3/4") using the supplied hose and make sure that everything is connected correctly and firmly. The water pressure must be between 0.05 MPa and 1 MPa. A pressure reducing valve must be used if the water pressure is exceeds 1 MPa.

Note:

• If the water pipes are new or have not been used for an extended period of time, allow a certain amount of water to drain until you are sure that the water is clear and free of foreign objects.
• If this point is not observed, there is a risk that the water inlet will become clogged and the unit will be damaged.
• The sewage and tap water connection must be checked on a regular basis.

Fig. 5 Plug the mains plug into a suitable socket.

Preparation Before first use

• Make sure the transport restraints on the back of the unit have been removed.
• Remove all accessories and other materials from the washing drum.
• Before washing clothes for the first time, run the appliance without any clothes but some detergent in the "Cotton" program, see Start washing.

Note:

Before using the product for the first time, make sure, that all hydrophilic connections of the product are correctly sealed and connected to both the device as well as the water mains. Check all connections periodically to avoid possible leakage.

Calibration

It is recommended to calibrate the washer-dryer.

1. Empty the washer-dryer.
2. Switch the washer-dryer on and press
   TEMPERATUR and TROCKNEN buttons at the same time and for 10 seconds so that [t19] is shown in display.
3. Press the Start / Pause button to start the washer-dryer and wait until [****] is displayed.

Operation

Fig. 6 Preparation of the garments

Caution

• Do not wash and dry fabrics that are not suitable for machine wash or drying. Observe the instructions on the care label of the laundry.
• Hard or pointed foreign objects (e.g. nails, coins) can damage the laundry as well as the washer-drier.

• Never wash and dry laundry soaked with gasoline, thinner, alcohol or solvents.

• Check the pockets of all laundry and empty them. Make sure, that no lighters, coins etc. are left in the pockets.

• Before washing, remove dirt, stains and hair from the laundry, e.g. by pre-soaking and pre-washing by hand.
• Sort the laundry according to colors and the washing procedures and washing temperatures indicated on the care labels. Do not wash white laundry together with coloured laundry but separate. Newly bought coloured laundry must be washed separately, to avoid inadvertent discoloration of other garments.
• Turn applications such as buttons and embroideries inwards. If necessary, close zippers, buttons or hooks before washing, and tie loose straps or loops together.
• Wash brassiere in a laundry bag to prevent the steel hangers from loosening. In particular, fine textiles such as curtains, crochet work or small articles (socks, handkerchiefs, neckties, etc.) should be washed in a closed laundry bag.
  • Always remove removable parts such as hooks, eyelets, e.g. from curtains.

English

• During the washing of large and heavy single items such as bedclothes, covers, bath towels, jeans, lined winter jackets, etc., the drum can become unbalanced especially during spinning. To minimize imbalances always wash several clothes together as one load.
• Linting clothes should be washed and dried separately, otherwise you will have visible lint on all clothes, especially on black clothes.

Fig. 7 Fill the laundry

• Untangle the garments and place them neatly into the washing drum.
• If possible use the max. loading capacity, but do not overload the washer-dryer. Do not cram the laundry in the washing drum but load it in a way that the laundry is still being circulated during the washing process. Different sizes and thicknesses of the laundry influence the loading capacity.
• Close the door, making sure that no laundry is trapped between the door and the seal.
• Make sure to avoid imbalances when washing heavy/ bigger pieces of laundry.

Selecting and filling in detergent

Caution

• Keep detergents out of the reach of children!
• Observe the instructions of the detergent regarding dosage and storage.

• Detergent compartment C has no function and must not be filled!

• Only use detergents suitable for washing machines and make the right selection, taking into account the kinds of laundry to be washed (cotton, colored, white etc.). Consider the instructions and recommendations provided by the supplier of the detergent.

• Do not use bleach, as it can damage the washer-dryer as well as the laundry.

Fig. 8 4. Open the detergent drawer. Note the different compartments:

A: Detergent for main wash, option 1 for washing powder, option 2 for liquid detergent
B: Fabric softener for rinsing
C: Detergent for pre-wash

1. Fill in laundry detergent and fabric softener according to the manufacturer's instructions. Note on foam detection: If too much detergent is used, excessive foam is formed. The foam formation is automatically checked and excessive foam is removed.

2. Close the detergent drawer by pushing it in completely.

Start washing and drying

1. Turn on the washer-dryer with the on/off switch.
2. Use the program selector to select a suitable program and, if necessary, a suitable additional function. Please refer to the following Program table.
3. Use the TEMPERATUR button to change the temperature of the washing program if the preset temperature does not meet your requirements. The higher the temperature the more energy is consumed. The drying program is automatically adjusted, depending on the selected washing program and no manual changes, e.g. the temperature, can be made.
4. If necessary use the SCHLEUDERN button to select a different spin speed if the preset speed does not meet your requirements. The higher the spin speed, the drier but also more creased the laundry will be. High speeds also reduce the life of the washer-dryer.

Note:

Only use low spin speeds for delicate garments.

1. By pressing the additional function button MODUS, select one of the additional functions, ↓ pre-wash, extra rinse or ➕ quick wash, if necessary. Press the steam button DAMPF to steam the laundry in the appropriate programs (see markings on the control panel) to eliminate germs and odors. The steam is held for 15 to 30 minutes, depending on the program setting and before the washing program starts.

2. By pressing the TROCKNEN button, select the drying level. The standard setting is normal dry. If you press the TROCKNEN button once, the laundry will be very dry. If you press it again, you will enter the time setting mode for the drying time. The drying time can be set from 0:40 to 3:10h:min in 30 minute steps. If you then press the TROCKNEN button again, you will activate the slightly dry setting.

3. Start the washing process by pressing the start / pause button.

4. Press the timer button ZEITVORWAHL to set a later time for the machine to start. By pressing the button several times a start time of 1 to 24 hours can be set in 1-hour increments. To do so, follow the steps 1 to 6, then use the ZEITVORWAHL button to set the start time, wait until the display shows the wash time and then press the start / pause button. If the preset time has elapsed, the washer-dryer will automatically turn on and the washing time will be shown in the display.
5. You can also create your own program and save it under program point Mein Programm (My cycle). Turn the program selector to your desired program. Set the required temperature, spin speed and special functions. Then press the TEMPERATUR I♥ button for 3 seconds to save the settings. The program remains stored and can be changed at any time as described above.

Caution

The door may only be opened if the appliance is not running, e.g. after a program has finished. Do not try to open the door while the appliance is running.

Note:

The appliance is equipped with a humidity sensor to measure the moisture in the drum or appliance. The residual time for drying is determined by the weight of the inserted clothes and the measured moisture.

1. For drying clothes washed elsewhere or wet clothes chose the program Trocknen (drying) and start it with the start / pause button.

English

Fig. 9 Washing and drying program table

Program
Program nameShort explanation of the program and for which fabrics it's suitable	Max load in kgTemperature that can be selected in °CSpin speed than can be selected in rpmOther settings which can be selected with this program
Baumwolle (Cotton)Hard-wearing fabrics, heat resistant fabrics made of cotton or linen	Max. 8 / 6 kgCold/20/40/60/900/400/600/800/1000/1200/1400Timer, Prewash, Extra rinse, Quick wash, Steam (SpaCare), Dry level
MixMixed load of cottons and synthetic fabrics	Max. 4 / 4 kgCold/20/40/60/900/400/600/800/1000/1200/1400Timer, Prewash, Extra rinse, Quick wash, Steam (SpaCare), Dry level
Waschen und Trocknen** (Wash and dry)Standard program for washing and subsequent drying	Max. 6 / 6 kgCold/20/40/60/900/400/600/800/1000/1200/1400Timer, Dry level
Trocknen (Dry only)For drying laundry with a selectable dry level. The drying time differs according to the load	Max. - / 6 kg//0/400/600/800/1000/1200/1400Timer, Dry level
20°CWashing brightly colored clothes for better protection of colors	Max. 8 kgCold/200/400/600/800/1000/1200/1400Timer, Extra rinse, Quick wash
Baby Wäsche (Baby Care)Suitable for baby laundry. Keeps the laundry soft and supple to protect the tender baby skin	Max. 4 / 4 kgCold/20/40/600/400/600/800/1000/1200/1400Timer, Prewash, Extra rinse, Quick wash, Steam (SpaCare), Dry level
Schnell 15min/ 1h Wasch-Trocken-Programm (Quick 15min/ 1h wash-dry program)For small loads of synthetic clothing or shirts. The maximum load is 2 kg (approx. 8 shirts). The duration is only 1 hour including washing and drying.Note: Large towels or jeans are not suitable for this program, they extend the time and affect the moisture content.	Max. 2 / 1 kgCold/20/400/400/600/800Timer, Dry level
IntensivTo increase the washing effects, washing time is increased.	• Max. 8 kg• Cold/20/40• 0/400/600/800/1000/1200/1400• Timer
Eco 40-60*Default 40°C, not selectable, suitable for energyefficient washing of 40-60°C cotton laundry	• Max.8 kg• Cold/20/40• 0/400/600/800/1000/1200/1400• Timer
Wolle (Wool)Hand or machine-washable wool or richwool textiles. Especially gentle wash programme to prevent shrinkage, longer programme pauses (textiles rest in wash liquor)Note:- Wool is of animal origin, e.g. Angora, alpaca, llama, sheep- Use a detergent that is suitable for machine washing wool	• Max. 2 kg• Cold/20/40• 0/400/600/800• Timer, Extra rinse
Schleudern & Spülen (Rinse & Spin)Extra rinse or spin with selectable speed	• Max. 8 kg• /• 0/600/800/1000/1400• Timer, Extra rinse
Nur Schleudern (Spin only) • Max. 8 kg	• /• 0/600/800/1000/1400• Timer
Trommelreinigung (Drum clean)For sterilization of the drum	• /• 90• /• Timer

\* Standard program: eco 40-60.

The eco 40-60 program is able to clean normally soiled cotton laundry declared to be washable at 40^ C or 60^ C, together in the same cycle, and this program is used to assess the compliance with the EU ecodesign legislation.

** The wash and dry program is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle, and dry it in such a way that it can be immediately stored in a cupboard. This program is used to assess the compliance with the EU ecodesign legislation.

English

Clothes

	Blended Coats:about 800 g
	Jackets:about 800 g in cotton
	Jeans:about 800 g
	Towel Quilts:about 900 g in cotton
	Single Sheets:about 600 g in cotton
	Work Clothes, upper and lower:about 1120 g in cotton
	Pajamas:about 200 g
	Shirts:about 300 g in cotton
	Undershirts:about 180 g in cotton
	Underpants:about 70 g in cotton
	Socks:about 30 g in blended material

Child protection

Fig. 10 Once the child protection is activated, selected settings cannot be changed. The appliance can only be switched off with the on / off switch, whereby settings and wash progress are saved and the washing process can be continued after switching the machine back on. The child protection can only be activated if the appliance operation was started or is running either directly or by time delay.

1. Activation: Press the ZEITVORWAHL and DAMPF buttons at once for at least 3 seconds. The corresponding symbol of the control panel indicates the child protection

2. De-activation: Press the ZEITVORWAHL and DAMPF buttons again at once for at least 3 seconds. The corresponding symbol of the control panel turns off.

Disabling the alarm sound

To permanently deactivate the signal tone, press the SCHLEUDERN button for at least 3 seconds while the washer-dryer is switched on. To turn on the signal, press the SCHLEUDERN button again for at least 3 seconds while the appliance is on.

Cleaning and care

Warning

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Switch off the appliance and let it cool down completely before cleaning.
• Clean the exterior surfaces of the product with a slightly damp cloth and dry them well. Make sure that no water enters the product interior (e.g. at the switch).

Fig. 11 Cleaning the detergent drawer

• Pull out the drawer. Press the tab marked with an arrow above the fabric softener compartment and pull out the drawer completely.
• Wash the chambers with water.
• If necessary, use a soft brush to clean the housing.
• Insert the detergent drawer.

Fig. 12 Clean the filter of the lye pump

Caution

• Never operate the appliance without a filter.
• The filter of the lye pump prevents foreign objects from entering and possibly damaging the pumping system.
• Clean or check the filter regularly depending on the frequency of use, approximately once a month.
• Check the filter if the water is not pumped out or if the noise is increased during pumping.
• Before opening the service flap, place a big cloth in front and below the flap. Large amounts of water may leak when removing the filter.

• Make sure that all water has been pumped out during the previous wash cycle, then turn off the power and unplug the power cord.
- Open the maintenance flap.
- Place a big piece of cloth and a collecting tray in front of the service flap to catch any leaking water.
- Turn the filter cover to the left. Catch leaking water!
- Clean the filter under running water and remove any foreign objects.
- Insert the filter and turn it to the right. Make sure that the filter is properly fixed so that no water can leak.
- Close the maintenance flap.

Fig. 13 Clean the inlet filter

Caution

• Close the water supply!
  • After cleaning, always make sure that the water hose is properly installed and no water leaks.

Filter at the water tap

Clean the filter if there is an insufficient flow of water when the water tap is open.

• Close the water tap.
• Unscrew the supply hose from the water tap.
• Wash the inlet filter under running water.
• Reconnect the supply hose.

Filter at the appliance

Clean the filter regularly, approximately every three months.

• Unscrew the supply hose on the back of the unit.
• Clean the filter with a small brush.
• Reconnect the supply hose and ensure it's properly sealed and doesn't leak.

English

Drum clean

• Use chlorine-free cleaning agents and a soft sponge for cleaning the drum. Do not use abrasive cleaners or means, e.g. steel wool, to clean the drum.
• When washing with low temperatures and / or liquid detergents, there is a risk of germs and odors forming in the washer-dryer.
• If there is an odour noticeable in the drum, run the program

Trommelrng. (drum clean) without laundry. It's not required to add detergent for this.

- It's recommended to wash the drum every month.

Descaling

Descaling is not necessary if the detergent is dosed correctly. If you want to descale the drum, proceed according to the descaling agent manufacturer's instructions. You can obtain suitable descaling agents from retailers.

Technical data

Rated Voltage : 220 - 240 V\~, 50 Hz

Rated power : 1900 W (washing)
1300 W (drying)

Protection class : I

Max. capacity : 8 kg (washing) 6 kg (drying)

Dimensions : 595 x 475 x 850 mm

Protection degree : IPX4

Inlet water pressure : 0.05 - 1 MPa

Inlet water temperature : Cold

Ambient temperature : > 0°C

Notes concerning the energy- and water consumption of the washer-dryer

• The most efficient programs in terms of energy consumption are generally those that perform at lower temperatures and longer durations.
• Program time as well as energy- and water consumption depend on various factors, such as weight and type of the laundry, chosen functions, characteristics of the water etc.
• For only slightly or normally soiled laundry, decrease the temperature of the program, as the device uses less energy this way.
• Refrain from using the pre-wash function to save water as well as energy.
• Use the maximum spin speed available if the laundry will be dried in a dryer afterwards, as the remaining moisture content will be lower, which in turn saves energy during the later drying process. Note, that noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.
• Load the household washer-dryer up to the maximum capacity of each program to reduce the energy- and water consumption.

Recommendations on the type of detergent

Consider below notes in order to improve the cleaning result, while reducing the energy consumption as well as environmental impact:

• Dose the detergent based on the recommendations / requirements of the supplier, while considering the mass and soiling level of the laundry.
• Do not mix different detergents and / softeners.
• Do not use detergents that are based on solvents or corrosive ingredients.
• Use detergents, that are activated at lower temperatures to save energy.

ATTENTION: Wrong dosing of detergents, softeners or other additives may damage the product.

Below table shall serve as a guideline for the correct choice of the program, temperature and detergent:

Type of clothing Program	Temperature of the	washing program	Recommended detergent
White textiles, made from cotton or other organic fibers	Cotton 20°C – 90°C General purpose		laundry detergent
Colored textiles, made from cotton or other organic fibers	Mix 20°C – 90°C Color-care laundry		detergent
Delicate textiles, e.g. silk	Quick 15min < 20°C Mild detergent
Textiles made from synthetic fibers and mixed textiles	Mix 20°C – 60°C Specialty laundry		detergent
Sports textiles made from micro fibers	Mix 20°C – 60°C Specialty laundry		detergent
Woolen textiles Wool 20°C – 40°C Specialty laundry			detergent / mild laundry detergent
Baby clothing Baby wash 20°C – 60°C Specialty laundry			detergent
Jeans / Denim Jeans	20°C – 90°C General purpose		laundry detergent / Specialty laundry detergent

Note: The table serves only as a reference and a general recommendation. For the correct dosage as well as temperature, always observe the information in your clothing as well as the on the packaging of the detergent.

English

Error codes

Code	Meaning Possible causes Solution
E30 Door lock problem Door is not closed properly Restart after the door is closed again.
E10 Water injection problem while washing	Tap is closed or water flows too slow.Inlet valve filter is blocked.Inlet hose is twisted	Open the tap or wait till the water supply becomes normalCheck the inlet valveStraighten the hose
E21 Drain problem during washing	Outlet hose is blocked or twistedDrain pump is blocked	Clean and straighten the outlet hose.Clean drain pump filter
E12 Water overflow	Water remains in the appliance	Restart the appliance
EXX Others • - • Restart the appliance. If the problem persists, please contact the customer service

Troubleshooting

If there are any problems during operation, please refer to the following table. If the problems cannot be solved as indicated under Solution or if spare parts for self-repair are necessary, please contact the service center. The respective hotlines are noted in the warranty card, provided with this product. Please note, that improper self-repair can lead to hazards as well as voidance of the warranty and should be refrained from, if in doubt.

Problem Possible causes Solution
Product does not work and/or indicator/display does not light	Interrupted power supply	Check the power supply
Door cannot be opened	Machine's protection mechanism is active	Disconnect from the power
Heating fault	NTC (temperature sensor) is damaged or heating pipe is aging	Contact the service center
Water leakage	Connection between inlet pipe or outlet hose and tap or washer-dryer is not tight.Drain pipe is blocked	Check and fasten the water pipesClean up outlet hose
Water is overflowing from the bottom of the machine	The inlet pipe is not connected firmly.Outlet hose has water leakage	Fix the inlet pipeReplace the drain hose
Washing result is not satisfying	The clothes are too dirtyInsufficient detergent quantity	Select a proper programAdd proper detergent quantity
Abnormal noise / Strong vibrations	Check if transport restraints have been removedMachine is installed on solid floorCheck if any metal parts (e.g. from embroideries) are inside the drumAdjust the feet of the machine

Program parameters according to (EU) 2019/2023 Annex II No 9, 2
KWDR 8632 B INV

Program Capacity (kg)		Program Duration (h:min)	Energy consumption (kWh/cycle)	Water consumption (liters/cycle)	Maximum temperature reached* (°C)	Remaining moisture content (%)	Spin Speed (rpm)
eco 40-60 rated	(8.0) 3:38 0.871 64.0	38 53.9 1400
eco 40-60 1/2 rated	(4.0) 2:48 0.53			46.0 38		53.9 1400
eco 40-60 1/4 rated	(2.0) 2:48 0.205	33.0 21 53.9 1400
Cotton rated (8.0)	3:44 1,498 70.0 60	53 1400
Quick 15'	rated (2.0)	0:15	0.03	40.0	cold	75	800
Intensive	rated (8.0)	3:48	1.1	70.0	40	70	800
Mix	rated (8.0) 1:20 0.75	65.0 40 65 1000
20°C	rated (4.0) 1:01 0.15	50.0 20 65 1000
Wash & Dry	rated (6.0) 9:30 4.4	108.0	39	0	1400
	rated (3.0) 6:40 2.4	63.0 27		0	1400

Note: The values given for programs other than the "eco 40-60" program are indicative only
* for minimum 5 minutes inside the laundry being treated in the washing cycle
