Product Type	Powerline Network Adapter
Brand	TP-Link
Model	PG1200
Data Rate	Up to 1200 Mbps
Standards	HomePlug AV2, IEEE 1901, IEEE 802.3
Interface	1 x 10/100/1000 Mbps Gigabit Ethernet Port
Range	Up to 300 meters over electrical wiring
Security	128-bit AES Encryption
Power Consumption	Typical <3W
Dimensions (W x D x H)	95 x 55 x 38 mm
Weight	Approximately 150g
Operating Temperature	0°C to 40°C
LED Indicators	Power, Powerline, Ethernet
Plug Type	UK (Type G) - vary by region
Package Contents	1x Adapter, 1x Ethernet Cable, Quick Installation Guide
Compatibility	Any router with Ethernet port; all TP-Link Powerline devices
Configuration	Plug and Play, no configuration required
Maintenance	Keep clean and dry; avoid moisture and dust
Safety Certifications	CE, FCC, RoHS
Repairability	No user-serviceable parts; contact TP-Link support

Frequently Asked Questions - PG1200 TP-LINK

How do I set up the TP-Link PG1200 powerline adapter?

Plug the adapter into a wall socket and connect it to your router using the provided Ethernet cable. Then plug a second adapter (sold separately) into another socket and connect it to your device. The adapters will automatically pair. No configuration needed.

What is the maximum data speed of the PG1200?

The PG1200 supports speeds up to 1200 Mbps under ideal conditions. Actual speeds may vary depending on the quality of your home's electrical wiring and distance.

Can I use the PG1200 with other TP-Link powerline models?

Yes, the PG1200 is compatible with all TP-Link Powerline adapters that support the HomePlug AV2 standard. They can be mixed and matched to extend your network.

Does the PG1200 support Wi-Fi?

No, the PG1200 is a wired powerline adapter with only an Ethernet port. To add Wi-Fi, consider a TP-Link powerline extender with built-in Wi-Fi, such as the TL-WPA series.

How do I reset the PG1200 to factory defaults?

Locate the Reset button on the side of the adapter. Use a paperclip to press and hold it for about 10 seconds until the LEDs blink. The adapter will reboot and clear all settings.

What do the LED indicators mean?

Power LED: solid when powered. Powerline LED: solid or blinking to indicate connection quality. Ethernet LED: solid when a device is connected and data is transmitting.

Can I plug the PG1200 into a power strip or surge protector?

For best performance, plug the adapter directly into a wall socket. Power strips and surge protectors may filter the powerline signal and reduce speed or cause intermittent connection.

How do I secure my powerline network?

The PG1200 uses 128-bit AES encryption by default. All paired adapters share a unique encryption key. To add a new adapter securely, use the Pair button on each device to synchronize keys.

What should I do if the Powerline LED is off or blinking?

Check that both adapters are plugged into working sockets and are on the same electrical circuit. Try pressing the Pair buttons to re-sync. If the LED remains off, contact TP-Link support.

Is the PG1200 compatible with my internet service provider (ISP) router?

Yes, the PG1200 works with any router that has an available Ethernet port. It simply extends your existing network via your home's electrical wiring, independent of ISP.

USER MANUAL PG1200 TP-LINK

Chapter 1. Get to Know Your Powerline Adapter .....2

1. Product Overview....3 1.2. Product Appearance.... 3

Chapter 2. Use Your Powerline Adapter....5

2.1. Before You Start 6 2.2. Extend Your Wired Network by Plug & Play 7 2.3. Secure Your Powerline Network by Pairing....8 2.4. Add Another Powerline Adapter....9 2.5. Manage Your Powerline Network via a Web Browser 10

FAQ (Frequently Asked Questions) 11

About This Guide

This guide is a complement to the Quick Installation Guide. The Quick Installation Guide provides instructions for quick internet setup, while this guide contains details of each function and demonstrates how to configure them in typical scenarios.

When using this guide, please note that features of the powerline adapter may vary slightly depending on the model and software version you have. The powerline adapter availability may also vary by region or ISP. All images, steps, and descriptions in this guide are only examples and may not reflect your actual powerline adapter experience.

*G.hn powerline devices are not compatible with HomePlug AV and AV2 Standard Powerline adapters. This product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or are non-standard or outdated.

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

*Maximum Powerline signal rates are the physical rates derived from G.hn specifications. Actual Powerline data throughput and Powerline range are not guaranteed and will vary as a result of network conditions and environmental factors, including electrical interference, volume of traffic and network overhead, AFCI circuit breaker, and Powerline being located on a separate circuit.

Conventions

In this guide, the following conventions are used:

Convention	Description
Teal Underlined	Hyperlinks are in teal and underlined. You can click to redirect to a website or a specific section.
Teal	Key information appears in teal, including management page text such as menus, items, buttons and so on.
Note:	Ignoring this type of note might result in a malfunction or damage to the device.
Tips:	Indicates important information that helps you make better use of your device.

More Info

- The latest software, management app, and utility are available from the Download Center at https://www.tp-link.com/support/.

- The Quick Installation Guide (QIG) can be found where you find this guide or inside the product package.

- Specifications can be found on the product page at https://www.tp-link.com.

- A community is provided for you to discuss our products at https://community.tp-link.com/.

- Our Technical Support contact information can be found at the Contact Technical Support page at https://www.tp-link.com/support/.

Chapter 1

Get to Know Your Powerline Adapter

This chapter introduces what the powerline adapter can do and describes its appearance.

It contains the following sections:

• Product Overview • Product Appearance

1.1 Product Overview

TP-Link powerline adapter aims to extend your existing home network, with the help of your home's electrical circuit.

1.2 Product Appearance

Your powerline adapter may differ in appearance slightly from that depicted because of the region and product version.

1.2.1 LED Indicators

LEDs indicate the powerline adapter's working status. For more details, please refer to the following table.

Name Status Indication
Powerline	Off The powerline adapter is off..
	Blink Green	Quickly: The powerline adapter is pairing or upgrading firmware.Slowly: Power-Saving Mode is on.*
	Solid Orange	The powerline adapter is not connected to a powerline network.
	Solid Green	The powerline adapter is connected to a powerline network.
Ethernet	On The Ethernet port is connected.
	Off The Ethernet port is not connected.

* Five minutes after the device connected to the powerline adapter is turned off or inactive, the powerline adapter will automatically switch to Power-Saving Mode.

1.2.2. Physical Interface

Note: European version is used for demonstration in this guide.

Power Plug

The powerline adapter has a plug that can be connected to any power socket.

Pair Button

Press and hold the button for 1 second to join a powerline network. Go to Secure Your Powerline Network by Pairing for more information.

Press and hold the button for more than 6 seconds to reset the powerline adapter to factory defaults.

Ethernet Port

Connect the Ethernet port to your wired devices, such as a computer, a router, or a game console, via an Ethernet cable.

Chapter 2

Use Your Powerline Adapter

This chapter guides you on how to use the powerline adapter.

It contains the following sections:

• Before You Start
• Extend Your Wired Network by Plug & Play
• Secure Your Powerline Network by Pairing
• Add Another Powerline Adapter
• Manage Your Powerline Network via a Web Browser

2.1. Before You Start

Powerline adapters work in pairs. You should have at least two powerline products to build a powerline network. To optimize your network performance, please follow these principles:

• All powerline adapters should be on the same electrical wiring system.
• Avoid plugging in powerline adapters and high-powered household devices (such as washing machines and refrigerators) close to one another.

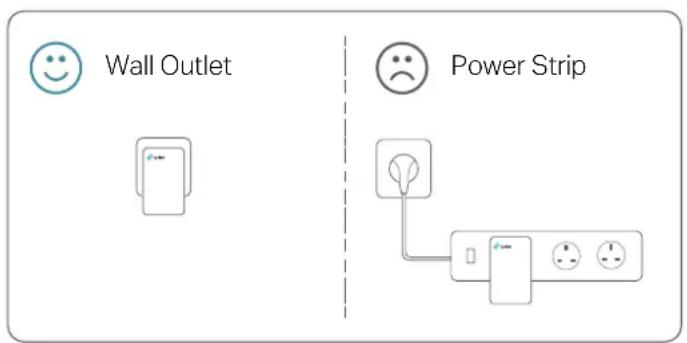

• Plug the powerline adapter directly into a wall outlet. Do not plug the powerline adapter into a power strip, extension cord, or surge protector.

- Environment:

Operating Temperature: 0 °C \~ 40 °C

Operating Humidity: 10%\~90%RH, Non-condensing

2.2. Extend Your Wired Network by Plug & Play

I want to:

Use two powerline adapters to set up a new powerline network in my house.

For example, I have a router in my house, but there are not enough LAN ports for all my wired devices. I don't want complex and expensive cabling. People told me that I can solve this problem with two powerline adapters.

Note: G.hn powerline devices are not compatible with Homeplug AV/AV2 powerline devices.

How can I do that?

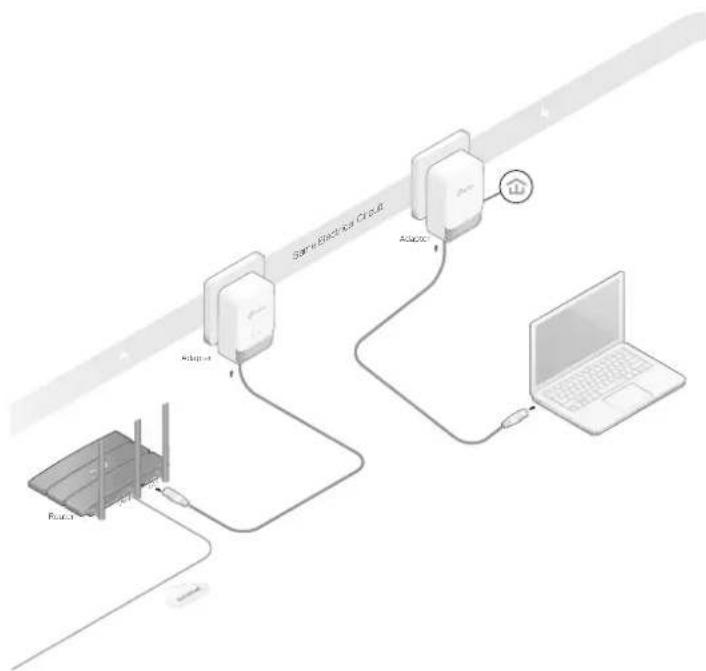

1. Connect one of the powerline adapters to an available LAN port of the router using an Ethernet cable.
2. Plug the powerline adapter into a wall outlet.
3. Plug the other powerline adapter into a wall outlet on the same electrical circuit. Wait until the Powerline LED turns solid green.
4. Connect your wired device, such as a computer or game console, to the powerline adapter via an Ethernet cable.

Done! Now enjoy the internet!

2.3. Secure Your Powerline Network by Pairing

All powerline adapters share some common factory settings, and can communicate with one another. If you want your powerline adapters to communicate only with your own powerline adapters, you should pair them. Thus a secured powerline network is formed and other powerline adapters can no longer join your powerline network without being paired.

Note: You can only pair two devices at a time.

I want to:

Secure my powerline network and prevent other powerline devices from being added to my network.

For example, I've extended my network using the Plug & Play method. Now I want to secure my network.

How can I do that?

1. Verify that the Powerline LEDs on all powerline devices are solid green.

Tips: We recommend that you plug in your powerline devices near each other, or as close to each other as possible when pairing. Your settings will not be affected. The devices can be relocated to where they are needed once pairing is complete.

1. Press the Pair button on one of the powerline devices for 1 second. Its Power LED starts blinking.
2. Within two minutes, press the Pair button on another powerline adapter for 1 second. Its Powerline LED starts blinking. When the Powerline LED turns solid green, the pairing process is complete.

Done! Enjoy your secure powerline network!

2.4. Add Another Powerline Adapter

I want to:

Add a new powerline adapter into the existing powerline network to extend my network. For example, I've already set up a powerline network using powerline devices, but the network does not reach everywhere I need it to. I purchased another one to further extend my network.

How can I do that?

1. Plug the new powerline adapter into a wall outlet near one of the existing powerline devices.

1. Wait for a minute, and check whether the Powerline LED turns solid green. If it's solid green, skip to step 3. If it's not, continue with step 2 to pair the new powerline adapter into the secured powerline network.

a. Press the Pair button on one of the existing powerline devices for 1 second. Its Powerline LED starts blinking. b. Within two minutes, press the Pair button on the new powerline adapter for 1 second. Its Powerline LED starts blinking. When the Powerline LED turns solid green, the pairing process is complete.

1. Relocate the new powerline adapter to the place where wired internet access is needed.

Done! Enjoy the internet through your extended network!

2.5. Manage Your Powerline Network via a Web Browser

The intuitive web management page allows you to easily manage your powerline devices. You can change the LAN settings of the powerline devices, configure advanced features such as Soft Pair, QoS, and more.

1. Download the utility on the product's Support page at https://www.tp-link.com/support/download/
2. Install and open the utility, move your mouse over a powerline device, and click the (Website) icon.

Tips: You can also use the IP address of the powerline device to visit its web management page. The IP address can be found on your router's client page.

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline adapter?

With the powerline adapter plugged into the wall socket, press and hold its Pair button for more than 6 seconds until the all LED go off.

Q2. What should I do if the Powerline LED is solid orange?

• Try another wall socket and make sure all powerline devices are on the same electrical circuit.
• Try to set up a powerline network by pairing. Refer to the section above Secure Your Powerline Network by Pairing for instructions.
• If the problem persists, contact our Technical Support.

Q3. How to troubleshoot if there is no internet connection via my powerline network?

• Make sure all powerline devices are on the same electrical circuit.
• Make sure the Powerline LEDs are solid green on all of your powerline devices. If they are not, pair all powerline devices according to Secure Your Powerline Network by Pairing.
• Make sure all devices are correctly and securely connected.
• Verify that you have an internet connection by connecting your computer directly to the modem or the router.

Q4. What can I do if a successfully-paired powerline device does not reconnect after it has been moved to a new location?

• Try another socket on the same electrical circuit.
• Try to pair it again, and make sure the Powerline LED is solid green.
• Check for possible interference due to washing machines, air conditioners or other household appliances. Some powerline devices have an integrated electrical socket. You can plug appliances into this socket to remove the electrical noise originating from them, using a power strip if necessary.

FCC compliance information statement

Product Name: G.hn1200 Powerline Adapter

Model Number: PG1200

Responsible party:

TP-Link USA Corporation

Address: 10 Mauchly, Irvine, CA 92618

Website: http://www.tp-link.com/us/

Tel: [phone]

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

We, TP-Link USA Corporation, have determined that the equipment shown above has been shown to comply with the applicable technical standards, FCC part 15. There

is no unauthorized change made in the equipment and the equipment is properly maintained and operated.

Issue Date: 2022.05.18

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

EU Declaration of Conformity

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.

The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016.

The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca

Canadian Compliance Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

1) This device may not cause interference 2) This device must accept any interference, including interference that may cause undesired operation of the device.

Industry Canada Statement

CAN ICES-3 (B)/NMB-3(B)

CAN ICES-6/NMB-6

BSMI Notice

Safety Advisory and Precautions

- Keep the device away from water, fire, humidity or hot environments.

• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Plug the powerline devices directly into the wall outlets but not the power strips.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

Fuse (F1): T2.5AL 250V

Operating Temperature: 0°C to 40°C

Explanation of the symbols on the product label

Symbols may vary from products.

Note: The product label can be found at the bottom of the product and its I.T.E. power supply.

Symbol Explanation
	Class II equipment
	Alternating current
	Indoor use only
	Protective earth
	Caution
	Operator's manual
	RECYCLINGThis product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.
