Product Type	Network Cable Tester
Brand	Noyafa
Model	NF-468PF
Dimensions	Approx. 10.5 x 5.5 x 2.5 cm
Weight	Approx. 95 g (with battery)
Power Supply	1 x 9V battery (6LR61)
Battery Life	Approx. 20 hours continuous use
Cable Types Tested	RJ45, RJ11 (6P4C), BNC, Coaxial (F-type)
Test Functions	Continuity, miswire, open, short, crossed, split pairs
Remote Unit	Included, ID numbers 1-8 for cable identification
Tone Generation	Not supported (no dedicated tone generator)
Indicator Type	LED indicators per wire pair
Auto Power Off	After approx. 10 minutes of inactivity
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Housing Material	ABS plastic
Maintenance	Clean with dry cloth; avoid moisture and solvents
Safety Precautions	Do not use on live circuits; test only de-energized cables
Spare Parts	Remote unit, 9V battery (user-replaceable)
Repairability	Not user-serviceable; for repair contact Noyafa support
Country of Origin	China

Frequently Asked Questions - NF-468PF Noyafa

How do I connect the NF-468PF for testing a network cable?

Insert one end of the cable into the main unit's RJ45 port and the other end into the remote unit's matching port. Turn on both units by sliding the power switch. The LEDs will indicate the wiring status.

What do the LED indicators mean?

Each LED corresponds to a wire pair (1-8). If the LEDs light up in sequence from 1 to 8, the cable is good. A skipped LED indicates an open wire; two LEDs lit simultaneously indicates a short. Flip the remote unit to check crossovers.

Can I test coaxial cables with this device?

Yes, connect the coaxial cable using the included F-type or BNC adapter. Insert into the coaxial test port on the main unit and remote. The LED for that port will indicate continuity.

What battery does the NF-468PF use?

It uses a standard 9V alkaline battery (6LR61). To replace, slide off the battery compartment cover on the back of the main unit, remove the old battery, and snap in a new one.

Why is my device not powering on?

Ensure the battery is installed correctly and has sufficient charge. Replace with a fresh 9V battery if necessary. Also check the power switch is slid to the ON position.

How do I interpret the LED sequence for a crossover cable?

For a straight cable, LEDs light in order 1-8. For crossover (e.g., 568B/568A), use the remote unit's swap positions: it will show 1-3, 2-6 swapped accordingly. Refer to the cable standard table in the manual.

Can I test live (powered) cables?

No, do not test cables that are connected to live equipment or carry voltage. The NF-468PF is for passive cable testing only. Risk of damage and electric shock.

What is the maximum cable length that can be tested?

The NF-468PF can test cables up to approximately 300 meters (1000 feet) in length. Longer cables may cause weak signals or inaccurate readings.

How do I clean and store the tester?

Wipe the exterior with a soft, dry cloth. Do not use chemicals or water. Store in a cool, dry place away from direct sunlight and moisture. Remove the battery if storing for extended periods.

Is the remote unit replaceable if lost?

Yes, replacement remote units for the NF-468PF are available from Noyafa or authorized resellers. Contact support for purchasing options.

USER MANUAL NF-468PF Noyafa

Cartoon illustration of a mouse wearing a graduation cap and holding a pencil, giving a thumbs-up (no text or symbols)

Your excellent helper in cable test!

Your excellent helper in cable test!

NEW!

INSTRUCTION MANUAL

Cable & PoE Tester

NF-468PF

NF-468PT

Cartoon mouse wearing a graduation cap and holding a pencil, giving a thumbs-up (no text or symbols)

VER: V1

Please read and learn safety instructions before use or maintain the equipment

• This cable tester can't test any electrified product.
  ● 9V reduplicated battery is used in this tester. Battery is advised to change if any weak light appears.
• Test can't be done while RJ45's copper screezers are not totally pressed. Any disobeys may lead to a permanent damage of the end!
• Please use quality tools to press the cables.
  ● Take out the battery if the tester isn't used for a long time.

Part 1:

PoE Tester

Description

The 802.3af/802.3at PoE Tester, connected to an RJ-45 outlet, allows one to test the live Ethernet cable and determine if power and data are present.and also identifies the type of Power Sourcing Equipment (either Endspan or Midspan)in your network.This unit is an easy-to-use Power over Ethernet adapter for professionals, businesses and home users to determine the existence of Power over Ethernet.

Item Description

1. Quickly and Easily test Ethernet network for Power over Ethernet existence
2. Quickly Identify the type of Power Source
3. Compliant with IEEE 802.3at /af PoE standard
4. RJ-45 Connector, simply plug in the cable
5. Compact design specifically tailored for system integrators and installers

Operation (NF-468PF)

1. Connect one end of Lan cable into RJ45 Port (PoE), and the other end into the port of POE Switch.
2. Power the POE equipment and switch on the device.
3. When the Led1 turns orange as below, it means midspan (45/78) is providing power.

4. When the Led2 turns green as below, it means endspan (12/36) is providing power.

5. When the Led1 turns orange, and also Led2 turns green as below, it means midspan & endspan (4 pair) is providing power.

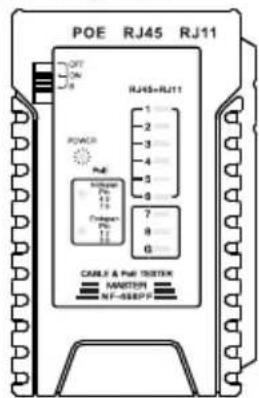

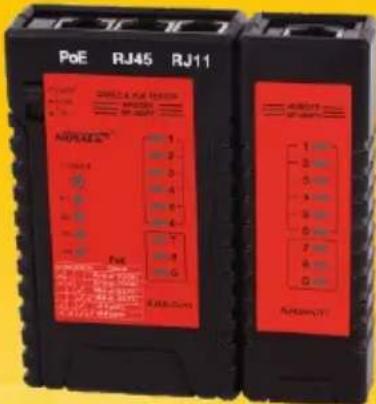

NF-468PF Main Tester

NF-468PF Remote Tester

Led 1(orange)	Led 2(green)	Result
√	×	Midspan (45/78)
×	√	Endspan (12/36)
√	√	4 pairs (1236 & 4578)

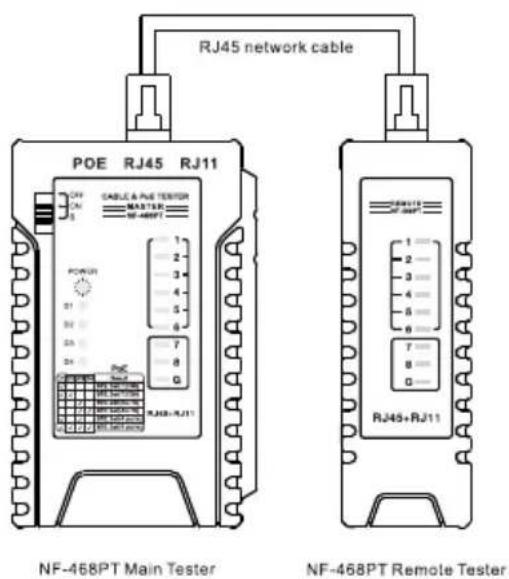

Operation (NF-468PT)

1. Connect one end of Lan cable into RJ45 Port (PoE), and the other end into the port of POE Switch.
2. Power the POE equipment and switch on the device.

Test result 1:

When the Led1 turns green as below, it means Endspan (12/36) is providing power, and it is 802.3af standard, the output power is 15.4W. (PD Max 12.95W)

Test result 2:

When the led1 turns green and Led2 turns blue as below, it means Endspan (12/36) is providing power, and it is 802.3at standard, the output power is 30W. (PD Max 25.5W)

Test result 3:

When the Led3 turns green as below, it means Midspan(45/78) is providing power. And it is 802.3af standard, the output power is 15.4W. (PD Max 12.95W)

Test result 4:

When the led3 turns green and Led4 turns blue as below, it means Midspan (45/78) is providing power, and it is 802.3at standard, the output power is 30W. (PD Max 25.5W)

Test result 5:

When the led1 & led3 both turn green, it means Midspan & Endspan (4 pairs) are both providing power, and it is 802.3af standard, the output power is 30W.

Test result 6:

When the 4 leds are on, it means Midspan & Endspan (4 pairs) are both providing power, and it is 802.3at standard, the output power is 60W.

Led 1(green)	Led 2(blue)	Led 3(green)	Led 4(blue)	Result
√	×	×	×	Endspan (1236)802.3af (over Data)
√	√	×	×	Endspan (1236)802.3at (over Data)
×	×	√	×	Midspan (4578)802.3af (over Spare)
×	×	√	√	Midspan (4578)802.3at (over Spare)
√	×	√	×	802.3af (4 pairs)
√	√	√	√	802.3at (4 pairs)

Part 2: Cable tester

T568B

T568A

8P8C

6P6C

PLUG

I. Functions

1. It can test corresponding double-twisted cable 1,2,3,4,5,6,7,8 and G, meanwhile, it can judge wrong connection, short circuit and open circuit.
2. "OFF" means Power off, "ON" means normal speed, "S" means Slow Speed.
3. Tickle the "LAMP" button, the light will be on

II. Operation (eg: RJ45)

Turn on the tester with battery, choose"ON" (Normal grade) or "S" (Slow grade). Connect the RJ45 cable with Main Tester and Remote Tester, the lights of the main tester will turn on sequentially from 1 to G as below:

Main Tester: 1-2-3-4-5-6-7-8-G

Remote Tester: 1-2-3-4-5-6-7-8-G

Following are abnormal connections:

1. If one cable, for example cable NO.3 is open circuited, the two NO.3 lights of the main tester and remote tester will not turn on.
2. If several cables are not connected, the corresponding lights will not turn on. If less than two cables are connected, none of the lights is on.
3. If two ends if a cable is disordered, for example NO.2 and NO.4, then display on:

Main Tester: 1-2-3-4-5-6-7-8-G

Remote Tester: 1-4-3-2-5-6-7-8-G

1. If two or more cables are short circuited, the corresponding lights won't be on of the remote tester while main tester remains normal.
   III. If test patch panels or wall plate outlets, two cables which can match each other (eg 110P4-RJ45) will be connected to the tester.

Test by RJ45 cable (NF-468PT/NF-468PF)

1. Switch on the power, choose "ON" or "S", the power light will turn on.
2. If UTP tested, the lights of the main tester and remote tester will turn on sequentially from 1 to 8 and circulates; If STP tested, the lights of the main tester and remote tester will turn on sequentially from 1 to G and circulates.
3. If the cable is breakage, disorder, short circuit, the result is as what was said above.
4. After operation, turn off the tester.

Test by RJ11/RJ12 (NF-468PT/NF-468PF)

1. Switch on the power, choose "ON" or "S", the power light will turn on.
2. If RJ11 cable tested, the lights of the main tester and remote tester will turn on sequentially from 2 to 5 and circulates. If RJ12 tested, the lights of the main tester and remote tester will turn on sequentially from 1 to 6 and circulates.
3. If the cable is breakage, disorder, short circuit, the result is as what was said above.
4. After operation, turn off the tester.

Function Comparison

Description	NF-468PF	NF-468PT
Verify RJ11 cable	√	√
Verify RJ45 cable	√	√
Detect PoE	√	√
Identify 802.3 at/af standard	×	√
Leds for PoE function	2	4

The difference among NF-468PF, NF-468PFL, NF-468PT and NF-468PTL

1. NF-468PFL: it has one more led lamp for working in dark than NF-468PF.
2. NF-468PTL: it has one more led lamp for working in dark than NF-468PT.
