Product Type	Solar Inverter
Model	LSG-3
Brand	Deye
Rated Power	3 kW
Input Voltage Range (DC)	200-800 V
MPPT Voltage Range	200-650 V
Max Input Current	15 A per MPPT
Number of MPPT Trackers	2
Output Voltage (AC)	230 V / 400 V (3-phase)
Output Frequency	50/60 Hz
Max Efficiency	98.4%
Dimensions (W x H x D)	400 x 300 x 150 mm
Weight	10 kg
Protection Class	IP65
Cooling	Natural convection
Operating Temperature	-25°C to +60°C
Communication	RS485, Wi-Fi (optional)
Display	LCD touch screen
Safety Certifications	IEC 62109, VDE-AR-N 4105
Warranty	5 years

Frequently Asked Questions - LSG-3 Deye

How do I install the Deye LSG-3 inverter?

Installation must be performed by a qualified electrician. Mount the inverter on a wall or structure using the provided bracket, ensuring proper ventilation. Connect the DC input from solar panels, the AC output to the grid, and the communication cables as per the manual. Refer to the installation guide for detailed steps.

What is the maximum input voltage for the LSG-3?

The maximum input voltage (DC) is 800 V. Do not exceed this limit to avoid damage to the inverter.

Can the LSG-3 operate during a power outage?

The LSG-3 is a grid-tied inverter and will shut down during a power outage for safety reasons (anti-islanding). To have backup power, you need a hybrid inverter with battery storage, such as Deye's hybrid models.

How do I clean and maintain the inverter?

Keep the inverter free of dust and debris. Use a dry cloth to clean the exterior. Check the cooling vents for blockages. Do not use water or solvents. Regular visual inspection is recommended.

What does the error code 'E01' mean on the display?

Error code E01 indicates a grid overvoltage condition. Check the AC grid voltage and ensure it is within the inverter's acceptable range. If the problem persists, consult a technician.

Is the LSG-3 compatible with Wi-Fi monitoring?

Yes, the LSG-3 supports an optional Wi-Fi module for remote monitoring via the Deye app. The module can be plugged into the communication port.

What is the warranty period for the Deye LSG-3?

The standard warranty is 5 years. Extended warranty options may be available from your installer.

Can I connect batteries to the LSG-3?

No, the LSG-3 is a standard grid-tied inverter without battery support. For battery storage, consider Deye's hybrid series.

How do I update the firmware on the LSG-3?

Firmware updates can be performed via the RS485 connection using the Deye Update Tool. Contact technical support for the latest firmware file and instructions.

What should I do if the inverter is not producing power?

Check if the DC input voltage is within range (above 200 V), ensure the AC breaker is on, and verify no error codes on the display. If all else fails, contact support.

USER MANUAL LSG-3 Deye

Installation/UserManual

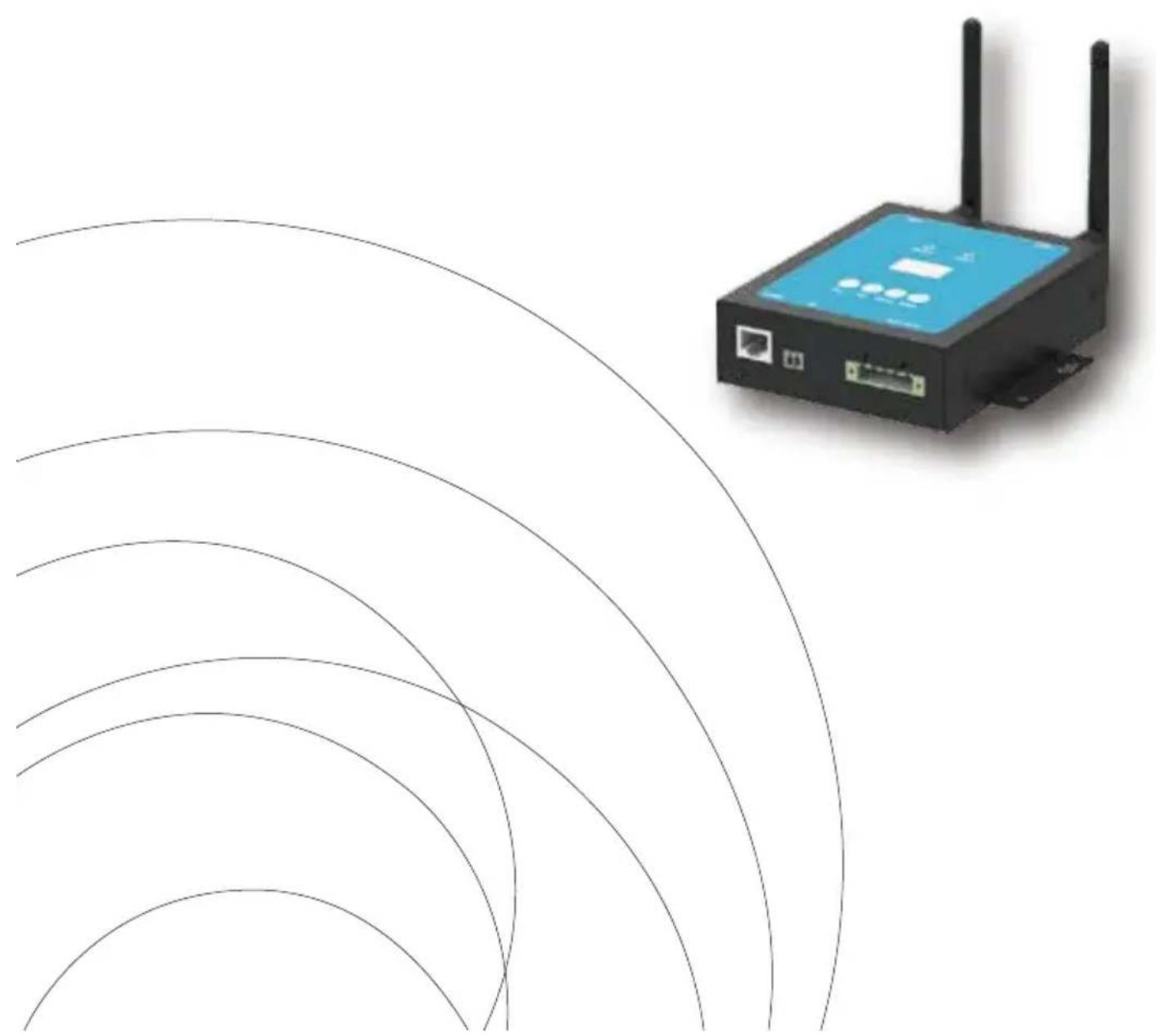

Energy Collect Device(MECD) & Energy Monitoring Analysis(EMA)

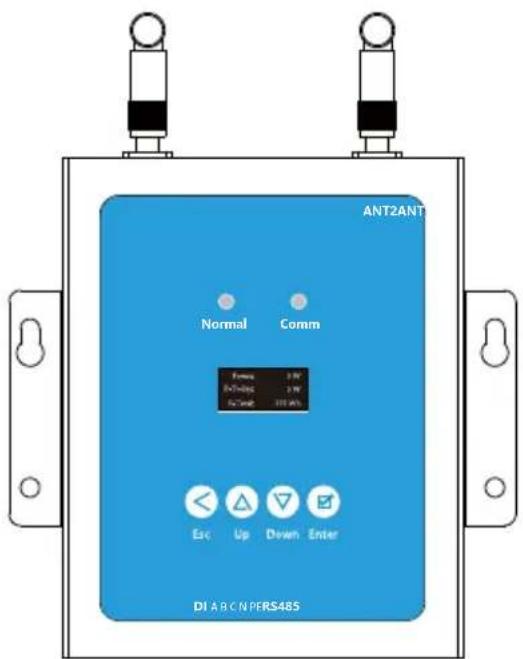

Illustration of a wireless router with two antennas and multiple curved lines, no text or symbols present.

Introduction

The MECD communications gateway collects and delivers modular performance data in real time, for comprehensive monitor and manage of your solar system, optimizing the performance of your solar system.

With built-in programmable DI, the MECD is able to control the microinverter connected shutdown immediately when the DI status is changed.

Features

User-friendly;

LCD display and buttons, easy operation;

Compact design and light in weight.

Capable

Built-in Zigbee, PLC and WIFI modular;

Compatible with single phase and three phase applications;

Enables remotely monitoring and management.

Safe

Support quick shutdown remotely for inverter;

Robust design, 3 years warranty.

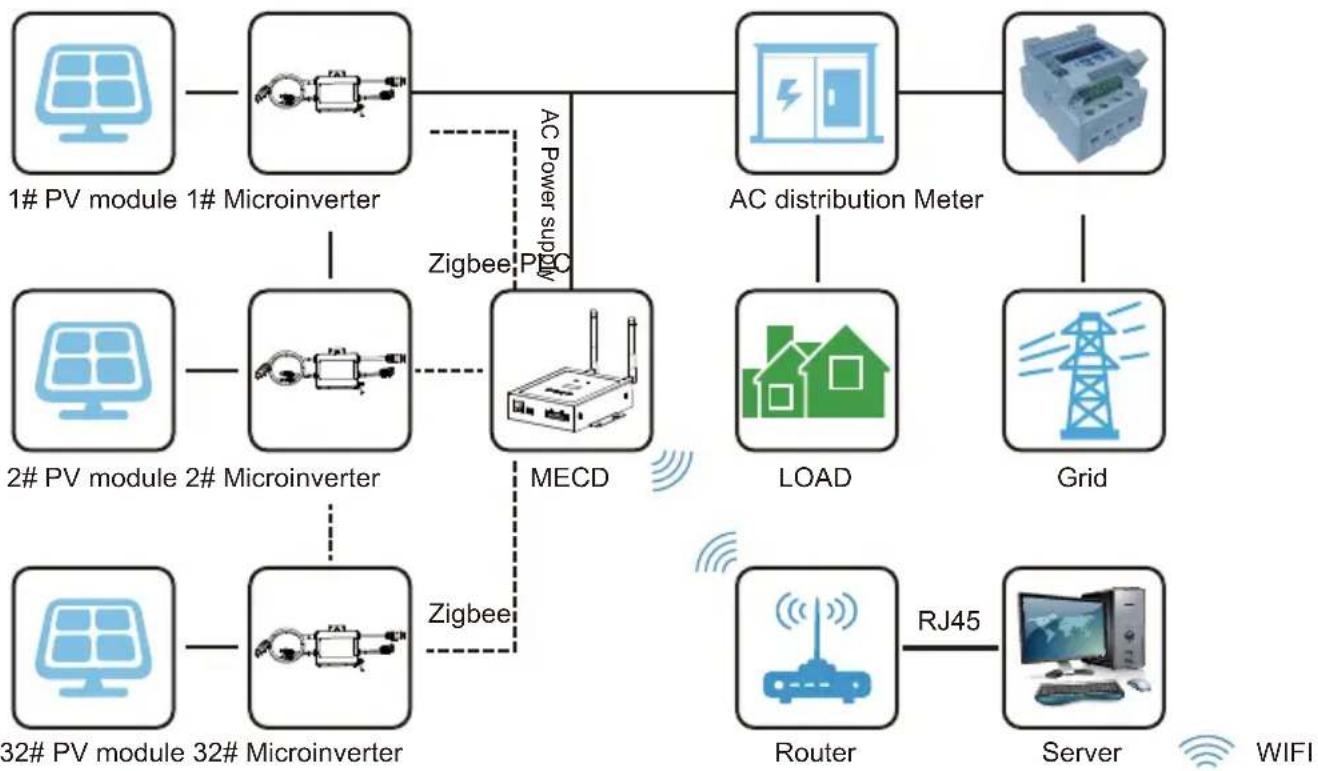

Application Diagram for Single Phase System(5#,10#,20#,32#Max)


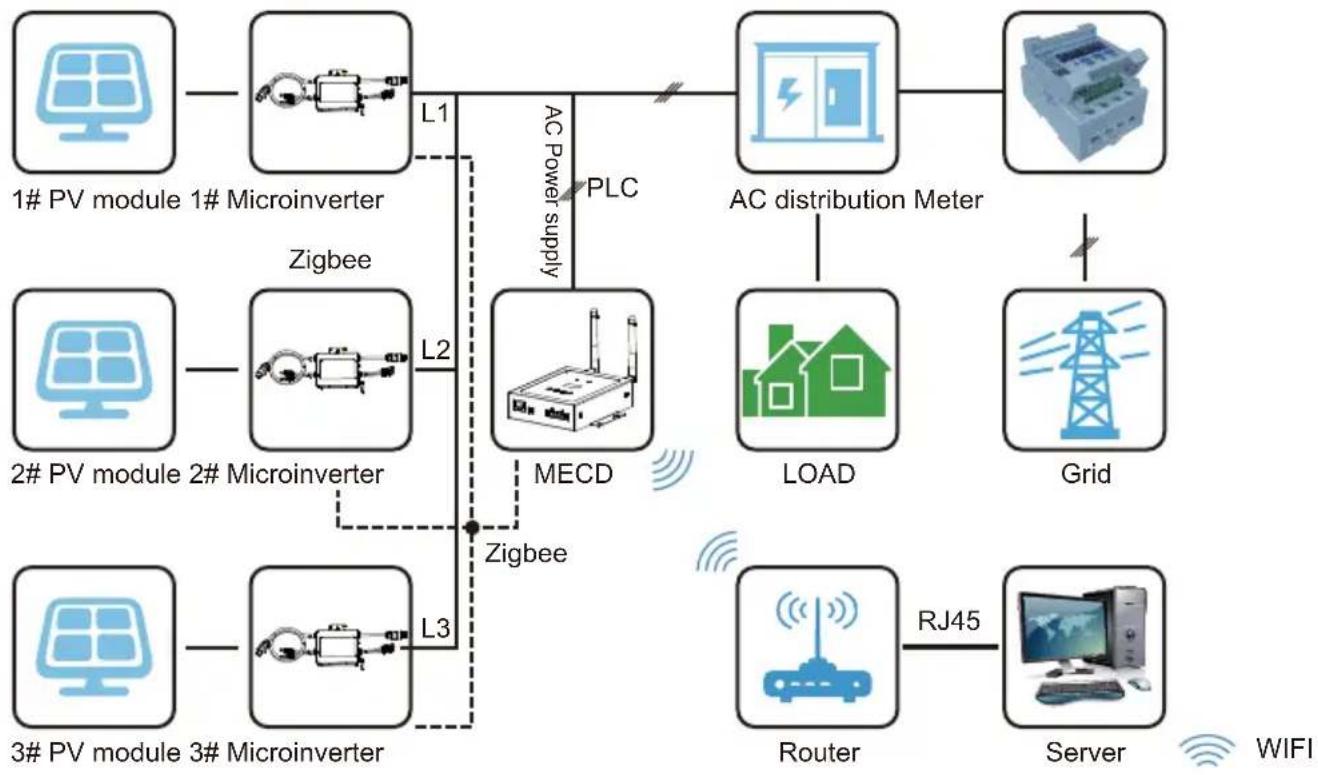

Application Diagram for Three Phase System

The maximum number of microinverters allowed for each branch depends on the model of the microinverter. And the total number of microinverses of the system is not allowed to exceed the maximum number of microinverter allowed of MECD.

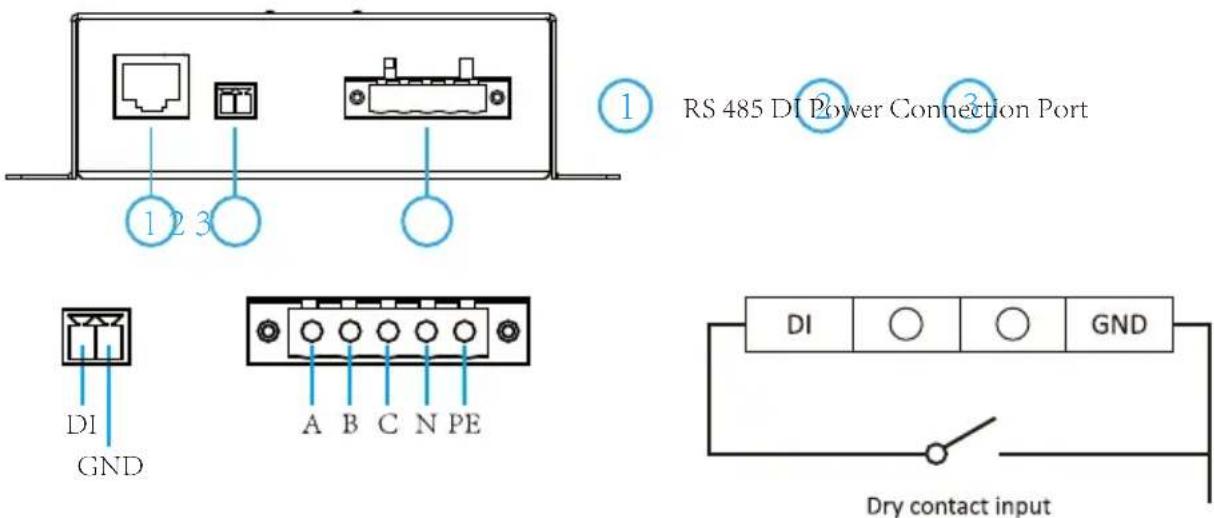

Interface Explanation

Interface position

All of the MECD interface as below, from left to right, are Network port, DI and Power Connection Port.

RS485: This port function is reserved.

DI: Digital input. When the DI status changed from 1 to 0, the MECD will send command to control the microinverter shutdown immediately via Zigbee or PLC.

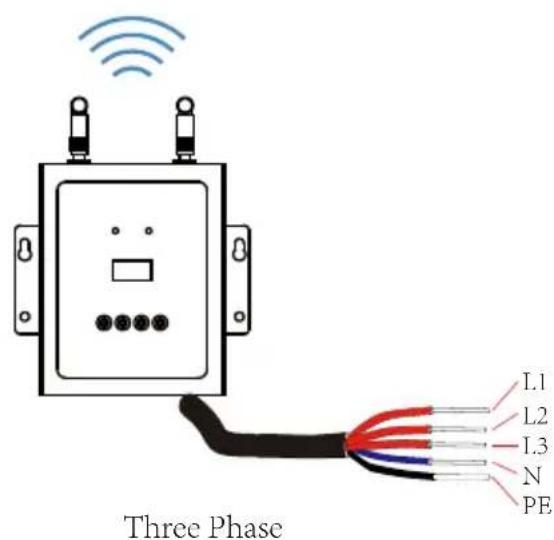

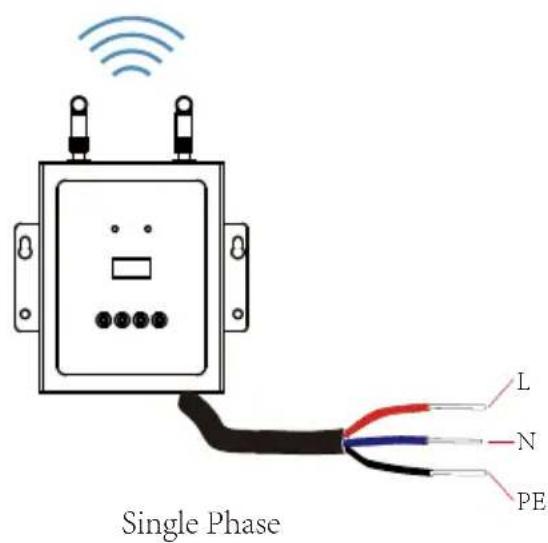

Power connection port: L1, L2, L3, N, PE, connects power through the power line. Power cable included in the MECD package.

Preparation

Make sure you have the following things taken care of before attempting to install the ECD:

● A dedicated standard AC electrical outlet (located electrically as close to the array as is possible).
● A broadband Internet connection is available for your use.
● Wireless router is available for you use a laptop.
With a web browser (to view the EMA online monitoring application).
● A pre-programmed MECD.

Selecting an Installation Location for the MECD

● A location that is electrically as close to the array asis possible-preferably a dedicated outlet installed directly to the solar system sub-panel.
The ECD is not rated for outdoor use, so if installing outdoors near a junction box or breaker panel, making sure that you enclose it in an appropriate weather proof NEMA electrical box.

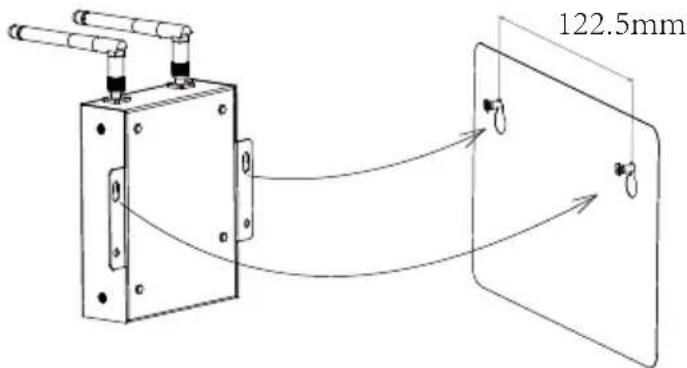

● Using wall-mounted
When mounting the MECD on the wall, make sure to select a cool, dry, indoor location.
- Depending on the wall surface you are mounting the MECD, use either two #4 drywall screws or wall anchors, installed 122.5 mm apart. The drywall screws and wall anchors are NOT included in the MECD kit.
- Align and slide the MECD onto the mounting screws.

Connections

1. Connect the power cable to the power connection port on the bottom of the ECD;
2. Config the wifi device with your home router.

Single phase / Three phase PLC/ZIGBEE type MECD wifi connection

MECD + WIFI Plug Setup Sequence

Once power is supplied to the ECD, it automatically steps into the main screens on its LCD display which including below details info.

Buttons Name Functions
	Esc	Return button	Allows you to return to the last page or end an operation.
	Up	Cursor Up button	Allows you to go to the upper-level menu or set parameters.
	Down	Cursor Down button	Allows you to go to the lower-level menu or set parameters.
	Enter	Confirm button	Allows you to go to the menu or confirm the value.

MECD LED indications

There are two indicators of the MECD. The following description will tell how it works.

Indicator Status Meaning
Normal indicator(left LED)	Steady blue	All inverters connected works normal
	Off	All inverters connected has alarms
	Blinking blue	Some inverters connected has alarms
Comm indicator(right LED)	Steady blue	All inverters connected communication successfully
	Off	All inverters connected communication failed
	Blinking	Some inverters communication failed

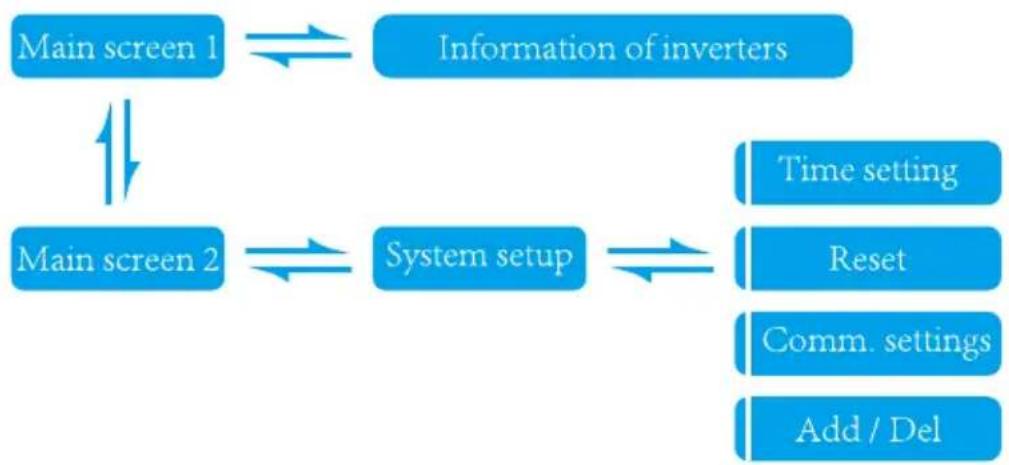

MECD LCD operation flow chart

Information on the LCD home page

Power:	0 W
E-Today:	0 W
E-Total:	572 Wh

MECD main interface 1:

1: Output power;
2: Today's total power generation;
3: Total power generation of microinverters connected.

MECD main interface 2:

1: version information.
2: Number of connected inverters.
3: Communication method.
4: MECD Serial number.

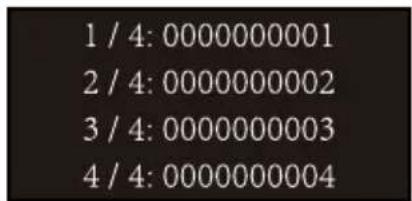

Information of inverters

1: Inverter ID currently connected;
2: Power generation;
3: Connection Status.

System setup

1: Time setting;
2: Reset;
3: Communication settings;
4: Add or Delete.

Time setting

1: Time setting;

Reset

1: MECD reset: reset to factory setting.
2: Inverter reset: clear all inverters information of MECD.

Communication settings

1: Zigbee or PLC communication method selection.

Add or delete inverter ID on ECD

Monitoring Platform

The MECD has built-in WIFI modular which is able to connect router directly.

Web monitoring address: https://pro.solarmanpv.com; (for Solarman distributor account); https://home.solarmanpv.com (for Solarman end user account).

For mobile phone monitoring system, scan the below QR code to download the APP.

Or by searching “Solarman Business” in App store or Google Play store, and this app is for distributor account. Searching “Solarman Smart” in App store or Google Play store and choose “Solarman smart”, this app is for end user account.

SOLARMAN Smart for end user

SOLARMAN Business for business

3. Set WiFi connection on PC

Notice: The setting hereinafter is operated with Windows XP for reference only. If other operating systems are used, please follow the corresponding procedures.

1. Prepare a computer or device with WiFi, e.g. tablet PC and smartphone with WiFi function.
2. Obtain an IP address automatically.
3. Set WiFi connection to the logger

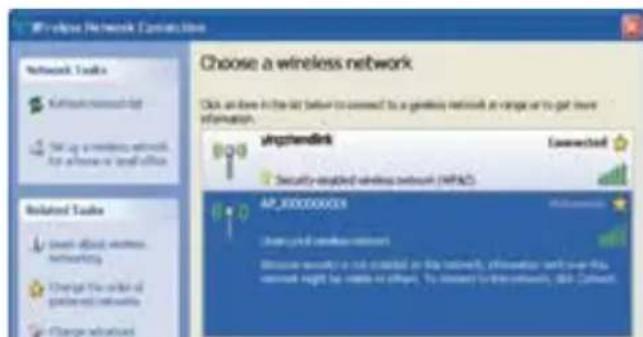

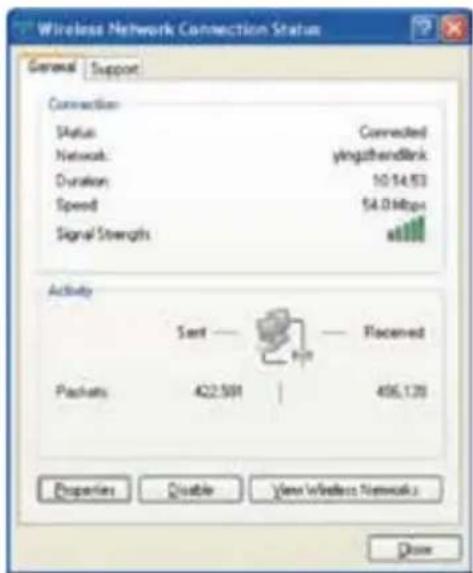

   3.1 Open wireless network connection and click View

Wireless Networks

3.2 Select wireless network of the logger. The network name consists of AP and the serial number of the product. Input the password shown on the logger. Then click Connect.

Default password: 12345678

Notice: If AP_(serial number of product) is not available in the wireless network list, there may be problems in the connection or setting of logger. Please wait several minutes to refresh the list or plug in the logger again.

4. Set parameters of logger

4.1 Open a web browser, and enter 10.10. 100.254, then fill in username and password, both of which are admin as default.

Recommended browsers: Internet Explorer 8+, Google Chrome 15+, Firefox 10+

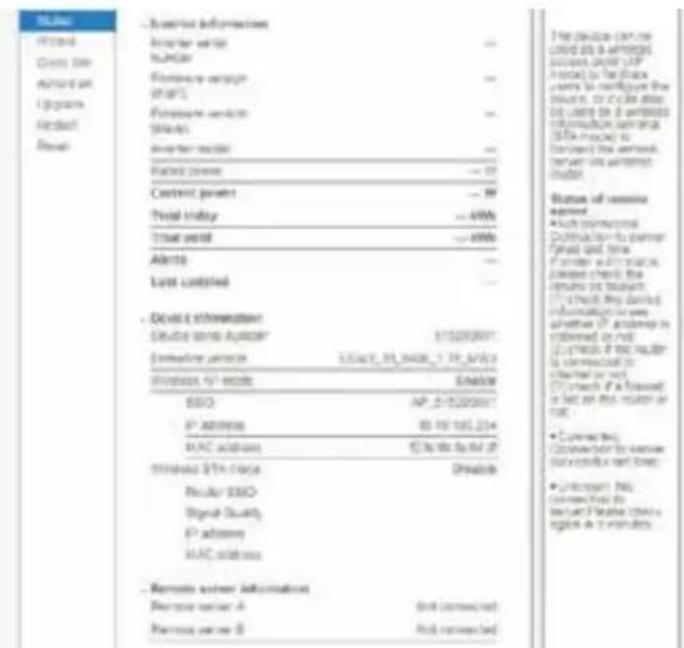

4.2 In the Status page, you can view general information of the logger.

4.3 Follow the setup wizard to start quick setting.

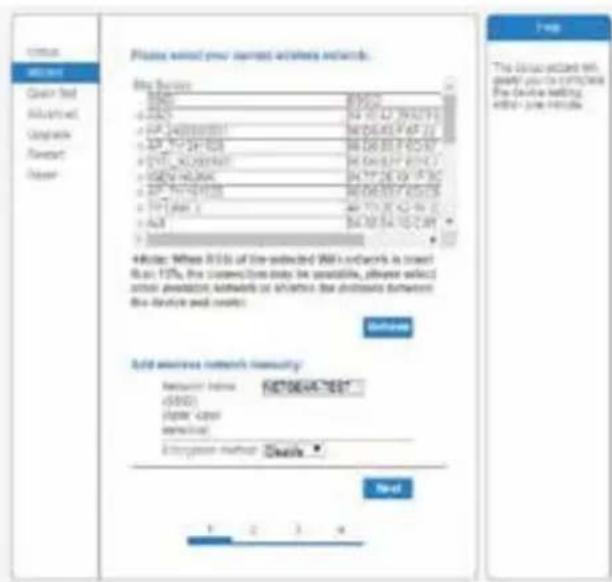

(a)Click Wizard to start. Select the wireless network you need to connect, then click Next

Notice: If the signal strength (RSSI) of the selected network is <15%, which means unstable connection, please adjust the antenna of the router, or use a repeater to enhance the signal.

The SSID of your selected router network should be less than 30 characters, in which blank space should not be included.

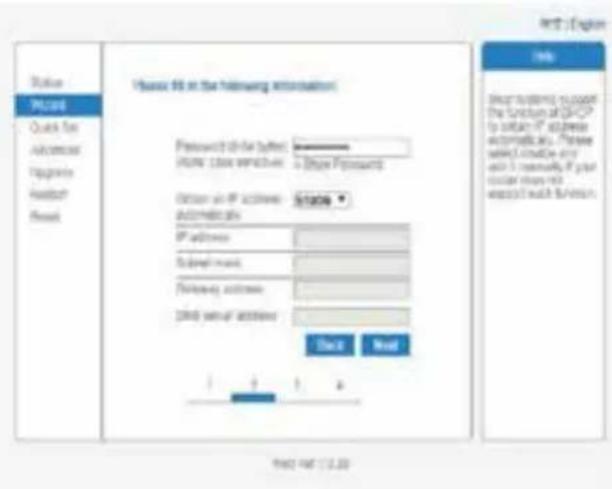

(b)Enter the password for the selected network, select Enable to obtain an IP address automatically, then click Next

Notice: Router password cannot be recognized if it contains any character such as '&,'#','%', and blank space.

The password is being verified, please wait for a while. If you have entered an invalid password or encryption method, an error notice will pop up.

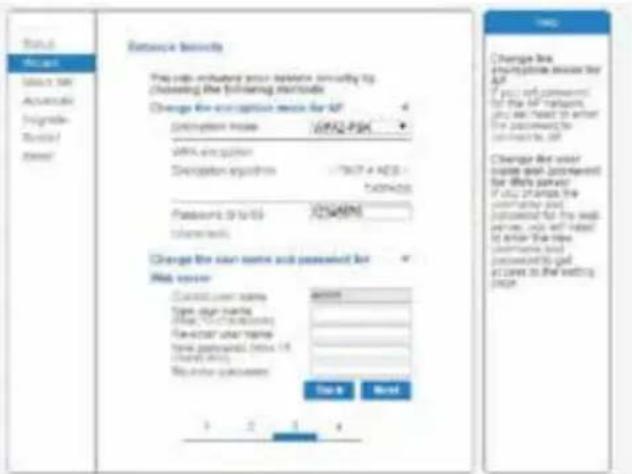

(c)Enhance security settings of the WiFi logger by selecting any options as listed, then click Next

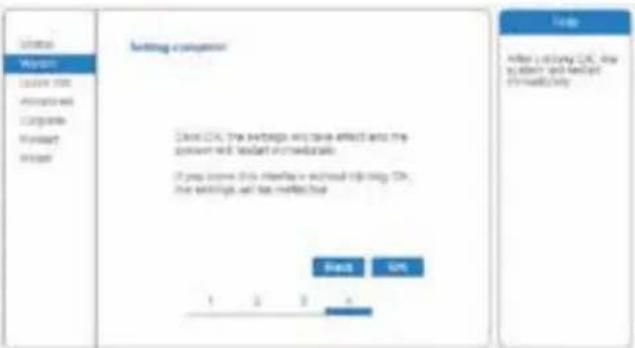

(d) If setting is successful, the following page will display. Click OK to restart.

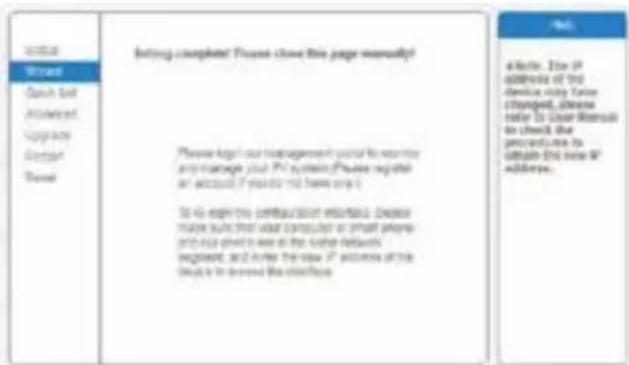

(e) If restart is successful, the following page will display. If this page does not display automatically, please refresh your browser.

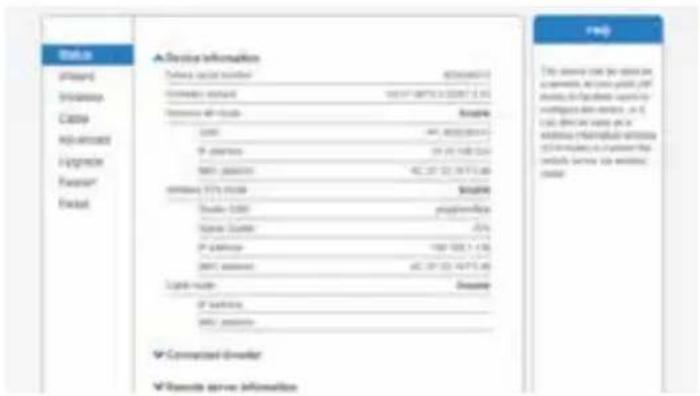

(f) Re- log in this setting page to Status page after the Web server restart, and check the network connection status of the logger.

Notice: After network setting is complete, the Wireless AP mode should be enabled and relative information of your router will display on the interface automatically. Besides the Remote server A should be connected.

If you meet any problems and need support, please provide the screenshot of the status page as shown below.

Datasheet

Model MECD

Communication

Communication method Zigbee, PLC

Max. number of inverters connected 5、10、20、32 (Max.)

Communication to router

WIFI

WIFI wireless security

WEP, WPA2-PSK

RS485

Reserved

Max.distance(free space) PLC 300m; Zigbee 100m(Max. straight-line distance)

Power Supply

AC Power Supply

100 to 240V AC, 50/60Hz

Power consumption

5W typical, 10W Maxinum

Mechanical Data

Dimensions(W×H×D) 133.6×132×35.5 mm

Weight 0.3KG

Operation temperature range -20\~+50°C

Mounting method Wall-mounted

Display OLED and LED indicators

Features

Grid type Single phase / three phase

Digital Input Control device connection

Others

IEC60950, IEC61000-6-2, FCC Part15 Class B / Class CCom

Warranty 3 years
