Product Type	Grid-connected PV Inverter
Model	SUN-80K-G
Brand	Deye
Dimensions (W×H×D)	700 × 575 × 297 mm
Weight	60 kg
Max. PV Input Power	104 kW
Max. PV Input Voltage	1000 V
MPPT Voltage Range	200 – 850 V
Rated AC Output Power	80 kW
Max. AC Output Apparent Power	88 kVA
Rated Output Voltage	220/380 V or 230/400 V
Grid Connection	3L+N+PE
Max. Efficiency	98.7%
Ingress Protection	IP65
Cooling Type	Intelligent air cooling
Operating Temperature	-25 °C to +65 °C (derating above 45 °C)
Noise Level	≤ 55 dB
Display	LCD + LED indicators
Monitoring	WiFi/GPRS/4G/LAN (optional)
Safety Features	DC reverse polarity protection, overcurrent protection, arc fault detection (optional), residual current detection
Warranty	Standard 5 years, extended available

Frequently Asked Questions - SUN-80K-G Deye

What is the maximum PV input voltage for the SUN-80K-G?

The maximum PV input voltage is 1000 Vdc. Ensure that the open-circuit voltage of the PV array does not exceed this limit under any conditions.

How do I start the inverter?

First, switch on the AC breaker. Then, turn on the DC switch of the PV module. The inverter will self-check and start generating energy once the grid parameters are within acceptable range. The NORMAL indicator light will turn on.

What should I do if the inverter displays an error code?

Refer to the error code table in the manual (Table 10.1). For example, F35 indicates no AC grid; check AC voltage and connections. If the issue persists after restarting, contact your installer or Deye service with the serial number and error details.

Can I use the inverter without an energy meter?

Yes, the inverter can operate without a meter. However, to enable zero-export or monitor load power, you must connect a compatible energy meter (e.g., Eastron SDM630-Modbus V2 or CHNT DTSU666) via RS485.

What are the recommended AC cable specifications?

For the SUN-80K-G, use 0 AWG copper cable (50 mm²) with a torque of 20.3 Nm for the AC terminals. For grounding, use 2 AWG (25 mm²) with 16.9 Nm torque.

How do I clean and maintain the inverter?

Turn off the inverter and let it cool. Use a soft brush to remove dust from the heatsink. If the LCD is dirty, use a slightly wet cloth. Do not use solvents, abrasive materials, or corrosive cleaners.

Is the inverter compatible with single-phase grids?

No, the SUN-80K-G is a three-phase inverter. It requires a three-phase grid connection with neutral and protective earth (3L+N+PE).

What is the Anti-PID function and how does it work?

The optional Anti-PID module repairs PID (Potential Induced Degradation) effects on PV modules at night. It operates automatically when the inverter is connected to AC. To disable it, turn off the AC switch.

How can I monitor the inverter remotely?

Install the WiFi or GPRS datalogger (included) into the inverter's communication port. Configure it using the provided instructions and connect to the Solarman monitoring platform (pro.solarmanpv.com for distributors, home.solarmanpv.com for end users).

What is the zero-export function and how do I set it up?

Zero-export prevents energy from being fed into the grid. Connect a compatible energy meter (e.g., Eastron SDM630) to the inverter's RS485 port. In the LCD menu, go to [Parameter Setting] > [Run Param], set 'Meter' to ON, and configure the meter settings. The inverter will then adjust output to match load consumption.

USER MANUAL SUN-80K-G Deye

Grid-connected PV Inverter

SUN-60K-G

SUN-70K-G

SUN-75K-G SU

80K-G

User Manual

Pure electrical circuit lines without any symbols

Contents

1. Introduction - 1 -

1.1 Appearance Introduction - 1 -
1.2 Labels description - 1 -
1.3 Parts list - 2 -
1.4 Product handling requirements - 3 -......

2. Safety warnings and instructions -3-

2.1 Safety signs - 3 -
2.2 Safety instructions - 4 -
2.3 Notes for using - 4 -

3. Operation Interface -5-

3.1 Interface View - 5 -
3.2 Status Indicator -5-
3.3 Buttons -6-
3.4 LCD Display - 6 -

4. Product installation ...... - 7 -

4.1 Select installation location -7-
4.2 Mounting bracket of inverter -9-

.4.3 Installations. Tools - 10 -
4.4 Inverter Installation - 10 -

5. Electrical Connection - 11 -

5.1 DC input terminal connection - 11 -

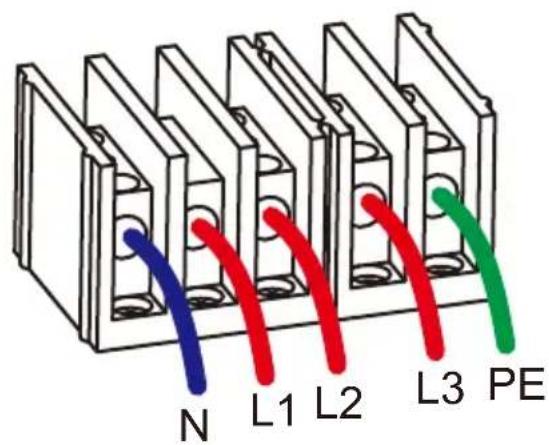

5.2 AC input terminal connection - 13 -

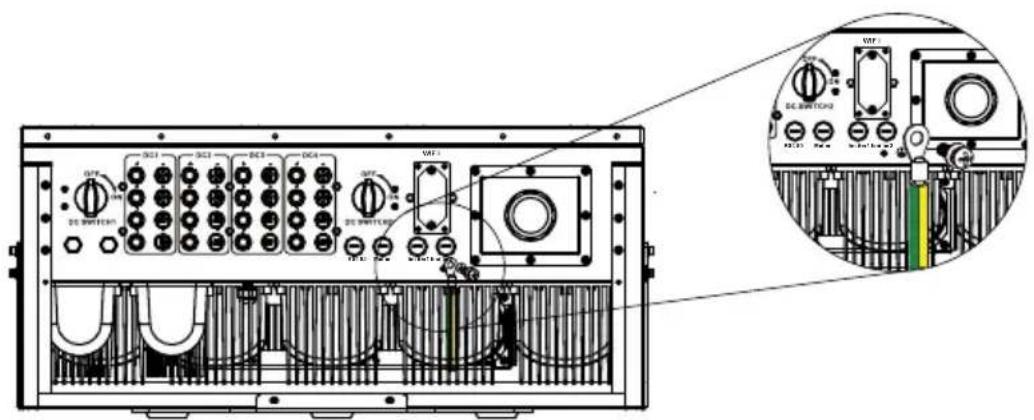

5.3 The connection of the ground line - 16 -

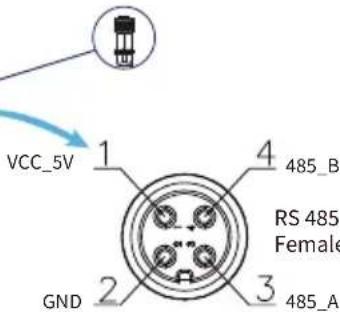

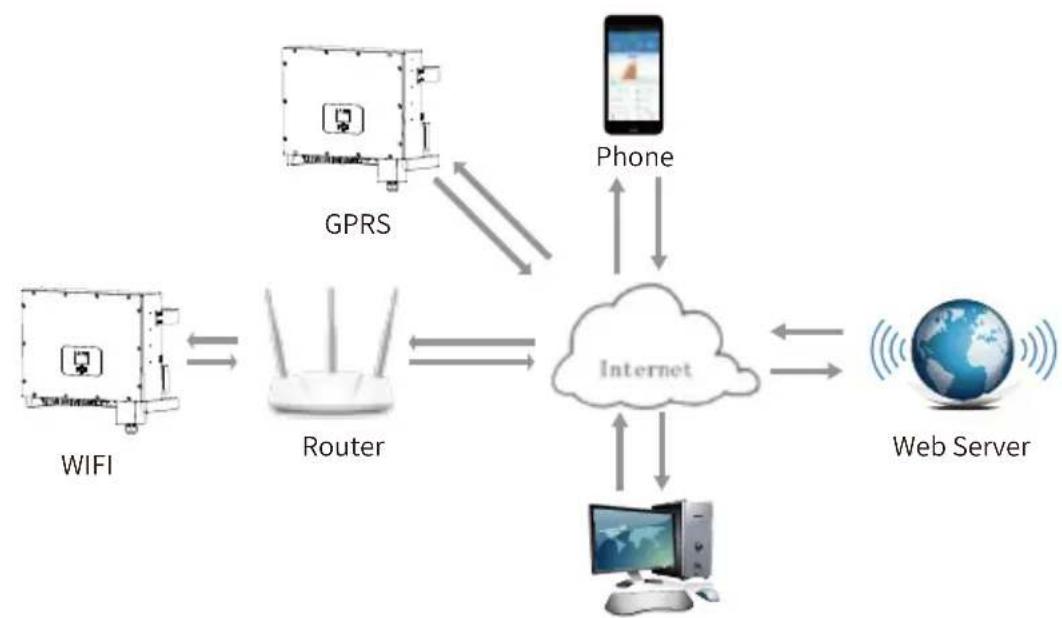

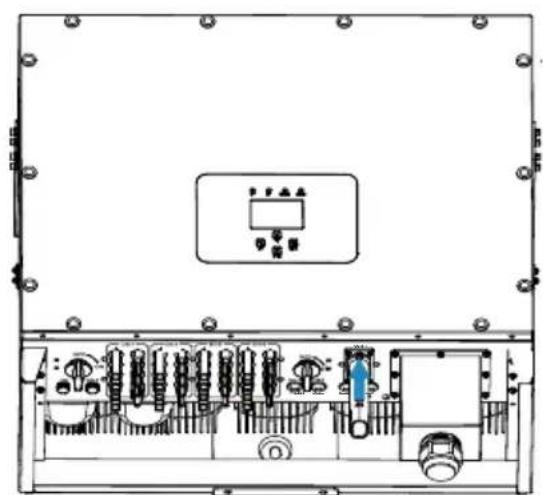

5.4. Inverter. monitoring. connection - 17 -

6. Startup and Shutdown - 18 -

6.1 Start up the inverter - 18 -
6.2.Inverter.Shutdown - 18 -

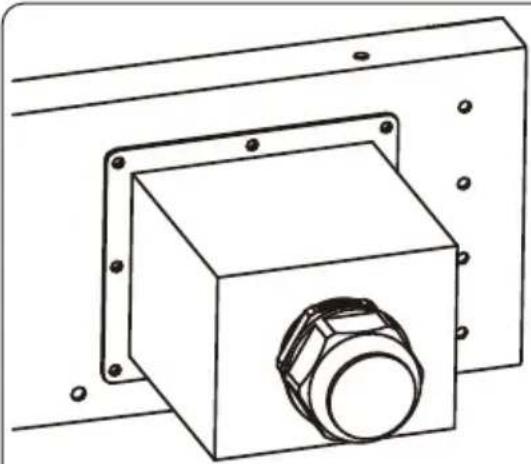

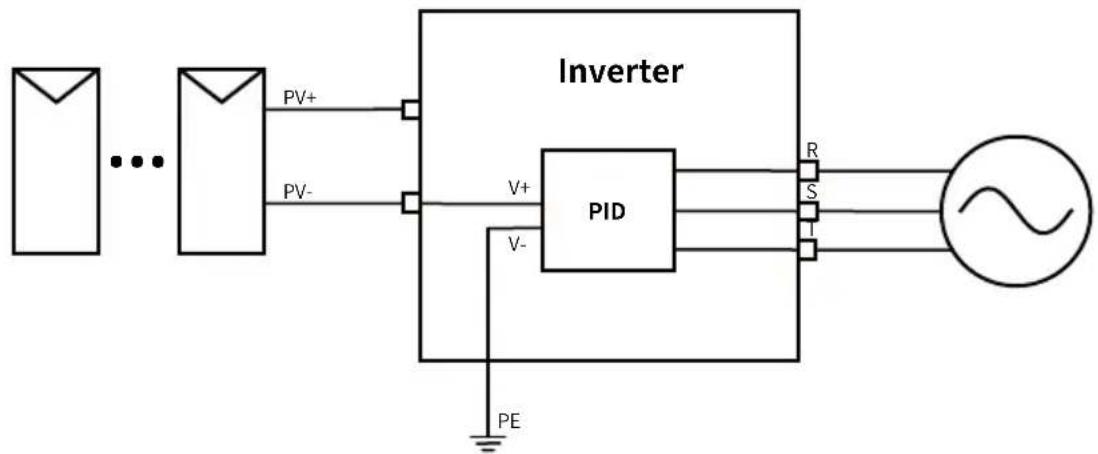

6.3 Anti-PID Function(optional) - 19 -

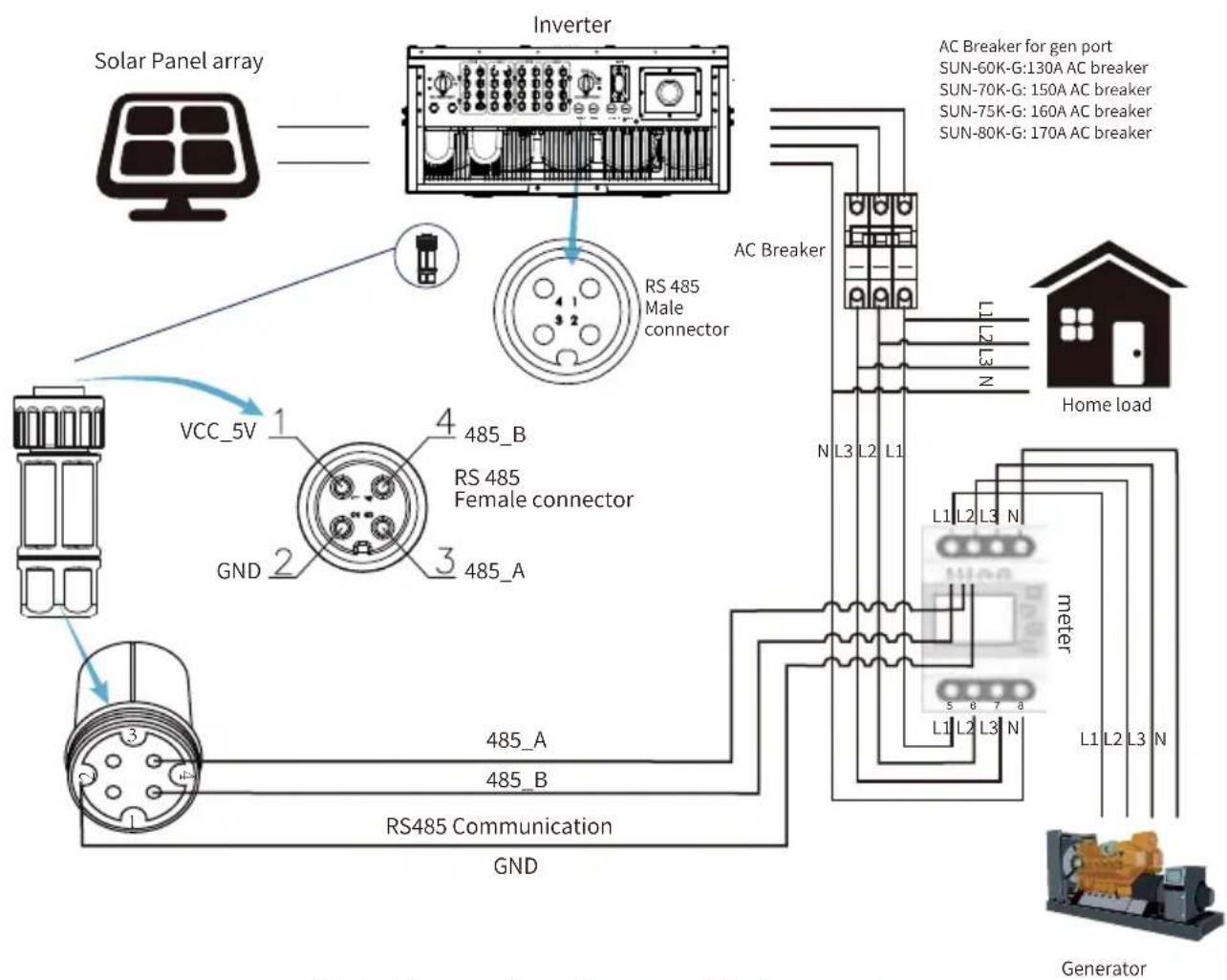

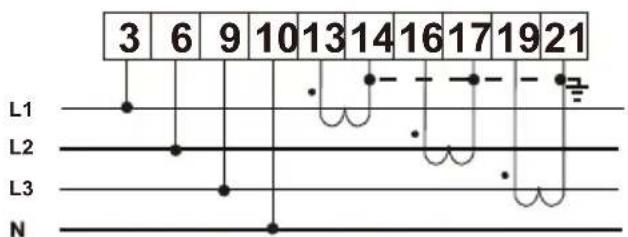

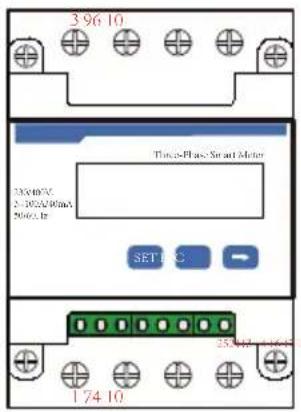

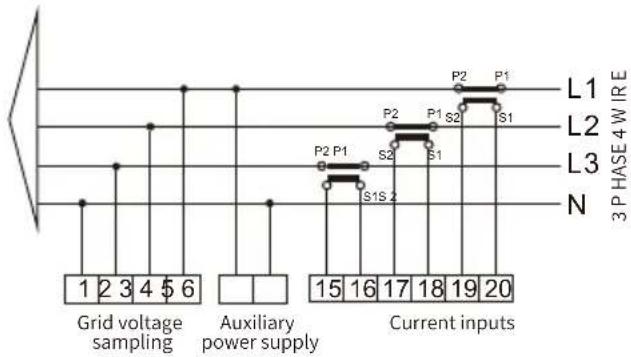

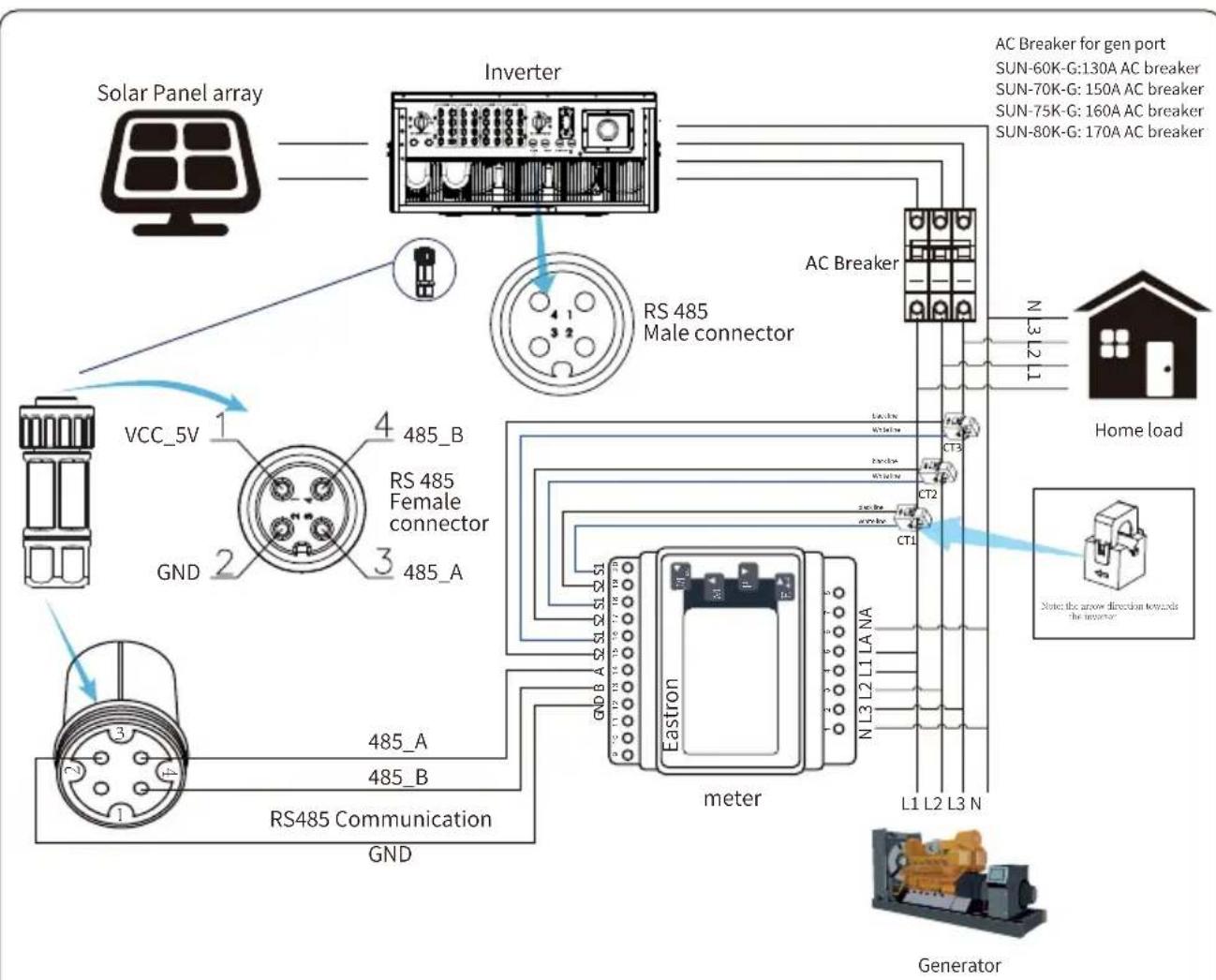

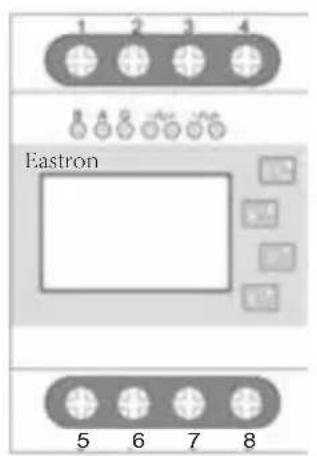

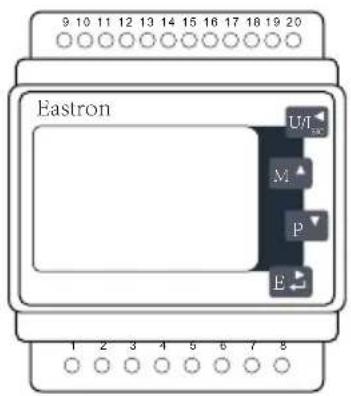

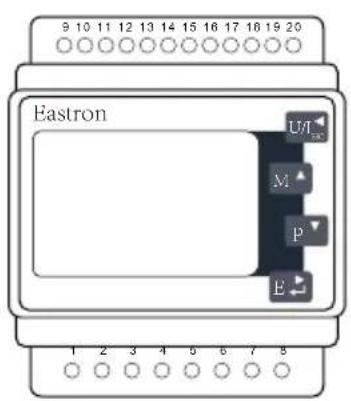

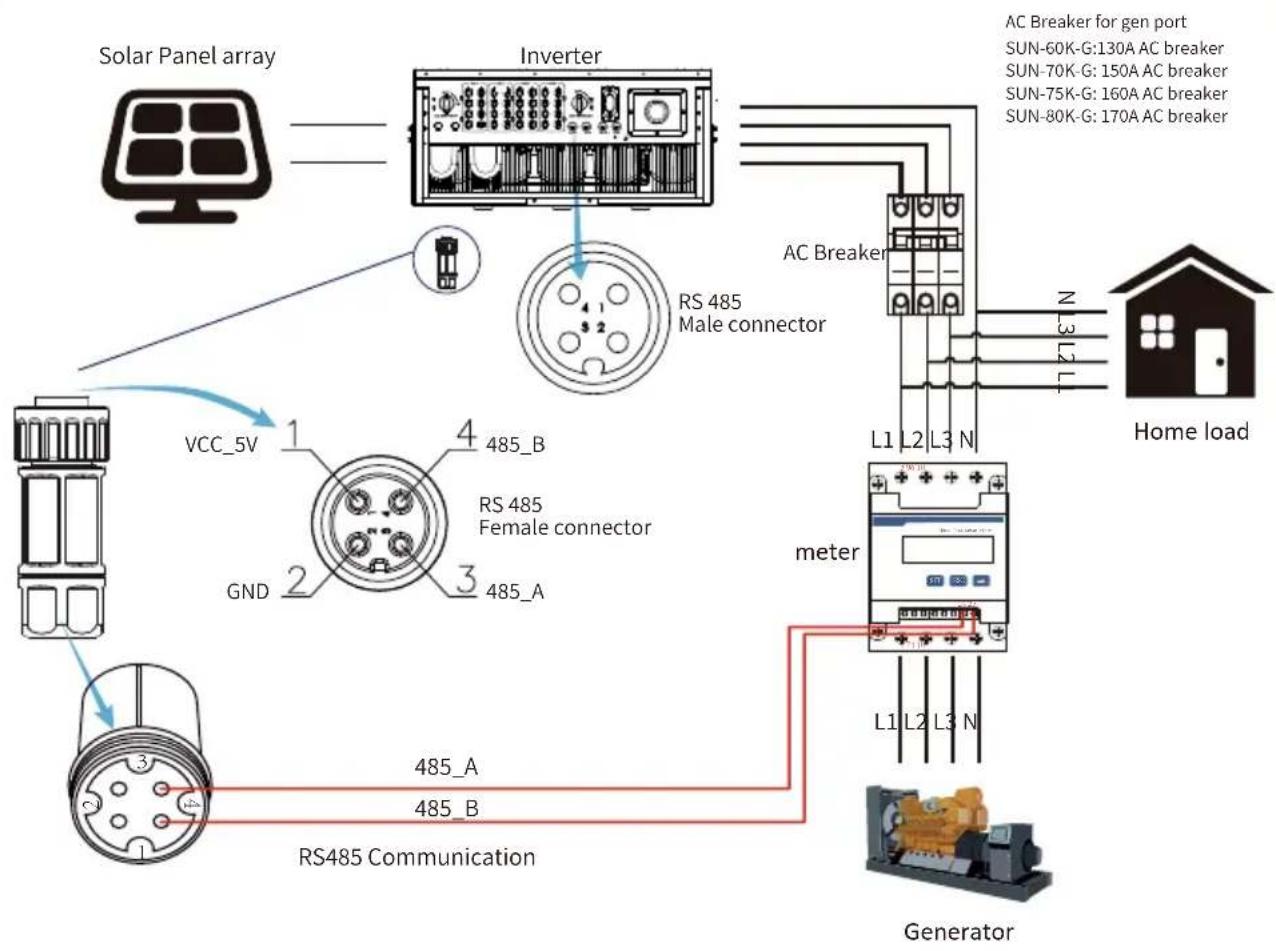

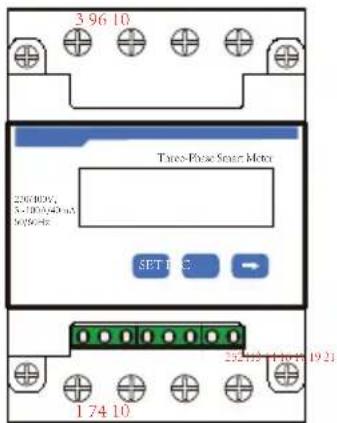

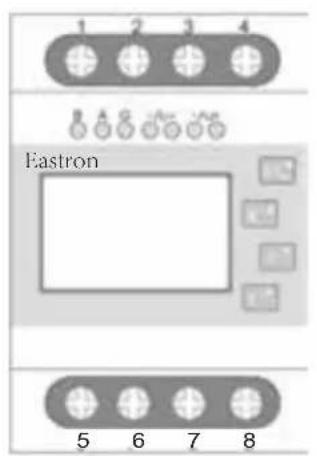

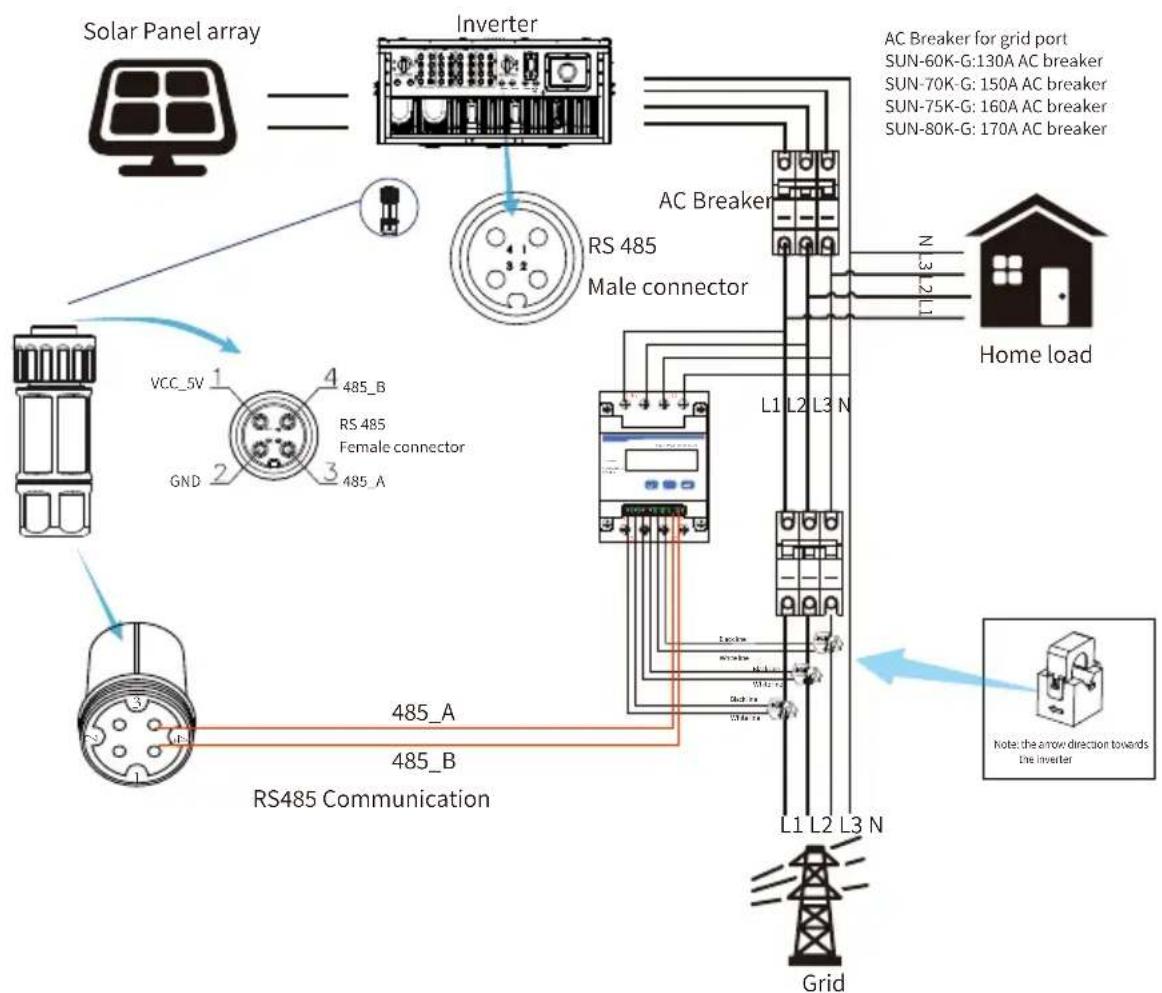

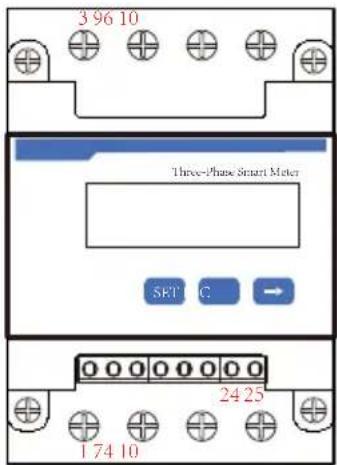

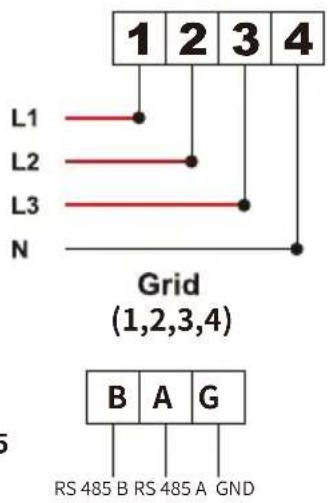

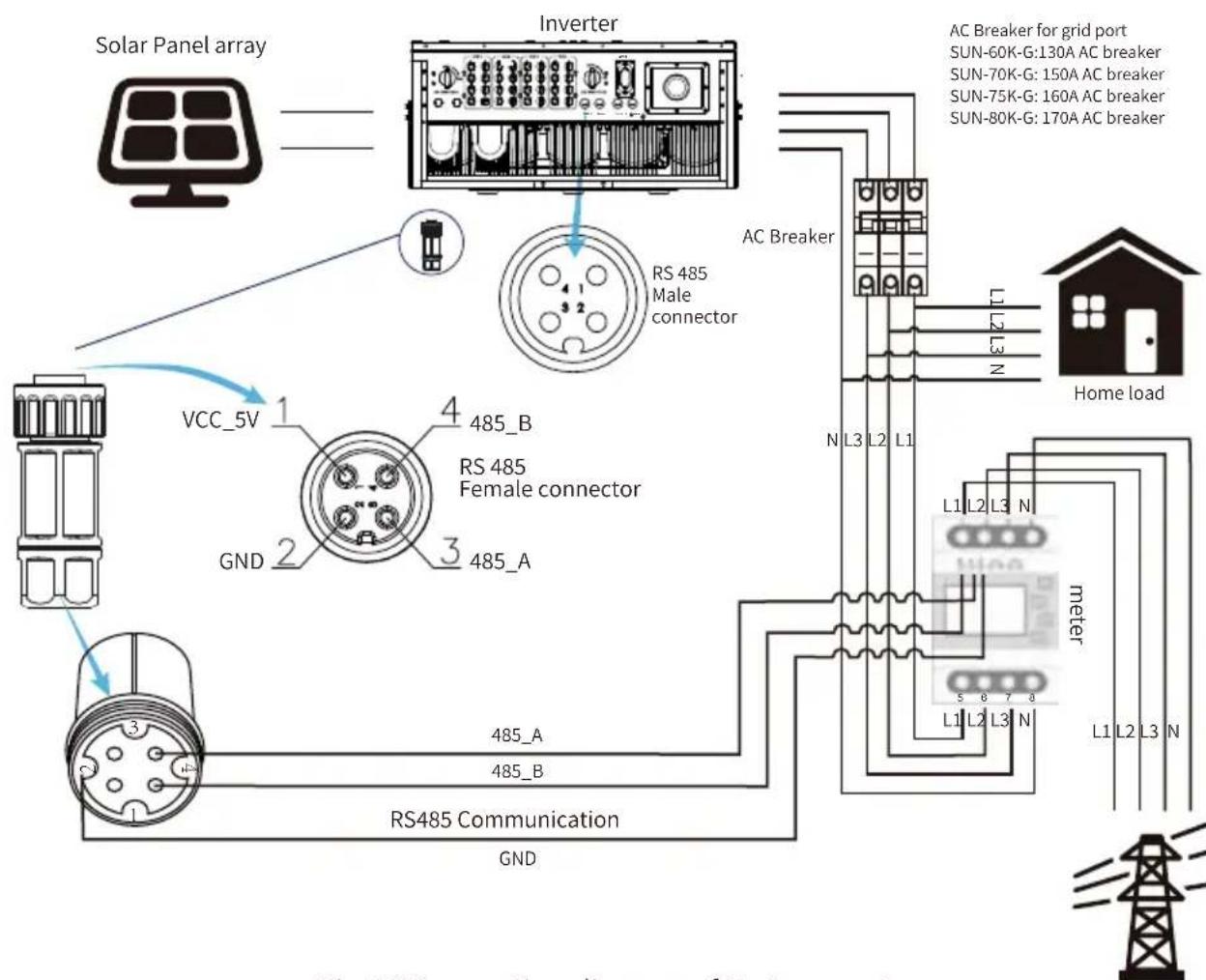

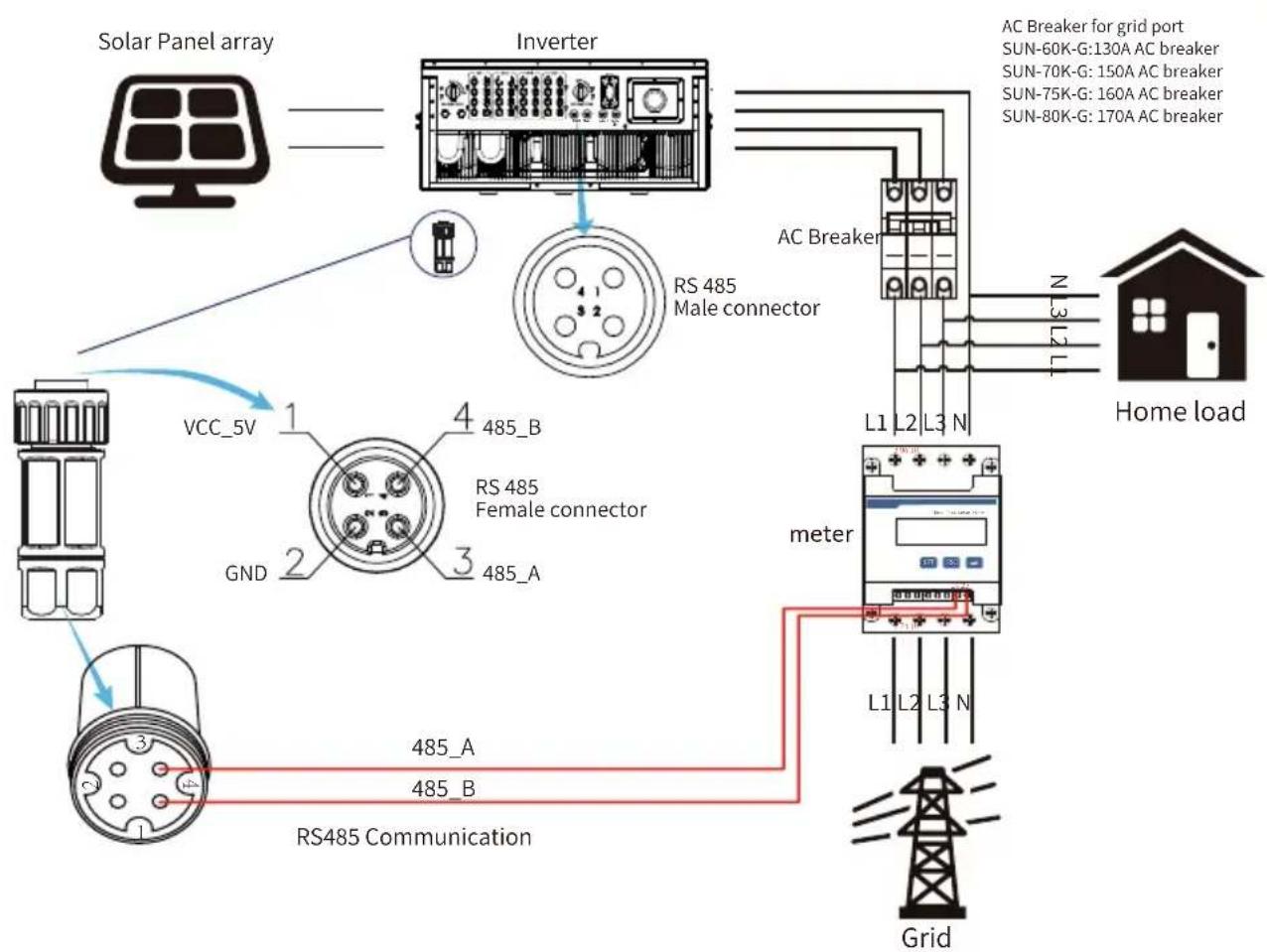

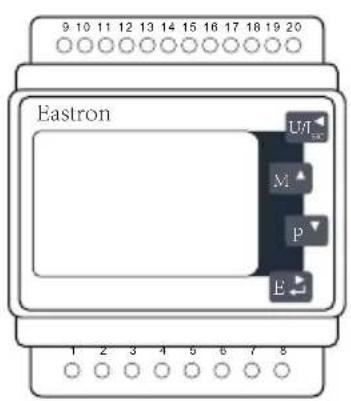

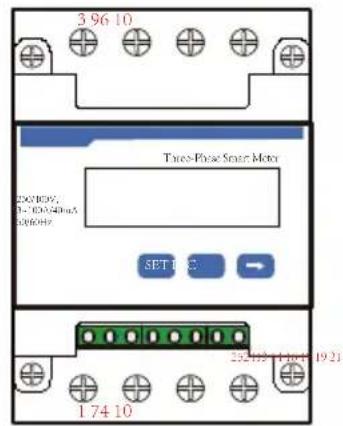

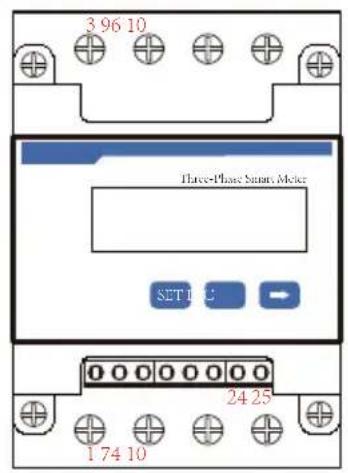

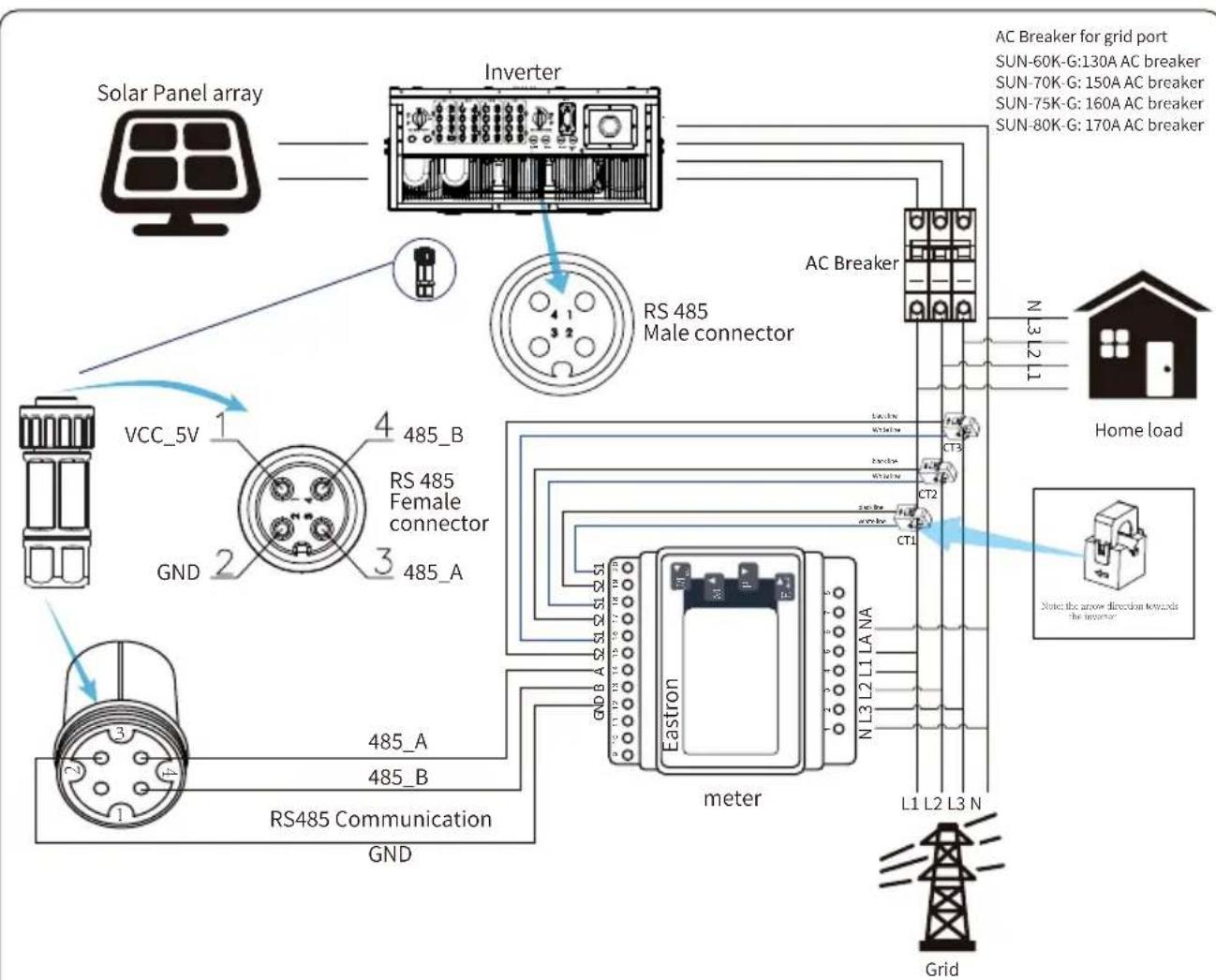

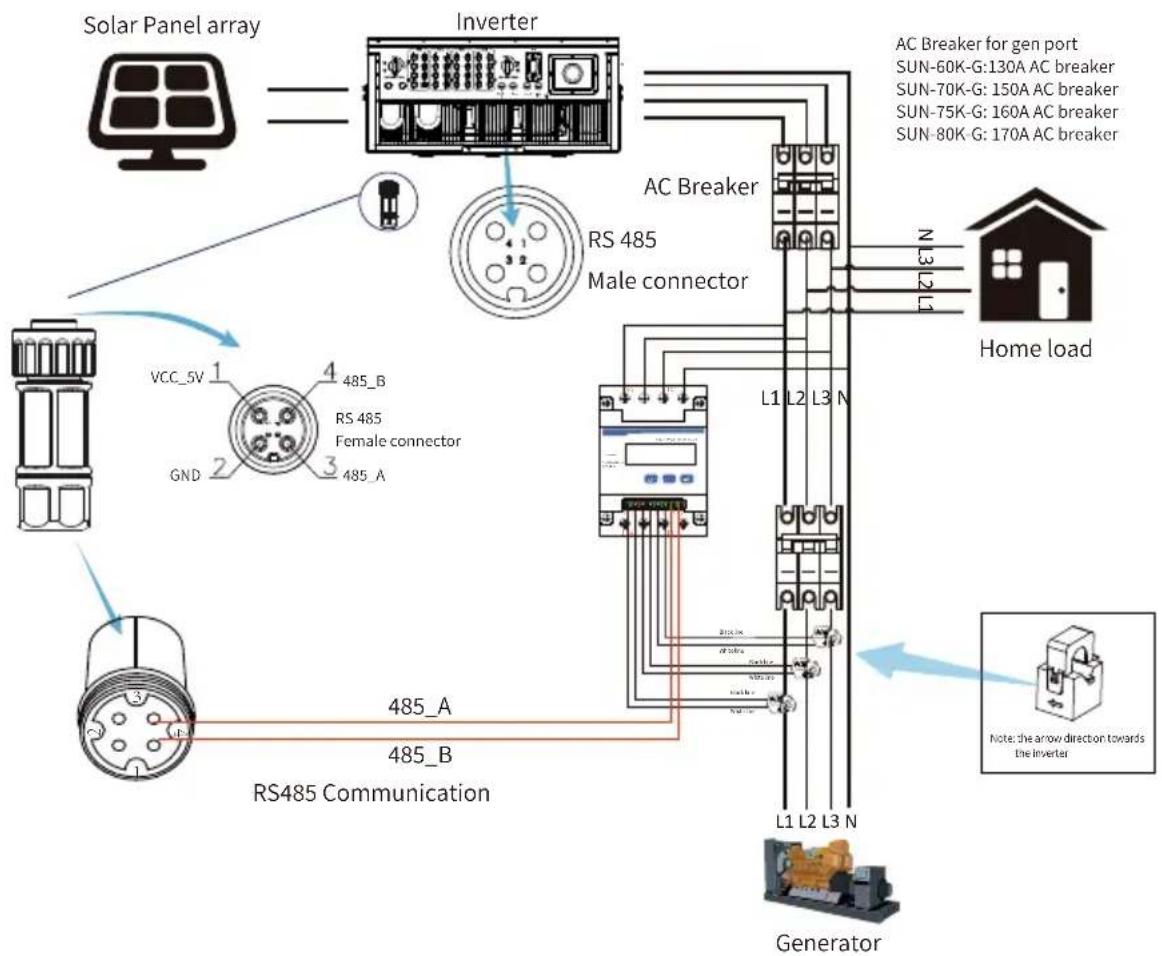

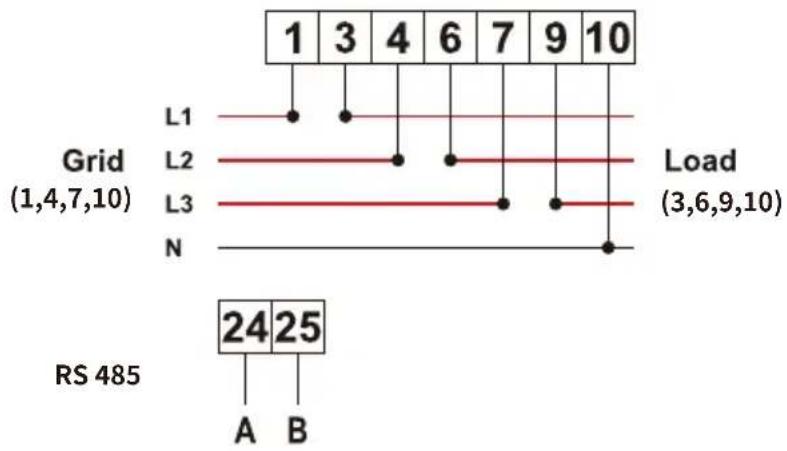

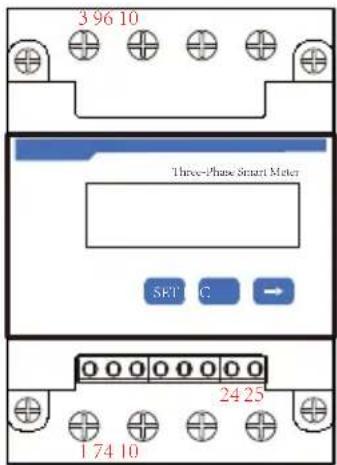

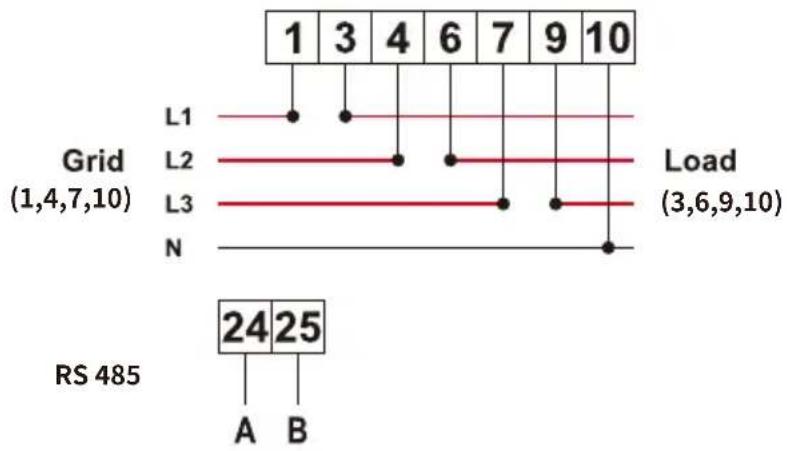

7. Zero-export function via energy meter - 19 -

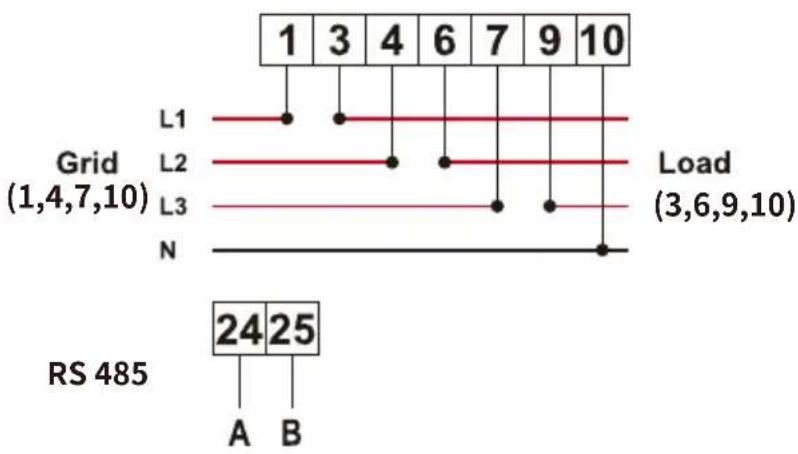

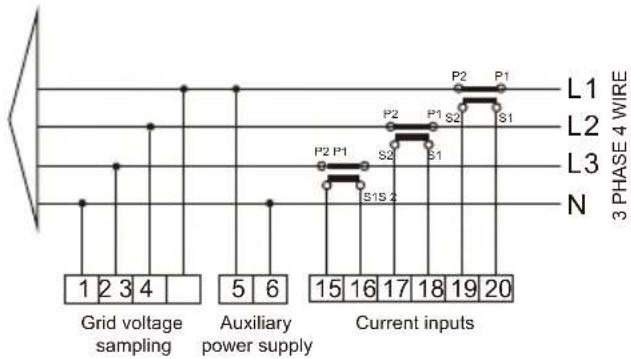

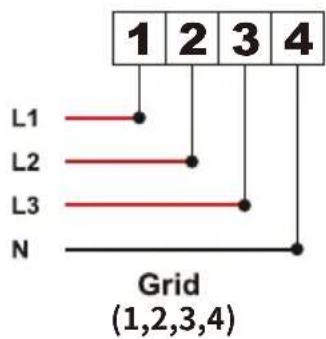

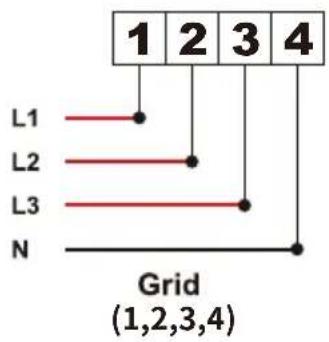

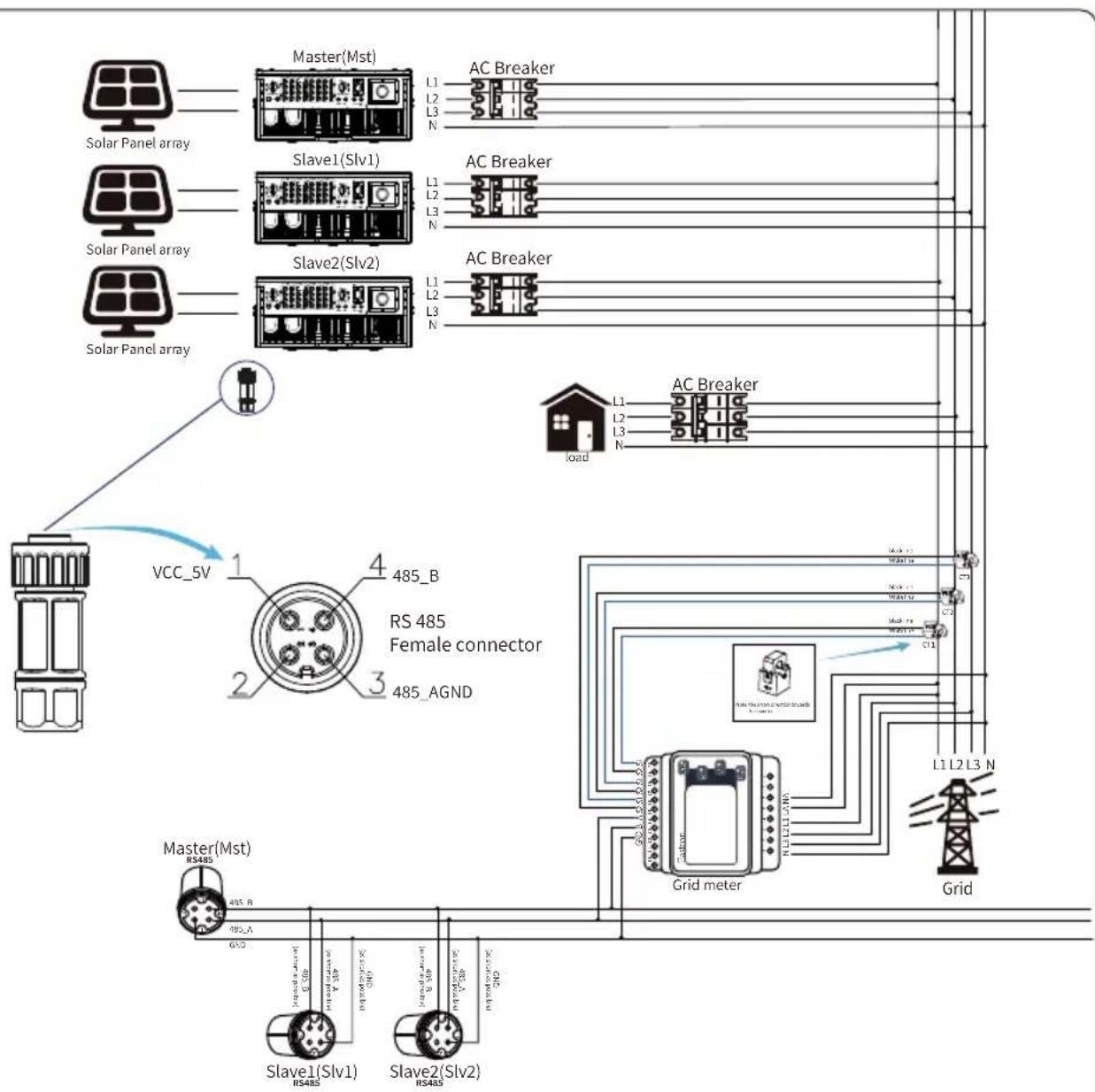

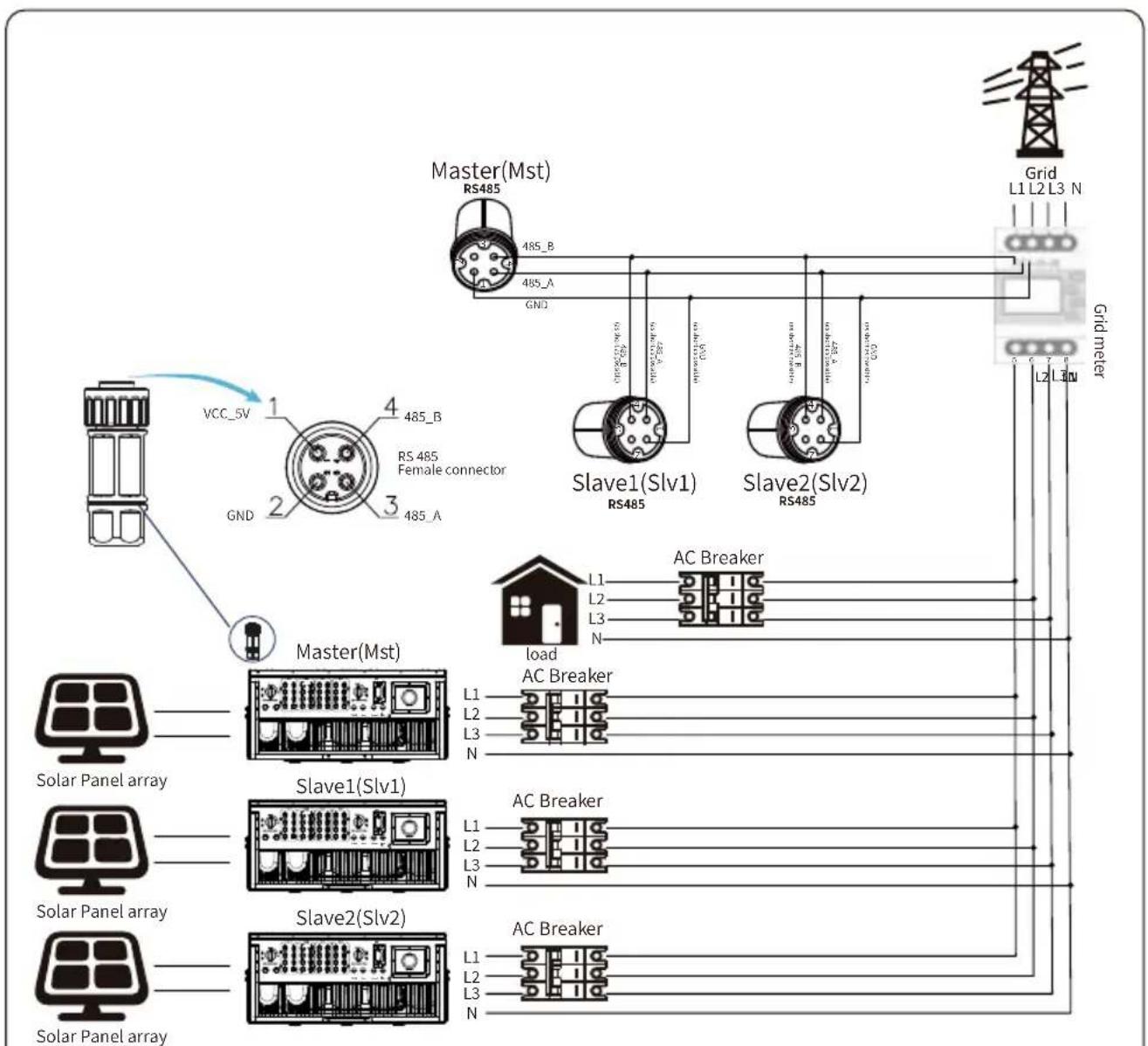

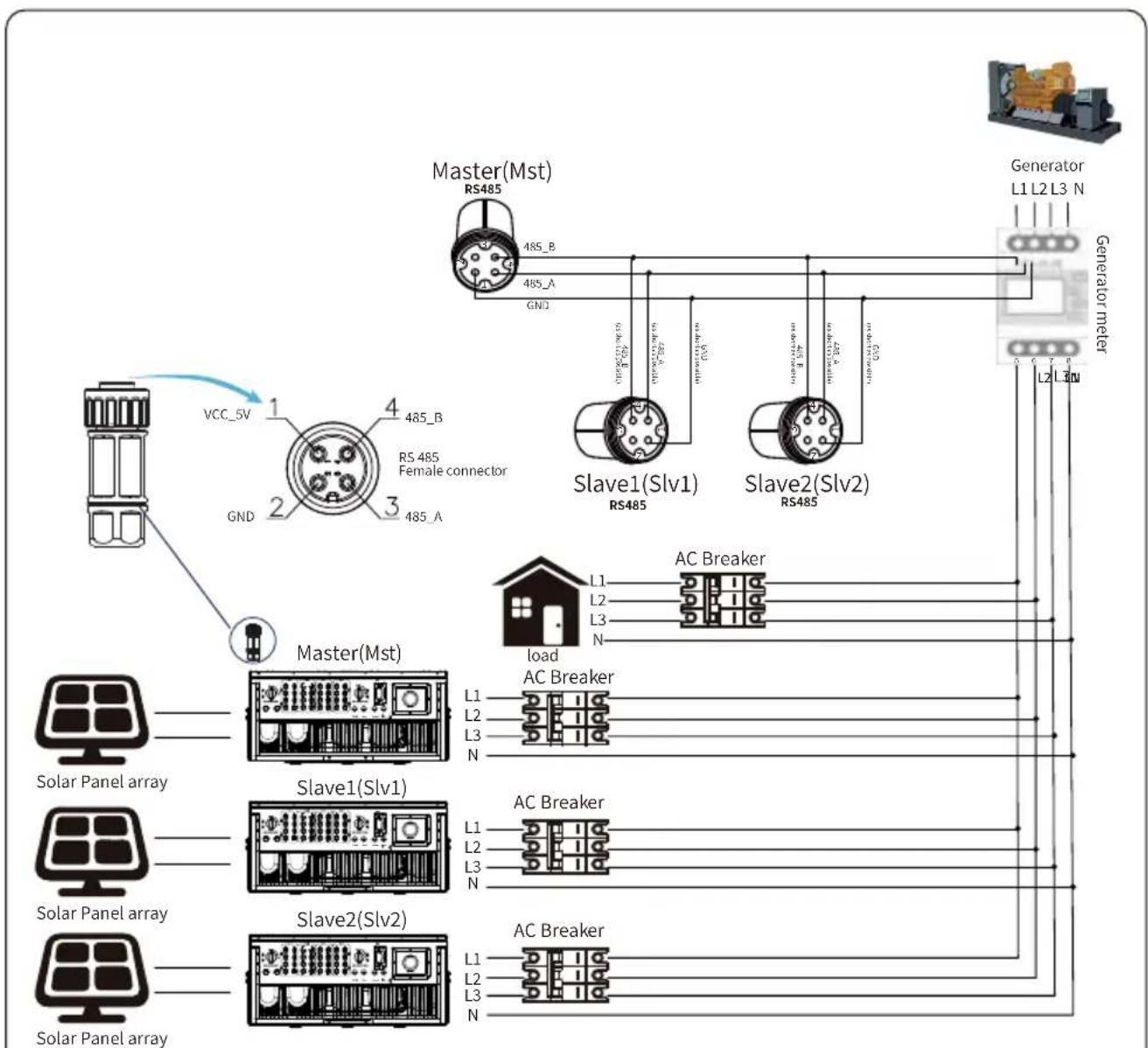

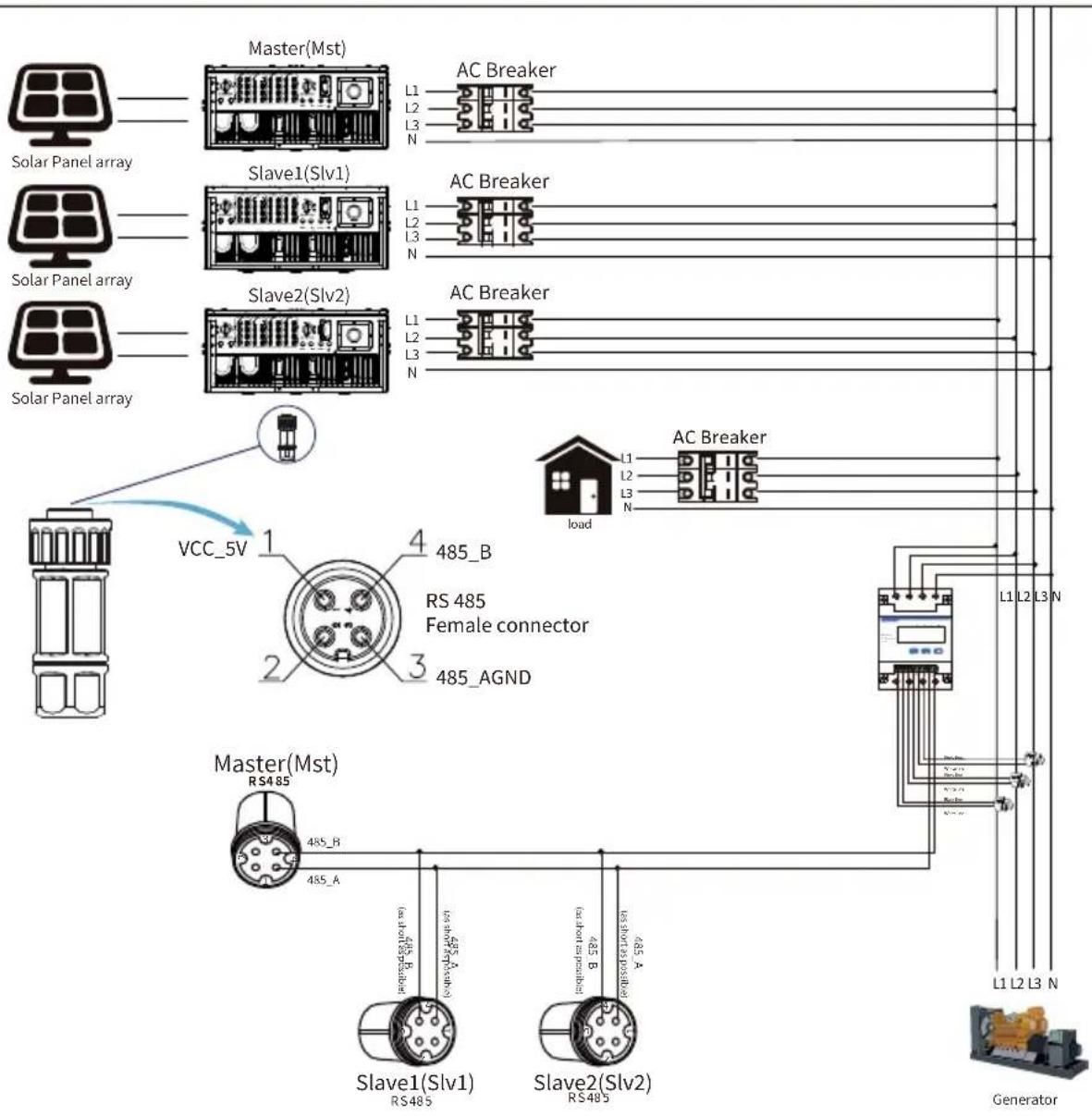

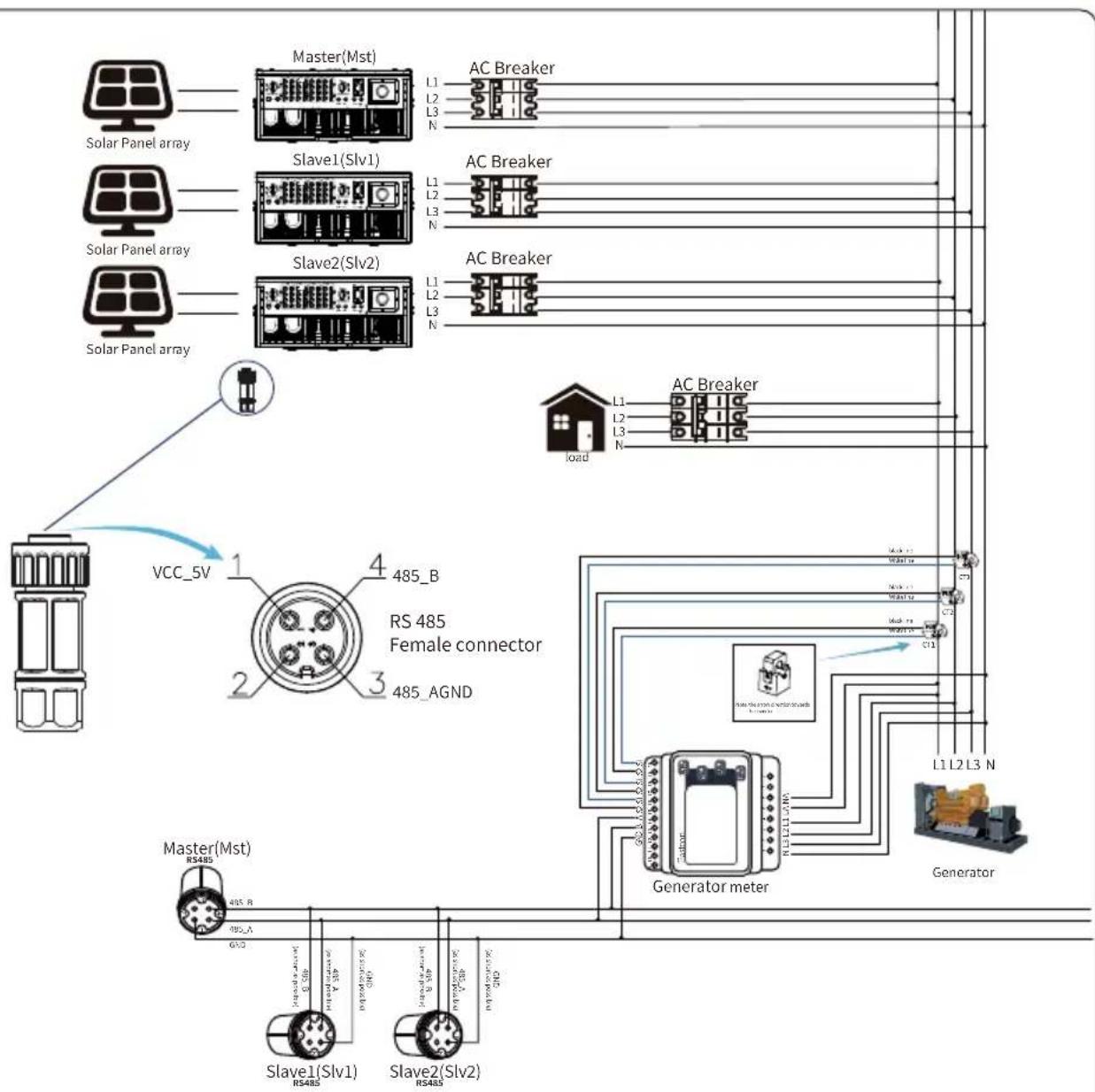

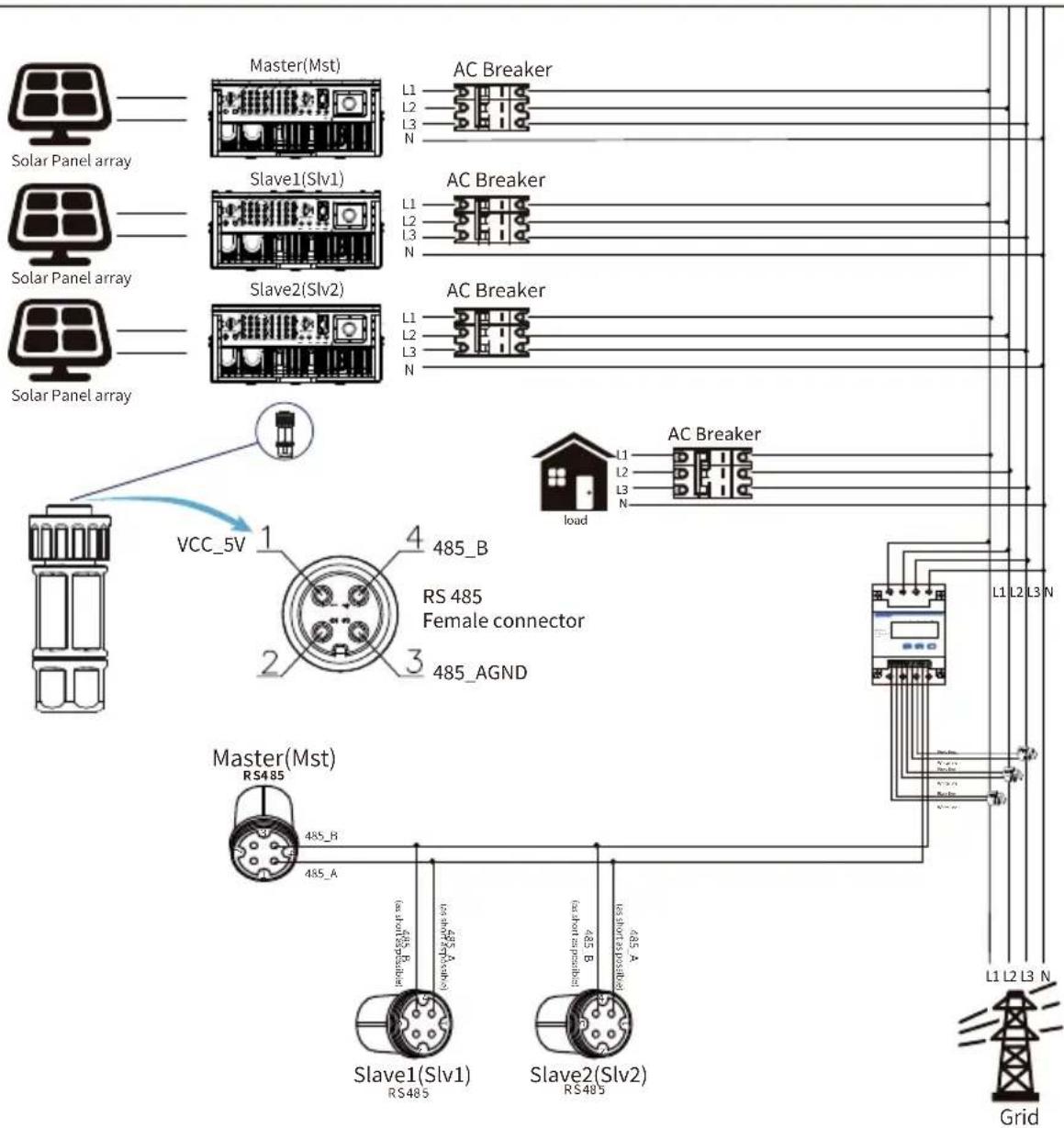

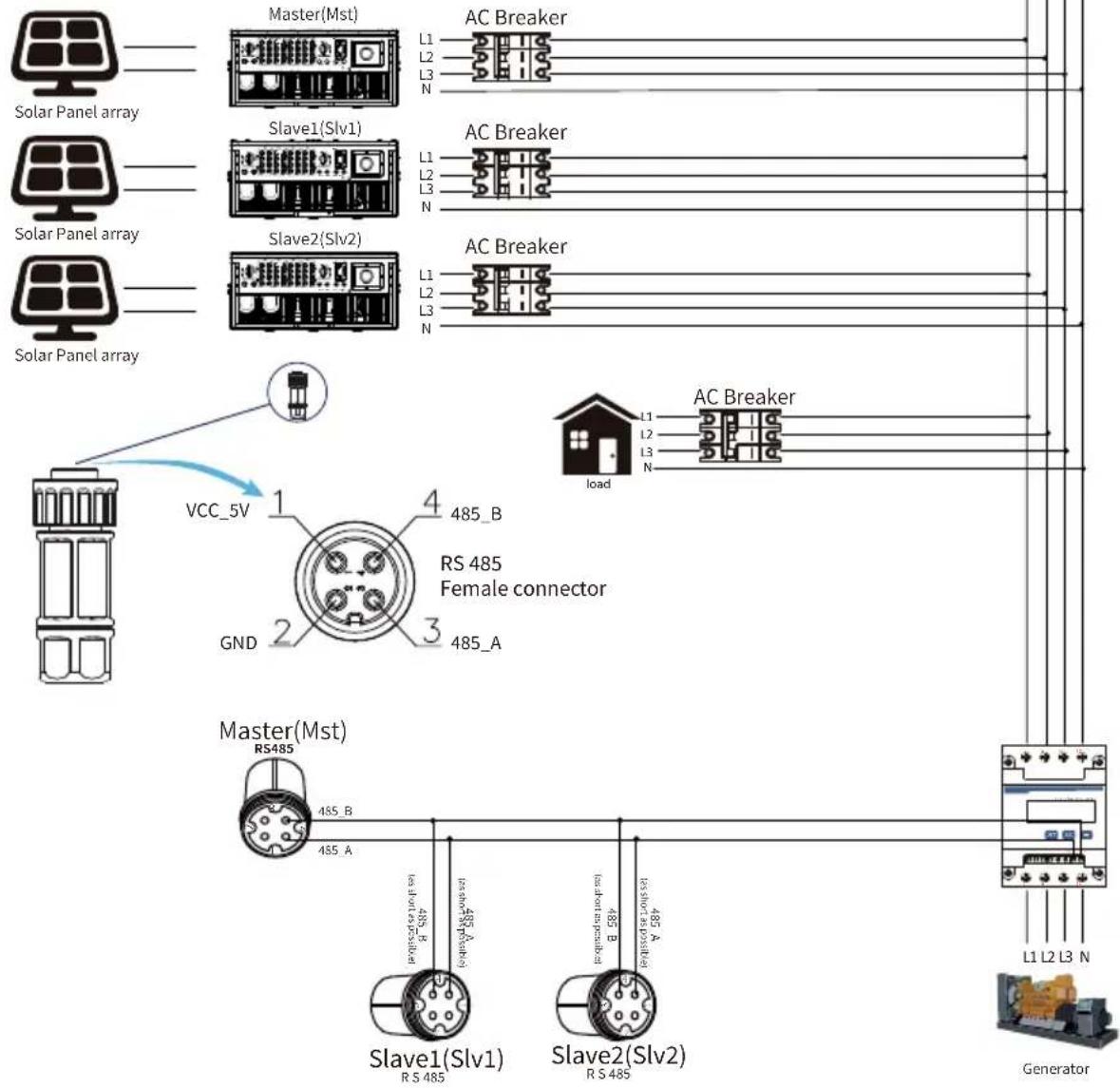

7.1 Multiple strings and parallel connection meters - 29 -

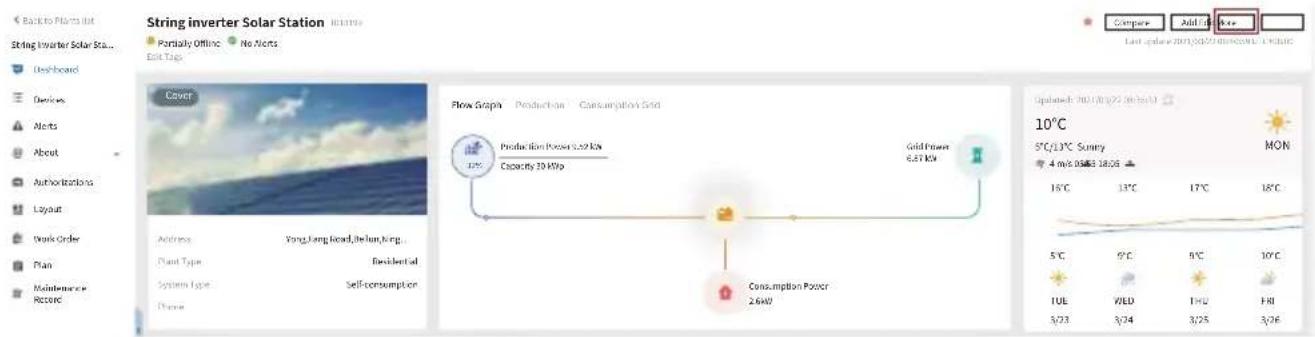

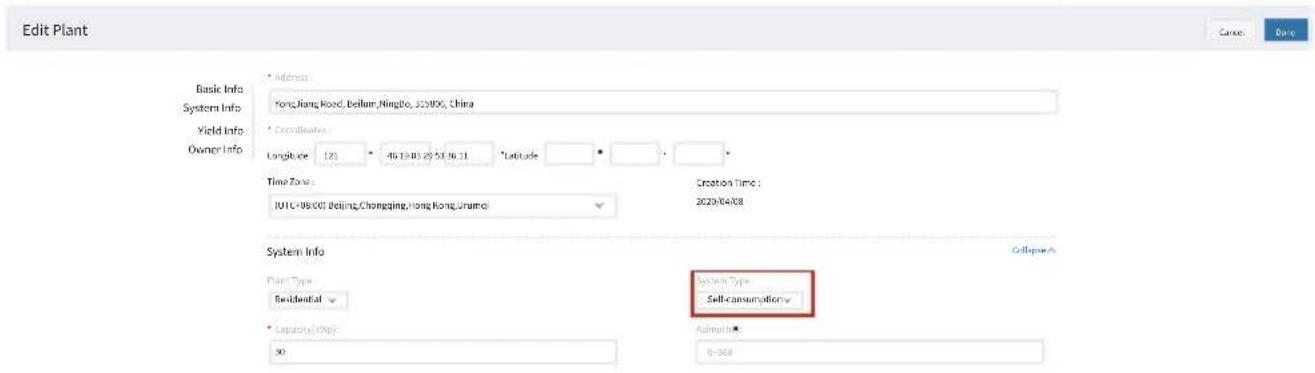

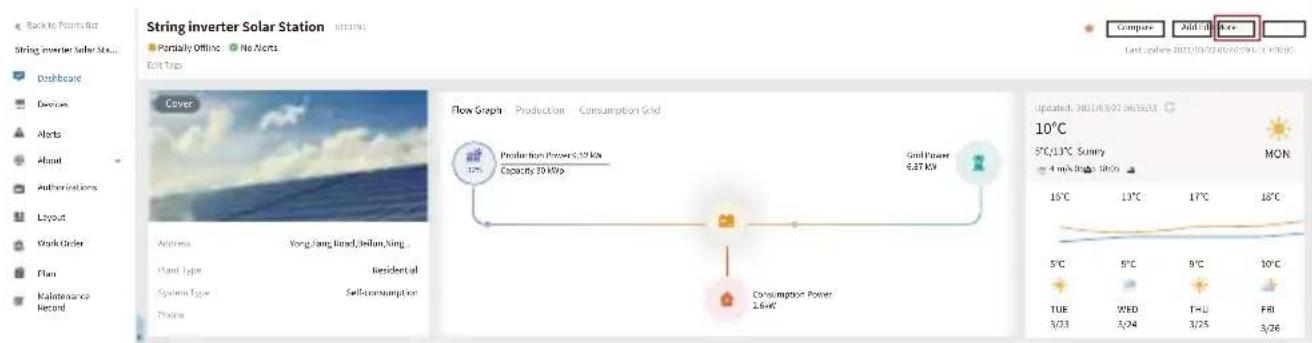

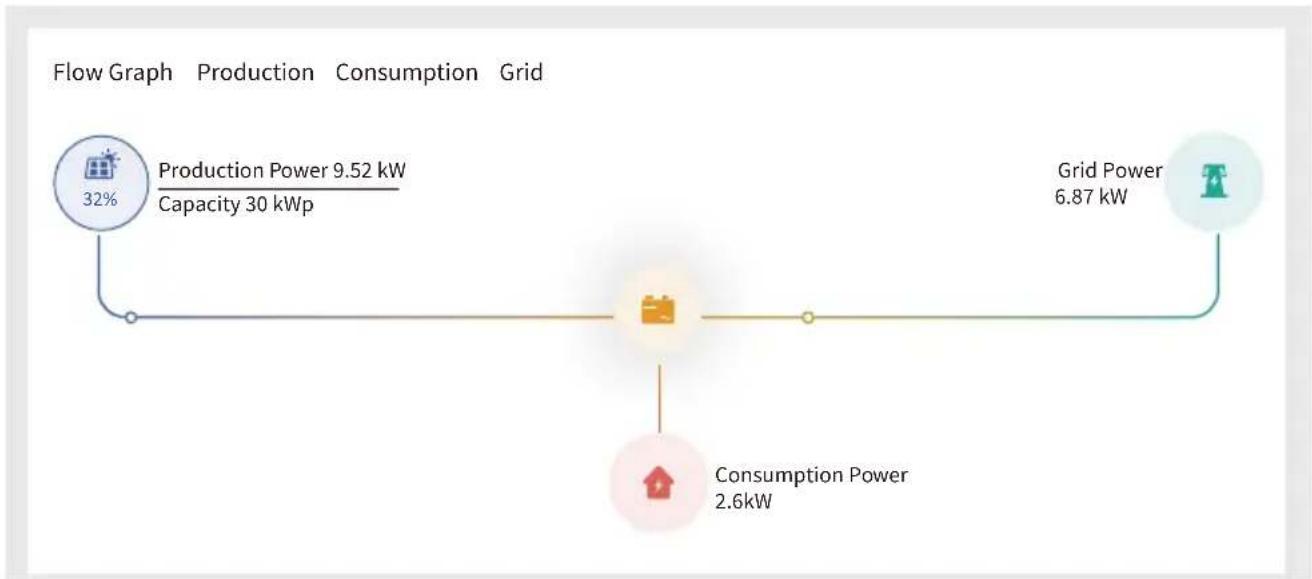

7.2 How to browse the load power of your PV grid-tieplant on monitoring platform? - 39 -

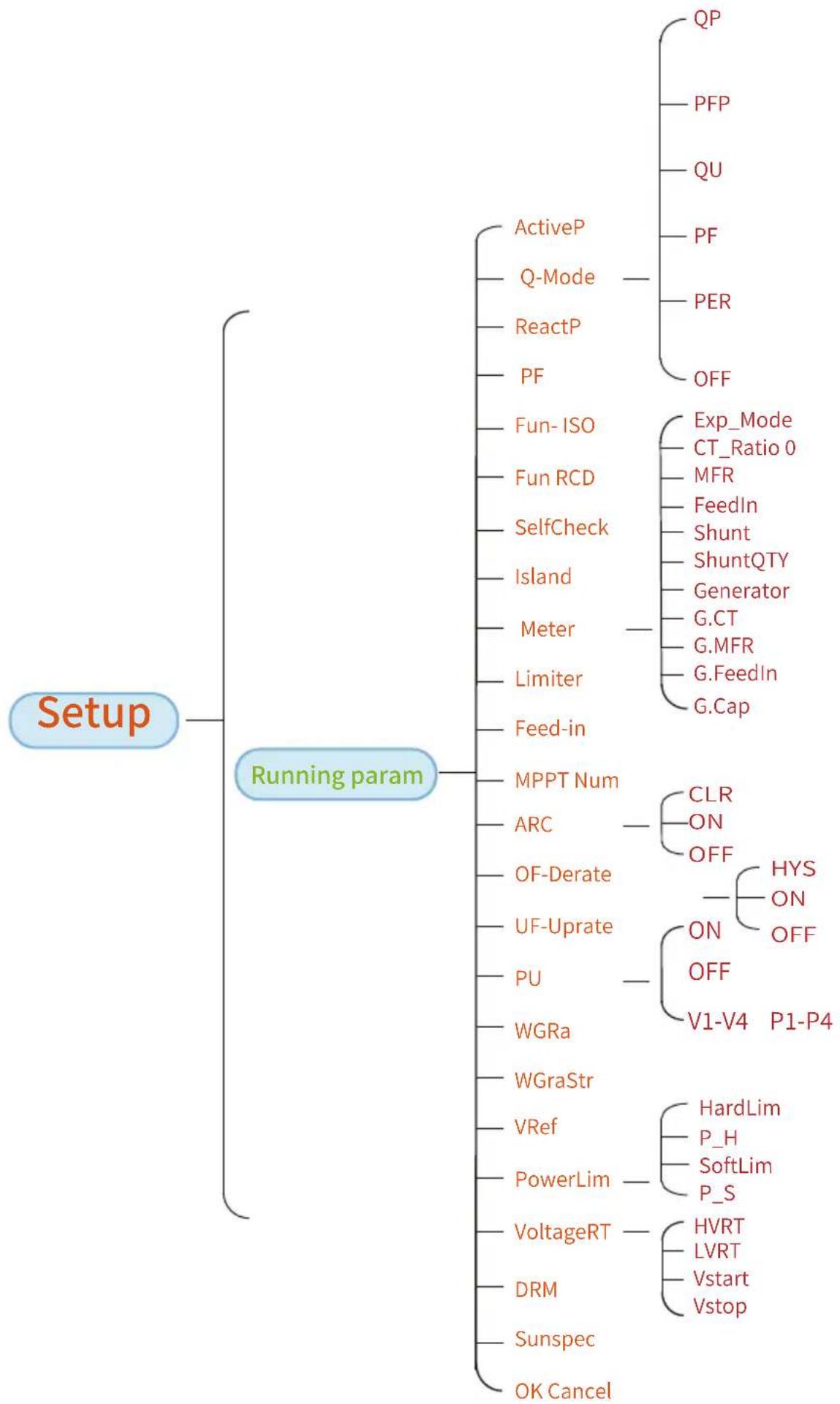

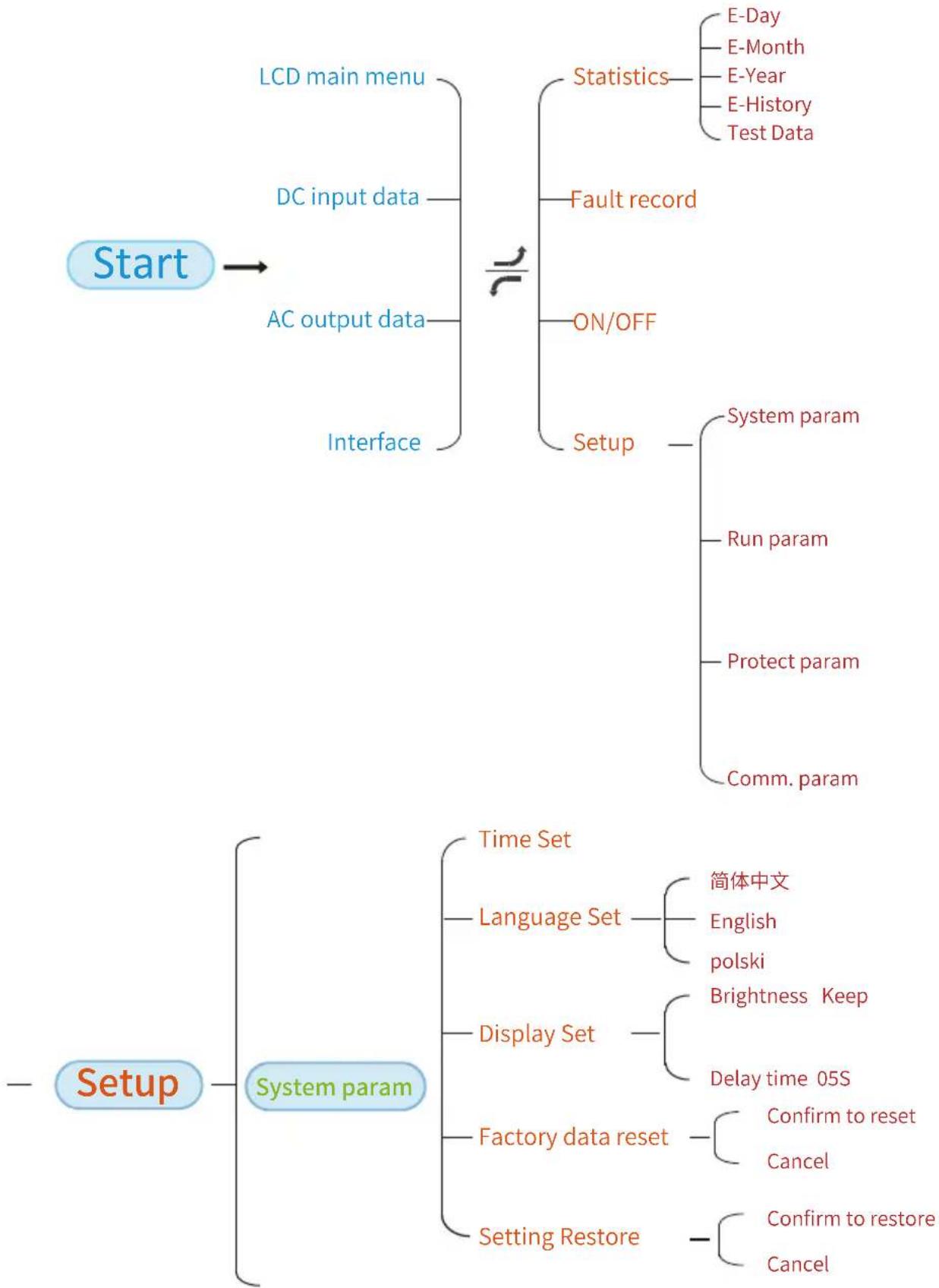

8. General Operation - 41 - ......

8.1 The initial interface - 44 -

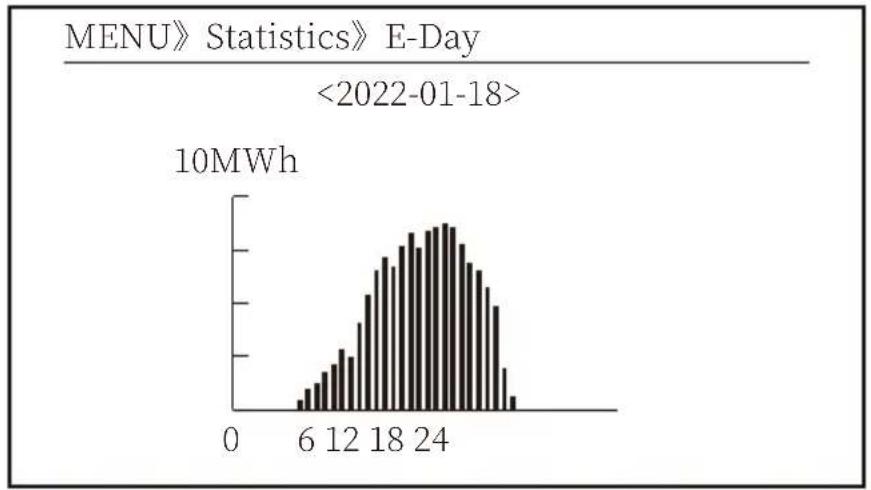

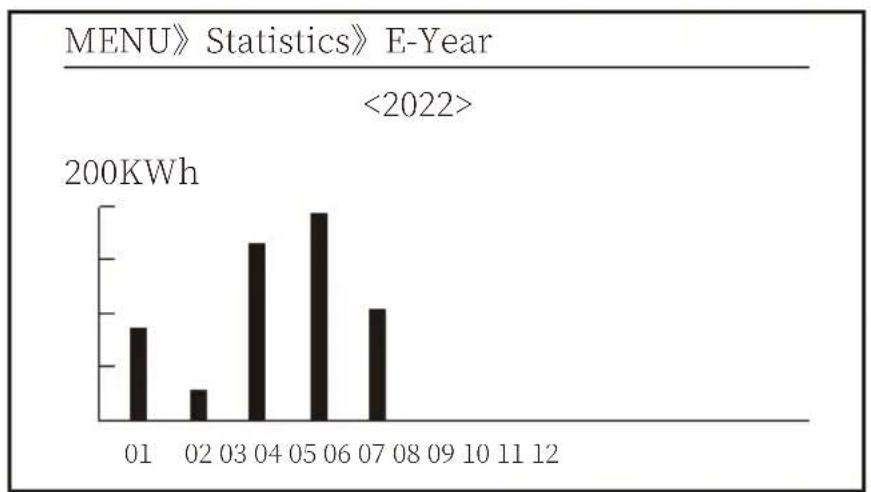

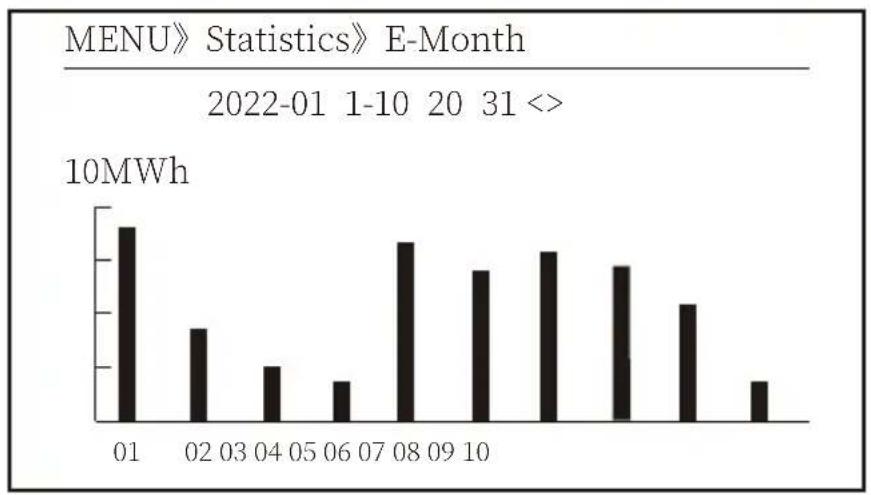

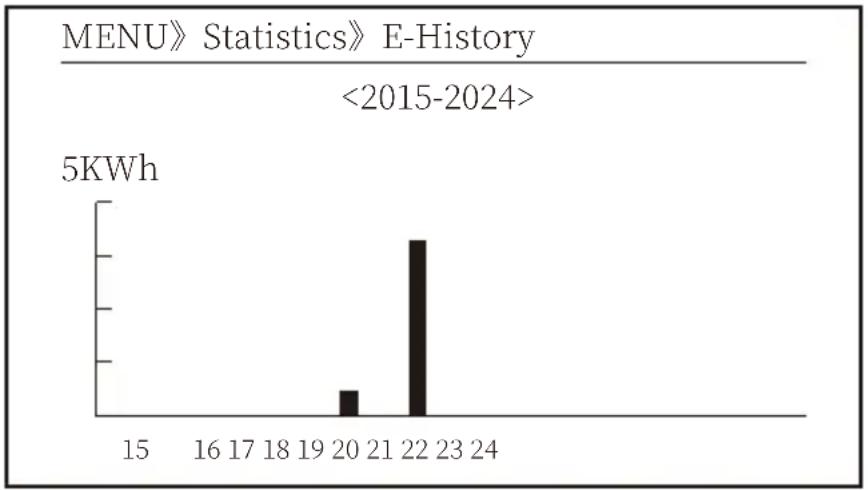

8.2 Statistics information - 46 -
8.3 Fault Record - 48 -
8.4 ON/OFF setting - 49 -

9. Repair and Maintenance - 56 - ......

10. Error information and processing - 56 - ......

1. Specification -61-
2. EU Declaration of Conformity - 62 -

About This Manual

The manual mainly describes the product information, guidelines for installation, operation and maintenance. The manual cannot include complete information about the photovoltaic (PV) system.

How to Use This Manual

Read the manual and other related documents before performing any operation on the inverter. Documents must be stored carefully and be available at all times. Contents may be periodically updated or revised due to product development. The information in this manual is subject to change without notice. The latest manual can be acquired via [e-mail]

1. Introduction

1.1 Appearance Introduction

On-grid inverter can convert solar panel DC power into AC power which can directly input to the grid. Its appearance is shown below. These models contain SUN-60K-G, SUN-70K-G, SUN-75K-G, SUN-80K-G.

The following is collectively referred to as "inverter".

Simple line drawing of a rectangular device with a central control panel and base components (no text or symbols)

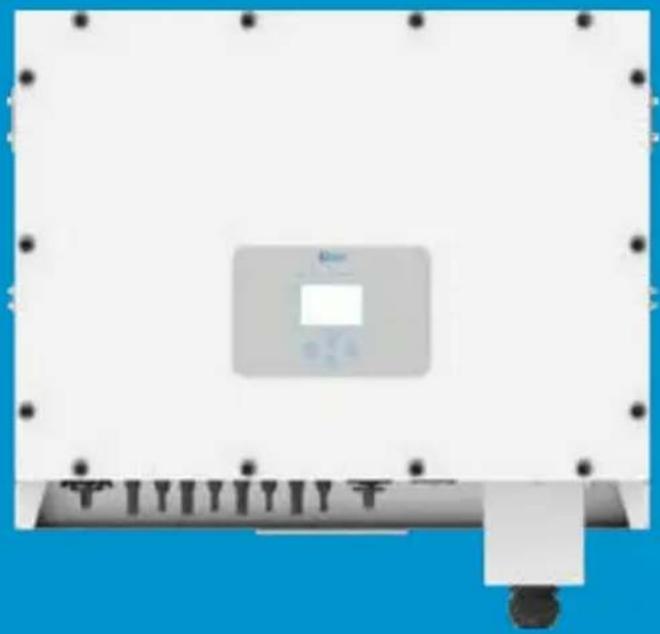

Pic 1.1 Front view

Front view of an electronic device chassis with multiple ports and control panels (no visible text or labels)

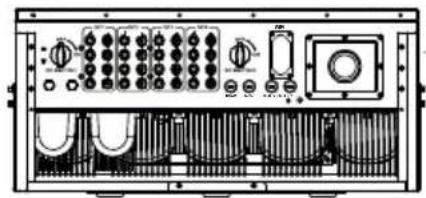

Pic 1.2 Bottom view

1.2 Labels description

Label	Description
	Caution, risk of electric shock symbol indicates important safety instructions, which if not correctly followed, could result in electric shock.
	The DC input terminals of the inverter must not be grounded.
	CE mark of conformity
	Please read the instructions carefully before use.
	Symbol for the marking of electrical and electronics devices according to Directive 2002/96/EC. Indicates that the device, accessories and the packaging must not be disposed as unsorted municipal waste and must be collected separately at the end of the usage. Please follow Local Ordinances or Regulations for disposal or contact an authorized representative of the manufacturer for information concerning the decommissioning of equipment.

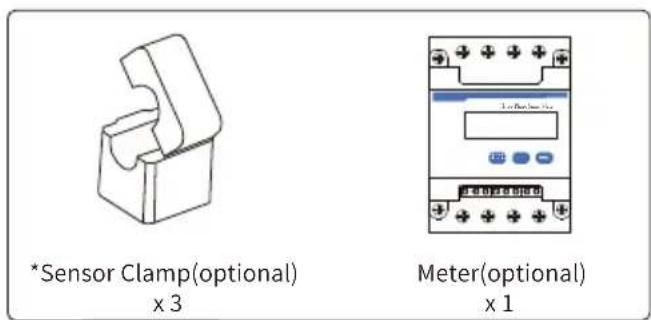

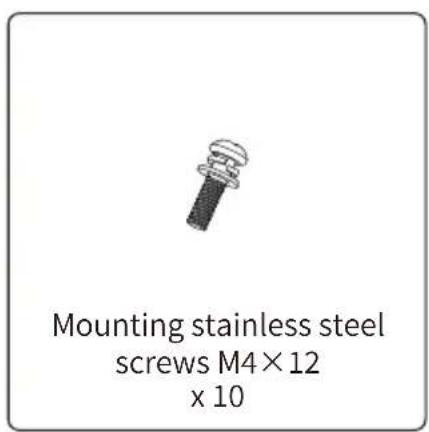

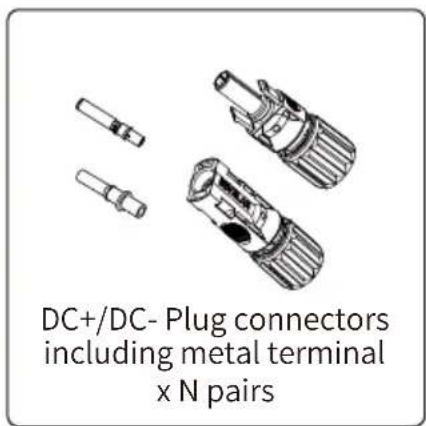

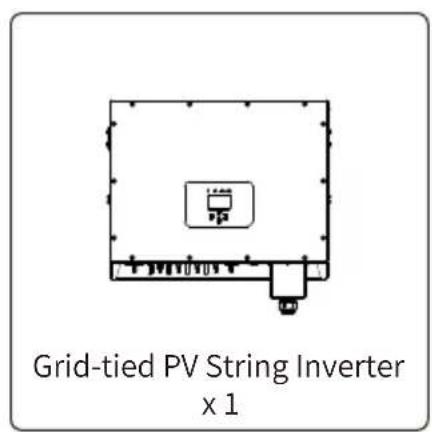

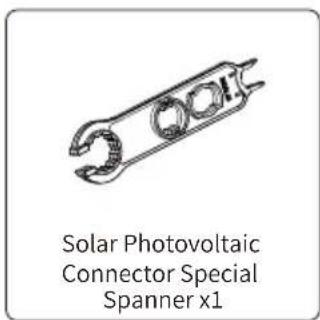

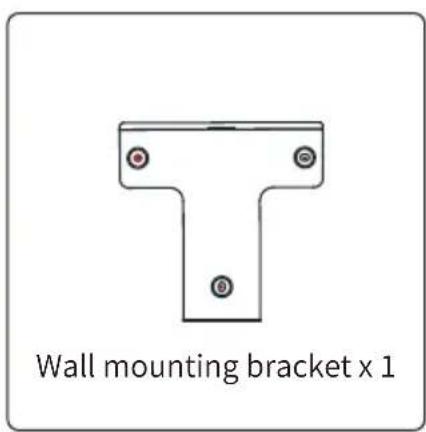

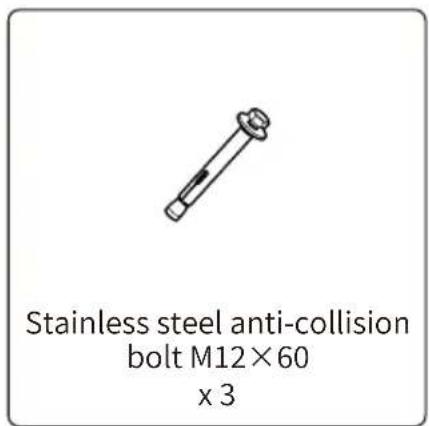

1.2 Parts list

Please check the following table, to see whether all the parts are included in the package:

Technical line drawing of a mechanical component with no visible text or symbols

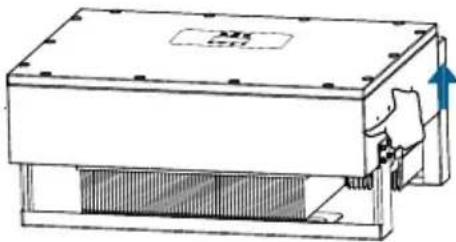

1.4 Product handling requirements

Lift the inverter out of the packing box and transport it to designated installation location.

Technical line drawing of a mechanical device with a base and mounting bracket, showing internal components and a blue directional arrow (no text or symbols)

transport

CAUTION:

Improper handling may cause personal injury!

- Arrange an appropriate number of personnel to carry the inverter according to its weight, and installation personnel should wear protective equipment such as anti-impact shoes and gloves.

- Placing the inverter directly on a hard ground may cause damage to its metal enclosure. Protective materials such as sponge pad or foam cushion should be placed underneath the inverter.

- Move the inverter by one or two people or by using a proper transport tool.

- Move the inverter by holding the handles on it. Do not move the inverter by holding the terminals.

2. Safety warnings and instructions

Improper use may result in potential electric shock hazards or burns. This manual contains important instructions that should be followed during installation and maintenance. Please read these instructions carefully before use and keep them for future reference.

2.1 Safety signs

Safety symbols used in this manual, which highlight potential safety risks and important safety information, are listed as follows:

Warning:

Warning symbol indicates important safety instructions, which if not correctly followed, could result in serious injury or death.

Shock Hazard:

Caution, risk of electric shock symbol indicates important safety instructions, which if not correctly followed, could result in electric shock.

Safety Hint:

Note symbol indicates important safety instructions, which if not correctly followed, could result in some damage or the destruction of the inverter.

High Temperature Hazard:

Caution, hot surface symbol indicates safety instructions, which if not correctly followed, could result in burns.

2.2 Safety instructions

Warning:

Electrical installation of the inverter must conform to the safety operation rules of the country or local area.

Warning:

Inverter adopts non-isolated topology structure, hence must insure DC input and AC output are electrical isolated before operating the inverter.

Shock Hazard:

Prohibit disassembling inverter case, there existing shock hazard, which may cause serious injury or death, please ask qualified person to repair.

Shock Hazard:

When PV module is exposed to sunlight, the output will generate DC voltage. Prohibit touching to avoid shock hazard.

Shock Hazard:

While disconnect the input and output of the inverter for maintenance, please waits for at least 5 mins until the inverter discharge the remnant electricity.

High Temperature Hazard:

Local temperature of inverter may exceed 80^ C while under operating. Please do not touch the inverter case.

2.3 Notes for using

The three phase string power inverter is designed and tested under related safety regulations. It can ensure the personal safety of the user. But as a electric device, it may cause shock or injury by incorrect operation. Please operate the unit under below requirements:

1. Inverter should be installed and maintained by qualified person under local standard regulations.
2. Must disconnect the AC side first, then disconnect DC side while doing installation and maintenance, after that, please wait at least 5 mins to avoid getting shocked.
3. Local temperature of the inverter may exceed 80 °C while under operating. Do not touch to avoid getting injured.

4. All electrical installation must be in accord with local electrical standards, and after obtaining the permission of the local power supply department, the professionals can connect the inverter to the grid.

5. Please take appropriate anti-static measure.

6. Please install where children can not touch.

7. The steps to start the inverter: 1) switch on the AC side circuit breaker, 2) Switch on the DC side circuit breaker of the PV panel. 3) Turn on the DC switch of the inverter.

The steps to stop the inverter: 1) switch off the AC side circuit breaker, 2) switch off the DC side circuit breaker of the PV panel. 3) Turn off the DC switch of the inverter.

1. Don't insert or remove AC and DC terminals when the inverter is in normal operation.

2. The DC input voltage of the inverter must not exceed the maximum value of the model.

3. Operation Interface

3.1 Interface View

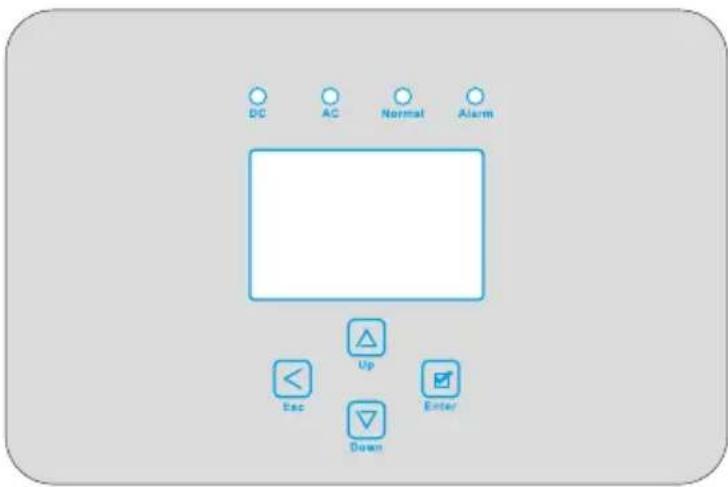

Pic 3.1 Front panel display

3.2 Status Indicator

The inverter panel has 4 indicators, the left one is dc output indicators, green indicates normal DC input. Beside is the AC indicator, green indicating normal ac connection. Beside the AC indicator is the operating indicator, green indicating normal output. The right indicator is alarm. red indicates alarming.

Indicator status		Explanation
_C381 DC	on	Inverter detects DC input
	off	Low DC input voltage
_AC	on	Grid Connected
	off	Grid Unavailable
_NORMAL	on	Under normal operating
	off	Stop operating
_ALARM	on	Detected faults or report faults
	off	Under normal operating

Table 3.1 Status indicator lights

3.3 Buttons

There are four buttons on the inverter panel: Above is Up and increase button(UP), Below is down and decrease button(DOWN), Left is ESC button(ESC), Right is Enter button(ENTER). Achieving below functions by the four buttons:

• Page turning (use UP and DOWN button)
• Modify adjustable parameters (use ESC and ENTER button)

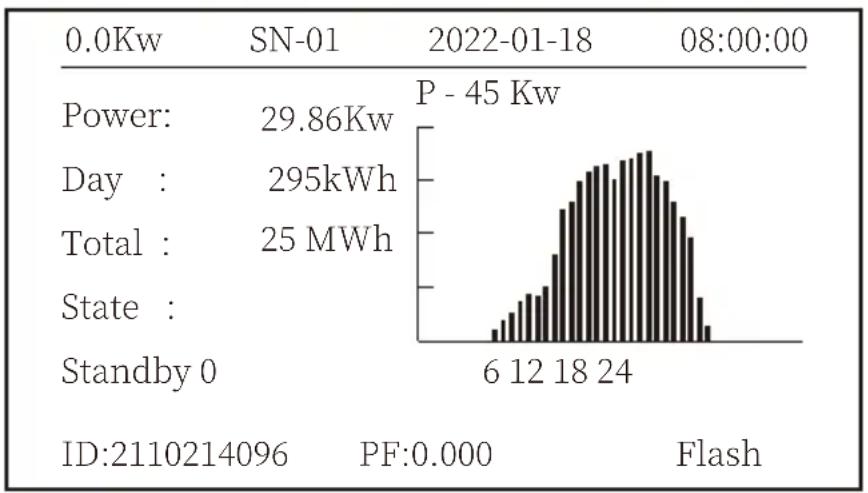

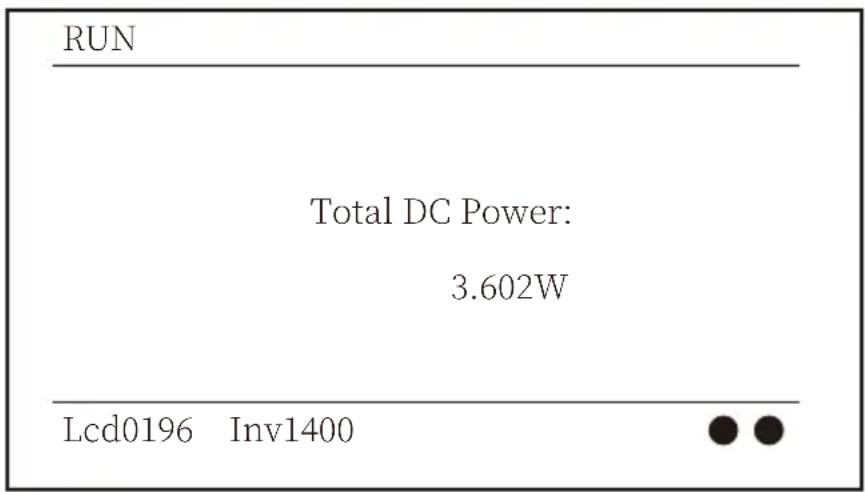

3.4 LCD Display

Three phase string inverter use 256*128 dot formation display, Display below content:

• Inverter operation status and information;
• Operating information;
• Warning message and malfunction display.

4. Product installation

4.1 Select installation location

To select a location for the inverter, the following criteria should be considered:

WARNING: Risk of fire

- Do not install the inverter in areas containing highly flammable materials or gases.

- Do not install the inverter in potentially explosive atmospheres.

- Do not install in small closed spaces where air can not circulate freely. To avoid overheating,

always make sure the flow of air around the inverter is not blocked.

- Exposure to direct sunlight will increase the operational temperature of the inverter and may cause output power limiting. It is recommended that inverter installed to avoid direct sunlight or raining.

- To avoid overheating ambient air temperature must be considered when choosing the inverter installation location. It is recommended that using a sun shade minimizing direct sunlight when the ambient air temperature around the unit exceeds 104°F/40°C.

Simple line drawing of a house with a sun and roof, no text or symbols present

×

Simple line drawing of a house under rain with cloud and raindrops (no text or symbols)

×

Simple line drawing of a house with cloud above it (no text or symbols)

×

Simple line drawing of a house with sun and roof, no text or symbols present

√

Simple line drawing of a house under rain with cloud and raindrops (no text or symbols)

√

Simple line drawing of a house with cloud above it (no text or symbols)

√
Pic 4.1 Recommended installation place

• Install on a wall or strong structure capable of bearing the weight.

- Install vertically with a maximum incline of +15^ . If the mounted inverter is tilted to an angle greater than the maximum noted, heat dissipation can be inhibited, and may result in less than expected output power.

- If install more than one inverter, must leave at least 500mm gap between each inverter. And each inverter must be at least 500mm above and below. And must install the inverter at the place where children cannot touch. Please see picture 4.3.

- Consider whether the installation environment is helpful to see the inverter LCD display and indicator status clearly.

- Must offer a ventilate environment if inverter installed in the airtight house.

Safety Hint:

Do not place or store any items next to the inverter.

Pure mechanical cross-section diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Technical line drawing of a mechanical assembly or enclosure with no visible text or symbols

Technical line drawing of a mechanical assembly or mounting bracket with no visible text or symbols

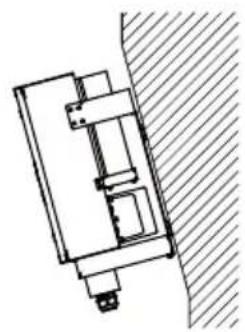

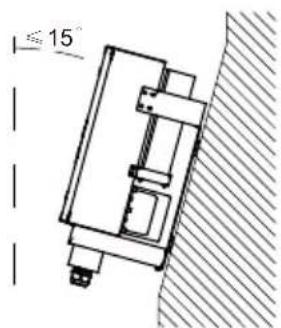

Pic 4.2 Installation Angle

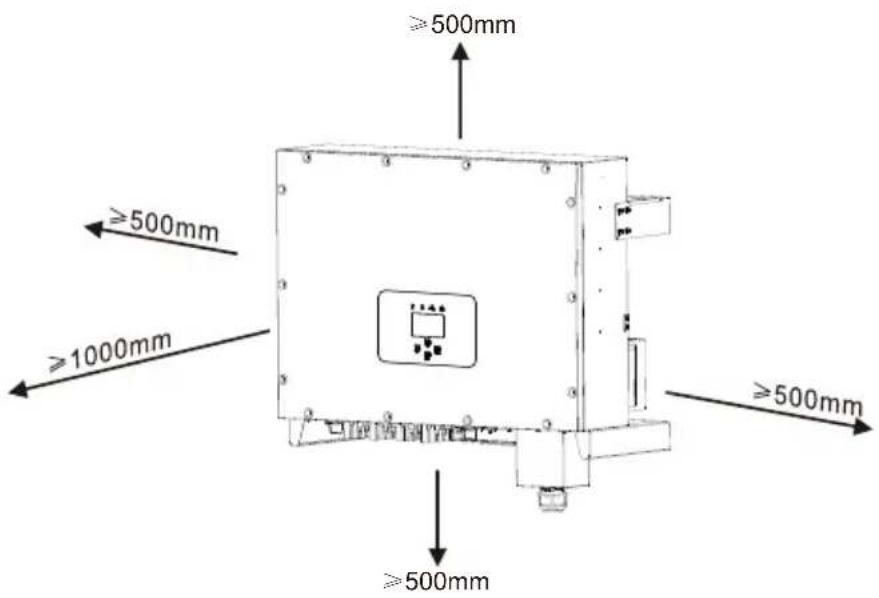

Pic 4.3 Installation Gap

4.2 Mounting bracket of inverter

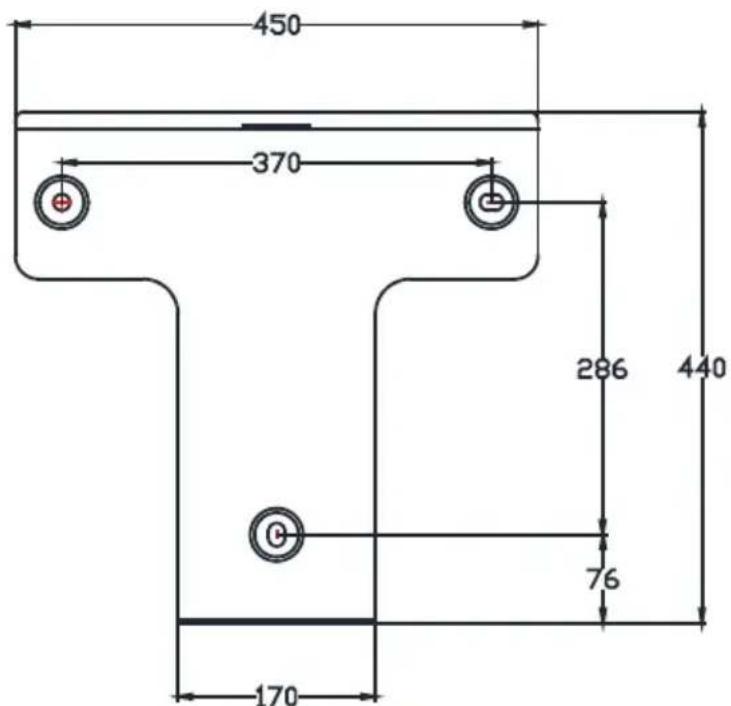

Pic 4.4 Mounting bracket dimensions

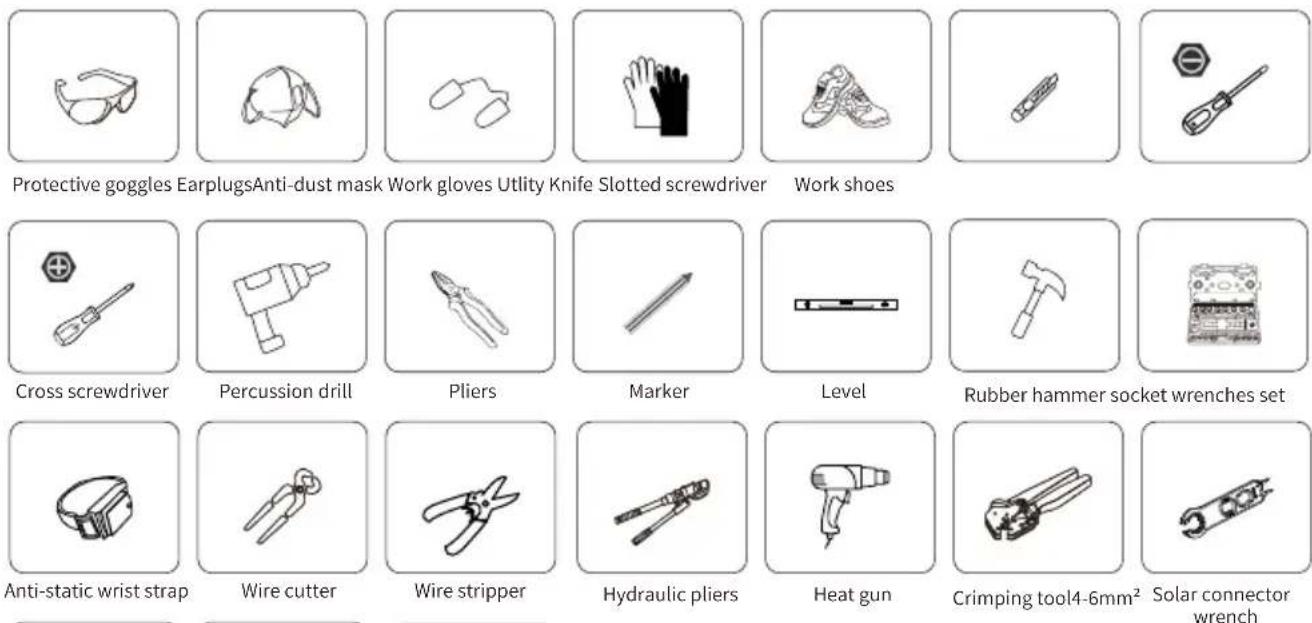

4.3 Installations Tools

Installation tools can refer to the following recommended ones. Also, use other auxiliary tools on site.

table 4-1 Tool specification

Multimeter ≥1100 Vdc RJ45 crimping plier

RJ45 crimping plier

Cleaner

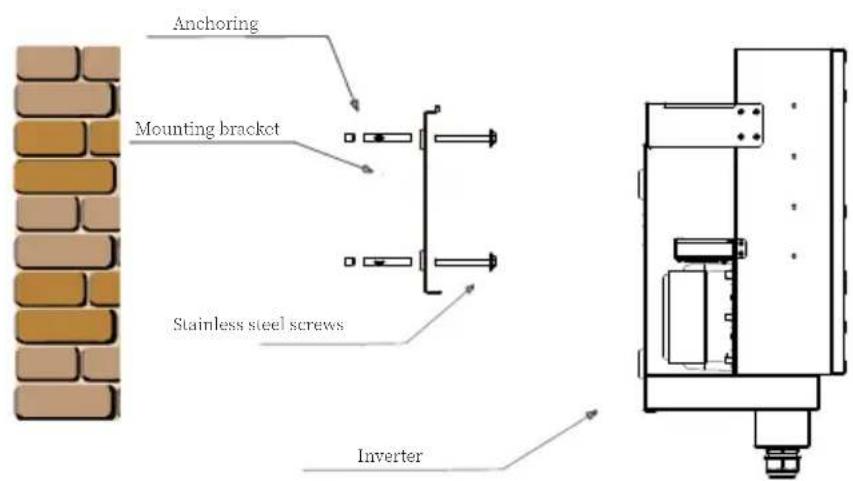

4.4 Inverter Installation

The inverter should be mounted in a vertical position. The steps of mounting are as follows

1. For brick walls, the position of the holes should be suitable for the expansion bolts.
2. Make sure the bracket is horizontal and the mounting holes are in the correct points. Drilling the holes on the wall according the marks.
3. Using the expansion bolts to fix the bracket to the wall.

Pic 4.5 Inverter Installation

5. Electrical Connection

5.1 DC input terminal connection

1. Switch the Grid Supply Main Switch(AC)OFF.
2. Switch the DC Isolator OFF.
3. Assemble PV input connector to the inverter.

Warning:

When using PV modules, please ensure the PV+ & PV- of solar panel is not connected to the system ground bar.

Safety Hint:

Before connection, please make sure the polarity of the output voltage of PV array matches the “DC+” and “DC-” symbols.

Warning:

Before connecting inverter, please make sure the PV array open circuit voltage is within the 1000V of the inverter.

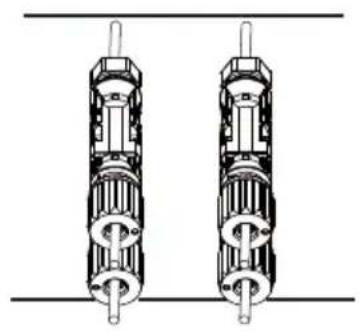

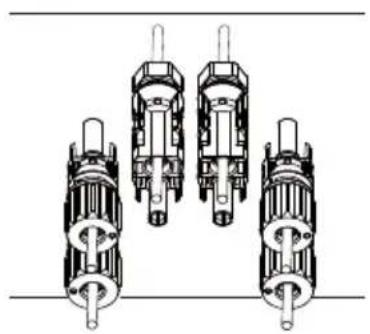

Pic 5.1 DC+ male connector

Pic 5.2 DC- female connector

Safety Hint:

Please use approved DC cable for PV system.

Cable type	Cross section (mm2)
	Range Recommended	ded value
Industry generic PV cable (model: PV1-F)	2.5-4.0(12-10AWG)	2.5(12AWG)

Table 5.1 DC Cable Specifications

The steps to assemble the DC connectors are listed as follows:

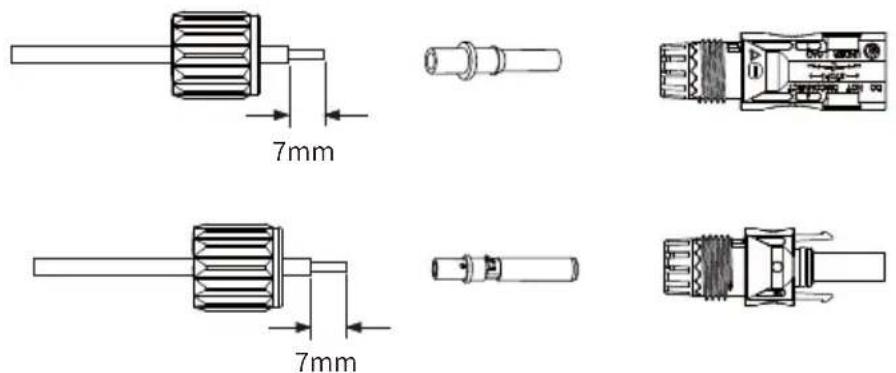

a) Strip off the DC wire about 7mm, disassemble the connector cap nut (see picture 5.3).

Pic 5.3 Disassemble the connector cap nut

b) Crimping metal terminals with crimping pliers as shown in picture 5.4.

Pic 5.4 Crimp the contact pin to the wire

c) Insert the contact pin to the top part of the connector and screw up the cap nut to the top part of the connector. (as shown in picture 5.5).

Technical line drawing of a mechanical assembly with rollers and a cylindrical component (no text or symbols)

Pic 5.5 connector with cap nut screwed on

d) Finally insert the DC connector into the positive and negative input of the inverter, shown as picture 5.6

Technical line drawing of four mechanical components with no visible text or symbols

Technical line drawing of two vertical cylindrical mechanical components with mounting holes (no text or symbols)

Pic 5.6 DC input connection

Warning:

Sunlight shines on the panel will generate voltage, high voltage in series may cause danger to life. Therefore, before connecting the DC input line, the solar panel needs to be blocked by the opaque material and the DC switch should be 'OFF', otherwise, the high voltage of the inverter may lead to life-threatening conditions.

Warning:

Please use its own DC power connector from the inverter accessories. Do not interconnect the connectors of different manufacturers.Max. DC input current should be 20A. if exceeds, it may damage the inverter and it is not covered by Deye warranty.

5.2 AC terminal connection

Model	Wire Size	Recommend copper cable( mm^2 )	Torque value(max)
SUN-60K-G	2AWG	25	16.9Nm
SUN-70K-G	1AWG	35	16.9Nm
SUN-75K-G	1AWG	35	16.9Nm
SUN-80K-G	0AWG	50	20.3Nm

Table 5.2 Recommended cable specifications

Warning:

The AC cable line L1 is connected to socket 1; L2 is connected to socket 2; L3 is connected to socket 3, the PE line is connected to the earth, the N wire is connected to the socket of N.

AC wire installation method:

1) Remove the 8 screws on the inverter junction box and remove the junction box cover in Pic 5.7. After removing the junction box, you can see the terminals of the inverter. The default is 4 digits as shown in Pic 5.8.

Technical line drawing of a mechanical component with a central bolt and mounting bracket (no text or symbols)

Technical line drawing of a multi-tiered electrical connector or terminal block structure (no text or symbols)

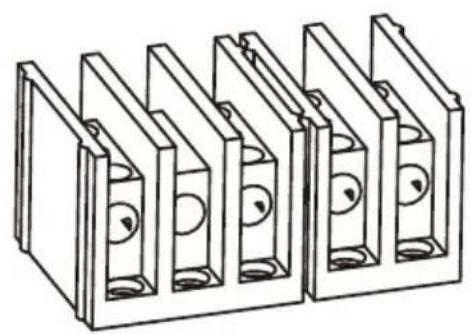

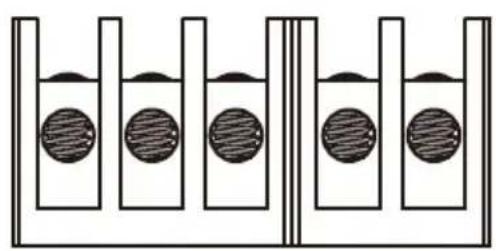

Pic 5.7 AC junction box Pic 5.8 AC terminal

2) Connect the cable through the junction box, waterproof jacket, and insert into the terminal (The picture Pic 5.9 shows the connection mode of three phase lines connected to the junction box, ground wire screwed on the inverter shell), and use hexagon screwdriver to presses the wiring harness to the connect terminal as shown in Pic 5.10.

Pic 5.9 AC cable connected to the terminal

Diagram of a multi-cylinder container with liquid levels and circular objects inside (no text or symbols)

Pic 5.10 Tightening the AC connection cable

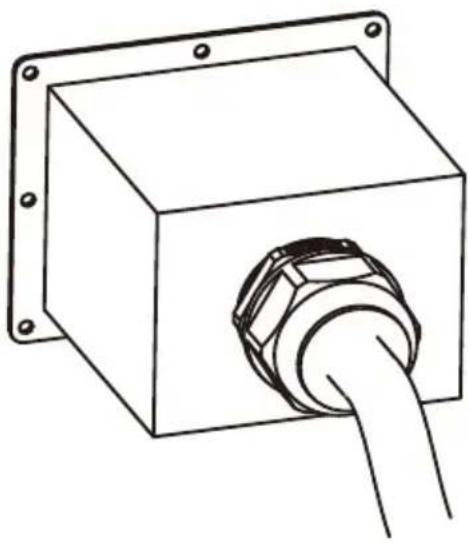

3) Screw the AC connection cover back to the shell and tighten all the screws to tighten the waterproof protection connector, as shown in Pic 5.11

Line drawing of a rectangular device with a coiled cable inserted into the center (no text or symbols)

Pic 5.11 Tig hten the AC junction box

5.2.1 Recommended current protector specifications

Inverter	Rated voltage	Rated output power (KW)	Current protection device (A)
SUN-60K-G	400	60	120
SUN-70K-G	400	70	150
SUN-75K-G	400	75	150
SUN-80K-G	400	80	160

Table 5.3 Recommended current protector specifications

5.3 Connection of the ground line

Good grounded is important for resist the surge voltage shock and improve EMI's performance. So before the connection of AC, DC, communication connections, inverter needs to ground first. For a single system, just ground the PE cable; For multiple machine systems, all PE cables of the inverter need to be connected to the same grounding copper platoon to ensure the equipotent connection. The installation of the shell ground wire is shown as Pic 5.12. The external protective earthing conductor is made of the same metal as the phase conductor.

Pic 5.12 The installation of the shell ground wire

Model	Wire Size	Recommend copper cable( mm^2 )	Torque value(max)
SUN-60K-G	4AWG	16	12.4Nm
SUN-70K-G	4AWG	16	12.4Nm
SUN-75K-G	4AWG	16	12.4Nm
SUN-80K-G	2AWG	25	16.9Nm

Table 5.3 Recommended cable specifications

Warning:

Inverter has built-in leakage current detection circuit, The type A RCD can be connected to the inverter for protection according to the local laws and regulations. If an external leakage current protection device is connected, its operating current must be equal to 300 mA or higher, otherwise inverter may not work properly.

5.4 Inverter monitoring connection

Inverter has the function of wireless remote monitoring inverter. The inverter has Wifi function and Wifi Plug in the accessories is used to realize the connection between the inverter and the network. The operation, installation, networking, APP download are detailed in the WIFI PLUG instructions. Figure 5.13 is the Internet monitoring solution.

Pic 5.13 Internet monitoring solution

5.4.1 Installation of datalogger

When installing the WiFi stick, tear off the sealing strip on the inverter. Insert the datalogger into the interface and fix it with a screw. The configuration of the datalogger needs to be performed after various electrical connections have been completed and the inverter DC power on. When the inverter is on the DC power, it is determined whether the datalogger is normally electrified (The LED light shines out of the shell).

Technical line drawing of an electrical enclosure with internal components and mounting holes (no text or symbols)

Pic 5.14 datalogger installation diagram

5.4.2 Configuration of datalogger

For the configuration of datalogger, please refer to illustrations of the datalogger.

6. Start up and Shut off

Ensure that the inverter meets the following conditions before starting the inverter, otherwise it may cause fire or damage to the inverter without quality assurance, at the same time the situation on our company does not undertake any responsibility. At the same time, to optimize the system configuration, it is recommended that the two inputs be connected to the same number of PV modules.

a). The maximum open circuit voltage of each set of PV modules shall not exceed 1000Vdc under any conditions.
b). Each input of the inverter better use the same type of PV module in series.
c). Total output power of PV shall not exceed the maximum input power of inverter, each PV modules shall not exceed the rated power of each channel.

6.1 Start up the inverter

When starting up the inverter, should fellow steps below:

1. Starting switch on the AC breaker.
2. Turn on the DC switch of the PV module, and if the panel provides sufficient starting voltage and power, the inverter will start.
3. The inverter will first check the internal parameters and the grid parameters, while the liquid crystal will show that the inverter is self-checking.
4. If the parameter is within acceptable range, the inverter will generate energy. NORMAL indicator light is on.

6.2 Shut off the inverter

Must follow below steps while Shutting down the inverter:

1. Switch off the AC breaker.
2. Wait for 30 seconds, turn off the dc switch (if any), or simply disconnect the dc input connector. The inverter will close the LCD and all led within two minutes.

6.3 Anti-PID Function(option)

The Anti-PID module repairs the PID effect of the PV module at night. The PID module always runs when connected to AC.

If maintenance is required and turn off the AC switch can disable the Anti-PID function.

Warning:

The PID functionality is automatic. When the DC bus voltage is below 50VDC, the PID module will create 450VDC between the PV and ground. No control and equipment are required.

Warning:

If you need to maintain the inverter, Please turn off the AC switch first, then turn off the DC switch, and wait 5 minutes before you do other operations.

7. Zero-export function via energy meter

There're four kinds of energy meters for this series inverter. First type is Eastron SDM630-Modbus V2 which is able to measure the Max. 200A current directly. More details please refer to Pic 7.1 & 7.4. For the Eastron SDM630 MCT 40mA, it needs external CT to measure the current. The CT power range is from 5A-2000A. More details about the Eastron SDM630 MCT, please refer to Pic 7.5 & 7.8. Also, the CHNT meter DTSU666 is supported, it can measure the Max. 80A current directly. More details about the DTSU666, please refer to Pic 7.9 - 7.16.

When you are reading this, we believe that you have completed the connection according to the requirements of chapter 5, if you have been running your inverter at this time, and you want to use the zero-export function, please turn off AC and DC switch of the inverter, and wait for 5 minutes until the inverter completely discharged.

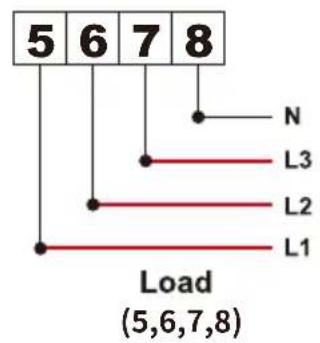

For system wiring diagram, the red line refers to L line (L1, L2, L3), the black line refers to the neutral line (N). Connecting energy meter RS485 cable to inverter's RS485 port. It's recommended to install an AC switch between the inverter and the utility grid, the specs of the AC switch are determined by the power of load.

If there is no integrated DC switch inside the inverter you purchased, we commend you to connect the DC switch. The voltage and current of the switch depend on the PV array you access.

Eastron SDM630-Modbus V2

RS 485

Pic 7.1 Eastron meter

Pic 7.2 Connection diagram of Eastron meter

Warning:

In final installation, breaker certified according to IEC 60947-1 and IEC 60947-2 shall be installed with the equipment.

Eastron SDM630-Modbus V2

RS 485

Pic 7.3 Eastron meter

Pic 7.4 Connection diagram of Eastron meter

Eastron SDM630MCT

RS 485

Pic 7.5 Eastron meter

Pic 7.6 Connection diagram of Eastron meter

Eastron SDM630MCT

RS 485

Pic 7.7 Eastron meter

Pic 7.8 Connection diagram of Eastron meter

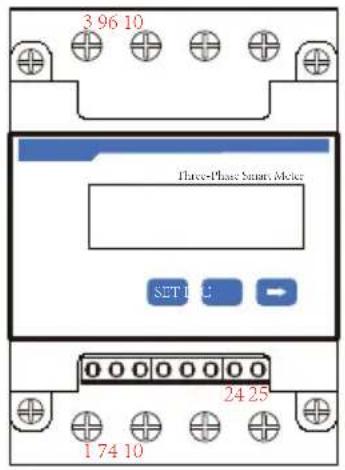

CHNT DTSU666

Pic 7.9 CHNT meter

Pic 7.10 Connection diagram of CHNT meter

CHNT DTSU666

Pic 7.11 CHNT meter

Pic 7.12 Connection diagram of CHNT meter

CHNT DTSU666

3x230/400V

100A/40mA

Phase A current =5.000A

Phase B current =5.001A

Phase C current =5.002A

Pic 7.13 CHNT meter

Pic 7.14 Connection diagram of CHNT meter

Phase A current = 5.000A

Phase B current =5.001A

Phase C current =5.002A

Pic 7.15 CHNT meter

Pic 7.16 Connection diagram of CHNT meter

Safety Hint:

Ensuring grid input cables connect 1/4/7/10 port of energy meter, and inverter AC output cables connect 3/6/9/10 port of energy meter when connecting.

1. Press Enter button on the LCD panel in the main interface into the menu options, select [parameter setting] to enter setup submenu, and then select [run param], at this time please input the default password 1234 through pressing the button [up down, enter], enter the operation parameter setting interface, shown as picture 7.17.

MENU» Setup» Run Param
ActiveP	31%	SelfCheck	20S
QMode	QU	Island	OFF
ReactP	0.0%	Meter	ON
PF	1.000	Limiter	OFF
Fun_ISO	ON	Feed_In	0%
Fun_RCD	ON	MPPT Num	4
OK Cancel

Pic 7.17 Zero-export function via meter setting interface

1. Operate the button [up down], move setting cursor to energy meter and press the button [enter]. At this time you can turn on the energy meter by choosing [up down] button, please press [enter] button to confirm when setting done.
2. Move the cursor to [OK], press [enter] to save the settings and exit the running parameters page, otherwise the settings are invalid.
3. If set up successfully, you can return to the menu interface, and display the LCD to [home page] by press the [up down] button. If it displays [meter power XXW], the zero-export function setting is completed. Shown as picture 7.18.

PARAMETR		Meter
		SN:1
Meter Power:	428W
Load Power:	1.043kW
Day	Total
ImpEp : 9.51kWh	2.24MWh
ExpEp : 0.00kWh	574.75KWh
LoadEp : 13.71kWh	1.67MWh

Pic 7.18 Zero-export function via energy meter turn on

1. Meter power 428W shows positive means grid is supplying the load, and no power fed into grid. if meter power shows negative, it means PV energy is being sold to grid or energy meter wiring connection has problem.
2. After properly connection is done, wait for inverter starting. If the power of the PV array meets the current power consumption, the inverter will keep a certain output to counteract the power of the grid without backflow.

7.1 Multiple strings and parallel connection meters

This application is that when the string inverters work in parallel, there is only one power grid and one load, and only one meter can be connected to prevent reverse current, so only this many-to-one anti-reverse current connection can be connected.

If there're several inverters parallelling operation in a plant, also it can use 1pcs meter to realize zero export function. For example, if there're 3pcs inverters parallelling operation in the system with 1pcs meter. We need to setup 1pcs inverteras the master and others setup as slaves. And, all of them need to connect to the meter via RS485. Below is the system diagram and configuration of the system.

MENU Setting
Exp_Mode AVG		Generator	ON
CT_Ratio	1	G.CT	1
MFR	AUTO	G.MFR	AUTO
FeedIn	0.0KW	G.Pout	0%
Shunt	OFF	G.Cap	200.0 KW
ShuntQTY	3
Back

Pic 7.19 Meter function

Name Description		Range
Exp_Mode	AVG: Average power of three phase is zero exported.MIN: Phase with minimum load power is zero exported, while the other two phase may be in purchase mode.	AVG/MIN
CT_Ratio	CT ratio of power grid side meter when extern CT is applied.	1-1000
MFR	Manufacturer of the grid side meter. Modbus Address of it should be set as 01.	AUTO/CHNT/EASTRON
Feedin	Percentage of the Feed in power exported to the grid.	0-110%
Shunt	Parallel mode. Set one inverter as Master, others are Slave. ONLY need to set the master, Slave will follow the settings in the master.	OFF/Master/Slave
ShuntQTY	Number of inverters in parallel	1-16
Generator	DG side meter function Enable/Disable	ON/OFF
G.CT	CT ratio of power DG side meter when extern CT is applied.	1-1000
G.MFR	Manufacturer of the DG side meter. Modbus Address of it should be set as 02.	AUTO/CHNT/EASTRON
G.Pout	Output power percentage of the DG.	0-110%
G.Cap	Capacity of the DG.	1-999kW

Note: Select Meter option in Run Param and long press ENTER button to enter this Meter Setting page.

Eastron SDM630-Modbus V2

RS 485

Pic 7.20 Eastron meter

Pic 7.21 Eastron Connection diagram(The pass-through table)

Eastron SDM630-Modbus V2

RS 485

Pic 7.22 Eastron meter

Pic 7.23 Eastron Connection diagram(The pass-through table)

Eastron SDM630MCT

RS 485

Pic 7.24 Eastron meter

Pic 7.25 Connection diagram(Three-phase electricity)

Eastron SDM630MCT

RS 485

Pic 7.26 Eastron meter

Pic 7.27 Connection diagram(Three-phase electricity)

CHNT DTSU666

Pic 7.28 CHNT meter

Solar Panel array

Solar Panel array

Solar Panel array

Master(Mst)

485 B 485 A

Pic 7.29 CHNT Connection diagram(The pass-through table)

CHNT DTSU666

Pic 7.30 CHNT meter

Pic 7.31 CHNT Connection diagram(The pass-through table)

Phase B current =5.001A

Phase C current =5.002A

Pic 7.32 CHNT meter

Pic 7.33 CHNT Connection diagram(The pass-through table)

Phase C current =5.002A

Pic 7.34 CHNT meter

Pic 7.35 CHNT Connection diagram(The pass-through table)

7.2 How to browse the load power of your PV grid-tie plant on monitoring platform?

If you want to browse load power of the system and how much energy (KWH) does it export to grid(inverter output power is used to power the load firstly and then the surplus energy will feed into grid). You also need to connect the meter according to above diagram. After the connection completed successfully, the inverter will show the load power on the LCD. But please don’t setup “Meter ON”. Also, you will be able to browse the load power on the monitoring platform. The plant setting method as below description.

Firstly, go to the solarman platform(https://pro.solarmanpv.com, this link is for solarman distributor account; or https://home.solarmanpv.com, this link is for solarman end user account;) plant home page and click “edit”

And then choose your system type as "Self-consumption"

Secondly, go to plant page, if it shows the PV power, load power and grid power, which means the configuration is correct.

8. General Operation

During normal operation, the LCD shows the current status of the inverter, including the current power, total generation, a bar chart of power operation and inverter ID, etc. Press the Up key and the Down key to see the current DC voltage, DC current, AC voltage, AC current, inverter radiator temperature, software version number and Wifi connection state of the inverter.

    C --> AA["QP"]
    C --> AB["PFP"]
    C --> AC["QU"]
    C --> AD["PF"]
    C --> AE["PER"]
    C --> AF["OFF"]

    D --> AG["Exp_Mode CT_Ratio 0"]
    D --> AH["MFR FeedIn Shunt ShuntQTY Generator G.CT G.MFR G.FeedIn G.Cap"]

    E --> AH
    G --> AI["CLR ON OFF HYS ON OFF V1-V4 P1-P4"]

    I --> AJ["ON OFF"]

    N --> AK["HYS ON OFF"]

    O --> AL["ON OFF"]

    P --> AM["V1-V4 P1-P4"]

    Q --> AN["HardLim P_H SoftLim P_S"]

    R --> AO["HVRT LVRT Vstart Vstop"]

    S --> AP["PowerLim"]

    T --> AQ["PowerLim"]

    V --> AR["PowerLim"]

    W --> AS["HVRT LVRT Vstart Vstop"]

    X --> AT["PowerLim"]

    Y --> AU["PowerLim"]

    Z --> AV["PowerLim"]

*Note: These parameters will be available after the meter is connected successfully. Otherwise, it won't show.
Attention: For running param detail on the LCD display, please refer to the official Deye website https://www.deyeinverter.com

Setup

Comm. param

Address:08

Meter:Unkonw

BaudRate: 9600

8.1 The initial interface

From the initial interface, you can check power, daily generation, gross generation, invertert ID, model and time.

Pic 8.1 The initial interface

Press UP or Down you can check inverter DC voltage, DC current, AC voltage, AC current, inverter temperature, software version information.

RUN Input
PV1	V : 349.9V	I : 10.3A	P : 3.6KW
PV2	V : 313.0V	I : 8.3A	P : 2.6KW

Pic 8.2 PV input and DC current information

You can check the PV information, the number of strings input, MPPT voltage and MPPT current.

RUN Grid

Ua : 234.5V Ia : 0.0A

Grid Freq : 50.00Hz PF : 0.000

Pic 8.3 AC running state information

You can check the three phase voltage, current, and grid frequency.

Pic 8.4 Inverter firmware version

You can check the inverter LCD software Ver0196 and Control Software Version Ver1400. There are two black spot in the bottom right corner. The first flash means inverter is communicating with LCD. The second flash means LCD is communicating with wifi plug.

PARAMETR		Meter
		SN: 0
Meter Power:	0W
Load Power:	0W
Day		Total
ImpEp : 0.00kWh		0.00kWh
ExpEp : 0.00kWh		0.00kWh
LoadEp : 0.00kWh		0.00kWh

Pic 8.5 Meter power and load power

8.1.1 Main Menu

There are four submenu in the Main Menu.

MENU

Statistics «

Fault Record

ON/OFF

Setup

Pic 8.6 Main Menu

8.2 Statistics information

There are five submenu in the statistics.

MENU》Statistics
E-Day E-History
E-Month	Test Data	《
E-Year

Pic 8.7 Statistics

Into each submenu through cursor.

Pic 8.8 E-Day

Pic 8.9 E-Month

Pic 8.10 E-Year

Pic 8.11 E-History

This information is for technician's reference.

Only can keep four fault record in the menu include time, customer can deal with it depends on the error code.

MENU》Fault Record
Fault : F352022-01-05 08:38
History : 1	F352022-01-05 08:37
2	F352022-01-04 18:47
3	F352022-01-04 17:54
4	F352022-01-04 17:53

Pic 8.13 Fault Record

8.4 ON/OFF setting

MENU》ON/OFF

Turn ON

Turn OFF 《

Pic 8.14 ON/OFF setting

Into each submenu through cursor.

MENU》ON/OFF》Turn ON

OK 《 Turn ON Cancel

Pic 8.15 ON set

MENU》ON/OFF》Turn OFF

OK 《 Turn OFF Cancel

Pic 8.16 OFF set

8.5 Parameter setting

Setting includes system param, run param, protect param, comm.. param. All of these information for maintenance reference.

MENU》 Setup

System Param 《

Run Param

ParamProtect

ParamComm.

Pic 8.17 Setting

8.5.1 System Param

MENU》 Setup \$ystem Param

Time Set

Language Set

Display Set

Factory data reset

Setting Restore

Pic 8.17.1 System Param Setting

8.5.1.1 Time Set

Time Set
2022-01-18 09:36:30
OK Cancel

Pic 8.18 System Param

8.5.1.2 Language Set

Lauguage Set

简体中文

English 《

Polski

Pic 8.19 Lauguage set

8.5.1.3 Display Set

Display Set

Brightness Keep 《

Delay time 05S

OK Cancel

Pic 8.20 Display set

8.5.1.4 Factory data reset

Factory data reset

Confirm to reset 《

Cancel

Pic 8.21 Factory data reset set

Password required-- only for access-authorized engineer. Un-authorized access may avoid the warranty. The initial password is 1234.

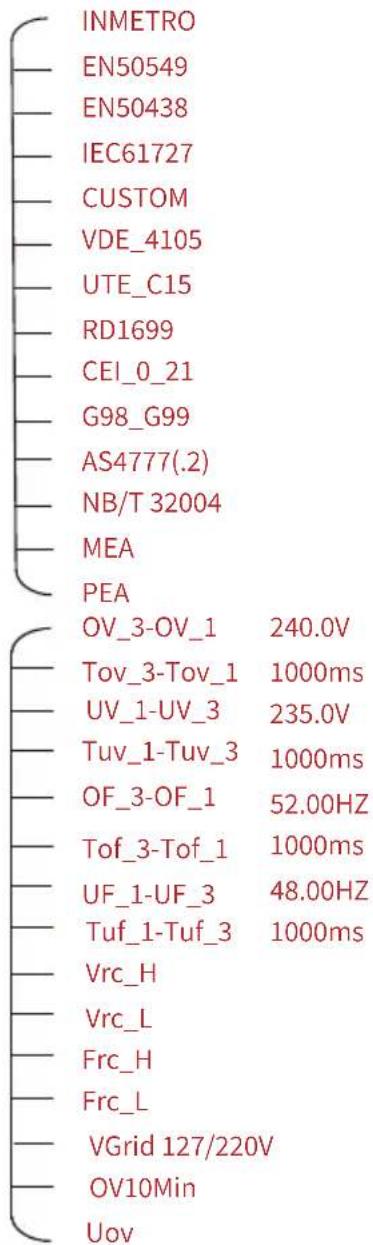

8.5.2 Protect Param

Australia-A
Australia-B
Australia-C
○ New Zealand
○ MEA
○ PEA

OK Cancel

Standard

○ Norway
○ Switzerland
R25
○ CEI-016

OK Cancel

Pic 8.24 "Standard"

- VoltageTripping
OV_3	240.0V	Tov_3	1000ms
OV_2	240.0V	Tov_2	1000ms
OV_1	240.0V	Tov_1	1000ms
UV_1	240.0V	Tuv_1	1000ms
UV_2	240.0V	Tuv_2	1000ms
UV_3	240.0V	Tuv_3	1000ms
OK Cancel
- Frequency Tripping
OF_3	52.00Hz	Tof_3	1000ms
OF_2	52.00Hz	Tof_2	1000ms
OF_1	52.00Hz	Tof_1	1000ms
UF_1	48.00Hz	Tuf_1	1000ms
UF_2	48.00Hz	Tuf_2	1000ms
UF_3	48.00Hz	Tuf_3	1000ms
OK Cancel

- Miscellaneous
Vrc_H	0.0V	Uov	0.0%
Vrc_L	0.0V
Frc_H	0.0Hz
Frc_L	0.0Hz
VGrid	127/220V
OV10Min	OFF
OK Cancel

Pic 8.25 "Advanced"

8.5.3 Comm. Param

MENU》 Setup》 Comm.Param
WIFI-SET	485-SET
Address : 01《	Address : 01
	Func : 485
	Baud : 9600

Pic 8.26 Communication param

9. Repair and Maintenance

String type inverter doesn’t need regular maintenance. However, debris or dust will affect heat sink’s thermal performance. It is better to clean it with a soft brush. If the surface is too dirty and affect the reading of LCD and LED lamp, you can use wet cloth to clean it up.

High Temperature Hazard:

When the device is running, the local temperature is too high and the touch can cause burns. Turn off the inverter and wait for it cooling, then you can clean and maintain.

Safety Hint:

No solvent, abrasive materials or corrosive materials can be used for cleaning any parts of the inverter.

10. Error information and processing

Inverter has been designed in accordance with international grid tied standards for safety, and electromagnetic compatibility requirements. Before delivering to the customer the inverter has been subjected to several tests to ensure its optimal operation and reliability.

10.1 Error code

If there is any failure, the LCD screen will display an alarm message. In this case, the inverter may stop feeding energy into the grid. The alarm description and their corresponding alarm messages are listed Table 10.1.

Error code	Description Ongrid - Three Phase
F01 DC input polarity reverse fault Check the PV input polarity.
F02	DC insulation impedance permanent fault	Check the grounding cable of inverter.
F03 DC leakage current fault Hardly appear the code. Never ever happened so far.
F04	Ground fault GFDI Check the solar panel output connection.
F05	Read the memory error	Failure in reading memory (EEPROM). Restart the inverter if the fault still exists, contact your installer or Deye service.
F06	Write the memory error	Failure in writing memory (EEPROM). Restart the inverter if the fault still exists, contact your installer or Deye service.
F07 GFDI bown fuse Hardly appear the code. Never ever happened so far.
F08 GFDI grounding touch failure Hardly appear the code. Never ever happened so far.
F09	IGBT damaged by excessive drop voltage	Hardly appear the code. Never ever happened so far.
F10	Auxiliary switch power supply failure	1. It tells the DC 12V is not existed.2. Restart the inverter, if the fault still exists, please contact your installer.
F11 AC main contactor errors Hardly appear the code. Never ever happened so far.
F12 AC auxiliary contactor errors Hardly appear the code. Never ever happened so far.
F13	reserved	1. Loss of one phase or AC voltage detection part failure or relays not closed.2. Restart the inverter, if the error still exists, please contact your installer or Deye service.
F14	DC firmware over current	Hardly appear the code. Never ever happened so far.
F15	AC firmware over current	1. The internal AC sensor or detection circuit on control board or connection wire may loose.2. Restart the inverter, if the error still exists, please contact your installer or Deye service.
F16	GFCI(RCD) Ac leakage current fault	1. This fault means the average leakage current is over 300mA. Check whether DC power supply or solar panels is ok, then check 'Test data'-> 'diL' value is about 40; Then check the leakage current sensor or circuit (the following picture). Checking test data needs using big LCD.2. Restart the inverter, if the error still exists, please contact your installer or Deye service.
F17	Three phase current, over-current fault	Hardly appear the code. Never ever happened so far.
F18	AC over current fault of hardware	1. Check AC sensor or detection circuit on control board or connection wire.2. Restart the inverter or factory reset, if the error still exists, please contact your installer or Deye service.
F19		Hardly appear the code. Never ever happened so far. All hardware fa
F20	DC over current fault of the hardware	1. Check whether solar panel output current is within the allowed range.2. Check DC current sensor and its detection circuit.3. Check if the inverter FW version is suitable for the hardware.4. Restart the inverter, if the error still exists, please contact your installer or Deye service.
F21	DC leakage flow fault	Hardly appear the code. Never ever happened so far.
F22	Crash stop (if there is a stop button)	Contact your installer for help.
F23	AC leakage current is transient over current	1. This fault means the leakage current is above 30mA suddenly. Check whether DC power supply or solar panels is ok, then check 'Test data'-> 'diL' value is about 40; Then check the leakage current sensor or circuit. Check test data needs using big LCD.2. Restart the inverter, if the fault still exists, contact your installer or Deye service.
F24	DC insulation impedance failure	1. Check Vpe resistance on main board or detection on control board. Check PV panels is OK. Many times this issue is the PV problem.2. Check whether the PV panel (aluminum frame) is grounded well and inverter is grounded well. Open the cover of inverter and then check the inside ground cable is fixed well on the shell.3. Check if the AC/DC cable, terminal block are shorted to ground or the insulation is damaged.4. Restart the inverter, if the fault still exists, contact your installer or Deye service.
F25 DC feedback fault Hardly appear the code. Never ever happened so far.
F26	The DC busbar is unbalanced	1. Check whether the 'BUSN' cable or driver board power supply cable is loose.2. Restart the inverter, if the fault still exists, contact your installer or Deye service.
F27 DC end insulation error Hardly appear the code. Never ever happened so far.
F28 Inverter 1 DC high fault Hardly appear the code. Never ever happened so far.
F29 AC load switch failure Hardly appear the code. Never ever happened so far.
F30	AC main contactor failure	1. Check relays and AC voltage of relays.2. Check relays driver circuit. Check if the software is not suitable for this inverter. (Old inverter not have relays detection function)3. Restart the inverter, if the fault still exists, contact your installer or Deye service.
F31	Relay open circuit fault	1. At least one Relay can't be closed. Check relays and its driver signal. (Old inverter not have relays detection function)2. Restart the inverter, if the fault still exists, contact your installer or Deye service.
F32 Inverter 2 dc high fault Hardly appear the code. Never ever happened so far.
F33 AC over current Hardly appear the code. Never ever happened so far.
F34 AC current over load Hardly appear the code. Never ever happened so far.
F35	No AC grid	1. Check AC grid voltage. Check AC voltage detection circuit. Check if the AC connector in good condition. Check whether the AC grid is normal in voltage.2. Restart the inverter, if the fault still exists, contact your installer or Deye service.
F36 AC grid phase error Hardly appear the code. Never ever happened so far.
F37	AC three-phase voltage unbalance failure	Hardly appear the code. Never ever happened so far.
F38	AC three-phase current unbalance failure	Hardly appear the code. Never ever happened so far.
F39	AC over current(one cycle)	1. Check AC current sensor and its circuit.2. Restart the inverter, if the fault still exists, contact your installer or Deye service.
F40 DC over current	hardly appear the code. Never ever happened so far.
F41	AC Line W,U over voltage	Check the AC voltage protection setting. And Check if the AC cable is too thin.Check the voltage difference between LCD and meter.
F42	AC Line W,U low voltage	Check the AC voltage protection setting. Check the voltage difference between LCD and meter. Also need to check whether AC cables are all firmly and correctly connected.
F43	AC Line V,W over voltage	Check the AC voltage protection setting.And Check if the AC cable is too thin.Check the voltage difference between LCD and meter.
F44	AC Line V,W low voltage	Check the AC voltage protection setting. Check the voltage difference between LCD and meter. Also need to check whether AC cables are all firmly and correctly connected.
F45	AC Line U,V over voltage	Check the AC voltage protection setting.And Check if the AC cable is too thin.Check the voltage difference between LCD and meter.
F46 AC Line	U,V low voltage Check the AC voltage protection setting.
F47 AC Over frequency	check the frequency protection setting.
F48 AC lower frequency	check the frequency protection setting.
F49	U phase grid current DC component over current	Hardly appear the code. Never ever happened so far.
F50	V phase grid current DC component over current	Hardly appear the code. Never ever happened so far.
F51	W phase grid current DC component over current	Hardly appear the code. Never ever happened so far.
F52	AC inductor A, phase current DC current high	Hardly appear the code. Never ever happened so far.
F53	AC inductor B, phase current DC current high	Hardly appear the code. Never ever happened so far.
F54	AC inductor C, phase current DC current high	Hardly appear the code. Never ever happened so far.
F55	DC busbar voltage is too high	1. Check PV voltage and Ubus voltage and its detection circuit. If the PV input voltage exceeds the limit, please reduce the number of solar panels in series.2. For Ubus voltage, please check the LCD display.
F56	DC busbar voltage is too low	1. It tells the PV input voltage is low and it always happens in the early morning.2. Check PV voltage and Ubus voltage. When inverter is running, then showing F56, maybe Loss of driver or need update firmware.3. Restart the inverter, if the fault still exists, contact your installer or Deye service.
F57 AC reverse irrigation AC reverse irrigation.
F58 AC grid	U over current Hardly appear the code. Never ever happened so far.
F59 AC grid	V over current Hardly appear the code. Never ever happened so far.
F60 AC grid	W over current Hardly appear the code. Never ever happened so far.
F61 Reactor	A phase over current Hardly appear the code. Never ever happened so far.
F62 Reactor	B phase over current Hardly appear the code. Never ever happened so far.
F63	ARC fault	1. Check PV module cable connection and clear the fault;2. Seek help from us, if can not go back to normal state.
F64	IGBT heat sink high temperature	1. Check temperature sensor. Check if firmware is suitable for the hardware. Check if the inverter is its right model.2. Restart the inverter, if the fault still exists, contact your installer.

Table10.1 Error codes and their solutions

Safety Hint:

If your string inverter has any of the fault information shown in Table 10-1, and when you reset the machine and still don’t solve the problem, please contact our distributor and provide the below details:

1. Serial number of the inverter;
2. The distributor/dealer of the inverter(if available);
3. Installation date;
4. The discription of problem(include LCD'error code and LED status indicator lights);

5. Your contact details.

6. Specification

Model	SUN-60K-G SUN-70K-G SUN-75K-G SUN-80K-G
PV String Input Data
Max. PV Input Power(kW)	78 91 97.5 104
Max. PV Input Voltage(V)	1000
Start-up Voltage(V)	250
PV Input Voltage Range(V)	250-1000
MPPT Voltage Range(V)	200-850
Full Load MPPT Voltage Range(V)	550-850
Rated PV Input Voltage(V)	600
Max. Input Short Circuit Current (A)	60+60+60+60	60+60+60+60
Max. Operating PV Input Current(A)	40+40+40+40	40+40+40+40
No. of MPP Trackers/No. of Strings MPP Tracker	4/3+3+3+3	4/4+4+4+4
Max. Inverter Backfeed Current To the Array	0
AC Output Data
Rated AC Output Active Power(kW)	60	70	75	80
Max.AC Output Apparent Power(kVA)	66	77	82.5	88
Rated AC Output current (A)	90.9/87.0	106.1/101.5	113.6/108.7	121.2/115.9
Max.AC Output Current(A)	100/95.7	116.7/111.6	125/119.6	133.3/127.5
Max. Output Fault Current (A)	174	203	217.4	231.8
Max. Output Overcurrent Protection (A)	176	208	208	208
Rated Output voltage/range (V)	220/380V 230/400V 0.85Un-1.1Un
Grid Connection Form	3L+N+PE
Rated Output Grid Frequency/range(Hz)	50Hz/45Hz-55Hz, 60Hz/55Hz-65Hz
Power Factor Adjustment Range	0.8 leading-0.8lagging
Total Current Harmonic Distortion THDi	<3%
DC Injection Current	<0.5%In
Efficiency
Max.Efficiency		98.7%98.6%
Euro Efficiency	98.0%	98.1%
MPPT Efficiency >99%
Equipment Protection
DC Polarity Reverse Connection Protection	yes
AC Output Overcurrent Protection	yes
AC Output Overvoltage Protection	yes
AC Output Short Circuit Protection	yes
Thermal Protection	yes
DC Terminal Insulation Impedance Monitoring	yes
DC component monitoring	yes
Ground fault current monitoring	yes
Arc fault circuit interrupter(AFCI)	Optional
Power Network Monitoring	yes
Island protection monitoring	yes
Earth Fault Detection	yes
DC Input Switch	yes
Overvoltage Load Drop Protection	yes
Residual Current (RCD) Detection	yes
Surge Protection Level	TYPE II(DC),TYPE II(AC)

Interface
	RS485/RS232Communication Interface
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
Display	LCD+LED
General Data
Operating Temperature Range (°C)	-25 to +65°C,>45°C derating
Permissible Ambient Humidity	0-100%
Permissible Altitude (m)	2000m
Noise (dB)	≤ 50 dB	≤ 55dB
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC III(AC)
Cabinet Size (W*H*D) [mm]	700×575×297 (Excluding connectors and brackets)
Weight [kg]	60
Warranty [year]	Standard 5 years, extended warranty
	Intelligent air coolingType Of Cooling
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21, CEI 0-16, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105, VDE-AR-N 411
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

12. EU Declaration of Conformity

within the scope of the EU directives

• Electromagnetic compatibility 2014/30/EU (EMC)
• Low Voltage Directive 2014/35/EU (LVD)
- Restriction of the use of certain hazardous substances 2011/65/EU(RoHS)

CE

NINGBO DEYE INVERTER TECHNOLOGY CO., LTD. confirms herewith that the products described in this document are in compliance with the fundamental requirements and other relevant provisions of the above mentioned directives. The entire EU Declaration of Conformity and certificate can be found at https://www.deyeinverter.com/download/#string-inverter.

EUDeclarationofConformity

Product:Grid-connectedPVInverter

Models:SUN-60K-G;SUN-70K-G;SUN-75K-G;SUN-80K-G

Nameandaddressofthemanufacturer:NingboDeyelnverterTechnologyCo.,Ltd.

No.26SouthYongJiangRoad,Daqi,Beilun,NingBo,China

This declaration of conformity is issued under the sole responsibility of the manufacturer. Also this product is undermanufacturer's warranty.

This declaration of conformity is not valid and longer: if the product is modified, supplemented or changed in any other way, as well as incas the product is used or installed improperly.

TheobjectofthedeclarationndescribedaboveisinconformitywiththerelevantUnionharmonizationlegislation: TheLowVoltageDirective(LVD)2014/35/EU;theElectromagneticCompatibility(EMC)Directive2014/30/EU;the restrictionoftheuseofcertainhazardoussubstances(RoHS)Directive2011/65/EU.

Referencestotherelevantharmonize dstandardsusedorreferencestotheothertechnicalspecificationsin relationtowhichconformityisdeclared:

LVD:
EN62109-1:2010	●
EN62109-2:2011	●
EMC:
EN61000-6-2:2005	●
EN61000-6-4:2007+A1:2011	●

NometTitre/NameandTitle:

Aunomde/Onbehalfof:

Date/Date(yyyy-mm-dd):

A/Place:

BardDa i

Senior Sta

NingboDeyelnverterTechnologyCo.,Ltd.

2023-09-27

Ningbo,China

EUDoC - v1

NingboDeyelnverterTechnologyCo.,Ltd.

No.26SouthYongJiangRoad,Daqi,Beilun,NingBo,China

NINGBO DEYE INVERTER TECHNOLOGY CO., LTD.

Add.: No.26 South YongJiang Road, Daqi, Beilun, NingBo, China.
