Type	Dehumidifier
Brand	Eldom
Model	ColumbiaVac OPC500
Dimensions (H x W x D)	50 x 35 x 25 cm
Weight	10 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	200 W
Dehumidification Capacity	20 L/day at 30°C, 80% RH
Water Tank Capacity	4 L
Air Flow Rate	150 m³/h
Refrigerant	R-290
Humidity Control	Digital hygrostat, adjustable 30-80% RH
Noise Level	42 dB(A)
Timer	24-hour programmable
Continuous Drainage	Yes, hose connection (1/2 inch)
Castors	Yes, 4 universal wheels
Filter Type	Washable mesh filter
Safety Features	Auto shut-off when tank full, overheat protection
Certifications	CE, WEEE
Warranty	2 years

Frequently Asked Questions - ColumbiaVac OPC500 Eldom

How do I set the desired humidity level on the ColumbiaVac OPC500?

Press the HUMIDITY button repeatedly to select a level from 30% to 80% in 5% increments. The display will show the set value.

What does the 'Full Tank' indicator mean?

When the water tank is full, the device stops dehumidifying and the 'Full Tank' light turns on. Empty the tank, then replace it to resume operation.

Can I use a hose for continuous drainage?

Yes, connect a standard garden hose (1/2 inch) to the continuous drainage outlet at the back. Ensure the hose runs downwards to allow gravity drainage.

How often should I clean the air filter?

Clean the washable mesh filter every 2 weeks or when the filter indicator lights up. Use a vacuum or rinse under water and dry completely before reinstalling.

The dehumidifier is not collecting water. What could be wrong?

Check if the humidity setting is below the ambient level, ensure the room temperature is above 5°C, and verify that the air intake and outlet are not blocked.

What is the recommended room size for this dehumidifier?

The ColumbiaVac OPC500 is suitable for rooms up to 50 m² (approximately 540 ft²) with normal humidity levels.

How do I defrost the device if ice forms?

The dehumidifier has an automatic defrost function. If ice forms, it will enter defrost mode and the compressor will stop for a few minutes. Do not attempt manual defrost.

Can I use the timer to schedule operation?

Yes, press the TIMER button to set hours from 1 to 24. The device will turn off after the set time. You can also use it to delay start.

What does the 'Filter' light indicate?

The 'Filter' light comes on after 250 hours of operation to remind you to clean the filter. After cleaning, reset the light by holding the filter button for 3 seconds.

Is the dehumidifier safe to leave unattended?

Yes, it has auto shut-off when the tank is full or if the unit overheats. However, always keep it away from water sources and ensure proper ventilation.

USER MANUAL ColumbiaVac OPC500 Eldom

White and black industrial air purifier unit with digital display and control buttons (no visible text or symbols)

model: OPC500

WARUNKI BEZPIECZEŃSTWA

Przód

Tyl

Close-up of a mechanical component with a circular hole and an arrow pointing to it (no text or symbols visible)

Diagram of a device with a vertical panel and a side panel, showing no text or symbols

Close-up of a mechanical component with a downward arrow indicating a feature (no text or symbols visible)

Side view of a black and white electronic device with a small screen (no visible text or symbols)

Please read all these instructions carefully before using this appliance.

1. Only use this appliance for domestic purposes and in the way indicated in these instructions. Never use for any other purposes.
2. Do not use the appliance outside and always place it in a dry environment.
3. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are theresponsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
4. From time to time, check the cord. Never use the cord, the plug or the appliance when they show any sign of damage. The cord length of this product has been selected to reduce the possibility of being injured. Do not use your appliance with an extension cord unless it has been checked and tested by a qualified electrician or electrical supplier.
5. Keep the appliance away from hot sources and direct sunlight.
6. Always switch off the appliance before unplugging it.
7. Unplug the appliance before cleaning or changing any parts of the appliance or when it's not in use.
8. Clean the appliance accord to manual.
9. Make sure that the voltage rating on the type plate corresponds to your main voltage. Any error in connecting the appliance invalidates the guarantee.
10. Prevent your children from this danger.

11. Never leave the appliance unsupervised when in use. Switch off the appliance if you have to go away for even a short time.

12. Never pull the cord to unplug or move the appliance.

13. Never immerse the appliance in water or any other liquid for any reason.
14. Keep the appliance away from water or oil splashes.
15. Respect the instructions for cleaning.
16. Do not insert sharp metallic objects or fingers in the air swinging fins of the appliance.
17. Never repair the appliance yourself. All interventions made by a non-qualified person can be dangerous. As well any changing of the cord must be done by a qualified electrician.
18. Never use accessories non-delivered by the supplier. This could be dangerous and could damage the appliance.

Special recommendations:

• Ambient temperature range for the device is 5^ - 50^
• Install the portable air dryer on a flat location with a large space, without obstacles. Leave a 50 cm minimum space between the unit and the wall.
• The device must be installed in accordance with national installation regulations.
  • The plug shall be always accessible after its installation.
• Always place the appliance in a vertical position, in order to maintain the compressor in good working condition.
• Do not tilt the device in any direction as spilled water can damage the device.
• Do not use the appliance near gas or other inflammable liquids.
• Do not block the air outlet and inlet ventilation. Do not place heavy objects on the device.
• Do not use spray (insecticides, painting) or any other inflammable products near the appliance as the plastic case may be deformed. The unit may sustain electrical damage.

Power sources

• The plug has to be well fixed and should not be damaged.

- Do not plug in the appliance with an adaptor.

- Plug into the wall socket before switching on the appliance then press on the ON/OFF button.

GENERAL DESCRIPTION

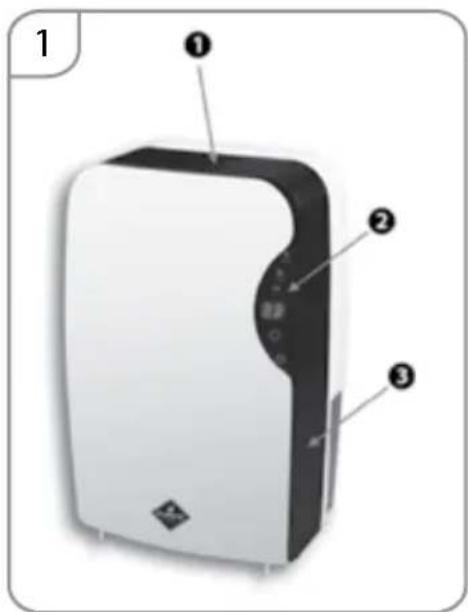

Front

1. Air outlet
2. Control Panel
3. Housing

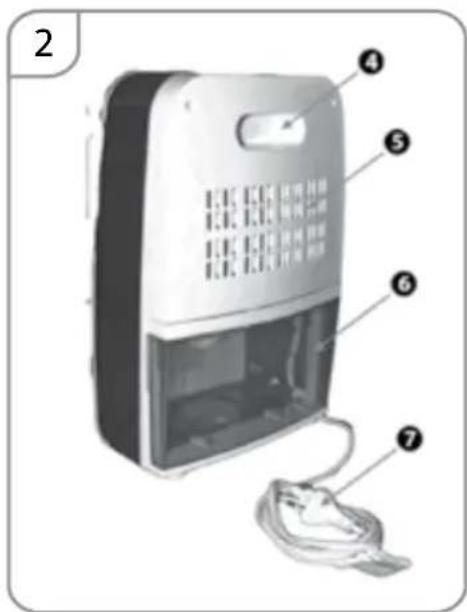

Rear

1. Handle
2. Air inlet
3. Water tank
4. Power supply wire

TECHNICAL DATA

MODEL OPC500
Dehumidification capacity 500ml/day (30°C RH80%)
Rated voltage 220-240 V ~ 50HZ
Power consumption 65W
Rated current 0,5A
Water container 2,5 l
UV lamp Yes
Jonizator Yes
Noise level ≤30dB(A)
Net weight 2,5 kg
Dimensions 240*135*363 mm

Any changes in settings are signalled by a sound.

The device must be placed vertically on a flat surface, in a dry and spacious location. The room should be ventilated. At least 50 cm of clearance should be left around the device.

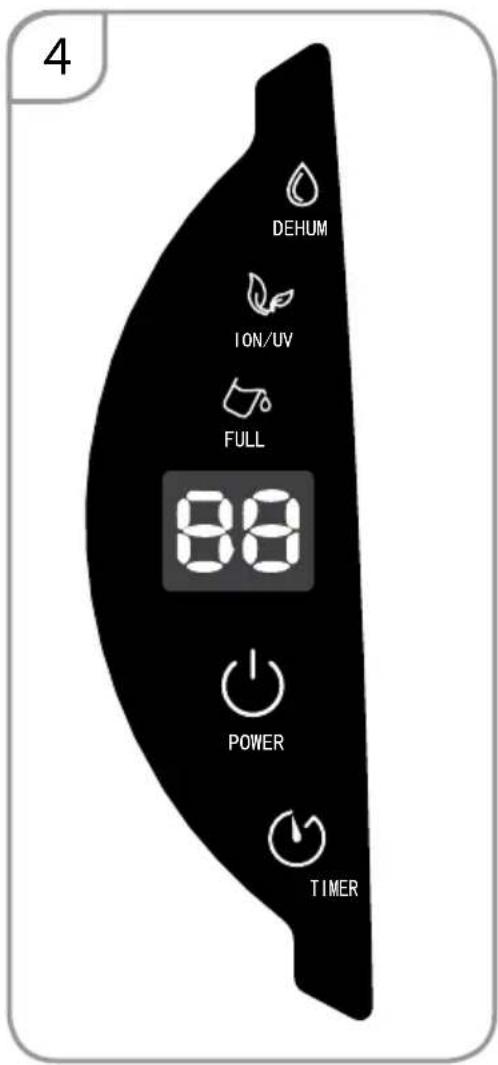

CONTROL PANEL

- The button ⏻ - is used to turn the device on / off. Do not remove the power supply cord plug directly to force the device to stop immediately.

• The display this indicator has 2 functions:

- when the device is on, it displays the current humidity in the room,

- when setting the "TIMER" function, it displays values within the range "00-24",

- Dehumidification indicator: the diode lights up automatically when the device is started.

- Cleaning indicator: the diode lights up automatically when the device is started.

• Tank filling indicator (6). The indicator will turn red when the tank is filled. The device will signal it additionally by sound and then switch off. Empty the water tank and put it back in the correct position.
• The TIMER button 🔍 – is used to turn the device on and off automatically. To set the time, press the button, until the display shows the correct value within the range “1-24”. In order to switch off the function, set the value “00” using the button when the device is turned off using the button time setting is cleared. Activation of the function is signalled by the backlight. Pressing and holding the “TIMER” button will display the room temperature on the display.

EMPTYING THE TANK

ATTENTION

Water collected in the dehumidifier tank is not suitable for drinking and must not be allowed to come into contact with food.

Do not put the floater out of water; otherwise the device will not stop working when the water tank fills up. Then, water will overflow, which may cause damage to the floor.

Close-up of a mechanical component with a circular hole and an arrow pointing to it (no text or symbols visible)

Diagram of a device with a vertical panel and a close-up view, no visible text or symbols

Close-up of a mechanical component with a downward arrow indicating a feature (no text or symbols visible)

Close-up of a black and white handheld device with a textured body, possibly a scanner or scanner (no visible text or symbols)

• Pull the tank gently at the back of the device; the tank will slide out (fig. 6).
  • Pour the water out of the tank through the opening in the lid (fig. 7).
• If the water tank is dirty, clean it with water. Do not use any acrid cleaning agents. Do not use chemical solvent (such as benzene, alcohol, gasoline). The surface may be damaged or even the whole case may be deformed. Do not sprinkle water
• Place the tank in the right position in the device (fig 8). Otherwise, the full tank indicator will still light up red and the device will not be able to work.

MAINTENANCE

Note:

Turn off the unit and unplug it before any maintenance or repair begins to avoid electric shock.

CLEANING

Unplug the unit before any cleaning. Clean the housing with a soft moisture cloth. Do not use chemical solvent (such as benzene, alcohol, gasoline). The surface may be damaged or even the whole case may be deformed. Do not sprinkle water on the unit.

STORING THE DEVICE

If the dehumidifier is not used for a longer period of time:

• Unplug the power cord from the socket and roll it.
• Empty the tank entirely of water and make sure that there is no water inside.
- Store the dehumidifier in a cool, dry place, inaccessible to sun rays, high temperature or excessive dust.

TROUBLE SHOOTING

Before contacting the service centre, you should compare the symptoms given by the device with those listed below. The list includes normal situations which are not caused by a manufacturing defect or defective material.

Problem Possible cause Solution
The tank fill indicator lights up in red.	The tank is full. Empty the tank.
	The float is filled with water. Empty the float.
	There is no float in the tank. Position the float properly.
	The detector (magnetic element) in the float is not positioned properly.	Position the detector properly.
Insufficient air drying	The air flow is prevented. Leave 50 cm around the device.
	The air inlet and outlet are blocked. Restore patency of the inlet and outlet.
	The ambient temperature is very low. Change the ambient temperature.
The LED display indicates “E1”	Failure of the temperature and humidity sensor.	Contact the manufacturer's customer service.
The power supply button is flashing.	The machine defrosts at low temperature.	Normal condition.Wait until the defrosting is completed.
