Flow DF100N - Water filter Eldom - Free user manual and instructions

Product Type	Water Filter
Brand	Eldom
Model	Flow DF100N
Filtration Method	Activated Carbon & Sediment
Filtration Capacity	100 Liters
Flow Rate	1.5 Liters per minute
Input Water Pressure	0.1 - 0.4 MPa
Operating Temperature	5 - 38 °C
Dimensions (H x W x D)	25 x 10 x 30 cm
Net Weight	0.8 kg
Material	BPA-Free Plastic
Installation	Quick-Connect to Faucet
Filter Life	2-3 Months or 100 Liters
Replacement Filter Model	Eldom DF100N Replacement Cartridge
Contaminants Reduced	Chlorine, Taste, Odor, Sediment
Maintenance	Replace filter element every 3 months
Safety Certifications	CE, RoHS, Lead-Free
Included Accessories	Filter unit, 3 adapters, user manual
Spare Parts Availability	Replacement cartridges widely available
Repairability	Replaceable filter cartridge only

Frequently Asked Questions - Flow DF100N Eldom

How do I install the Eldom Flow DF100N water filter?

Remove the aerator from your faucet, select the appropriate adapter from the included set, screw it onto the faucet, then attach the filter unit. Ensure the diverter valve is set to "Filter" position.

How often should I replace the filter cartridge?

Replace the filter every 2-3 months or after filtering 100 liters of water, whichever comes first. Regular replacement ensures optimal water quality.

Can the Flow DF100N filter remove bacteria or viruses?

No, this filter uses activated carbon and sediment filtration, which reduces chlorine, taste, odor, and particulates but does not remove bacteria or viruses.

Is the filtered water safe to drink?

Yes, the filter reduces common contaminants and meets safety standards (CE, RoHS). It is intended for use with municipally treated tap water.

Does the filter work with all faucet types?

It comes with 3 adapters to fit most standard faucets. For non-standard or pull-out faucets, compatibility may vary.

How do I clean the filter housing?

Wipe the exterior with a damp cloth. Do not use abrasive cleaners. The filter cartridge is not washable; replace it when needed.

What should I do if the water flow becomes very slow?

Check if the filter cartridge is clogged (replace if older than 3 months) or if the diverter valve is partially closed. Also ensure the faucet pressure is adequate.

Can I use the filter with hot water?

No, the system is designed for cold water only (5-38 °C). Using hot water may damage the filter and reduce performance.

Where can I buy replacement cartridges for the DF100N?

Replacement cartridges (model DF100N) are available from Eldom official stores, online retailers, and select home improvement stores.

Does the filter require any electricity?

No, it is a purely mechanical filter that operates on water pressure. No batteries or power supply needed.

USER MANUAL Flow DF100N Eldom

Illustration of a modern water heater with a lid and side casing, no text or symbols present.

Eldom Sp. z o.o.

Close-up of a metallic object with a numbered label '4' on the surface (no other text or symbols visible)

OPIS OGÓLNY

DANE TECHNICZNE

Close-up of a white plastic kitchen pot with a flower-shaped lid and central hole (no text or symbols visible)

fot. 01

MONTAŻ

• before first use, read this manual carefully
• do not leave near any heat sources
• the jug must be put on a flat and dry surface
• The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks.
  Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
• The company Eldom Sp. z o.o. shall not be liable for any damage caused by inappropriate use of the appliance.

ENVIRONMENTAL PROTECTION

- the appliance is made of materials which can be recycled

WARRANTY

Producer provides 2 year warranty for the jug. Warranty does not cover:

- filter cartridge

- mechanical failures

- thermal damages

- filter cartridge - mechanical failures - thermal damages

the device has been designed for household, private use. The device cannot be used for professional industrial purposes. The warranty will be void if the device is used incorrectly.

User's Manual for WATER FILTER JUG DF100N

Close-up of a metallic object with a curved surface and a numbered label '4' in the corner (no other text or symbols)

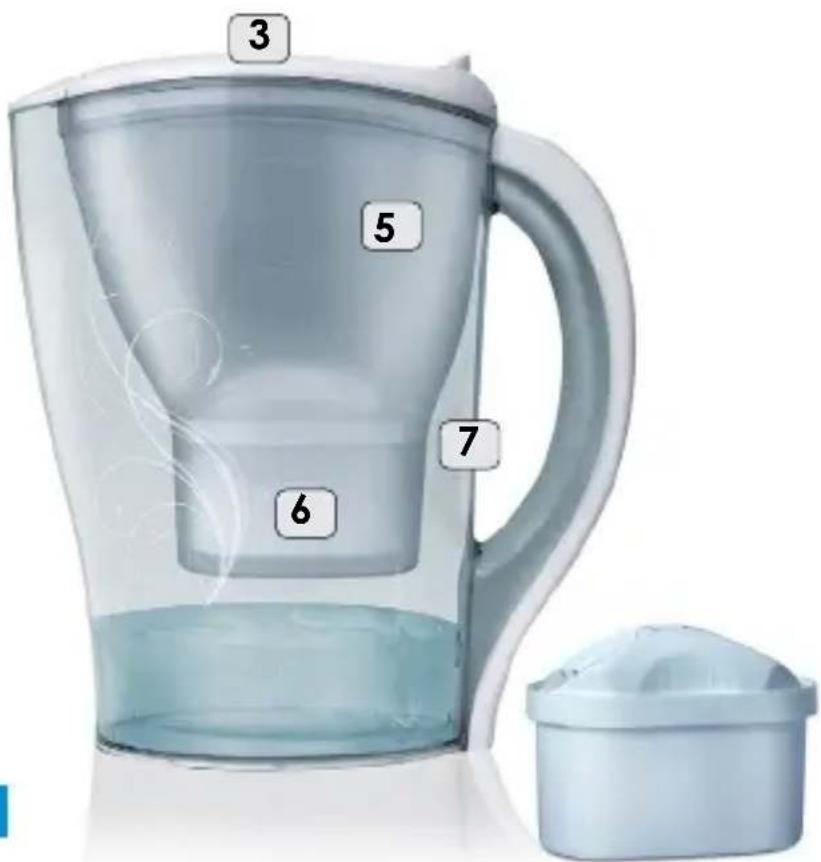

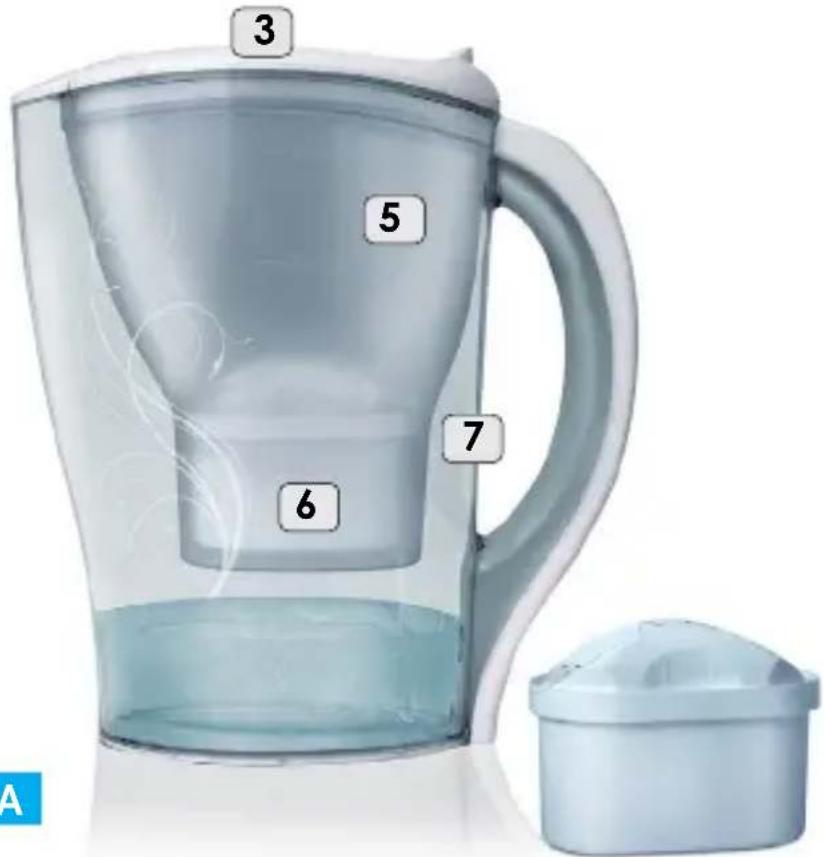

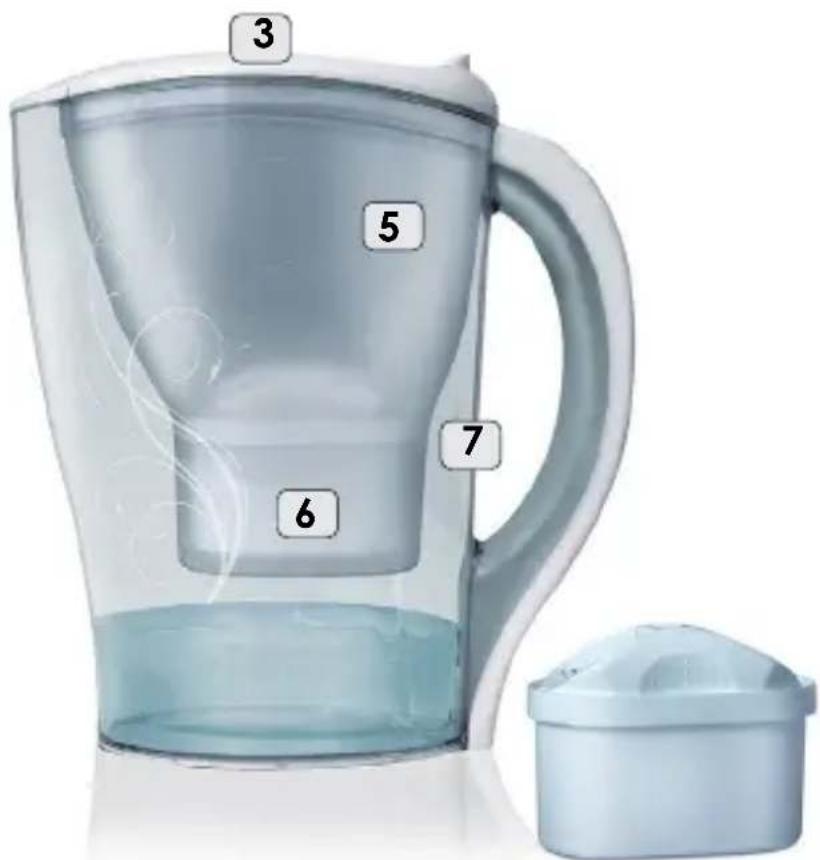

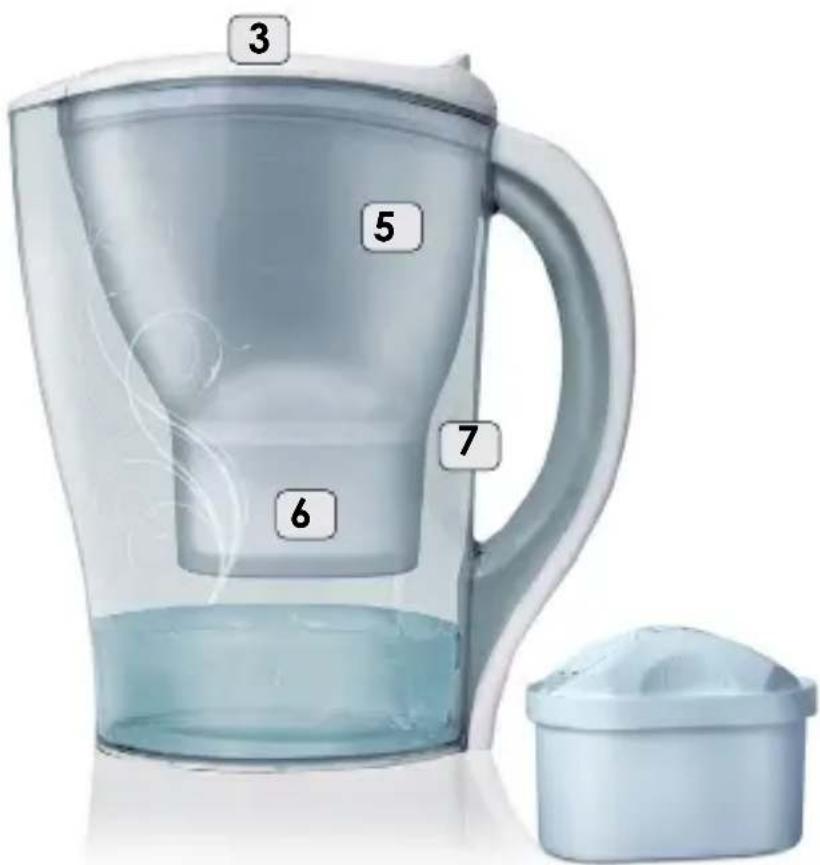

GENERAL DESCRIPTION

1. Spout
2. Cartridge exchange indicator
3. Lid
4. Filling funnel
5. Filtering tank
6. Filter cartridge
7. Body of the jug

TECHNICAL DATA

• Filter tank capacity - 1.3L
• Filter life-span: 150L / 1month

HOW TO USE THE APPLIANCE

Water filter jug is for filtering cold water.

It is possible to filter 1,3liter of water in the jug. Before first usage, one should wash the jug ("CLEANING AND MAINTENANCE").

Close-up of a white plastic mechanical component with a central hole and flanged edge (no visible text or symbols)

photo 01

MONTAGE

• remove the filter cartridge (6) from the packaging, wash it with tap water, and immerse the cartridge in cold water for about twenty minutes
• insert the filter cartridge (6) into the filtering tank (5) and push downwards
• insert the filtering tank (5) into the body of the jug (7)
• set the date on the cartridge exchange indicator (2)
• photo 01
• press the lid (3) onto the jug until it is in place.

• the jug must be put on a flat and dry surface
• fill the filtering tank (5) directly under the tap with cold water and wait for the water to filter
• discard the first two fillings or use the water to your plants

FILTER CARTRIDGE

Water filter jug is adapted to use with filter cartridge EF100 which is also available as a set EF10 Filter jug is equipped with the cartridge exchange indicator (2) placed in the lid (3). It prompts you when you need to change the cartridge.

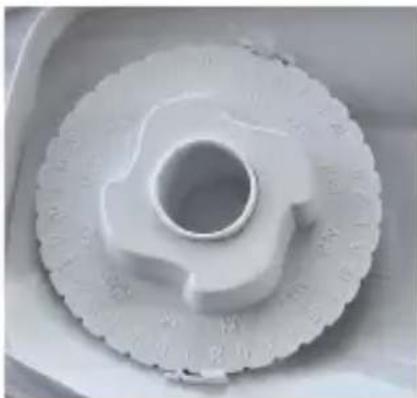

On the underside of the lid (3), there is a mechanical indicator where you can set the date of cartridge exchange according to the number of persons per household (photo 1). The cartridge exchange indicator (2) will show the replace time of the cartridge.

When one sets the date 1 JAN on the date 1 MAR while in case one sets the date on the ____ the cartridge exchange indicator (2) will show the cartridge exchange indicator (2) will show 1 FEB.

Filter cartridge which is planned not to be in use for a prolonged period of time can be wrapped in a plastic bag and stored in the fridge. In order to re-use, proceed as with new filter

NSTRUCTIONS

• keep in the shade
• use cold water only
• filter cartridge placed in the jug should always be immersed in water in order to prevent microbial growth
• water remaining in the jug for a few days is not suitable for consumption

CLEANING AND MAINTENANCE

Jug may be wiped over with water and washing-up liquid.

Do not use abrasive cloths or sponges which can scratch the jar.

Elements of the jar cannot be cleaned in dishwashers

BEZPEČNOSTNÍ DOPORUČENÍ

Close-up of a metallic object with a curved surface and a numbered label '4' in the corner (no other text or symbols)

CELKOVÝ POPIS

Close-up of a white plastic kitchen pot with scalloped edges and a central hole (no text or symbols visible)

obr 1

MONTÁŽ

Close-up of a folded fabric or fabric with a numbered label '4' in the corner (no other text or symbols)

Close-up of a white plastic kitchen pot with scalloped edges and a central hole (no text or symbols visible)

Abb. 1

MONTAGE

Close-up of a white mechanical component with two numbered labels (1 and 2) indicating parts of interest, no readable text or symbols beyond labels.

Close-up of a white fabric or garment with a numbered label '4' on the side (no other text or symbols visible)

Close-up of a white plastic bag with scalloped edges and a central hole (no text or symbols visible)

рис. 1

ПОДГОТОВКА К РАБОТЕ

Close-up of a folded garment with a numbered label '4' on the side (no other text or symbols)

VŠEOBECNÝ OPIS

TECHNICKÉ ÚDAJE

Close-up of a white plastic kitchen pot with scalloped edges and central hole (no text or symbols visible)

obr. 1

MONTÁŽ

Close-up of a metallic fabric or metal sheet with a numbered label '4' on the side (no other text or symbols visible)

ÁLTALÁNOS LEÍRÁS

MÜSZAKI ADATOK

Close-up of a white plastic mechanical component with scalloped edges and central hole (no visible text or symbols)

01 ábra.

A VÍZSZÚRŐ BETÉT BEHELYEZÉSE
