Product Type	Water filter jug
Brand	Eldom
Model	DF100
Total Capacity	2.5 L
Filtration Capacity per Cycle	1 L
Filter Cartridge	EF100 (also available as set EF10)
Dimensions (approx.)	25 cm (H) x 15 cm (W) x 10 cm (D)
Weight (empty)	0.5 kg
Power Source	None (manual)
Material	Plastic
Usage	For cold water filtration
Cartridge Exchange Indicator	Mechanical, located on underside of lid (2)
First Use Preparation	Wash jug; soak new cartridge 20 min in cold water; discard first two fillings
Cleaning	Hand wash with mild detergent; do not use abrasive cloths or dishwasher
Safety Notes	Keep away from heat sources; use on flat, dry surface; not for children without supervision
Warranty	2 years (excluding filter cartridge, mechanical failures, thermal damage, professional use)
Environmental	Recyclable materials

Frequently Asked Questions - DF100 Eldom

How do I set up the water filter for first use?

Remove the filter cartridge from packaging, wash it with tap water, and immerse it in cold water for about twenty minutes. Insert the cartridge into the filtering tank and push downwards. Insert the filtering tank into the jug body, set the date on the cartridge exchange indicator, and press the lid onto the jug until secure. Place the jug on a flat dry surface, fill the filtering tank with cold water, and discard the first two fillings or use for plants.

How often should I change the filter cartridge?

The cartridge exchange indicator (2) on the lid shows when to replace the cartridge. Set the date based on the number of persons per household. Typically, the cartridge should be replaced every 30-60 days depending on usage and water quality. The indicator will show replacement time.

Can I use the water filter with hot water?

No, the water filter jug is designed for cold water only. Using hot water may damage the cartridge and jug.

How do I clean the jug?

Wipe the jug with water and washing-up liquid. Do not use abrasive cloths or sponges that can scratch the plastic. Do not clean any parts in the dishwasher.

What should I do if water remains in the jug for a few days?

Water remaining in the jug for a few days is not suitable for consumption. Empty the jug and wash it before refilling with fresh filtered water.

Can I store the filter cartridge when not in use?

Yes, if the cartridge will not be used for a prolonged period, wrap it in a plastic bag and store it in the fridge. To reuse, follow the same preparation steps as for a new filter.

Is the jug dishwasher safe?

No, elements of the jar cannot be cleaned in dishwashers. Only hand wash with mild detergent.

What is the capacity of the jug?

The jug body has a total capacity of 2.5 liters. The filtering tank holds about 1 liter per cycle.

How do I set the cartridge exchange indicator?

On the underside of the lid (3), there is a mechanical indicator. Rotate the dial to set the date according to the number of people in your household. For example, if you set 1 JAN, the indicator will show replacement time in months.

What does the warranty cover and not cover?

The producer provides a 2-year warranty for the jug. It does not cover the filter cartridge, mechanical failures, thermal damages, or damage from incorrect use. The device is designed for household use only; warranty is void if used professionally.

USER MANUAL DF100 Eldom

Clear blue ELDOM blender with water level markings and a lid, no visible text or symbols on the device itself.

Eldom Sp. z o.o.

Close-up of a fabric or mechanical component with a numbered label '4' on the left (no other text or symbols visible)

OPIS OGÓLNY

Close-up of a white plastic flower-shaped object with a central hole, placed on a fluted circular base (no text or symbols visible)

fot. 01

MONTAŻ

Close-up of a metallic mechanical component with a curved edge and a numbered label '4' (no text or symbols on the object itself)

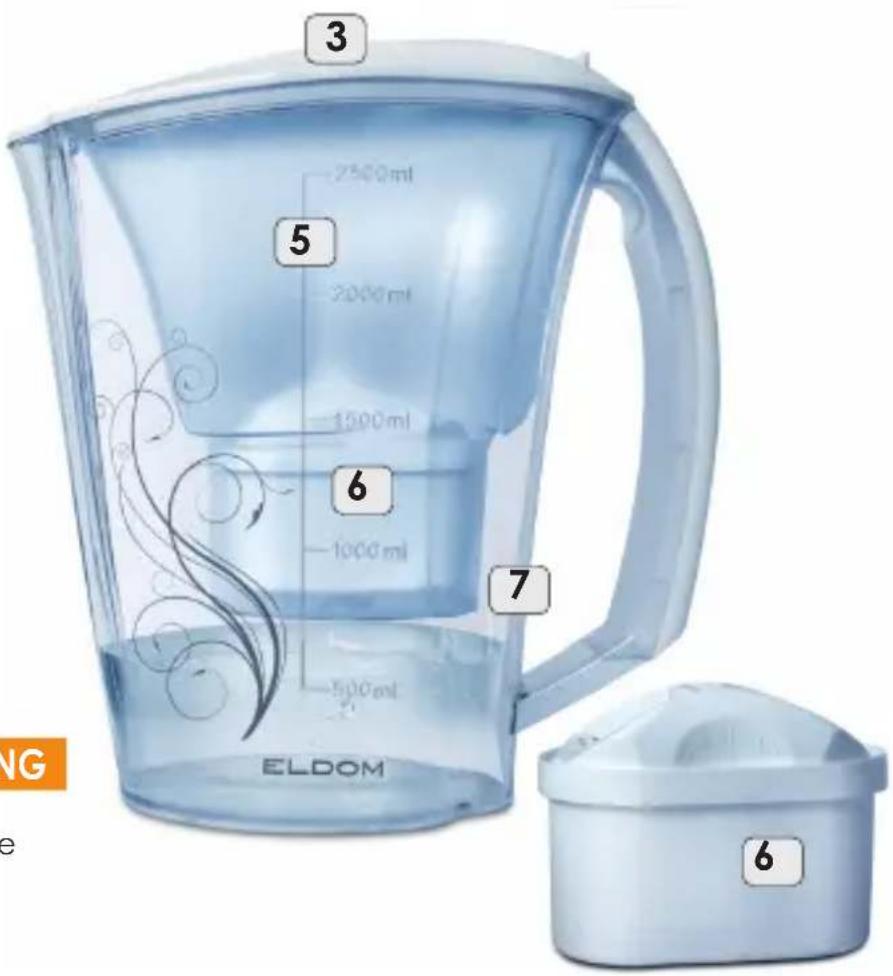

GENERAL DESCRIPTION

1. Spout
2. Cartridge exchange indicator
3. Lid
4. Filling funnel
5. Filtering tank
6. Filter cartridge
7. Body of the jug

HOW TO USE THE APPLIANCE

Water filter jug is for filtering cold water.

It is possible to filter 1 liter of water in the jug. Before first usage, one should wash the jug ("CLEANING AND MAINTENANCE").

Close-up of a white plastic kitchen pot with scalloped edges and central hole (no text or symbols visible)

photo 01

MONTAGE

• remove the filter cartridge (6) from the packaging, wash it with tap water, and immerse the cartridge in cold water for about twenty minutes
• insert the filter cartridge (6) into the filtering tank (5) and push downwards
• insert the filtering tank (5) into the body of the jug (7)
• set the date on the cartridge exchange indicator (2)
• photo 01
• press the lid (3) onto the jug until it is in place. The lid is fitted with tabs that secure it to prevent falling during the pouring of water. One should remember to handle the lid with care.

• the jug must be put on a flat and dry surface
• fill the filtering tank (5) directly under the tap with cold water and wait for the water to filter
• discard the first two fillings or use the water to your plants

FILTER CARTRIDGE

Water filter jug is adapted to use with filter cartridge EF100 which is also available as a set EF10 Filter jug is equipped with the cartridge exchange indicator (2) placed in the lid (3). It prompts you when you need to change the cartridge.

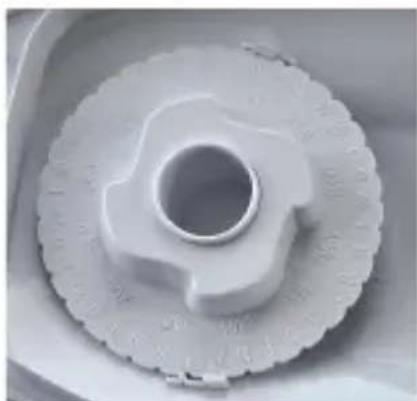

On the underside of the lid (3), there is a mechanical indicator where you can set the date of cartridge exchange according to the number of persons per household (photo 1). The cartridge exchange indicator (2) will show the replace time of the cartridge.

When one sets the date 1 JAN on the date 1 MAR while

the cartridge exchange indicator (2) will show the

in case one sets the date on the

the cartridge exchange indicator (2) will show 1 FEB.

Filter cartridge which is planned not to be in use for a prolonged period of time can be wrapped in a plastic bag and stored in the fridge. In order to re-use, proceed as with new filter

NSTRUCTIONS

• keep in the shade
• use cold water only
• filter cartridge placed in the jug should always be immersed in water in order to prevent microbial growth
• water remaining in the jug for a few days is not suitable for consumption

CLEANING AND MAINTENANCE

Jug may be wiped over with water and washing-up liquid.

Do not use abrasive cloths or sponges which can scratch the jar.

Elements of the jar cannot be cleaned in dishwashers

SAFETY INSTRUCTIONS

• before first use, read this manual carefully
• do not leave near any heat sources
• the jug must be put on a flat and dry surface
• this appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance
• The company Eldom Sp. z o.o. shall not be liable for any damage caused by inappropriate use of the appliance.

ENVIRONMENTAL PROTECTION

- the appliance is made of materials which can be recycled

WARRANTY

Producer provides 2 year warranty for the jug. Warranty does not cover:

• filter cartridge
• mechanical failures
• thermal damages

the device has been designed for household, private use. The device cannot be used for professional industrial purposes. The warranty will be void if the device is used incorrectly.

Close-up of a mechanical component with a numbered label '4' on the left (no other text or symbols visible)

CELKOVÝ POPIS

Close-up of a white plastic mechanical component with a central hole and flanged circular base (no text or symbols visible)

obr 1

MONTÁŽ

Close-up of a mechanical component with a numbered label '4' (no readable text or symbols beyond the number)

Close-up of a white plastic washer or disc with scalloped edges and a central hole (no text or symbols visible)

Abb. 1

MONTAGE

Close-up of a white plastic electrical socket with labeled parts (1 and 2), no text or symbols present.

Close-up of a metallic object with a curved surface and a numbered label '4' in the corner (no readable text or symbols on the object itself)

Close-up of a white plastic kitchen pot with scalloped edges and a central hole (no text or symbols visible)

рис. 1

ПОДГОТОВКА К РАБОТЕ
