Brand	IKEA
Model	SOMRIG 905.603.46
Product Type	Remote control for smart lighting
Connectivity	Zigbee
Power Source	2 AAA batteries (not included)
Battery Life	Approximately 2 years
Operating Range	Up to 10 meters (in open space)
Dimensions	100 × 50 × 20 mm
Weight	70 g
Materials	ABS plastic
Color	White
Control Type	Touch-sensitive buttons + rotary control
Functions	On/off, dimming, color temperature adjustment
Compatible With	IKEA TRÅDFRI and DIRIGERA smart lighting products
App Control	IKEA Home smart app (iOS/Android)
Installation	No installation required; pair via app or steering device
Cleaning	Wipe with a dry cloth
Safety	Keep away from moisture and heat sources
Warranty	2 years
Country of Origin	China

Frequently Asked Questions - SOMRIG 905.603.46 IKEA

How do I pair the SOMRIG remote with my IKEA smart lights?

To pair, make sure your smart light is turned on. Press and hold the pairing button on the remote for 5 seconds until the LED flashes. The light will blink to confirm pairing. If using a gateway, open the IKEA Home smart app and follow the steps.

What batteries does the SOMRIG remote use?

The SOMRIG remote uses 2 AAA batteries (1.5V, not included). To replace, slide off the battery cover at the back and insert new batteries with the correct polarity.

How long do the batteries last?

Under normal use, the batteries last approximately 2 years. When the remote loses responsiveness, replace the batteries.

Can I use the SOMRIG remote with non-IKEA smart lights?

The SOMRIG remote uses Zigbee protocol and is designed specifically for IKEA smart lighting (TRÅDFRI and DIRIGERA). It may not work with other brands unless they support Zigbee and are compatible.

What is the operating range of the remote?

The remote has an operating range of up to 10 meters in open space. Walls and obstacles may reduce the range.

How do I reset the SOMRIG remote?

To reset, remove the batteries, press and hold any button for 5 seconds to discharge remaining power, then reinsert batteries. The remote will reset to factory settings and will need to be paired again.

Can I control the color temperature of my lights with this remote?

Yes, the SOMRIG remote can adjust color temperature if supported by your light source. Use the rotary control to change between warm and cool white.

Why is my SOMRIG remote not responding?

Check the batteries: they may be dead or incorrectly inserted. Try moving closer to the lights (within 10 meters). If the remote is unresponsive, perform a reset and re-pair.

Is the SOMRIG remote waterproof?

No, the remote is not waterproof. Keep it away from moisture and liquids to avoid damage.

How do I clean the remote?

Clean the remote with a dry, soft cloth. Do not use water, solvents, or abrasive cleaners.

USER MANUAL SOMRIG 905.603.46 IKEA

Line drawing of a rounded rectangular device with a circular top and two small circular ports at the bottom (no text or symbols)

Design and Quality IKEA of Sweden

Warning symbol with exclamation mark inside triangle (no text or numbers)

English

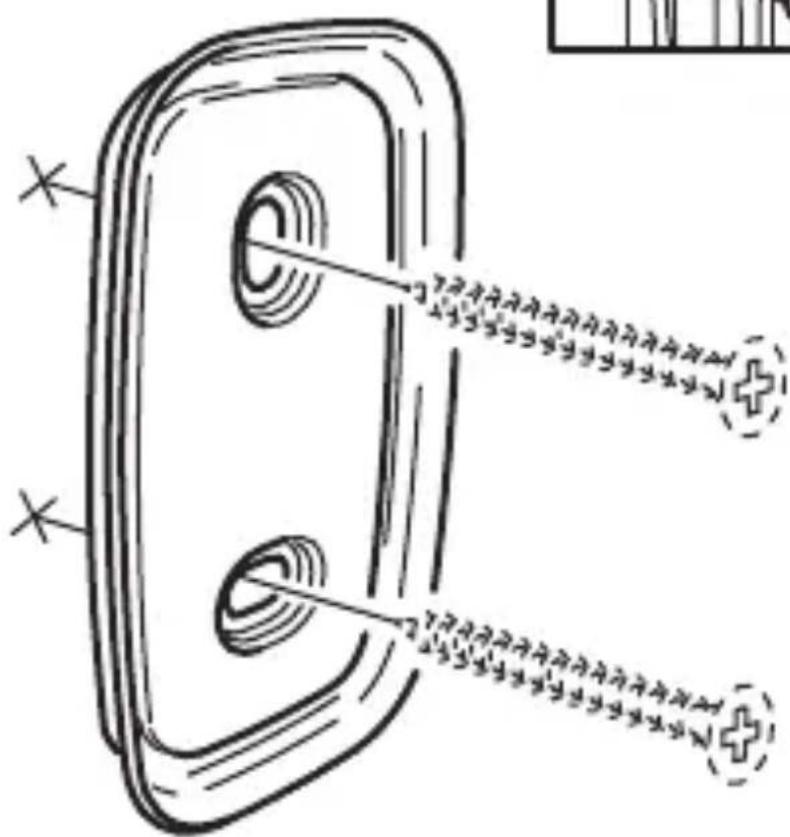

Different materials require different types of fittings. Always choose screws and plugs that are specially suited to the material.

Español

DIRIGERASOMRIG

Simple line drawing of a mobile phone with a circular button and two dots on the side (no text or symbols)

•

Simple line drawing of a circular object with a small protrusion at the top (no text or symbols)

[Non-Text]

Hand holding a smartphone displaying app icons (no text or symbols on screen)

IKEA Home smart

Simple line drawing of a smartphone with a house icon and download arrow (no text or symbols)

Download on the App Store

@ITRON Google Play

8AA-2407256-2

1

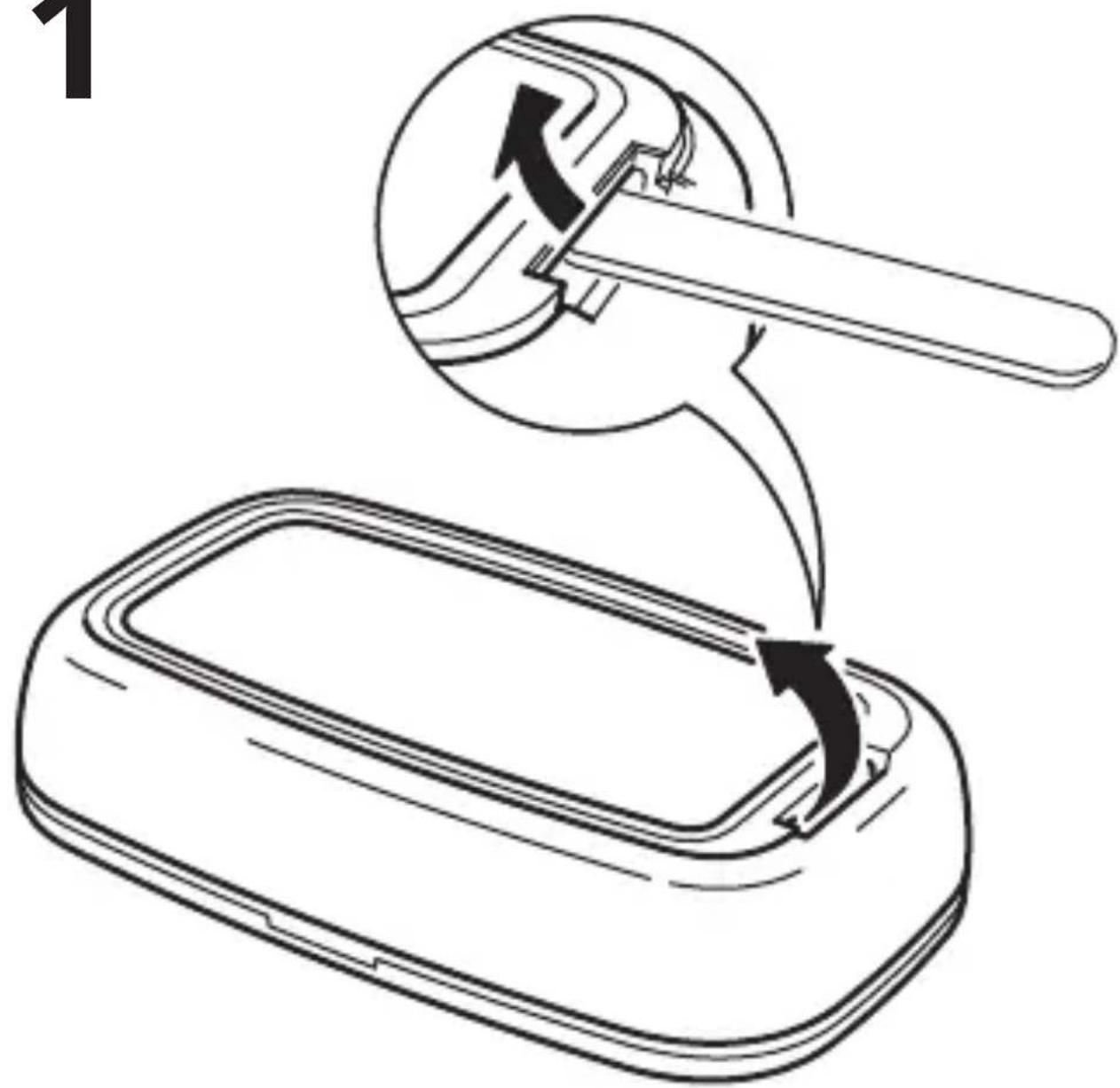

Diagram showing a mechanical device with a lever and directional arrow, no text or symbols present

2

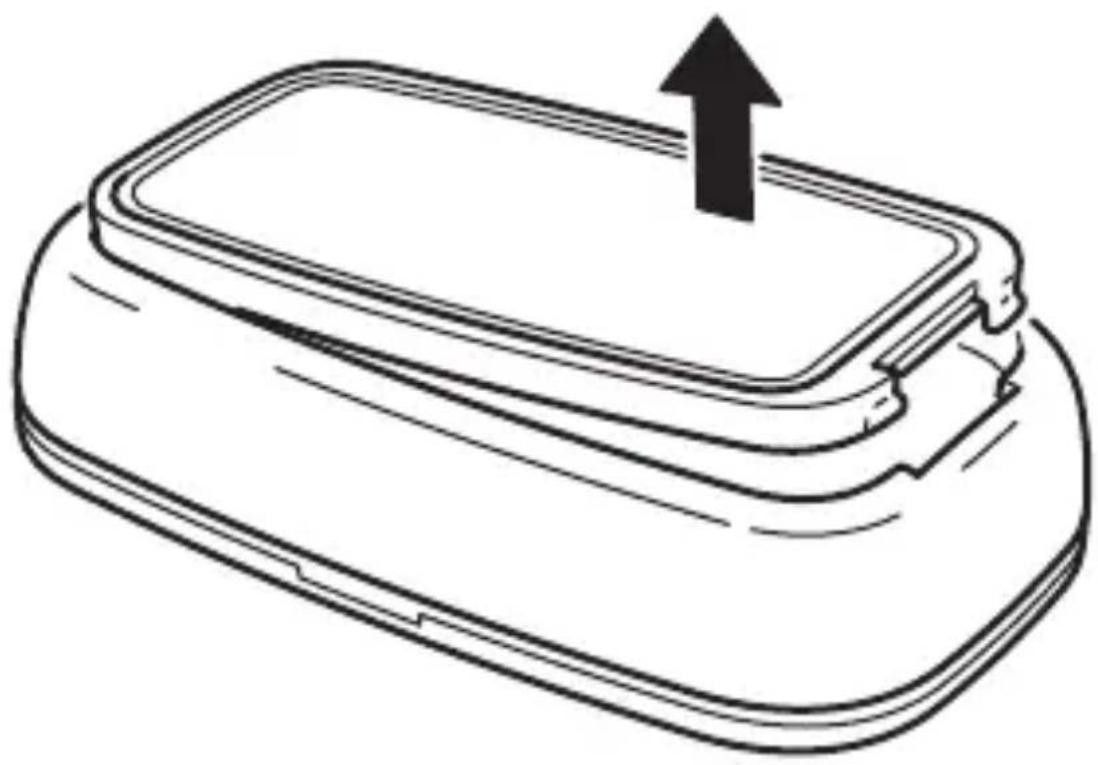

Line drawing of a rectangular container with an upward arrow on top (no text or symbols)

10AA-2407256-2

3

4

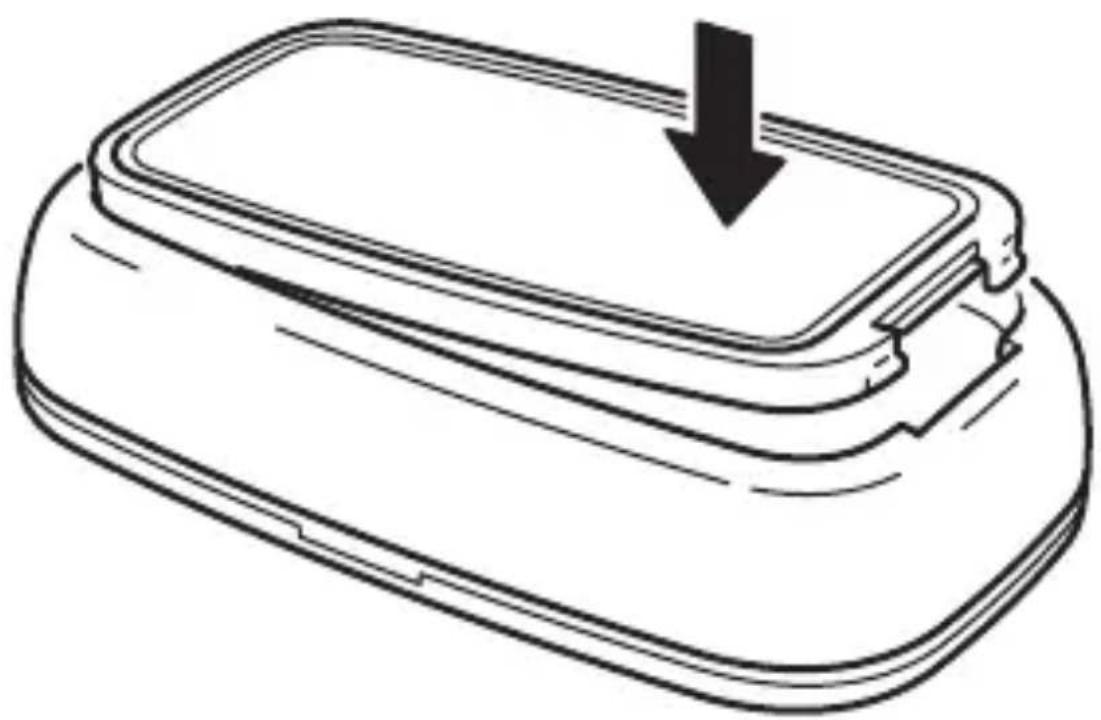

Line drawing of a rectangular container with a downward arrow pointing to the top portion (no text or symbols)

Simple black checkmark inside a square outline (no text or symbols)

12AA-2407256-2

A

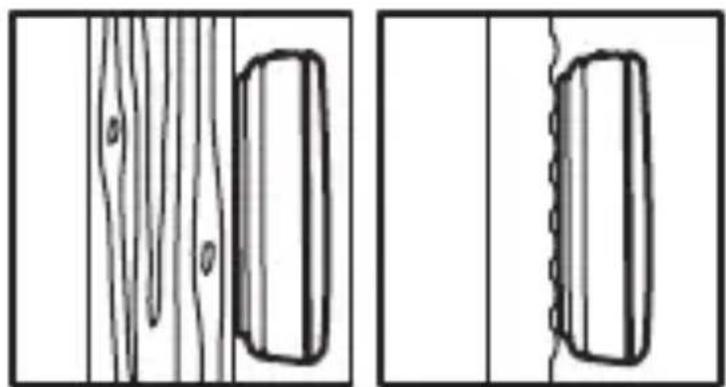

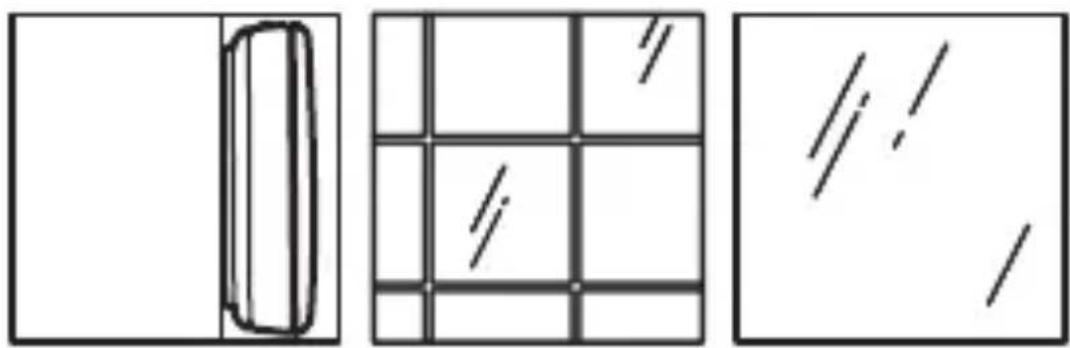

Four abstract geometric diagrams with lines and grid patterns, no text or symbols present

A

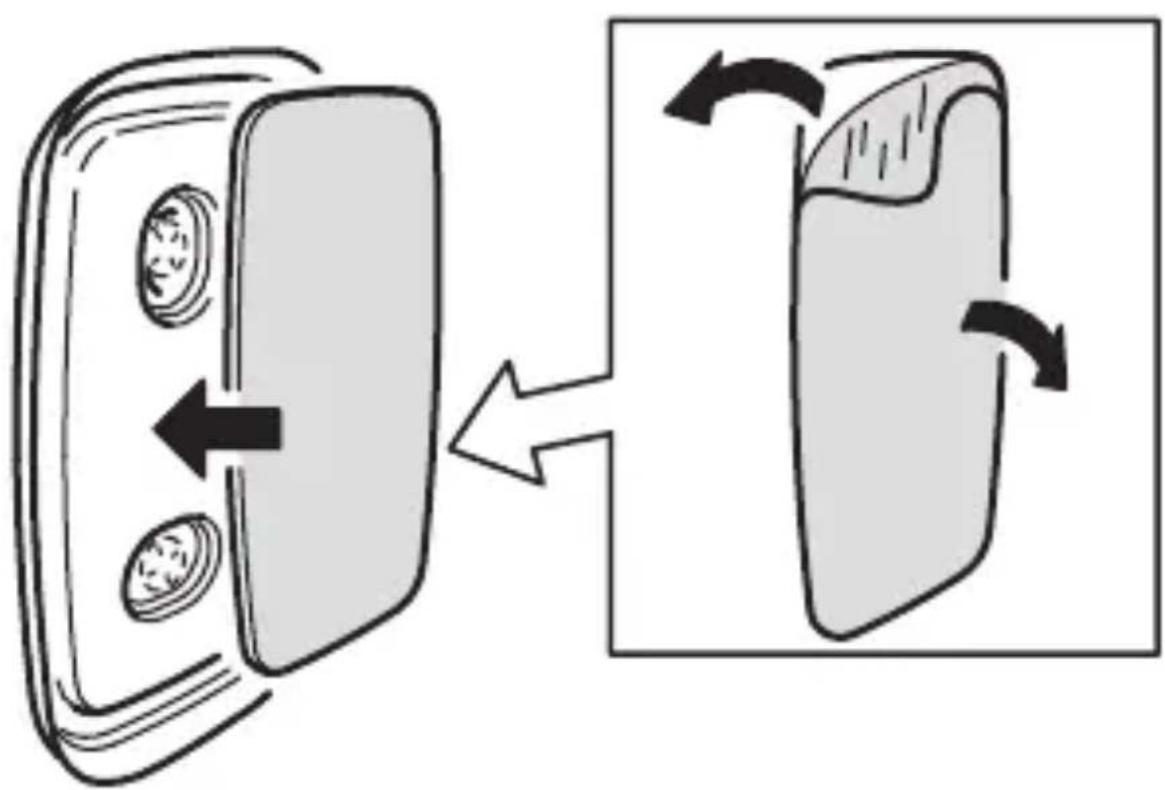

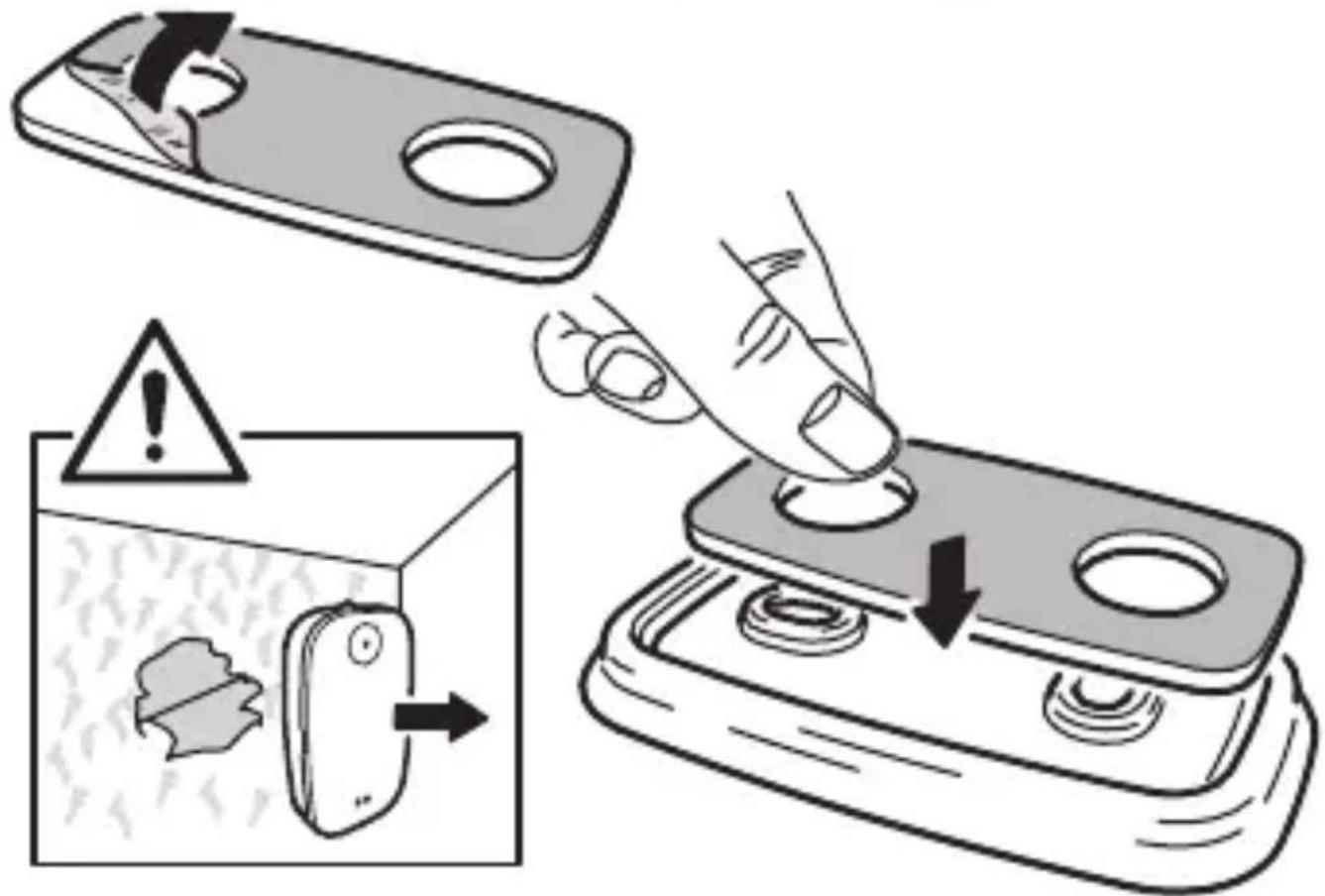

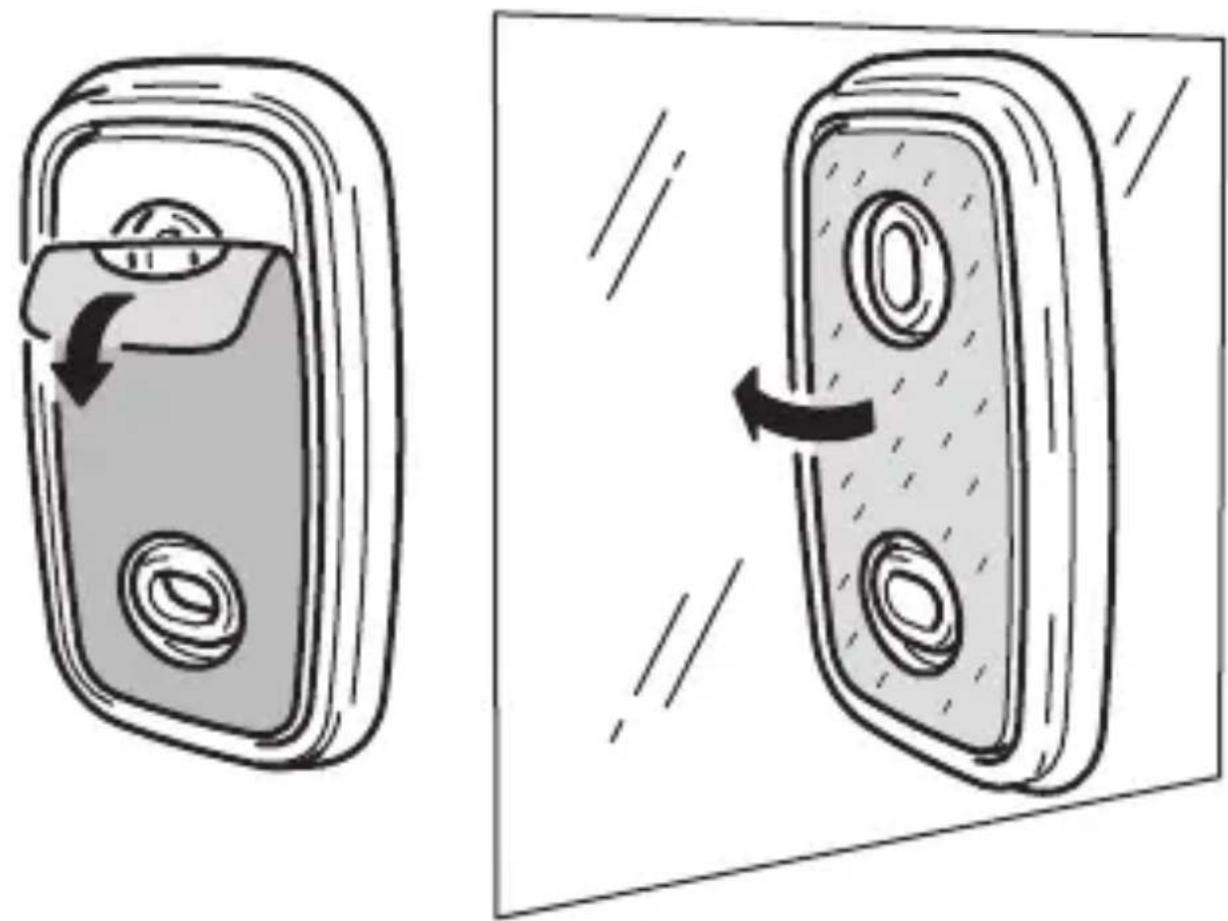

Illustration of a device with two panels, one showing a scroll and arrow, the other showing a hand press with an arrow (no text or symbols)

14AA-2407256-2

A

A

Simple line drawing of a smartphone with an open door and a black arrow indicating the door handle (no text or symbols)

16AA-2407256-2

B

Two technical diagrams showing a wooden plank and its side profile, with no visible text or symbols.

18AA-2407256-2

B

B

Line drawing of a door with a shaded interior and an arrow indicating direction (no text or symbols)

20AA-2407256-2

Simple line drawing of a smartphone displaying an open book icon with camera frame (no text or symbols)

m.qr.ikea.com/p/90560346
