Product Type	Wireless Charger
Brand	GoGen
Model	CHST302B
Input	USB-C: 5V/3A, 9V/2A, 12V/2A
Wireless Output 1	5W, 7.5W, 10W
Wireless Output 2	5W
Wireless Output 3	2.5W
Dimensions	185 x 90 x 13 mm
Weight	200 g
Package Contents	Wireless charger, USB cable, manual
Compatible Devices	Smartphones and devices supporting Qi wireless charging (including Apple, Samsung, etc.)
Charging Distance	Up to 3 mm (including phone case thickness)
Safety Features	Overheat protection, foreign object detection, pacemaker safe distance >22 cm
Warranty	2 years
Power Adapter Required	Min 18W PD or QC 3.0 adapter (not included)

Frequently Asked Questions - CHST302B GoGen

Can I charge my phone with a thick case?

Yes, but the case thickness should be less than 3 mm to ensure proper charging. Remove any metal attachments or credit cards from the case.

What power adapter should I use?

Use a USB-C adapter with at least 18 W output, preferably with Power Delivery (PD) or Qualcomm Quick Charge 3.0 for optimal performance.

Can I charge multiple devices at once?

This charger has three wireless charging coils (5W/7.5W/10W, 5W, and 2.5W) that can charge up to three devices simultaneously, such as a phone, earbuds, and a smartwatch.

Is it safe to use with a pacemaker?

Consult your doctor first. Maintain a distance of at least 22 cm between the charger and the pacemaker to avoid interference.

How long does it take to charge a phone?

Charging time depends on your device and adapter. For a typical smartphone, a full charge takes approximately 2-3 hours with a 10W output and compatible device.

What should I do if the charger stops working?

Check the power adapter and cable. Ensure the device is properly aligned on the charging area. Remove any metal objects. If the issue persists, contact customer support.

Can I use the phone while charging wirelessly?

It is not recommended, as it may affect charging efficiency and cause overheating. For best results, leave the phone on the charger without use.

How do I clean the charger?

Unplug the charger before cleaning. Wipe with a dry, soft cloth. Do not use liquids or abrasive cleaners.

Is this charger compatible with iPhone and Samsung?

Yes, it supports Qi wireless charging standard, so it works with iPhone 8 and newer, Samsung Galaxy S6 and newer, and many other Qi-enabled devices.

Does the charger come with a warranty?

Yes, it comes with a 2-year warranty covering material defects and workmanship. Keep your purchase receipt for warranty service.

USER MANUAL CHST302B GoGen

Abstract logo design with a stylized white 'S' inside a circle (no text or symbols)

GoGEN

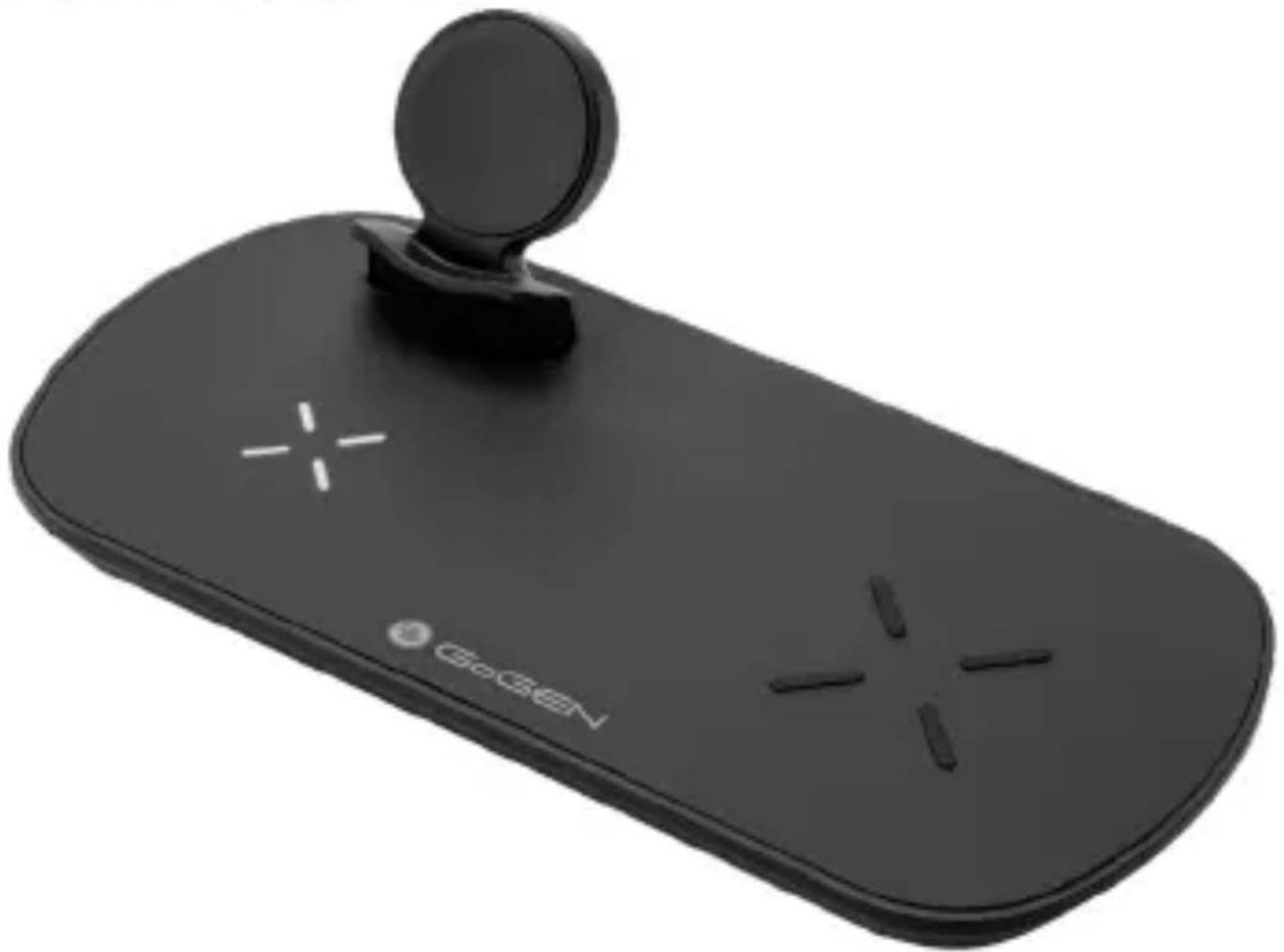

Black electronic device with a circular head and plus/minus symbols, labeled 'Googen' (no additional text or symbols visible)

NÁVOD K POUŽITÍ

NÁVOD NA POUŽITIE

INSTRUKCJA OBSŁUGI

INSTALLATION MANUAL

HASZNÁLATI UTASÍTÁS

Diagram showing a device being processed from a component, with no visible text or symbols

Line drawing of a remote control panel with cable and plug, showing connection point (no text or symbols)

TECHNICKÉ SPECIFIKACE

Vstup: USB-C 5 V / 3 A, 9 V / 2 A, 12 V / 2 A

BEZDRÁTOVÝ VÝSTUP 1: 5 W, 7,5 W, 10 W

BEZDRÁTOVÝ VÝSTUP 2: 5 W

BEZDRÁTOVÝ VÝSTUP 3: 2,5 W

Simple line drawing of a heart with a curved line extending from it (no text or symbols)

POKUD POUŽÍVÁTE KARDIOSTIMULÁTOR NEBO PODOBNY LÉKAŘSKÝ PŘÍSTROJ, PORAĐTE SE O POUŽITÍ TOHOTO VÝROBKU S LÉKAŘEM. Mezi

NEBEZPEČÍ UDUŠENÍ. PE SÁČEK ODKLÁDEJTE MIMO DOSAH DĚTÍ. SÁČEK NENÍ NA HRANÍ. NEPOUŽÍVEJTE TENTO SÁČEK V KOLÉBKÁCH, POSTÝLKÁCH, KOČÁRCÍCH NEBO DĚTSKÝCH OHRÁDKÁCH.

Symbol of a trash bin with crossed lines and a blank rectangular base (no text or numbers)

Diagram showing a device being processed into a larger portion, with no visible text or symbols.

Line drawing of a remote control panel with cable and plug, showing connection point (no text or symbols)

TECHNICKÉ ŠPECIFIKÁCIE

Vstup: USB-C 5 V / 3 A, 9 V / 2 A, 12 V / 2 A

BEZDRÔTOVÝ VÝSTUP 1: 5 W, 7,5 W, 10 W

BEZDRÔTOVÝ VÝSTUP 2: 5 W

BEZDRÔTOVÝ VÝSTUP 3: 2,5 W

Rozmery: 185 x 90 x 13 mm

Hmotnost: 200 g

BEZPEČNOSTNÍ UPOZORNĚNÍ

Simple line drawing of a heart with a curved line extending from it (no text or symbols)

AK POUŽÍVATE KARDIOSTIMULÁTOR ALEBO PODOBNÉ LEKÁRSKE ZARIADENIE, PORAĐTE SA O POUŽITIE TOHTO VÝROBKU S LEKÁROM. Medzi kardiostimulátorom a bezdrôtovou nabíjačkou vždy udržujte vzdialenost' väčšiu ako 22 cm. Elektromagnetické vlny z nabíjačky by mohli narušit' funkciu kardiostimulátora.

ZÁRUKA

Prohibition sign with a circular border and a stylized face inside (no text or symbols)

Prohibition sign with a crossed-out dog silhouette (no text or symbols)

NEBEZPEČENSTVO UDUSENIA. PE VRECKO ODKLADAJTE MIMO DOSAHU DETÍ. VRECKO NIE JE NA HRANIE. NEPOUŽÍVAJTE TOTO VRECÚŠKO V KOLÍSKACH, POSTIEL'KACH, KOČÍKOCH ALEBO DETSKÝCH OHRÁDKACH.

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or numbers present)

Thank you for purchasing our product. For optimum performance and safety, please read these instructions carefully before operating the product. Please keep this manual for future reference.

PACKAGE CONTENT

Wireless charger, USB cable, manual

CHARGING INSTRUCTION

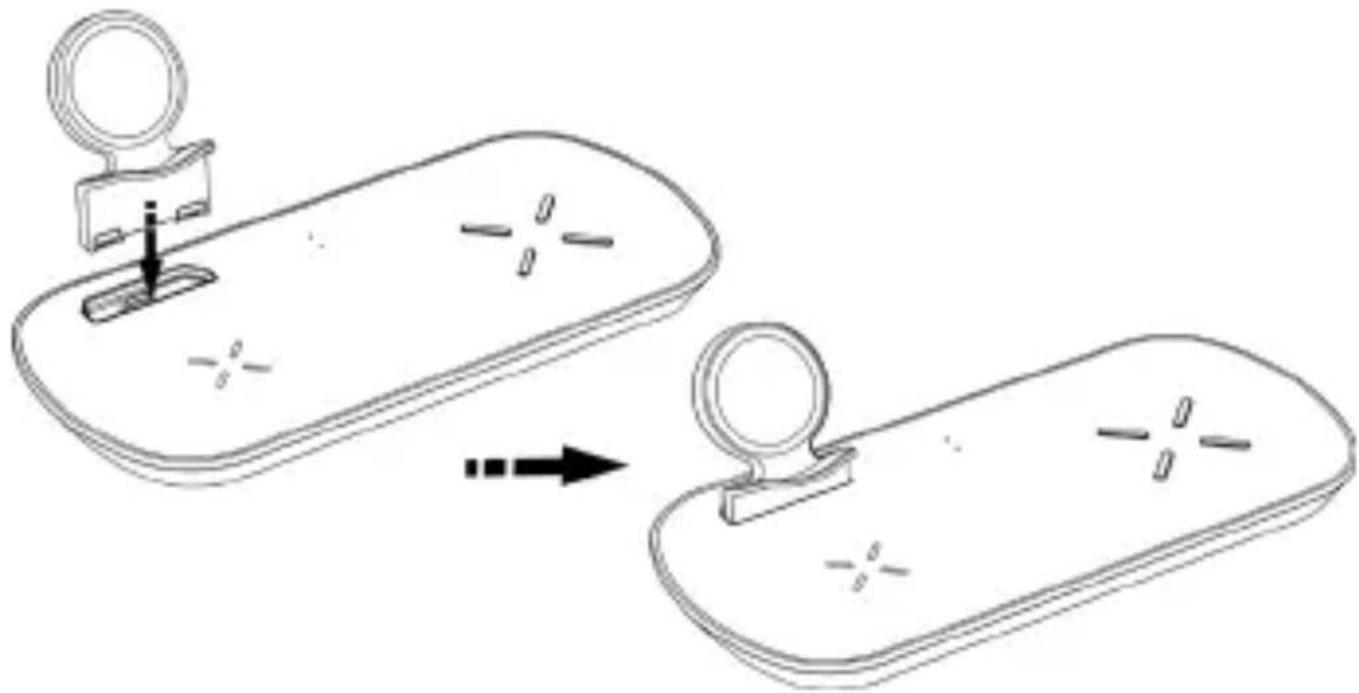

Put the Watch charge module into the product port and ensure the connection is well.

Diagram showing a device being processed into a larger portion, with no visible text or symbols.

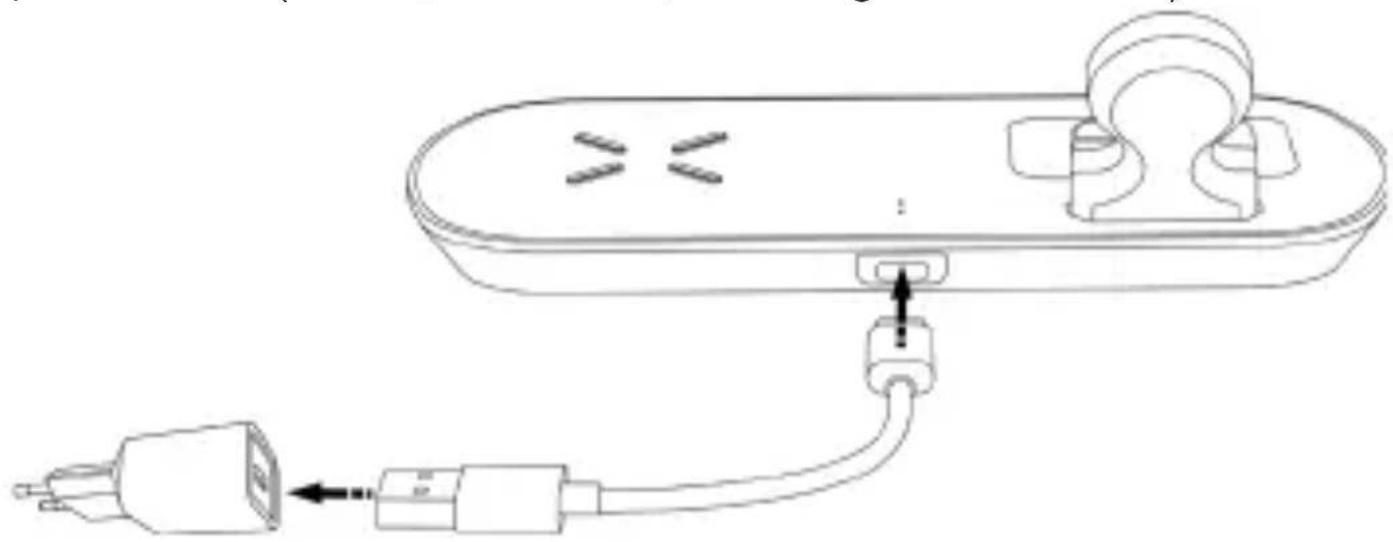

Please use an adapter based on product requirements to supply power. It is necessary to use the charging adapter whose output port has a minimum power of 18 W (PD or Qualcomm® Quick Charge™ 3.0 functions).

Line drawing of a device with an attached plug and cable, showing no text or symbols

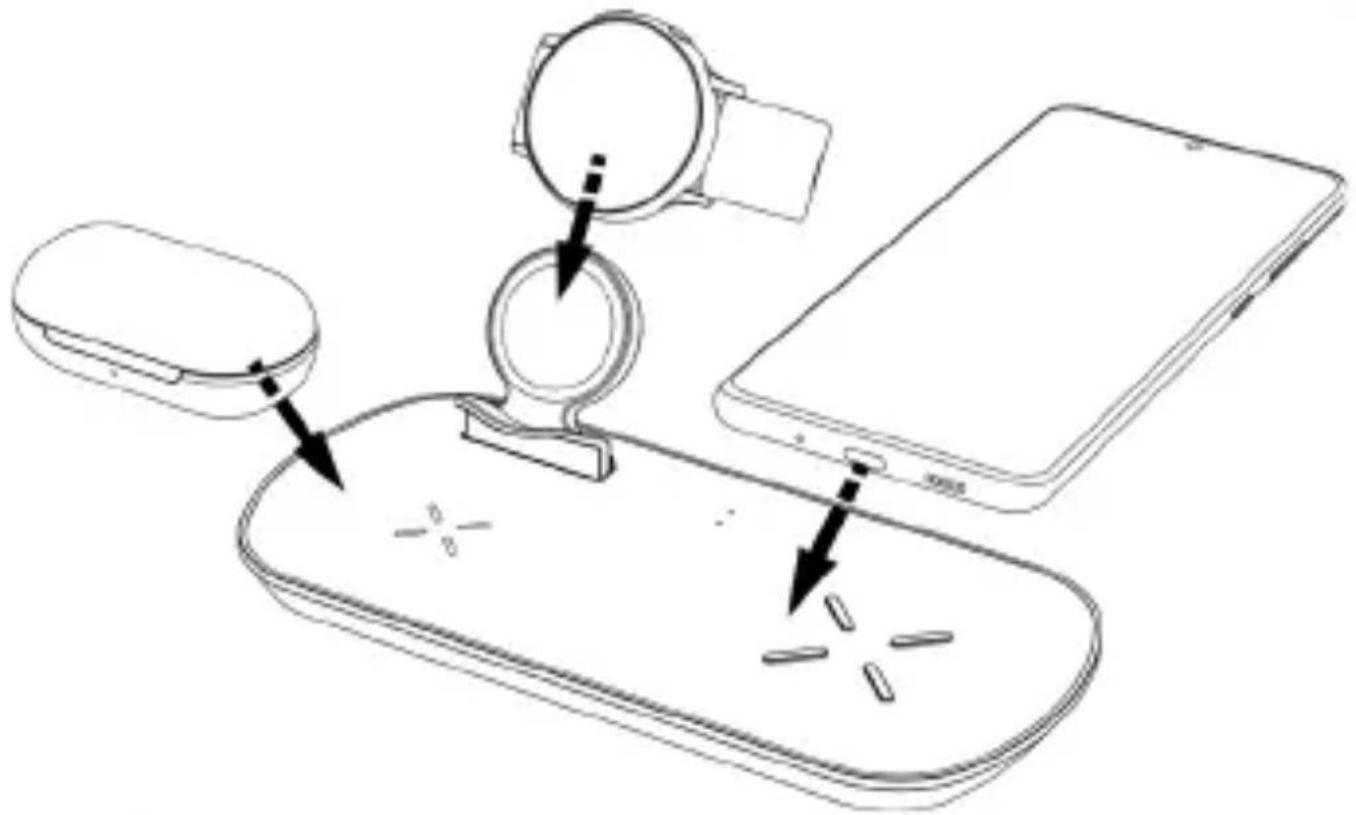

The charging starts automatically while you put the supported device on the charging area.

TECHNICAL SPECIFICATION

Input: USB-C 5 V / 3 A, 9 V / 2 A, 12 V / 2 A

WIRELESS OUTPUT 1: 5 W, 7,5 W, 10 W

WIRELESS OUTPUT 2: 5 W

WIRELESS OUTPUT 3: 2,5 W

Dimension: 185 x 90 x 13 mm

Weight: 200 g

CAUTION

• Make sure the center position of the mobile phone aligns with the charging area. A thick phone case will affect charging and the suggested thickness is less than 3 mm.
• Please don't use the product under direct sunlight or heat environment.
• Not suggest using the phone while it's charging.
• Please don't put metal objects upon the charger.
• Please shut down power while cleaning.

Simple line drawing of a heart with a curved line extending from it (no text or symbols)

IF YOU USE A PACEMAKER OR A SIMILAR MEDICAL DEVICE, CONSULT THE USE OF THIS PRODUCT WITH A DOCTOR. Always keep a pacemaker more than 22 cm from the wireless charger. Electromagnetic waves of the charger could interfere the pacemaker.

WARRANTY

Our product is warranted for 2 full year from the date of purchase. The warranty is provided on all material defects and workmanship.

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

Prohibition sign with a crossed-out face and megaphone symbol (no text)

Prohibition sign with a crossed-out dog silhouette (no text or symbols)

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or numbers present)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling

of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Diagram showing a device being processed from a left-side component to a right-side component, with no visible text or symbols.

Line drawing of a remote control panel with cable and plug, showing connection point (no text or symbols)

SPECYFIKACJA

Wejście: USB-C 5 V / 3 A, 9 V / 2 A, 12 V / 2 A

WYJŚCIE BEZPRZEWODOWE 1: 5 W, 7,5 W, 10 W

WYJŚCIE BEZPRZEWODOWE 2: 5 W

WYJŚCIE BEZPRZEWODOWE 3: 2,5 W

Wymiary: 185 x 90 x 13 mm

Masa: 200 g

INSTRUKCJE BEZPIECZEŃSTWA

Simple line drawing of a heart with a curved arrowhead (no text or symbols)

W PRZYPADKU POSIADANIA ROZRUSZNIKA SERCA LUB PODOBNEGO URZĄDZENIA MEDYCZNEGO, NALEŻY PRZED UŻYCIEM ŁADOWARKI SKONTAKTOWAĆ SIĘ Z

Prohibition sign with a crossed-out robot silhouette (no text or symbols)

NIEBEZPIECZEŃSTWO UDUSZENIA. TO- REBKE Z PE POŁOŻYĆ W MIEJSCU BĘDA- CYM POZA ZASIĘGIEM DZIECI. TOREBKA NIE SŁUŻY DO ZABAWY! TEGO WORKA NIE NALEŻY UŻYWAĆ W KOŁYSKACH, ŁÓŻECZKACH, WÓZKACH LUB KOJCACH

DZIECIĘCYCH.

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Diagram showing a device being processed from a left-side component to a right-side component, with no visible text or symbols.

Line drawing of a power strip connection with a plug and cable, no text or symbols present

SPECIFIKÁCIÓK

Bemenet: USB-C 5 V / 3 A, 9 V / 2 A, 12 V / 2 A

VEZETÉK NÉLKÜLI KIMENET 1: 5 W, 7,5 W, 10 W

VEZETÉK NÉLKÜLI KIMENET 2: 5 W

VEZETÉK NÉLKÜLI KIMENET 3: 2,5 W

Méretek: 185 x 90 x 13 mm

Súly: 200 g

FIGYELMEZTETÉS

Simple line drawing of a heart with a curved line extending from it (no text or symbols)

HA SZÍVRITMUS SZABÁLYOZÓT, VAGY HASONLÓ EGÉSZSÉGÜGYI KÉSZÜLÉKET HASZNÁL, KONZULTÁL-JON A TERMÉK HASZNÁLATA ELŐTT ORVOSÁVAL!

Prohibition sign with a person inside a glass, crossed out by a diagonal line (no text or symbols)

FULLADÁSVESZÉLY. TARTSA A PE ZACSKÓT GYERMEKEKTŐL ELZÁRT HELYEN. A ZACSKÓ NEM JÁTÉKSZER. NE HASZNÁLJA EZT A ZACSKÓT BÖLCSŐKBEN, KISÁGYAKBAN, BABAKOCSIK-

BAN, VAGY GYEREK JÁRÓKÁKBAN.

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or numbers present)
