PB 26002 WG - Mobile Device Charger GoGen - Free user manual and instructions

Product Type	Portable Power Bank
Brand	GoGen
Model	PB 26002 WG
Battery Capacity	2600 mAh
Input Interface	Micro USB
Output Interface	USB-A (x1)
Output Current	1A (max)
Input Current	1A (max)
Charging Time	Approx. 3-4 hours
Dimensions (L x W x H)	90 x 60 x 10 mm
Weight	Approx. 90 g
Material	Plastic casing
Indicator Lights	4 LED battery level indicators
Protection Features	Short circuit, overcharge, over-discharge protection
Operating Temperature	0°C to 45°C
Compatible Devices	Smartphones, tablets, Bluetooth headphones, etc.
Includes	Micro USB cable, user manual
Cleaning Instructions	Wipe with a dry, soft cloth. Do not use liquids.
Storage Conditions	Keep in a cool, dry place away from direct sunlight.
Repairability	Non-repairable; recycle at designated facilities.

Frequently Asked Questions - PB 26002 WG GoGen

How do I charge the GoGen PB 26002 WG power bank?

Connect the included Micro USB cable to the power bank's input port and a USB power adapter (not included) to a wall outlet. The LED indicators will show charging status. Full charge takes approximately 3-4 hours.

How do I charge my phone with the PB 26002 WG?

Use a USB cable (compatible with your phone) to connect your phone to the USB-A output port on the power bank. Press the power button if required to start charging.

How many times can I charge my phone with a fully charged PB 26002 WG?

The number of charges depends on your phone's battery capacity. For a typical smartphone with 3000 mAh battery, you can expect about 0.8 full charges due to energy conversion efficiency.

What do the LED indicators mean?

The PB 26002 WG has 4 LED lights that indicate battery level: 1 light = 0-25%, 2 lights = 25-50%, 3 lights = 50-75%, 4 lights = 75-100%.

Can I charge two devices at the same time?

No, the PB 26002 WG has only one output port, so you can charge only one device at a time.

Is the power bank safe to use?

Yes, the device includes protection against short circuits, overcharging, and over-discharging. Always use cables and adapters in good condition.

How do I clean the power bank?

Turn off the device and disconnect all cables. Wipe the exterior with a soft, dry cloth. Do not use water, cleaning agents, or abrasive materials.

What should I do if the power bank stops working?

First, try charging it for a few hours to reset the protection circuit. If it still doesn't work, check the cable and adapter. If the problem persists, the battery may be depleted; recycle it properly.

Can I take the PB 26002 WG in carry-on luggage?

Yes, portable power banks under 100 Wh (this model is approximately 9.6 Wh) are allowed in carry-on luggage according to airline regulations. Check with your airline for specific rules.

How should I store the power bank when not using it?

Store it in a cool, dry place away from direct sunlight and heat sources. Keep the battery charged at around 50% for long-term storage to prolong battery life.

USER MANUAL PB 26002 WG GoGen

Abstract logo design with white stylized 'S' inside a circle on black background (no text or symbols)

PB 26002 BW

PB 26002 WR

PB 26002 WG

GoGEN

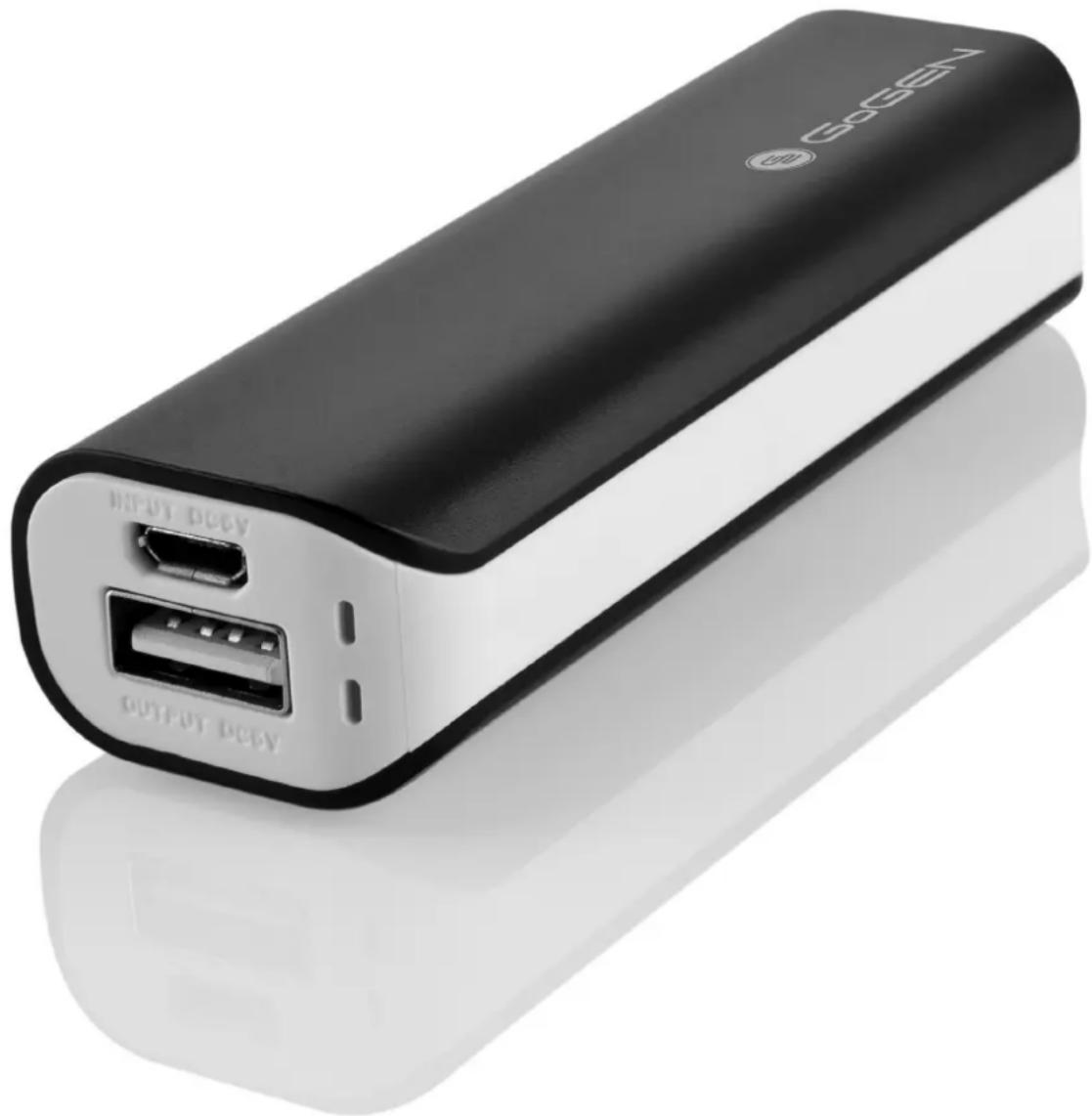

Black and white photo of a GOGEN 12.0 power bank with internal ports and USB port (no visible text or symbols on body)

ZÁLOŽNÍ ZDROJ ENERGIE

ZÁLOŽNÉ ZDROJE ENERGIE

Thank you for purchasing our product. For optimum performance and safety, please read these instructions carefully before operating the product. Please keep this manual for future reference.

SPECIFICATION

Battery type: Li-ion Battery

Capacity: 2600 mAh / 9,62 Wh

Input: Micro USB 5 V / 1 A (max)

Output: USB 5 V / 0,9 A

Dimension: 90,5 x 30 x 21 mm

Weight: 60 g +/- 10 g

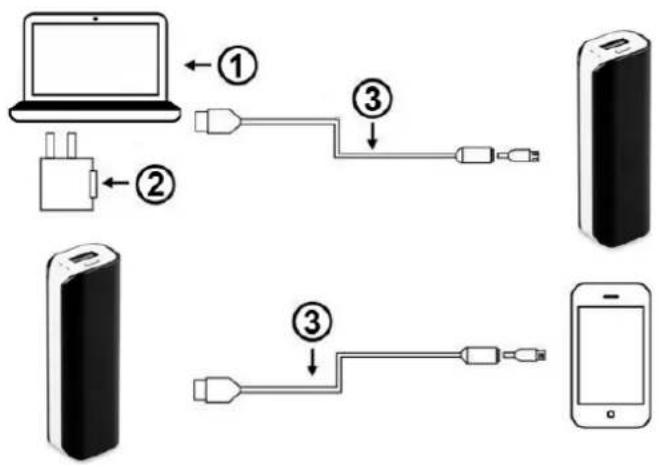

CHARGING INSTRUCTION

1. USB port

2. USB adapter 5V

3. USB cable

INDICATOR

The red indicator keeps flashing when charging, and keep on when fully charged. The other blue indicator keeps on when discharging.

If there is no indicator on when charging or discharging, Please charge this device immediately.

ATTENTION

It is normal for the casing to become warm during charging and it will gradually cool down to room temperature after fully charged.

Please make a complete charge every three month to avoid shorten the mobile power life span.

CAUTION

- Please completely full charge the mobile power in first usage.

- Please make sure that use standard cable with appropriate specification, or it may lead to the mobile power damage.

- Please confirm the voltage of the electric device is 5V before charging it.

- Do not drop, knock, disassemble or attempt to repair the mobile power by yourself.

- Do not immerse or put the mobile power in water or damp place.

- Do not expose or put the mobile power near to heat sources or flammable place.

- Do not put the mobile power in car, for strong light and high temperature will lead to product damage.

- Keep the mobile power away from children.

- Do not put any item into the mobile power USB input and output ports to avoid any shortcut or damage.

- Please make a complete charge every three month to avoid shorten the mobile power life span.

- This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safety. Young children should be supervised to ensure that they do not play with the appliance.

ACCESSORIES

USB cable

WARRANTY

Our product is warranted for 2 full year from the date of purchase. The warranty is provided on all material defects and workmanship.

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current.

Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tention.

Old electrical appliances, used batteries and accumulators disposal

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to

protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.

Abstract black and white logo with a stylized white 'S' inside a circle (no text or symbols)

GoGEN
