HL02GY - Flashlight GoGen - Free user manual and instructions

Product Type	Headlamp
Brand	GoGen
Model	HL02GY
Lumens	350 lm
Battery Capacity	1200 mAh
Runtime	Up to 4 hours
Light Distance	Up to 80 m
Weight	43 g
Dimensions (W x H x D)	50 x 31 x 35 mm
Ingress Protection (IP)	IP55
Package Contents	Headlamp, elastic head-strap, charging cable, manual
Charging Port	Micro USB
Power Button	Turn on/off, cycle modes: white light, high white light, strobe white, red light, off
Sensor Function	Wave hand within 5 cm to turn on/off (press sensor button to enable)
Light Modes	White, high white, strobe white, red
Indicator Lights	Green (light on), red (sensor on), red (charging), green (fully charged), red flashing (low battery)
Maintenance	Clean with dry cloth; dry if exposed to water
Safety Warning	Never look directly at LED without eye protection
Battery Care	Recharge/discharge every 3 months if not used
Disposal	Do not dispose as household waste; recycle at appropriate facility

Frequently Asked Questions - HL02GY GoGen

How do I turn on the headlamp?

Press the power button once. Press again to cycle modes: white light, high white light, strobe white, red light, then off.

How do I use the sensor function?

Press the sensor button to enable. Then wave your hand within about 5 cm in front of the headlamp to turn the light on/off.

How do I charge the headlamp?

Connect a Micro USB cable to the charging input on the headlamp. Use a standard USB charger, power bank, or laptop USB port. The red indicator shows charging; green means fully charged.

What does the flashing red light mean?

A flashing red indicator means the battery has low power and needs to be recharged soon.

Can I look directly at the LED?

No, never look directly at the LED without eye protection to avoid eye injury.

How do I clean the headlamp?

If dirty, clean it with a dry cloth. If submerged or exposed to water, dry thoroughly before use.

What is the runtime?

The runtime is up to 4 hours on a full charge.

Is the headlamp waterproof?

It has an IP55 rating, meaning it is dust-protected and resistant to water jets. Do not submerge.

What should I do if I don't use the battery for a long time?

Recharge and discharge the battery every 3 months to maintain it in good condition.

How do I dispose of the headlamp?

Do not dispose as household waste. Use a recycling collection point for electrical and electronic equipment.

USER MANUAL HL02GY GoGen

Abstract logo design with a stylized white 'S' inside a circle on black background (no text or symbols)

HL02GY

GoGEN

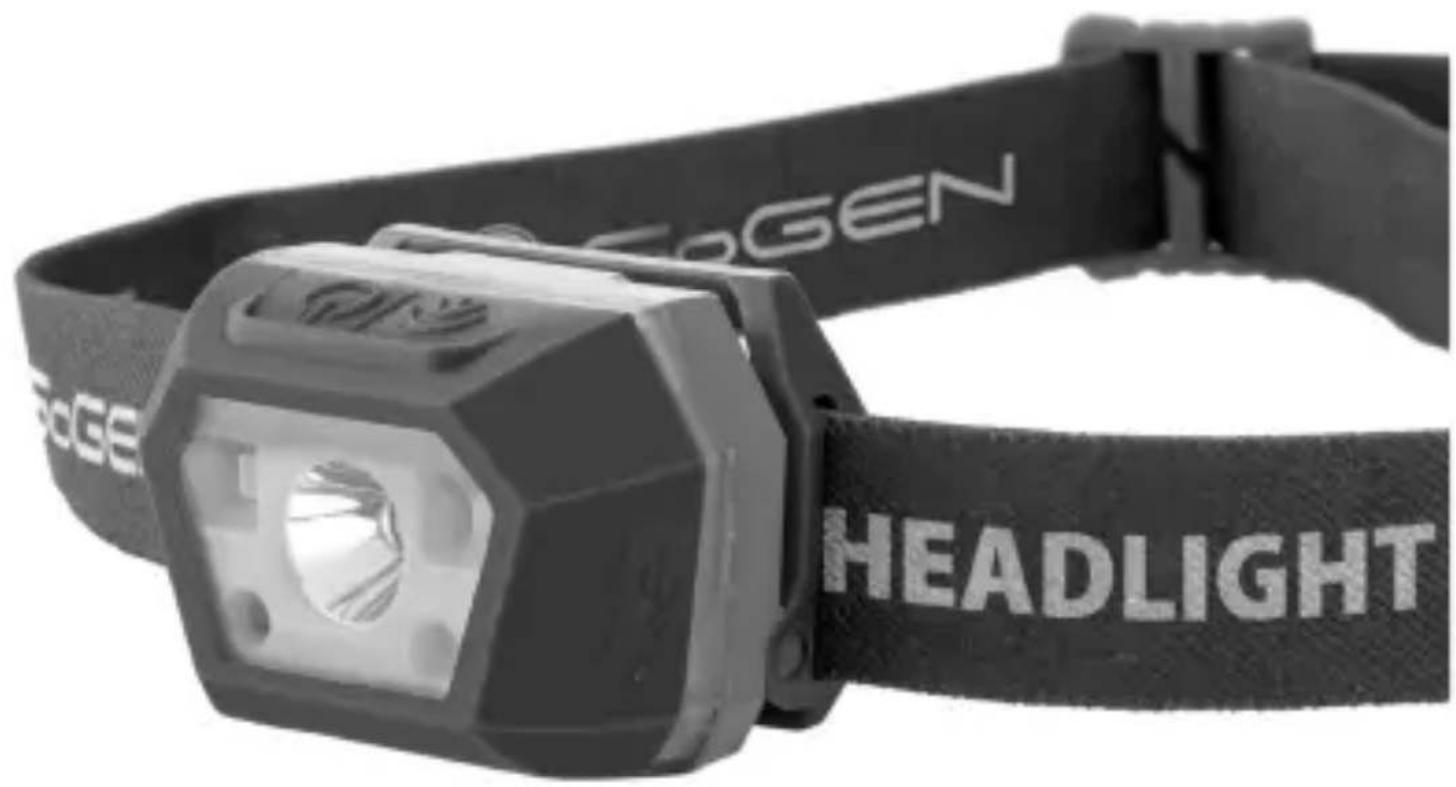

Close-up of a headlight with 'HEADLIGHT' branding and a black headband (no additional text or symbols visible)

CZ SK PL EN HU

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Symbol of a trash bin crossed with no text or labels

Thank you for buying our product. Please read through these operating instructions, so you will know how to operate your equipment properly. After you finished reading the instructions manual, put it away in a safe place for future reference.

PACKAGE INCLUDE

Headlamp, elastic head-strap, charging cable, manual

ATTENTION: In any case, never look directly at the LED without eye protection.

WARNING

• If the battery isn't used for a very long time, please recharge and discharge it every 3 months to keep the battery in good condition.
  • Normally, the headlight will get a little hot when it is used for a long time.
• Please recharge the battery as soon as possible when the indicator light shows low power.
• Please keep the battery away from water, moisture, drop, etc.
• To avoid any damage to the headlamp's surface, please don't constantly expose the headlamp to sunlight, water, chemicals, corrosive gases, or any other oxidizing environments.
• Never charge the battery unattended.

OPERATING INSTRUCTIONS

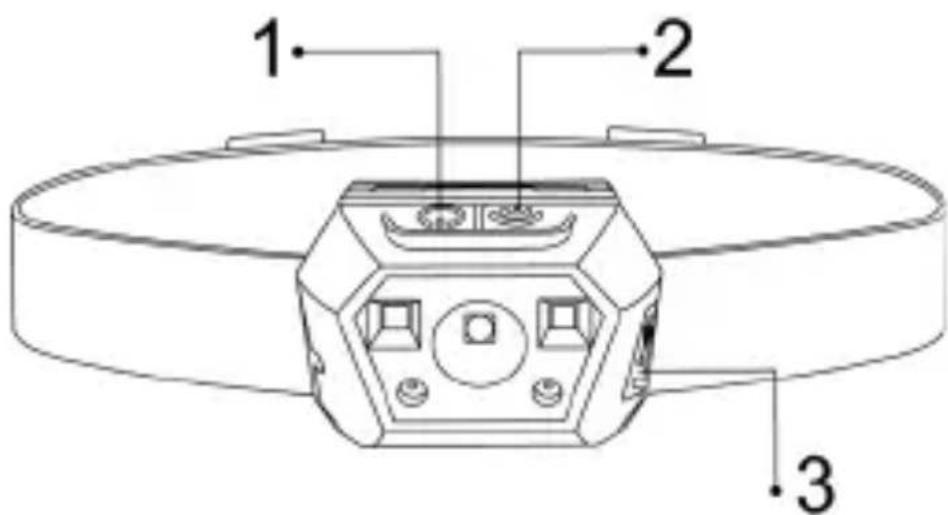

1. POWER BUTTON
2. SENSOR BUTTON
3. CHARGING INPUT

LIGHT FUNCTION

Press the power button to turn on the light. By pressing the power button again, you will change the light mode: white light > high white light, strobe white light, red light > off in a cycle. You can power off the light in any mode by holding the power button for 2 seconds. The green LED light indicator on the right side of the headlamp is always on when the flashlight's light is on.

SENSOR FUNCTION

Press the sensor button to turn on the sensor function. You can turn on/off the light by waving the hand in the front of the headlamp (about 5 cm of distance). The red LED light indicator on the right side of the headlamp is always on when the sensor function is on.

CHARGING

Use the Micro USB port at the headlight to charge the battery. You can use a common USB charger or power bank, laptop USB output, etc. The red indicator on the power switch lights red when the battery is charging. And it switches over to the green light when the battery is fully charged. When the battery has low power, the indicator flashes red.

MAINTENANCE

• If the headlight gets dirty clean it with a dry cloth.
• If your headlight is accidentally submerged or exposed to water, dry out any water that might have been immersed before using it again.

TECHNICAL SPECIFICATIONS

Lumens 350 lm
Batteries 1200 mAh
Runtime up to 4 hours
Light distance up to 80 m
Weight 43 g
Size 50 x 31 x 35 mm
IP protection IP55

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.
