Product Type	Wireless Charger
Brand	GoGen
Model	CHST401B
Dimensions	184 x 109 x 92 mm
Weight	200 g
Input	USB-C: 9 V / 2.7 A, 12 V / 2 A
Wireless Output 1 (Phone)	5 W, 7.5 W, 10 W
Wireless Output 2 (iWatch)	2.5 W
Wireless Output 3 (Airpods)	2 W
USB Output	5 V / 1.0 A
LED Indicator	Green: standby; Blue: charging; Blue+Green flash: foreign object detected or misalignment
Charging Areas	Phone, iWatch, Airpods
Package Contents	Wireless charger, USB cable, instruction manual
Compatibility	Qi-enabled devices
Phone Case Thickness Limit	< 3 mm
Safety	Keep > 22 cm from pacemaker; avoid metal objects; do not use in direct sunlight or heat
Warranty	2 years

Frequently Asked Questions - CHST401B GoGen

How do I charge my phone with the GoGen CHST401B?

Simply place your Qi-enabled phone on the phone charging area. The charging starts automatically and the LED will turn blue.

Why is the LED flashing between blue and green?

A flashing blue and green LED indicates a foreign object is detected or the phone is misaligned on the charging area. Remove any metal objects and reposition the device.

Can I charge three devices simultaneously?

Yes, you can charge a phone, iWatch, and Airpods at the same time. However, you must use a Qualcomm Quick Charge 3.0 adapter to supply enough power.

Is the charger safe to use if I have a pacemaker?

If you use a pacemaker or similar medical device, consult your doctor before use. Always maintain a distance of more than 22 cm between the pacemaker and the wireless charger to avoid interference.

Can I use a thick phone case while charging?

The suggested phone case thickness is less than 3 mm. Thicker cases may affect charging efficiency or prevent charging altogether.

What power adapter should I use?

For best performance, especially when charging multiple devices, use a Qualcomm Quick Charge 3.0 adapter with USB-C output (9 V / 2.7 A or 12 V / 2 A). A standard 5 V adapter will not provide enough power for simultaneous charging.

How do I clean the charger?

Before cleaning, shut down power and disconnect the charger. Wipe the surface with a soft, dry cloth. Do not use liquids or abrasive cleaners.

Can I use my phone while it is charging?

It is not suggested to use the phone while it is being charged wirelessly, as it may affect charging performance and cause overheating.

Does the charger support fast charging?

Yes, the wireless output for phones supports up to 10 W fast charging, compatible with Qi fast charge protocols.

What does the green LED indicate?

A green LED means the charger is in standby mode and ready to charge. It changes to blue when a device is being charged.

USER MANUAL CHST401B GoGen

Abstract logo with a white stylized 'S' inside a black circle (no text or symbols)

GoGEN

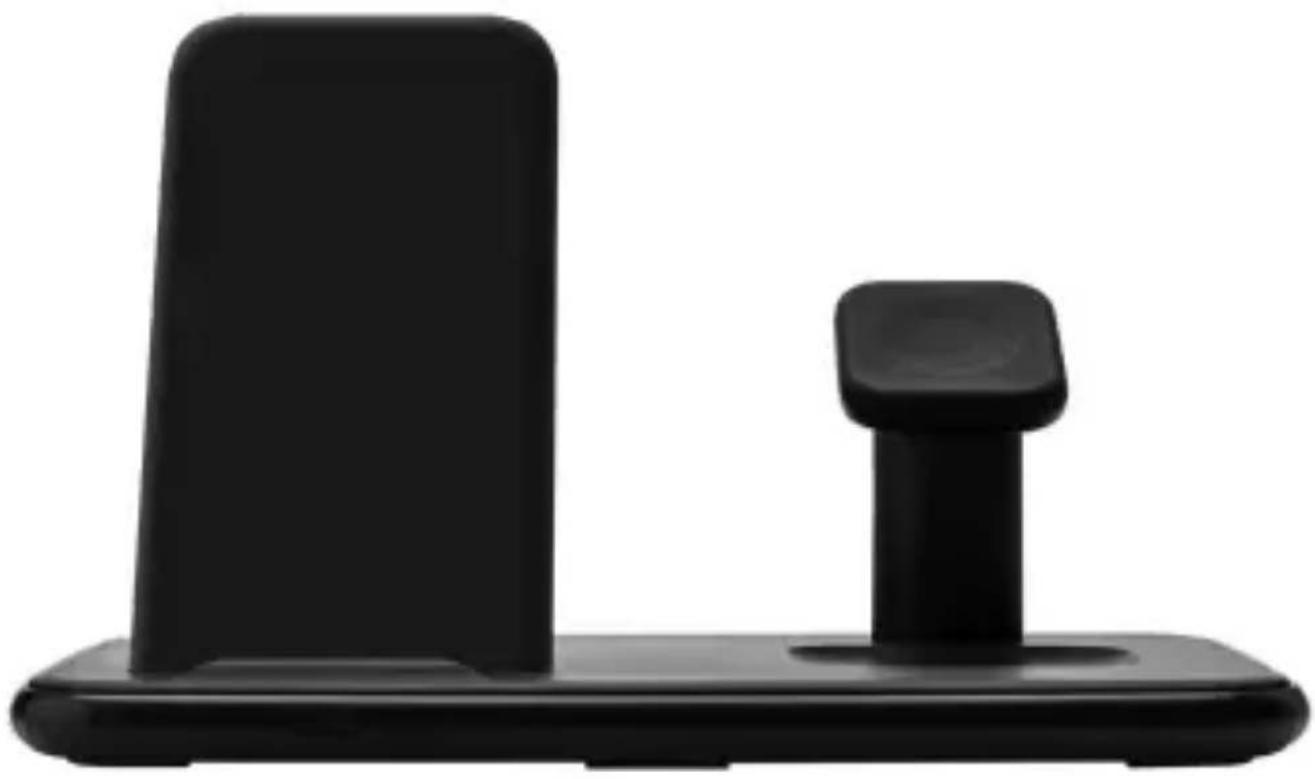

Black office chair with two charging devices on a stand (no visible text or symbols)

Simple line drawing of a heart with a curved line extending from it, no text or symbols present.

POKUD POUŽÍVÁTE KARDIOSTIMULÁTOR NEBO PODOBŇNÝ LÉKAŘSKÝ PŘÍSTROJ, PORAĎTE SE O POUŽITÍ TOHOTO VÝROBKU S LÉKAŘEM.Mezi

Prohibition sign with a figure wearing a mask inside a circle (no text or symbols)

Prohibition sign with a crossed-out arrow and circular border (no text)

NEBEZPEČÍ UDUŠENÍ. PE SÁČEK ODKLÁDEJTE MIMO DOSAH DĚTÍ. SÁČEK NENÍ NA HRANÍ. NEPOUŽÍVEJTE TENTO SÁČEK V KOLÉBKÁCH, POSTÝLKÁCH, KOČÁRCÍCH NEBO DĚTSKÝCH OHRÁDKÁCH.

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

1. Plocha na nabíjanie mobilného telefónu
2. Plocha na nabíjanie iWatch
3. Plocha na nabíjanie Airpods
4. LED indikátor
5. USB-C vstup
6. USB výstup

POKYNY NA OBSLUHU

Simple line drawing of a heart with a curved line extending from it, no text or symbols present.

AK POUŽÍVATE KARDIOSTIMULÁTOR ALEBO PODOBNÉ LEKÁRSKE ZARIADENIE, PORAĐTE SA O POUŽITIE TOHTO VÝROBKU S LEKÁROM. Medzi kardiostimulátorom a bezdrôtovou nabíjačkou vždy udržujte vzdialenost' väčšiu ako 22 cm. Elektromagnetické vlny z nabíjačky by mohli narušit' funkciu kardiostimulátora.

ZÁRUKA

DETSKÝCH OHRÁDKACH.

NEBEZPEČENSTVO UDUSENIA. PE VRECKO ODKLADAJTE MIMO DOSAHU DETÍ. VRECKO NIE JE NA HRANIE. NEPOUŽÍVAJTE TOTO VRECÚŠKO V KOLÍSKACH, POSTIEL'KACH, KOČÍKOCH ALEBO

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

Thank you for purchasing our product. For optimum performance and safety, please read these instructions carefully before operating the product. Please keep this manual for future reference.

PACKAGE CONTENT

Wireless charger, USB cable, instruction manual

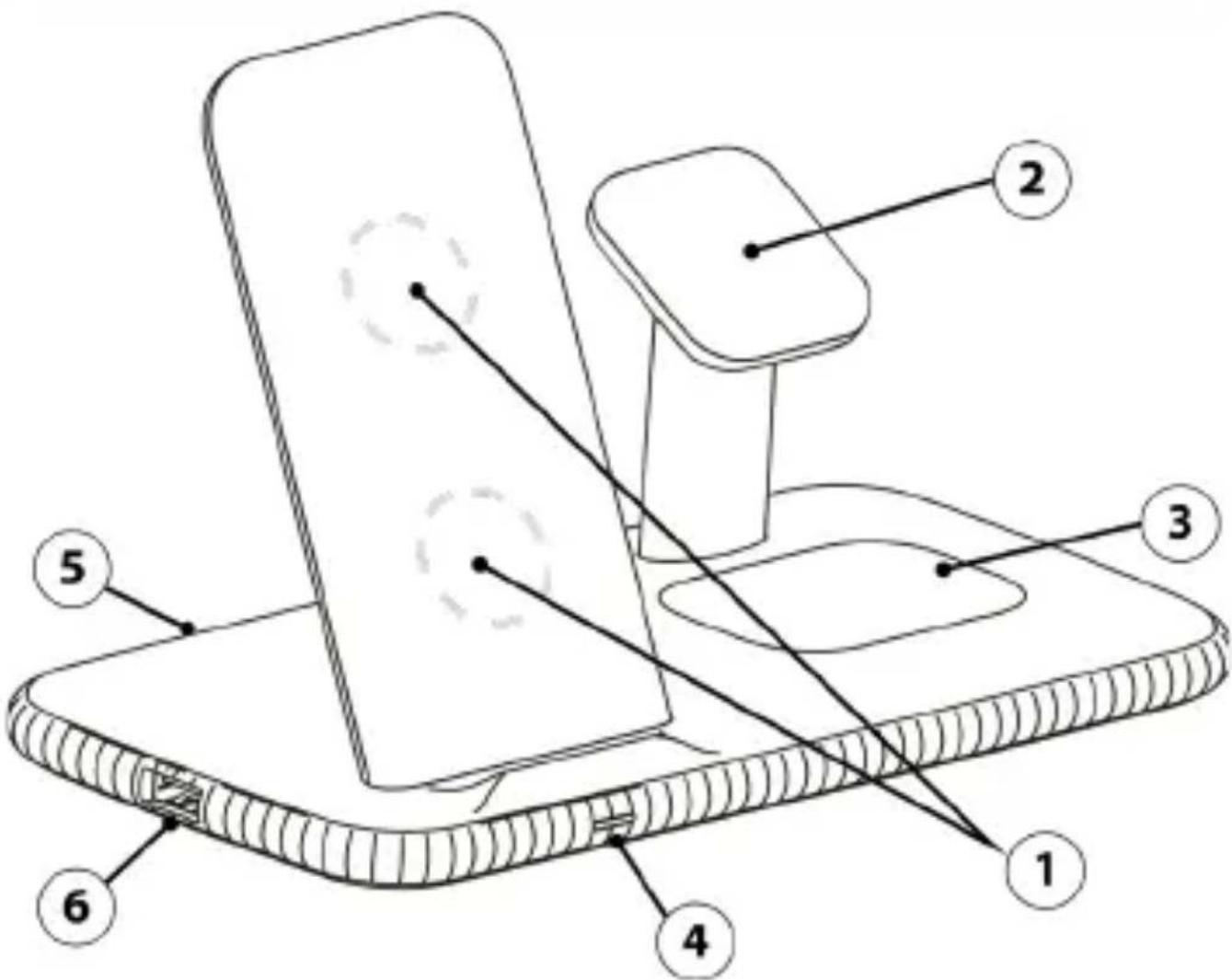

DEVICE LAYOUT

1. The mobile phone charging area
2. iWatch charging area
3. Airpods charging area
4. LED indicator
5. USB-C input
6. USB output

CHARGING INSTRUCTION

Please use an adapter based on product requirements to supply power. It is necessary to use the Qualcomm® Quick Charge™ 3.0 charging adapter if you want to charge 3 devices at the same time. The charging starts automatically while you put the supported device on the charging area.

LED indicator status

Green light on - standby mode

Blue light breathing - wireless charging the phone

Blue and green light flash - foreign body is detected or the phone is misaligned

TECHNICAL SPECIFICATION

Input: USB-C 9 V / 2,7 A, 12 V / 2 A

WIRELESS OUTPUT 1: 5 W, 7,5 W, 10 W

WIRELESS OUTPUT 2: 2,5 W

WIRELESS OUTPUT 3: 2 W

USB output: 5 V / 1,0 A

Dimension: 184 x 109 x 92 mm

Weight: 200 g

CAUTION

• Make sure the center position of the mobile phone aligns with the charging area. A thick phone case will affect charging and the suggested thickness is less than 3 mm.
• Please don't use the product under direct sunlight or heat environment.
• Not suggest using the phone while it's charging.
• Please don't put metal objects upon the charger.
• Please shut down power while cleaning.

Simple line drawing of a heart with a curved line extending from it, no text or symbols present.

IF YOU USE A PACEMAKER OR A SIMILAR MEDICAL DEVICE, CONSULT THE USE OF THIS PRODUCT WITH A

DOCTOR. Always keep a pacemaker more than 22 cm from the wireless charger. Electromagnetic waves of the charger could interfere the pacemaker.

WARRANTY

Our product is warranted for 2 full year from the date of purchase. The warranty is provided on all material defects and workmanship. Guarantee of 24 months does not apply to decrease in the accumulator's effective capacity caused by its use or age. Effective capacity gradually decreases depending on the method of use of the accumulator.

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this

product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.
