DA888 - TV Antenna GoGen - Free user manual and instructions

Product Type	TV Antenna
Brand	GoGen
Model	DA888
Reception Type	Digital Full HD
Reception Channels	5 – 12 (VHF), 21 – 60 (UHF)
Frequency Range	VHF: 87.5 – 230 MHz, UHF: 470 – 790 MHz
Max Output Level	95 dBuV
Input Voltage	AC 230V / 50Hz
Working Voltage	DC 12V / 50mA
Connector Type	IEC-connector
Amplifier	Wide band amplifier with low noise and high gain circuitry
Signal Technology	Signal clear technology for best picture and sound
Power Supply	External AC/DC adaptor (included)
Safety Warning	Do not use near water or in wet areas; turn off when not in use
Lightning Safety	Stop use during thunderstorms and disconnect power
Child Safety	Keep plastic bag away from babies and children to avoid suffocation
Disposal	Do not dispose as household waste; recycle at designated collection points (WEEE)
Compliance	CE compliant with Directive 2014/53/EU
User Serviceable Parts	None; only qualified service personnel should repair
Documentation	Free user manual available for download in PDF

Frequently Asked Questions - DA888 GoGen

How do I connect the GoGen DA888 antenna to my TV?

Connect the antenna's IEC connector to the TV's antenna input. Plug the AC/DC adaptor into a power outlet and connect it to the antenna. Then, scan for channels on your TV.

What channels can I receive with this antenna?

The antenna receives VHF channels 5-12 and UHF channels 21-60, covering local and regional broadcast signals in Full HD digital.

Does the antenna have an amplifier?

Yes, it includes a wide band amplifier with low noise and high gain circuitry to improve picture and sound reception.

What is the power requirement for the antenna?

The antenna operates on DC 12V/50mA supplied by the included external AC/DC adaptor that plugs into a standard AC 230V/50Hz outlet.

Can I use this antenna outdoors?

The manual does not specify outdoor use. It is recommended to keep the antenna away from water and wet areas. For outdoor installation, ensure weatherproofing.

What should I do if reception is poor?

Try repositioning the antenna to a different location or orientation. Ensure the antenna is properly connected and the amplifier is powered on. Avoid obstructions.

Is there a warranty for the GoGen DA888?

The manual does not explicitly state warranty terms. Contact the retailer or GoGen support for warranty information.

How do I clean the antenna?

Unplug the antenna before cleaning. Wipe the exterior with a dry, soft cloth. Do not use water or cleaning solvents near electrical components.

Can I repair the antenna myself?

No, there are no user-serviceable parts inside. Any repair should be performed by qualified authorized service personnel to avoid electric shock.

How should I dispose of the antenna at end of life?

Follow WEEE regulations: do not throw it in household waste. Take it to a designated collection point for recycling electrical and electronic equipment.

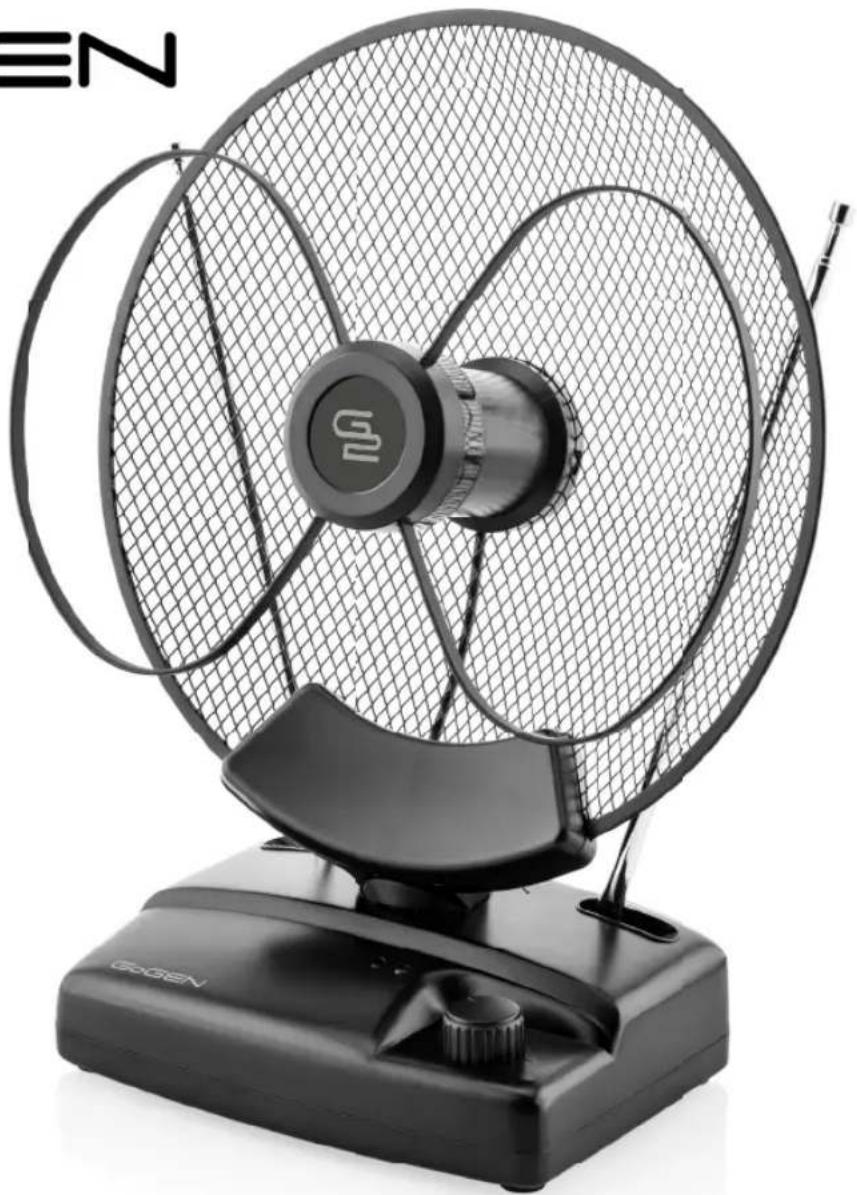

USER MANUAL DA888 GoGen

Abstract logo design with white stylized 'S' inside a circle on black background (no text or symbols)

DA 888

GoGEN

Black and white photo of a green CRT fan with mesh grille and power cord (no visible text or symbols)

VLASTNOSTI

ZMĚNA TECHNICKÉ SPECIFIKACE VÝROBKU VYHRAZENA VÝROBCEM.

VÝROBCA SI VYHRADZUJE PRÁVO NA ZMENU TECHNICKEJ ŠPECIFIKÁCIE VÝROBKU.

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

ZMIANA SPECYFIKACJI TECHNICZNEJ PRODUKTU ZASTRZEŻONA PRZEZ PRODUCENTA.

•Receives Full HD television digital signals;
- For reception of local and regional VHF and UHF signals;
- Wide band amplifier for best picture and sound reception;
•Signal clear technology with extremely low noise and high gain circuitry;
- With external AC/DC adaptor

PERFORMANCE

• Reception channels: 5 - 12, 21 - 60
• Frequency: VHF 87,5 - 230 MHz, UHF: 470 - 790 MHz
•Max Output Level: 95 dBuV
• Input Voltage: AC 230V / 50Hz
• Working Voltage: DC 12V/50mA
- Connector: IEC-connector

NOTICE

Stop using in the thunderous day and turn off the power.

Turn off the power when not using.

If it can't receive well, please place the antenna in different position.

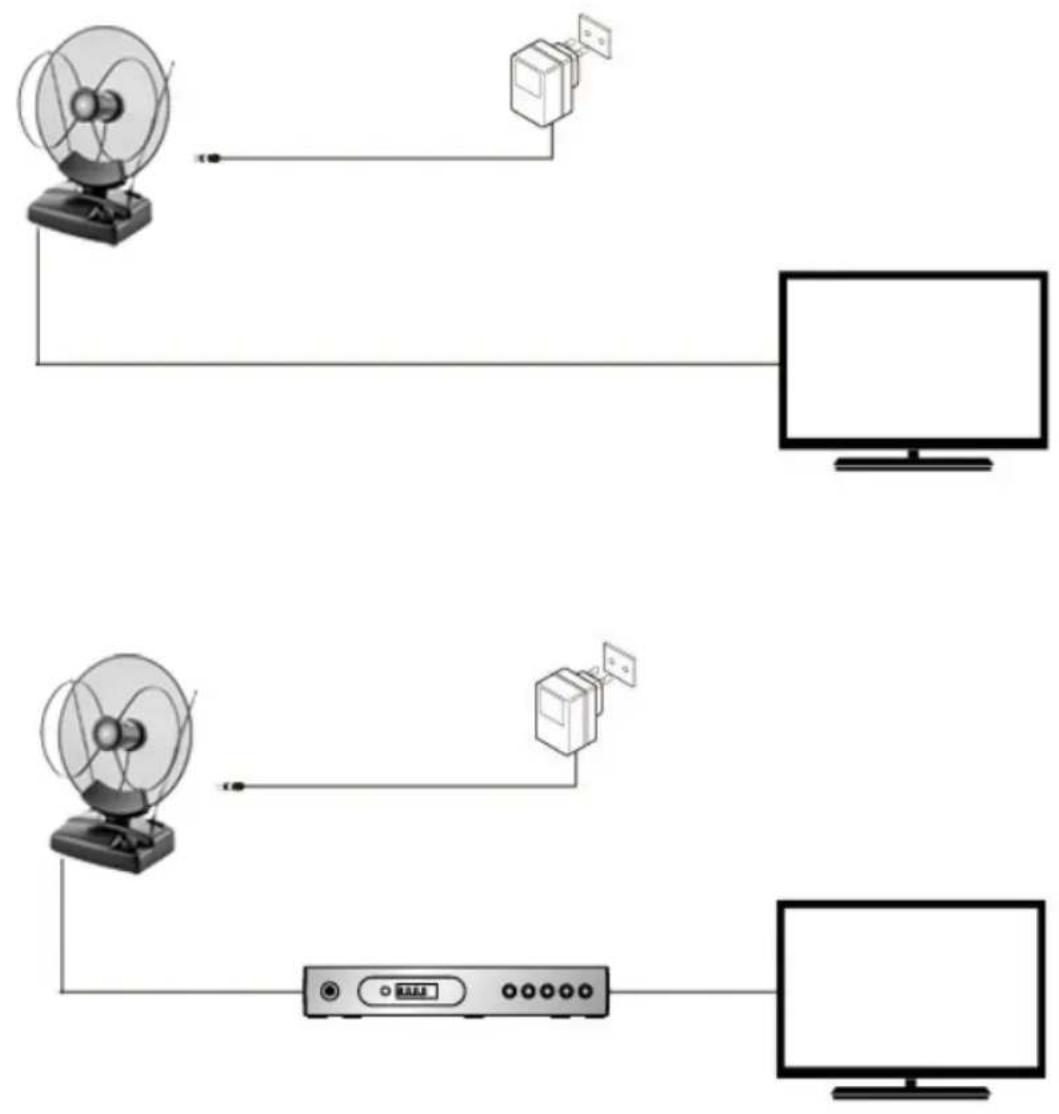

CONNECTION DIAGRAM

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that

this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Hereby, ETA a.s. declares that the radio equipment type DA888 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.gogen.cz/declaration_of_conformity

JELELMZÓK

A GYÁRTÓ FENNTARTJA A JOGOT A TECHNIKAI SPECIFIKÁCIÓK VÁLTOZTATÁSÁRA.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Abstract logo design with white stylized 'S' inside a black circle (no text or symbols)

GoGEN
