EBTM83 - Headphones GoGen - Free user manual and instructions

Product Type	Bluetooth Wireless Headphones
Brand	GoGen
Model	EBTM83
Bluetooth Version	V 4.2
Wireless Range	10 m
Frequency Range	2.402 GHz - 2.480 GHz
EIRP	-3.37 dBm
Speaker Sensitivity	104 ± 3 dB at 1 kHz
Speaker Frequency Response	20 Hz - 20 kHz
Impedance	32 Ω
Battery Type	Rechargeable Li-polymer
Battery Capacity	3.7 V / 80 mAh
Play Time	Up to 5 hours
Charging Time	About 2 hours
Charging Port	Micro USB
Input Voltage	DC 5 V
Controls	Multi-function button (play/pause, answer/end call, voice assistant), Volume +/-, Track skip (press and hold)
LED Indicators	Red/Blue flashing during pairing, blue slow blink when connected, red steady during charging, blue steady when fully charged
Safety	Do not use while driving or cycling; keep plastic bag away from children; high volume may damage hearing
Warranty	2 years
Compliance	EU Directive 2014/53/EU
Disposal	Do not dispose as household waste; recycle at designated collection points

Frequently Asked Questions - EBTM83 GoGen

How do I pair the GoGen EBTM83 headphones with my phone?

Turn on the headphones by holding the power button until the LED flashes red and blue. On your phone, enable Bluetooth and search for 'GOGEBTM83'. Select it to pair. If prompted, enter password '0000'.

How do I charge the headphones and how long does it take?

Connect the provided Micro-USB cable to a computer or USB charger. The LED shines red during charging and turns blue when fully charged. Charging takes about 2 hours.

What is the battery life of the EBTM83?

Play time is up to 5 hours on a full charge. The battery is a rechargeable Li-polymer 80 mAh.

How do I adjust the volume or skip tracks?

Press the '+' button to increase volume and '-' to decrease. During playback, press and hold '+' for about 2 seconds to skip to the next track, and '-' to go to the previous track.

Can I use the headphones for calls?

Yes. Briefly press the multi-function button to answer or end a call. Double press to activate the voice assistant.

What does the LED indicator mean?

Red and blue flashing: pairing mode. Blue slow blinking: connected. Red steady: charging. Blue steady: fully charged. When battery is low, the headphones will automatically turn off.

How do I clean the headphones?

Wipe the earphones with a soft, dry cloth. Do not use any liquids or abrasive cleaners. Keep the charging port dry.

Is it safe to use while driving?

No. For traffic safety, do not use the headphones while driving or cycling.

What is the warranty period?

The product is warranted for 2 years from the date of purchase against material defects and workmanship. Battery capacity decrease due to use or age is not covered.

What should I do if the headphones do not connect?

Ensure the headphones are in pairing mode (LED flashing red/blue). On your device, turn Bluetooth off and on, then search again. If still issues, reset by turning off and on again. Also check that the headphones are charged.

USER MANUAL EBTM83 GoGen

Abstract geometric logo with a stylized 'S' inside a circle (no text or symbols)

EBTM83

GoGEN

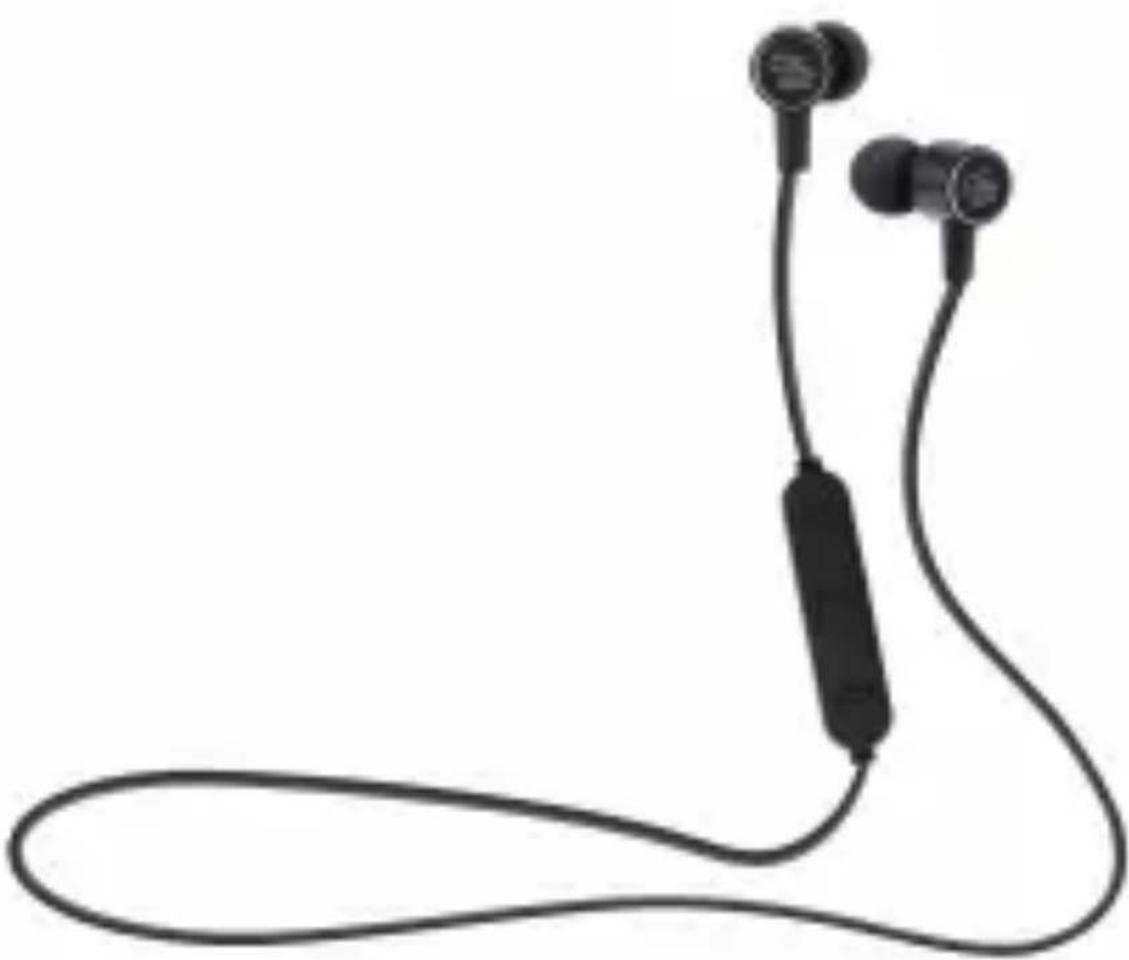

Black outdoor earbuds with black leads, shown in a simple line drawing style (no text or symbols)

VYŠOKÁ HLASITOST MŮŽE ZPŮSOBIT POŠKOZENÍ ZDRAVÉHO SLUCHU A SLUCHU U DĚTÍ.

Illustration of an electric car with a charging plug and a no-smoking symbol (no text or numbers present)

Z DÚVODU BEZPEČNOSTI NEPOUŽIVEJTE SLUCHAT-KA PRI RÍZENÍ NEBO PRI JÍZDĚ NA KOLE.

TECHNICKÉ SPECIFIKACE

Symbol of a person crossed out of a circle, representing no violation or restriction (no text present)

Prohibition sign with a crossed-out robot silhouette (no text or symbols)

NEBEZPEČI UDUŠENÍ PE SÁČEK ODKLÁDEJTE MIMO DOSAH DĚTÍ. SÁČEK NENÍ NA HRANÍ. NEPOUŽÍVEJTE TENTO SÁČEK V KOLÉBKÁCH, POSTÝLKÁCH,

KOČÁRCÍCH NEBO DĚTSKÝCH OHRÁDKÁCH.

LIKVIDACE NEPOTŘEBNÉHO ELEKTRICKÉHO ELEK- TRONICKÉHO ZAŘÍZENÍ (PLATNÉ EVROPSKÉ UNII A V DALŠÍCH EVROPSKÝCH STÁTECH UPLATŇUJÍCÍCH ODDĚLENÝ SYSTÉM SBĚRU)

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Exterior view of an electric vehicle charging station with a car and no sign (no text or symbols)

VYŠOKÁ HLASJITOST MÓŽE SPÓSOBIT POŠKODENIE ZDRAVEHO SLUCHU A SLUCHU DETI.

Z DÓVODU BEZPEČNOSTI NEPOUŽIVAJTE SLU- CHADLÁ PRI RIADENÍ ALEBO PRI JAZDE NA BICYKLI.

TECHNICKÉ SPECIFIKÁCIE

• Verzia Bluetooth: V 4.2
• Dosah bezdrótového pripojenia: 10 m
- Frekvenčný rozsah: 2,402 GHz - 2,480 GHz E.Ir.p.: -3.37dBm
• Nabijanie: kábel micro USB
• Citlivost reproduktora: 104 ± 3 dB pri 1 kHz
• Frekvencia reproduktora: 20 Hz - 20 kHz
- Impedance: 32 Ω
• Vstupné napätie: jednosmerný průd 5 V
- Batéria: nabijacia litium polymérová 3,7 V / 80 mAh
• Doba prehrávania: až 5 hod.
• Doba nabljania: asi 2 hod.

NEBEZPEČENSTVO UDUSENIA PE VRECKO ODKLADAJTE MIMO DOSAHU DETÍ VRECKO NIE JE NA HRANIE. NEPOUŽIVAJTE TOTO VRECÚŠKO V KOLÍSKACH, POSTIELKACH, KOČÍKOCHALEBO DETSKÝCH OHRÁDKACH.

LIKVIDÁCIA STARÝCH ELEKTRICKÝCH A PRÍSTROJOV (VŤAHUJE SA NA EURÓPSKU ÚNIU A EURÓPSKE KRAJINY SO SYSTÉMAMI ODDELENÉHO ZBERU)

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Illustration of an electric car charging at a junction with a no-smoking symbol (no text or numbers present)

GŁOŚNE SŁUCHANIE MUZYKI, MOŻE POWODÓWAC USZKODZENIE SŁUCHU U DZIECI I DOROSŁYCH.

W CELU ZACHOWANIA BEZPIECZENSTWA NIE KORZYSTAC PODCZAS PROWADZENIA SAMOCHODU I JAZDY NA ROWERZE.

SPECYFIKACJE TECHNICZNE

NIEBEZPIECZEŃSTWO UDUSZENIA, TOREBKE Z PE POŁOŻYC W MIEJSCU BĘDĄCYM POZA ZASIĘGIEM DZIECI. TOREBKA NIE SŁUŻY DO ZABAWYI TEGO WORKA NIE NALEŻY UŻYWAĆ W KOŁYSKACH, ŁÓŻECZKACH, WÓZKACH LUB KOJCACH DZIECIĘCYCH.

UTYLIZACJA ZUŻYTEGO SPRZĘTU(STOSOWANE W KRAJACH UNII EUROPEJSKIEJI W POZOSTAŁYCH KRAJACH EUROPEJSKICH STOSUJĄCYCH SYSTEMY

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Thank you for purchasing the Bluetooth Wireless Headphones. Before using, please read over this manual on how to properly use your headphones and for other product specifications.

WARNING

Illustration of a car with a charging plug and a no-smoking symbol (no text or numbers present)

HIGH VOLUME CAN CAUSE INJURY OF HEALTHY HEARING AND HEARING OF CHILDREN.

Warning symbol with ear, signal waves, and warning triangle (no text)

FOR TRAFFIC SAFETY, DO NOT USE WHILE DRIVING OR CYCLING.

TECHNICAL SPECIFICATIONS

• Bluetooth Version: V 4.2
  • Wireless Working Range: 10 m
  • Frequency range: 2,402 GHz - 2,480 GHz
  E.i.r.p.: -3.37dBm
  • Charging: Micro-USB cable
  • Speaker Sensitivity: 104 ± 3 dB at 1 kHz
  • Speaker Frequency: 20 - 20 kHz
• Impedance: 32 Ω
• Input Voltage: DC 5 V
  • Battery: Rechargeable Li-polymer 3,7 V / 80 mAh
  • Play Time: Up to 5 h
• Charging Time: About 2 h


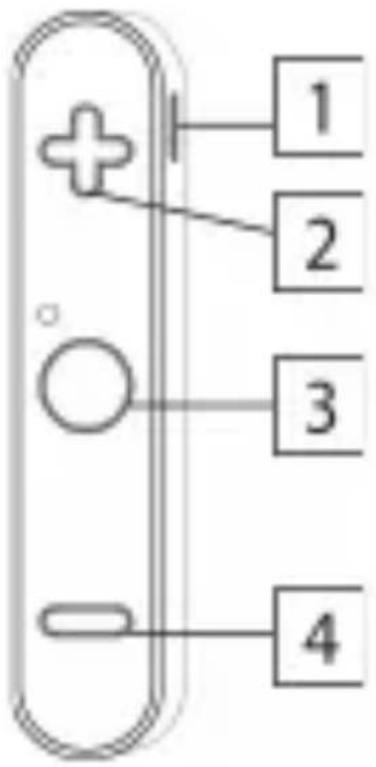

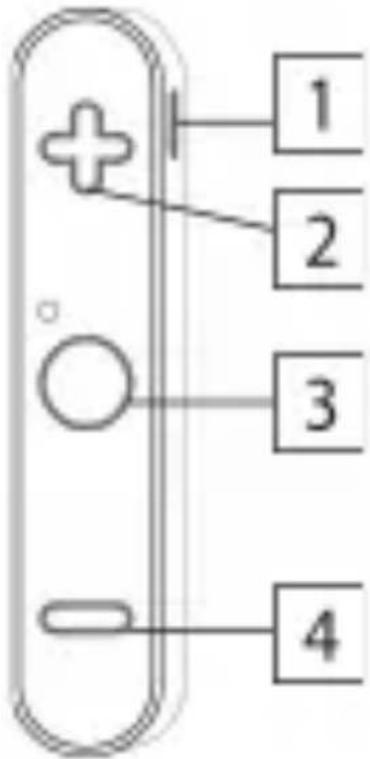

1) Micro USB charging socket
2) Button + Press once to increase the volume by one level. During playback press and hold approx. 2 seconds to skip to the next track.
3) Button PLAY/ON, OFF – press and hold to switch the device on / of. Press once to play / stop music playback. Briefly press to answer / end call Double subsequent press activates voice assistants.
4) Button - Press once to reduce the volume by one level. During playback, press and hold approx. 2 seconds to jump to the previous track.

LED INDICATOR

Bluetooth Mode: When in Bluetooth mode, the blue and red LED indicators will flash alternately. Blue LED controller slowly blinks after connection.

Charging Mode: LED controller shines red while charging. The controller shines blue after being fully charged.

BLUETOOTH PAIRING MODE

Turn on the headphone by holding down the power button. Keep pressing until the LED lights flash red and blue. Release the power button after LED's start flashing red and blue.

CONNECTING TO A BLUETOOTH DEVICE

1) When the headphones are in pairing mode, open the wireless setting on your device. Make sure the device's Bluetooth setting is turned on.
2) Search for GOGËBTM83
3) Choose GOGEBTM83 pair, your device should them show “connected”.
4) Blue LED controller on earphones slowly blinks after the earphones are connected to your device.
5) If your device asks you for a password to connect to the headphones, key in "0000". This is normally not needed.

CHARGING

Connect the provided Micro-USB cable to a computer or a USB charger.LED controller shines red while charging. The controller shines blue after being fully charged.

LOW BATTERY

When the battery power is low, the headphones will automatically turn off. To maintain proper battery levels, charge the headphones at least once per month. If the headphones sit without being power on for long periods of time, they will need to be charged to maintain full battery levels.

WARRANTY

Our product is warranted for 2 full year from the date of purchase. The warranty is provided on all material defects and workmanship. Guarantee of 24 months does not apply to decrease in the accumulator's effective capacity caused by its use or age. Effective capacity gradually decreases depending on the method of use of the accumulator.

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

Prohibition symbol with a figure wearing a mask and crossed-out ring, enclosed in a circle (no text or numbers)

Prohibition sign with a diagonal line crossing through it, no text or symbols present.

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN

CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

DISPOSAL OF OLD ELECTRICAL & ELECTRONIC EQUIPMENT (APPLICABLE IN THE EUROPEAN UNION AND OTHER EUROPEAN COUNTRIES WITH SEPARATE COLLECTION SYSTEMS)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Hereby, ETA a.s. declares that the radio equipment type EBTM83 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.gogen.cz/declaration_of_conformity

Illustration of an electric vehicle charging at a stop sign with no visible text or symbols

A MAGAS HANGERÓ HALLÁSKÁROSODÁST OKOZHAT, ILLETVE A GYEREKEK HALLÁSÁT IS KÁROSÍTHATJA.

Warning symbol with ear, Wi-Fi signal, and warning triangle (no text)

A BIZTONSÁG ÉRDEKÉBEN NE HASZNÁLJA A FÜLHALLGATÓT VEZETÉS, VAGY BICIKLIZÉS KÖZBEN.

TECHNIKAI SPECIFIKÁCIÓK

Prohibition sign with a person wearing a mask and crossed-out ring (no text or symbols)

Prohibition sign with a crossed-out robot figure (no text or symbols)

FULLADÁSVESZÉLY.

TARTSAA PE

ZACSKÓT

GYERMEKEKTÖL

ELZÁRT HELYEN.A

ZACSKÓ NEM

JÁTÉKSZER. NE

HASZNÁLJA EZT A

ZACSKÓT BÖLCSÖKBEN, KISÁGYAKBAN.

BABAKOCSIKBAN, VAGY GYEREK JÁRÓKÁKBAN.

FELESLEGESSÉ VÁLT ELEKTROMOS ÉS ELEKTRONIKUS KÉSZÜLÉKEK HULLADEKKÉNT VALÓ ELTÁVOLÍTÁSA (HASZNÁLHATO AZ EUROPAI UNIO ÉS EGYÉB EUROPAI ORSZÁGOK SZELEKTÍV HULLADÉKGYÚJTÉSI RENDSZEREIBEN)

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)

Abstract logo design with a stylized white 'S' inside a circle on black background (no text or symbols)

GoGEN
