Gelato ICY505 - Ice machine TESLA - Free user manual and instructions

Product Type	Ice cream maker
Brand	TESLA
Model	Gelato ICY505
Power Supply	220-240 V~ 50-60 Hz
Freezer Container Freezing Time	At least 12 hours at -18 °C or below
Operation Time Range	5 to 45 minutes (adjustable)
Typical Ice Cream Making Time	20-45 minutes depending on recipe and quantity
Material of Freezer Container	Contains coolant, sealed
Display	LCD panel with control buttons (+/- and start)
Safety Overheat Protection	Yes, automatic reset
Cleaning	Hand wash with mild soapy water; do not immerse base
Dishwasher Safe Parts	No (plastic cap, cover, paddle, container)
Accessories Included	Plastic cap, plastic cover, mixing paddle, freezer container, base with motor
Usage	Household only
Warranty	Through dealer; excludes misuse, normal wear, unauthorized repair
Compliance	EU directives
Spare Parts Availability	Official TESLA store (eshop.tesla-electronics.eu)
Recommended Fat Content for Creaminess	Higher fat (cream, milk) gives richer result

Frequently Asked Questions - Gelato ICY505 TESLA

How long does it take to freeze the container before first use?

The freezer container must be frozen for at least 12 hours at -18 °C or below. For best results, freeze it overnight.

Can I use metal utensils to remove ice cream from the freezer container?

No, avoid metal objects as they can scratch the container. Use plastic or silicone utensils.

What should I do if the ice cream is not stiff enough?

Ensure the freezer container was frozen long enough (preferably overnight) and the freezer temperature is low enough. The ice cream solidifies at -10 °C to -12 °C. Also, avoid overfilling or using warm ingredients.

How do I clean the ice cream maker?

Unplug and let the freezer container come to room temperature. Wash the plastic cap, cover, mixing paddle, and freezer container with mild soapy water. Rinse and dry thoroughly. Do not wash in dishwasher. Wipe the base with a damp cloth.

Why does the appliance stop working during operation?

The motor has overheat protection; if it gets too hot, it automatically shuts off. Wait for it to cool down and it will restart. Also, check if large ingredients jam the blade; chop them smaller.

Can I make sorbet with this machine?

Yes, you can make sorbet. Pour the cooled sorbet mixture through the filling hole after starting the machine.

How do I store homemade ice cream?

Transfer the ice cream from the freezer container to an airtight container and store in the freezer. Do not leave it in the freezer container for long-term storage.

What ingredients work best for creamy ice cream?

Higher fat ingredients like cream and full-fat milk produce a richer, creamier texture. Low-fat substitutes may change taste and consistency.

Is it safe to leave the appliance unattended?

No, do not leave the appliance unattended while it is operating.

Where can I find spare parts or accessories?

Official spare parts and consumables are available at the TESLA online store: eshop.tesla-electronics.eu.

USER MANUAL Gelato ICY505 TESLA

thank you for choosing the TESLA Gelato ICY505.

Please read the safe use policy thoroughly before use and follow all normal safety rules.

IMPORTANT SAFETY NOTICES

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY.

Read and understand all instructions. Failure to follow the instructions below may result in electric shock, fire or serious injury. The warnings, cautions, and instructions in this user manual cannot cover all possible conditions and situations that may occur.

• This appliance may be used by children aged 8 years and older, provided they are supervised or have been instructed in the safe use of the appliance and understand the potential dangers.
• Do not leave the appliance unattended.
• The appliance may be used by persons with reduced physical, sensory or mental abilities or lack of experience and knowledge, provided that they have been given supervision or instruction on how to use the appliance in a safe manner and understand the risks involved.
  • The appliance must not be switched on when empty.
  • To prevent electric shock, do not submerge the base, power cord and plug in water.
  • Use only genuine TESLA accessories that are designed for this model.
• Do not repair the appliance, as this will expose you to the risk of electric shock and loss of warranty.
• The manufacturer and importer in the European Union is not liable for damages caused by the operation of the device, such as injury, scalding, fire, injury, damage to other things etc.

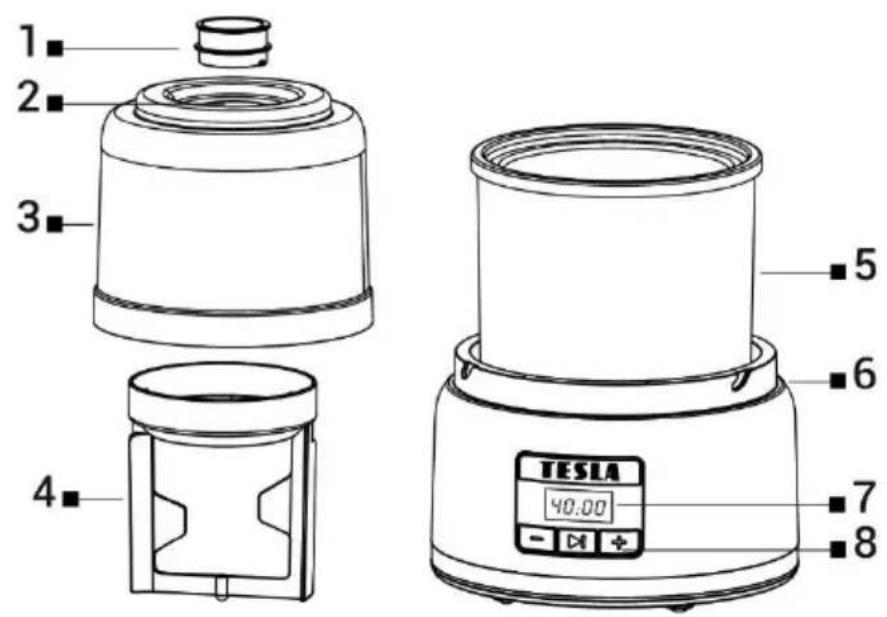

DESCRIPTION

1 Plastic cap
2 Filling hole for raw materials
3 Plastic cover
4 Mixing paddle
5 Freezer container
6 Base with motor
7 Display
8 Control panel

PREPARATION BEFORE FIRST USE OF THE APPLIANCE

• Remove all packaging and advertising stickers.
  • Make sure the supply voltage is 220-240 V\~ 50-60 Hz.
• Wash the plastic cap, plastic cover, mixing paddle and freezer container with mild soapy water. Then rinse and dry the parts thoroughly.
• Place the appliance on a flat, stable and dry surface.
• Connect the power cord to the power source and the appliance is now ready for use.

FIRST USE

Cool all ingredients well before making ice cream for best results

PREPARATION OF THE FREEZER CONTAINER

Before you start making your own ice cream, you need to freeze the freezer container. Before freezing, wash, dry and wrap the container in a plastic bag to prevent frost burn. For even freezing, place the freezer container on a flat surface in an upright position. The time required to freeze the container depends on the temperature of your freezer. The freezing time for the container should be at least 12 hours at freezer temperatures of -18 °C or below (it is best to freeze at night and use during the day). To see if the container is completely frozen, shake it. If you do not hear liquid movement, the coolant in the freezer container is frozen. Do not fill the freezer container higher than 2 cm from the top, as the ice cream mixture will increase in volume during the ice cream making process.

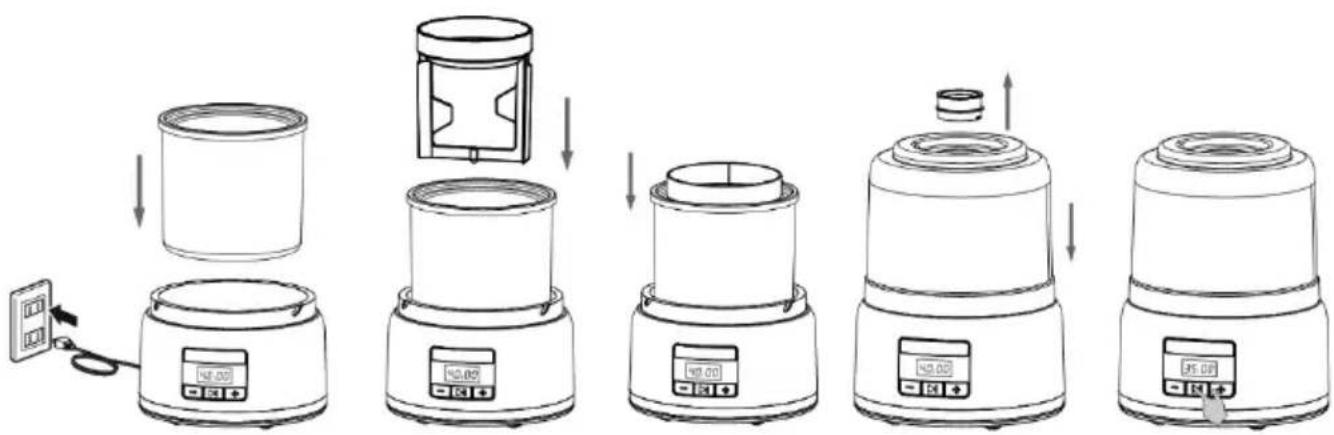

ASSEMBLY OF THE APPLIANCE

- Remove the freezer container from the freezer and also from the plastic bag.

• WARNING: The freezer container will begin to defrost immediately after it is removed from the freezer. Place the freezer container on the base of the appliance (on the white plastic part).
• Insert the mixing paddle into the freezer container. The paddle does not hold tightly, it just rests loosely in the centre of the freezer container.
• Place the plastic cover on the base of the appliance and turn it clockwise to secure it and connect the appliance to the mains.
• Use the + and - buttons on the display to adjust the length of time the ice cream mixture takes to cook between 5 and 45 minutes.
• Press the ▶ button to start making ice cream and the freezer container will start to rotate.
• The appliance must be switched on before adding the ice cream or sorbet mixture to prevent the mixture from immediately freezing to the walls of the freezer container.

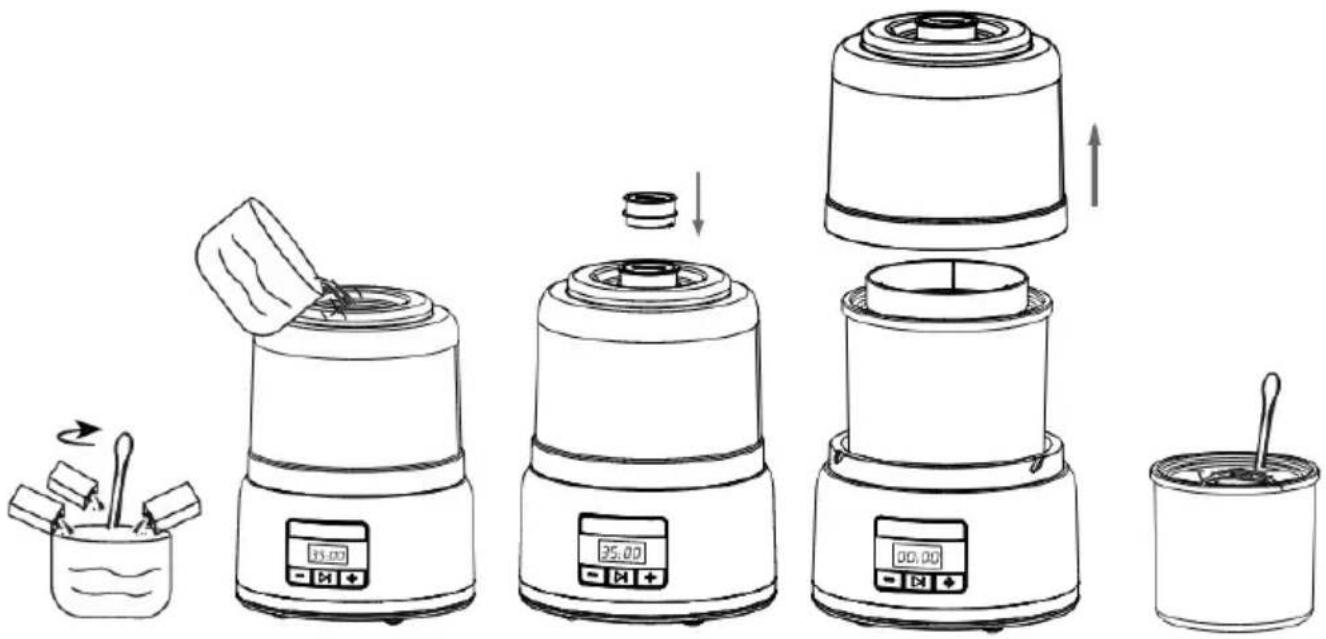

• Pour the cooled ice cream mixture through the opening for the plastic cap (1) into the freezer container.
• The ice cream will be ready in 20 to 45 minutes depending on the recipe and the amount of mixture in the freezer container. Check the consistency of the mixture after 20 minutes. If you like the consistency, turn off the appliance and the ice cream will be ready to eat.

OUR TIP: THE BEST ICE CREAM IS FRESH ICE CREAM.

• The appliance makes ice cream from fresh ingredients without preservatives found in commercial ice cream. Therefore, the ice cream will not have the same solid consistency.
• The ice cream should have a soft and smooth consistency. If you want hard ice cream, it's best to put the freezer container in a plastic bag with the ice cream you made in the freezer.
• The higher the fat content of the ingredients (cream, milk), the richer and creamier the result will be. Using low-fat substitutes can change the taste, consistency and texture of the ice cream.
• Do not use metal objects to remove the ice cream from the freezer container to avoid scratching it.
• Do not store the ice cream you make in the freezer in a freezer container, but in an airtight container.
• For convenience, store the freezer container in the freezer. This way you will have it ready to use for ice cream making at any time.

CLEANING AND MAINTENANCE

• Clean the appliance after each use.
• Before cleaning, unplug the appliance and allow the freezer container to come to room temperature.
  • Do not pierce or heat the freezer container.
• Wash the plastic cap, plastic cover, mixing paddle and freezer container with mild soapy water. Then rinse and dry the parts thoroughly. Do not wash these parts in the dishwasher.
• Wipe the base of the appliance with a damp cloth.
• Do not use sharp or metallic objects, abrasive cleaning materials or coarse sponges and wire.

TROUBLESHOOTING

The Problem	Solution
The appliance is not working.	Check that the appliance is indeed connected to the mains.
	If the continuous operation time is too long, the protector will automatically disconnect the power supply due to excessive temperature rise. When the motor temperature drops, the thermostat automatically resets and the motor restarts.
The ice cream is not stiff enough.	The freezer container has not been in the freezer long enough (preferably overnight).The temperature in the freezer is not low enough. The ice cream solidifies at -10 °C to -12 °C. Lower the temperature in the freezer.Too much mixture has been put into the freezer container.Ingredients are warm or at room temperature.The freezer container was left at room temperature for more than 5 minutes before use.
The ice cream maker stops production before the ice cream is ready.	If the appliance is stuck, pour ingredients such as chocolate chips or chopped nuts into the freezer container after 15 minutes or until the mixture has thickened and started to freeze.Ingredients are too large, causing the blade to jam, chop them into smaller pieces.

TECHNICAL SUPPORT

Do you need help setting up and operating your TESLA Gelato ICY505?

Contact us: www.tesla-electronics.eu.

CONSUMABLES AND ACCESSORIES

Consumables can be purchased at the official TESLA store eshop.tesla-electronics.eu.

WARRANTY REPAIR

For warranty repairs, contact the dealer where you purchased your TESLA product.

The warranty does NOT cover:

• using the device for other purposes
• normal wear and tear on the appliance
- failure to follow the "Important Safety Instructions" in the User Manual
• electromechanical or mechanical damage caused by improper use
• damage caused by natural elements such as water, fire, static electricity, power surges etc.
• damage caused by unauthorised repair
- illegible serial number of the device

DECLARATION OF CONFORMITY

We, TESLA Electronics LTD, declare that this equipment complies with the essential requirements and other relevant provisions of the standards and regulations relevant to the type of equipment.

This product meets the requirements of the European Union.

Please check your local separate collection system for electrical and electronic products. Please follow local regulations and do not dispose of old products in your regular household waste. Proper disposal of old product helps to avoid potential negative consequences for the environment and human health.

As the product is being developed and improved, we reserve the right to modify the user manual. The latest version of this user manual can always be found at www.tesla-electronics.eu.

Design and specifications are subject to change without notice, typographical errors reserved.
