USER MANUAL FZP 25410-B Fieldmann

Abstract black-and-white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

Green Fieldman Double Award chain with black and orange blades (no visible text or symbols)

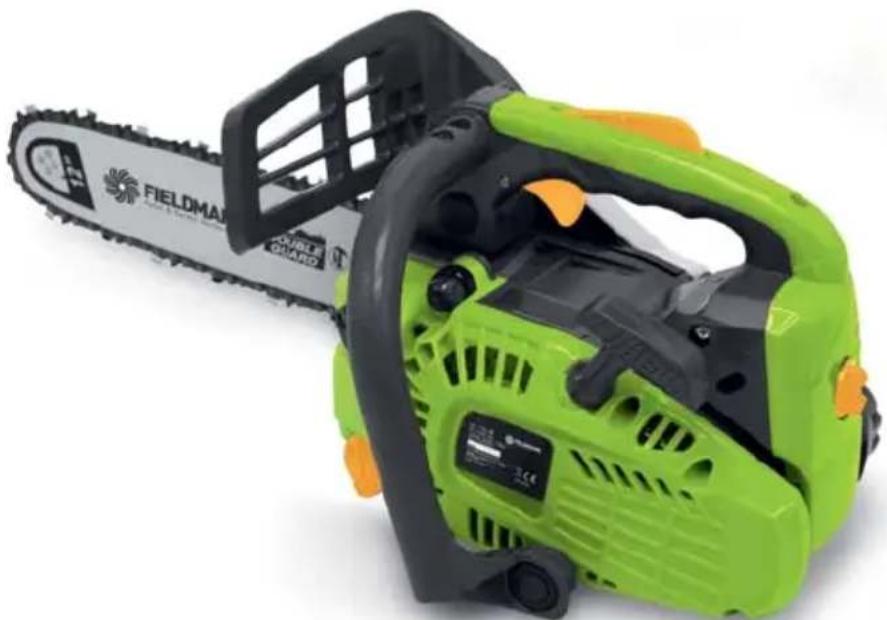

FZP 25410-B

English 3-30

Čeština 31–58

Slovenčina 59–86

Magyarul 87-114

Polski....115-142

Chain saw

USER'S MANUAL

Thank you for purchasing this chain saw. Before you start using it, please, carefully read this user's manual and save it for possible future use.

CONTENTS

1. GENERAL SAFETY INSTRUCTIONS ....5
   Important safety notice 5
   Packaging 5
   User's manual....5
2. EXPLANATION OF INSTRUCTION LABELS ON THE MACHINE 6
3. SAFETY INSTRUCTIONS....7
   Before using the power tool 7
   Safety of the operator, work equipment and clothing 7
   Instructions for handling fuel....9
4. INSTALLING GUIDE BAR AND SAW CHAIN....10
5. OPERATING THE ENGINE 12
   STARTING THE ENGINE....12
   CHECKING THE OIL SUPPLY....13
   ADJUSTING THE CARBURETOR 13
6. FILLING THE OIL TANK AND FUEL TANK 14
   TO FILL THE OIL TANK 14
   TO FILL THE FUEL TANK 14
7. OPERATION 16
   STARTING THE ENGINE....16
   TO STOP THE ENGINE....16
   CHAIN BRAKE....16
   RELEASE OF THE CHAIN BRAKE 17
   CHECKING THE LUBRICATION OF THE CHAIN 17
   RELEASE OF A JAMMED SAW 17
   CUTTING WORK....17
   FELLING OF TREES 17
8. ADJUSTING THE CHAIN TENSION....19

9. CUTTING....19
   Safety brake (protection against kickback)....19

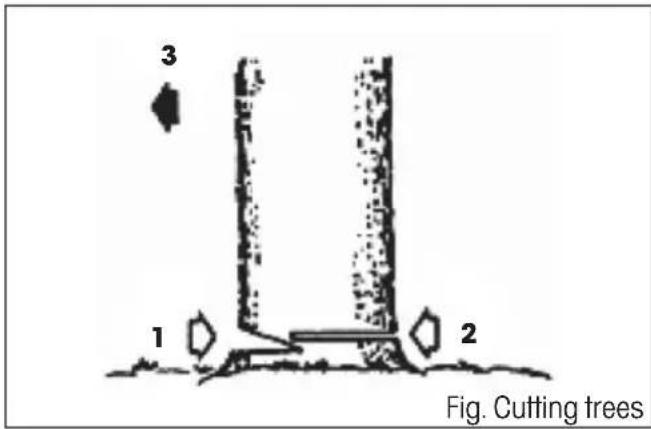

   Felling trees....20
   Cutting logs 20

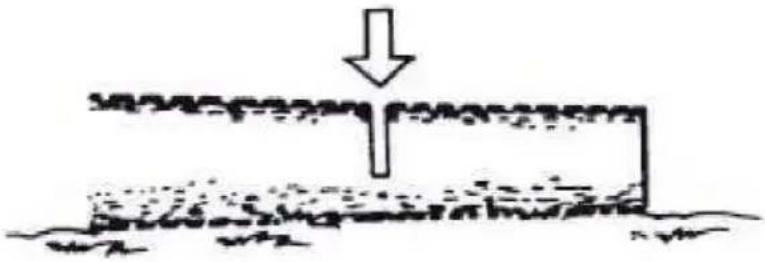

   Log lying on the ground....20
   Log above the ground....21
   Removing a fallen tree 21

10. CLEANING AND MAINTENANCE....21

Maintenance after every use 21

Cleaning the body of the chain saw....21

Maintaining the guide bar 22

Normal maintenance of the guide bar 22

1. SHARPENING THE SAW CHAIN 23

Equipment necessary for sharpening a saw chain....23

Sharpening the teeth on the chain 23

Filing the depth gauge....24

1. REPLACING THE SAW CHAIN....25

2. MAINTENANCE TABLE 26

3. TROUBLESHOOTING....27

4. TECHNICAL PARAMETERS....28

Power unit....28

1. DISPOSAL....29

2. DECLARATION OF CONFORMITY....30

1. GENERAL SAFETY INSTRUCTIONS

Important safety notice

* Carefully unpack the product and take care not to throw away any part of the packaging before you find all the parts of the product.
Store the product in a dry place out of reach of children.
Read all warnings and instructions. Not following warnings or instructions may lead to injury by electrical shock, a fire and/or serious injuries.

Packaging

The product is packed in a package that prevents damage during transport. This package is a resource and so can be handed over for recycling.

User's manual

Before you start working with the machine, read the following safety and usage instructions. Acquaint yourself with the operating elements and the correct use of the machine. Keep the user's manual in a safe place where it can be easily retrieved for future use. Save the original packaging, including the internal packing material, warranty card and proof of purchase receipt at least for the duration of the warranty.

If you need to ship this machine, pack it in the original cardboard box to ensure maximum protection during shipping or transport (e.g. when moving or when you need to send this product for repair).

NOTE: If you hand over the power tool to somebody else, do so together with this user's manual.

Following the instructions in the included user's manual is a prerequisite for the proper use of the power tool. The user's manual also contains operating, maintenance and repair instructions.

The manufacturer takes no responsibility for accidents or damages resulting from not following the instructions in this manual.

This chainsaw is not designed for professional use.

2. EXPLANATION OF INSTRUCTION LABELS ON THE MACHINE

Before using the power tool, carefully read the user's manual.

When operating the power tool, wear protective aids such as safety glasses, earmuffs, etc.

Always use two hands when operating the chain saw.

While working use protective gloves.

Use solid insulating work footwear.

Attention! Danger of kickback

Warning! Attention!

3. SAFETY INSTRUCTIONS

ATTENTION! The safety instructions in this user's manual are marked with the symbol containing critical points, which one needs to pay attention to when operating the power tool to prevent serious or fatal injuries. Please carefully study the instructions and adhere to them.

ATTENTION! This symbol indicates instructions that must be adhered to in order to prevent accidents that could result in serious or fatal injuries.

NOTE: This symbol indicates a tip or instructions useful when operating the power tool.

Before using the power tool

Before using the power tool, carefully read the user's manual.
Do not use the power tool if your are under the influence of alcohol or narcotics, if you are tired or exhausted. Do not use the power tool if your are taking medication, which could affect or limit your decision-making abilities for safe operation of the power tool.
Do not use the power tool indoors, the emitted gases contain damaging carbon monoxide.
Never use the power tool under the conditions listed below:

• If the work surface is slippery or if weather conditions do not permit you to maintain a stable stance while operating the power tool.
• If it is dark, heavy fog or under poor weather conditions, which limit visibility of the work area.
• During rain, during a storm or in strong winds or under conditions that could be dangerous when operating the power tool.

If you are using the chain saw for the first time, please consult with an experienced user before starting work.

Tiredness or physical exhaustion may lead to inattentiveness, which may result in serious injury

Limit the operating time of the power tool to approx. 10 minutes per single use and try to rest for approximately 10-20 minutes between work sessions. Limit the total amount of work per day to approximately 2 hours.

Make sure that you have the user's manual at hand in case you need to use it.

If you sell, loan or handover the power tool, make sure that you include the user's manual.

* Never allow children or other persons that are insufficiently acquainted with the user's manual to use this power tool.

Safety of the operator, work equipment and clothing

When operating a chain saw, you should wear the following work clothing and protective aids:

• Helmet
  – Safety glasses or protective face shield
• Work gloves
• Anti-slip work boots
• Earmuffs

Furthermore, you should also have

• The included tools
  – Suffi cient supply of fuel and chain lubricating oil
  – Accessories for designating the work area (rope, warning signs)
• Whistle (to call for help)
• Hand saw or axe (to remove potential obstacles)

When working, never wear loose clothing, jewellery, that could become caught by the chain saw. Do not wear sandals when working, do not work barefoot.
* Check the work area, the item being cut and the cutting direction. Remove obstacles.
* Never commence work if the work area is not cleared, if you do not have a stable stance and if you do not have a planned escape route in the event of a falling tree.
Pay increased attention and keep passers-by and pets away from the work area at a distance of at least 2.5 times the length of the item being cut.
* Check for damaged, worn out or missing parts of the power tool. Never use the power tool if it is damaged, incorrectly adjusted or incomplete. Check that the chain stops turning when the throttle trigger is released.
- Keep the handles dry, clean and free of oil and fuel stains.
Do not touch the muffler, spark plugs or other metal parts of the engine when the power tool is running or immediately after it is turned off - there is a risk of burns or injury by electrical shock.
Pay exceptional attention when cutting thin branches or trunks because fragile material may become caught in the chain and flung towards the operator and may thus cause a loss of balance.
When cutting tensioned branches keep in mind that they will fl ing out when the wood fi bres are cut and the tension is released.
* Check for and remove dry branches that could come loose from the falling tree.
Make sure that the power tool is turned off when you put it down.

CAUTION danger of kickback! Kickback may occur when the nose of the guide bar comes into contact with an item or if the material being cut clamps the chain in the cut. During contact with the item, the chain saw may be flung with the guide bar moving up and back towards the operator. A clamped chain may result in a fast backward movement of the guide bar towards the operator. Both these reactions may lead to a loss of control over the chain saw and subsequent serious injuries. Do not rely only on the chain saw's safety features. As the operator of the chain saw, you must constantly adhere to multiple rules to avoid injuries or damages.

If you are acquainted with the kickback principle, you can reduce or eliminate the moment of surprise. Unexpected reactions result in accidents.
If the engine is running, hold the chain saw with both hands with the right hand on the rear handle and the left hand on the front handle. Firmly grasp the handle with the thumb going around towards the fingers.

A firm grip helps limit kickback and to keep the chain saw under control.

There must be no obstacles in the work area. When working with the chain saw, the loose end of the guide bar must not touch a branch, trunk or another obstacle.
* Cut with the engine running at high speed.
A stable stance must be maintained at all times when cutting, do not cut above shoulder height.
Adhere to the instructions of the manufacturer for lubricating and sharpening the chain.
Only use spare chains and guide bars specified by the manufacturer or their equivalents.

Instructions for handling fuel

The engine of the power tool is designed to use a highly flammable fuel mix. Never store fuel containers or refi ll fuel in the vicinity of an open flame, wood stove, electrical lines, welding work or other sources of heat or flame, which could lead to ignition.

* Smoking is forbidden when operating the power tool and when refi lling fuel.
When refi lling fuel, make sure that the power tool is off and that there is no open flame in the vicinity.
If the power tool is sprayed with fuel, use a dry cloth to wipe away the stains.
After refi lling fuel, screw on the fuel tank cap and take the power tool at least 3 m away from the place where it was refi lled and then start it up.

Value of sound emission according to European Directive 2000/14/EC

Setting the chain tension

Fuel filler (on fuel tank cap)

oil filler (on oil tank cap)

Choke knob

4. INSTALLING GUIDE BAR AND SAW CHAIN

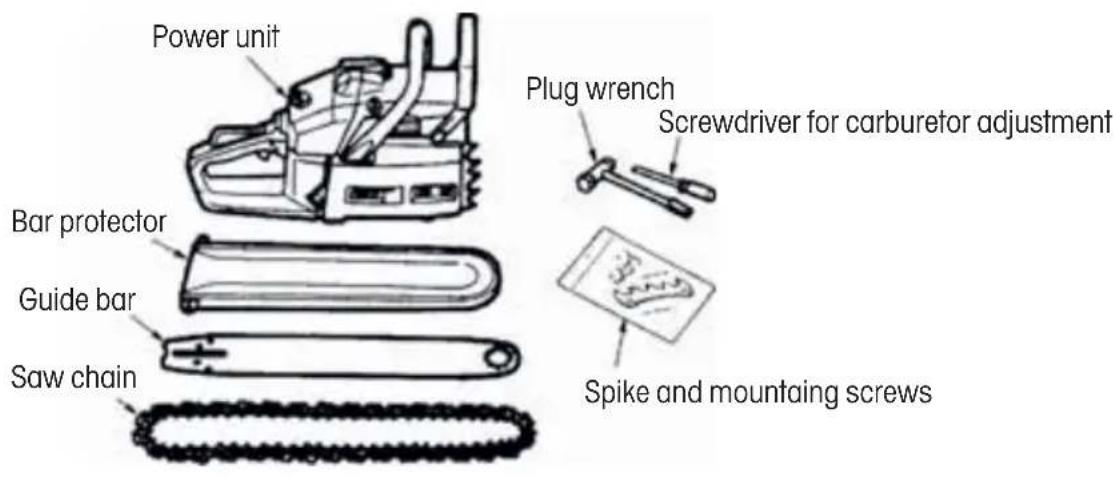

A standard saw unit package contains the items as illustrated.

Open the box and install the guide bar and the saw chain on the power unit as follows:

WARNING! The saw chain has very sharp edges. Use thick protective gloves for safety.

1. Puli the guard towards the front handle to check that the chain brake is not engaged.
2. Loosen the nuts and remove the chain cover.
3. Install the attached spike to the power unit.
4. Gear the chain to the sprocket and, while fitting the saw chain around the guide bar, mount the guide bar to the power unit. Adjust the position of chain tensioner nut on the chain cover to the lower hole of guide bar.

(1) Hole
(2) Tensioner nut
(3) Chain cover

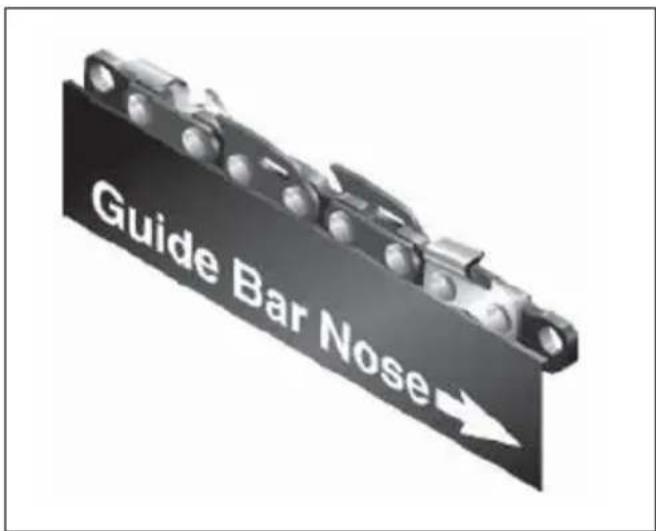

NOTE: Pay attention to the correct direction of the saw chain.

1. Fit the chain cover to the power unit and fasten the nuts to finger tightness.
2. While holding up the tip of the bar, adjust the chain tension by turning the tensioner screw until the tie straps just touch the bottom side of the bar rail.

(1) Tensioner screw
(2) Loosen
(3) Tighten

1. Tighten the nuts securely with the bar tip held up (12 \~ 15 N·m). Then check the chain for smooth rotation and proper tension while moving it by hand. If necessary, readjust with the chain cover loose.
2. Tighten the tensioner screw.

NOTE: A new chain will expand its length in the beginning of use. Check and readjust the tension frequently as a loose chain can easily derail or cause rapid wear of itself and the guide bar.

⚠ WARNING! It is very dangerous to run a chainsaw that mounts broken parts or lacks any parts. Before starting engine, make sure that all the parts including bar and chain are installed properly.

STARTING THE ENGINE

1. Fill fuel and chain oil tanks respectively, and tighten the caps securely.

(1) Chain oil

(2) Fuel

1. Set the switch to T position.

(1) Switch
(2) Latch
(3) Throttle lever
(4) Throttle interlock

1. While holding the throttle lever together with the throttle interlock, push in the side latch and release the throttle lever to hold it at the starting position.
2. Puli out the choke knob to the closed position.

Choke knob

NOTE: When restarting immediately after stopping the engine, set the Choke knob in the first-stage position (choke open and throttle lever in the starting position).
NOTE: Once the choke knob has been pulled out, it will not return to the operating position even if you press down on it with your finger. When you wish to return the choke knob to the operating position, pull out the throttle lever instead.
5. While holding the saw unit securely on the ground, pull the starter rope vigorously.

⚠ WARNING! Do not start the engine while the chain saw hangs in one hand. The saw chain may touch your body. This in very dangerous.

1. When engine has ignited, first push in the choke knob to the first-stage position and then pull the starter again to start the engine.

2. Allow the engine to warm up with the throttle lever pulled slightly.

⚠ WARNING! Keep clear of the saw chain as it will start rotating upon starting of engine.

CHECKING THE OIL SUPPLY

WARNING! Make sure to set up the bar and the chain when checking the oil supply. If not, the rotating parts may be exposed. It is very dangerous.

After starting the engine, run the chain at medium speed and see if chain oil is scattered off as shown in the figure.

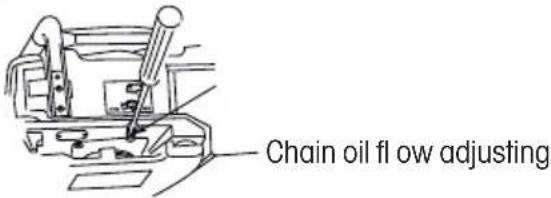

The chain oil flow can be changed by inserting a screwdriver in the hole on bottom of the clutch side. Adjust according to your work conditions.

NOTE: The oil tank should become nearly empty by the time fuel is used up. Be sure to refill the oil tank every time when refueling the saw.

ADJUSTING THE CARBURETOR

(1) L needle
(2) H needle
(3) Idle adjusting screw"

The carburetor on your unit has been factory adjusted, but may require fine tuning due to a change in operating conditions.

Before adjusting the carburetor, make sure that the provided air/fuel filters are clean and fresh and the fuel properly mixed.

When adjusting, take the following steps:

NOTE: Be sure to adjust the carburetor with the bar chain attached.

6. FILLING THE OIL TANK AND FUEL TANK

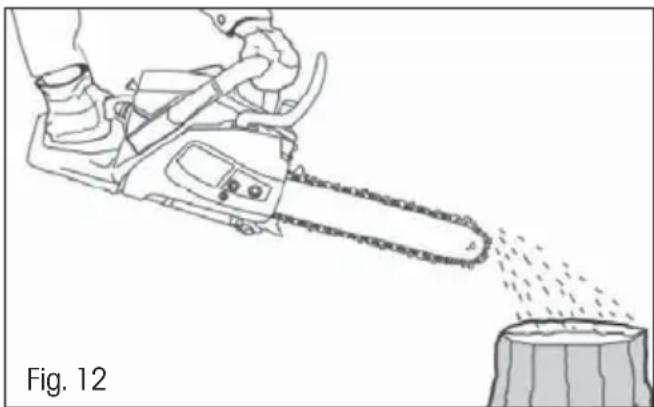

TO FILL THE OIL TANK

WARNING! Never use used oil! Waste oil is harmful to the environment and may result in damage. Chain saw oil should be used to lubricate the saw chain and bar. Use oil that contains additives to reduce friction and wear and to prevent resin build-up on the bar and chain.
WARNING! Before fi lling the oil tank, make sure that the chainsaw is turned off.

1. Be sure to clean the surface around the oil tank cap to prevent dirt from getting inside.
2. Unscrew the oil tank cap and pour in the chain saw oil (260 ml tank capacity).
3. Screw the oil tank cap back on.
4. Before you start, check the oil supply: switch on the chainsaw and hold it over suitable bedding. If it is sufficiently lubricated, a light trail of dripping oil will form (fi g. 12).

Line drawing of a chainsaw cutting into a tree stump, labeled as Fig. 12 (no text on diagram)

WARNING! Always check the oil level. Do not operate the chain saw if there is insufficient oil to lubricate the chain.

Proper lubrication is essential to reduce chain and bar friction. Operating a chain saw with insufficient lubrication reduces performance and service life and causes fast chain and bar wear due to overheating. This chainsaw is equipped with an automatic lubrication system that provides the necessary amount of lubrication to the bar and chain. As the engine speed increases so does the oil supply to the bar.

TO FILL THE FUEL TANK

WARNING: When filling the tank:

The chainsaw must always be stopped and cooled.

Never smoke during refueling. It must not have flames or sparks near the fuel.

Before refueling, allow the chainsaw to cool completely. Do not attempt to refuel when the engine is hot. If fuel has been spilled, immediately stop refueling and do not start the engine. Clean up the spill and fill the machine in another location

Never fill the fuel tank to the flange; there is a risk of overflow.

Do not refuel in a closed and unventilated area.

The fuel used for this tool is a mixture of unleaded gasoline and registered engine lubricant. When mixing gasoline with oil, use only gasoline that does not contain ethanol or methanol.

Unleaded gasoline is a quality gasoline type. This will help to avoid damaging the fuel lines of the engine and other engine parts.

The recommended mixing ratio is 40:1 (make sure the mixing ratio is correct before filling the product.

a. Mixing

• Mix in a clean, empty container (supplied).
• Pour the oil into the container.
• Pour the fuel into the tank. Mix the mixture long enough (more than one minute) to get a good combination.

b. Filling the fuel tank

• Unscrew the fuel tank cap and remove it.
• Fill the tank slowly with the mixture. Do not exceed the maximum capacity (fill to 80% of its capacity preferably).
• Replace the cap on the fuel tank and tighten it
• Wipe any spillage around the unit if necessary

Note: To avoid damage and accidents, DO NOT USE OTHER MIXTURES AND OTHER TYPES OF OIL / PETROL

c. Storage of fuel

The fuel must be kept in a clean and safe container and always closed.

If you are not using the product for a long time, remove the fuel mixture and add it to a container.

Do not leave the fuel for a long time in the product. The fuel may clog the carburetor and the engine will not operate properly.

d. Disposal of fuel

When the fuel is no longer used or worn, please dispose of it in an authorized location. Check local laws regarding disposal of fuels

7. OPERATION

Before using the chainsaw, inspect the work area. This must be cleared. Remove any branches, obstacles and other items that may cause damage during cutting.

The unit should always be filled with fuel and be usable. Check the level of filling and refill when necessary.

STARTING THE ENGINE

1. Hold the front handle with one hand and take the chainsaw to the ground. Hold the rear handle by stepping on it.
2. Set the ignition switch to the I position (ON).
3. Press the primer about 4-5 times until fuel appears in the primer.
4. Pull the air damper lever toward you until it locks, the air damper will close.
5. Slowly pull the starter grip until you feel resistance, then pull the cable with a steady movement to a distance of no more than 50-60 cm. Repeat the procedure several times until the engine starts.
6. Press the throttle lock key and the throttle key, the carburettor air damper will open automatically, the damper lever will return to its original position.

WARNING! Do not allow the cable to be pulled all the way out before the starter reel has stopped. This will cause the starter motor to break and is not covered by the warranty.

TO STOP THE ENGINE

1. Release the throttle lock key and throttle key to allow the engine to idle.
2. To stop the engine, move the switch to the O position (OFF).

NOTE: To stop the engine in an emergency, engage the chain brake and move the switch to the "O" position.

CHAIN BRAKE

Starting shall always be done with the chain brake activated. The chain brake is a device that automatically stops the chain in case a backward movement occurs, causing the saw to jump. Normally, the brake is automatically activated by the inertia force.

It is also manually tightened by pushing the brake lever down and forward.

When the brake is running, a yellow sign comes out from the base of the brake lever.

To release the brake, pull the brake lever up until it clicks into place.

When the brake is in operation, release the trigger to slow down the engine speed. Continuous use when the brake is running causes the clutch to heat up and can cause problems.

When checking the machine before using it, check the operating condition of the brake by performing the following operations:

* Start the engine and grasp the handle firmly with both hands.
While using the trigger to keep the chain in operation, push the brake lever down with the back of the left hand.
When the brake is running and the chain is stopped, remove the hand from the throttle.
Loosen the brake.

To use the chain saw again, the chain brake must be released. This must be done machine off and cooled. Pull the shield until it returns to its original position.

CHECKING THE LUBRICATION OF THE CHAIN

• Before checking the oil, make sure that the bar and the chain are in place.
• Once the engine is started, turns it at medium speed and checks that the chain oil is sprayed and traces off the ground.
• The oil flow of the chain is adjustable to obtain the proper flow. Insert a screwdriver on the clutch side.
• Turn the adjuster to obtain the correct flow rate for the job.
• The chainsaw must essentially consume the contents of the oil tank between each full of fuel. Do not forget to fill the oil tank when filling the machine with fuel.

RELEASE OF A JAMMED SAW

If the saw gets stuck during cutting, the operators should:

• Saw the saw and attach it securely to the cutting foot of the shaft (ie trunk side) or has a separate chord from the tool
• Pull the saw of the cluster while the branch is lifted, if necessary,
• If necessary, use a hand saw or a second chainsaw to release the chain saw.

CUTTING WORK

The tool should only be used to cut trees. Do not use it for other applications.

Do not attempt to remove the chainsaw when it is stuck during operation. Stop the machine and remove the wedge blade with a wedge.

Stick your feet well, keep a good balance and do not climb on the tree trunk.

Try not to work on a slope. However, if you have to work on a slope, always stand higher than the tree trunk. Before bending a branch or trunk in bending, observe the direction of bending and finish the cut opposite the bending side to prevent the chain guide from getting stuck in the cut.

FELLING OF TREES

Examine the work area and estimate where the tree will fall. Start the machine as described above. Start by making a notch in the direction of fall chosen.

When the tree falls, shout or make a beep to alert people in the vicinity. When the shaft falls, move away from the cutting area.

a. Trunk on the ground

Cut half of the trunk, turn it over and fi nish the cut on the other side.

Simple line drawing of a pipe or channel with a downward arrow indicating flow or direction (no text or symbols)

b. Trunk in elevation

Begin by cutting a first part from below and then from above. Then, on the second part, repeat this operation.

c. Pruning of a felled tree

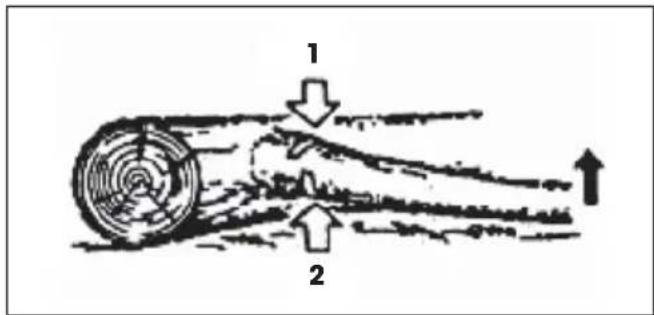

Observe first the direction of fl exion of the branch. Make a first notch on the side in fl exion and fi nish the cut on the opposite side.

d. Pruning a tree

Begin pruning by nicking the tree from below and then fi nish at the top.

8. ADJUSTING THE CHAIN TENSION

ATTENTION! Due to the effect of higher temperatures, during operation the saw chain has a tendency to lengthen. A longer chain becomes loose and could slide off the guide bar.

Loosen the sprocket cover fastening nuts.
Make sure that the chain is seated in the guiding groove of the guide bar.
Use a screwdriver to turn the chain tensioning screw (Fig. 5). Turn the tensioning screw until the required tension is achieved (you should lift the chain in the middle of the guide bar in the horizontal position to a height of 3 to 4 mm).
* Firmly tighten the guide bar fastening nuts.
ATTENTION! Do not tension the chain excessively. Excessive tension of a warm chain may result in excessively tension when it cools down.

9. CUTTING

ATTENTION! Before proceeding, please read the chapter "Safety instructions". We recommend that you gain experience by cutting smaller logs. In this way you will also get to know the chain saw.

* Always adhere to safety instructions. The chain saw may only be used for cutting wood.
It is forbidden to cut any other materials. Vibrations and kickback differ for various materials. Do not use the chain saw as a lever for lifting, moving or splitting material. It is forbidden to attach any parts or jigs other than those specified in the technical documentation.
It is not necessary to push the chain saw into the cut. When the engine is running at full speed, push the chain saw down lightly.
If the chain jams in the cut, do not attempt to free it by pulling, rather stretch open the cut using a wedge or crowbar.

Safety brake (protection against kickback)

This chain saw is equipped with an automatic chain brake that, if it works correctly, immediately stops the chain in the event of kickback. It is necessary to check the working order of the chain brake before every use of the chain saw. Run the chainsaw at full speed for 1 - 2 seconds and then tilt the front protective cover. The chain must stop immediately even when the engine is running at high speed. If the chain stops slowly or does not stop at all, please contact an authorised service centre.
It is extremely important to check the working order of the chain brake and the sharpness of the chain before every use to ensure that the necessary level of safety in the event of a kickback is maintained. Removing safety accessories, incorrect maintenance or when using unsuitable guide bars or chains may, in the event of kickback, result in serious injuries.

Felling trees

* Decide about the direction in which the tree will fall, respecting the wind direction, incline angle of the tree and location of the branches, and consider all other factors before cutting.
The area around the tree must be clear, without obstacles, and must enable a stable stance. The escape route must be passable.

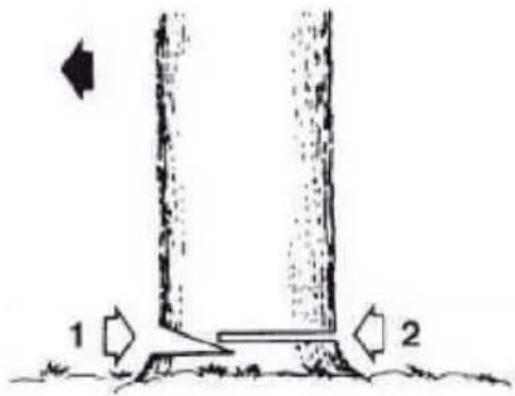

Cut a wedge into one third of the tree's diameter on the side to which the tree should fall. (see Fig. Felling, point 1)
From the opposite direction perform a separation cut at a level above the wedge cut. (see Fig. Felling, point 2)
The tree will fall in the direction towards the wedge cut. (see Fig. Felling, point 3)

ATTENTION! When felling trees, inform other people in the area about the potential danger.

Felling trees requires experience and we do not recommend performing this task without the necessary experience.

Cutting logs

ATTENTION! Always maintain a stable stance. Do not step on logs.
ATTENTION! Before starting work, check that all components are in their place and that all nuts and bolts are tightened.
The log being cut may roll away. Especially when cutting on a slope, always stand above the log being cut.
* Prevent kickback of the saw by following the instructions in chapter "Safety instructions".
Before starting work, assess the direction of the force causing the cut trunk to bend. The final cut needs to always be done from the opposite side of where the bending force is acting to prevent the guide bar from being clamped inside the cut.
Only carry the chain saw with the engine turned off and the guide bar protected by the protective cover.

Log lying on the ground

* Cut it halfway through, then roll it over and complete the cut from the other side.

Simple line drawing of a pipe or channel with a downward arrow indicating flow or direction (no text or symbols)

Log above the ground

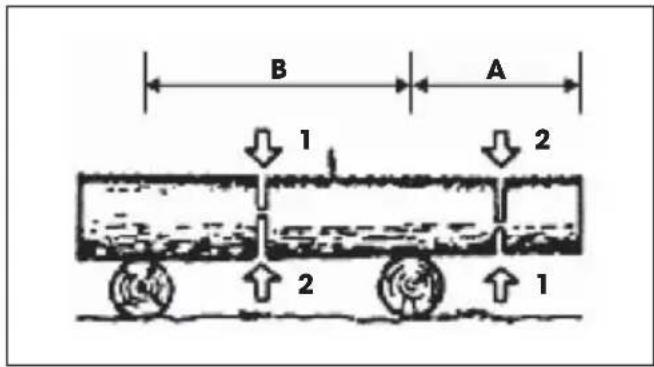

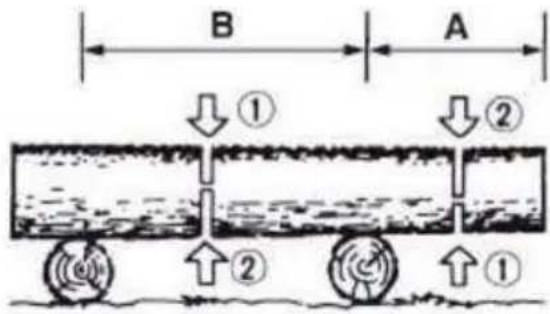

In part "A" make a cut from below to a third of the log and then complete the cut from above. In part "B" make a cut from above to a third of the log and then complete the cut from below.

Removing a fallen tree

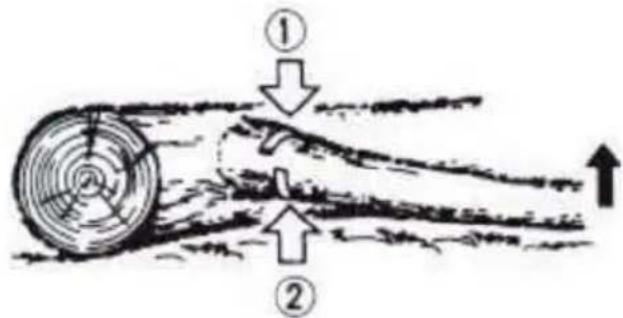

First find out to which side the branch is bent. Then make the initial cut from the side of the bend and then complete the cut from the opposite side.

ATTENTION! A bent branch may spring up.

10. CLEANING AND MAINTENANCE

ATTENTION! Prior to cleaning, inspecting or repairing the chain saw, its engine must be turned off and cold and the spark plug must be removed to prevent accidentally starting the engine.

Maintenance after every use

Remove the guide bar and use a brush to clean away accumulated sawdust from the entire chain saw. Use a spatula or screwdriver to remove stubborn dirt.
Air fi Iter:

Loosen the screw (Fig 1, point 1 1) and remove the air filter cover. Take out the filter insert and use a brush to remove the dust. If the filter insert is clogged with dust, dismantle into 2 parts and wash it out in petrol. If you are using compressed air, blow from the inside out.

Lubricating hole:

Take off the guide bar and check the passage of the lubricating hole.

Guide bar:

After taking off the guide bar, remove dust from the grooves and the lubricating hole.

* Other parts:

Check for any oil leaks, loose mounts and damaged main parts, particularly in the location where the handles and the guide bar are mounted. Any identified defects must be repaired before the chain saw is used again.

Cleaning the body of the chain saw

Keep the body of the chain saw clean. When cleaning, use a soft cloth dipped in a soap solution. Use this cloth to meticulously clean the body of the chain saw.

Maintaining the guide bar

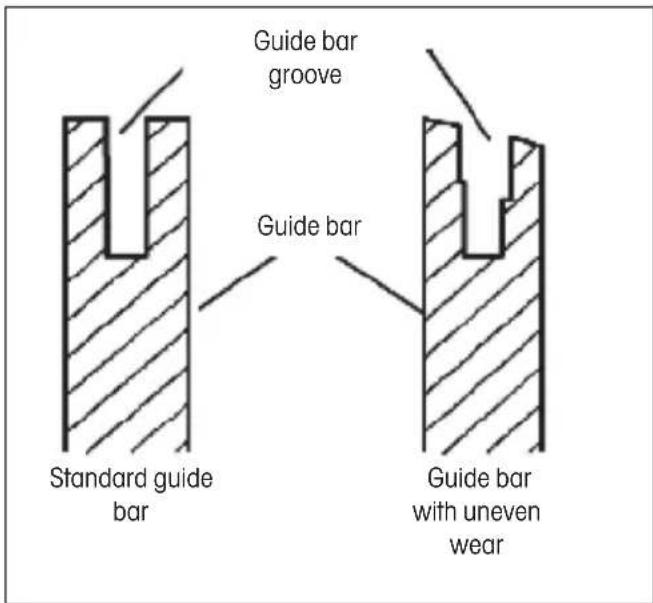

Most problems with the guide bar arise due to uneven wear. Uneven wear occurs mainly as a result of an incorrectly sharpened chain or an incorrectly set depth gauge. When the guide bar is worn out unevenly, the guiding groove is widened (see Picture). The result is a rattling chain and rivets falling off. The chain saw cannot be used for straight cuts. In such a case, replace the guide bar for a new one.

* Always check the condition of the guide bar before sharpening the chain. Using a worn out or damaged guide bar is very dangerous. Using a worn out or damaged guide bar will result in damage to the chain. Cutting with such a power tool will also be much more difficult and demanding.

Normal maintenance of the guide bar

Remove the guide bar from the body of the chain saw.
* Regularly remove sawdust from the guide bar groove. For cleaning use a spatula or a wire.
Clean oily grooves at the end of every work day.
* Replace the guide bar if:

• it is bent or cracked
• its groove is very damaged or worn out

NOTE: To replace the guide bar, follow the instruction contained in this user's manual. You will find the correct guide bar type in the technical specifications.

11. SHARPENING THE SAW CHAIN

Keep the saw chain sharp. Cutting will be signifi cantly faster and most importantly safer. A blunt saw chain increases wear on the sprocket, guide bar, chain and engine. If you need to push on the saw and only sawdust with a few splinters are produced then this means that the chain is blunt.

For this task, we recommend that you contact an authorised service centre

Equipment necessary for sharpening a saw chain

Round fi le as per technical specifi cations
Depth gauge
File guide
Vice
Medium-size fl at fi le

Sharpening the teeth on the chain

Use the file guide set at an angle of 30^

(mark A, see figure).

Set the saw chain tension to the correct level.
* Fasten the guide bar in a vice so that you have the chain in a stable position.

NOTE: Do not fasten the chain itself.

* Push the round fi le, inserted in the fi le guide, into the groove between the top plate and the depth gauge on the chain. The chain should be touching both the top plate as well as the depth gauge (see fi gure)

NOTE: File in the middle of the guide bar.

NOTE: In the figure you can see the position of the file guide and the direction for filing the teeth on the left side of the chain.

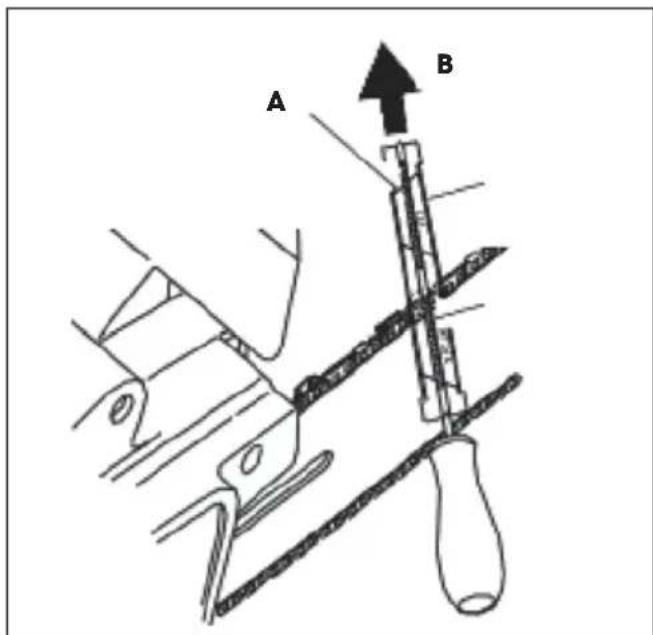

Place the fi le guide at the required angle (mark A, see fi gure). Check that the mark is at 30° on the fi le guide aligned with the centre of the guide bar. This will ensure that you will fi le at an angle of 30°.
File the tooth in the direction from inside out (in direction B, see figure) until it is sharp. File only in this direction.

NOTE: Two to three passes of the file should be sufficient to sharpen the tooth.

Filing the depth gauge

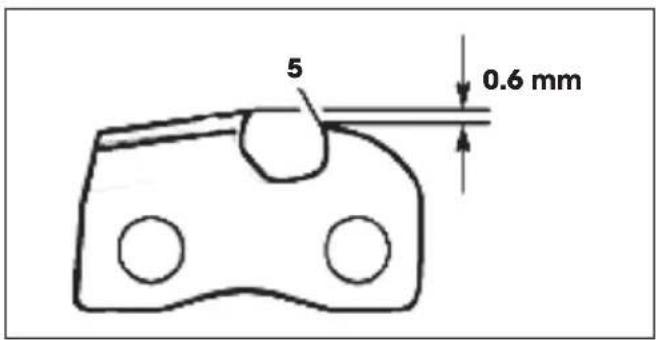

As a result of sharpening the teeth on the chain, the depth gauge tolerance is reduced. After every second or third sharpening, it is necessary to adjust the depth gauge setting.

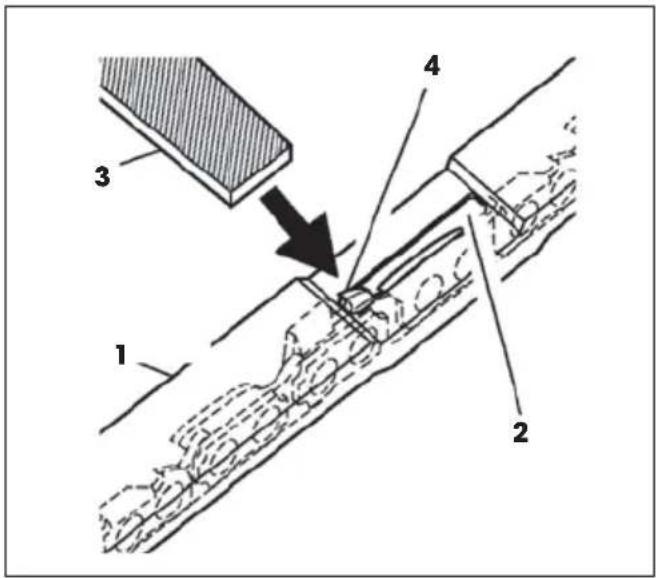

Place the depth gauge adjustment jig (see fi g., point 1) firmly on the top edge of two teeth. Make sure that the groove of the jig is in the groove of the depth gauge (see fi g., point 2.)
Use a medium-sized fl at fi le (see fi g., point 3). File the depth gauge (see fi g., point 4) to the level of the depth gauge adjustment jig.
* Remove the depth gauge adjustment jig. Using a fl at fi le, round the front edge of the depth gauge (see fi gure). When fi ling, adhere to the prescribed values (see fi g., point 5).

NOTE: After the chain has been sharpened by hand several times, have the saw chain sharpened at an authorised service centre or sharpen it on a special sharpening machine.

This will renew the even sharpness of all teeth.

12. REPLACING THE SAW CHAIN

ATTENTION! When replacing the saw chain, do not clamp the chain saw or the guide bar in a vice.

Always replace the chain if the teeth are excessively worn out and they cannot be sharpened or if the chain snaps. Use only an original spare chain according to the specifications in this user's manual. When replacing the saw chain, always also replace the cogged wheel of the sprocket. This will ensure the correct position of the chain during movement. (Note: You will find the specifications of the correct chain type and the cogged wheel in the technical specifications.)

* Loosen and remove the bar guide bolt.
Remove the sprocket cover.
Remove the saw chain.
Wind the new chain around the cogged wheel, then along the top groove of the guide bar and around the guide bar nose.

ATTENTION! Check that the saw teeth are facing in the correct direction. Put on the chain so that the teeth on the top side of the guide bar are facing towards the guide bar nose (see figure).

Before placing the sprocket cover into position, check that the chain tensioning pin is inserted into the adjustment hole on the guide bar.
Put the sprocket cover back on to the body of the chain saw.
* Fasten the sprocket cover using the guide bar bolt.

ATTENTION! Only tighten the bolt by hand.

Adjust the tension of the saw chain.
* Tighten the guide bar bolt.

ATTENTION! Check that you have not placed the saw chain on the guide bar in the opposite direction. Otherwise, the chain saw will exhibit excessive vibrations and will not cut.

1. MAINTENANCE TABLE

Please understand that the following maintenance intervals apply only to standard work conditions. In the event that your daily work is more demanding than normal, the maintenance intervals must be shortened correspondingly.		Before every use	After every pause for adding fuel	Every week	When damage of defect arises	As required
The entire machine Check for: leaks, cracks and wear XX
Check: trigger switch, starter, throttle lever and throttle lock lever	Check working order	X	X
Chain brake Check working order	X X
	Check performed by an authorised repair centre				X
Fuel tank and oil tank Check for: leaks, cracks and wear XX
Fuel filter Inspection and cleaning	X
	Replacement of filtration element				X	Every 6 months
Chain lubrication Check the power output	XX
Chain	Check for: damage, sharpness and wear	X	X
	Check the tension	XX
	Sharpening: check the fl ling depth				X
Guide bar	Check for: damage and wear	XX
	Cleaning of grooves and oil lines	X
	Rotation, lubrication of drive wheel and removal of fl ashes			X
	Replace				X
Sprocket Check for: damage and wear				X		Replacement with every new chain
Connecting piece	Check for: damage and wear			X
	Replace				X
Chain retainer	Check for: damage and wear	XX
	Replace				X
All accessible nuts and bolts (excluding bolts on the carburettor)	Check and tighten			X
Air filter	Clean	X
	Replace				X	Every 6 months
Ribs of the cylinder and slits in the starter cover	Clean			X
Pull cord	Check for: damage and wear			X
	Replace				X
Carburettor	Check idling speed (the chain must not turn at idling speed)	X	X
Spark plug	Check the distance of the electrodes			X
	Replace				X	Every 6 months
Anti-vibration system	Check for: damage and wear			X

14. TROUBLESHOOTING

CAUTION: always turn off the unit and disconnect the spark plug before carrying out the checks recommended in the table, except for the cases where the unit needs to be running.
When all possible causes have been checked and the problem remains unsolved, please contact an authorised service centre. When you identify a problem that is not included in the table, please contact an authorised service centre.
PROBLEM POSSIBLE CAUSES SOLUTION
The motor cannot be started or stops several seconds after starting.(Make sure that the switch is in position „I”)	1. The spark plug is not fi ring2. The motor is fl ooded	1. Check that the spark plug is fi ring. If the spark plug is not fi ring, repeat the test with a new spark plug (WXL7T).2. Take out the spark plug and pull the starting cord several times. Then reinsert the cleaned spark plug and start without using the choke.
The motor starts but does not properly increase its speed or does not run properly at high speeds.	The carburettor must be adjusted.	Contact an authorised service centre to have the carburettor adjusted
The motor does not reach full speed and/or emits too much smoke.	1. Check the petrol - oil mixture.2. Dirty air fi lter.3. The carburettor must be adjusted.	1. Only use fresh petrol and oil suitable for two-stroke engines.2. Clean it; see instructions in chapter 11.3. Contact an authorised service centre to have the carburettor adjusted
The engine starts, works and accelerates, but does not maintain idling speed.	The carburettor must be adjusted.	Contact an authorised service centre to have the carburettor adjusted.
The guide bar and chain heat up and smoke while running	1. Empty chain oil tank2. Chain is overly tensioned3. Lubrication system not working properly	1. The oil tank must be fi lled up every time when the fuel tank is fi lled.2. Tensioning the chain; see instructions in chapter 5.3. Allow it to run at maximum speed for 15-30 seconds. Stop and check whether oil is dripping from the tip of the guide bar. If there is oil there, the faulty operation may be caused by a loose chain or damaged guide bar. If there is no oil there, contact an authorised service centre
The motor starts but the chain is not running.CAUTION: when the motor is running, never touch the chain	1. Chain brake engaged2. Chain is overly tensioned3. Guide bar and chain installation4. Damaged chain and/or guide bar5. Damaged clutch and/or pinion	1. Disengage the chain brake; see chapter 7.2. Tensioning the chain; see instructions in chapter 9.3. See instructions in chapter 5.4. See instructions in chapter 11. and 13.5. If necessary, replace it; contact an authorised service centre

15. TECHNICAL PARAMETERS

Power unit

1 Displacement (cm ^3 ): 25.4
2 Fuel: Mixture (Gasoline 25 : Two-cycle oil 1)
3 Fuel tank capacity(ml)	280
4 Chain oil: Motor oil SAE# 10W-30
5 Oil tank capacity(ml):	200
6 Carburetor: Diaphragm type
7 Ignitionsystem: Pointless (CDI)
8 Spark plug: LD L8RTF
9 Oil feeding system: Automatic pump
10 Sprocket (Teeth × Pitch): 6T × 3/8"
11 Dimensions (L × W × H) mm: 300 × 260 × 240mm
12 Dry weight Power unit only (kg):	3.2

Cutting heard

13	Guide bar
14	Type:	Sprocket nose
15	Size:	10"
16	Saw chain
17	Pitch (in.(mm):	3/8(9.53)
18	Gauge(in,(mm)):	0.05(1.27)

Specification are subject to change without notice

If you find that the vibrations being transferred to the handle have become noticeably worse compared to the condition when the chain saw was new, check the wear on the silentblocks (rubber coated mounting elements) and if necessary contact an authorised service centre to have them replaced.

ATTENTION! Working with a chain saw with an incorrectly working vibration shock absorption system may lead to health problems.

16. DISPOSAL

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of used packaging material at a site designated for waste in your municipality.

The machine and its accessories are manufactured from various materials, e.g. metal and plastic.

Take damaged parts to a recycling centre. Inquire at the relevant government department.

This product meets all the basic requirements of EU directives that apply to it.

Changes in the text, design and technical specifications may be made without prior notice and we reserve the right to make these changes.

User s manual in the original language.

17. DECLARATION OF CONFORMITY

FAST®

FAST ČR, a.s.

U Sanitasu 1621, 251 01 Ríčany, Czech Republic

tel:[phone],fax:[phone]

EU DECLARATION OF CONFORMITY

Product / brand: Gasoline Chain Saw / FIELDMANN

Type / model:

FZP 25410-B as factory model LD825

Engine 25,4cm ^3 (1E34F); 0,7kW; max. speed 12000 rpm;

L_pA=100,4 dB(A);L_wA=110 dB(A)

Manufacturer: FAST ČR, a.s.

U Sanitasu 1621, 251 01 Ríčany, Czech Republic

VAT no: CZ24777749

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above is in conformity with the relevant Union harmonization legislation:

Directive MD 2006/42/EC Directive EMC 2014/30/EU

Directive NEOE 2000/14/EC Directive RoHS 2011/65/EU+(EU)2015/863

Directive Emission of gaseous 2016/1628/EU

The relevant harmonized standards and the other technical specifications:

EN ISO 11681-2:2022 EN ISO 14982:2009

EN ISO 12100:2010

CE

Place of issuance: Prague

Date of issuance: 21.08.2023

Name: Petr Uher - Responsible Person

Signature:

Abstract black and white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

Model /Modell /Modelis:

Conditions of guarantee

This product is warranted for the period of 24 months from the adate aof purchase to the end-user. Warranty is limited to the following conditions. Warranty is referred only to the customer goods using for common domestic use. The claim forservice can be applied either at dealer's shop where the product was bought, or at below mentioned authorized service shops. The end-user is obligated to set up a claim immediately when the defects appeared but only till the end of warranty period. The end-user is obligated to cooperate to certify the claiming defects. Only completed and clean (according to hygienic standards) product will be accepted. In case of eligible warranty claim the warranty period will be prolonged by the period from the date of claim application till the date of taking overthe product by end-user, or the date the end-user is obligated to take it over. To obtain the service under this warranty, end-user is obligated to certify his claim with duly completed following documents: receipt, certificate of warranty, certificate of installation ...

This warranty is avoid aespecially if aapply as follows: ■ Defects which were put on sale. ■ Wear-out aor adamage caused by acommon use. ■ The aproduct awas adamaged aby aunprofessional aor wrong installation, used in contrary to the applicable instruction manual, used in contrary to legal enactment and common process of use or used for another purpose which has been designed for. ■ The product was damaged by uncared-for or insufficient maintenance. ■ The product was damaged by dirt, accident of force majeure (natural disaster, fire, flood, ...). ■ Defects on functionality caused by low duality of signal, electromagnetic field interference etc. ■ The product was mechanically damaged (e.g. broken button, fall...). ■ Damage caused by use of unsuitable media, fillings, expendable supplies (batteries) or by unsuitable working conditions (e.g. high temperatures, high humidity, quakes,...). ■ Repair, modification or other failure action to the product by unauthorized person ■ End-user did not prove enough his right to claim (time and place of purchase). ■ Data on presented documents differs from data on products. ■ Cases when the claiming product can not be identified according to the presented documents (e.g. the serial number or the warranty seal has been damaged).

[e-mail]

www.fasthungary.hu

Green and black FELÖMA chainsaw with visible blades and mounting brackets (no text or symbols)

FIELDMANN®

Home & Garden Performance
