DTS711 - Electric toothbrush BLAUPUNKT - Free user manual and instructions

Product Type	Electric Toothbrush
Brand	Blaupunkt
Model	DTS711
Color	White (typical)
Dimensions (approx.)	25 x 3 x 3 cm
Weight (approx.)	120 g
Power Source	Rechargeable lithium-ion battery
Charging Time	16 hours
Usage Time per Charge	Up to 30 days (2 min twice daily)
Number of Brushing Modes	3 (Clean, Whitening, Sensitive)
Brushing Speed	30,000 - 40,000 strokes/min
Timer	2-minute timer with 30-second interval reminder
Water Resistance	IPX7 (waterproof up to 1 meter immersion)
Brush Head Type	Replaceable, DuPont bristles, rounded ends
Included Brush Heads	2 standard brush heads
Charger Type	USB inductive charging base
Material	ABS plastic body, silicone grip
Warranty	2 years (subject to local regulations)
Additional Features	Pressure sensor, ergonomic handle, travel lock
Cleaning Instructions	Rinse brush head and handle under water after use
Replacement Part	Brush head model: Blaupunkt BH711

Frequently Asked Questions - DTS711 BLAUPUNKT

How long does the battery last on a full charge?

On a full charge, the Blaupunkt DTS711 lasts up to 30 days with regular use (2 minutes twice daily).

How do I charge the toothbrush?

Place the toothbrush on the USB inductive charging base. Connect the base to a USB power adapter (5V/1A). The LED indicator shows charging status.

Is the toothbrush waterproof?

Yes, it has an IPX7 rating, meaning it can be submerged up to 1 meter of water for 30 minutes. Safe for use in the shower.

How often should I replace the brush head?

Replace the brush head every 3 months or sooner if the bristles become frayed. Use the Blaupunkt BH711 replacement heads.

What brushing modes are available?

The DTS711 has 3 modes: Clean for daily cleaning, Whitening for stain removal, and Sensitive for gentle care.

Does it have a timer?

Yes, it features a 2-minute timer with 30-second interval reminders to encourage even brushing across all quadrants of your mouth.

How do I clean the toothbrush?

Rinse the brush head and handle under running water after each use. Periodically clean the charging base with a damp cloth. Avoid using abrasive cleaners.

What should I do if the toothbrush stops working?

First, ensure it is charged. If it still doesn't work, try a hard reset by pressing the power button for 10 seconds. If the issue persists, contact Blaupunkt customer support.

Can I use the toothbrush while charging?

No, for safety and to avoid damage, do not use the toothbrush while it is connected to the charger. Wait until it is fully charged.

Is the toothbrush suitable for sensitive teeth?

Yes, the Sensitive mode is specifically designed for people with sensitive teeth and gums. It delivers gentler vibrations.

USER MANUAL DTS711 BLAUPUNKT

Exterior view of a BLAUPUNKT electric toothbrush and its charging case (no signage or text on the device itself)

Enjoy it.

rrwkeu k

ohnwul fkh dk e u sh

f r ehf nd gr e z

ohnwulfn nduw hn d e

chnwulfn e nhind

chnwur pr ir nhih

chnwul d red hwnd

ohnwul d hwnlfd d eh

O

тъ р ти ъти и р

Shul hohfwulf gh gl l

chnwul l gd w hs hw ol

ohnwulal h kdp edkdul

ohnwul n re elu wh

Important notes

- Before operating the appliance, please read the instructions manual and follow the instructions provided.

- The manufacturer is not liable for any damages resulting from use of the appliance contrary to its intended use, or its inappropriate use. Save this instructions manual so you will also be able to refer to it when using the product in the future.

- The appliance is intended for home use only. Do not use for other purposes contrary to its intended use.

- Connect the appliance only to an electrical supply with specifications in accordance with the information on the data plate.

- This appliance may be used by children aged 8 years and above, and by persons with reduced physical and/or mental capabilities, and by persons with little experience and knowledge concerning the appliance, only if they have been given supervision or instructions concerning the use of the appliance in a safe way, and they understand the hazards involved. Children should not play with the appliance. Unattended children should not be allowed to perform the cleaning and maintenance of the appliance.

- The charging unit should be kept away from tanks containing water, such as bathtubs, washbasins or toilets.

• Use only the manufacturer's original spare parts,

or those recommended by the manufacturer.

- Using accessories not recommended by the manufacturer can damage the appliance and threaten operational safety.

- If the toothbrush with the head is dropped, the head should be replaced, even if there are no visible damages.

- When you use the toothpaste with perhydrol, soda, or another whitening substance, the toothbrush handle should be thoroughly washed after use.

CE Device is compliant with EU directives:

• Low voltage directive (LVD)
• Electromagnetic compatibility (EMC)
  Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Your product contains batteries covered by the European

Directive2013/56/UE, which cannot be dispose with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam(buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

Technical data

Power supply: 100-240V\~50/60Hz

Power: 2.2-3.5W

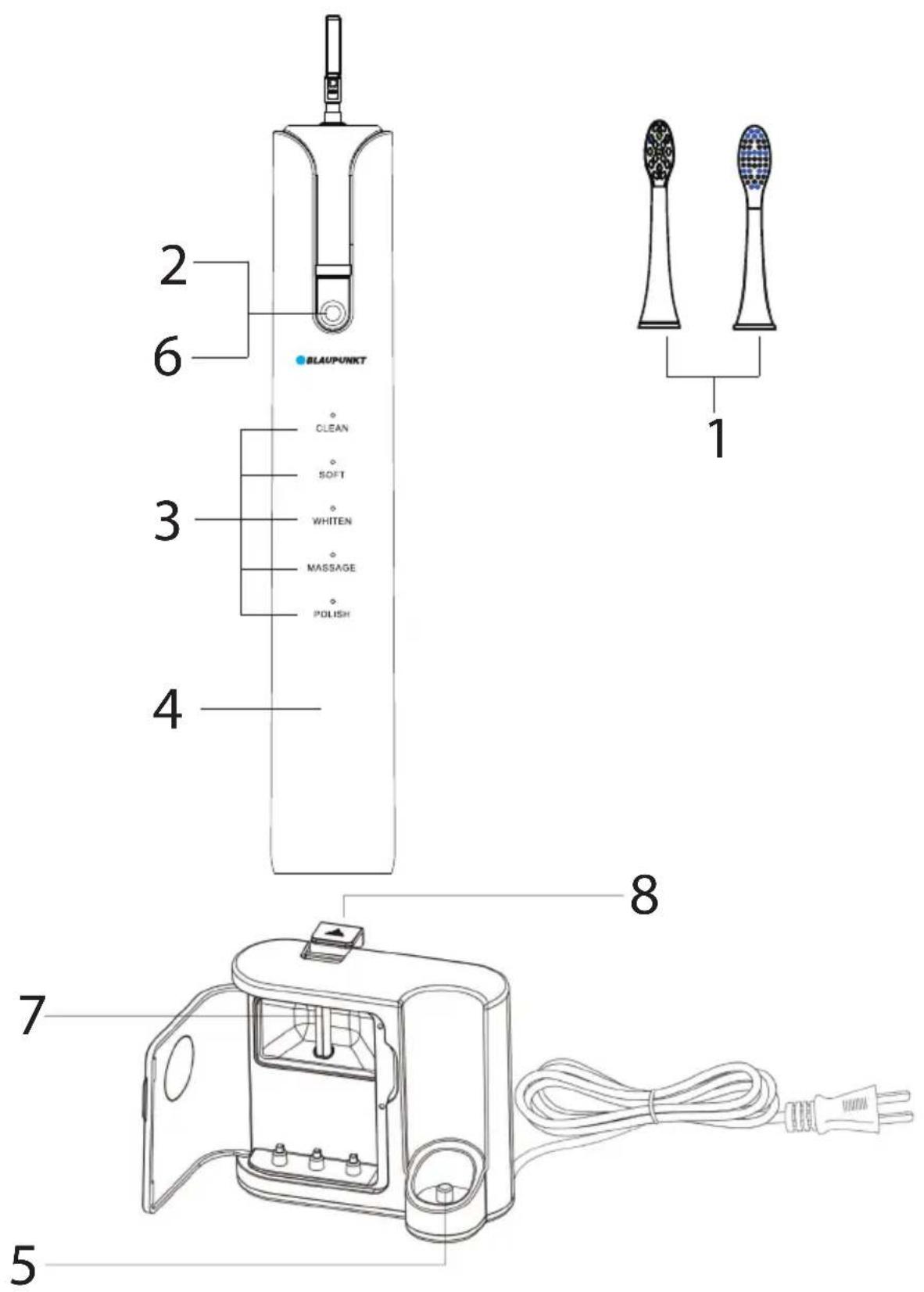

1. Replaceable toothbrush head
2. On/Off switch
3. Power monitor diodes

4. Handle with drive

5. Charging unit

6. Operating-mode toggle button
7. UV Lamp
8. Disinfection-compartment cover

CHARGING THE BATTERY

Make sure that the toothbrush is switched off before placing it on the charging unit.

Connect the charging unit (5) to the power supply. Place the toothbrush handle with drive on the charging unit. The full charging process can last more than 17 hours. It is recommended to store the toothbrush handle in the charging unit. The battery contains a protecting circuit against overcharging.

After placing the toothbrush handle in the charging base, the indicator lights will indicate the battery charge level. The more diodes lit, the more charged the battery is. The green LED will flash while the battery is charging. When charging is completed, the LEDs will turn off.

1. Use the replaceable toothbrush head (1) on the handle with a drive (4). Wet the toothbrush with water and apply a small amount of toothpaste.
2. Put the toothbrush in your mouth, on the teeth gently tilted toward the gums (as shown in the Figure)
3. Turn on your toothbrush with the switch button (2). You can change the brushing mode by pressing the switch button immediately after switching on the toothbrush.
4. To improve the efficiency of teeth cleaning, the mouth should be divided into four zones. Clean each zone for 30 seconds (the toothbrush signals with a momentary break when each 30 seconds expires). The toothbrush will switch off automatically after 2 minutes. To finish teeth cleaning earlier, turn off the toothbrush with the switch button
5. After switching the toothbrush off, remove the head (1) from the handle (4) and thoroughly rinse both elements.
6. Put the handle (4) onto the charging unit (5).

BRUSHING MODES

1. CLEAN - standard brushing mode
2. SOFT - gentle brushing mode
3. MASSAGE - pulse mode to stimulate the gums
4. WHITEN - brushing, whitening and polishing
5. POLISH - polishing - intensive tooth polishing mode, brighter whitening effect

DISINFECTING THE TOOTHBRUSH HEADS

Make sure that remaining water has been removed from the toothbrush head.

Open the cover of the disinfecting compartment and put in the head, directing the bristles towards the UV lamp. Close the cover. The UV lamp will switch on automatically for 10 min after closing the cover.

The disinfection process will start with each closing of the disinfection-compartment cover.

WARNING: UV light is dangerous for the eyes and skin. Do not open the disinfection-compartment cover during the disinfection process. If it is observed that the UV lamp lights although the disinfection-compartment cover is opened, contact the service centre.

CLEANING AND MAINTENANCE

Make sure that the charging unit is removed from the power supply before starting cleaning.

Wipe the inside of the charging unit with a wet cloth and then dry.

It is recommended to replace the toothbrush heads every 3 months. Recommended heads: BLAUPUNKT ACC024, ACC067

Device is compliant with EU directives:

• Low voltage directive (LVD)
• Electromagnetic compatibility (EMC)
  Device marked CE mark on rating label

POUŽÍVANIE KEFKY NA ZUBY

BLAUPUNKT ACC024, ACC067.

Oluline info

Device marked CE mark on rating label

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their

respective owners. Specifications are subject to change without prior notice.

Enjoy it.
