MZ2355bc - Freezer Concept - Free user manual and instructions

Type	Freezer
Model	MZ2355bc
Brand	Concept
Total Volume	85 L
Energy Class	D
Annual Energy Consumption	131 kWh
Daily Energy Consumption	0.433 kWh
Freezing Capacity	4 kg / 24 h
Storage Time (power failure)	10 h
Climate Class	N/ST
Noise Level	39 dB(A)
Voltage	220–240 V ~ 50 Hz
Height	845 mm
Width	549 mm
Depth	566 mm
Weight	27 kg
Temperature Control	Thermostat knob (1-4), position 4 coldest
Defrosting	Manual defrosting required
Door Reversible	Yes (left/right opening)
Drawers	3
Adjustable Feet	Yes
Refrigerant Settling Time	At least 3 hours before first use
Cleaning	Non-aggressive detergents, warm water

Frequently Asked Questions - MZ2355bc Concept

How do I set the temperature on the Concept MZ2355bc freezer?

The thermostat control knob is located at the front upper part. Turn it to position '1' (warmest) to '4' (coldest). For normal use, set between '1' and '4', typically above '2'. For first use or after defrosting, set to '4' for at least 2 hours before storing food.

How do I defrost the freezer?

Disconnect the appliance from the mains. Remove food and place in a cold area. Use a container to catch defrost water. You can use a plastic or wooden scraper and warm water to speed up defrosting. Wipe dry thoroughly before switching on again. Do not use mechanical devices.

Can I change the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual: remove top hinge, bottom hinge, door stop, and reinstall on the opposite side. Be careful not to pinch the hinges. Ensure proper alignment after reassembly.

What should I do if the freezer is making unusual noises?

Normal operating noises include ice cracking, short cracking (thermostat switching), compressor hum, bubbling from refrigerant, and water flowing during defrost. If the noise is excessive, check if the freezer is level and not touching furniture. If problem persists, contact service.

How long can food stay frozen during a power failure?

The freezer can keep food frozen for up to 10 hours if the door remains closed. Open the door as little as possible to extend freshness.

How do I clean the freezer?

Disconnect the power. Use a soft cloth or sponge with lukewarm water and a mild detergent. Avoid abrasive cleaners, alcohol, acetone, or steel brushes. Do not wash accessories in a dishwasher. Dry all parts thoroughly before reconnecting.

What are the required clearances for installation?

Place the freezer on a flat, well-ventilated area. Leave at least 10 cm clearance from walls on back and sides, and at least 30 cm above the appliance. Avoid direct sunlight and heat sources.

Why is frost forming inside the freezer?

Possible causes: insufficiently packaged food or wet containers, frequent door openings, improperly placed compartments, or damaged door seals. Check packaging, reduce door openings, ensure drawers are correctly placed, and inspect seals.

What is the energy consumption of this freezer?

The annual energy consumption is 131 kWh, which corresponds to energy class D. Daily consumption is about 0.433 kWh. Actual consumption depends on usage and ambient temperature.

Can I make ice cubes in this freezer?

Yes, you can produce ice cubes. Use ice cube trays and place them in the freezer. Do not use glass bottles for freezing beverages as they may rupture.

USER MANUAL MZ2355bc Concept

Two concept refrigerators, one black and one white, displayed side by side (no visible text or symbols on the devices themselves)

MZ2355bc / MZ2355wh

concept

CZ

PODĚKOVÁNÍ

TIPY K POUŽIVÁNÍ

Simple line drawing of a rectangular frame with no text, numbers, or symbols

1443 mm

Technical line drawing of a cabinet with attached fixtures and an inset showing internal components (no text or symbols)

Obr.1

TIPY NA POUŽÍVANIE

Simple line drawing of a rectangular frame with no text, numbers, or symbols

1443 mm

ZMENA SMERU OTVÁRANIA DVERÍ

Davajte pozor, aby ste pri zmene smeru otvârania dveri nestlačili zavesy dveri.

Technical line drawing of a refrigerator with an open lid and a magnified inset showing airflow or pressure indicators (no text or symbols)

Obr. 1

Technical line drawing of a refrigerator with an open lid and a magnified inset showing internal components (no text or symbols)

Obr.4

BEŽNÉ PREVÁDZKOVÉ ZVUKY

Zvuk praskania ľadu

WSKAZÓWKI DOTYCZĄCE UŻYWANIA

Technical line drawing of a rectangular enclosure with a vertical dimension label (1443 mm) on the right side (no other text or symbols)

ZMIANA KIERUNKU OTWIERANIA DRZWI

Technical line drawing of a refrigerator with an open lid and a magnified inset showing internal components (no text or symbols)

Rys. 1

Technical line drawing of a refrigerator with an inset close-up showing internal components (no text or symbols)

Rys. 4

37

PL

concept

concept

PL

ZWYKŁE DŻWIĘKI EKSPLOATACYJNE

Dźwięk pękania lodu

Simple line drawing of a rectangular frame with no text, numbers, or symbols

1443 mm

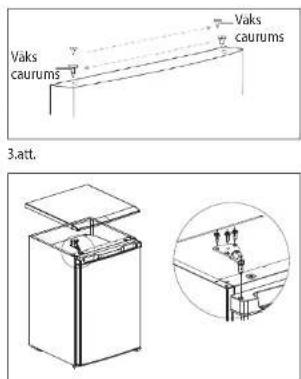

DURVJU ATVĚRŠANAS VIRZIENA

Esiet uzmanigi, lai, mainot durvju atvērsanas virzienu, nesaspiestu durvju enges.

Technical line drawing of a refrigerator with an open lid and a magnified inset showing internal components (no text or symbols)

1.att.

2.att

LV

concept

concept

LV

2b.att.

4.att.

NORMĀLAS EKSPLUATĀCIJAS SKAŅAS

Thank you for purchasing the Concept product. We want you to be satisfied with everything we make every day you use it.

Please read the instructions carefully before initial use. You should retain them for future reference. Ensure that anyone using this product is familiar with the instructions.

TABLE OF CONTENTS

Technical specifications

Important safety information

Product description

Tips for use

User manual

Cleaning and maintenance

Installation of the appliance

Door swing direction

Regular operating noise

Troubleshooting

Service centre

Environmental protection

TECHNICAL SPECIFICATIONS
Energy class D
Voltage 220–240 V ~ 50 Hz
Annual power consumption 131 kWh
Daily power consumption 0,433 KWh
Total volume 85 l
Freezing capacity 4 kg / 24 hod.
Freezer accumulation time 10 hod.
Climate class N/ST
Noise level 39 dB (A)
Height 845 mm
Width 549 mm
Depth	566 mm
Weight	27 kg

The manufacturer reserves the right to make potential technical changes, typographical errors and any differences in the representation without prior notice.

46

MZ2355bc / MZ2355wh

IMPORTANT SAFETY INFORMATION

When delivering the free-standing freezer

• Immediately after delivery, check the package for any damage during shipping.
• Caution! Caution! Some edges of this appliance that are hidden after installation are sharp! Be careful not to get cut when handling an uninstalled unit.
• Do not install the appliance if it has been damaged. Contact the store where you purchased it immediately.
• Remove all the packaging and marketing materials before first use.
• Keep the packaging materials away from children or dispose of them properly.

During installation

• Do not use the appliance in any other way than as described in this manual.

• Make sure the mains voltage corresponds to the values on the rating plate of the appliance.
  • This appliance can be used in households and similar places like:

• Kitchen cabinets in shops, offices and other workplaces.

• Appliances used in agriculture.
• Appliances used by guests in hotels and other areas in a hotel environment.

• Appliances used in a Bed and Breakfast environment.

• Do not use the appliance if you are barefoot.

• Do not touch the appliance with wet hands.
• Do not touch the cooling parts of the freezer with wet hands. Risk of injury!
• Do not stand or sit on the open door of the appliance.
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
  • Children should not play with the appliance.
• Pay extra attention if the appliance is used near children.
• Do not allow the appliance to be used as a toy.
• This appliance can be used by children aged 8 years and over. Persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, should be supervised or familiarized with the instructions for use of the appliance in a safe way and have been made aware of the risks involved.
  • Children 3 to 8 years old are only allowed to insert and remove food from the freezer.
• If a malfunction occurs, turn off the appliance and unplug it from the wall outlet.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.

MZ2355bc / MZ2355wh

EN

concept

concept

EN

• Do not immerse the power cord or the plug in water or any other liquid.
• Check the appliance and the power cord for damage regularly.
• Do not switch on the appliance if it has been damaged.
• Do not use the appliance if the door or the door seals are damaged. Call the authorised service centre.
• Do not use any accessories other than those recommended by the manufacturer.
• Do not use accessories with damaged surface treatment or if it has been worn out or has other defects.
• When removing ice from the freezer, be careful, there is a risk of injury and frostbite.
• IMPORTANT! Before switching on, let the appliance stand still for at least 3 hours to settle the refrigerant gases in the compressor after shipping.
• Use the appliance in a room with temperatures between +10 °C and +32 °C.
• Do not place the appliance near heat sources, it may increase its consumption and shorten the service life.
• Do not place any objects on the top of the appliance, as it could damage the appliance.
• Do not place any electrical devices such as mixers and others in the appliance.
• Do not store any corrosive or explosive substances such as aerosol cans with a flammable substance in the appliance.
• Do not run any electrical appliances inside the freezer.
• Before use, it is necessary to wipe the inside of the appliance with a solution of baking soda dissolved in tepid water. After cleaning, dry all parts thoroughly.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
• WARNING! Do not use mechanical devices or other means to speed up the defrosting process other than those recommended by the manufacturer.
• Do not place the appliance under the direct sun shine.
• Make sure there is enough free space around the appliance for free circulation of air.
• The appliance should be located at least 50 cm from a gas oven or burners and should be placed at least 5 cm away from an electric oven.
• If the appliance is placed close to the freezer, a distance of at least 2 cm should be between them in order to avoid creating moisture on the outside.

Caution!

To avoid injury, open the oven door only for a short period of time to insert or remove food. Children may lock themselves inside the appliance (risk of suffocation) or be exposed to other dangers.

Possible defects

• Only qualified service technicians should repair or perform maintenance to this appliance.
• During the repairs the appliance must be disconnected from the power. Switch off the circuit breaker or remove the plug from the wall outlet.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.

Caution! The risk of fire / Flammable materials.

If you fail to follow these instructions, any possible repair cannot be recognized as a warranty repair.

EN

concept

concept

EN

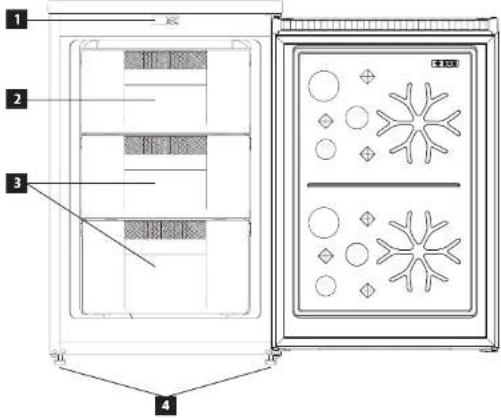

PRODUCT DESCRIPTION

1 Thermostat
2 Shelf door
3 Drawers
4 Adjustable feet

TIPS FOR USE

• If there is a power failure or the cord has been pulled out of the wall socket, it is necessary to wait at least 5 minutes before reconnecting the appliance. This 5-minute delay is done to prevent compressor damage.
• During a power failure, food can be stored for several hours inside the freezer. Open the door of the the freezer as little as possible in order to extend the freshness of the stored food.
• If you do not use the appliance for a long time, disconnect the appliance from the mains, clean the inside of the appliance with non-aggressive detergents (see the Cleaning and Maintenance section) and leave the appliance door open to prevent unpleasant odours inside the appliance.
• The ambient temperature in the room, the temperature of the food, the amount of food stored, and how often the door of the appliance gets opened have an effect on the temperature inside the appliance.
• If you do not freeze fresh food, it is not necessary to set the freezer to the maximum cooling power (MAX). If you leave the temperature set to the maximum cooling power for a long time, the drain line may freeze.
• This appliance is designed for use at ambient temperatures of 10 °C to 32 °C. The appliance may not function properly if it is used in environment with ambient temperatures listed in the table.

Climate class Ambient Temperature

T 16 °C up to 43 °C

ST 16 °C up to 38 °C

N 16 °C up to 32 °C

SN 10 °C up to 32 °C

Tips for storing food in a freezer

The freezer is used to freeze fresh food, store frozen food for the time specified on the packaging and to produce ice.

• Pack the fresh food airtight. Special freezer bags, polyethylene bags and plastic containers are ideal.
• Prevent fresh food from coming into contact with already frozen food.
• In case of power failure, open the freezer door only when necessary and as little as possible. The freezer keeps the food frozen for up to 10 hours.
• Never place warm food or beverages in the freezer.
• Before putting frozen food into the freezer, make sure the packaging is not damaged.
• It is also not recommended to put beverages in glass bottles in the freezer, glass can easily rupture due to low temperatures inside the freezer.

USER MANUAL

Before first user

Before first use you should wipe the outside and inside of the appliance with a damp cloth for hygiene reasons. Wash all removable parts with warm soapy water.

After installing the freezer, leave the appliance standstill for at least half an hour before connecting to the mains. It is necessary to allow the cooling gases to set down. Then you can connect the freezer to the mains and let it run for 2-3 hours to stabilize a normal operating temperature. A slight odour may occur during this time. It will go away as soon as the appliance starts to cool. Then put fresh or frozen food inside the appliance.

Note: If a power failure occurs during the first run, wait for at least 5 minutes before switching on again or connecting to the mains.

Freezer temperature setting

• The temperature in the freezer can be set with the thermostat control knob. It is located in the front upper part of the freezer.
• Turn the thermostat control knob up or down to set the temperature inside the freezer.
• The symbols on the control knob "1 \~ 4" indicate different temperature levels.
• Position "1" means the warmest level, position "4" is the coldest level.
• For normal use, set the knob to a position between "1" and "4", the exact position for general use above position number "2".
• When using the freezer for the first time or after defrosting, turn the temperature control to "4" and let the freezer run for at least two hours before storing the food in the freezer.
• All purchased frozen food should be placed in the freezer as soon as possible to prevent thawing of the food.
• Follow the recommendations for storage printed on the frozen food packaging.
  • Make sure that the drawer does not freeze to the refrigeration pipe.

50

MZ2355bc / MZ2355wh

MZ2355bc / MZ2355wh

EN

concept

concept

EN

CLEANING AND MAINTENANCE

• Disconnect the power cord from the wall outlet or switch off the circuit breaker of the appliance before cleaning and maintenance.
  • The inside of the freezer should be cleaned according to the frequency of use to avoid unpleasant odours.
  • One source of odour can also be dirt deposits around the sealing. Regular cleaning with a damp cloth prevents these unpleasant odours.
• For cleaning, we recommend using non-aggressive products, preferably clear lukewarm water along with a soft sponge or paper towel.
• Let the appliance open to dry out naturally after cleaning.
• For cleaning, we do not recommend cleaning agents such as alcohol, acetone, oil, toothpaste or any other abrasive products.
  • We do not recommend using coarse sponges or steel brushes.
  • We do not recommend using boiling water as it may cause damage to individual parts of the appliance.
  • We do not recommend cleaning the appliance with a stream of water that could interfere with the insulation or cause a short circuit of some electronic components of the appliance.
• Clean all the accessories of the appliance with a solution of lukewarm water and a detergent. Never wash the accessories in a dishwasher!

Defrosting

1. Disconnect the electrical plug from the mains
2. Move food from thefreezerto place where it will not be spoiled, prepare a container to catch defrosting frost
3. Wipe the thawed water on the evaporator and the inner lining with a dry cloth, then wring the cloth out and repeat the process until the ice has completely thawed
4. To speed up the defrosting process, you can use an ice scoop (use only a plastic or wooden scoop to avoid damaging the seal and the inner lining) in combination with the use of an adequate amount of warm water
5. After complete defrosting and wiping the residual water inside the freezer with a dry cloth, you can put the food back in the freezer and switch on the appliance.

Installation instructions

• The warranty does not cover damages caused by incorrect installation.
• The responsibility for installing the appliance lies with the buyer, not the manufacturer.
• The manufacturer bears no responsibility for damage caused to people, animals or property due to incorrect installation.
• Place the appliance on a flat place in a well-ventilated are.
• Do not place the appliance under the direct sun shine.
• The appliance should be placed at least 10 cm from the wall at the back and both sides. There should be a free space of approximately 30 cm above the appliance as it needs to ventilate freely.
• If necessary, use the adjustable feet at the bottom of the appliance to align the appliance in a horizontally stable position.

Connection to the mains

• Make sure the mains voltage and current protection correspond to the values on the rating plate of the appliance. We recommend using a separate outlet with a 16 A circuit breaker.
• Only use grounded sockets.
• Do not use multiple sockets, plugs and extension cords. There is a risk of overheating.
  • The plug of the power cord on the appliance must be freely accessible even after the installation.
  • Changes in a connection may only be performed by a qualified professional.
• Electrical safety of the appliance can be guaranteed only if the protective terminal of the appliance is connected to the protective conductor of the mains.
• The manufacturer bears no responsibility for damage to persons or property as a result of missing or bad protective connection.
• The power cord must be positioned in a way that it is not deformed or excessively bent.

52

MZ2355bc / MZ2355wh

APPLIANCE DIMENSIONS

Simple line drawing of a rectangular frame with no text, numbers, or symbols

1443 mm

DOOR OPENING DIRECTION CHANGE

Be careful not to pinch the door hinges with your fingers when changing the direction of the door opening.

1. Switch off the circuit breaker or pull the plug from the mains socket. When unplugging the appliance from the power outlet, never pull the power cord, but grasp the plug and pull it off.
2. If you have any food or drinks in the freezer drawers, remove them.
3. Remove the top cover and remove the screws from the top hinge of the freezer (Fig.1) and remove the top hinge. Keep the door in a vertical position throughout removal to prevent it from falling and damaging. Remove the freezer door and place it in a safe place.
4. Unscrew the bottom hinge, remove the bottom hinge pin from the hinge, turn the hinge over and install the hinge pin on the other side. Fit the hinge on the other side. (Fig.2, 2a,2b)
5. Remove the bolt that secures the door stop (bottom right) then remove the door stop and install it in the bottom left side.
6. Replace the door, move the hole caps to the right side (Fig.3).
7. Screw on the top hinge and install the freezer cover. (Fig.4)
8. Make sure the freezer door fits properly.

Technical line drawing of a refrigerator with an open lid and internal components, showing airflow or ventilation (no text or symbols)

Fig. 2
Fig. 1

MZ2355bc / MZ2355wh

EN

concept

concept

EN

Fig. 2a

Fig. 3

Fig. 2b

Technical line drawing of a refrigerator with an inset close-up showing internal components (no text or symbols)

Fig. 4

It may occur during the automatic defrosting, or it can be caused by the expansion and contraction of air inside the freezer.

Short cracking

It can be heard when the thermostat turns on and off the compressor.

Noise of the compressor

Running compressor produces noise. After the installation of the appliance, the compressor may be a little louder for a short time.

Bubbling and flowing

This sound is generated when the refrigerant is flowing through the appliance pipes.

Sound of running water

Water flows into the evaporator container during the defrosting process and it is audible throughout the defrosting process.

TROUBLESHOOTING

You can rectify most of the minor faults that appear when using the freezer without having to contact an authorized service centre. The following overview should help you find the causes of the faults that occur.

If the following overview does not help to remedy the error, please contact an authorized service centre.

Defect description	Possible cause Solution
The appliance does not work	The power cord plug is not plugged in the wall outlet.	Check the connection of the cord.
	Damaged power cord	Do not connect the appliance into the mains. Contact a qualified expert or an authorised service.
	Faulty main electronics or control electronics	Contact an authorized service centre.
The appliance cannot lower the temperature	Cooling fluids leakage Contact an authorized service centre.
	Clogged freezer piping Contact an authorized service centre.
The operation of the freezer is too loud	The freezer is not stabilized	Align the freezer so that it is levelled. Make sure that it does not rest on, for instance, furniture.
A frost deposit forms inside the freezer.	Insufficiently packaged food or wet containers	Ensure that the food packaging is not damaged or that the containers are dry before placing them in the freezer.
	Door gets opened too frequently Do not open the door so often.
	Incorrectly placed compartments in the freezer	Check that the freezer compartments are properly placed.
	The door sealing is damaged or worn out Contact an authorized service centre.

SERVICE CENTRE

CAUTION!

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified service centre.

ENVIRONMENTAL PROTECTION

• Prefer recycling of packaging materials and old appliances.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The symbol on the product or its packaging indicates that this product may not be treated as household waste. It is necessary to take it to a container park for the recycling of electrical and electronic equipment. By ensuring the correct disposal of this appliance you will help prevent potential negative consequences to the environment and human health, which could otherwise result from inappropriate disposal of this product. Disposal must be performed in accordance to the regulations for waste disposal. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

54

concept concept

CONCEPT POLSKA sp. z o.o.
