DEGA2000 - Generator DEDRA - Free user manual and instructions

Product Type	Generator
Brand	DEDRA
Model	DEGA2000
Rated Power	2000 W
Maximum Power	2500 W
Output Voltage	230 V
Frequency	50 Hz
Engine Type	4-stroke, single cylinder
Engine Oil	SAE 10W-30 (recommended DEGL01)
Spark Plug	A7RTC or equivalent
Fuel Type	Unleaded gasoline
Fuel Tank Capacity	15 L
Runtime at 50% Load	8 h
Starting System	Recoil start
Sound Level	95 dB
Weight	42 kg
Dimensions (L x W x H)	600 x 450 x 450 mm
Cooling System	Air-cooled
Safety Features	Low oil shutoff, overload protection
Oil Change Interval	Every 50 hours
Air Filter	Washable foam
Sockets	1x 230 V 16 A
Voltmeter	Analog
Manual Pages	38

Frequently Asked Questions - DEGA2000 DEDRA

What type of oil should I use for the DEDRA DEGA2000 generator?

DEDRA recommends SAE 10W-30 oil, specifically the DEGL01 type. You can also use any high-quality 4-stroke engine oil with the same viscosity.

What spark plug does the DEGA2000 require?

The generator uses a A7RTC spark plug or an equivalent substitute. Always check the gap before installation.

How do I start the generator?

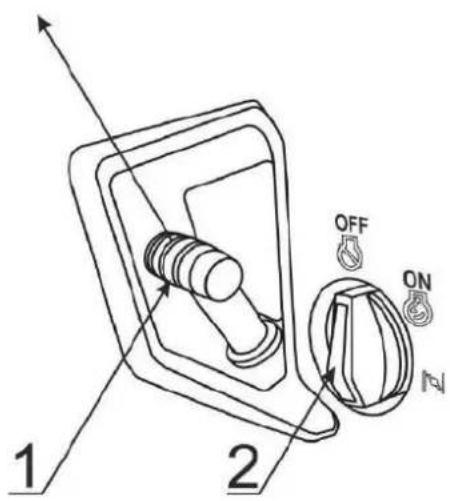

Ensure the fuel valve is open, the engine switch is set to ON, and the choke is closed for a cold start. Pull the recoil starter cord firmly. Once running, open the choke gradually.

Can the DEGA2000 power a refrigerator?

Yes, with a rated power of 2000W and a surge capacity of 2500W, it can run most household refrigerators. Check the refrigerator’s starting wattage to ensure it stays within the generator’s limits.

What fuel does the generator use?

Use clean, unleaded gasoline with an octane rating of at least 87. Do not use ethanol blends over 10%.

How often should I change the oil?

Change the oil every 50 hours of operation or at the beginning of each season. Use SAE 10W-30 oil.

What should I do if the generator won’t start?

Check the fuel level, ensure the spark plug is clean and properly gapped, verify the oil level (low oil shutoff may be activated), and confirm the engine switch is in the ON position.

Is the generator safe for indoor use?

No, never operate the generator indoors or in enclosed spaces. The exhaust contains carbon monoxide, which is deadly. Always use in a well-ventilated outdoor area.

How should I store the generator?

Store in a dry, clean place. Drain the fuel or add a stabilizer if storing for more than 30 days. Change the oil and cover the generator to protect it from dust.

What is the warranty period for the DEGA2000?

DEDRA typically offers a 2-year warranty for home use. Check your purchase documentation for specific terms and conditions.

USER MANUAL DEGA2000 DEDRA

Simple line drawing of a boat navigating a curved ramp with an arrow indicating direction (no text or symbols)

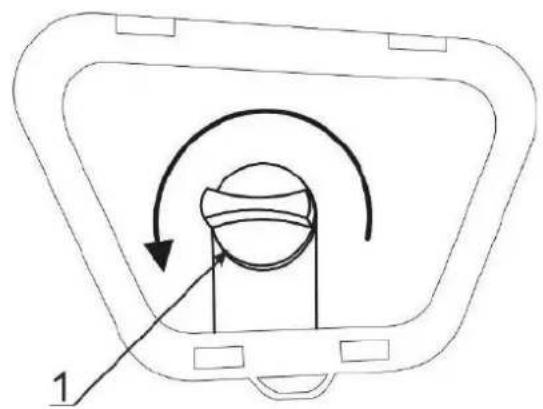

Diagram of a mechanical component with curved arrows indicating rotational motion (no text or symbols)

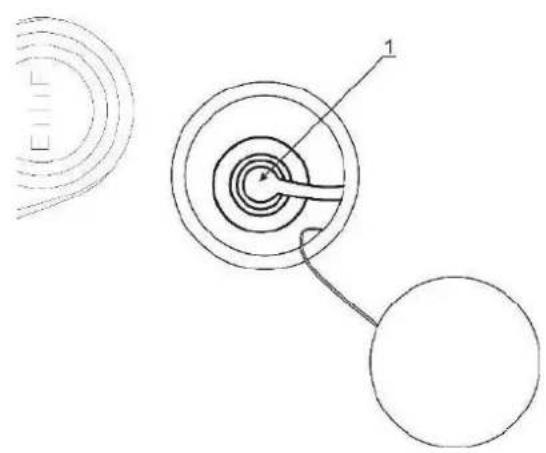

Diagram showing concentric circular patterns with a labeled component '1' and a separate circular shape (no text or symbols present)

A7RTC sau echivalent

Ulei de motor

Ulei recomandat DEGL01 tip SAE 10W-30 de Dedra Exim
