DED8724-46L - Lawn mower DEDRA - Free user manual and instructions

Product Type	Lawn Mower
Brand	DEDRA
Model	DED8724-46L
Cutting Width	46 cm
Power Source	Electric (Corded)
Motor Power	1500 W
Grass Collection Box Capacity	50 L
Cutting Height Adjustment	Central, 5 positions (25-75 mm)
Approximate Weight	25 kg
Dimensions (L x W x H)	100 x 50 x 80 cm
Drive Type	Push (Manual)
Mulching Capability	Yes (with included plug)
Handle Type	Foldable, ergonomic
Safety Features	Blade brake, safety switch, overload protection
Maintenance Requirements	Clean after use, sharpen blade annually, check lubrication
Spare Parts Availability	Blade, wheels, grass bag available online
Warranty	2 years (depending on region)
Noise Level	~96 dB(A)

Frequently Asked Questions - DED8724-46L DEDRA

How do I start the lawn mower?

Ensure the power cord is plugged into an appropriate outlet. Press and hold the safety switch, then pull the start lever toward the handle. Release the safety switch once the mower is running.

What type of oil should I use for the motor?

This electric mower does not require oil. For petrol models, refer to the manual. For electric, simply ensure the motor is clean and dry.

How high should I set the cutting height for my lawn?

For most grass types, start with a medium height (around 50 mm). Adjust as needed: lower for a shorter cut, higher for thick or wet grass. Always avoid cutting more than one-third of the grass blade length.

Can I use the mower without the grass collection bag?

Yes, you can use the mulching plug (if equipped) to chop grass finely and return nutrients to the lawn. Alternatively, you can let the grass clippings lay on the lawn but that may cause clumping.

What should I do if the mower vibrates excessively?

Excessive vibration often indicates a damaged or unbalanced blade. Turn off and unplug the mower, then inspect the blade. Replace if bent or worn. Also check that debris is not caught in the blade assembly.

How often should I sharpen the mower blade?

Sharpen the blade at least once a year or after every 25 hours of use. A sharp blade ensures a clean cut and reduces strain on the motor. If the grass looks ragged, sharpen sooner.

Is it safe to mow in wet conditions?

No, it is not recommended to mow wet grass. Wet grass can clog the mower, cause slipping, and increase the risk of electric shock. Always mow when grass is dry.

How do I clean the mower after use?

Unplug the mower and remove the grass bag. Use a brush or cloth to remove grass clippings from the underside and housing. Avoid using water directly on the motor. Wipe the blade with a dry cloth if needed.

The mower won't start – what should I check?

First, ensure the power cord is connected and the outlet is working. Check the safety switch and start lever for proper engagement. Inspect the power cord for damage. If still not starting, allow the motor to cool down (overheating protection may have tripped).

Where can I find replacement parts for this mower?

Replacement blades, wheels, and grass bags are available online through the DEDRA website or authorized retailers. Always use genuine DEDRA parts to ensure safety and compatibility.

USER MANUAL DED8724-46L DEDRA

Top-down view of a black and silver lawn mower with 'DEORA' branding visible on the side (no text or symbols on the motor itself)

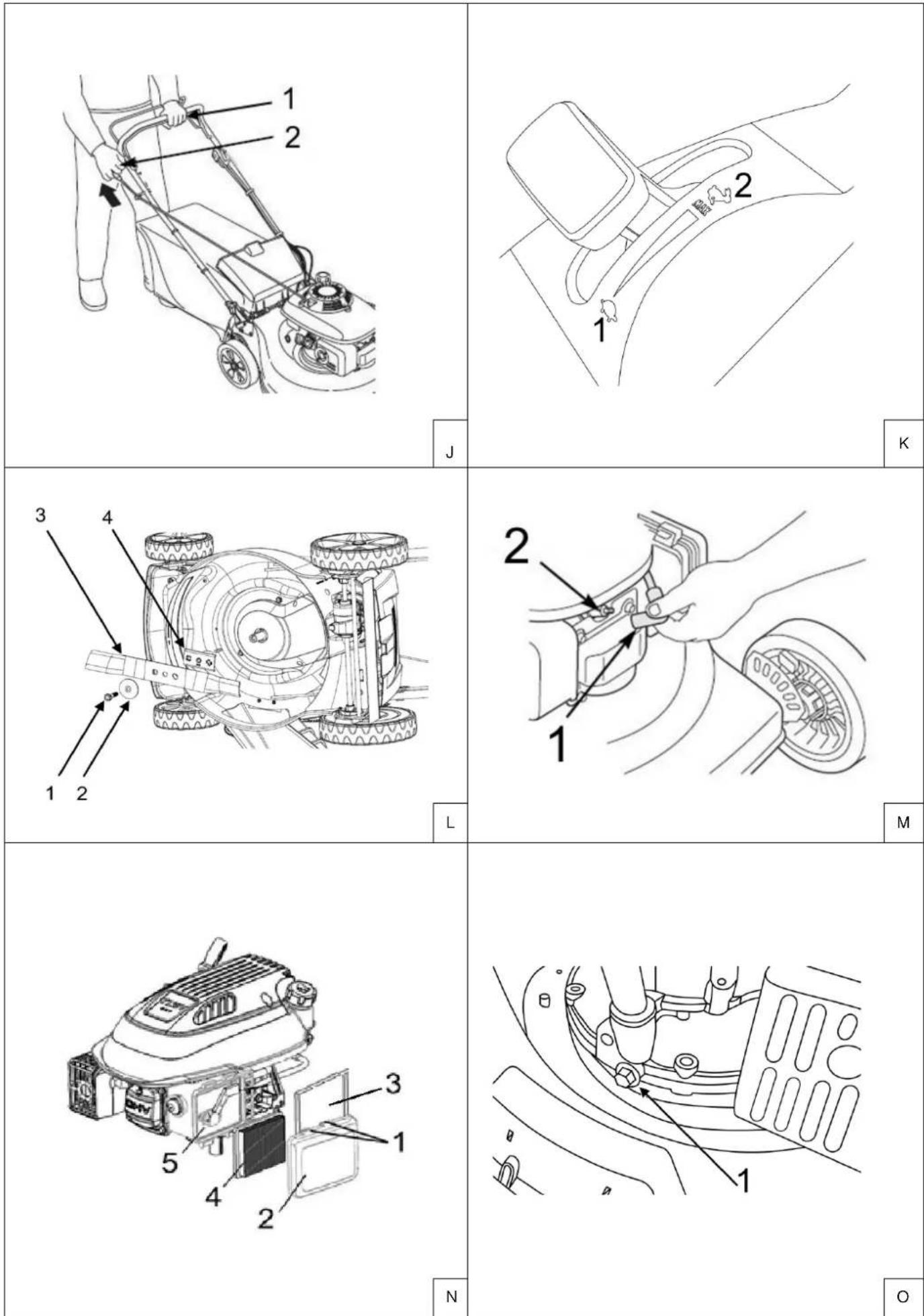

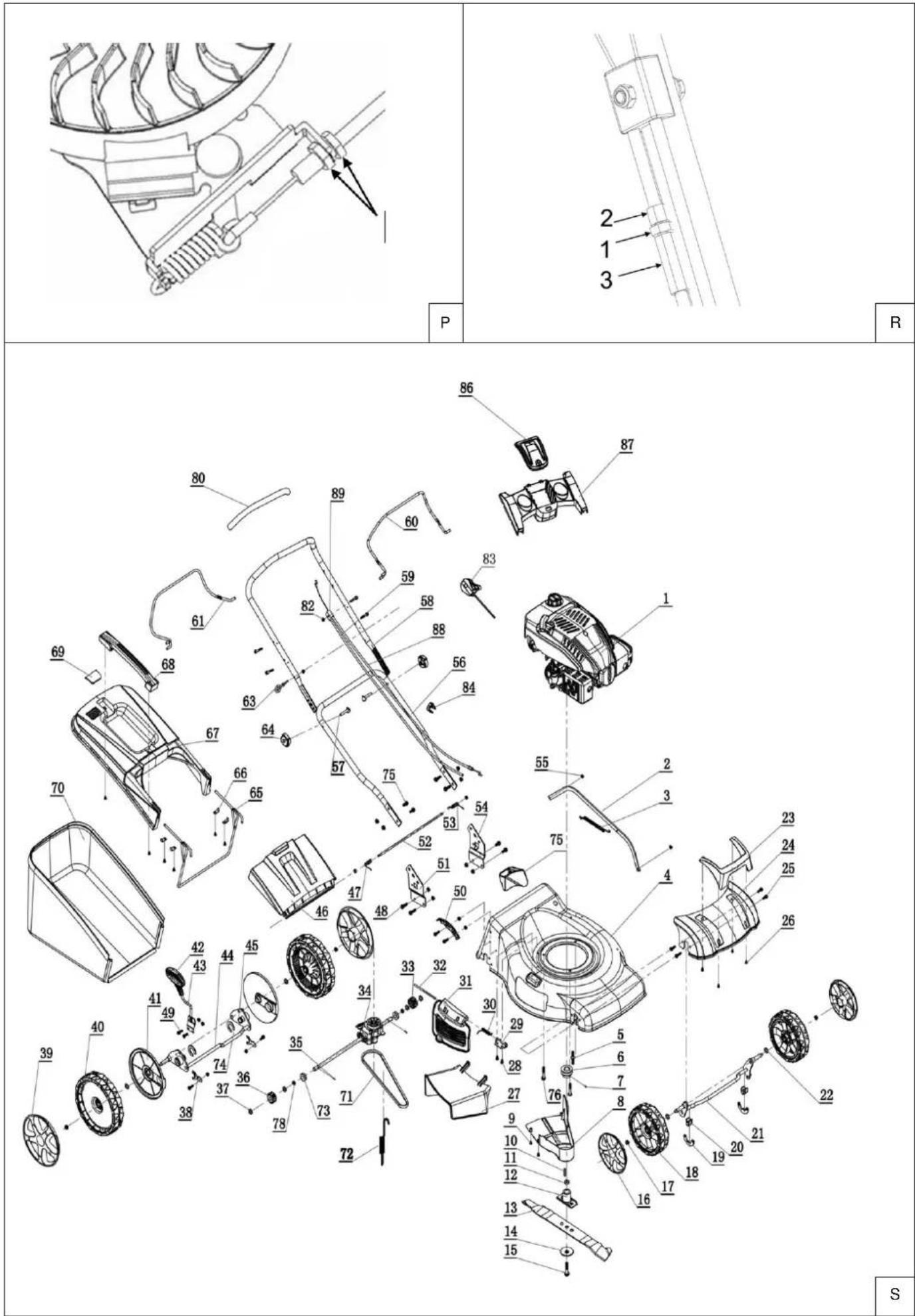

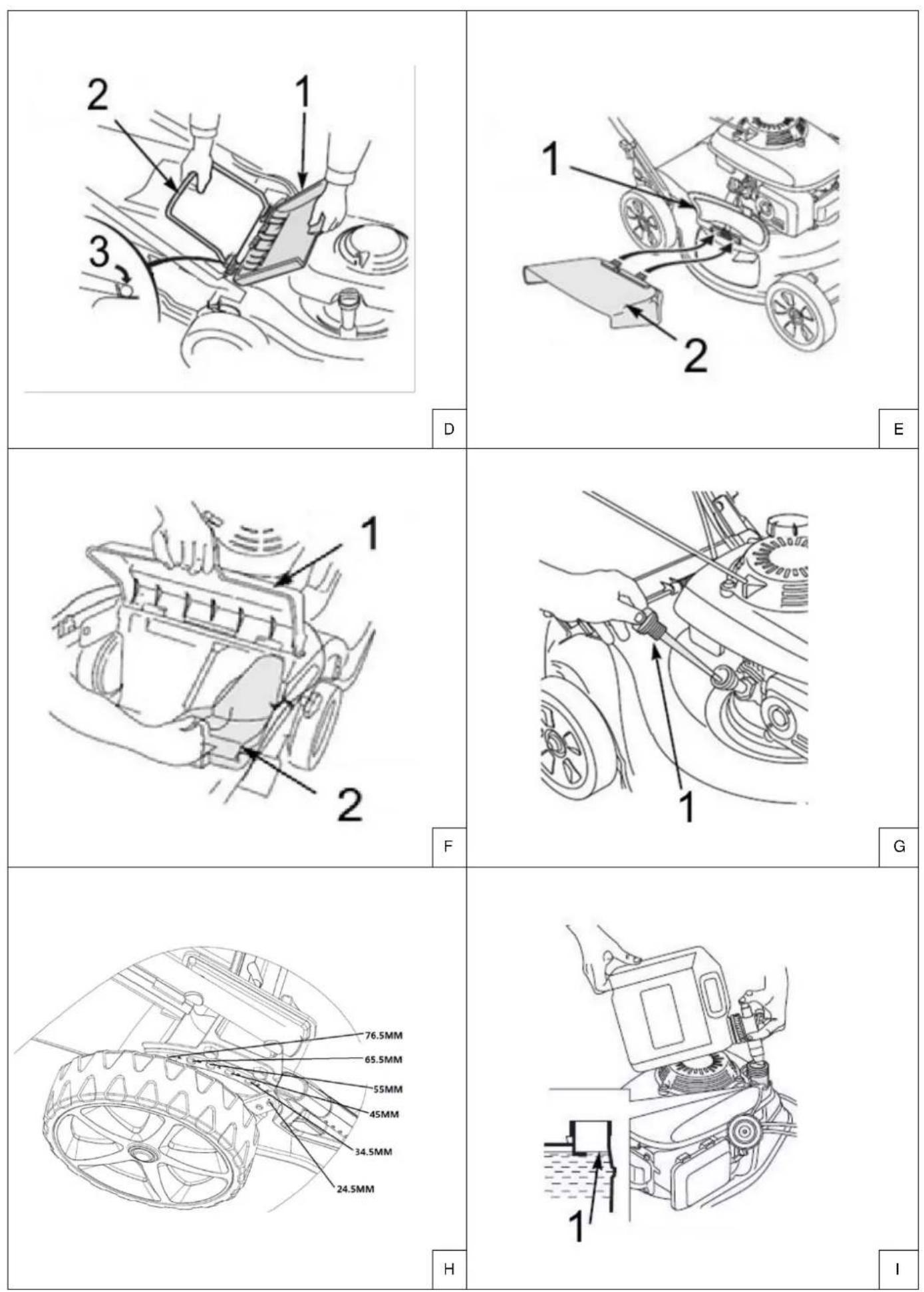

1. Zdjęcia i rysunki


Opis piktogramów / Popis použitých piktogramů / Opis použivaných piktogramov / Panaudotų piktogramų aprašymas / Lietoto piktogrammu apraksts / Az alkalmazott piktogramok magyarázata / Interpretation des pictogrammes / Descripción de los pictogramas / Descrierea pictogramelor / Omschrijving van de gebruikte pictogrammen / Beschreibung der verwendeten Piktogramme

Nakaz: przeczytaj instrukcję obsługi / Příkaz: přečtěte návod k obsluze / Príkaz: oboznámte sa s užívateľskou príručkou / Privaloma: perskaitykite aptarnavimo instrukciją / Norádíjums: rúpīgi iepazistieties ar lietotāja rokasgrāmatā sniegto informāciju / Utasītás: olvassa el az útmutatót / Ordre; avant l'usage lire le mode d'emploi / Indicación: leer el manual de instrucciones / Obilgatoriu: citiți manualul de utilizare / Bevel: lees de gebruiksaanwijzing / Gebot: die Bedienungsanleitung lesen

Nakaz: stosować rękawice ochronne / príkaz: používejte ochranné rukavice / príkaz: používajte ochranné rukavice / privaloma: naudoti apsauginius akinius / pieprasíjums: iletot aizsardzības cimdus / utasítás: használjon védőkesztýt / ordre: utiliser les gants de protection / indicación: usar los guantes de protección / obligatoriu: purtați manuși de protectie / bevel: gebruik beschemende handschoenen / gebot: schutzhandschuhe sind zu benutzen

Nakaz: używać ochronników sluchu / používejte ochranu sluchu / používajte chrániče sluchu / privaloma: naudoti apsauginius akinius / lietojet dzirdes aizsardzības fīdzekļus / utasitās: használjon fūlvédōt / ordre: utiliser la protection de l'ouīe / usar protección para los oldos / trebuie să folosi-ṭi aparate pentru protecția auzului / gehoorbescherming gebruiken / der gehörschutz ist zu benutzen

Nakaz: stosować okulary ochronne / prífkaz: používejte ochranné bryle / prífkaz: používajte ochranné okuliare / privaloma: naudoti apsauginius akinius / norādījums: nēsājiet aizsargacenes / utasitās: viseljen védőszemüveget / ordre: utiliser les lunettes de protection / indicación: usar las gafas de protección / obligatoriu: folosiṭi ochelari de protecție / bevel: draag veiligheidsbril / gebot: schutzbrille tragen

Nakaz: stosować obuwle przeclwpoślizgowe / Povinnost: noste protiskluzovou obuv/ Príkaz: používajte protišmykovú obuv/ Privaloma: avěti batus neslidžiu padu/ Pavěle: valkājiet neslīdošus apavus/ Utasítás: használjon csúszásgátló cipôt/ Ordin: Purtați încăltăminte antiderapantă/ Gebot: rutschhemmende Schuhe verwenden.
