PILOT S10 - Dash cam Niceboy - Free user manual and instructions

Product Type	Rear Camera Add-on
Brand	Niceboy
Model	PILOT S10 Rear Cam
Resolution	1080p at 24fps
Dimensions	55 x 37 x 29 mm
Power Source	Powered by main camera via cable
Installation	Adhesive mount on inner glass; clean and degrease surface; install at ~20°C
Connection	Connects to main camera via included cable
Function	Records rear view; starts automatically when connected
Angle Adjustment	Rotatable part for lens angle
Mounting	3M adhesive sticker (permanent)
Package Contents	Rear camera with holder, cable
Compliance	EU directives 2014/53/EU, 2014/30/EU, 2014/35/EU, 2011/65/EU
Compatibility	Designed exclusively for Niceboy PILOT S10 dash cam
Maintenance	Clean lens with soft, dry cloth; keep adhesive area clean
Safety	Do not attach to heated rear glass; ensure secure mounting
Operating Temperature	Recommended installation around 20°C
Color	Black (typical)

Frequently Asked Questions - PILOT S10 Niceboy

How do I install the rear camera?

Clean the inner glass thoroughly with a degreaser and let it dry. Attach the adhesive part (A) to the glass at around 20°C. Use the rotating part (C) to adjust the lens angle. Connect the cable (D) to the input (3) on the main PILOT S10 camera.

Does the rear camera require a separate power source?

No, it is powered directly by the main Niceboy PILOT S10 camera via the connecting cable. It turns on automatically once connected.

What is the video resolution of the rear camera?

It records at 1080p resolution with 24 frames per second.

Can the rear camera be used without the main dash cam?

No, the rear camera is only functional when connected to the NICEBOY PILOT S10 main camera.

How do I clean the rear camera lens?

Use a soft, lint-free cloth to gently wipe the lens. Avoid using abrasive cleaners that could scratch the surface.

Is the rear camera waterproof?

It is designed for indoor use inside the car, attached to the inner glass. It is not waterproof and should not be exposed to moisture.

Does the rear camera record audio?

The manual does not specify audio recording. Typically, rear cameras may not include a microphone; check the main camera specifications.

How can I adjust the viewing angle of the rear camera?

Use the rotating part (C) on the camera mount to tilt the lens up or down for the desired field of view.

What is included in the package of the rear camera?

The package contains the rear camera with its holder, and a cable for connection to the main camera.

Where can I download the user manual for the rear camera?

The manual is available for free on notice-facile.com or from the official Niceboy website at https://niceboy.eu/en/declaration/pilot-s10-rear-cam.

USER MANUAL PILOT S10 Niceboy

User Manual / Rear Cam

https://niceboy.eu/cs/declaration/pilot-s10-rear-cam

INFORMACE PRO UŽIVATELE K LIKVIDACI ELEKTRICKÝCH A ELEKTRONICKÝCH ZAŘÍZENÍ (DOMÁCNOSTI)

The rear camera is intended for connection with the NICEBOY PILOT S10 camera. The rear camera is intended for attachment to the inner part of the car glass. Attach it using the Adhesive Part (A). The 3M sticker is used for permanent attachment (after removing and re-sticking, it will no longer hold perfectly). Adjust the angle of the camera (for the correct shot of the lens) using the rotating part (C).

Glue the holder only to the inner part of the glass. Before sticking, clean the glass properly (degrease), the glass must be completely dry. Install at temperatures around 20°C. If the rear glass is heated, make sure you glue the camera mount outside of this heated part.

Connect the rear camera using the cable (D) to the input (3) on the Niceboy PILOT S10 camera. The rear camera does not need to be turned on after connecting to the Niceboy PILOT S10 camera. The rear camera is powered by the main camera, it starts automatically after connecting and starts recording. The camera is only functional when connected to the NICEBOY PILOT S10 camera

SPECIFICATIONS

Resolution: 1080p 24fps

Dimensions: 55 x 37 x 29 mm

PACKAGE CONTENTS

Rear camera with holder, cable

NICEBOY s.r.o. hereby declares that the type of radio equipment NICEBOY PILOT S10 REAR CAM complies with Directives 2014/53 / EU, 2014/30 / EU, 2014/35 / EU, and 2011/65 / EU. The full content of EU Declaration of Conformity is available on the following websites: https://niceboy.eu/en/declaration/pilot-s10-rear-cam

USER INFORMATION FOR DISPOSING ELECTRICAL AND ELECTRONIC DEVICES (HOME USE)

This symbol located on a product or in the product's original documentation means that the used electrical or electronic products may not be disposed together with the communal waste. In order to dispose of these products correctly, take them to a designated collection site, where they will be accepted for free. By disposing of a product in this way, you are helping to protect precious natural resources and helping to prevent any potential negative impacts on the environment and human health, which could be the result of incorrect waste disposal. You may receive more detailed information from your local authority or nearest collection site. According to national regulations, fines may also be given out to anyone who disposes of this type of waste incorrectly.

User information for disposing electrical and electronic devices (business and corporate use)

In order to correctly dispose of electrical and electronic devices for business and corporate use, refer to the product's manufacturer or importer. They will provide you with information regarding all disposal methods and, according to the date stated on the electrical or electronic device on the market, they will tell you who is responsible for financing the disposal of this electrical or electronic device. Information regarding disposal processes in other countries outside the EU. The symbol displayed above is only valid for countries within the European Union. For the correct disposal of electrical and electronic devices, request the relevant information from your local authorities or the device seller.

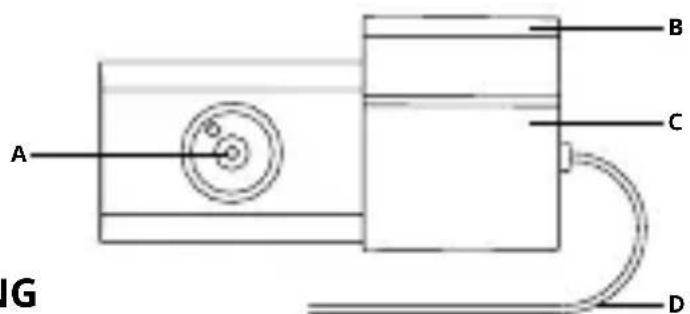

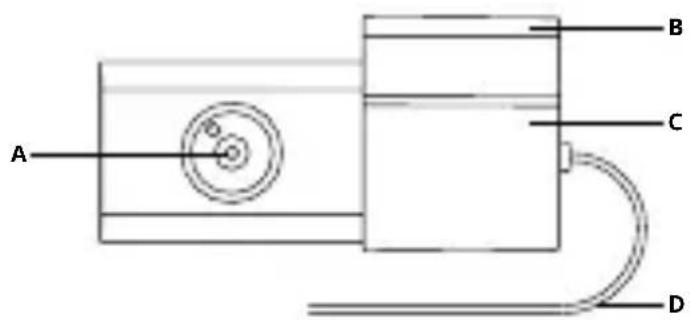

BESCHREIBUNG

A) Linse

B) Klebeteil

C) Rotierender Teil

D) Kabel

https://niceboy.eu/pl/declaration/pilot-s10-rear-cam

INFORMACJA DLA UŻYTKOWNIKÓW DO- TYCZĄCA UTYLIZACJI SPRZĘTU ELEKTRYCZNE- GO I EŁEKTRONICZNEGO (GOSPODARSTWA DOMOWE)

https://niceboy.eu/sl/declaration/pilot-s10-rear-cam

INFORMACIJE ZA UPORABNIKE GLEDE OD-STRANJEVANJA ELEKTRIČNE IN ELEKTRONSKE OPREME (GOSPODINJSTVA)

https://niceboy.eu/ro/declaration/pilot-s10-rear-cam

INFORMATII PENTRU UTILIZATORI PRIVIND LICHIDAREA ECHIPAMENTELOR ELECTRICE ŞI ELECTRONICE (GOSPODĂRII)
