Product Type	Fridge-freezer (Refrigerator with freezer compartment)
Dimensions (H x W x D)	1860 x 635 x 685 mm (height x width x depth)
Climate Class	SN (10°C to 32°C), N (16°C to 32°C), ST (16°C to 38°C), T (16°C to 43°C)
Refrigerant	R600a (isobutane)
Energy Label	EU 2019/2016 – see QR code on appliance
Freezer Star Rating	*** (suitable for freezing fresh food)

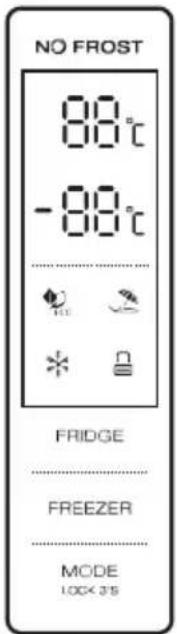

Temperature Control	Electronic with LED display; fridge 2°C–8°C, freezer -14°C to -22°C
Defrost Type	No Frost (automatic)
Modes	ECO, Holiday, Super, User Defined
Door Alarm	Audible if fridge door left open for 90 seconds
Lock Function	Control panel automatically locks after 25 seconds; manual unlock via MODE button
Adjustable Shelves	Yes, movable shelves in refrigerator compartment
Door Balconies	Adjustable height for storing various packages
Fresh Zone	Adjustable temperature knob for crisper or short-term fresh food storage
Ice Cube Tray	Included (or one or more ice cube trays)
Cleaning	Use lukewarm water and neutral soap; no abrasive cleaners. Drain examination recommended.
Safety Features	Child lock, flammable refrigerant warning, earthing required
Warranty	Minimum 2 years (EU); see terms for your country
Spare Parts Availability	Functional spare parts available for at least 4 years after market placement
Power Supply	220-240 V, 50 Hz (typical for EU)

Frequently Asked Questions - RCNF320D Romo

How do I set the temperature on my Romo RCNF320D?

Use the control panel. For fridge, press the Fridge Temperature button repeatedly to cycle through 2°C to 8°C. For freezer, press the Freezer Temperature button to adjust from -14°C to -22°C. The selection is confirmed after 5 seconds of flashing.

What should I do if the door alarm sounds?

The door alarm sounds when the fridge door has been left open for 90 seconds. Simply close the door to stop the alarm. The alarm helps prevent food spoilage and energy waste.

How do I activate Holiday Mode?

Press the MODE button repeatedly until the Holiday icon flashes, then wait 5 seconds for it to stay lit. In Holiday Mode, the fridge temperature is set to 17°C to save energy while the freezer continues to operate normally. Exit by pressing MODE.

What is Super Mode and when should I use it?

Super Mode quickly freezes large amounts of fresh food. The freezer runs at maximum power for 50 hours and then automatically returns to previous settings. Activate it 24 hours before adding a large load. Note that the appliance may be slightly noisier during this mode.

How do I clean and defrost the appliance?

This model is No Frost, so it defrosts automatically. For cleaning, disconnect power, remove food, and wipe interior with lukewarm water and neutral soap. Avoid abrasive cleaners. Dry thoroughly before restarting. Clean the drain regularly to prevent water buildup.

What should I do if the appliance is not cooling enough?

Check that the door is fully closed and not opened frequently. Ensure the temperature settings are not too warm. Allow 24 hours after adding large amounts of warm food. If problem persists, check if the condenser (rear) is dusty and clean if needed. If still not working, contact service.

How can I save energy with the Romo RCNF320D?

Keep doors closed and open them only when necessary. Allow hot food to cool before placing inside. Do not overfill or block air vents. Use ECO Mode for optimal energy efficiency. Keep the appliance away from heat sources and ensure proper ventilation around it.

Can I freeze fresh food in the freezer compartment?

Yes, the freezer has a *** (three-star) compartment suitable for freezing fresh food. The maximum amount you can freeze in 24 hours is indicated on the rating plate. For best results, use Super Mode 24 hours before adding fresh food and avoid overloading.

How do I level the refrigerator?

Adjust the two levelling feet at the front of the appliance. Turn them to raise or lower the front until the appliance is stable and level. This ensures proper door alignment and magnetic seal.

What does the lock/unlock function do?

The control panel automatically locks 25 seconds after the last button press to prevent accidental changes. To manually lock or unlock, press and hold the MODE button for 3 seconds until the lock icon changes. In unlock mode, all buttons are active.

USER MANUAL RCNF320D Romo

Black right-pointing arrow symbol inside a circle (no text or numbers)

Romo

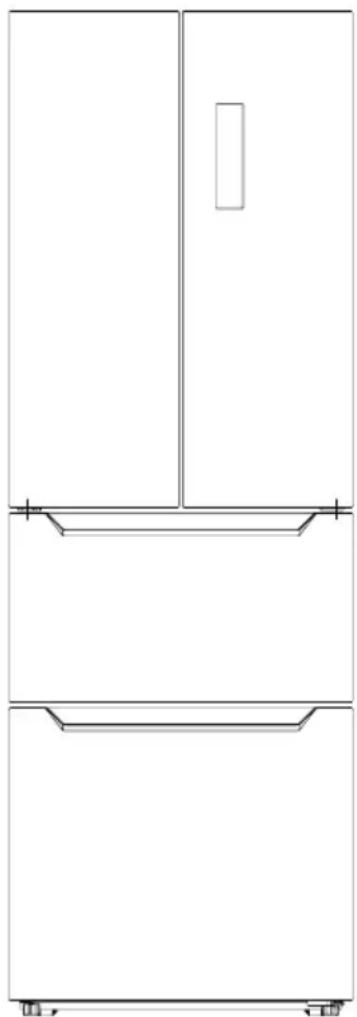

Chladnička s mrazničkou RCNF320D

Pure technical line drawing of a cabinet or enclosure structure without any text, numbers, or symbols

Návod k použití

DŮLEŽITÉ BEZPEČNOSTNÍ INFORMACE

RCNF320D - URL: https://eprel.ec.europa.eu/qr/1395322

A	635
B	685
C	1860
D	min=50
E	min=50
F	min=50
G	1270
H	1370
L	135e

Umístění

Line drawing of a hand placing a rectangular object on a shelf (no text or symbols)

Diagram of a container with two upward-pointing arrows indicating flow or movement (no text or symbols)

Black right-pointing arrow symbol inside a circle (no text or numbers)

Romo

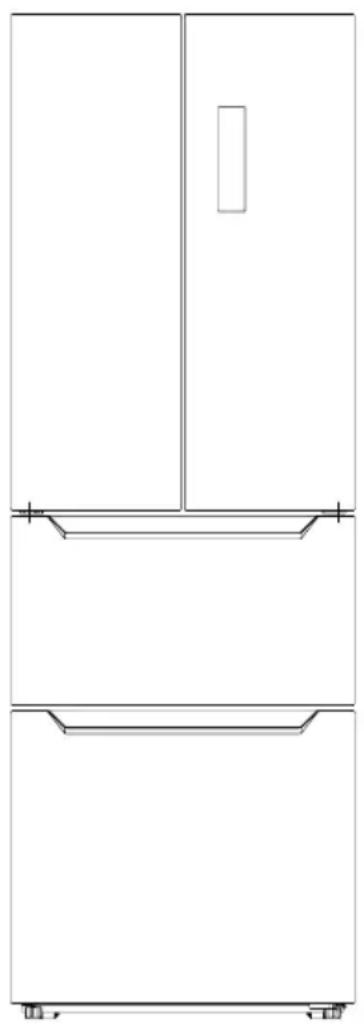

Chladnička s mrazničkou RCNF320D

Pure technical line drawing of a refrigerator or oven unit with no text, numbers, or symbols

Návod na použitie

DÔLEŽITÉ BEZPEČNOSTNÉ INFORMÁCIE

A	635
B	685
C	1860
D	min=50
E	min=50
F	min=50
G	1270
H	1370
L	135e

Vyrovnanie spotrebiča

Umiestnenie

Tento spotrebič inštalujte na mieste, kde okolitá teplota zodpovedá klimatickej triede uvedenej na typovom štítku spotrebiča:

pre chladiace zariadenia s klimatickou triedou:

Line drawing of a hand installing or adjusting a wooden shelf panel (no text or symbols)

Simple diagram of a container with two upward arrows inside, no text or symbols present

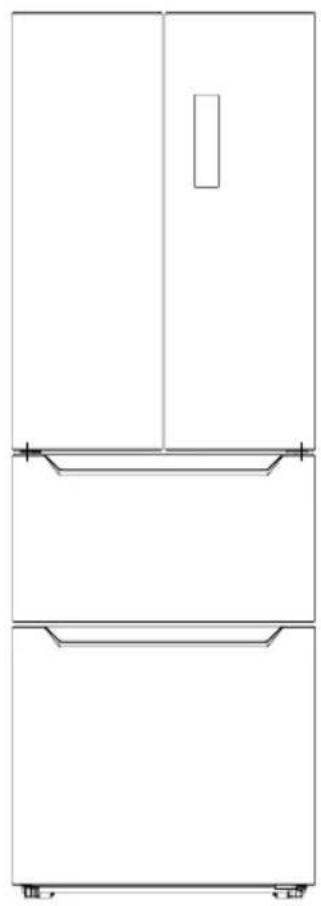

Refrigerator and Freezer RCNF320D

Line drawing of a double door with front panel and side panels (no text or symbols)

Instruction Manual

Please read the following instructions carefully before using this device. Please retain these instructions for future reference.

Important Safety information

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction

concerning use of the appliance in a safe way and understand the hazards involved.

• Children aged from 3 to 8 years are allowed to load and unload this appliance.

- Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

- Keep all packaging well away from children. There is risk of suffocation.

- If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

- If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.
• Do not touch the light bulb if it has been on for a long period of time because it could be very hot.

When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING! Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R- 600a) is contained within the refrigerant circuit

of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
• avoid open flames and sources of ignition
• thoroughly ventilate the room in which the appliance is situated
• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.
• This appliance is intended to be used in household and similar applications such as - staff kitchen areas in shops, offices and other working environments; - farm houses and by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; - catering and similar non-retail applications.
  Any electrical components (plug, power cord, compressor and etc.) must be

replaced by a certified service agent or qualified service personnel.

The light bulb supplied with this appliance is a "special use lamp bulb" usable only with the appliance supplied. This "special use lamp" is not usable for domestic lighting.

• Power cord must not be lengthened.
- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
- Make sure that you can come to the mains plug of the appliance.
- Do not pull the mains cable.
- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
- You must not operate the appliance without the lamp.
- This appliance is heavy. Care should be taken when moving it.
- Do not remove nor touch items from the

freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

- Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

• Do not put hot on the plastic parts in the appliance.
• Do not place food products directly against the rear wall.
• Frozen food must not be re- frozen once it been thawed out.
• Store pre-packed frozen food in accordance with the frozen food manufacture-s instructions.
• Appliances manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.

Food	Storage time
Bacon, casseroles, milk	1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish	2 months
Non-oily fish, shellfish, pizza, scones and muffins	3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw),pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

• Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.
  • To avoid contamination of food, please respect the following instructions
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48h; flush the water system

connected to a water supply if water has not been drawn for 5 days.

• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
• One- two- and three -star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food.
• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.

Food	Storage period
Butter	90 days
Hard cheese	110 days
Milk	7 days
Sausage, cold meats	9 days
Meat	7 days

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain.
  If the drain is blocked, water will collect in the bottom of the appliance.

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

- Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain

packing.

- It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.

- Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation.

- Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, con-denser) to prevent possible burn.

- The appliance must not be located close to radiators or cookers.

- Make sure that the mains plug is accessible after the installation of the appliance.

Service

- Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or

competent person.

- This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energy saving

• Don't put hot food in the appliance;
• Don't pack food close together as this prevents air circulating;
• Make sure food don't touch the back of the compartment(s);

If electricity goes off, don't open the door(s);

• Don't open the door(s) frequently.
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures;
• All accessories, such as drawers, shelves balconies, should be kept there for lower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in

either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger. The materials used on this appliance marked by the symbol are recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product,

please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

The materials with the symbol are recyclable. Dispose the packaging in a suitable collection container to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket. 2. Cut off the mains cable and discard it.

WARNING! During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color. It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

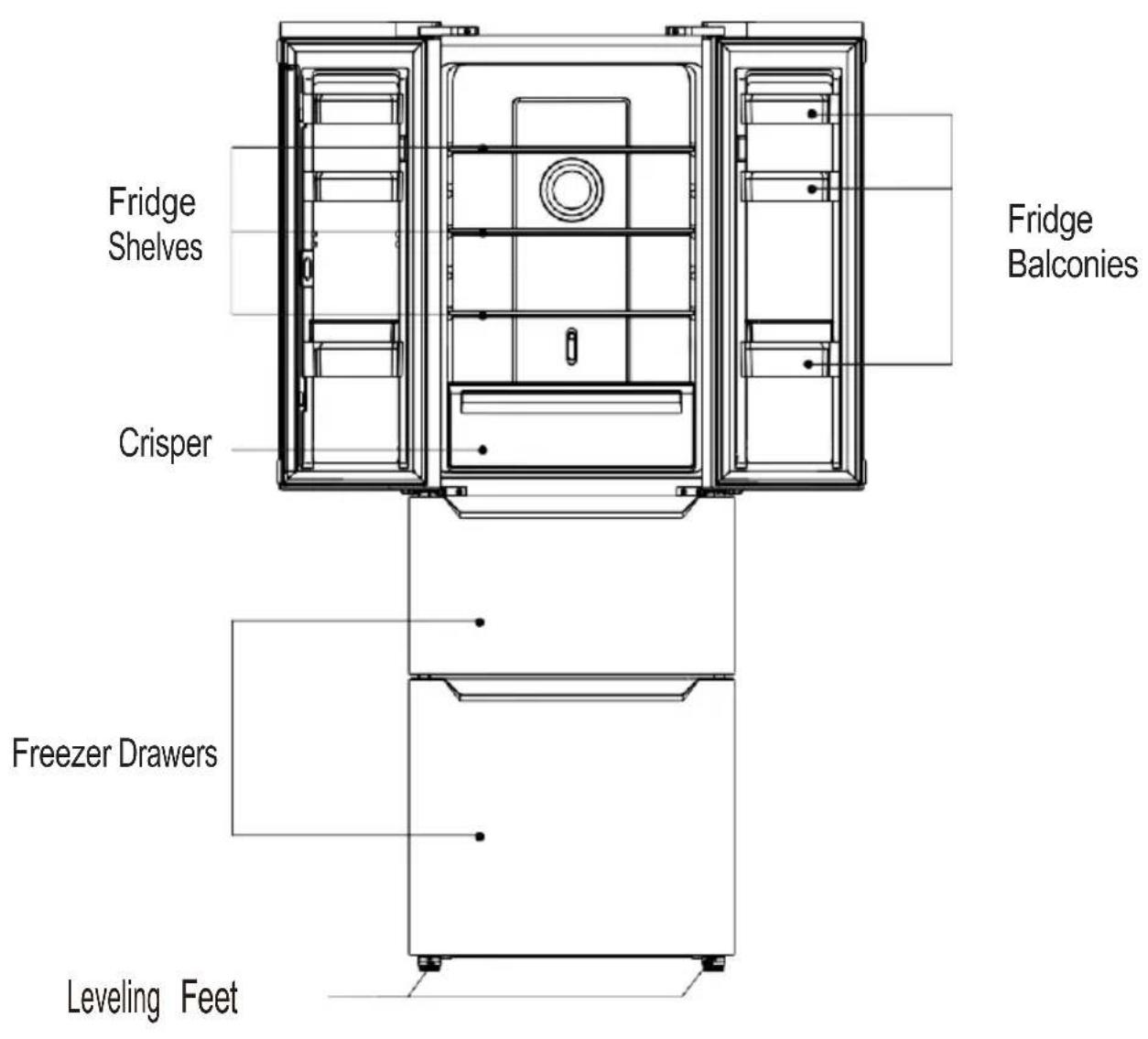

Overview

This illustration is only for hinting, the detail please check your appliance.

Installation

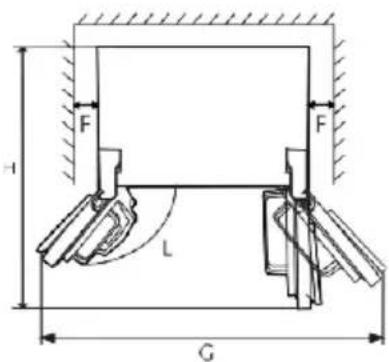

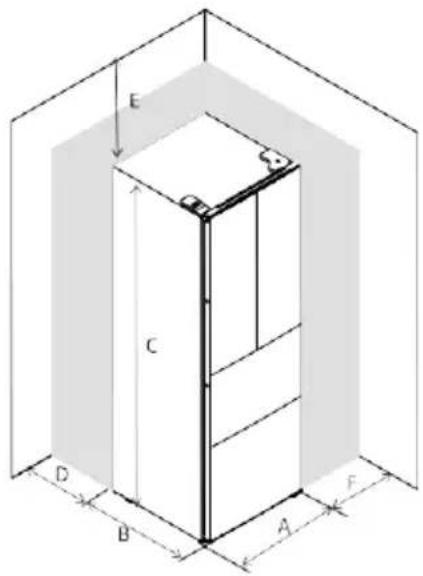

Space Requirement

• Keep enough space of door open.
• Keep at least 50mm gap at two sides and back.

A	635
B	685
C	1860
D	min=50
E	min=50
F	min=50
G	1270
H	1370
L	135e

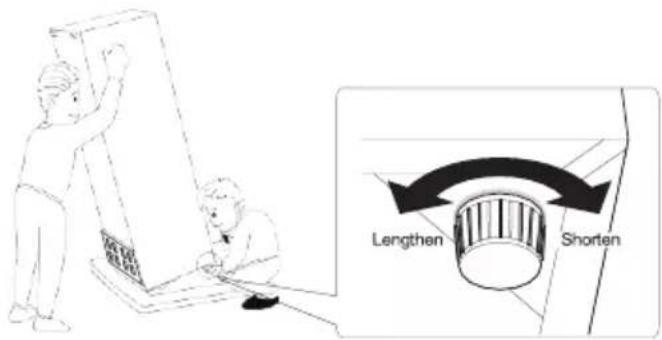

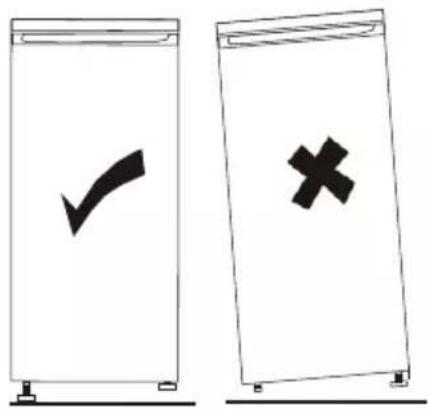

Levelling the unit

To do this adjust the two levelling feet at front of the unit.

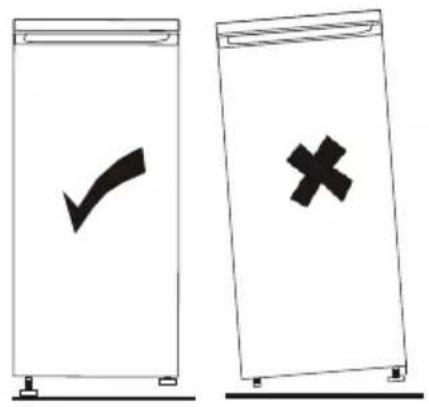

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

for refrigerating appliances with climate class:

• extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C; (SN)
• temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C;(N)
• subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C;(ST)
• tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C; (T)

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabi-net and the wall unit must be at least 50 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

This refrigerating appliance is not intended to be used as a built-in appliance;

Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives.

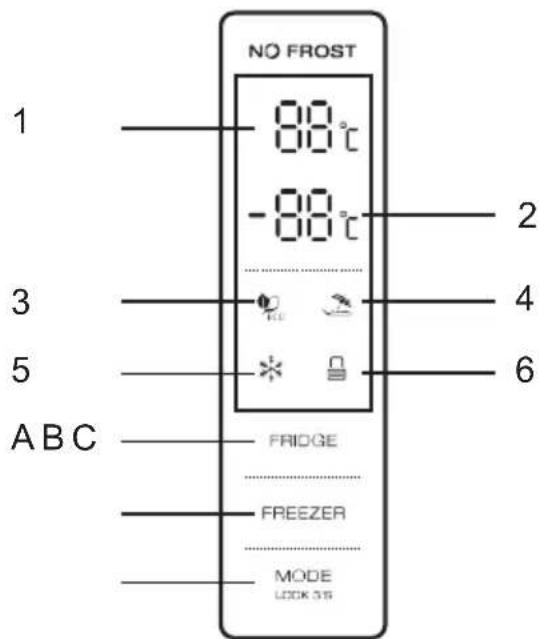

Using the Control Panel

A. Temperature Control of Fridge Compartment
B. Temperature Control of Freezer Compartment
C. Mode/ Locking / Unlocking

1.2 LED DISPLAY

1. Temperature of Fridge Compartment
2. Temperature of Freezer Compartment
3. ECO Mode
4. Holiday Mode
5. Super Mode
6. Locking / Unlocking

a. The control panel is 100 % lit up for 3 seconds, which operates exactly as per the setting (mode and temperature) before the power off. The system will be automatically locked 25 seconds after the last button operation. After locking, the light of the panel would be out 2 minutes after the last button operation.
b. Both preset temperatures of fridge compartment and freezer compartment would be shown on the display.

2.1 DISPLAY

2.1.1 The panel will be lit up for 2 minutes once the door of fridge compartment is opened.

2.1.2 The panel will be lit up by any button operation whereas the light would be out 2 minutes after the last operation.

2.1.3 Display during normal operation Temperature Display of the Fridge Compartment: Indicating the temperature of the current setting. Temperature Display of the Freezer Compartment: Indicating the temperature of the current setting.

3.0 ILLUSTION OF THE BUTTON

3.1 Temperature Control of the Fridge Compartment

Temperature Control of the Fridge Compartment:

This button is workable both in User Defined Mode as well as Super Mode. After entering the temperature control of the fridge compartment, this button flashes.

By touching the key consecutively, the temperature would change in a circle of “2°C, 3°C, 4°C, 5°C, 6°C, 7°C, 8°C, after which 5-second flashing means the selection of temperature is settled.

3.2 Temperature Control of the Freezer Compartment

This button is workable both in User Defined Mode as well as Holiday Mode. After entering the temperature control of the freezer compartment, the button flashes.

By touching the button consecutively, the temperature would change in a circle from -14^ to -22^ , after which a 5-second flashing means the selection of temperature is settled.

3.3 Mode

By touching this button consecutively, the operation mode of the refrigerator will change in a

circle of "ECO Mode-Holiday Mode-Super Mode-User Defined Mode. A 5-second flashing means the selection of temperature is settled.

3.4 Press Button

Short beep after per press button

All buttons will only valid under unlock mode.

3.5 Lock / Unlock

Press MODE button and hold for 3 seconds to lock other two buttons, then the

LOCK icon will be at lock situation after a beep.

To unlock, press MODE button and hold for 3 seconds, then LOCK icon will be at unlock situation after a beep. In unlock situation, all buttons are workable.

If no any operation in 25 seconds, the display will be locked automatically. Keep press "MODE" button to unlock the display.

4.0 ECO mode

Press MODE bottom to choose ECO mode. After 5 seconds of flash, ECO icon will keep bright and ECO mode is confirmed.

In ECO mode, the refrigerator will automatically set temperature. Except MODE button, other buttons will not response any press.

Press MODE button to exit ECO mode.

4.1 Holiday Mode

Press MODE button to choose Holiday mode. After 5 seconds of flash, Holiday mode icon will keep bright and Holiday mode is confirmed.

In Holiday mode, temperature of fridge will be set at 17^ C. “FRIDGE” button will not response any press.

Press "MODE" button to exit Holiday mode.

4.2 Super mode

Press MODE button to select Super mode. And it will be confirmed after 5 seconds of flash of Super icon.

In Super mode, "FREEZER" button will not response any press. To exit Super mode,

- Adjust mode by MODE button,

- Or after 50 hours of Super mode, the refrigerator will automatically stop it and enter to previous setting.

Helpful hint:

If you plan to freeze a large number food in one time, please set Super mode 24 hours ahead.

Warning:

In Super mode, the refrigerator will work hard. So the noise of refrigerator will be slightly higher than normal running.

5.0 Door Open Alarm

If fridge (upper) door keeps open for 90 seconds, periodical alarm will be arisen until the door is closed.

First use

Cleaning the interior

Before using the appliance for the first time wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Daily use

Position different food in different compartments according to be below table

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	·Foods with natural preservatives, such as jams, juices, drinks, condiments.·Do not store perishable foods.
Crisper drawer (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the crisper bin.·Do not store bananas, onions, potatoes, garlic in the refrigerator
Fridge shelf – middle	·Dairy products, eggs
Fridge shelf – top	·Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer(s)/shelf	·Foods for long-term storage.·Bottom drawer/shelf for raw meat, poultry, fish.·Middle drawer/shelf for frozen vegetables, chips.·Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.

COMPARTMENTS	STARS(*)	TARGET STORAGE TEMPERATURE	SUITABLE FOOD
FREEZER	(***)*	≤ -18 °C	Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.Recommended storage period: 3 monthsSuitable for freezing fresh food.
FREEZER	***	≤ -18 °C	Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.Recommended storage period: 3 monthsNot suitable for freezing fresh food.
FREEZER	**	≤ -12 °C	Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.Recommended storage period: 2 monthsNot suitable for freezing fresh food.
FREEZER	*	≤ -6 °C	Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.Recommended storage period: 1 monthNot suitable for freezing fresh food.
0* -COMPARTMENT	-	-6 °C - 0 °C	Suitable for fresh meat products (pork, beef, chicken, etc.) And processed food consumed or processed within the same day or within the next three days after storage (max).Not suitable for freezing food or for storing frozen food.

TECHNICAL SHEET ON ENERGY LABELING REGULATION: 2019/2016/EU

The product information sheet according to EU Regulation No. 2019/2016 Energy labeling of refrigerating appliances can be found under the URL or QR code given on the energy label

RCNF320D - URL: https://eprel.ec.europa.eu/qr/1395322

Relationship between the energy label 1060/2010/EU and the new energy label 2019/2016/EU

The current 1060/2010/EU label uses the A++ labeling system + / D , become less efficient. The mixed scale of the label with many "+" is no longer transparent and the majority of products are already in the first 2 to 3 classes today.

Therefore, the European Union has revised and optimized the label according to user needs. The new 2019/2016/EU energy label will only contain energy classes A to G. The class levels will be regularly updated.

Temperature setting recommendation

Temperature Setting Recommendation
Environment Temperature	Temperature Setting
Summer (Above 38°C)		Fridge set on 4°C
		Freezer set on -18°C
Normal		Fridge set on 4°C
		Freezer set on -18°C
Winter (Below 16°C)		Fridge set on 4°C
		Freezer set on -18°C

• Information above give users recommendation of temperature setting.

Impact on Food Storage

• Under Recommended setting, the best storage time of fridge is no more than 3 days.
• Under Recommended setting, the best storage time of freezer is no more than 1 month.
  • The best storage time may reduce under other settings.

Fresh Zone Temperature Control

• Temperature of the fresh can be adjusted according to the type of storage food.
• Push the knob upward from the bottom, temperature in the fresh zone will be gradually decreased.
• When the knob is placed at the "CRISPER" position, the fresh zone can be functioned as a crisper zone and maintain the appropriate temperature and humidity for fruits and vegetable.
• When the knob is placed at the top position, it is suitable for short-term storage of fish or other fresh food. The food will keep fresh but not frozen which makes it the best choice for storing fresh food.
• Tips: When the knob is placed at the top position, it is recommended to set the refrigerator temperature below 4^ C and preserved lead-time no more than 3 days, in order to keep the best freshness.

Freezing fresh food

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the freezer compartment.
• The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
• The freezing process lasts 24 hours) during this period do not add other food to be frozen.

Storing frozen food

When first starting-up or after a period out of use before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting for example the power has been off for longer than the value shown in the technical characteristics chart under rising time, the defrosted food must be consumed /quickly or cooked immediately and then re-frozen (after cooked).

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Ice-cube

This appliance may be equipped with one or more ice-cube to produce ice.

Accessories

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Hand placing a rectangular object on a shelf (no text or symbols visible)

Positioning the door balconies

To permit storage of food packages of various sizes, the door balconies can be placed at different heights. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free then reposition as required.

Simple line drawing of a container with two upward arrows inside (no text or symbols)

Helpful hints and tips

To help you make the most of the freezing process here are some important hints)

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top /quality fresh and thoroughly cleaned foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminum foil or polythene and make sure that the packages are airtight;

• do not allow fresh unfrozen food to touch food which is already frozen thus avoiding a rise in temperature of the latter;

• lean foods store better and longer than fatty ones; salt reduces the storage life of food;

• water ices, if consumed immediately after removal from the freezer compartment can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you removal from the freezer compartment can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance you should)

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
- be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;
- not open the door frequently or leave it open longer than absolutely necessary.
- once defrosted, food deteriorates rapidly and cannot be re-fro%en7
• do not exceed the storage period indicated by the food manufacture.

Hints for fresh food refrigeration

To obtain the best performance:

• Do not store warm food or evaporating liquids in the refrigerator
• Do cover or wrap the food particularly if it has a strong flavor
• Make (all types) wrap in polythene bags and place on the glass shelves above the vegetable drawer.
• For safety store in this way only one or two days at the most.
• Cooked foods cold dishes etc...: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
• butter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or polythene bags to exclude as much air as possible.
• Milk bottle: these should have a cap and should be stored in the balconies on the door.
• Bananas, potatoes onions and garlic if not packed must not be kept in the fridge.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical

shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner.

Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
  • After everything is dry place appliance back into service.

Defrost Description (No Frost)

It is a total no frost refrigerator-freezer which will be defrosted automatically.

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
Appliance does not work	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
Appliance freezes or cools too much	Temperature is set too cold or the appliance runs at SUPER modes.	Turn the temperature regulator to a warmer setting temporarily.
The food is not frozen enough.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Heavy build up of frost on the door seal.	Door seal is not airtight.	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Water on the floor	Water drain hole is blocked.	See the Cleaning and Care section.

If the malfunction shows again, contact the Service Center. These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the rating plate.

GUARANTEE

The warranty does not cover wear parts of the product, or problems or damage resulting from:

1. surface damage due to normal wear of the product;
2. defects or deterioration due to contact of the product with liquids and due to corrosion caused by rust or the presence of insects;
3. any incident, abuse, misuse, unauthorized modification, disassembly or repair;
4. any improper maintenance, use not in accordance with the product instructions or connection to an incorrect voltage;
5. any use of accessories not supplied or approved by the manufacturer.

The warranty will be void if the nameplate and/or serial number of the product is removed.

Product warranty and spare parts available

Under the terms of the manufacturer's warranty applicable to the location, the use of Customer Service is free. The minimum warranty period (manufacturer's warranty for private consumers) in the European Economic Area is 2 years depending on the warranty terms applicable at the location. The warranty terms do not affect any other rights or claims you may have under local law.

Detailed information on the warranty period and warranty conditions in your country is available from customer service, your dealer or our website.

Functional original spare parts according to the relevant eco-design directive can be obtained from customer service for a period of at least 4 years from the date of placing your device on the market in the European Economic Area.

Exclusive distributor of the Romo brand for the Czech Republic: ELMAX STORE, a.s.

Topolová 777/2, 735 42 Těrlicko, Czech Republic

Warranty and post-warranty service: phone: [phone]

Sales of spare parts: phone: [phone]

email: [e-mail] www.romocr.cz
