BH-042IN - Uncategorized Vivax - Free user manual and instructions

Product Type	Built-in Induction Hob
Model	BH-042IN
Brand	Vivax
Number of Cooking Zones	4 (including 1 flexible zone)
Power Supply	220-240V~ 50/60Hz or 380-415V 3N~ 50/60Hz
Total Installed Power	7000 W
Product Dimensions (WxDxH)	590 x 520 x 55 mm
Built-in Dimensions (WxD)	560 x 490 mm
Control Type	Touch controls with slider
Boost Function	Yes, up to 3500 W per zone
Timer	Yes, up to 99 minutes (minute minder and auto-off)
Flexible Area	Yes, can be used as one large zone or two separate zones
Power Management	5 levels (2.5 kW to 7.0 kW)
Pause Function	Yes
Key Lock	Yes, to prevent accidental use
Hot Surface Indicator	Yes, shows 'H' for hot zones
Safety Shut-off	Automatic after 2-8 hours depending on power level
Cookware Compatibility	Induction-compatible (magnetic base)
Cleaning	Use ceramic hob cleaner; avoid abrasives and steam cleaners

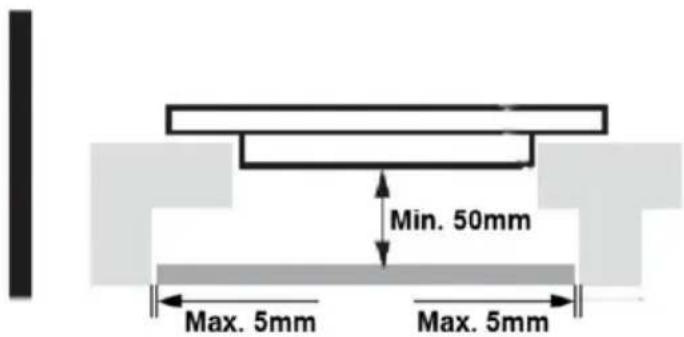

Installation	Recessed into worktop with minimum 50 mm clearance and 760 mm above

Frequently Asked Questions - BH-042IN Vivax

Can I use any cookware on this induction hob?

No, only cookware with a magnetic base is suitable. Check using a magnet: if it sticks, the pan is compatible. Avoid aluminum, copper, glass, ceramic, or pure stainless steel without magnetic base.

What do error codes like E1, E2 mean?

E1 indicates supply voltage too high, E2 too low. Check power source. Other codes: E3/E4 = ceramic sensor overheat, E5/E6 = IGBT overheat, F3-F8 = sensor failures. Refer to the troubleshooting table in the manual for detailed solutions.

How do I clean the glass top?

Use a dedicated ceramic hob cleaner. For everyday soiling, apply cleaner on warm (not hot) glass, wipe with soft cloth. For burnt spills, use a razor blade scraper at 30° angle. Avoid abrasive scourers and steam cleaners.

What are the minimum clearance requirements for installation?

The hob requires a minimum 50 mm clearance around the cutout, and at least 760 mm between the hob and any overhead cabinet. The worktop must be at least 30 mm thick and heat-resistant.

Can the timer be used to turn off a cooking zone automatically?

Yes. Select the cooking zone, press the timer control, set the desired time using the slider (up to 99 minutes). When time expires, that zone switches off automatically. You can also use it as a minute minder without turning off the zone.

What is the flexible area and how does it work?

The flexible zone can function as one large cooking zone (for big pots up to 280 mm diameter) or as two independent zones. To activate as big zone, touch the Flexible Area control. For two separate zones, place pans on the left and right sides of the flexible area.

Why does the display show 'u' and no heating?

'u' indicates no pan detected or unsuitable cookware. Ensure the pan is induction-compatible, correctly centred, and at least 12 cm in diameter. If problem persists, check the pan detection circuit may need service.

How do I lock the controls to prevent children from operating?

Touch and hold the lock button (image of padlock) for a few seconds. The display shows 'Lo'. To unlock, repeat the action. Note: the ON/OFF button still works even when locked for emergency shut-off.

What is the default auto shut-off time?

The hob automatically turns off after a set period if left unattended: power levels 1-4: 8 hours; levels 5-7: 4 hours; levels 8-9: 2 hours. This is a safety feature to prevent fire.

Can I use a steam cleaner for cleaning?

No. The manual explicitly warns against using steam cleaners for cleaning the hob, as they may damage the electronic components and glass surface.

USER MANUAL BH-042IN Vivax

Electrical circuit diagram with two circular components and a plus/minus symbols, no readable text or labels

Poštovani,

Pakiranje i ambalaža proizvoda (plastične vrećice, stiropor itd) ne smiju ostati unutar dosega djece, zato što su potencijalno opasni. Molimo odložite i pohranite pakiranje i ambalažu sukladno lokalnim propisima.

Warning symbol with exclamation mark inside a triangle (no text or numbers)

SIGURNOSNA UPOZORENJA.

hrana treba se ukloniti s površine uređaja ili poklopca prije otvaranja ili zatvaranja poklopca.

• Nemojte stavljati ili odlagati zapaljive ili eksplozivne tekućine u blizini uređaja. Uslijed zagrijavanja uređaja, može doći do deformacije bilo kojeg materijala i opasnosti od požara ili eksplozije, čak i ako vaša ploča nije u uporabi.
• Kruh se može zapaliti ako je vrijeme prženja ili pečenja predugo. Za vrijeme rada uređaja potreban je stalni nadzor.
• OPREZ: Proces pečenja ili kuhanja treba stalno nadzirati. Kratko kuhanje nadzirite stalno!
• Za čišćenje i održavanje, odspojite uređaj sa napajanja.
• UPOZORENJE: Prije čišćenja, održavanja, servisiranja ili pristupa električnim terminalima, obavezno odspojite ili isključite električno napajanje.
• UPOZORENJE: Kuhanje ili pečenje s masnoćom ili uljem može biti opasno i može dovesti do požara. Nikada nemojte hranu koja se prži ili peće ostavljati bez nadzora. Kratko pečenje ili kuhanje nadzirite neprestano.

NIKADA ne pokušavajte ugasiti vatru vodom. Prvo odspojite uređaj s napajanja i zatim pokrijte plamen, npr. s poklopcem, vatrogasnim pokrivačem ili vlažnom kuhinjskom krpom.

• UPOZORENJE: Opasnost od požara: nemojte čuvati ili ostavljati bilo kakve predmete na površinama za kuhanje.

• UPOZORENJE: Ako je površina uređaja oštećena ili napuknuta, odspojite uređaj s napajanja kako biste izbjegli mogućnost strujnog udara. Tada kontaktirajte ovlašteni servis.

• Ovaj uređaj nije namijenjen da se njime rukuje pomoću vanjskog tajmera ili odvojenog sustava daljinskog upravljanja.

• UPOZORENJE: Ovaj aparat nije namijenjen upotrebi osoba (uključujući djecu) sa smanjenim fizičkim, osjetilnim ili mentalnim sposobnostima ili nedostatkom iskustva i znanja, osim ako im je osoba koja je odgovorna za njihovu sigurnost dala nadzor ili uputu o sigurnoj uporabi uređaja.
• Djecu treba nadzirati kako bi se osiguralo da se ne igraju s uređajem.
• Nikada ne postavljajte praznu posudu na plamenik ili el. ploču koja radi.
• Nemojte stavljati na grijače površine metalne predmete kao što su noževi, vilice, žlice ili poklopce. Uslijed zagrijavanja oni mogu postati jako vruči.
• Staklokeramička ploča može se oštetiti ili razbiti ako na nju padnu teški predmeti. Ako se to dogodi, nemojte upotrebljavati uređaj. Odmah ga odspojite s napajanja i kontaktirajte ovlašteni servis.
• U slučaju potrebe ne pokušavajte sami popravljati uređaj već to prepustite ovlaštenom servisu. Kontaktirajte ovlašteni servis i inzistirajte na uporabi originalnih zamjenskih dijelova.

SMJEŠTAJ UREĐAJA

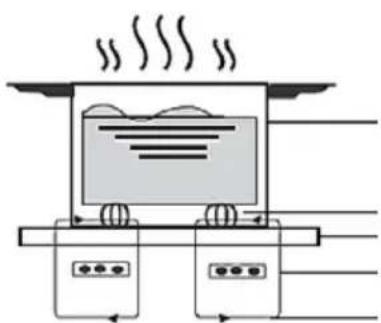

Diagram of a steam heating machine with cooling fans and heat dissipation lines (no text or symbols)

Metalna posuda
Magnetski krug Keramička staklena ploča Indukcijska zavojnica Inducirane struje

UPORABA PLOČE ZA KUHANJE

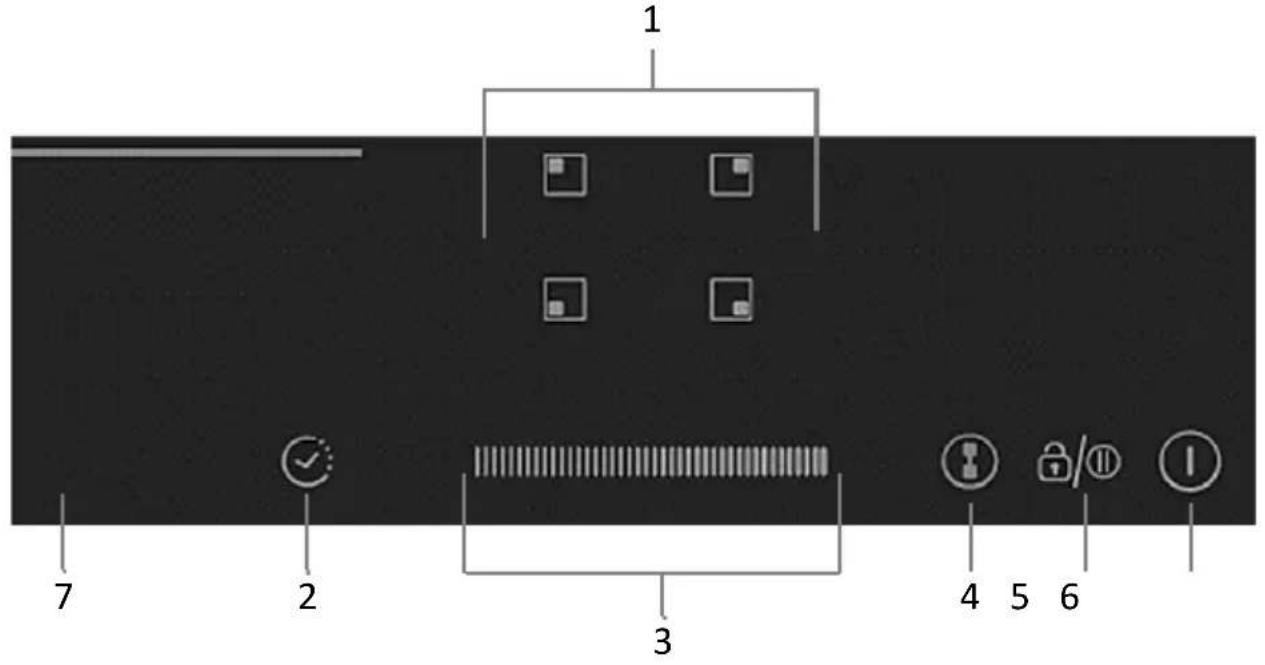

DODIRNE KONTROLE

- Kontrole reagiraju na dodir, te ih nije potrebno jako pritiskati.

- Za kontrolu koristite dio jagodice prsta, a ne njegov vrh.

- Svaki put kad se dodir registrira ćuti ćete zvučn i signal.

- Pazite da su komande uvijek čiste, suhe i da na njima nema predmeta (npr. Posuđa ili krpe). Čak i tanki film vode može otežati upravljanje komandama.

ODABIR ISPRAVNOG POSUĐA

UPOZORENJE

Koristite posuđe koje ima dno prilagođeno za indukcijsko kuhanje.

Potražite simbol za indukciju na dnu posuđa ili na pakiranju.

Simple line drawing of a cooking pot with a U-shaped tube attached to its side (no text or symbols)

- Ukoliko ne posjedujete magnet:

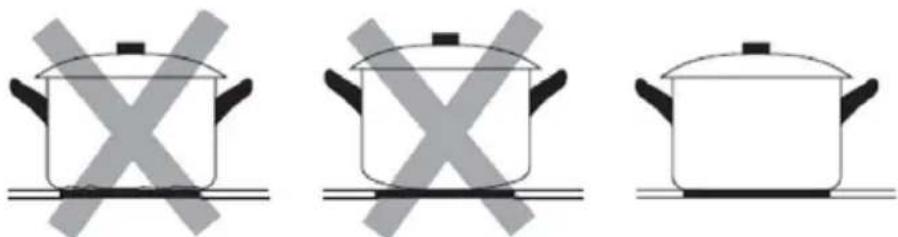

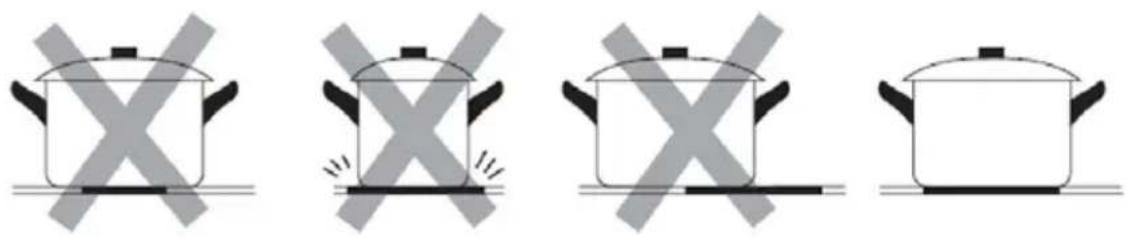

Three identical cooking pots with crossed-out X marks, placed on a flat surface (no text or symbols)

- Osigurajte da je dno posude glatko, da leži ravno uz staklo i da je iste veličine kao i zona za kuhanje. Posudu uvijek postavite u sredinu zone za kuhanje.

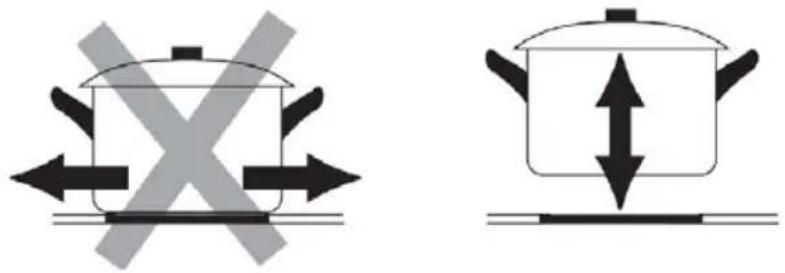

- Preporuka je da poude prilikom premještanja podignete vertikalno, nemojte ih vući po staklenoj ploči jer to može dovesti do ogrebotina i oštećenja stakla ploče.

Diagram of a cooking pot with crossed arrows indicating pressure or flow (no text or symbols)

Simple line drawing of a cooking pot with upward and downward arrows indicating direction (no text or symbols)

POČETAK KUHANJA

1. Za kuhanje na Dvostrukoj zoni, preporuka je uporaba slijedećeg posuđa:

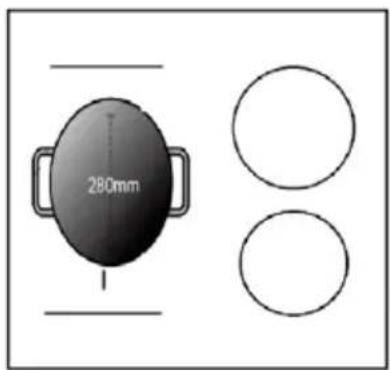

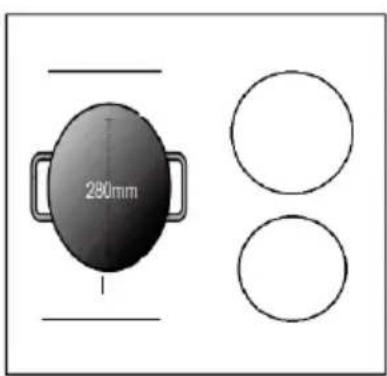

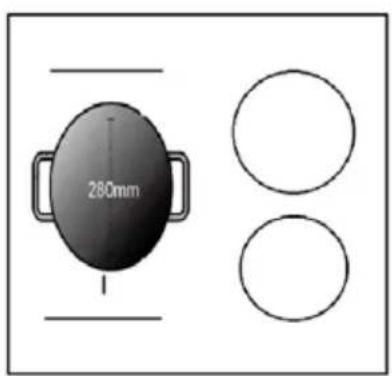

- Posuđe za kuhanje: posuđe promjera 250 mm ili 280 mm (prihvatljivo je kvadratno ili ovalno posuđe)

Simple diagram showing a rectangular object with a vertical line and two empty circles (no text or symbols)

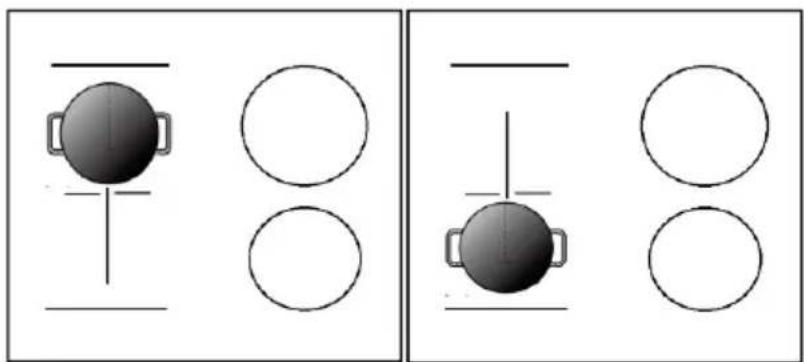

Two identical diagrams showing a central object with two handles, flanked by empty circles and horizontal lines, with no text or symbols present.

Simple diagram with two oval shapes and two empty circles, no text or symbols present

NAPOMENA:

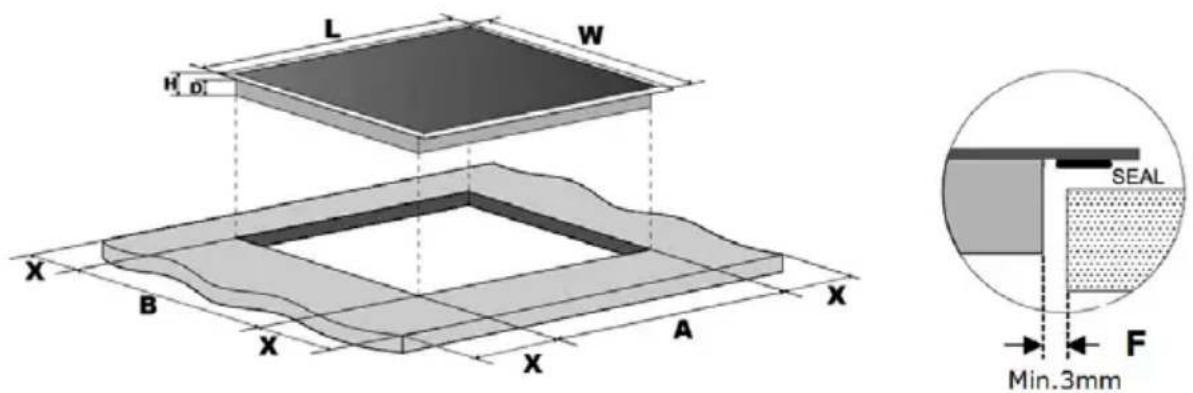

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)	F(mm)
590 52	0 60 56	560+4		+1	490+4 +1	50 mini	3 min.

Napomena: Sigurnosna udaljenost između ploče za kuhanje i ormara iznad ploče za kuhanje trebala bi biti najmanje 760mm.

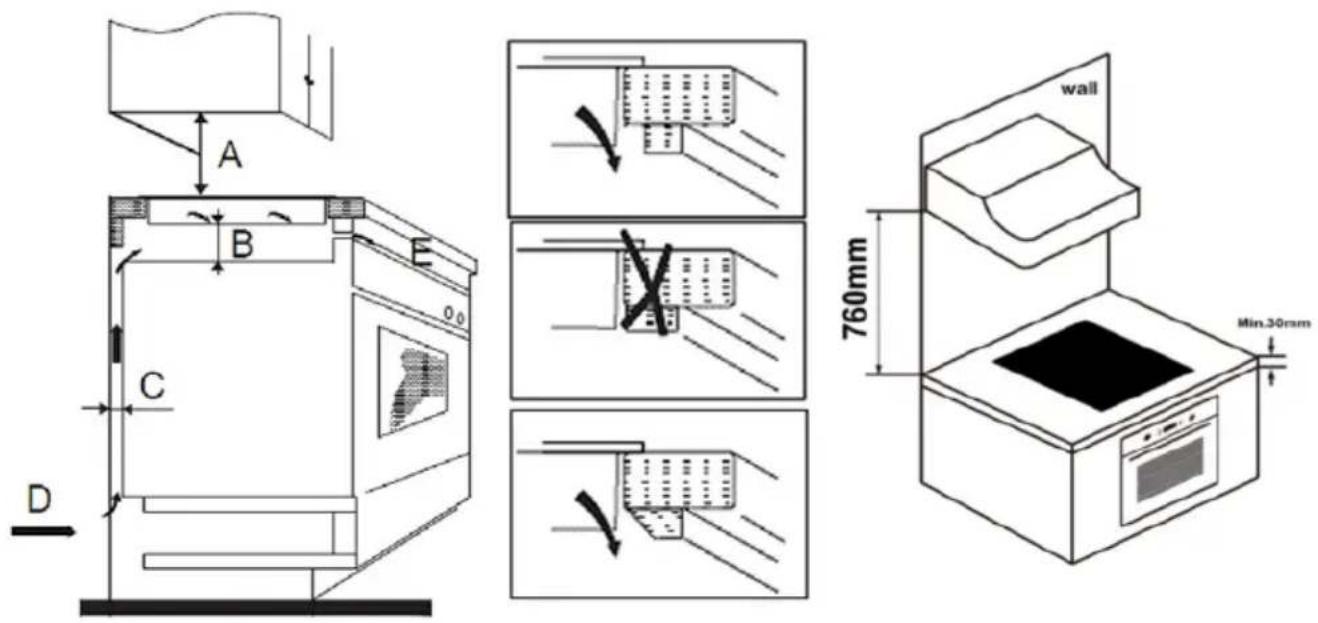

A (mm) B	(mm) C (mm)	D E

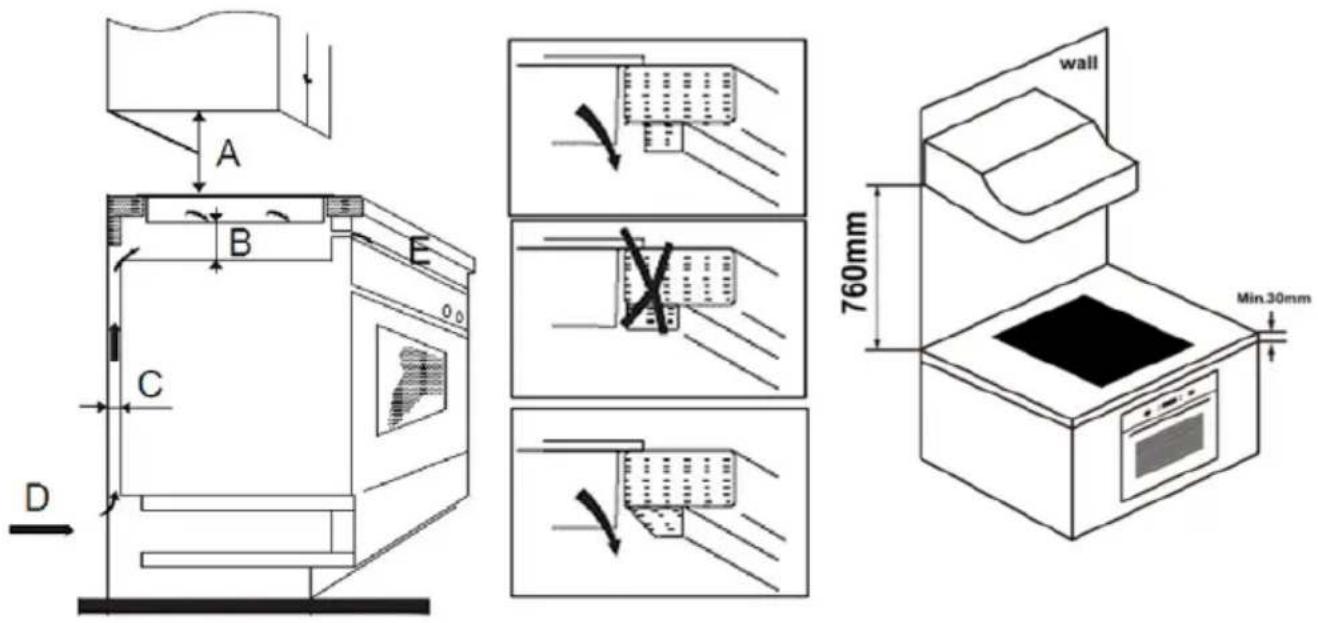

760 50	mini 20mini Air	intake Air exit	5 mm

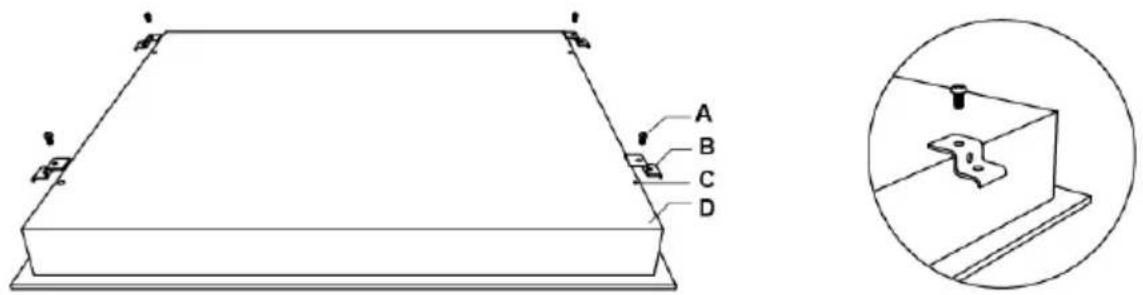

A B C D

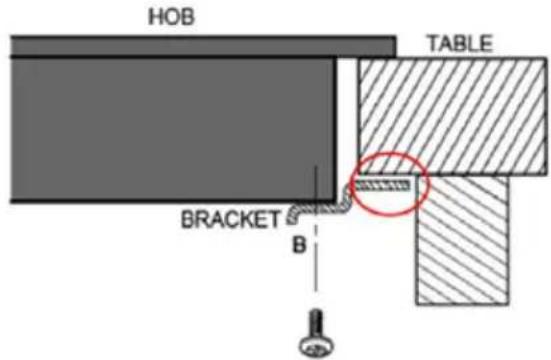

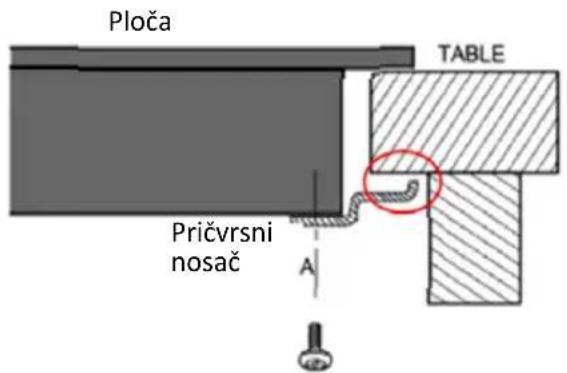

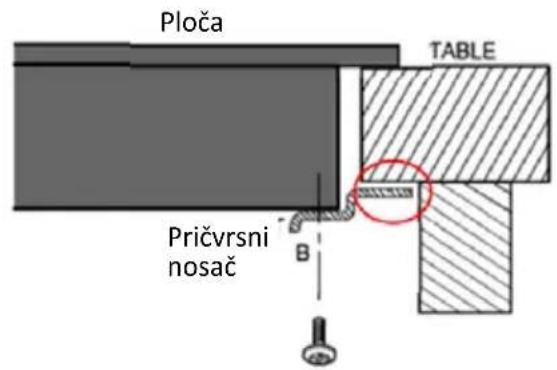

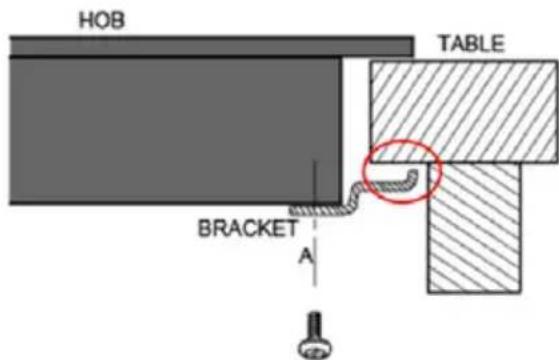

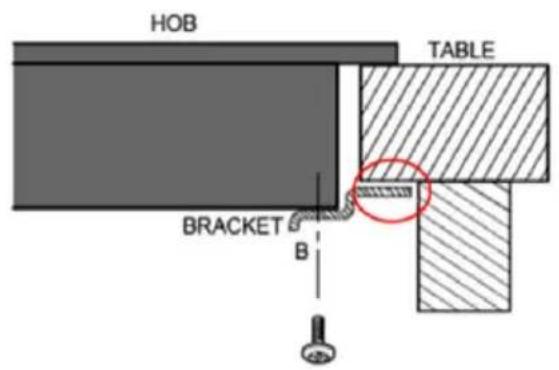

Vijak Pričvrsni nosač		Rupa za vijak	Baza

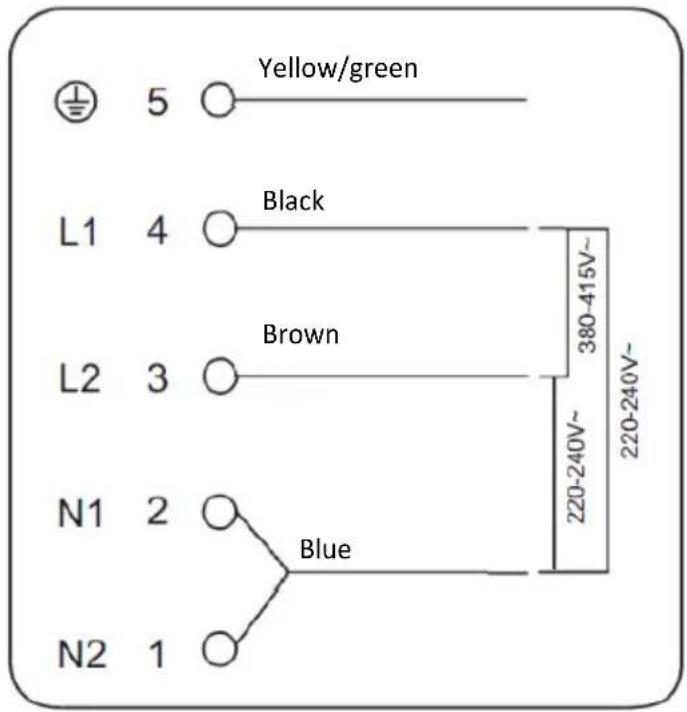

Electrical circuit diagram with two circular components and a plus/minus symbols, no readable text or labels

Poštovani,

Pakovanje i ambalaža proizvoda (plastične kese, stiropor itd) držite van domašaja dece zato što su potencijalno opasni.

Odložite pakovanje i ambalažu u skladu sa lokalnim propisima.

Warning symbol with exclamation mark inside a triangle (no text or numbers)

SIGURNOSNA UPOZORENJA.

- Nemojte koristiti abrazivna sredstva ili oštre metalne nožiće ili slično za čišćenje, jer na taj način možete nepovratno oštetiti površinu.

- Za čišćenje nije dozvoljena upotreba parnog čistača.

- Na el. ploču ne bi trebalo stavljati nestabilne ili deformisane posude kako ne bi došlo do njihovog prevrtanja, koje može prouzrokovati povrede.

- Ako je trenutni osigurač u vašoj električnoj instalaciji manji od 32A, kontaktirajte kvalifikovanog električara za promenu osigurača ili prilagođavanje električne instalacije (samo za modele s 4 grejne ploče).

treba se ukloniti s površine uređaja ili poklopca pre otvaranja ili zatvaranja poklopca.

- Nemojte stavljati ili odlagati zapaljive ili eksplozivne tećnosti u blizini uređaja. Usled zagrejavanja uređaja, može doći do deformacije bilo kojeg materijala i opasnosti od požara ili eksplozije, čak i ako vaša ploča nije u upotrebi.

- Hleb se može zapaliti ako je vreme pečenja predugo. Za vreme rada uređaja potreban je stalni nadzor.

- OPREZ: Proces pečenja ili kuvanja treba stalno nadzirati. Kratko kuvanje nadzirite stalno!

Diagram of a steam heating machine with cooling fans and heat dissipation lines (no text or symbols)

Metalna posuda
Magnetski krug Keramička staklena ploča Indukciona zavojnica Indukovane struje

UPOTREBA PLOČE ZA KUVANJE

KONTROLA DODIROM

Tasteri za kontrolu reaguju na dodir, pa ih nije potrebno jako pritiskati.

- Za kontrolu koristite deo jagodice prsta, a ne njegov vrh.

- Svaki put kad se dodir registruje ćete zvučni signal.

ODABIR ISPRAVNOG POSUĐA

UPOZORENJE

Simple line drawing of a cooking pot with a curved tube attached to its side (no text or symbols)

- Ako ne posedujete magnet:

1. Ulijte vodu u posudu.
2. Ako znak na ekranu ne trepće i voda u posudi se zagreva, posuda je prikladna za indukciono kuvanje.

Three identical cooking pots with crossed-out X marks on their bases, no text or symbols present.

- Osigurajte da je dno posude glatko, da leži ravno uz staklo i da je iste veličine kao i zona za kuvanje. Posudu uvijek postavite u sredinu zone za kuvanje.

- Preporuka je da posude prilikom premeštanja podignete vertikalno, nemojte ih vući po staklenoj ploči jer to može dovesti do ogrebotina i oštećenja stakla ploče.

POČETAK KUVANJA

Simple diagram showing a rectangular object with a vertical line and two empty circles (no text or symbols)

Two identical diagrams showing a central sphere with two handles, flanked by empty circles and horizontal lines (no text or symbols)

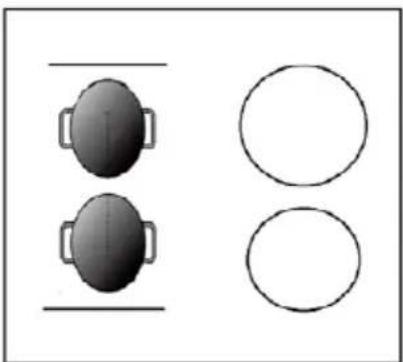

1. Stavite dve posude na obe strane dvostruke zone

Simple diagram with two oval shapes and two empty circles, no text or symbols present

NAPOMENA:

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)	F(mm)
590 52	0 60 56	560+4		+1	490+4 +1	50 mini	3 min.

Napomena: Sigurnosna udaljenost između ploče za kuvanje i ormara iznad ploče za kuvanje trebala bi biti najmanje 760mm.

A (mm) B	(mm) C (mm)	D E
760 50	mini 20mini Air	intake Air exit	5 mm

A B C D
Vijak Pričvrsni nosač		Rupa za vijak	Baza

Electrical circuit diagram with two circular components and a plus/minus symbols on a dark background (no readable text or labels)

Почитувани,

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Simple line drawing of a cooking pot with a curved handle (no text or symbols)

Three identical cooking pots with crossed-out X marks, placed on a flat surface (no text or symbols)

Diagram of a tank with crossed arrows indicating flow or movement, no text or symbols present

Simple line drawing of a cooking pot with upward and downward arrows indicating pressure or direction (no text or symbols)

Simple diagram showing a rectangular object with a vertical line and two empty circles (no text or symbols)

Two identical diagrams showing a central sphere with two handles, flanked by empty circles and horizontal lines, no text or symbols present.

Simple diagram with two oval shapes and two empty circles, no text or symbols present

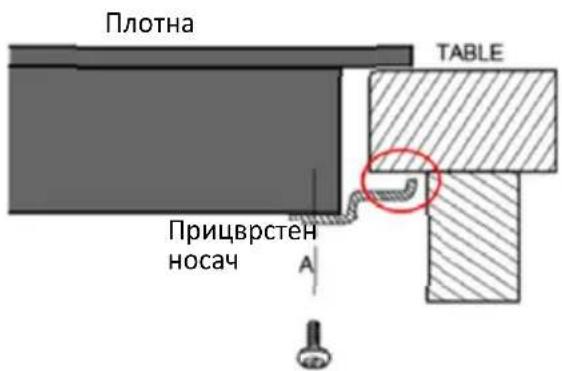

НАПОМЕНА:

A (mm) B	(mm) C (mm)	D E
760 50	mini 20mini Внес на		воздух	Излез на воздух 5 mm

Technical line drawing of a rectangular frame with four labeled corner points (A, B, C, D) and mounting holes, no text or symbols present.

Simple line drawing of a mechanical bracket or bracket with a mounting hole, enclosed in a circle (no text or symbols)

A B	C D
Vijak	Pričvrsni nosač	Rupa za vijak	Baza

Pure electrical circuit lines without any symbols

I nderuari konsumator,

Warning symbol with exclamation mark inside a triangle (no text or numbers)

ARALAJMËRIME TË RËNDËSISHME

Diagram of a steam heating system with cooling unit and two control panels (no text or symbols)

Ena e hekurt

Qarku magnetik

Simple line drawing of a hand pressing a curved object on a horizontal line with a checkmark below (no text or symbols)

Simple line drawing of a hand holding a small object above a horizontal line with an 'X' symbol below (no text or labels)

Simple line drawing of a cooking pot with crossed-out X marks (no text or symbols)

Simple line drawing of a cooking pot with crossed-out X marks, no text or symbols present

Simple line drawing of a cooking pot on a stove (no text or symbols)

Four identical cooking pots with crossed-out X marks, shown in sequence (no text or symbols)

FILLIMI PJEKJES/ GATIMIT

Simple diagram showing a rectangular object with a vertical line and two empty circles (no text or symbols)

Two identical diagrams showing a central sphere with crosshairs and two empty circles, each paired with a horizontal line and a vertical line (no text or symbols)

Simple diagram with two oval shapes and three empty circles, no text or symbols present

Vërejtje:

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)	F(mm)
590	520	60	56	560+4 +1	490+4 +1	50 mini	3 min.

Në çdo rrethanë,

A (mm) B	(mm) C (mm)	D E
760 50 min.	20mini Air intake	Air exit	5 mm

Technical line drawing of a rectangular electronic component with labeled parts A, B, C, D, shown alongside an inset view of its internal structure (no text or symbols present)

A B C	D
Screw Bracket Screw		hole	Base

Kujdes

Electrical circuit diagram with two circular components and a plus/minus symbols, no readable text or labels

Spoštovani,

Warning triangle with exclamation mark symbol (no text or numbers)

SIGURNOSNA UPOZORENJA.

Diagram of a steam heating machine with cooling fans and heat exchangers (no text or symbols)

IZBIRA PRAVILNE POSODE ZA KUHANJE

OPOZORILO

Uporabite posodo, ki ima dno, prilagojeno za indukcijsko kuhanje.

Simple line drawing of a cooking pot with a U-shaped tube attached to its side (no text or symbols)

- Če nimate magneta:

1. V posodo nalijte vodo.
2. Če na zaslonu ne utripa in se voda v posodi segreje, je posoda primerna za idukcijsko kuhanje

Three identical cooking pots with crossed-out X symbols on their bases, no text or labels present.

Diagram of a cooking pot with crossed arrows indicating pressure or movement (no text or symbols)

Simple line drawing of a cooking pot with upward and downward arrows indicating pressure or direction (no text or symbols)

PRIČETEK KUHANJA

Simple diagram showing a rectangular object with a vertical line and two empty circles (no text or symbols)

Two identical diagrams showing a central object with two handles, each paired with an empty circle and horizontal lines (no text or symbols)

Simple diagram with two oval shapes and two empty circles, no text or symbols present

OPOMBA:

A (mm) B	(mm) C (mm)	D E
760 50	mini 20mini Air	intake Air exit	5 mm

Pred namestitvijo pritrdilnega nosilca

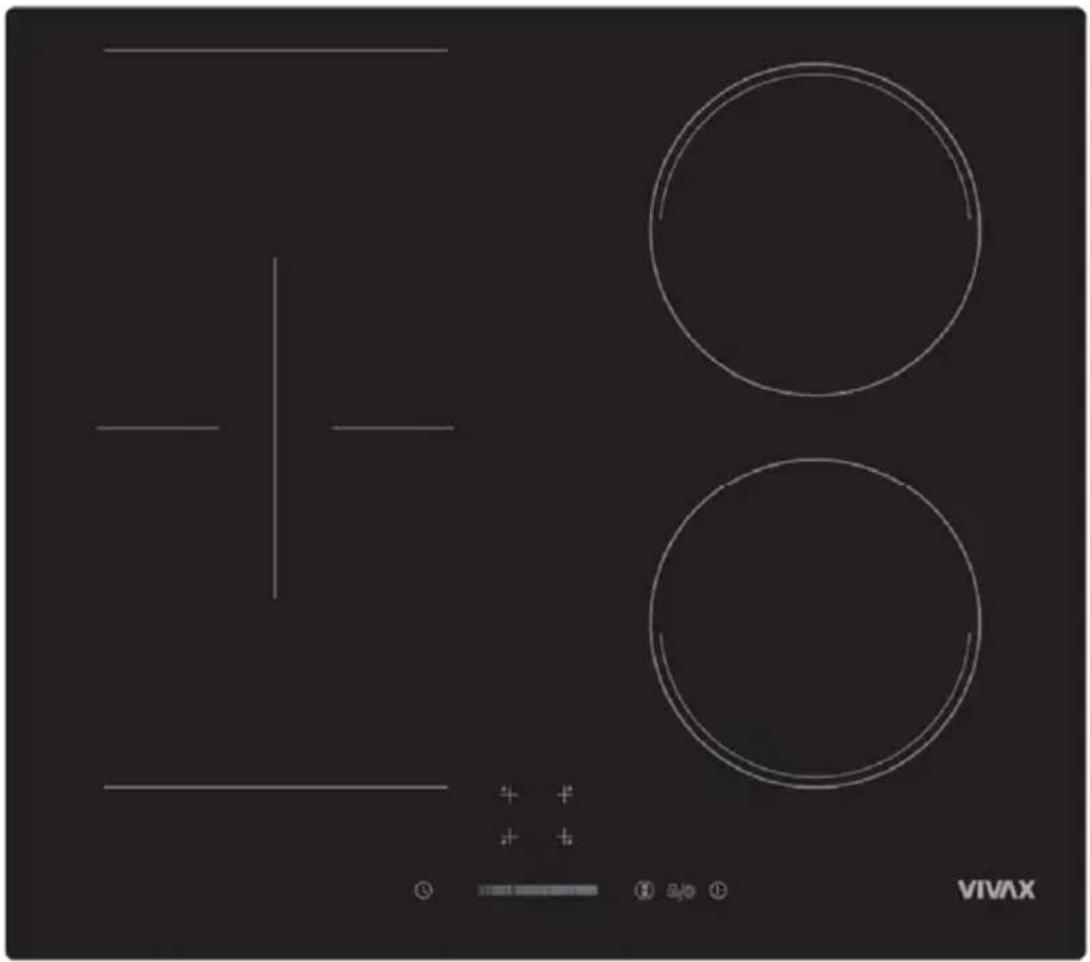

Induction Built-in Hob

BH-042IN

BH-042IN X

Product size: 590 x 520 x 55 mm

Pure electrical circuit lines without any symbols

Dear Customer,

Pieces of packaging (plastic bags, polystyrene etc.) must not be left within reach of children, as they are potentially dangerous.

Please dispose of packaging thoughtfully by the appropriate means.

To this effect, we recommend that you read the entire guide carefully before operating the product and keep it as a reference. If you transfer the device to a third party, please give them this manual, to the new owner familiar with the device functions and warnings relevant to the safe use of the device.

Warning: All our appliances are only for domestic use, not for commercial use.

THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE REGULATIONS IN FORCE AND ONLY USED IN A WELL VENTILATED SPACE. READ THE INSTRUCTIONS BEFORE INSTALLING OR USING THIS APPLIANCE

WARNING: MAINTENANCE

Do not allow sugar, sauces or juices to burn on the cooking plate.

This can DAMAGE the glass surface or even melt of the glass surface or make subsequent cleaning much more difficult!

The light color change on the plate are normal and don't have any influence on working performances.

Warning triangle with exclamation mark symbol (no text or numbers)

IMPORTANT AND SAFETY

WARNINGS .

This appliance complies with electromagnetic safety standards.

However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field.

Failure to follow this advice may result in death.

Do not place or leave any magnetisable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the appliance, as they may be affected by its electromagnetic field.

• WARNING: This appliance must be earthed!
• Please find required information as power and ratings for your cooker from rating label is which located behind of appliance.
• Ensure that the electricity supply is turned OFF before installing your appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its services agent or similar qualified persons in order to avoid hazard.
• Keep the electrical cable of your cooker away from the hot areas; do not let them touch the appliance. Keep them away from sharp sides and heated surfaces.
• Usage of your appliance creates moisture and heat in the room; make sure that your kitchen is well ventilated.
• Prolonged intensive use of the appliance may call for additional ventilation, for example opening increasing the level of mechanical ventilation where present.

- When the cooker is hot never touch the cooker glass by hand.

- This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating. All our appliances are only for domestic use, not for commercial use.

- Before starting to use your appliance, keep curtains, paper or inflammable things away from your appliance. Do not keep combustible or inflammable things in or near the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are supervised.

- Use glove when using cooker. Do not touch on hot surfaces.

- Do not use cooker in potentially explosive atmospheres.

- If the current rate of the fuse in your installation is less than 16 Amp, have a qualified electrician fit a16 Amp fuse.

- When the oven is being used, some parts may become hot; children should be kept away and supervised at all times.

- Do not splash cool water in an oven tray or inside the oven when the surface of the appliance is still hot. Arising steam may cause burns and sudden temperature exchange may cause damages on the surface of the appliance

- WARNING: Accessible parts may become hot during use. Young children should be kept away.

- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

Children less than 8 years of age shall be kept away unless continuously supervised.

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface which may result in shattering of the glass.
  • A steam cleaner is not to be used.
• On burners or electric hot plates should not put unstable or deformed pots to prevent their roll over, which can cause injury.
• If the current rate of the fuse in your installation is less than 32 Ampere, have a qualified electrician fit a 32 A fuse. (only for models with 4 Hot plates)
• This appliance is produced in accordance with the safety regulations. Incorrect use will harm people and appliance.
• The cooker must be supplied via a suitable double pole isolating switch, having contact separation of at least 3 mm in all poles placed in a readily accessible position adjacent to the unit.
• Children should be supervised to ensure that they do not play with the appliance. Never let them play with the appliance.
• The cooker may be located in a kitchen, a kitchen/diner or bed-sitting room but not in a room containing a bath or shower.
• CAUTION: glass lids may shatter when heated.

Turn off all the burners before shutting the lid. Hob surface should be allowed to cool before closing the lid!

Any spillage should be removed from the lid before opening.

• Do not put flammable, combustible, explosive liquid able or deformable by heat any material in the oven against possible risk of danger even if your appliance is not in use.

• Bread may catch fire if the toasting time is too long. Close supervision is necessary during toasting and cooking.

• CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

• WARNING: Before cleaning, servicing or obtaining access to terminals, all supply circuits must be disconnected.
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket (wet kitchen cloth).
• WARNING: Danger of fire: do not store items on the cooking surfaces.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system
• WARNING: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Never place an empty pan on the burner or electric. panel that works.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• The glass ceramic can be damaged by objects falling onto it.
• If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass ceramic or similar material which protect live parts
• Do not attempt to repair the appliance yourself, please contact an authorized service center. Contact an authorized service center and insist on the use of original spare parts.

POSITION OF THE APPLIANCE

Before you start to use appliance, please carefully read "IMPORTANT AND SAFETY WARNINGS" chapter!

Before using hob plate, please remove all flammable tapes, styrofoam or any other ambalage materials on cooker. Also take out user manual and other flammable materials from appliance.

The appliance must not be installed close to the decorative doors or cabinets.

This device should use only after you installed into kitchen cabinet or base.

Allow disconnection of the appliance after installation, by accessible plug or switch in the fixed wiring.

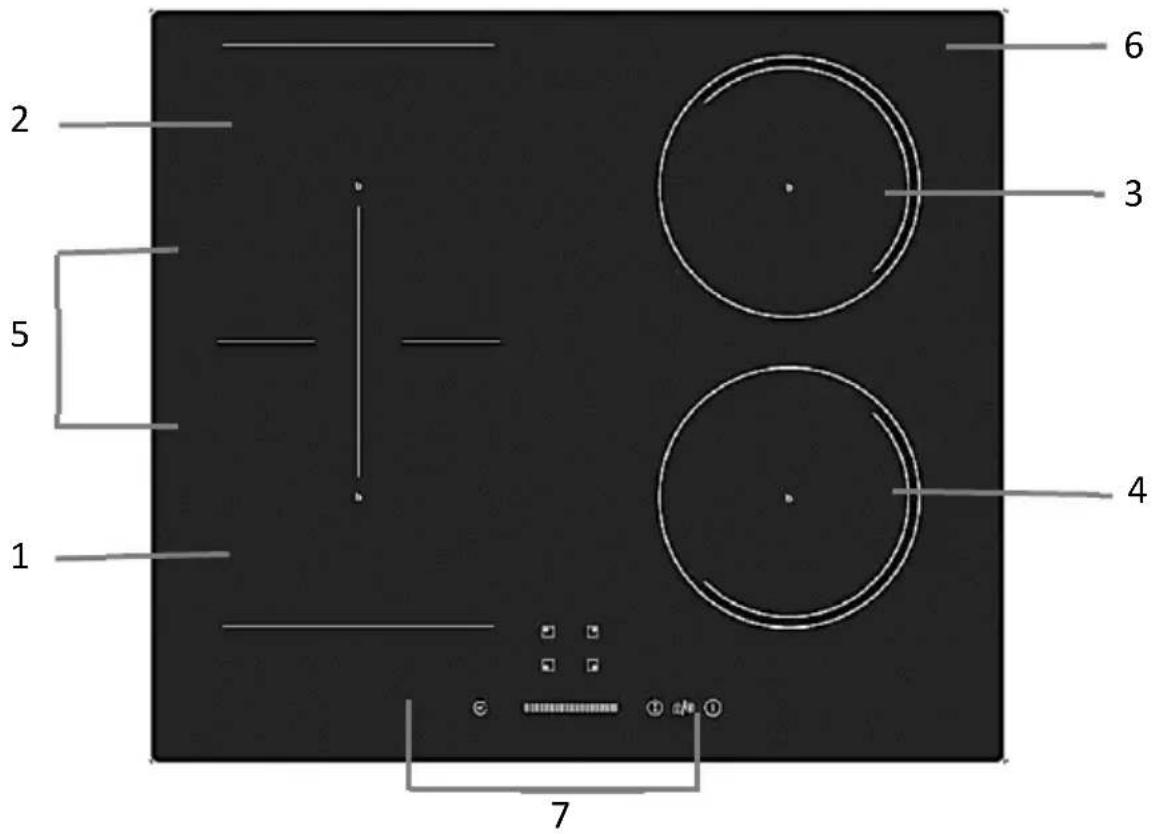

MAIN PARTS

1. Max. 1500/2000 W Zone
2. Max 1500/2000 W Zone
3. Max.1500/2000 W Zone
4. Max. 1500/2000 W Zone
5. Max. 3000/3500 W Flexible Zone
6. Glass Plate
7. Control Panel

CONTROL PANEL

1. Heating zone selection controls
2. Timer control
3. Power / Timer slider touch control
4. Flexible Area control
5. Keylock / Pause control
6. ON/OFF control

HOW THE INDUCTION HOB WORKS

Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up.

Simple line drawing of a steam machine with cooling fans and heat dissipation lines (no text or symbols)

Iron pot
Magnetic circuit Ceramic glass plate Induction coil Induced currents

COOKER USE

TOUCH CONTROLS

- The controls respond to touch, so you don't need to apply any pressure.

• Use the ball of your finger, not its tip.

- You will hear a beep each time a touch is registered.

- Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a c loth) covering them. Even a thin film of water may make the controls difficult to operate.

CHOOSING THE RIGHT COOKWARE

WARNING

Only use cookware with a base suitable for induction cooking.

Look for the induction symbol on the packaging or on the bottom of the pan.

You can check whether your cookware is suitable by carrying out a magnet test.

Move a magnet towards the base of the pan. If it is attracted, the pan is suitable for induction.

Simple line drawing of a cooking pot with a U-shaped magnet attached (no text or symbols)

• If you do not have a magnet:

1. Put some water in the pan you want to check.
2. If sign on the display does not flash in the display and the water is heating, the pan is suitable.

• Cookware made from the following materials is not suitable:

Pure stainless steel

Aluminium or Copper without a magnetic base

Glass cookware

Wood cookware

Porcelain, ceramic, and earthenware cookware.

- Do not use cookware with jagged edges or a curved base.

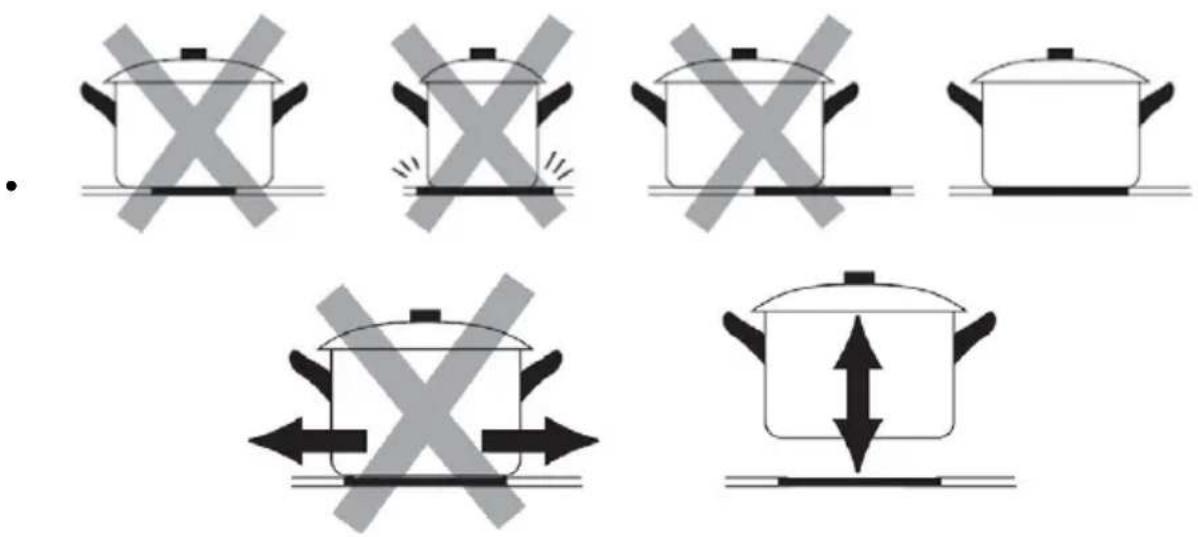

Three identical cooking pots with crossed-out X marks, shown in different orientations (no text or symbols)

- Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone.

START COOKING

After power on, the buzzer beeps once, all the indicators light up for 1 second then go out, indicating that the ceramic hob has entered the stat of standby mode.

Touch the ON/OFF control for three seconds.After power on, the buzzer beeps once, all displays show “-” or “--”, indicating that the induction hob has entered the state of standby mode.
Place a suitable pan on the cooking zone that you wish to use.Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.
Touching the heating zone selection control, and an indicator next to the key will flash.

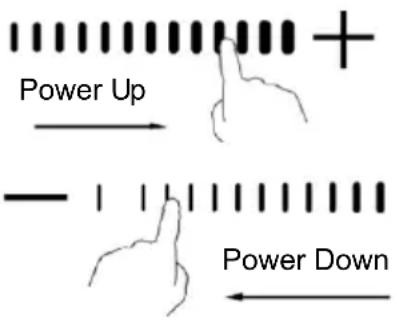

Adjust heat setting by touching the slider control.If you don’t choose a heat setting with thin 1 minute, the ceramic hob will automatically switch off. You will need to start again at step 1.You can modify the heat setting at any time during cooking.You can modify the power level from 0 to 9 by the slide control.

If the display flashes alternately with the heat setting

This means that:

• You have not placed a pan on the correct cooking zone
• The pan you're using is not suitable for induction cooking
• The pan is too small or not properly centered on the cooking zone.

No heating takes place unless there is a suitable pan on the cooking zone.

The display will automatically turn off after 2 minutes if no suitable pan is placed on it.

FINISH COOKING

After power on, the buzzer beeps once, all the indicators light up for 1 second then go out, indicating that the hob has entered the stat of standby mode.

Touching the heating zone selection control that you wish to switch off.
Turn the cooking zone off by touching the slider to “○”. Make sure the display shows “0”.
Turn the whole cooktop off by touching the ON/OFF control.
Beware of hot surfacesH will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

• The function can work in any cooking zone.
  • The cooking zone returns to its original setting after 5 minutes.
  • If the original heat setting equals 0, it will return to 9 after 5 minutes.

BOOST FUNCTION

Activate the boost function
Touch the heating zone selection control
Touch the slider to “b”. Make sure the display shows “b”.
Cancel the Boost function
Touch the heating zone selection control that you wish to cancel the boost function
Select a heat setting by touching the slider control.

• T he function can work in any cooking zone.
• The cooking zone returns to its original setting after 5 minutes.
• If the original heat setting equals 0, it will return to 9 after 5 minutes.

FLEXIBLE AREA

This area can be used as a single Extend zone or as two different zones, accordingly to the cooking needs.

Free area is made of two independent inductors that can be controlled separately.

Activate a Extended big zone

1. To activate the free area as a single big zone, Touching the Flexible Area control (4)

1. As a big zone, we suggest the used as the follow:

- Cookware: 250mm or 280mm diameter cookware (Square or Oval cookware are acceptable)

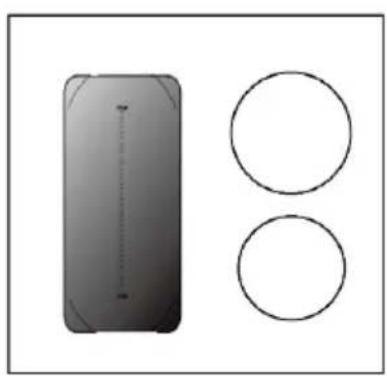

Simple diagram showing a rectangular object with a vertical line and two separate circles (no text or symbols)

We don't recommend other operations except for above mentioned three operations because it might effect the heating of appliance.

As a two separate and independent zones

To use the flexible area as two different zones, you can have two choices of heating

1. Put a pan on the right up side or the right down side of the flexible zone

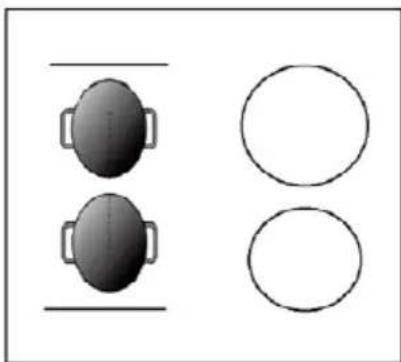

Two identical diagrams showing a central sphere with two handles, flanking a vertical line and a horizontal line, each paired with an empty circle (no text or symbols)

1. Put two pans on both sides of the flexible zone

Simple diagram with two oval shapes and two empty circles, no text or symbols present

NOTE:

Make sure the pan is bigger than 12 cm!

Locking the controls

You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).

When the controls are locked, all the controls except the ON/OFF control are disabled.

To lock the controls
Touch and hold the lock control [IMAGE] for a while.	The timer indicator will show “Lo”
To unlock the controls
Touch and hold the lock control [IMAGE] for a while.

When the hob is in the lock mode, all the controls are disable except the ON/OFF, you can always turn the induction hob off with the ON/OFF control in an emergency, but you shall unlock the hob first in the next operation

Pause function

You can pause the heating instead of shutting the hob off.

When entering the Pause mode, all the controls except the ON/OFF control are disabled.

To enter pause mode
Touch the lock/pause control.	All the indicator will show “II”
To exit pause mode
Touch the lock/pause control.

When the hob is in the pause mode, all the controls are disable except the ON/OFF, you can always turn the induction hob off with the ON/OFF control in an emergency. The hob will shut down after 10min if you don't exit the pause mode

Power Management Function

It is possible to set a maximum power absorption level for the induction hob, choosing up to different power ranges.

Induction hobs are able to limit themselves automatically in order to work at lower power level, to avoid the risk of overloading.

To enter Power Management Function
Turn on the hob, then Press at the same time the Timer control and key lock.	The timer indicator will show “P5” which means power level 5。The default mode is on 7.0Kw。
To switch to another level
Select a power level by touching the slider control.	There are 5 power levels, from “P1” to “P5”. The timer indicator will show one of them.“P1”: the maximum power is 2.5Kw.“P2”: the maximum power is 3.5Kw.“P3”: the maximum power is 4.5Kw.“P4”: the maximum power is 5.5Kw.“P5”: the maximum power is 7.0Kw.
Confirmation and Exit Power Management Function
Press at the same time + (timer) and key lock for confirmation.	Then the hob will be turned off.

TIMER CONTROL

You can use the timer in two different ways:

1. You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.

2. You can set it to turn one or more cooking zones off after the set time is up.

• The timer of maximum is 99 minutes

Using the Timer as a Minute Minder

If you are not selecting any cooking zone

Make sure the cooktop is turned on. Note: you can use the minute minder even if you're not selecting any cooking zone.
Touch the timer control, the timer indicator will show “10”; And the “0” will flash;
Set the time by touching the slider control. (e.g. 5)
Touch the timer control again, the “1” will flash; Adjust the timer setting by touch the slider control and modify the time from 0 to 9; Note: It will be automatically confirmed if there is no operation within 5s.
Set the time by touching the slider control (e.g.9), now the timer you set is 95 minutes.
When the time is set, it will begin to count down immediately. The display will show the remaining time.
Buzzer will beep for 30 seconds and the timer indicator shows “- -” when the setting time finished.

Setting the timer to turn one or more cooking zones off

SET ONE ZONE
Touching the heating zone selection control
Touch the timer control, the timer indicator show “10”, and the “0” will flash.
Set the time by touching the slider control. (e.g. 5)
Touch timer control again, the “1” will flash.
Set the time by touching the slider control (e.g.9), now the timer you set is 95 minutes.
When the time is set, it will begin to count down immediately. The display will show the remaining time.NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected.
When cooking timer expires, the corresponding cooking zone will be switched off automatically.
Touch the slider control to set the timer to “00”, the timer is cancelled.

Cancel the Timer

Touching the heating zone selection control that you want to cancel the timer.
Touching the timer control, the indicator flash.
Touch the slider control to set the timer to “00”, the timer is cancelled.

Default working times

Auto shut down is a safety protection function for your induction hob. It shut down automatically if ever you forget to turn off your cooking. The default working times for various power levels are shown in the below table

Power level	1 2	3 4	5 6	7 8	9
Default working timer (hour)	8 8	8 4	4 4	2 2	2

NOTE:

When the pot is removed, the induction hob can stop heating immediately and the hob automatically switch off after 2 minutes.

People with a heart pace maker should consult with their doctor before using this unit

COOKING GUIDELINES

Take care when frying as the oil and fat heat up very quickly, particularly if you're using PowerBoost. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk.

1. Cooking tips

• When food comes to the boil, reduce the temperature setting.
  • Using a lid will reduce cooking times and save energy by retaining the heat.
• Minimize the amount of liquid or fat to reduce cooking times.

Start cooking on a high setting and reduce the setting when the food has heated through.

The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the Ceramic hob to find the settings that best suit you.

Heat Setting Suitability
1-2	·delicate warming for small amounts of food·melting chocolate, butter, and foods that burn quickly·gentle simmering·slow warming
3-4	·reheating·r apid simmering·cooking rice
5-6	·pancakes
7-8	·sautéing·cooking pasta
9/P	·stir-frying·searing·bringing soup to the boil·boiling water

CARE AND CLEANING

What? How? Important!
Everyday soiling on glass (fingerprints, marks, stains left by food or non-sugary spillovers on the glass)	1. Switch the power to the cooktop off.2. Apply a cooktop cleaner while the glass is still warm (but not hot!)3. Rinse and wipe dry with a clean cloth or paper towel.4. Switch the power to the cooktop back on.	·When the power to the cooktop is switched off, there will be no ‘hot surface’ indication but the cooking zone may still be hot! Take extreme care.·Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch the glass. Always read the label to check if your cleaner or scourer is suitable.·Never leave cleaning residue on the cooktop: the glass may become stained.
Boilovers, melts, and hot sugary spills on the glass	Remove these immediately with a fish slice, palette knife or razor blade scraper suitable for Ceramic glass cooktops, but beware of hot cooking zone surfaces:1. Switch the power to the cooktop off at the wall.2. Hold the blade or utensil at a 30° angle and scrape the soiling or spill to a cool area of the cooktop.3. Clean the soiling or spill up with a dish cloth or paper towel.4. Follow steps 2 to 4 for ‘Everyday soiling on glass’ above.	·Remove stains left by melts and sugary food or spillovers as soon as possible. If left to cool on the glass, they may be difficult to remove or even permanently damage the glass surface.·Cut hazard: when the safety cover is retracted, the blade in a scraper is razor-sharp. Use with extreme care and always store safely and out of reach of children.
Spillovers on the touch controls	1. Switch the power to the cooktop off.2. Soak up the spill3. Wipe the touch control area with a clean damp sponge or cloth.4. Wipe the area completely dry with a paper towel.5. Switch the power to the cooktop back on.	The cooktop may beep and turn itself off, and the touch controls may not function while there is liquid on them. Make sure you wipe the touch control area dry before turning the cooktop back on.

WARNING

Spilled sauce, fruit juice, etc. should be wiped off as soon as possible with a soft cloth soaked in warm water with a detergent.

Do not allow sauces or juices to burn on the cooking plate. This can DAMAGE the glass surface or even melt of the glass surface or make subsequent cleaning much more difficult! The light color change on the plate are normal and don't have any influence on working performances.

Do not use a steel wool or knives to clean dirt deposits. Grease the deposits with a cloth soaked with a very damp detergent, but be careful not to scratch glass top.

The light color change on the plate are normal and don't have any influence on working performances.

HINTS AND TIPS

Problem Possible causes What to do
The cooktop cannot Be turned on.	No power. Make sure the ceramic hob is connected to the power supply and that it is switched on.Check whether there is a power outage in your home or area. If you've checked everything and the problem persists, call a qualified technician.
The touch controls are unresponsive.	The controls are locked. Unlock the controls. See section ‘Using your ceramic cooktop’ for instructions.
The touch controls are difficult to operate.	There may be a slight film of water over the controls or you may be using the tip of your finger when touching the controls.	Make sure the touch control area is dry and use the ball of your finger when touching the controls.
The glass is being scratched.	Rough-edged cookware. Use cookware with flat and smooth bases. See ‘Choosing the right cookware’.See ‘Care and cleaning’.
Some pans make crackling or clicking noises.	This may be caused by the construction of your cookware (layers of different metals vibrating differently).	This is normal for cookware and does not indicate a fault.

TROUBLESHOOTING

1) Failure code occur during customer using & Solution;

Failure code	Problem Solution
Auto-Recovery
E1	Supply voltage is above the rated voltage.	Please inspect whether power supply is normal.Power on after the power supply is normal.
E2	Supply voltage is below the rated voltage.
E3	High temperature of ceramic plate sensor . (1#)	Wait for the temperature of ceramic plate return to normal.Touch “ON/OFF” button to restart unit.
E4	High temperature of ceramic plate sensor . (2#)
E5	High temperature of IGBT . (1#)	Wait for the temperature of IGBT return to normal.Touch “ON/OFF” button to restart unit.Check whether the fan runs smoothly;if not , replace the fan.
E6	High temperature of IGBT . (2#)
No Auto-Recovery
F3/F6	Ceramic plate temperature sensor failure- -short circuit. (F3 for 1#,F6 for2#)	Check the connection or replace the ceramic plate temperature sensor.
F4/F7	Ceramic plate temperature sensor failure--open circuit. (F4 for 1#,F7 for2#)
F5/F8	Ceramic plate temperature sensor failure—invalid . (F5 for 1#,F8 for2#)
F9/FA	Temperature sensor of the IGBT failure. (short circuit/open circuit for 1#)	Replace the power board.
FC /FD	Temperature sensor of the IGBT failure. (short circuit/open circuit for 2#)

2) Specific Failure & Solution

Failure Problem Solution A Solution B
The LED does not come on when unit is plugged in.The LED does not come on when unit is plugged in.	No power supplied.	Check to see if plug is secured tightly in outlet and that outlet is working.
	The accessorial power board and the display board connected failure.	Check the connection.
	The accessorial power board is damaged.	Replace the accessorial power board.
	The display board is damaged.	Replace the display board.
Some buttons can't work, or the LED display is not normal.	The display board is damaged.	Replace the display board.
The Cooking Mode Indicator comes on, but heating does not start.	High temperature of the hob.	Ambient temperature may be too high. Air Intake or Air Vent may be blocked.
	There is something wrong with the fan.	Check whether the fan runs smoothly; if not , replace the fan.
	The power board is damaged.	Replace the power board.
Heating stops suddenly during operation and the display flashes “u”.	Pan Type is wrong.	Use the proper pot (refer to the instruction manual.)	Pan detection circuit is damaged, replace the
	Pot diameter is too small.
	Cooker has overheated;	Unit is overheated. Wait for temperature to return to normal. Push “ON/OFF” button to restart unit.	power board.
Heating zones of the same side (Such as the first and the second zone) would display “u”.	The power board and the display board connected failure;	Check the connection.
	The display board of communicate part is damaged.	Replace the display board.
	The Main board is damaged.	Replace the power board.
Fan motor sounds abnormal.	The fan motor is damaged.	Replace the fan.

The above are the judgment and inspection of common failures.

Please do not disassemble the unit by yourself to avoid any dangers and damages to the induction hob.

INSTALLATION

Selection of installation equipment

1. Cut out the work surface according to the sizes shown in the drawing.

For the purpose of installation and use, a minimum of 50mm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:

NOTE: The safety distance between the sides of the hob and the inner surfaces of the worktop should be at least 3mm.

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)	F(mm)
590 52	0 60	56	560+4	+1	490+4 +1	50 mini	3 min.

Under any circumstances, make sure the ceramic cooker hob is well

ventilated and the air inlet and outlet are not blocked. Ensure the ceramic cooker hob is in good work state. As shown below.

Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.

A (mm) B	(mm) C (mm)	D E
760 50 min.	20mini Air intake	Air exit	5 mm

Before locating the fixing brackets

The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

Fix the hob on the work surface by screw four brackets on the bottom of hob (see picture) after installation. Adjust the bracket position to suit for different work surface's thickness.

A B C D
Screw Bracket Screw		hole	Base

Adjust the bracket position to suit for different work surface's thickness.

Cautions

1. The ceramic cooker hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.
2. The ceramic cooker hob shall not be mounted to cooling equipment, dishwashers and rotary dryers.
3. The ceramic cooker hob shall be installed such that better heat radiation can be ensured to enhance its reliability.
4. The wall and induced heating zone above the work surface shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.
6. A steam cleaner is not to be used.
7. This ceramic can be connected only to a supply with system impedance no more than 027 ohm. In case necessary, please consult your supply authority for system impedance information.

Connecting the hob to the mains power supply

The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. the method of connection is shown below.

1. If the cable is damaged or needs r eplacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents.
2. If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3mm between the contacts.
3. The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations.
4. The cable must not be bent or compressed.
5. The cable must be checked regularly and only replaced by a properly qualified person.

Dual-phase electric connection

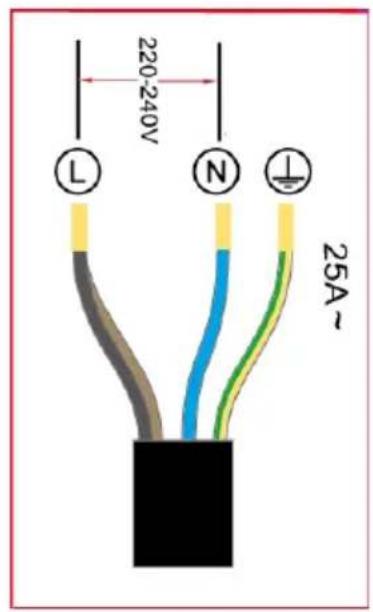

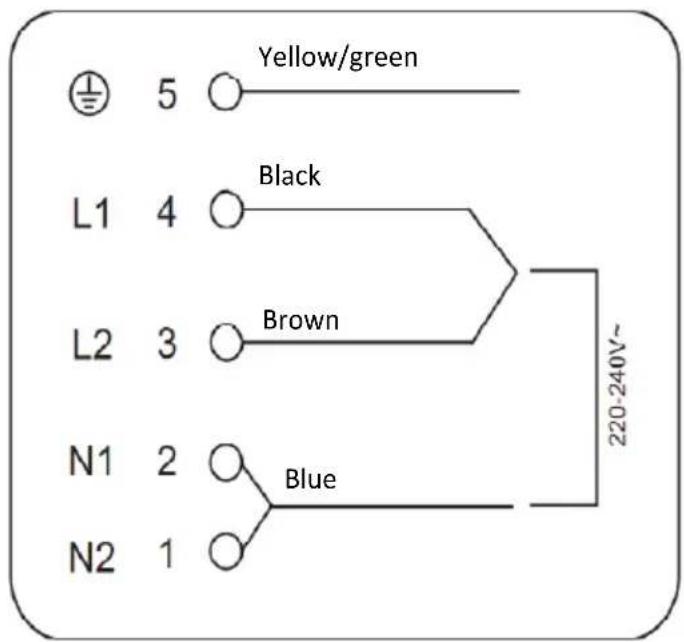

Single-phase electric connection

If the total number of heating unit of the appliance you choose is not bigger than 4, the appliance can be connected directly to the mains by single-phase electric connection, as shown below

TECHNICAL SPECS

Cooking Hob	BH-042INBH-042IN X
Cooking Zone 4 Zones
Supply Voltage	220-240V~50Hz or 60Hz380-415V 3N~50Hz or 60Hz
Installed Electric Power 7000 W
Product Size DxWxH (mm) 590 x 520 x 55
Building-in Dimensions AxB (mm) 560 x 490

Disposal of Electrical and Electronic Equipment

To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic.

The symbol of the crossed indicates that this product must be returned to the collection point for electronic waste to feed it by recycling the best possible raw

material recycling.

By ensuring this product you will prevent possible negative effects on the environment and human health, which could otherwise be caused due to improper disposal of that product. The recycling of materials from this product, you will help to preserve a healthy environment and natural resources.

For detailed information about the collection of EE products contact the dealer where you purchased the product.

EU Declaraton of Conformity

This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations.

EU declaration of conformity can be downloaded from the following link: www.msan.hr/dokumentacijaartikala

JAMSTVENI LIST HR

VIVAX

MODEL UREĐAJA

SERIJSKI BROJ

DATUM PRODAJE

BROJ RAČUNA PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

1. Ovim jamstvom M SAN Grupa kao davatelj jamstva u Republici Hrvatskoj jamči besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom jamstvenom listu.
   Ovim jamstvom jamčimo da će predmet ovog jamstva raditi bez pogreške uzrokovane eventualnom lošom izradom ili lošim materijalom izrade. Svi, eventualno nastali, kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u jamstvenom roku.

2. UVJETI JAMSTVA Jamstveni rok počinje od dana kupnje proizvoda i traje:

60 MJESECI (5 godina)	HLADNJACI,VERTIKALNE I HORIZONTALNE LEDENICE
36 MJESECI (3 godine)	SAMOSTOJEĆI ŠTEDNJACI, PERILICE I SUŠILICERUBLJA, PERILICE SUĐA, KUHINJSKE NAPEUGRADBENE PEĆNICE I PLOČE, KUHINJSKE NAPEGRIJALICE VODE

1. U slučaju kvara na proizvodu koji je predmet ovog jamstva, obvezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Jamstvo će biti produženo za vrijeme trajanja popravka.

2. Jamstvo se priznaje samo uz račun o kupnji, te uz ovaj jamstveni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.

3. JAMSTVO NE OBUHVAĆA

POTPIS I PEČAT PRODAVATELJA

GARANCIJSKA IZJAVA

1. Ovom garancijom garantira proizvođač proizvoda, preko KIM TEC d.o.o., kao uvoznika i davatelja garancije u Bosni i Hercegovini besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom garantnom listu. Ovom garancijom garantiramo da će predmet ove garancije raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u garantnom roku.

2. UVJETI GARANCIJE: Garantni rok počinje teći od dana kupnje proizvoda i traje:

60 MJESECI (5 godina)	HLADNJACI,VERTIKALNE I HORIZONTALNE ŠKRINJE
36 MJESECI (3 godine)	ŠTEDNJACI, PERILICE I SUŠILICE RUBLJA, PERILICESUĐA, KUHINJSKE NAPE, UGRADBENE PEĆNICE IPLOČE, GRIJALICE VODE

1. U slučaju kvara na proizvodu koji je predmet ove garancije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim.
2. Garancija se priznaje samo uz račun o kupnji, te uz ovaj garantni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.
3. Davalac garancije osigurava servis i rezervne dijelove 7 godina od datuma kupnje.

GARANCIJA NE OBUHVAĆA:
