PURETEE - Air purifier Eta - Free user manual and instructions

Product Type	Air Purifier
Brand	Eta
Model	PURETEE
Dimensions (H x W x D)	35 cm x 20 cm x 20 cm
Weight	2.5 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	30 W
Noise Level	≤ 55 dB
Coverage Area	Up to 30 m²
Fan Speeds	3 speeds (Low, Medium, High)
Timer	2/4/8 hours
Filtration System	Pre-filter + HEPA filter + Activated carbon filter
Filter Replacement Indicator	Yes
Maintenance	Clean pre-filter every 2 weeks; replace HEPA/carbon filter every 6 months
Safety Features	Auto shut-off when cover opened; child lock
Spare Parts	Replacement filter set (pre-filter, HEPA, carbon) available
Warranty	2 years

Frequently Asked Questions - PURETEE Eta

How often should I replace the filters?

The pre-filter should be cleaned every 2 weeks. The HEPA and activated carbon filters should be replaced every 6 months, or earlier if the filter replacement indicator lights up.

Can I wash the HEPA filter?

No, the HEPA filter is not washable. Only the pre-filter can be cleaned with a vacuum or rinsed with water (make sure it is completely dry before reinserting).

What is the recommended room size for this purifier?

The Eta PURETEE is designed for rooms up to 30 m². For optimal performance, keep doors and windows closed.

Is the purifier noisy?

Noise level is up to 55 dB on the highest setting, which is comparable to a quiet conversation. On low speed, it is nearly silent.

Does it have a timer function?

Yes, the timer can be set to 2, 4, or 8 hours. The purifier will automatically turn off after the selected time.

How do I reset the filter replacement indicator?

After replacing the filters, press and hold the timer button for 3 seconds until the indicator light turns off.

Can I use the purifier overnight?

Yes, it is safe to use overnight. You can set the timer or use the low speed mode for quiet operation.

What safety features does it have?

The purifier includes an auto shut-off when the front cover is opened, and a child lock function to prevent accidental changes to settings.

Where can I buy replacement filters?

Replacement filters are available from authorized Eta retailers, online stores, or directly from the Eta website. Use the model number PURETEE to find compatible filters.

How do I clean the pre-filter?

Remove the pre-filter from the back of the unit. Vacuum it gently or rinse it under lukewarm water. Let it dry completely before putting it back. Do not use detergents.

USER MANUAL PURETEE Eta

White PURETEE air purifier with perforated grille and control panel (no visible text or symbols on body)

1
B

2

3

Zone 0 = Internal space for a bathtub or a shower unit

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. SAFETY WARNING

Special warnings and information

• This appliance includes ultraviolet radiator UV-C. Improper use of or damage to the appliance may result in leak of dangerous UV-C radiation. Even a small concentration of the radiation may cause damage to eyes and skin.
• MERCURY WARNING – As UV lamp contains mercury, do not throw it in regular wastes! UV lamp is a hazardous waste that must be liquidated in accordance with the applicable regulations of national legislation.
• Never look into the UV lamp or put your face near the front or back part during operation
• To avoid overexposing to ultraviolet light, people and animals must be at least 30~cm from the device. A short exposition to the light in close proximity is safe.
• This appliance complies with the limits of the maximum admissible ozone concentration (0.05 ppmv/24h).

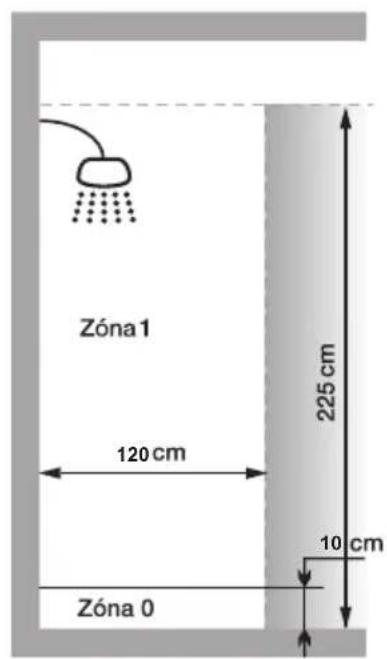

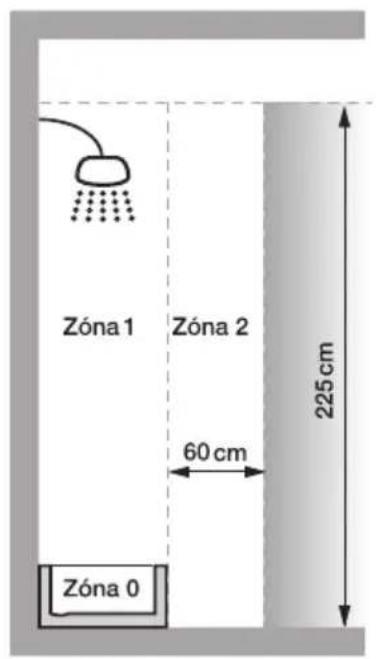

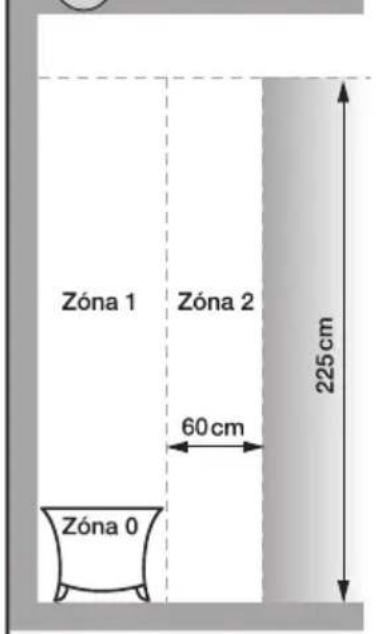

- Do not use the appliance in bathrooms in zones 0, 1 and 2 (Fig. 3)!

- Do not place the appliance under electrical socket. For safety reasons, leave the minimum distance of 0.5 ~m between the appliance and any obstacle on any side (furniture, walls, etc.).

- Do not immerse the cleaner in water or other liquids (not even partially) and must not be used in close proximity of bathtubs, showers, basins or other containers with water, including pools! It must not be used in a damp or wet environment! If the cleaner should still fall in water, do not take it out! Unplug the plug of the adaptor from the socket first and only then take out the device. In such cases, the device shall be taken to an expert service centre to be checked for safety and correct functionality.

- Do not use the device in places (e.g. workshops, manufacture plants, garages or other technical rooms) where there are hot, flammable and explosive materials (e.g. ashes, burning cigarette butts, gasoline, diluents, dissolvent and aerosol fumes) or lubricants (e.g. fats, oils), chemicals, caustic agents (e.g. acids, dissolvent, paints). Sucking in the flammable and explosive gases, the filters or the cleaner can be damaged or can cause fire, explosion or electrical shock. The air is ionized by microscopic el. sparking (so called corona discharge) which can set flammable substances on fire.

- Do not use textile or other materials (e.g. drapes, curtains, blankets) to cover this device. If the air inlets and outlets are covered, it will cause abnormal operation and may lead to fire or other accident. Do not put the cleaner on soft surfaces (e.g. bed, towels, kitchen towels, carpets) while it is on.

• This appliance is not intended for outdoor use.
• Always place the device on flat, dry surface and use it only in vertical position. Do not move the device during operation.
• To ensure flawless circulation of all the air in the room, do not use the device in niches, narrow hallways or behind furniture.
• Do not place the device near gas appliances, fireplaces and open flames. Not even near fireplaces which are not currently in use. Dust and soot may circulate through the cleaner and consequently settle in the device and the room. We do not recommend placing the device nowhere near burning candles, paraffin lamps etc.
• Place the device in a good distance (at least 1 meter) from a computer, television or radio. You can thus avoid interference and distortion when operating these devices.
• Do not place the appliance directly under a smoke detector, as its sensibility might be decreased.
• Only use the appliance in the working position at places with no risk of overturning and in a sufficient distance from other objects (such as curtains, drapes, etc.), heat sources (e.g. fireplace, heater, stove, cooker, radiators, hot air ovens, grills) and wet surfaces (e.g. sinks, wash basins).

General warnings and information

• Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.
• Check whether the data on the type label corresponds with the voltage in your socket (this product is designed to operate within a range of 100-240 volts). The adaptor plug may only be connected to the electrical socket complying with the applicable standards.
• This appliance may only be used by children aged 8 years or older, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children younger than 8 years must be kept out of reach of the appliance and its power cord.
• To power the appliance, only use the adapter included.
• Before exchanging any accessories or accessible parts that are moving during use, before assembly and disassembly, before cleaning and maintenance, when carrying, when you leave it unattended or after finishing the work, switch off the appliance and disconnect it from mains by unplugging the adaptor plug from the electrical socket!
• For additional protection, install current protection (RCD) with the nominal release current not exceeding 30mA. Ask a revision technician or an electrician for advice.
• If the adaptor of the adaptor is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.

- Never use the appliance if its adaptor or plug is damaged, if it does not work properly, if it fell down and was damaged. In this case take the appliance to a special service to check its safety and proper function.

- ATTENTION: Do not use this heater in series with an external timer, remote controller or any other device that switches on the appliance automatically, since a fire risk exists when the heater is accidentally covered or displaced at the moment it switches on.

- Do not handle the appliance with wet hands.

- Do not plug the power cord in the electrical socket and do not unplug it with wet hands or by pulling the power cord!

– High voltage inside the device may cause electrical shock.

- Do not leave the device exposed to weather (e.g. rain, freeze, direct sunlight and temperatures exceeding 60^ C ).

- Never let the flow of air blow on you (or animals) for an extended period of time. It may cause health problems.

- Check the correct position of filters. Otherwise the device can not be put to operation.

- Pay attention not to put fingers, parts of body, loose clothes, jewellery and other objects into the air openings when operating.

- Apart from regular basic maintenance and cleaning (potential replacements) of filters should any other maintenance and repair be done by a professional service centre personnel. Not following this requirement may lead to warranty termination.

- Do not use the purifier as a substitution for proper ventilation, for example as a source of fresh air or as a substitution for forced ventilation (kitchen, extraordinarily dusty environment, etc.).

- Never immerse the network adapter or the purifier unit (not even part of it) in water and protect them against wet or damp conditions!

- Do not plug the appliance during storms.

- Never use the appliance without inserted filter, UV lamp and without properly fixed UV lamp cover. Do not use it when filter, UV lamp or other components fixing/protecting UV lamp are damaged.

- Do not let foreign objects to get into the device. High voltage inside the device may cause electrical shock. Do not let children touch the device.

- The air cleaner is an electrical device. If it is used in the presence of children, supervision by a responsible adult person is necessary.

- Only use original components designed for this type.

- To avoid stumbling, lead the cable outside the regular walking areas.

- Check the condition of the power cord of the appliance regularly.

- Never put the power cord on hot surfaces and never let it hang over table edge or worktop edge. If the cord is caught or pulled, e.g. by children, the appliance may overturn and fall down, causing a serious injury!

- If you need to use an extension cord for justified reasons, it must be undamaged and comply with the applicable standards.

- Only use this appliance for the purpose it was designed for, as specified in this manual. Never use the appliance for any other purpose.

- WARNING: There is a risk of injury when the appliance is not used correctly (not in accordance with the manual).

- The manufacturer assumes no responsibility for any damage caused by improper handling of the appliance and its accessories (e.g. electric shock, fire), and the appliance guarantee will become void if any of the aforementioned safety instructions are not observed.

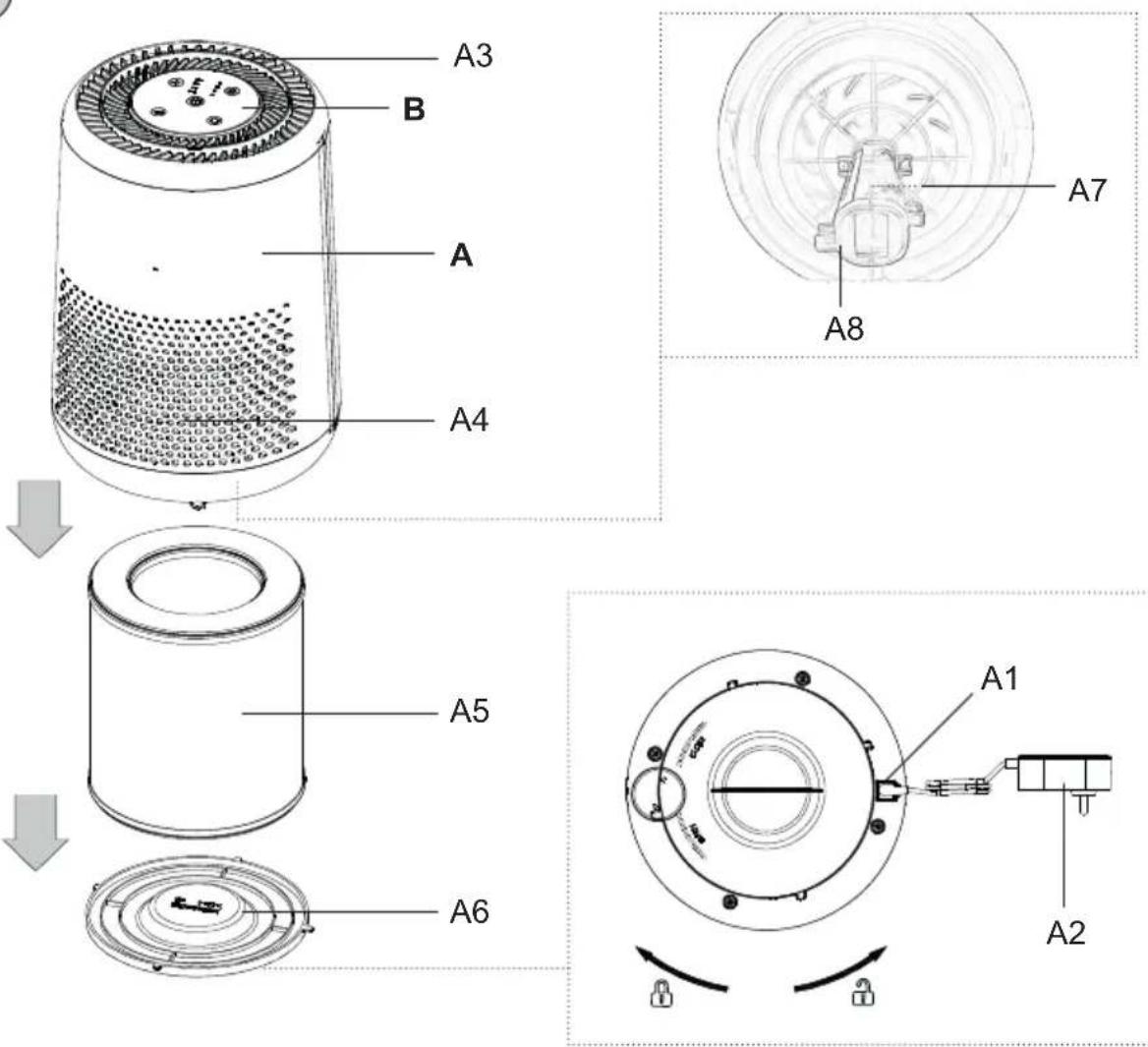

II. DESCRIPTION OF THE APPLIANCE (Fig. 1,2)

A - Main unit (Fig. 2)

A1 – socket for the mains cable A5 – HEPA filter 3 in 1

A2 – the mains adapter A6 – Filter cover

A3 – Air outlet A7 – UV lamp

A4 – Air inlet A8 – UV lamp cover

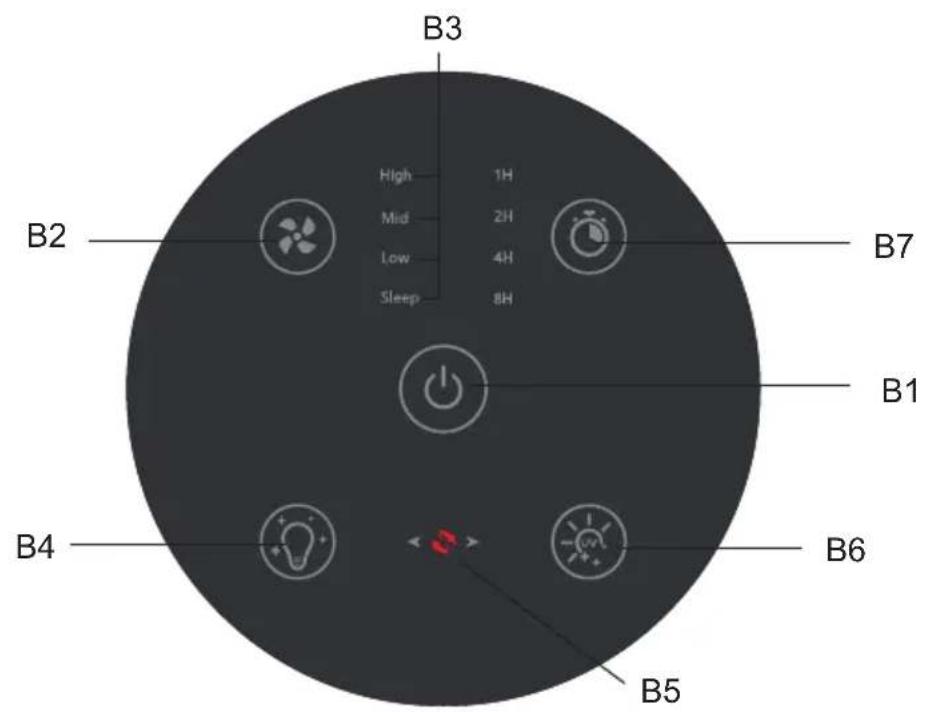

B - Control panel (Fig. 1)

B1 – Switch on/off button ( ⏻ ) B5 – Filter replacement indicator

B2 – Fan speed button ( ) B6 – UV disinfection function button

B3 – Speed level indicators B7 – Timer button

B4 – night light button ( )

III. INSTRUCTIONS FOR USE

Before first use, remove any packaging and protective material (including any protective film) from the appliance and accessories.

CONTROLS

After switching the purifier into standby mode, plug the adaptor cable in electrical socket. Acoustic signal will sound, and all indicator lights will turn on for a moment. Then the B1 button remains lit.

Switch on/off button B1 – Press the button to switch on the purifier in the basic filtration mode (speed Low). The set functions may be cancelled by repeated pressing of these button, and the purifier may be switched back to the standby mode.

Fan speed button B2 – You can switch the fan speed by repeated pressing of this button as follows: High – Mid – Low – SLEEP. The respective indicator light B3 will indicate the respective speed setting.

The B4 light button – when the appliance is on, the nightlight in the lower part of the purifier is activated. Press the button again to turn off the light.

SLEEP – Pressing B2 button to SLEEP activates silent mode recommended for night operation. The cleaner will operate at the lowest speed level, and without any light signals. The function may be disabled by pressing B1/B2 button.

UV function button B6 – Press this button to activate UV sterilization of the air flowing through. The function activity is indicated by blue backlight of UV function ionization button. Press the button to switch off the function.

Timer button B7 – Press this button to activate sleep function to switch off the device after 1, 2, 4 or 8 hours. After the set period expires, the purifier shall automatically switch to standby mode. You may set the following values by pressing the button repeatedly: 1 hour – 2 hours – 4 hours – 8 hours – function switching off ...

FILTER REPLACEMENT

To replace HEPA filter A5, proceed according to Fig. 2. If the filter replacement indicator light B5 is flashing, it indicates end of the filter's service life. B5 indicator light will flash after about 1500 hours of operation – then the filter must be replaced (unless it has been replaced earlier due to impurities and higher dustiness level). To restart the signalisation function after the filter replacement), press B4 and B6 buttons for 3 seconds. The signalisation function must be restarted in the same manner also when you replace the filter before the signalisation light is activated.

UV LAMP A7 REPLACEMENT

The UV lamp is designed for about 15,000 operating hours, this equals to about 20 months of continuous 24/7 operation. Based on the frequency of use, for most users it means they will never need to replace the lamp. However, if you reach the end of its lifecycle, or if you want to dispose of the appliance, please detach it by unscrewing 2 screws on sides which hold the plastic cover A8, where the UV lamp is placed. There are several jumper cables in the UV lamp cover and also in the purifier main unit, which are connected with plastic joints in the middle – it is necessary to detach the cover with the cable here and attach a new lamp. When placing the cover with the lamp back inside the purifier, proceed carefully in order not to squash the cable – place the cable carefully in the hole in the cover/purifier and then screw the cover tightly. If you do not want to replace it yourself for whatever reason, ask a qualified person to do it for you.

IV. MAINTENANCE

Maintenance of the purifier includes cleaning the power unit body and replacement of filter.

Power unit – Only clean the power unit body with slightly damped cloth with non-aggressive cleaning agent added. Do not allow water to get inside! Let the purifier thoroughly dry out before using it again.

HEPA filter A5 – To guarantee proper function and air purification quality, HEPA filter must be replaced in regular intervals. Never wash the filter to avoid reducing the filtration capacity of the filter; only knock it out, vacuum or blow it with compressed air – however this will not fully restore the filtration capacity of the filter. The recommended replacement interval is after 6 months of regular use. New filter order code: ETA056900070

UV lamp A7

UV lamp is designed for about 20 month of non-stop operation. After this period, the lamp will start losing its disinfection qualities, and we recommend replacing it for effective air purification. The lamp replacement interval depends on the frequency of your use of UV disinfection. New UV lamp order code: ETA056900060

V. ENVIRONMENT

Printed signs of materials used for manufacture, packing, components and accessories, as well as their recycling, are on all the pieces if their dimensions enable it. The symbols on the product or in the accompanying documentation mean that the used electric or electronic products must not be disposed together with municipal wastes. Please, hand them over to the collection points designed for their correct disposal, where they will be accepted free of charge. By correct disposal of this product you can help to preserve valuable natural resources and help to prevent possible negative impacts to the environment and to human health, which could be the results of incorrect waste disposal. For further details ask the municipal authorities or the nearest collecting point. Penalties can be charged for incorrect disposal of such wastes, according to national regulations. If the appliance is to be put out of operation definitely, we recommend cutting off the feeder cable, to disable its use.

UV Lamp Disposal

If the UV lamp breaks, turn off the air purifier. DO NOT operate it with a broken lamp. DO NOT use a vacuum to clean up breakage. Sweep debris into a plastic bag and dispose properly.

Contact your local waste management authority for instructions regarding recycling and the proper disposal of old lamp(s). DO NOT place your used lamp(s) in the trash. Disposal of any item containing mercury must be in accordance with any hazardous waste disposal or recycling laws and regulations of your state.

Expert service must do the large maintenance or to intervene into inside parts of the appliance! Non-observance of the instructions of the manufacturer cancels the right for guarantee repair!

VI. TECHNICAL DATA

Voltage (V) shown on the type label of the appliance

Absorbed power (W) shown on the type label of the appliance

Weight (kg) approximately 2

Size of the product (mm) 215 x 215 x 460

Concentration of negative ions 3 mil./cm

Input in off mode is < 0,5 W

3

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

Charging adapter
Manufacturer's name or trademark,business registration number and address	ETA
Model identifier IVP1200-1500G
Input voltage 100-240 V (AC)
Input frequency 50/60 Hz
Output voltage 12 V (DC)
Output current 1.5 A
Output power 18 W
Average efficiency in active mode 87 %
Low load efficiency (10%) 83,7 %
Power consumption without load	0,5 W
Appliance protection class	II.

- Please read the instructions manual

- Removable power supply unit

HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.
